Creating a Floor plan, Footing detail and Isometric view using AutoCad

AIM-  To draw cross section of load bearing wall with spread footing. INTRODUCTION-  Load bearing wall is generally used where load coming on structure are less.  All the coming loads are taken by walls and then transfered to the footing, footing transfers it to soil. Load bearing wall is generally provided…

    • Aparna bhujbal

      updated on 24 Jul 2021

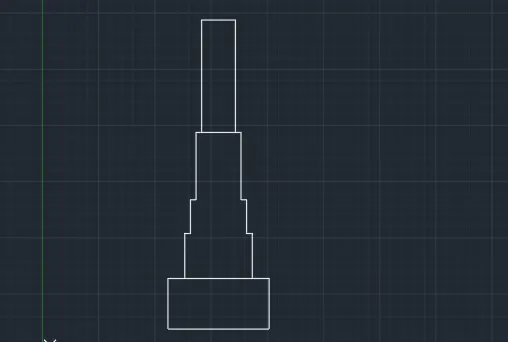

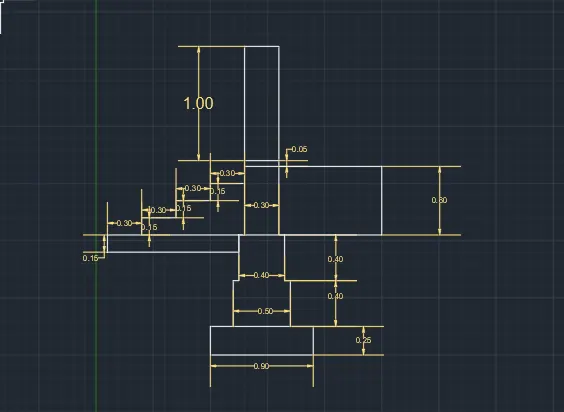

    AIM-  To draw cross section of load bearing wall with spread footing.

    INTRODUCTION-

    • Load bearing wall is generally used where load coming on structure are less.
    • All the coming loads are taken by walls and then transfered to the footing, footing transfers it to soil.
    • Load bearing wall is generally provided with shallow foundation i.e. simple footing, stepped footing or spread footing.
    • Here to draw the cross section of load bearing wall various commands are used like- line, rectangle, offset, dimensions, etc.
    • Line command- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
    • The Text command is used to display text on the graph screen. the text command is used to give a latex or a formulae to write something.

    PROCEDURE-

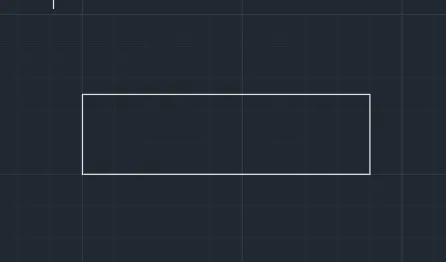

    Step 1

    • Open AutoCAD and open tamplet acad.
    • select command rectangle from draw panel.
    • type coordinates 1,1 when it asks to select 1st point, enter.
    • Then type 'd' so as to enter the dimensions of rectangle.
    • then enter lenght as 0.90 and then 0.25 as width of rectangle.
    •

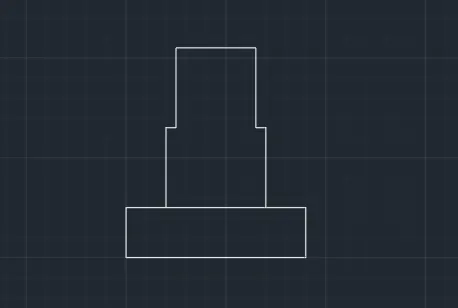

    step 2

    • Firstly on the dynamic input command.
    • Then select line command and select 1st point- left corner of rectangle .
    • then by giving dimensions draw lines.
    • Draw line of 0.40 units then projection of 0.05.
    • Then 0.40 vertical and then 0.4 horizontal.
    • Then vertical again 0.40 and then projection of 0.05. and again 0.04 vertical.
    •

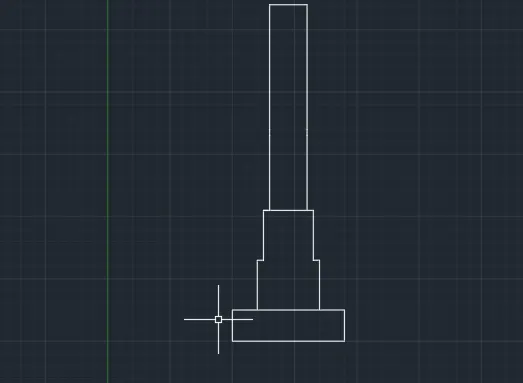

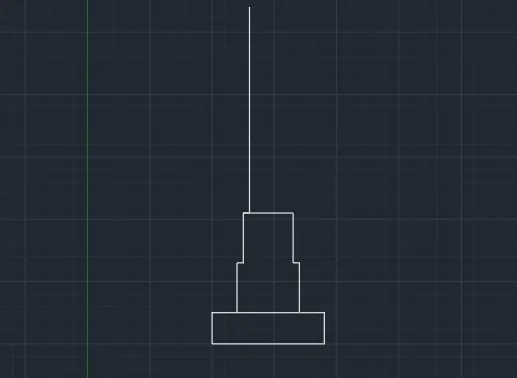

    Step 3

    •  Select line command and draw wall height of the section.
    • i.e. select line command and enter height of 0.6 vertical then 0.05 and then 1.0.

    Step 4

    •  Select offset command from modify panel.
    • enter through distance as 0.3 as wall thickness.
    • and take offset of thses 3 vertical lines as making wall thickness of 0.3
    • Now join the uppermost part of wall thickness by joing ends by line command.

    Step 5

    • Select rectangle command from draw panel.
    • Enter dimensions as 1.15 as length and 0.15 as width
    • And draw the rectangle.

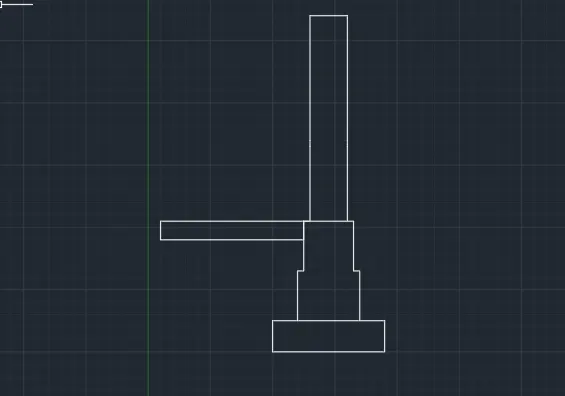

     Step 6

    •  Make sure dynamic input is on.
    • Select line command and select starting as left corner of rectangle (1.15x0.15)
    • Enter dimensions of 0.15 and 0.30 making a steps like structure. i.e. 0.15 vertical and 0.3 horizonal.
    • and escape from line command.
    • Again select line command draw lines of 0.3 crossing line of 0.05 of wall thickness.
    • then draw horizontal line of 0.9 and vertical 0.6 and join the uppermost point of footing.
    •

     Step 7

    • Last select command dimension by typing Dimen in the command line.
    • And by selecting every individual line give dimensions.

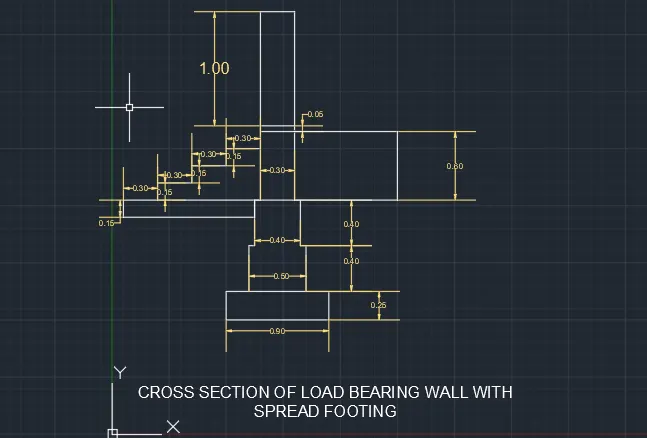

     Step 8

    • Now select text option from tab and enter 'Cross section of load bearing wall over spread footing' .

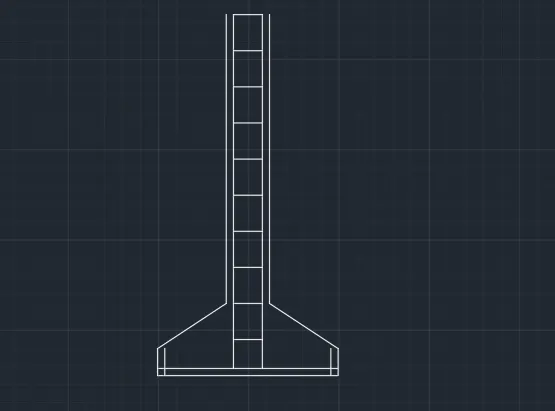

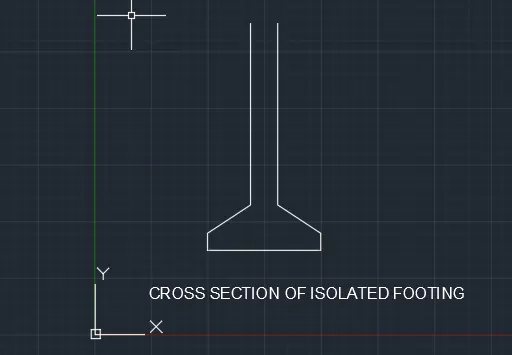

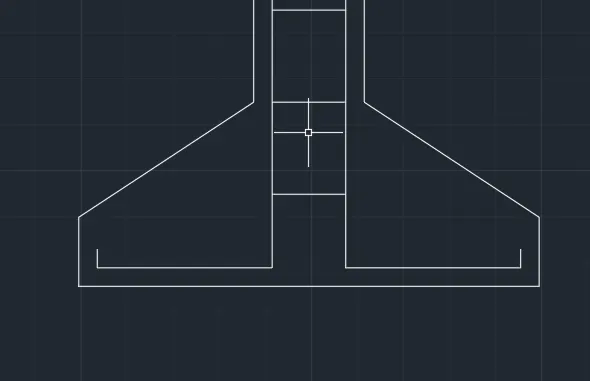

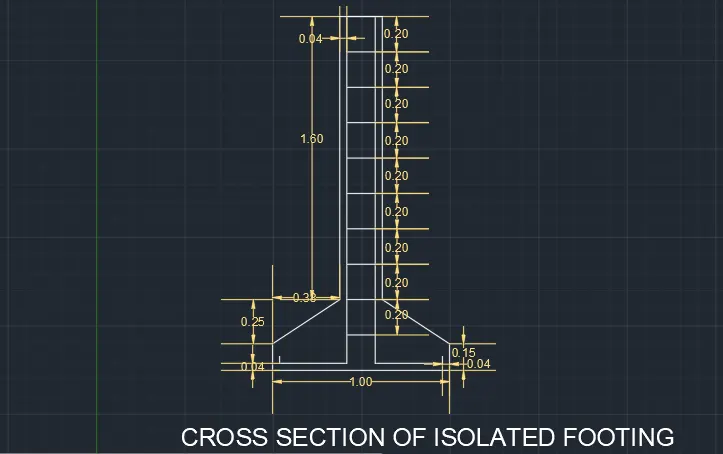

    AIM- To draw cross section of isolated footing.

    INTRODUCTION-

    • An isolated footing is one of the most used types of foundation to support single-columns when they are arranged at a long distance.
    • The isolated footing is used to support individual columns.
    • Isolated footings are the most commonly used footings for Reinforced cement concrete column.
    • Types of isolated footing-
      • Flat, Pad, Plain, or Reinforced Isolated Footing
      • Sloped Isolated Footing
      • Stepped isolated Footing
    • To draw cross section of isolated footing commands are used are line, chamfer, offset, etc.
    • Line command- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
    • The Text command is used to display text on the graph screen. the text command is used to give a latex or a formulae to write something.

    PROCEDURE-

    Step 1-

    • Select line command and draw 1.0 unit line horizontal and vertical 0.15.
    • Use command chamfer of distance 0 on 1st line and 0.38 on 2nd line.
    • Draw lines of 1.6 units as wall thickness.



    Step 2-

    • Select offset command from madify panel and enter through disance as 0.04 units.
    • Then by selecting lines make desired offsets of 0.04 units.
    • Now extend vertical drawn offsets up to lower side bar lenght by enabling the object snap on.
    • To on object snap type object snap in cammand line and enter then select check box for perpendicular object snap.



    Step 3-

    • Select trim command from modify panel.
    • Then select objects which we need to trim off.
    • and trim the unnessesary lines from bar details.



    Step 4-

    • Give dimensions to the cross section.
    • Select dimension tool from home tab and select annoate dimension.
    • Then change the settings of dimensions as per our requirements.

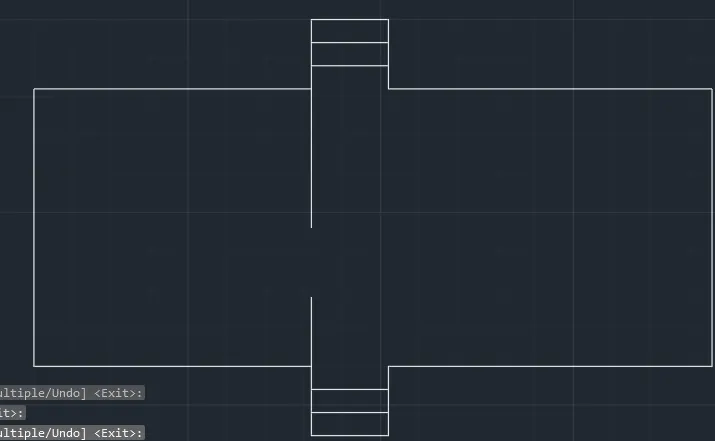

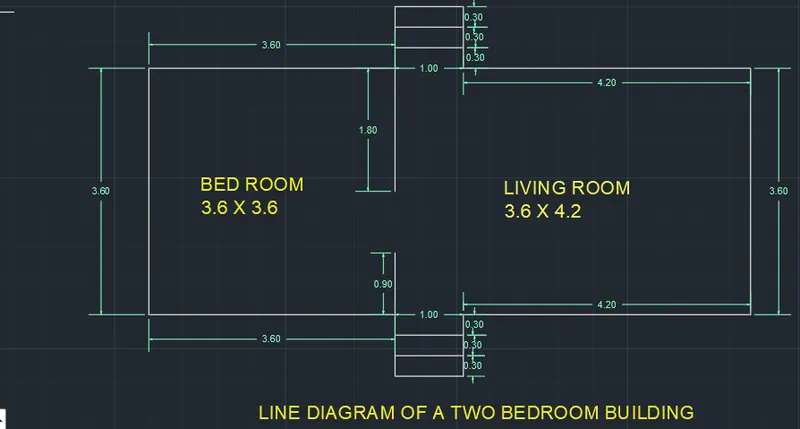

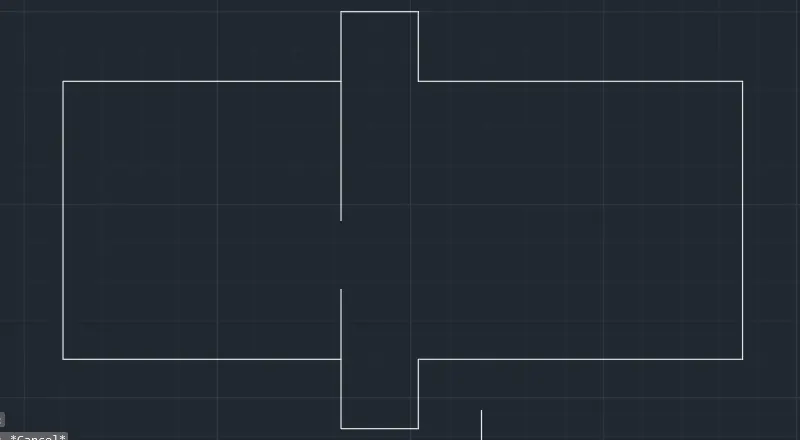

    AIM- To draw line diagram of a two bed room building.

    INTRODUCTION-

    • Here to draw line diagram of a two bedroom building we specially need line command.
    • Line command- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
    • The Text command is used to display text on the graph screen. the text command is used to give a latex or a formulae to write something.

    PROCEDURE-

    Step 1-

    • First of all check the dynamic input option on or off. and on it from the toolbar.
    • Select command line by typing line in command line.
    • select 1st point as 3,3
    • Then by keeping the curser in horizontal direction enter distance 3.60 units.
    • same like that enter all required dimensions in correspondind direction one by one and press enter.

    Step 2-

    • Select offset command from modify panel and then enter through distance as 0.3
    • Then offset the 1 unit line as plan of steps.

    Step 3-

    • Select dimension command from home tab.
    • and all the dimensions of the line diagram.
    • Now add name it as 'line diagram of a two bedroom building'.

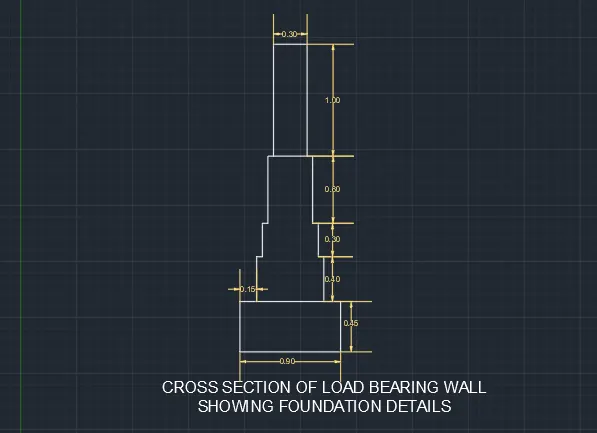

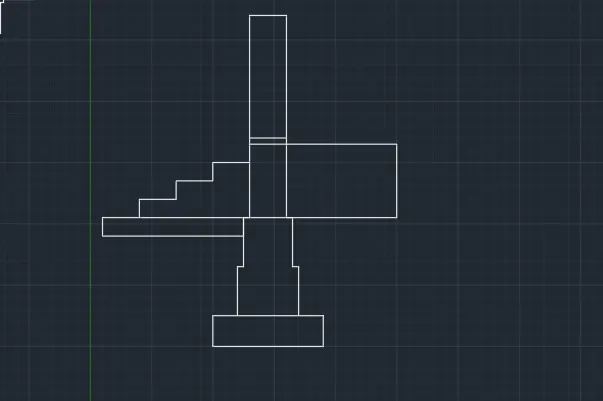

    AIM- To draw cross section of load bearing wall showing foundation details.

    INTRODUCTION-

    • Load bearing wall is a wall that bears a load resting upon it by its weight and then transfers it to foundation structure.
    • Load-bearing walls support the weight of a floor or roof structure above.
    • Load bearing wall supports loads of a structure, such as floors, equipment, furniture, and people.
    • Line command- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
    • The Text command is used to display text on the graph screen. the text command is used to give a latex or a formulae to write something.

    PROCEDURE

    Step 1-

    • Firstly on dynamic input command from tool bar.
    • Select line command and with use of dynamic input command.
    • Select 1st point as 3,3
    • Then enter each dimension step by step and press enter.

    Step 2-

    • Select dimension command from home tab.
    • and all the dimensions of the line diagram.
    • Now add name it as 'cross section of load bearing wall showing foundation details'.

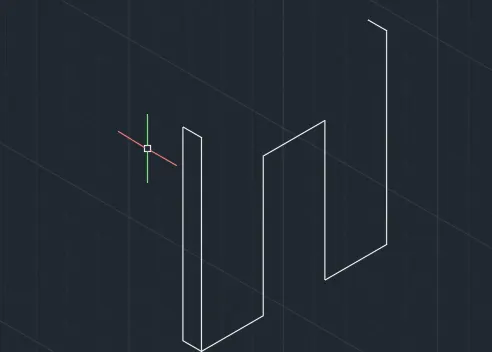

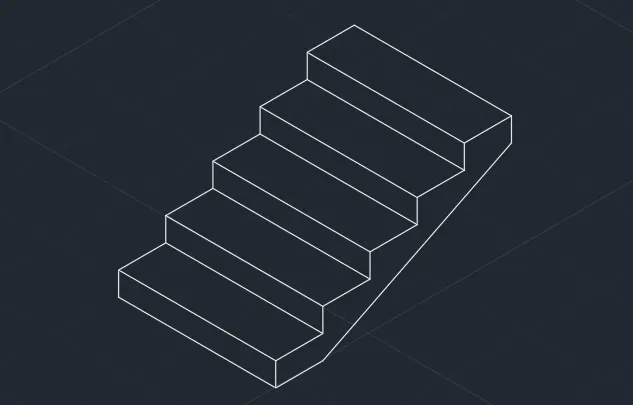

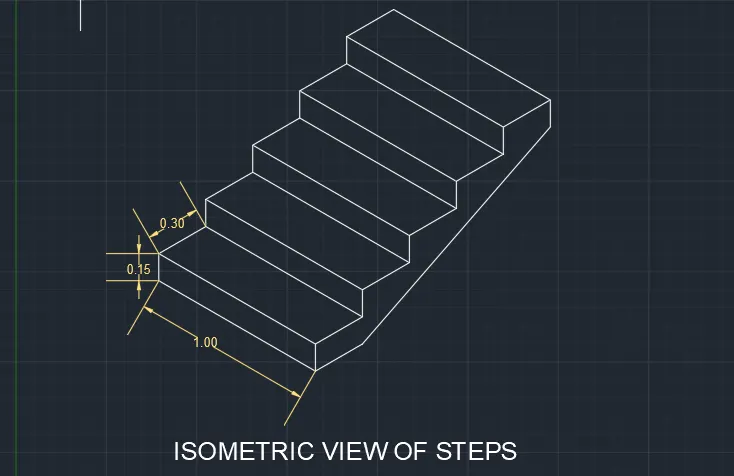

    AIM- To draw isometric view of steps.

    INTRODUCTION-

    • Isometric projection is a method for visually representing three-dimensional objects in two dimensions in technical and engineering drawings.
    • It is an axonometric projection in which the three coordinate axes appear equally foreshortened and the angle between any two of them is 120 degrees.
    • An isometric drawing is a type of 3D drawing that is set out using 30-degree angles.
    • command ISOPLANE is used to draw at a 30 degree angle as needed for an isometric drawing.
      Type DS on the command line and press enter. Drafting settings window will pop up from this window select snap and grid tab and make sure Isometric snap radio button is checked. Click OK to exit drafting settings window.
    • You can now select isometric plane for your drawing by pressing the F5 key. The three Isoplanes available for selection are Isoplane top, right and left.
    • Or click the drop-down on the Isometric Drafting on status bar button and select the desired isoplane.
    • Line command- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
    • The Text command is used to display text on the graph screen. the text command is used to give a latex or a formulae to write something.

    PROCEDURE-

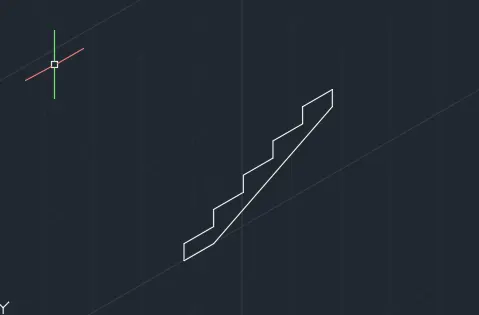

    Step 1

    • Firstly Make sure ortho is on.
    • On the isometric drafting tool from toolbar.
    • To start drafting, select right isoplane and draft the lines.
    • By selecting line command from draw panel.
    • And entering the distances required in right isoplane.

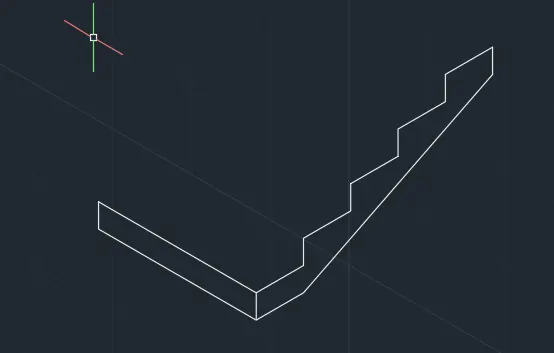

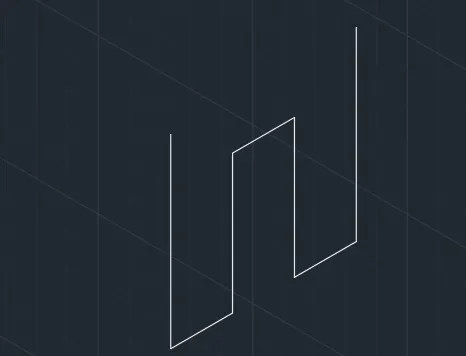

    Step 2

    • Then select left isoplane and draft the lines.
    • By selecting line command from draw panel.
    • And entering the distances required in left isoplane draw lines of front of steps.

     Step 3

    • Then select top isoplane and draft the lines.
    • By selecting line command from draw panel.
    • And entering the distances required in top isoplane draw lines of steps.
    • Then select left isoplane and draft the lines.
    • By selecting line command from draw panel.
    • And entering the distances required in left isoplane draw lines of front of steps.

    Step 4

    • By selectind dimension command from home tab give all dimensions.
    • and name of drawing with text command.

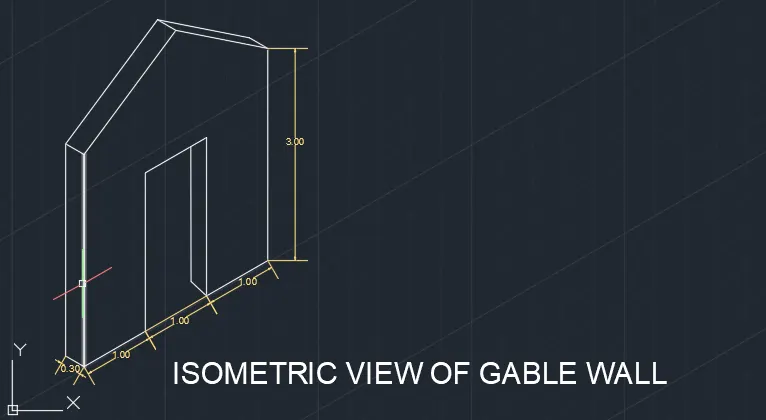

    AIM- To draw isometric view of Gable wall.

    INTRODUCTION-

    • Isometric projection is a method for visually representing three-dimensional objects in two dimensions in technical and engineering drawings.
    • It is an axonometric projection in which the three coordinate axes appear equally foreshortened and the angle between any two of them is 120 degrees.
    • An isometric drawing is a type of 3D drawing that is set out using 30-degree angles.
    • command ISOPLANE is used to draw at a 30 degree angle as needed for an isometric drawing.
      Type DS on the command line and press enter. Drafting settings window will pop up from this window select snap and grid tab and make sure Isometric snap radio button is checked. Click OK to exit drafting settings window.
    • You can now select isometric plane for your drawing by pressing the F5 key. The three Isoplanes available for selection are Isoplane top, right and left.
    • Or click the drop-down on the Isometric Drafting on status bar button and select the desired isoplane.
    • Line command- Start the Line command by clicking the Line button on the Draw panel on the Ribbon, or by entering L and then pressing Enter. Draw line segments by picking several random points. Terminate the command by pressing Enter, Esc, or the spacebar. Press Enter or the spacebar to repeat the Line command.
    • The Text command is used to display text on the graph screen. the text command is used to give a latex or a formulae to write something.

    PROCEDURE-

    Step 1

    • Firstly Make sure ortho is on.
    • On the isometric drafting tool from toolbar.
    • To start drafting, select right isoplane and draft the lines.
    • By selecting line command from draw panel.
    • And entering the distances required in right isoplane.

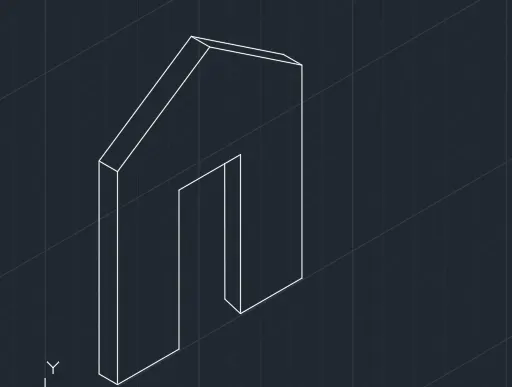

    Step 2

    • Then select left isoplane and draft the lines.
    • By selecting line command from draw panel.
    • And entering the distances required in left isoplane draw lines of front of wall.





    Step 3

    • To draw the uppermost part of wall, take mid point of wall at height of 1.58 units.
    • And ten select coy command from modify panel and copy the thickness of the wall at that point and at the right upper end of wall.
    • Then by putting ortho off join those 3 thicknesses to get the uppermost part done.

    Step 4

    • By selectind dimension command from home tab give all dimensions.
    • and name of drawing with text command.



    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Aparna bhujbal (22)

    Usage of Collaborate tool in REVIT

    Objective:

    1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project. AIM- To open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project. INTRODUCTION-  REVIT- Autodesk Revit is a BIM software…

    calendar

    05 Jan 2022 06:42 AM IST

    • BIM
    • REVIT
    Read more

    3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

    Objective:

    1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level. AIM- To model a ceiling from the architecture tab abaove walls at the first floor level. INTRODUCTION-  REVIT- Autodesk Revit is a BIM software means a…

    calendar

    17 Nov 2021 05:18 PM IST

    • BIM
    • REVIT
    Read more

    Introduction to National Building Code and Steps in a Construction project

    Objective:

    1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit ? Importance of national building codes while modeling in revit- National building codes are used while drawing because safety of structures is imporatant parameter for public. so to reduce risks to an acceptable level…

    calendar

    16 Nov 2021 09:55 AM IST

    • DESIGN
    Read more

    Creating Walls, Partition walls and Floors for a residential layout using REVIT

    Objective:

    1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from…

    calendar

    21 Oct 2021 06:11 AM IST

    • BIM
    • REVIT
    Read more

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    Related Courses

    coursecard

    Design loads considered on bridges

    Recently launched

    10 Hours of Content

    coursecard

    Design of Steel Superstructure in Bridges

    Recently launched

    16 Hours of Content

    coursecard

    Design for Manufacturability (DFM)

    Recently launched

    11 Hours of Content

    coursecard

    CATIA for Medical Product Design

    Recently launched

    5 Hours of Content

    coursecardcoursetype

    Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

    Recently launched

    0 Hours of Content

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    logo

    Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

    https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

    Our Company

    News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
    map
    EpowerX Learning Technologies Pvt Ltd.
    4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
    mail
    info@skill-lync.com
    mail
    ITgrievance@skill-lync.com

    Top Individual Courses

    Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

    Top PG Programs

    Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

    Skill-Lync Plus

    Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

    Trending Blogs

    Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

    © 2025 Skill-Lync Inc. All Rights Reserved.

                Do You Want To Showcase Your Technical Skills?
                Sign-Up for our projects.
