Creating Architectural and Structural model with 3D rendering using REVIT

Creating Architectural and Structural model with 3D rendering using REVIT



 1) AIM:  Select the type of structure you want to build from one of the three below:
              a. Multi-Unit Residential Apartment
              b. Office Buildings
              c. School



Introduction: build a structure acording to its structural and architectural templet



ANS:  I want to build School Building for a project







2) AIM: Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling                                 requirements from NBC



Introduction: NBC- nashional building code(2005) gives idea of dimension regulation of units



Procedure:

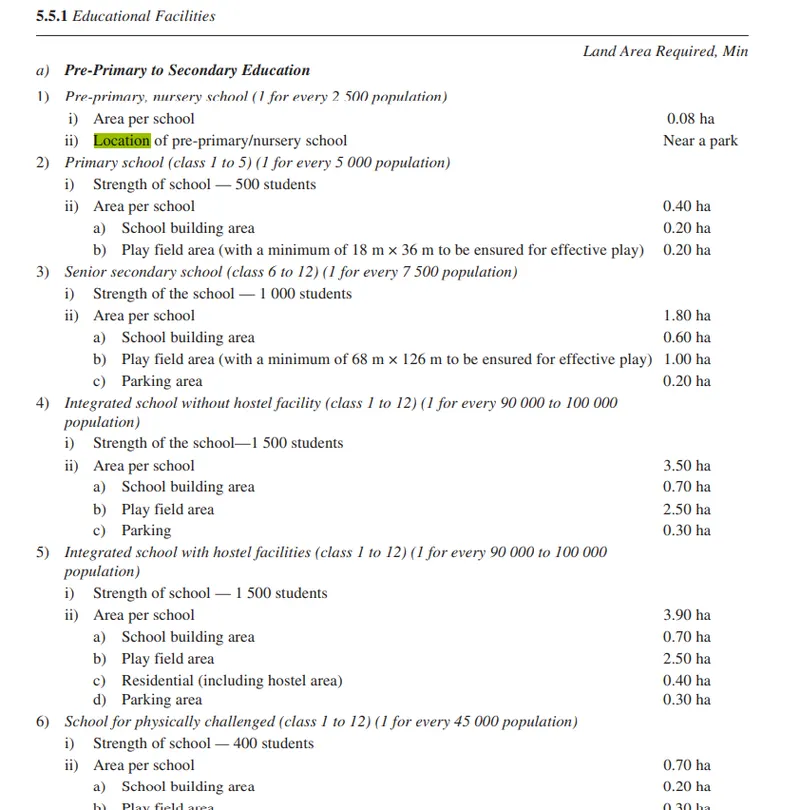

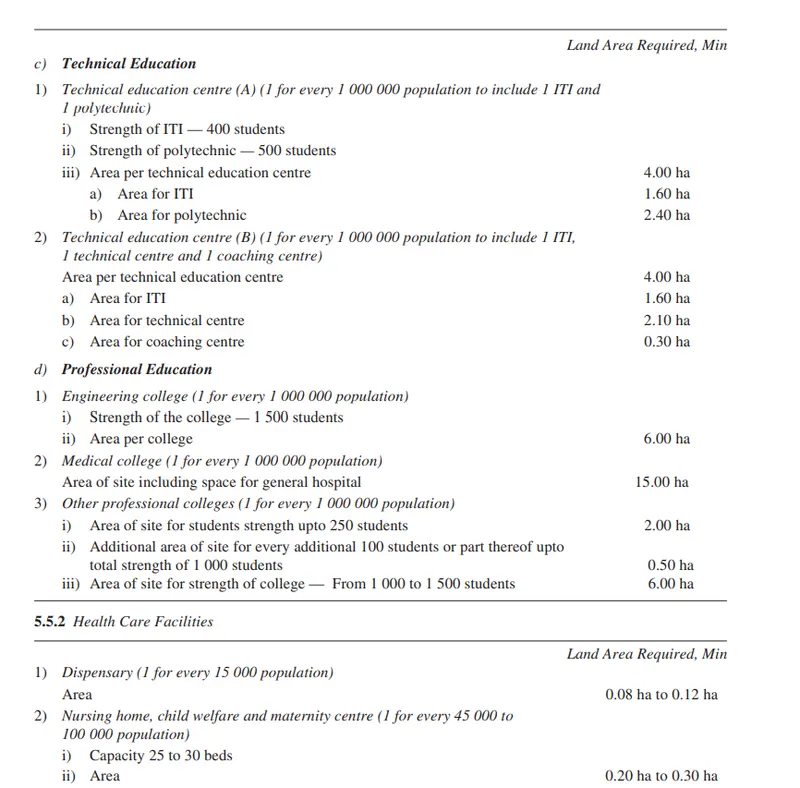

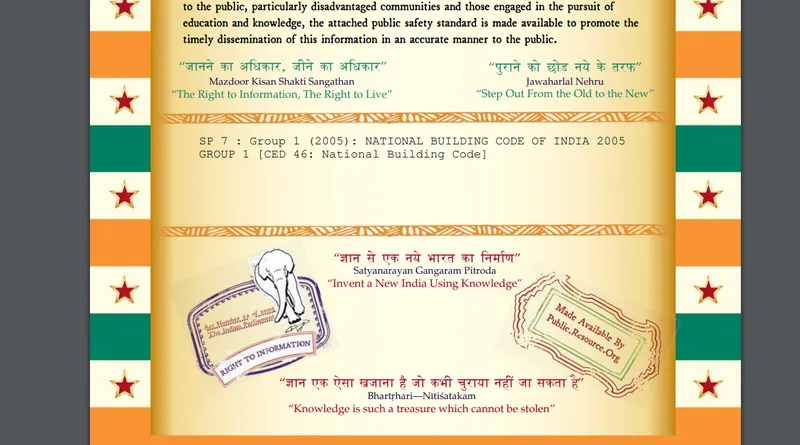

step 1) open the NBCI 2005(group1) for achiv dimensions value under guidline





step 2) rule for lighting and ventilation

           15 LIGHTING AND VENTILATION
          15.1 For requirements regarding lighting and

          ventilation for different uses and occupancies,
reference shall be made to Part 8 ‘Building Services,
Section 1 Lighting and Ventilation’.
15.1.1 Lighting and Ventilation of Rooms
Rooms shall have, for the admission of light and air,
one or more openings, such as windows and ventilators,
opening directly to the external air or into an open
VERANDAH.
15.1.2 Notwithstanding the area of openings obtained
through 15.1, the minimum aggregate area (see Notes
1 to 3) of such openings, excluding doors inclusive of
frames, shall be not less than:
a) one-tenth of the floor area for dry hot climate;
b) one-sixth of the floor area for wet hot
climate;
c) one-eighth of the floor area for intermediate
climate; and
d) one-twelfth of the floor area for cold climate.
NOTES
1 If a window is partly fixed, the openable area shall
be counted.
2 No portion of a room shall be assumed to be lighted,
if it is more than 7.5 m away from the opening assumed
for lighting that portion.
3 The area of openings as given in (a) to (d) above
shall be increased by 25 percent in the case of a kitchen





step 3) location and strength, area of building







3) AIM: Using the structural model, include the following components based on the type of structure selected
            a. Foundation – Isolated / Wall/Matt Foundation
            b. Columns
            c. Beams Connected to Columns
            d. Roof Framing/ Truss
            e. Floor / Decks
            f. Floor Openings for Elevators and Stairs



Introduction: in structural templet we design unit as structurally for ex design foundation, beam, column, roof framing, floor etc



Procedure:

 make architectural and structural templet with base point

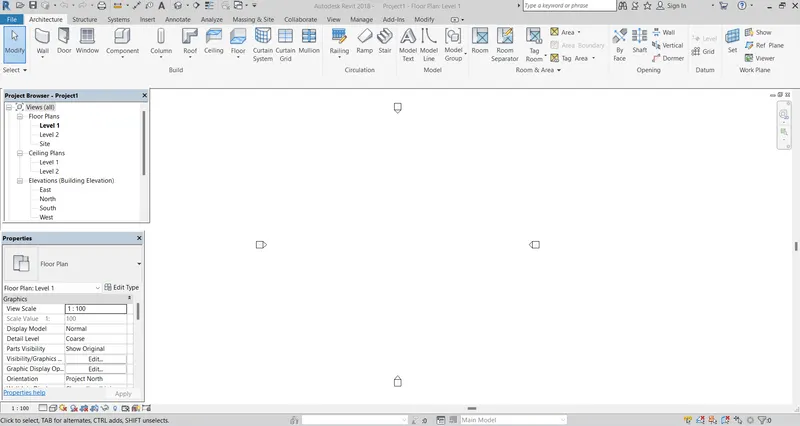

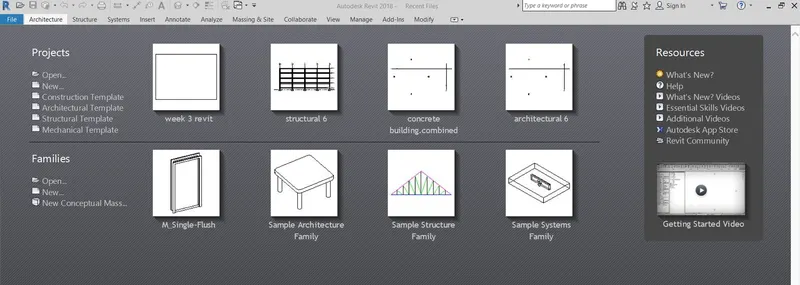

step 1) open architectural templet

           open revit software

           then open new project

           and select architectural templet and press ok

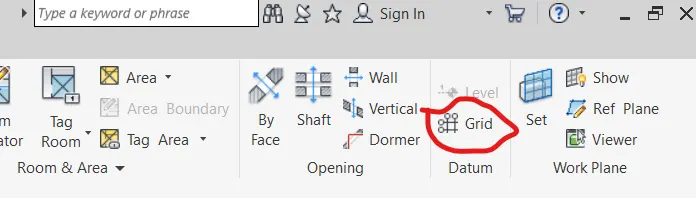

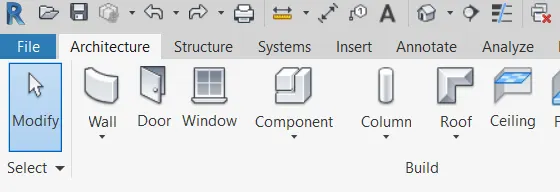

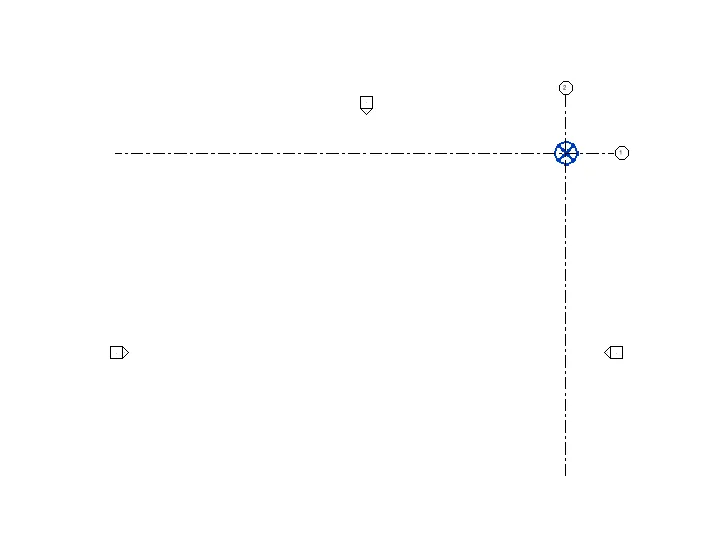

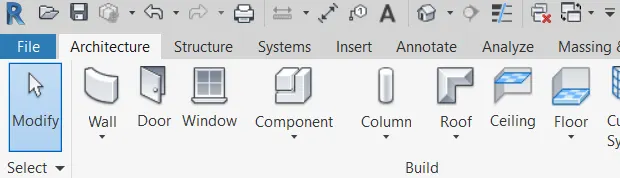

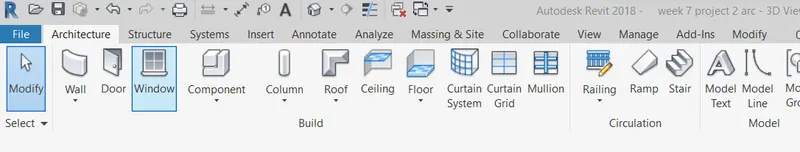

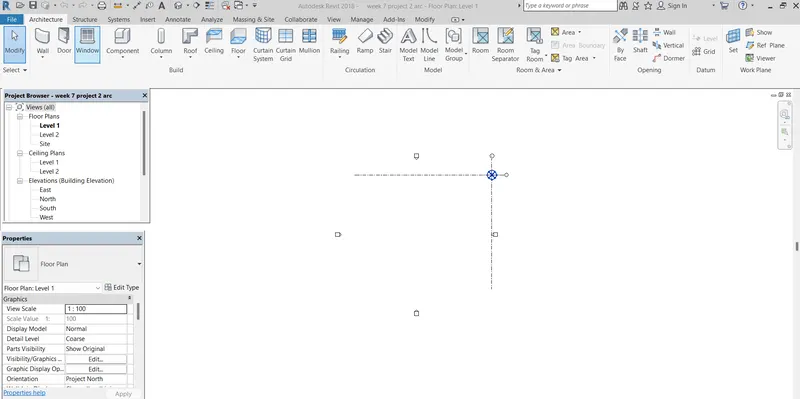

step 2) open architectural tab

           and click on grid for draw

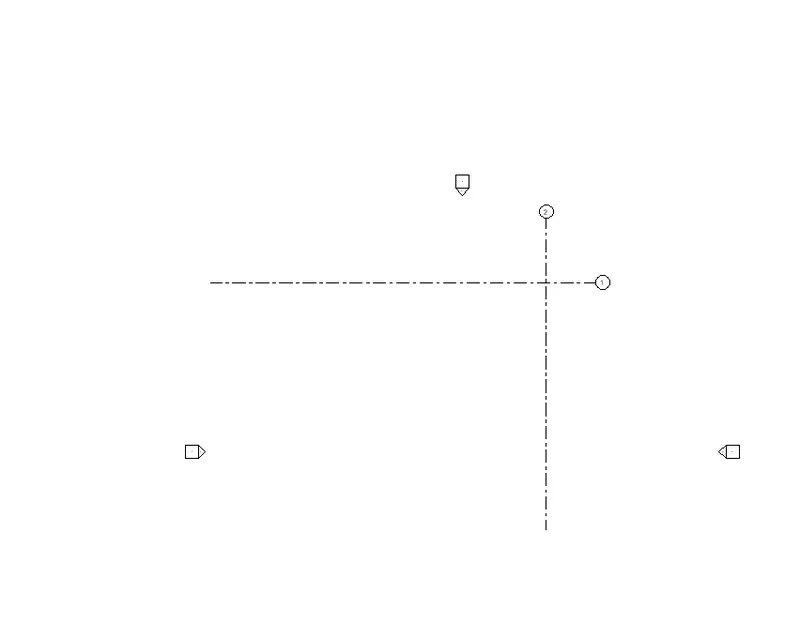

         then draw a one horizontal and verticle grid

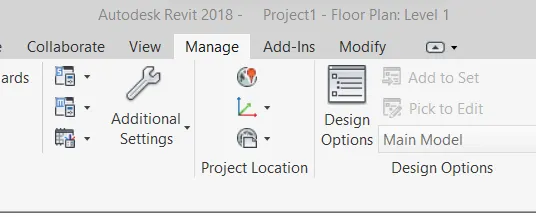

step 3) specify coordinates point

           go to manage tab

           click on coordinates in project location

           and select specify coordinate option from that

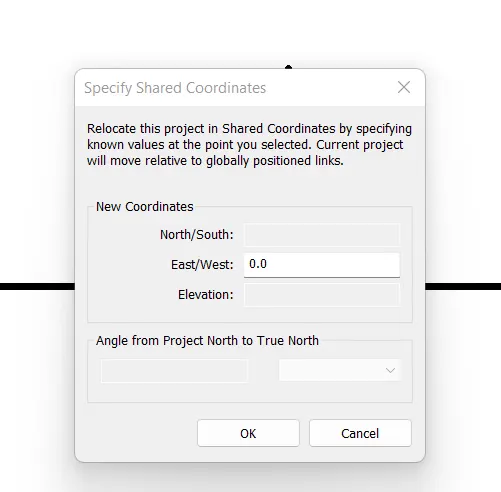

step 4) specify coordinates point

           then click the junction of two grids

           and set 0.0 on east/west box

           and click ok

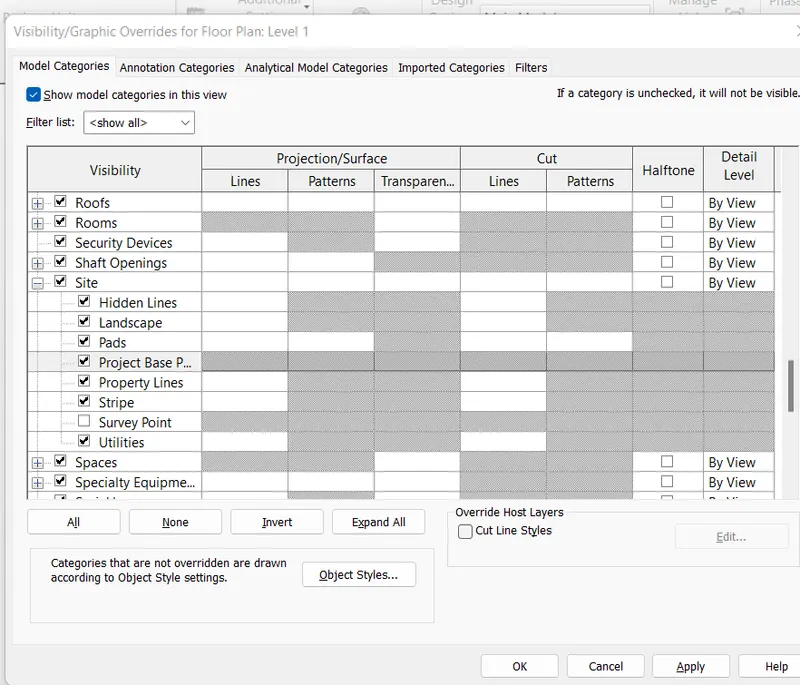

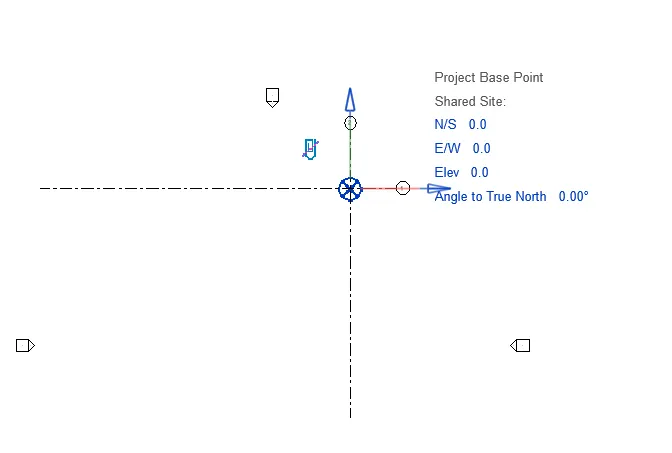

step 5) set project base point

          type VG for visibility/graphic setting





       then scroll down and expand site

       then click on project base point option





     then the base point is apperance on screen

     now move it on junction point

    and insert 0,0 for all east ns etc for all



Result: we set  set project base point and project shared coordinates for the architectural project







now create structural templet

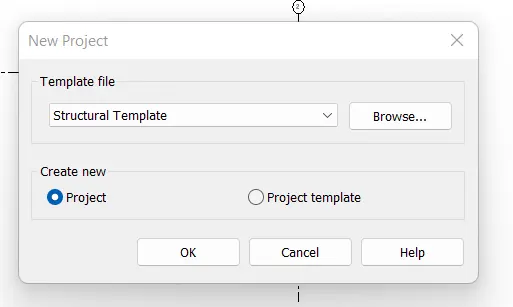

step 1) open structural templet

           open revit software

           then open new project

           and select structural templet and press ok

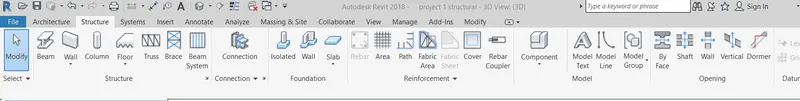

step 2) open structural tab

           and click on grid for draw



         then draw a one horizontal and verticle grid





step 3) specify coordinates point

           go to manage tab

           click on coordinates in project location

           and select specify coordinate option from that





step 4) specify coordinates point

           then click the junction of two grids

           and set 0.0 on east/west box

           and click ok







step 5) set project base point

          type VG for visibility/graphic setting





       then scroll down and expand site

       then click on project base point option





     then the base point is apperance on screen

     now move it on junction point

    and insert 0,0 for all east ns etc for all

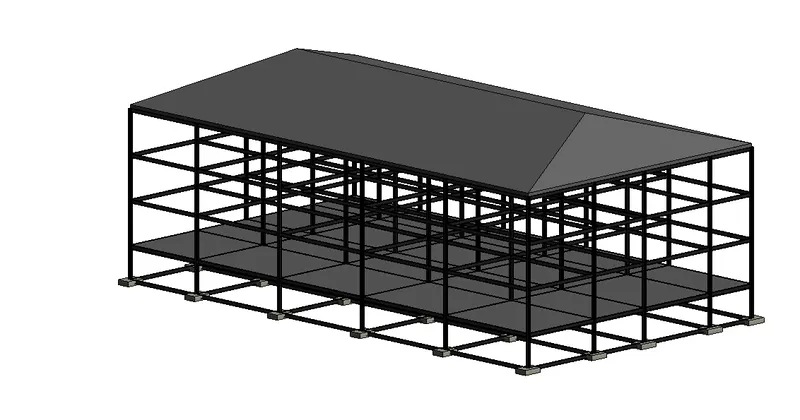

* Now in structural templet add structural components

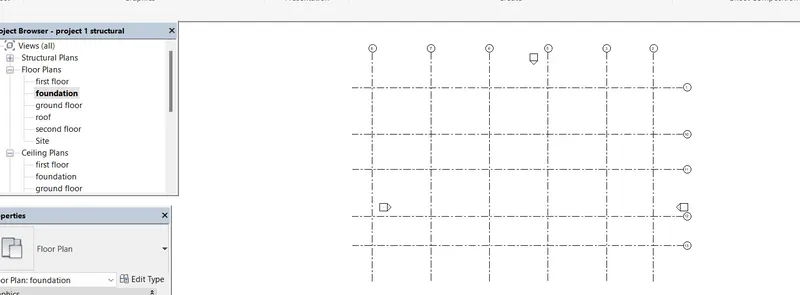

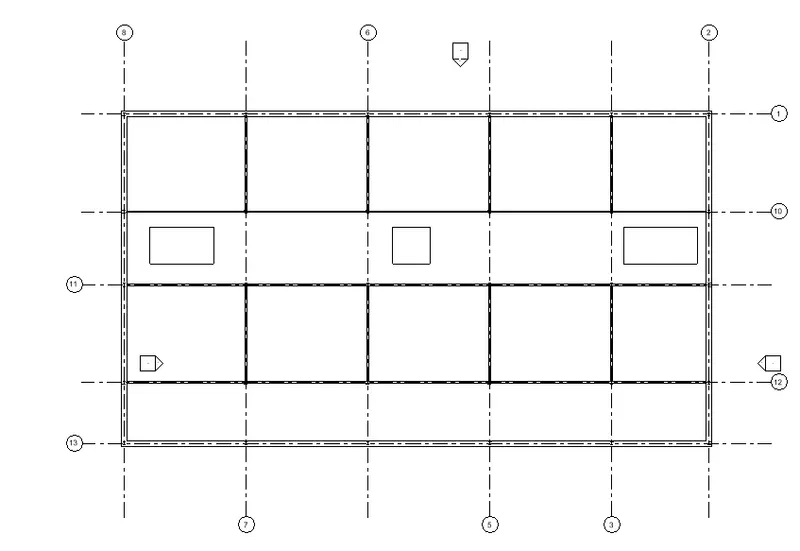

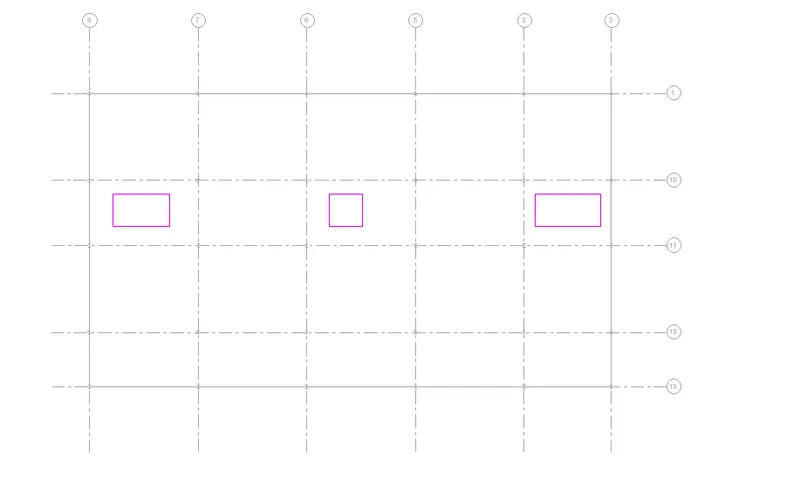

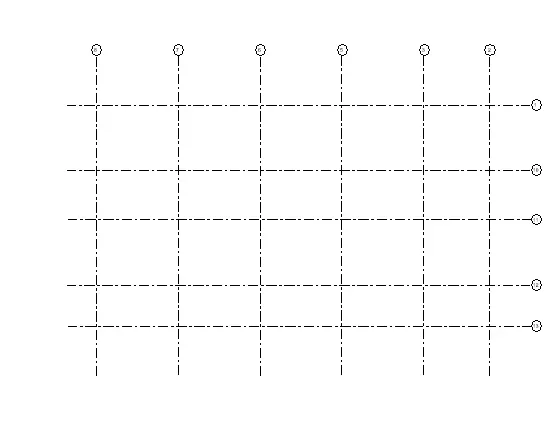

step 1) make a grid for our school unit we design secondary school building unit

          so open structural templet we are save as name as project 1 structural



draw a grid as per our unit

on specific area as per NBC 2005

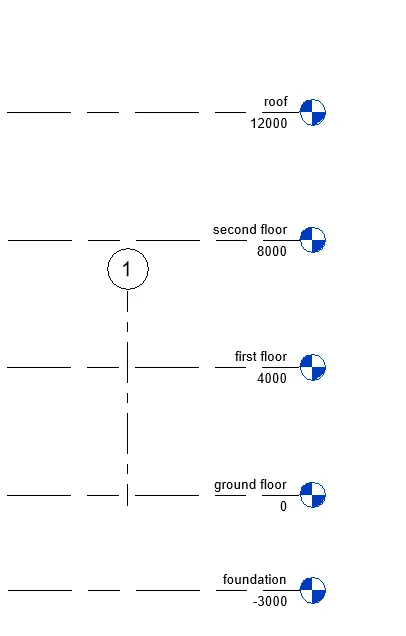

then make levels which we required to desgin from

structural levels with specific height

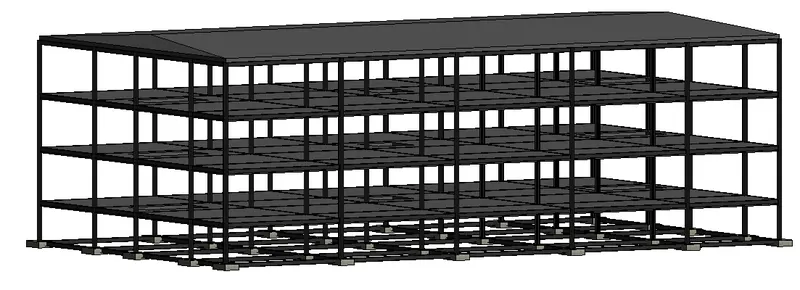

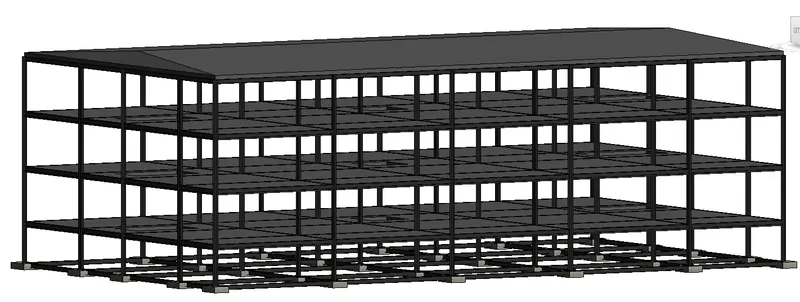

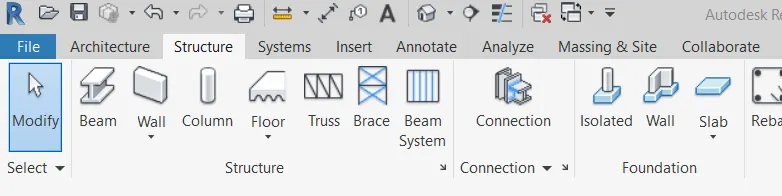

* Now add structural components

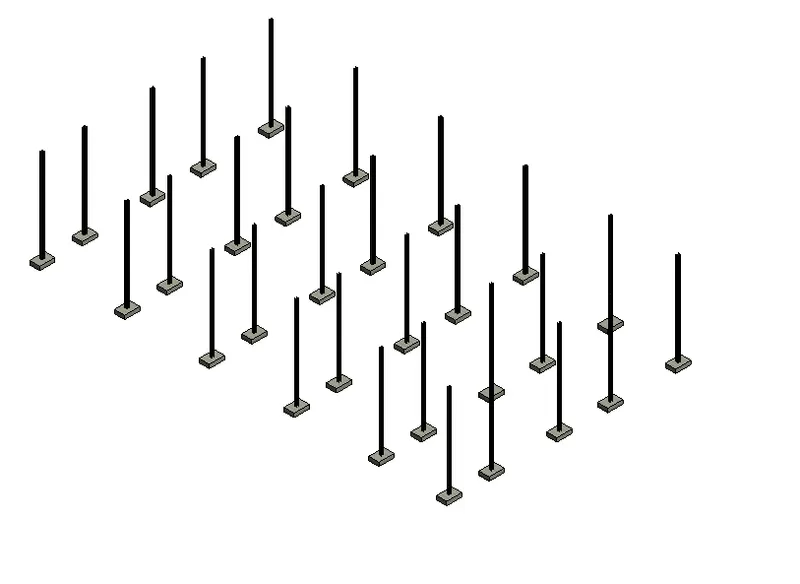

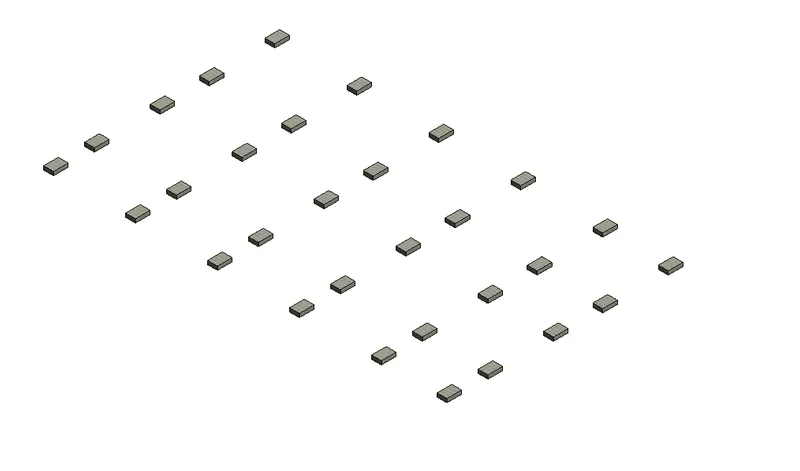

1) Foundation

    go to foundation level

    from floor plan on property browser





   go to structural tab

   and then foundation

   and select isolated foundation from it





  after selceting isolating foundation

  we load the rectangle foundation from family

  and select at grid option for draw

 and select all grids and press ok

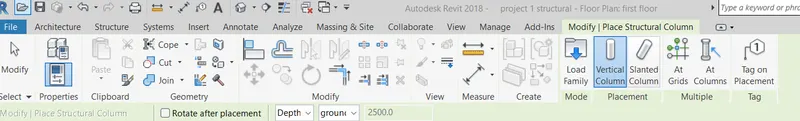

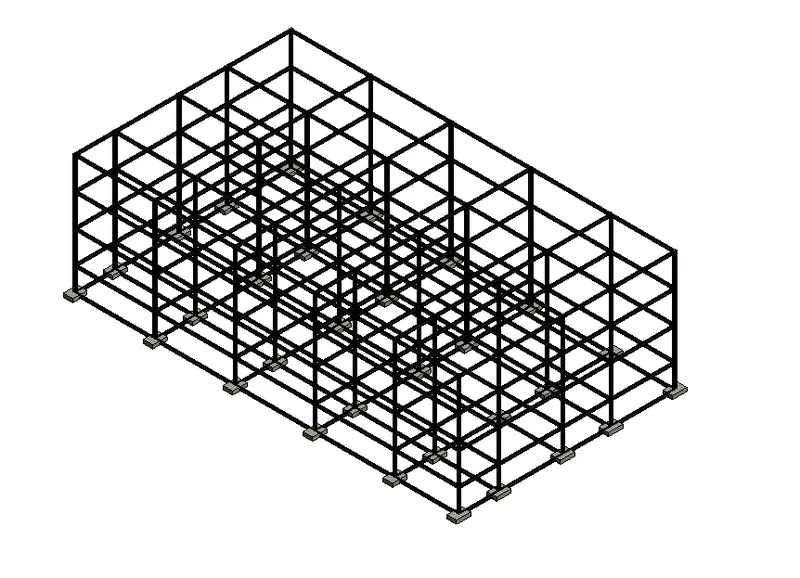

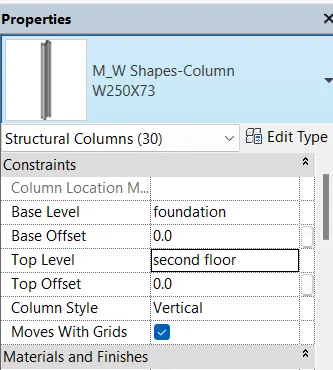

2) column

     go to structural tab

    and then choose column







 then select at grid for drwa



  set base level as foundation and top level as second floor









3) Beam connected to Column



    go to structural tab

    and then choose beam





 and draw on grid and select all grids and press ok

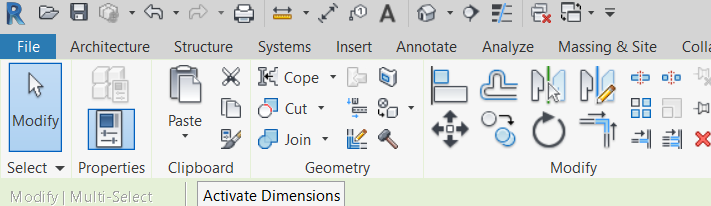

then copy the ground floor beam to all floor using copy tab

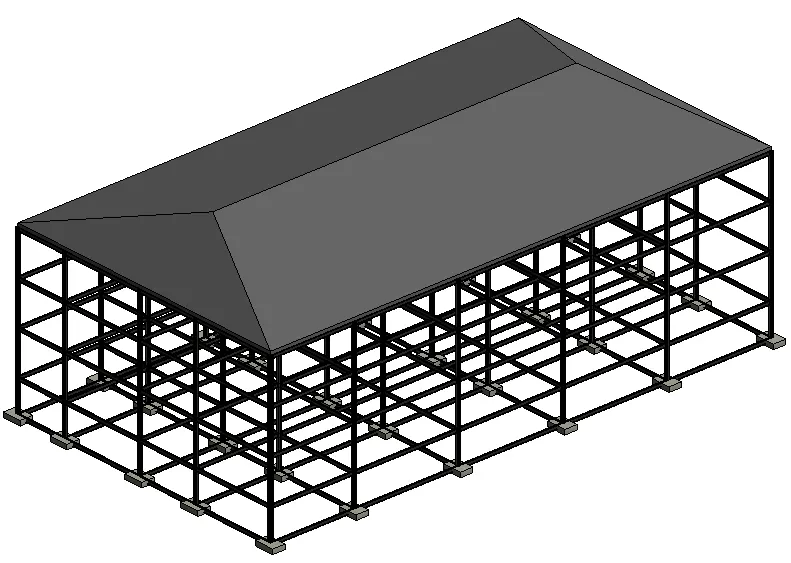

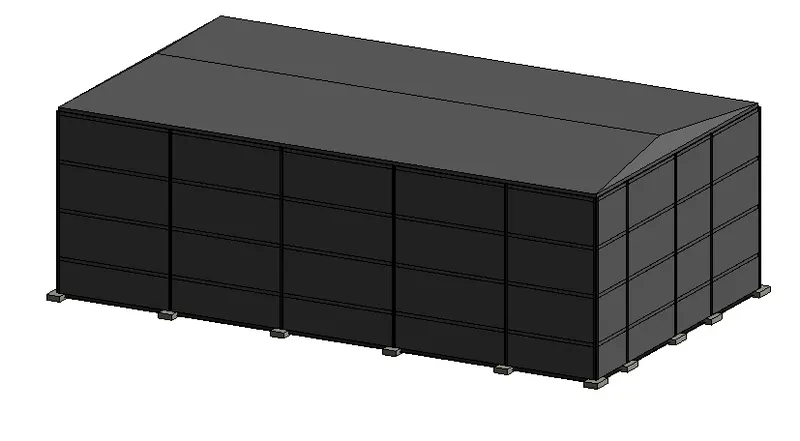

4) roof framing/ truss

   go to architectural tab

   and choose roof

   also select roof level for draw



 and select pick line for drawn

 select all external lines





after selcting edge boundry of structure

press ok







5) Floor

open the architectural tab

then choose floor option

choose structural floor



choose ground floor level for draw

choose rectangle for modify draw and draw path and select

prees ok

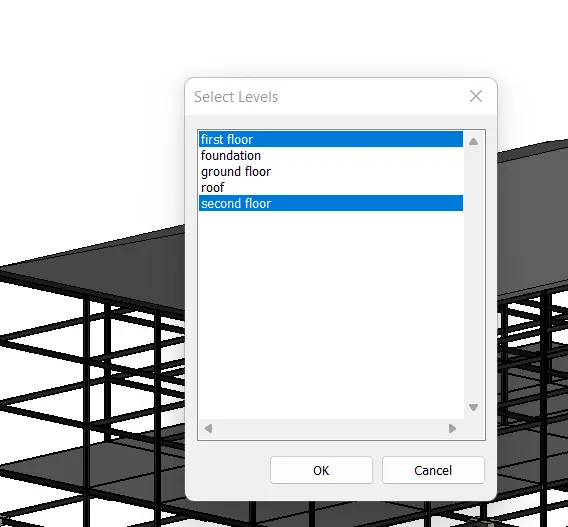

then copy floor from ground floor to first and second floor

by using copy paste



choose levels

and press ok

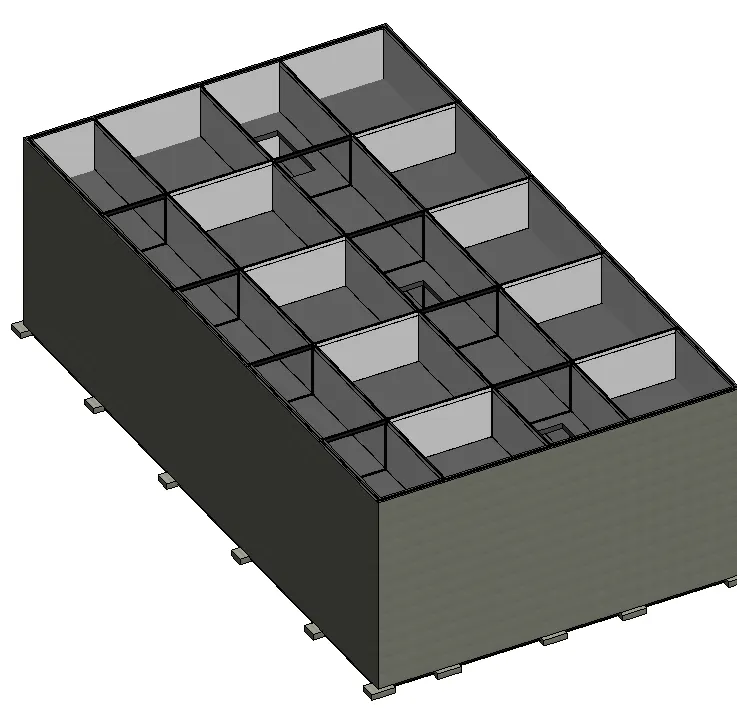

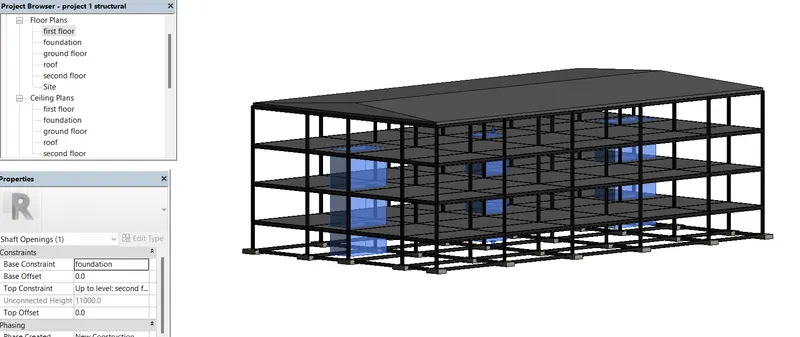

6) Floor opening for elevators and stairs

open structural tab

and select shafts from opening



then select rectangle option for opening

and select portion where we required

then select top and bottom constraint and press ok

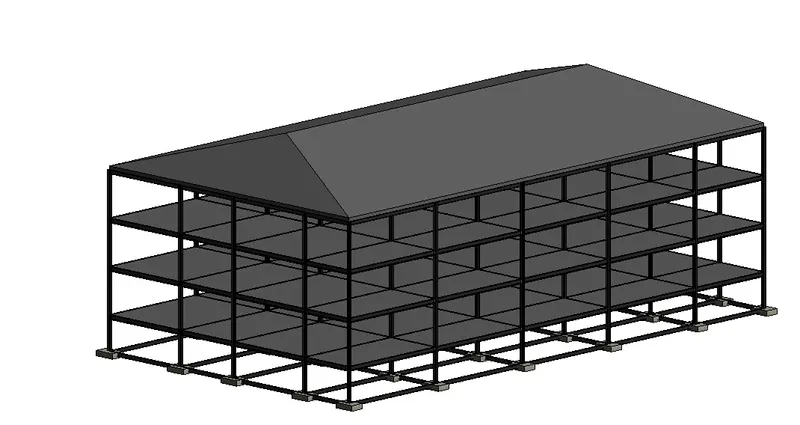

Result: structural features are done successfull using structural templet







4) AIM: Using the architectural model, include the following components based on the type of structure selected
        a. Wall Layout with appropriate material and finishing
        b. Exterior façade with fancy finish
        c. Interior partition walls to size rooms
        d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
        e. Add components such as stairs Elevators
        f. Have at-least one side of the building with curtain walls and glass panels
        g. Include interior and exterior lighting fixtures
        h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model



Introduction:  Architectural templet for architectural design of unit like wall, interior movable components



Procedure:

step1) open architectural templet

          which we had save as project 1 architecural

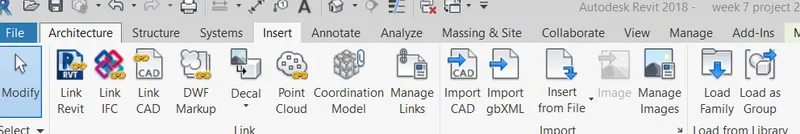

step 2) link structural model to architectural

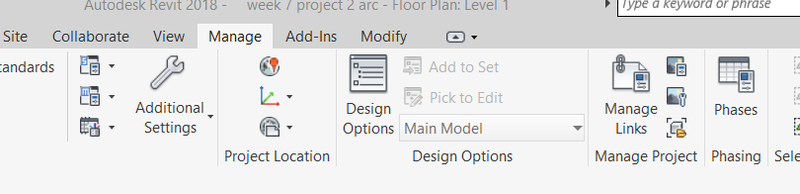

           open manage tab

            then click on manage link option



         and add structural templet to architectural





step 3) wall layout with appropriate material and finishing

            open architectural tab

            and select wall from it



          then draw wall on ground floor

          and copy it for all floor

          choose generic 200 wall material

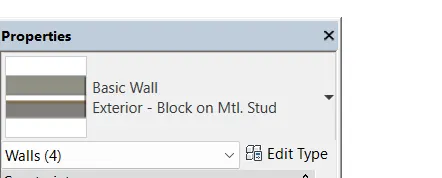

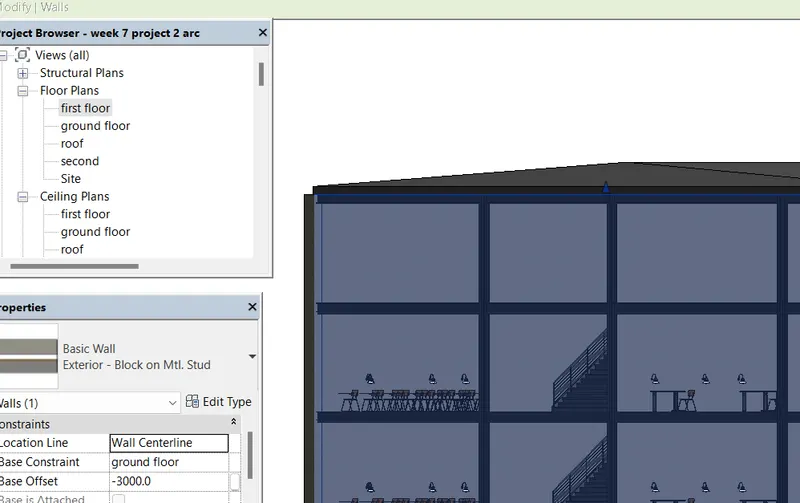

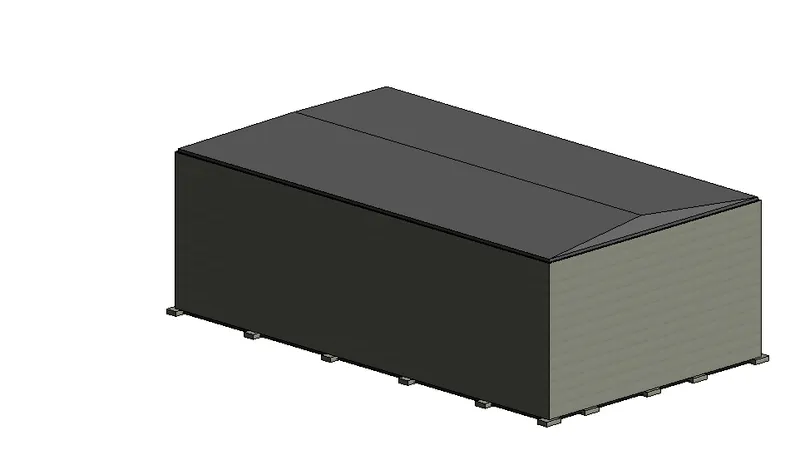

step 4) Exterior facade with fancy finish

           select wall

           and choose type as exterior block on mlt.stud

           type wall from property browser

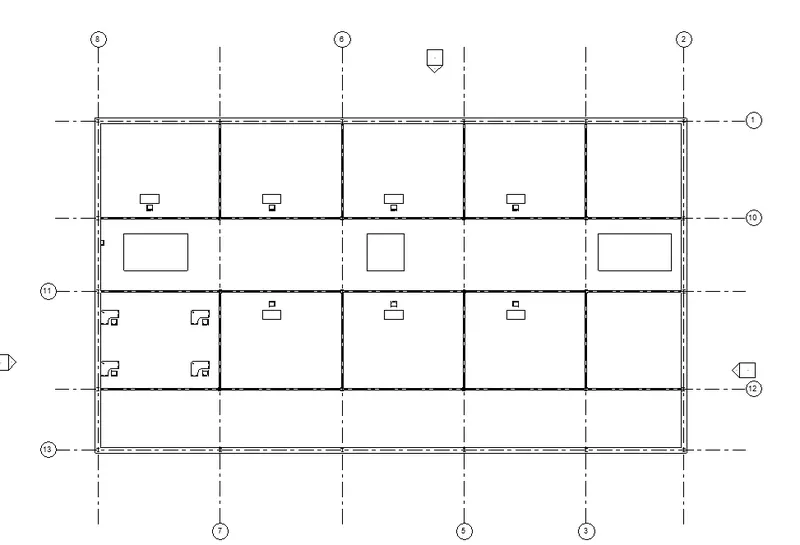

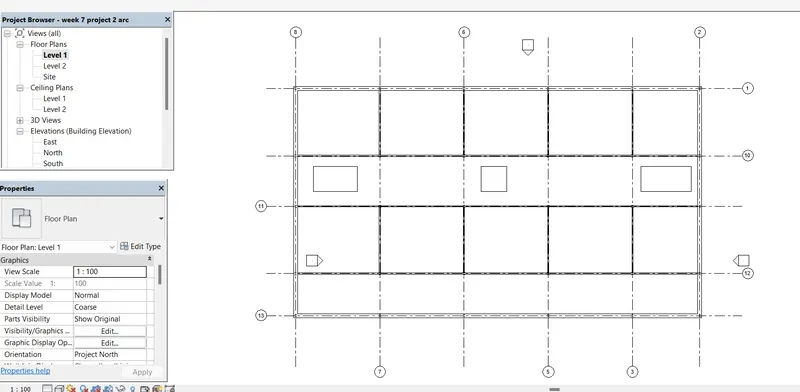

step 5) Interior partition walls to size rooms

          open architectural tab

            and select wall from it



         and select partition wall from property

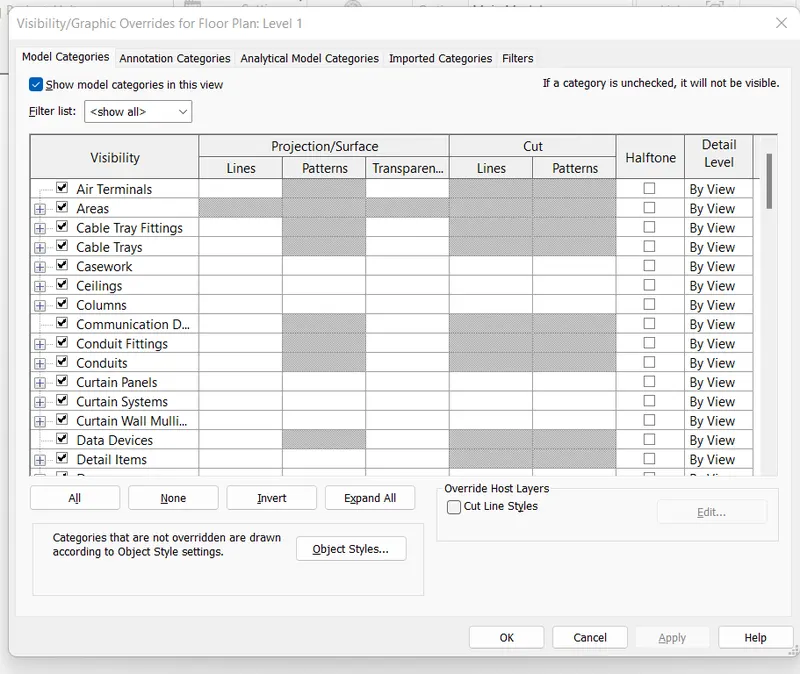

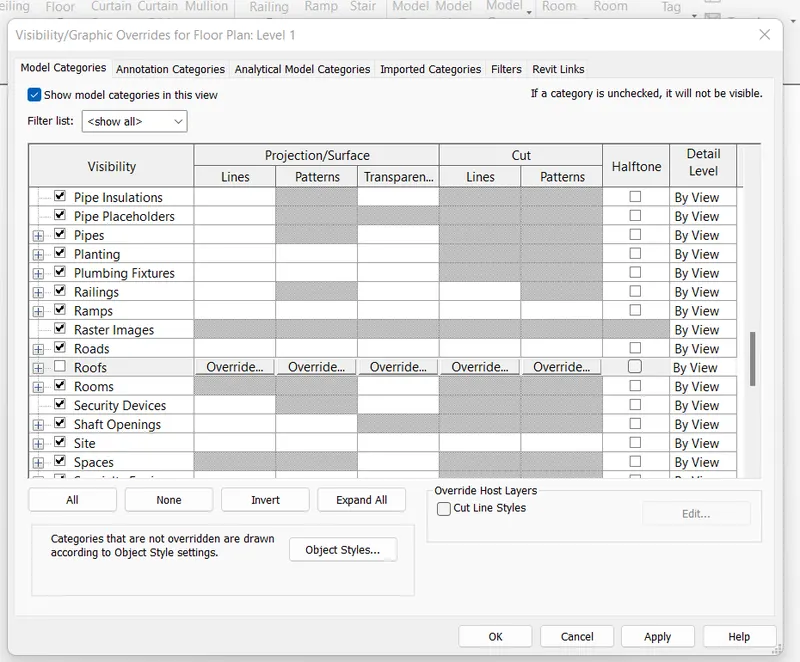

        before that off roof visibility from visibility graphics

        for easy to draw internal partition walls





        then select the ground floor level

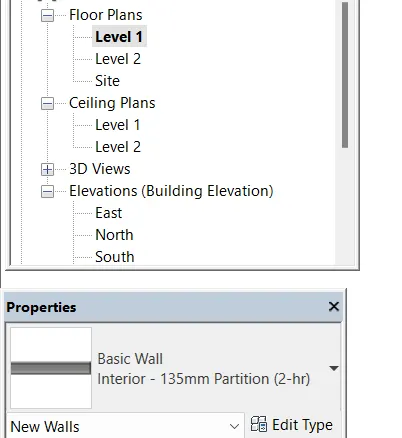

        also internal wall as 135mm

        and select boundry of wall using pick line

        and press ok

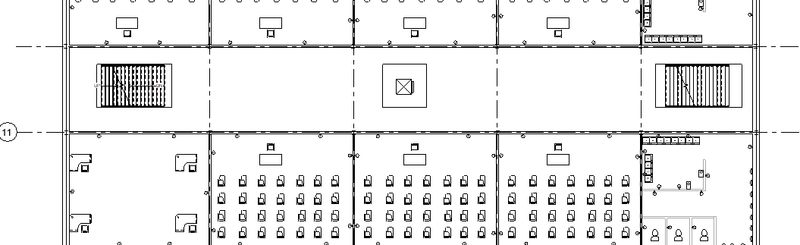

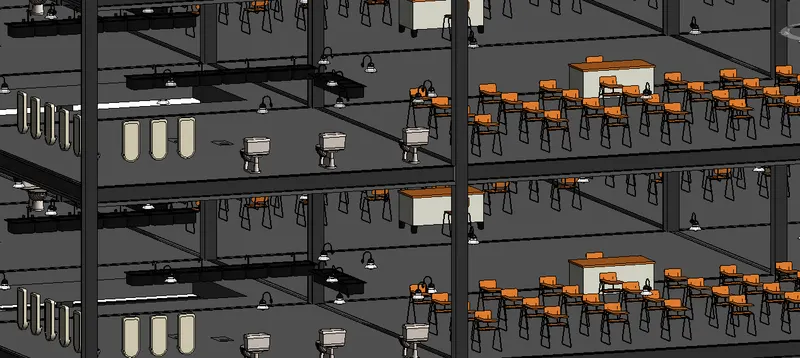

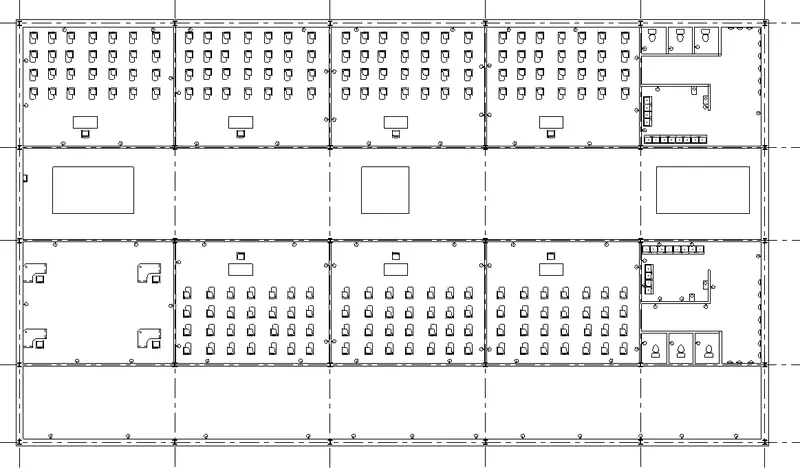

step 6) Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)

           go to level one(ground floor) from property

           for adding components

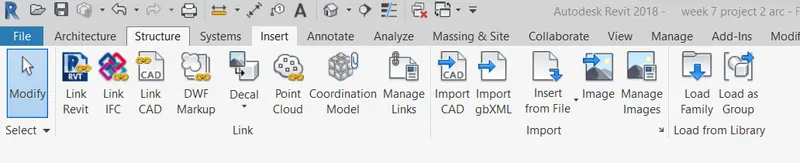

       then go to insert tab

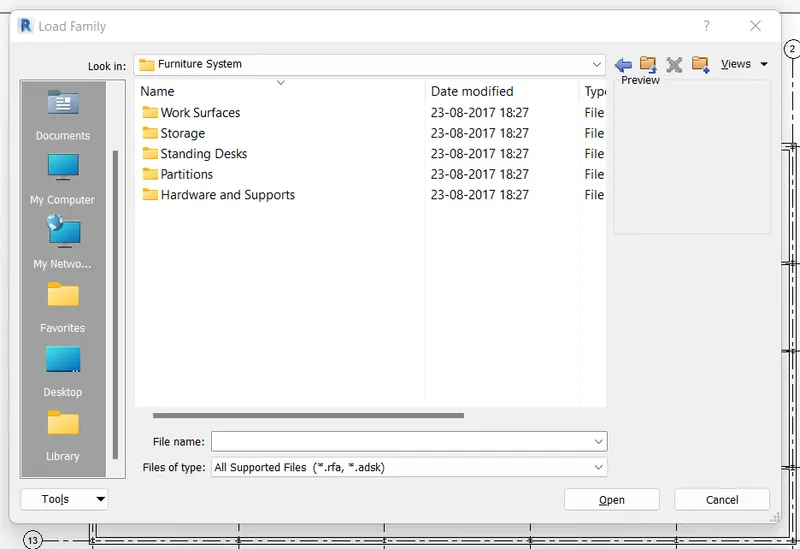

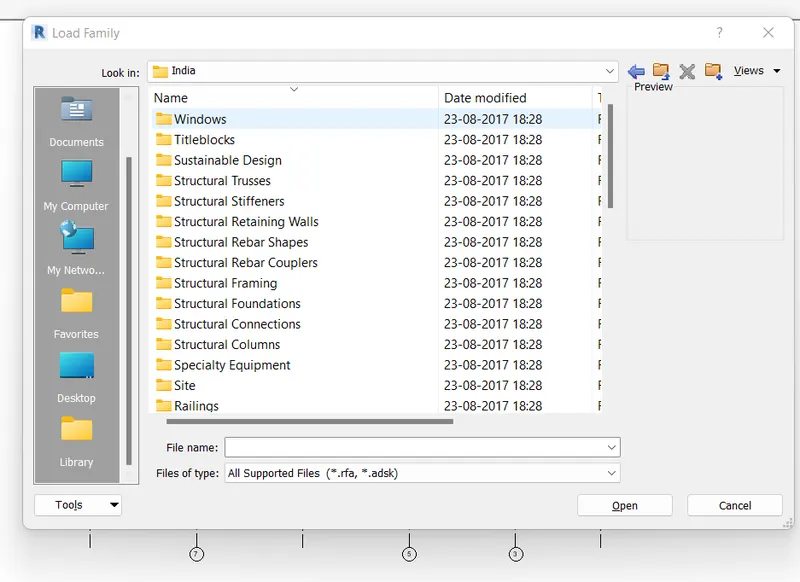

       and choose load family option

       for adding components



     then choose india

     and select furniture system option from it

     then choose standing desk option





      then add suitable desk on suitable place

      like on caboin class room





        Do same or load all family for all component

        like sanitary, plumbing, lighting, bench etc

        and place all at proper manner





        then copy it for first and second floor due to symmentry

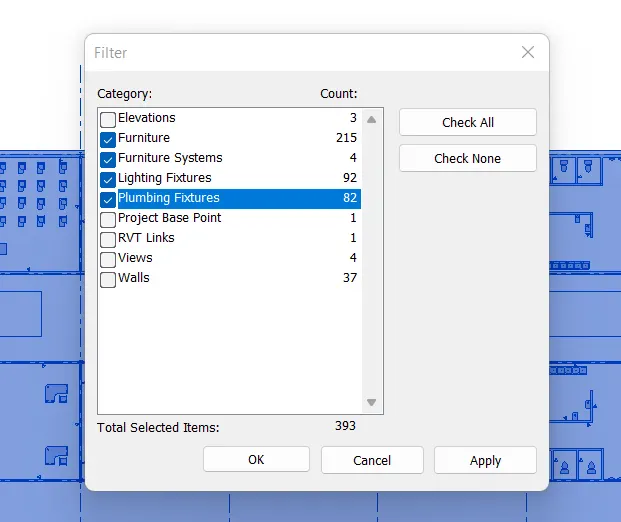

        select the interial component and copy to clipboard

        and paste with aligned levels

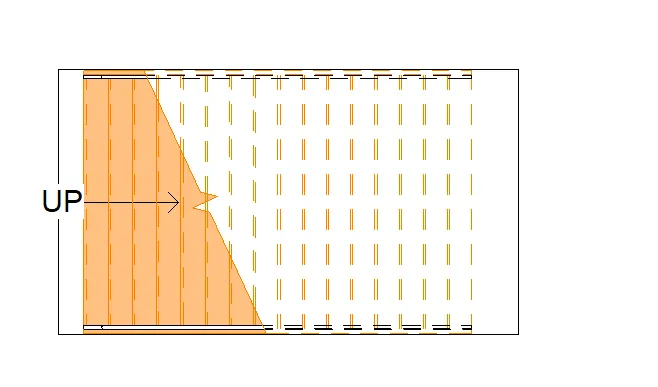

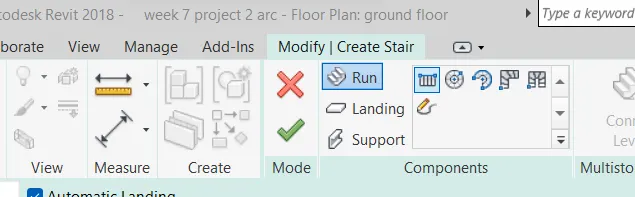

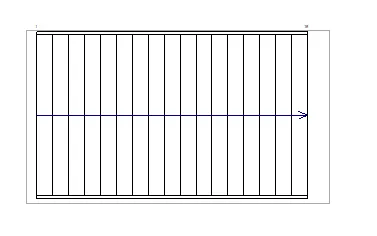

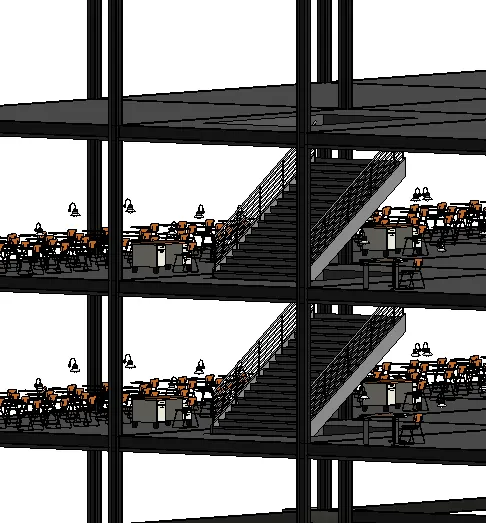

7) Add components such as stairs Elevators

    go to architectural templet

    choose stair option with ground floor





   select straight





  select path where we want to design steps

  we already creat shaft opening for stairs

  and press ok



 then click on connect level

 for connecting multi levels

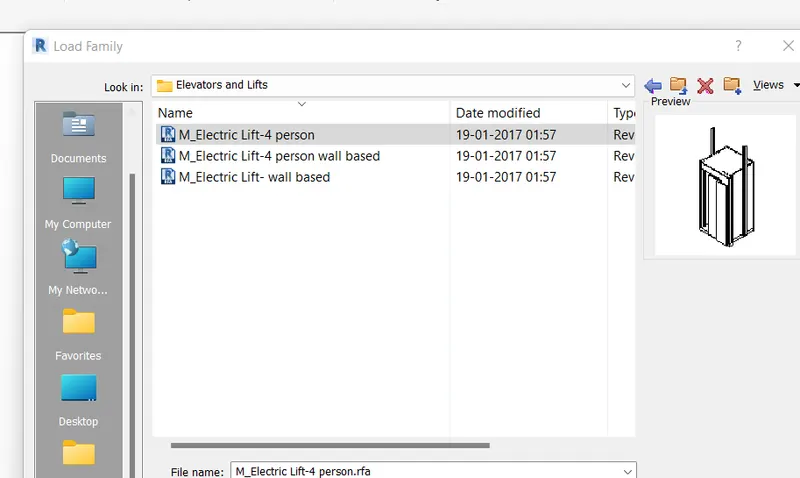

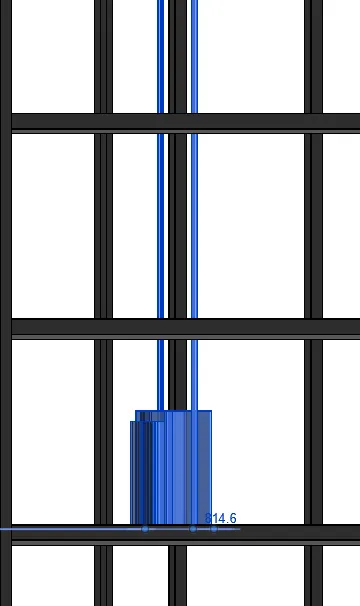

    now for elevators

     go to insert

     and load family select specialty equipment





        in that click on lift and elvators

        and choose 4 person elevators





          then load it and paste

         or drawn our elevator opening and adjust with sizw then press ok

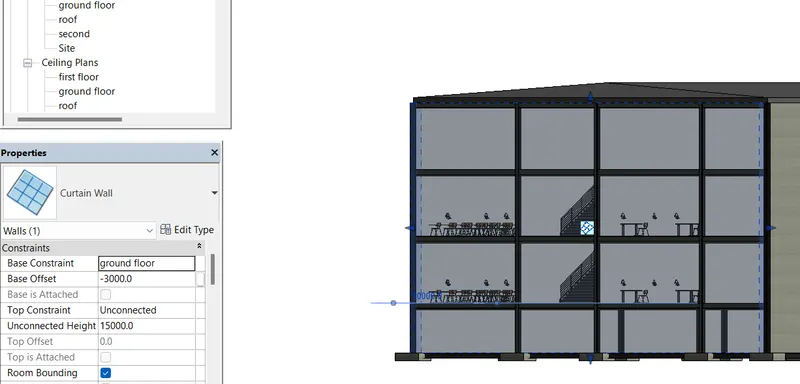

8) Have at-least one side of the building with curtain walls and glass panels

    select wall which we want to have glass pannel

   and go to properties





    then select curtain wall option from it

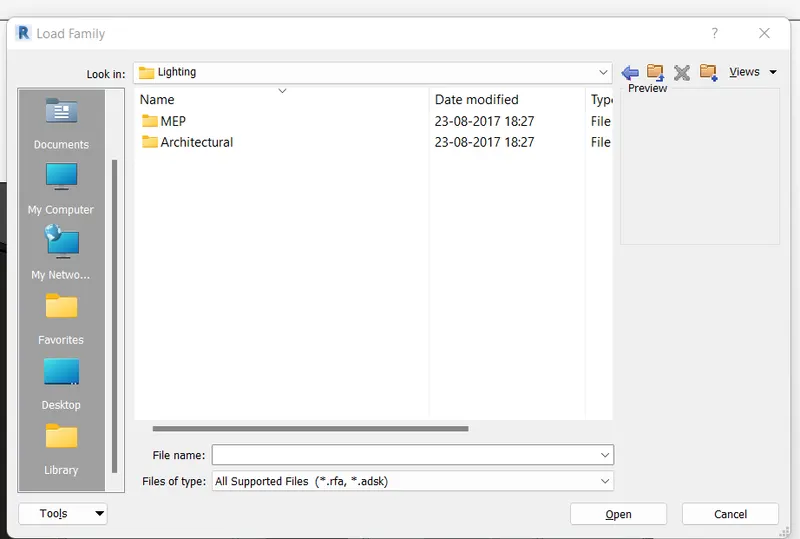

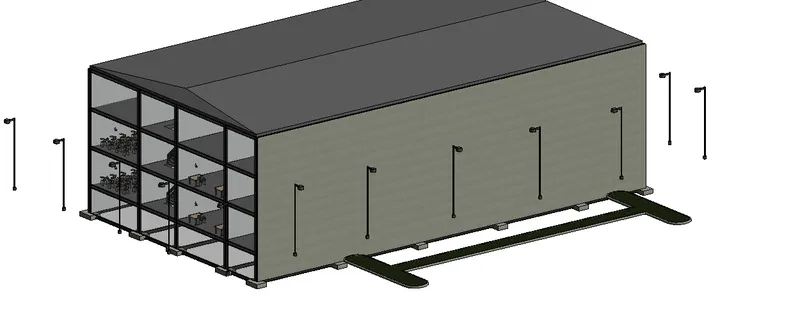

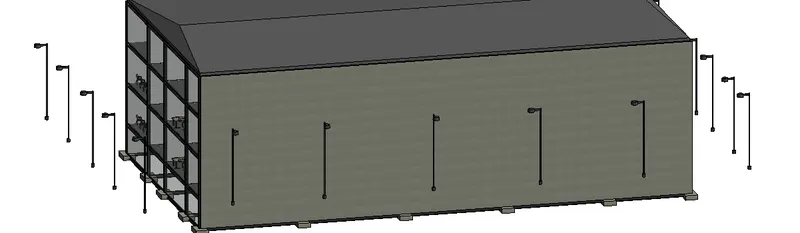

9) Include interior and exterior lighting fixtures

   go to insert tab

   and click on load family option





 then select india

 and lightning





 then go with architectural

 in that select external light and put on out side of the building

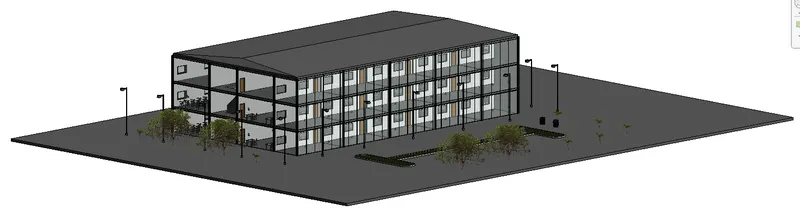

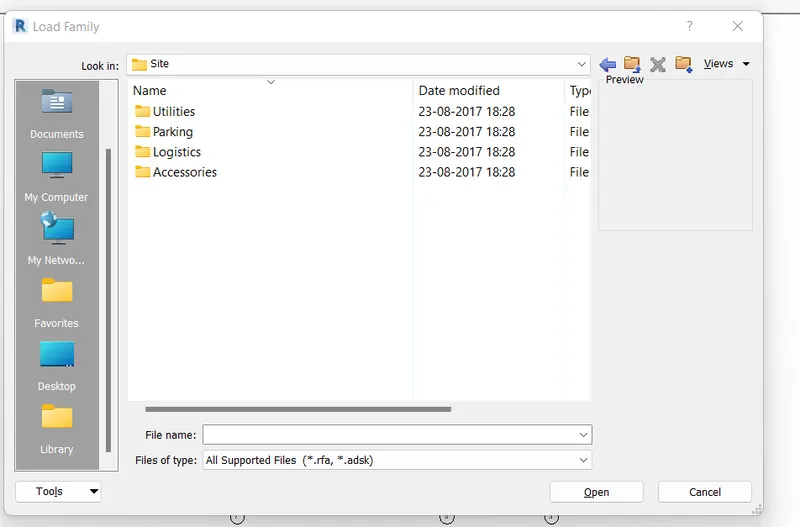

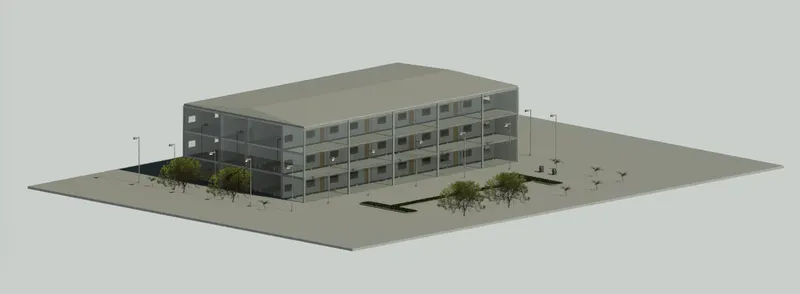

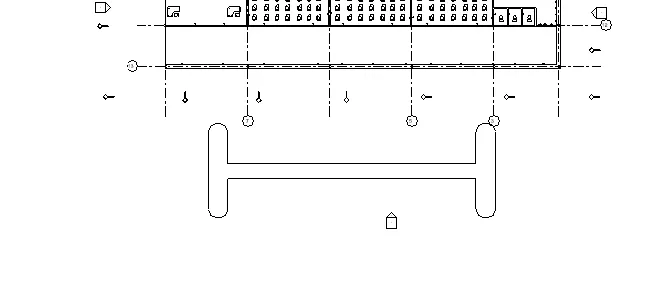

10) Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

   go to insert tab

   and click on load family option





 then select india

 and sight and select parking option from it



  then choose double sided parking option

  and insert in plan from properties





 then add plants and tree same by loading families





Result: architectural features are done in architectural templet are done successfull









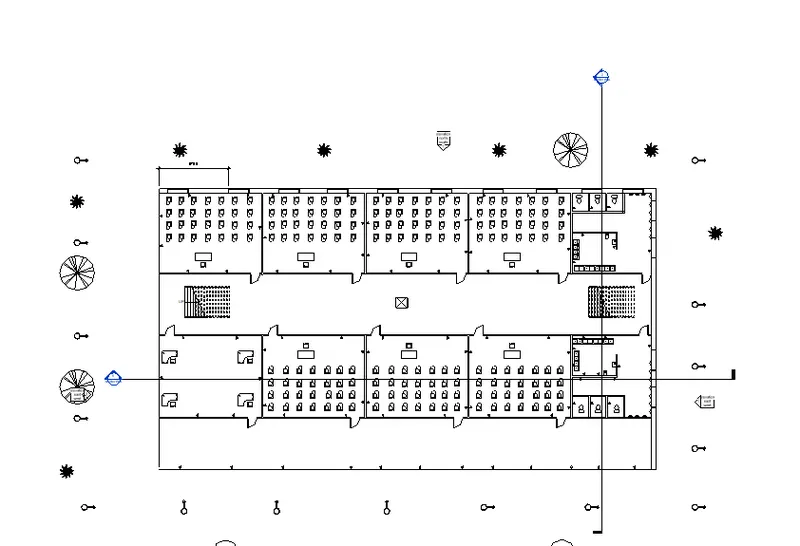

5)AIM:  Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

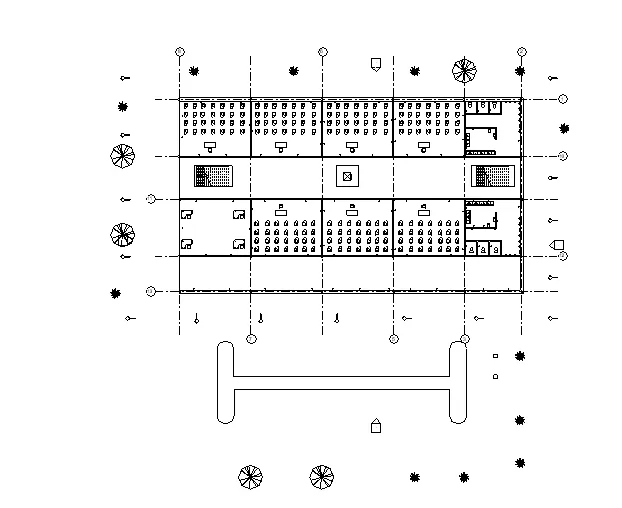

        a. Floor Plans with Annotations
        b. Elevations
        c. Sections



Introduction: sheet templet is required for showing dwg to clint for clear vision and understanding of project



Procedure:

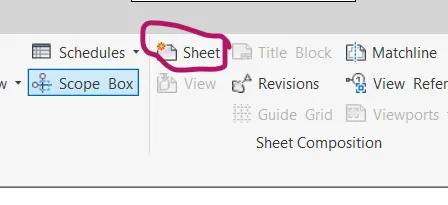

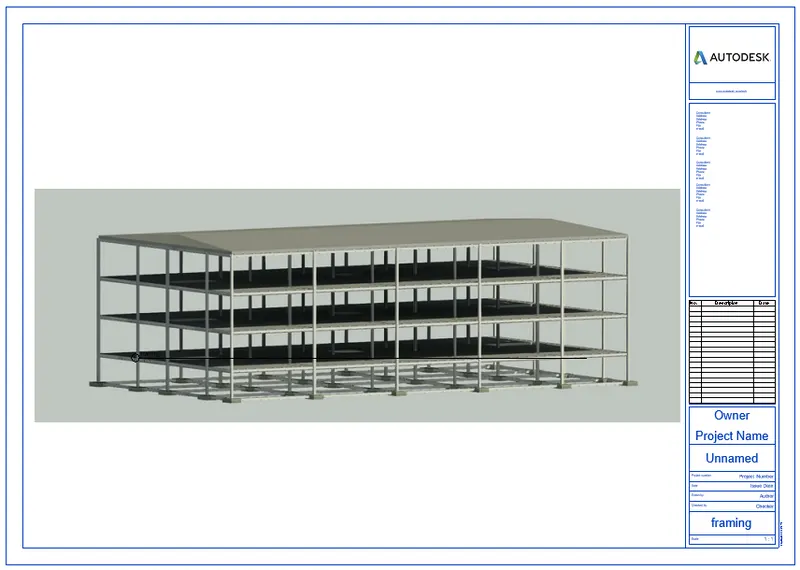

Step 1) go to view tab

             then choose sheet icon and click on sheet

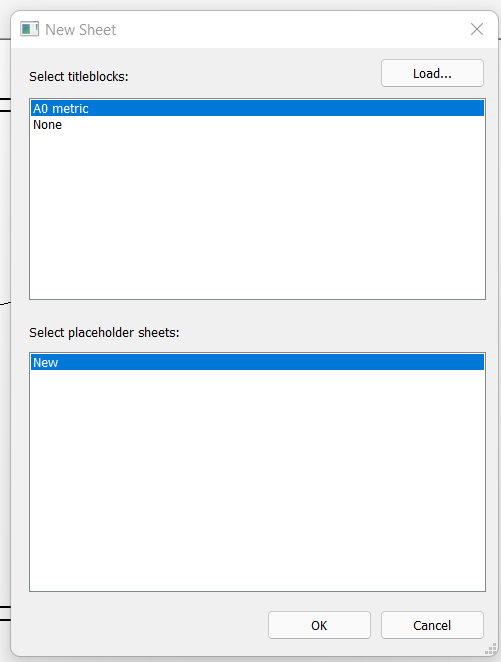

Step 2) choose paper size

             here showing variou type of paper sizes

             so choose A0 metric paper size

             and press ok

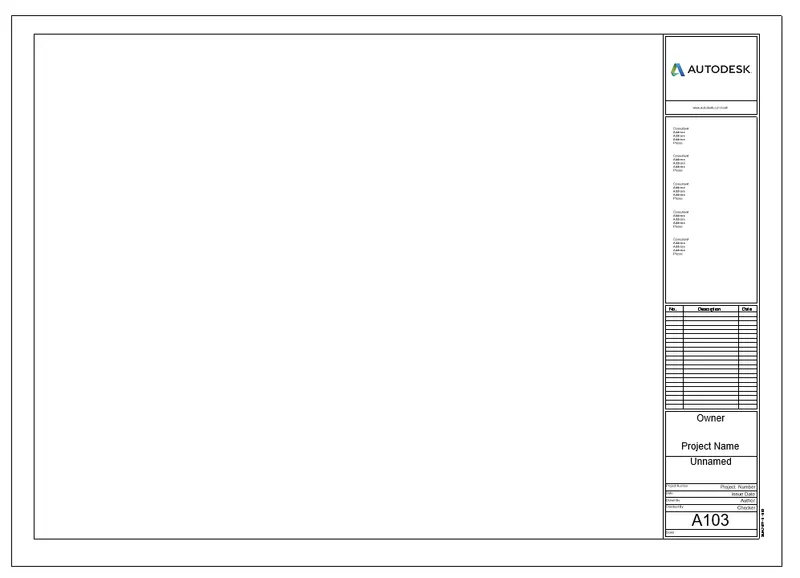

Step 3) immediatly sheet will be created

             after chooseing a paper size





Step 4) rename the sheet ( project information )

            or fill project information to sheet

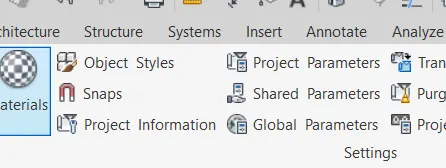

            from project information from manage tab

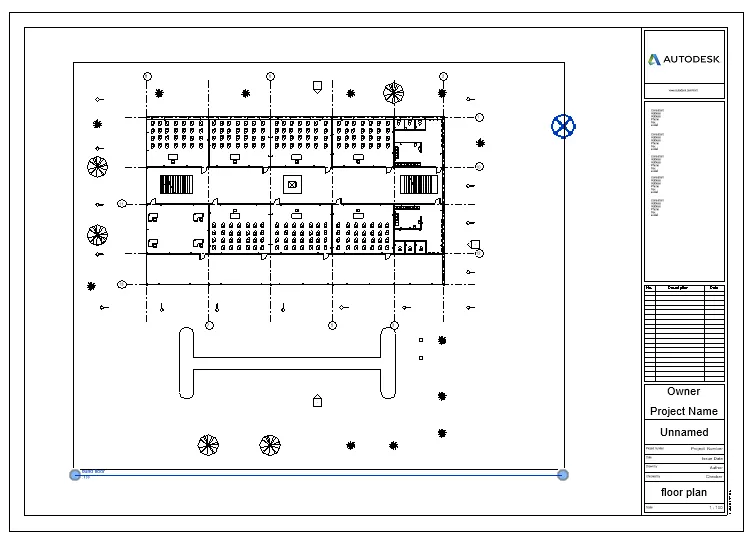

Step 5) adjust the parameters on the sheet to add appropriate views

            go on sheet from property browser

            then click and drag the floor plan on sheet





Step 6) adjust the scale

            go to scale on property browser

           set the proper scale for clear visible

           set scale as 1:20

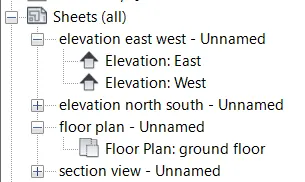

          then same do for elevation and section view

          go to sheet from view

          create sheet for elevation and section





      then show all elevation section on sheet templet

      by draging perticular view

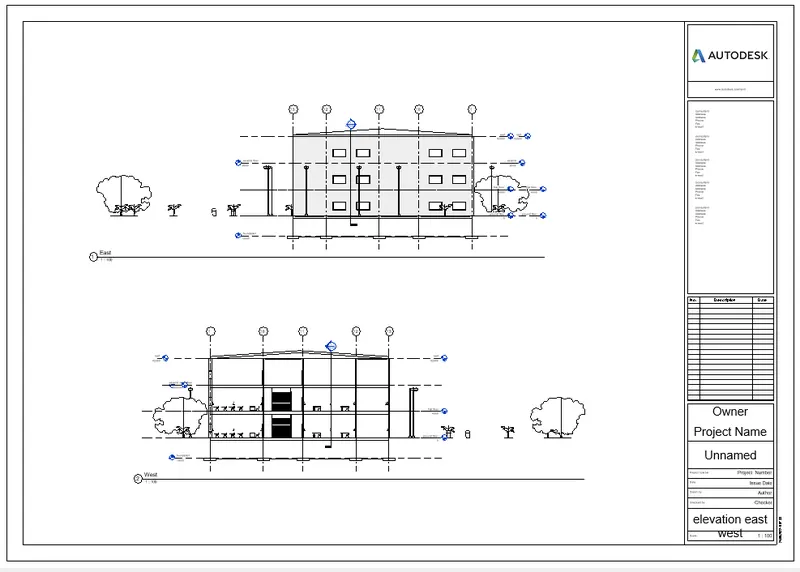

      theat is elevation east west

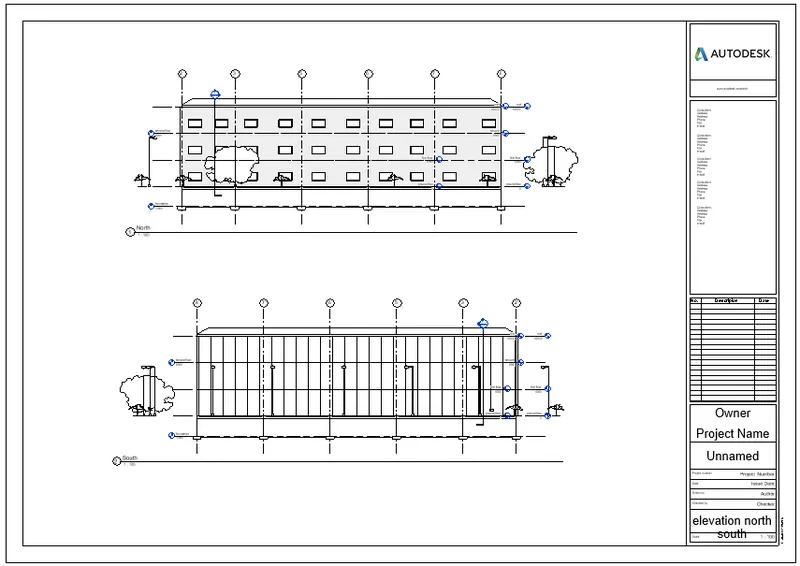

     now it is elvation north south

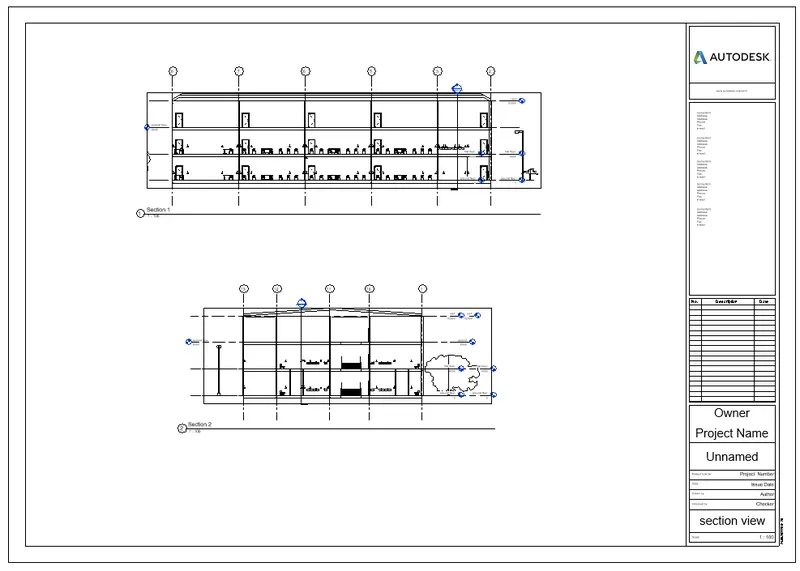

     now same do for section '

    we create two sections from view tab

    with transverse as well as longitudinal



  then drag the section view

  on we created section view





Result: we create sheet templet with difrrent view are done successfully

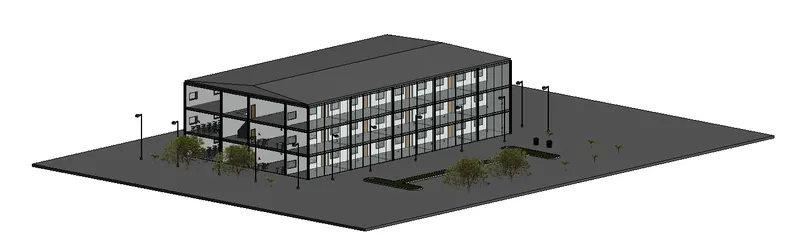

6) AIM: Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
        a. Rendering from interior rooms
        b. Rendering from out showing topographic features

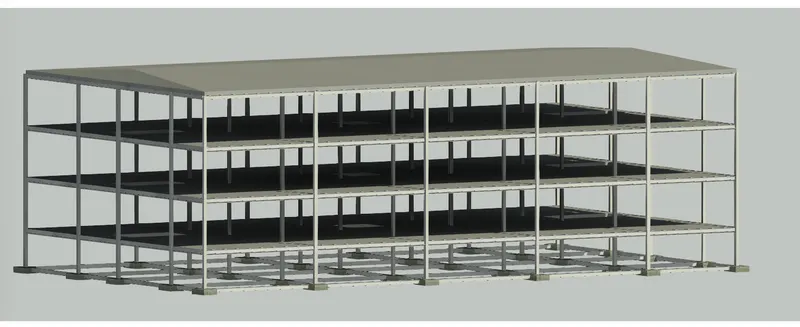

        c. Rendering through structural framing



Introduction: rendering showing actuall real view of units



Procedure:

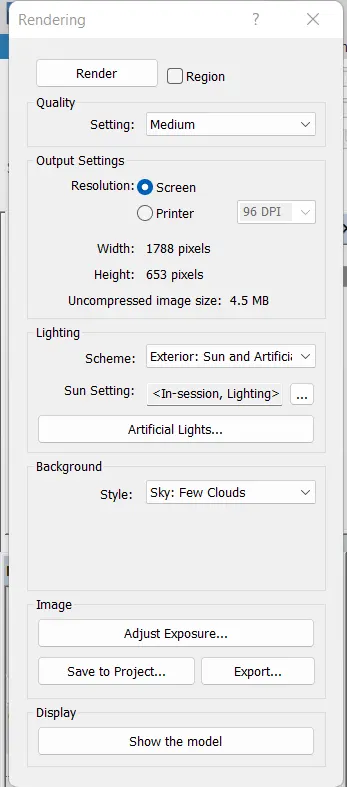

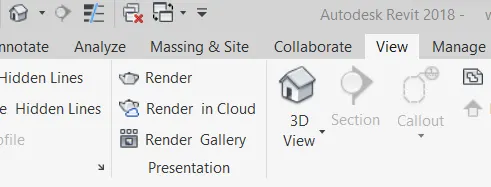

    step 1) rendering

               go to view tab and choose a render option from it





            choose approprite option from window

            for rendering like atmosphere, quality etc

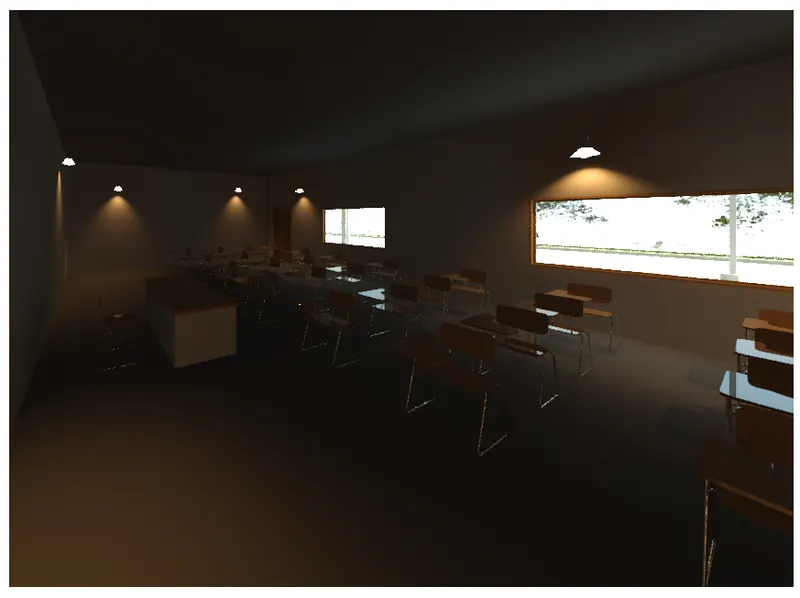

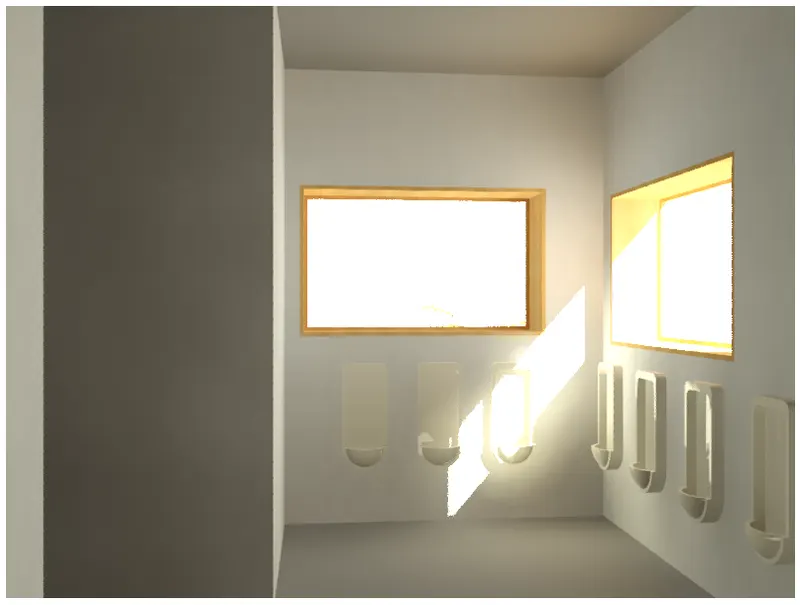

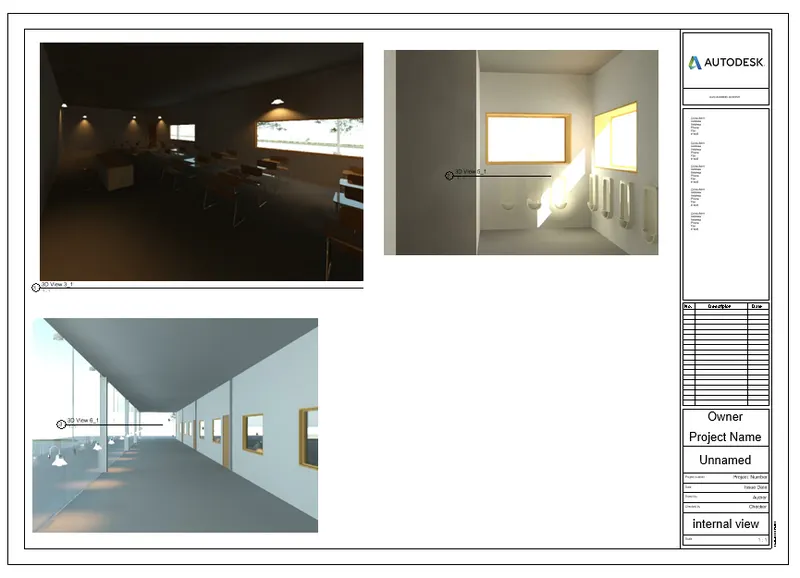

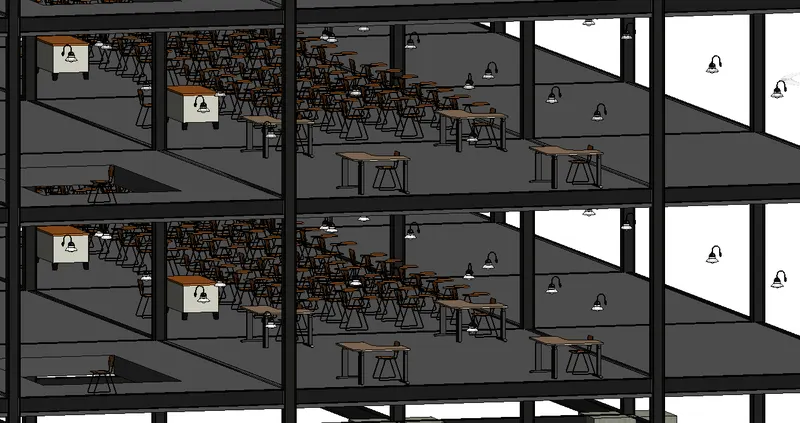

step 2) Rendering from interiors rooms

           first set the cameras where we want to render the views





         then render one by one view

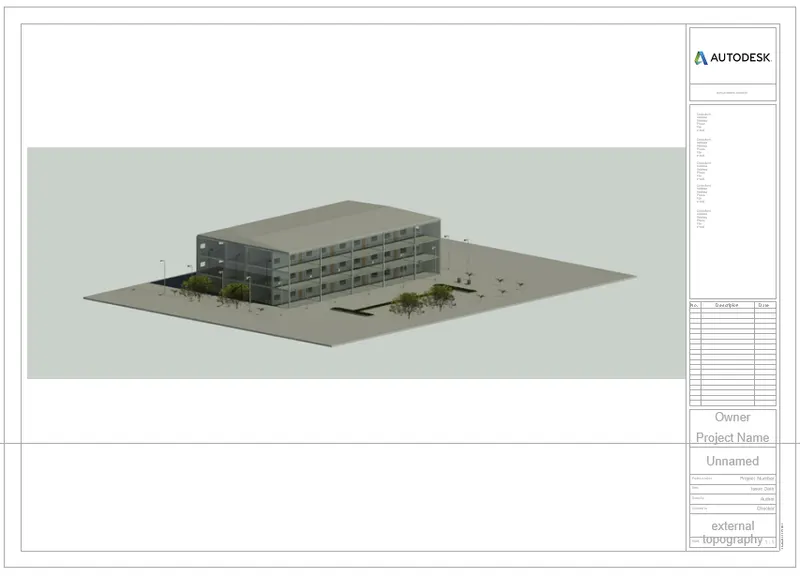

step 3) Rendering from out showing topographic features

           go to 3D view

           and open external topography view by adjusing view cube





      then render it from view tab

      by choosing external sun option







step 4) Rendering through structural framing

          open the structural model/templet

          we save as name with project 1 structural





      then render it from view tab

      by choosing external sun option





 step 5) include this render image to sheet

Step 1) go to view tab

             then choose sheet icon and click on sheet





Step 2) choose paper size

             here showing variou type of paper sizes

             so choose A0 metric paper size

             and press ok





Step 3) immediatly sheet will be created

             after chooseing a paper size





Step 4) rename the sheet ( project information )

            or fill project information to sheet

            from project information from manage tab





Step 5) adjust the parameters on the sheet to add appropriate views

            go on sheet from property browser

            then click and drag the floor plan on sheet





 then for external architectural view





now for internal view





Result: render of various views using render option are done sucessfull

















7) AIM: Print the set of drawing sheets created and submit the drawings from the architecture and structure model



Introduction: print the drwaing for various purpose such as showing to clinet, workers etc



Procedure:

step 1) go to structural templet

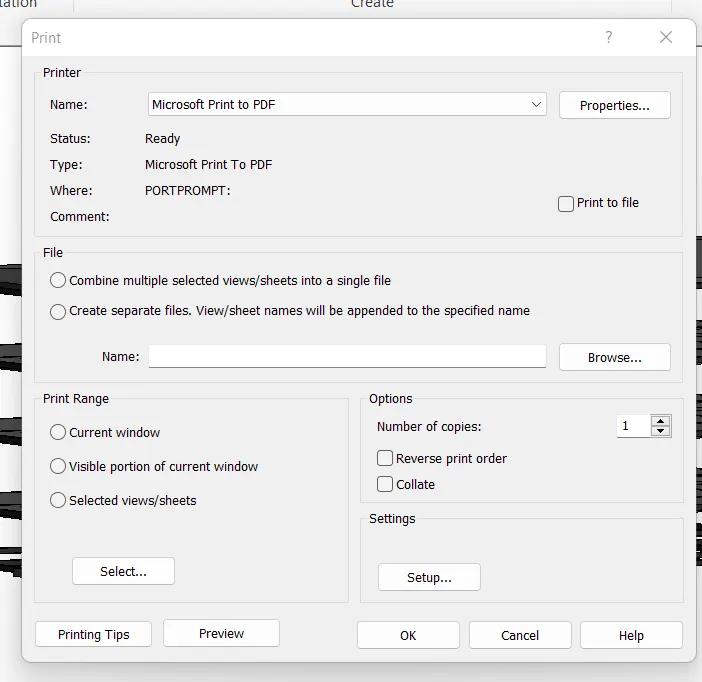

          then press control P

          change setting as microsoft print to PDF

          and press ok

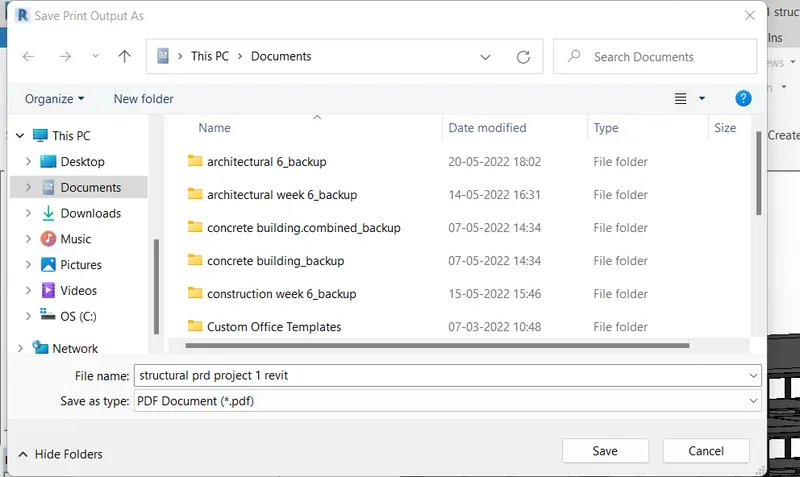

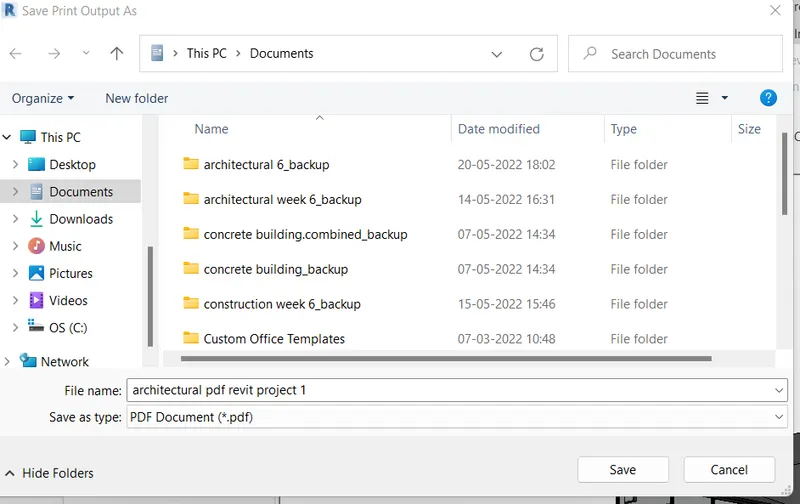

          then save it with name '

          as structural pdf project 1

          and press save







step 2) go to architectural templet





          then press control P

          change setting as microsoft print to PDF

          and press ok



          then save it with name '

          as structural pdf project 1

          and press save





Result: architectural and structural templet pdf save successfully
