Creating a Layout, Section and Elevation with dimensions using AutoCad

AIM:
        DRAWING THE GIVEN PLAN USING AUTOCAD SOFTWARE.

DETAILS OF PROJECT:

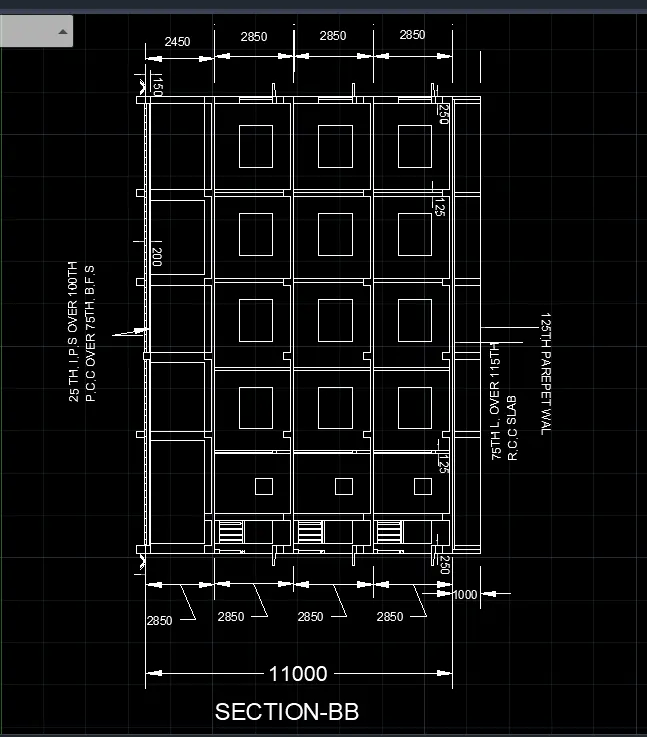

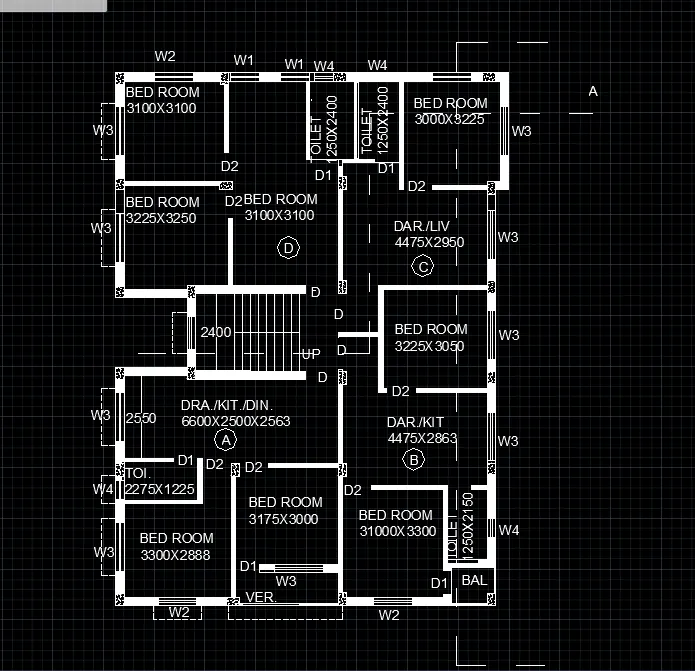

THE GIVEN PLAN CONSIST OF A FLOOR PLAN OF A BUILDING ,SECTION,AND ELEVATION DETAILS AND THE STEP BY STEP  PROCESS IS GIVEN BELOW.

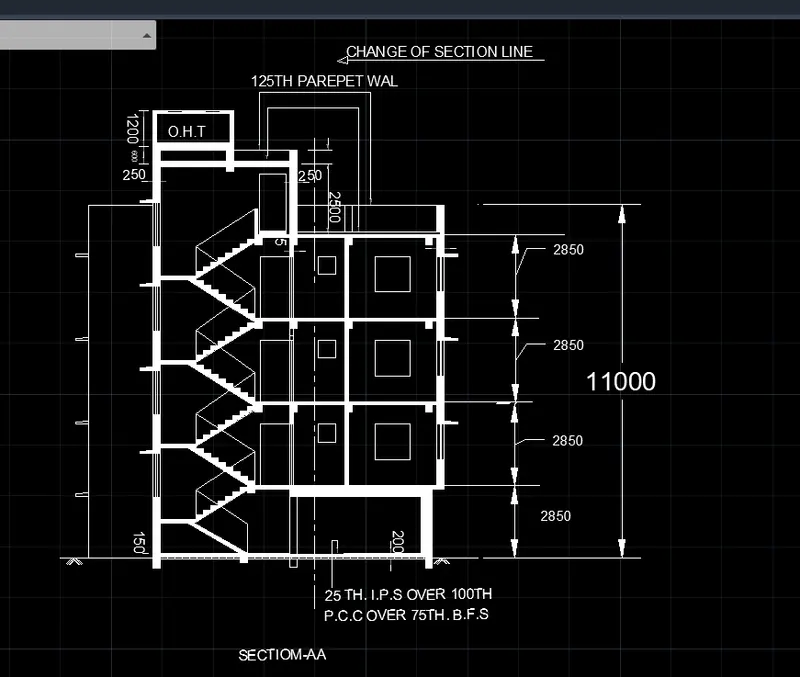

PLAN CONSIST OF 3 FLOORS AND THE SECTION OF THE PLAN ARE GIVEN WITH DETAILS OF STRE CASE ETC

PROCDURE:

STEP:1

        For the given drawings the units are set according to the requirements.

The limits of the  page are set to 1000,1000 in x y directions respectively.

Dimention style commond is used to set the height of the text,arrow size an the primary units.units are set to engineering.

STEP:2

Line commont(direct line system ) is used more frequently to draw the given lines as per the dimentions.

Tream option is used to tream the excess patrt of the  figures some times erase.

Dim tool is used to determine the dimentions of the lnes that are to be mentioned.

HATCH tol is used to fill the patterns.

Mtext is used to write the text on the sheet to specify the details of  the drawings.

Fillet is used to fill the corners where there are not joined corectely or disconnected.

Chamfer used to fill the corners with curved edges where they are to be joined with curved part.

F8 option is used for ortho,F9 is for snap

STEP:3

Following are the some of the most frequently used commonds and tools

FILLET,HATCH,DIMENTIONS,MTEXT,PEDIT,LEADERS,COPY,MOVE ETC.
