Week 8 - Challenge 4 - Bumper

                                                                                 Bumper

Tooling axis

The axis in which the mold or core and cavity is opens or the axis which the designer can modify or create a model by taking axis as a reference is called Tooling Axis.

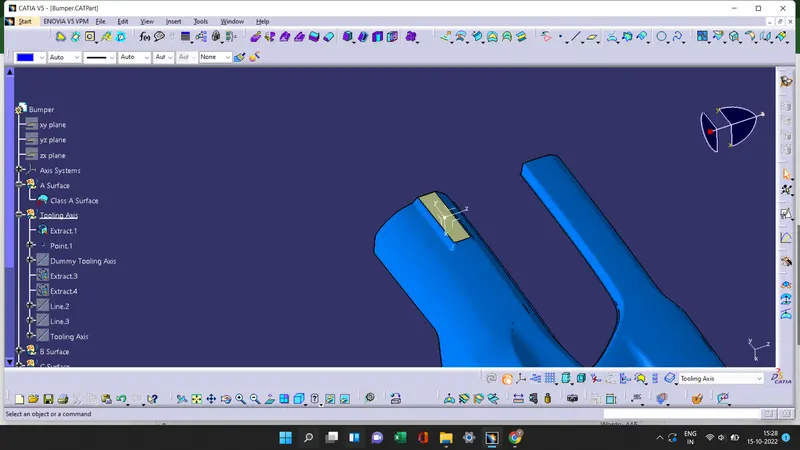

Procedure to creat tooling axis.

• Checking the Class A Surface, for to check which is the perfect place to create a tooling axis.
• Insert an axis system to the Class A Surface and by useing extract, extract the surface of the Class A Surface to create dummy tooling axis.
• By selecting that surfave as a reference surface create a point and take a intersection of Class A Surface.

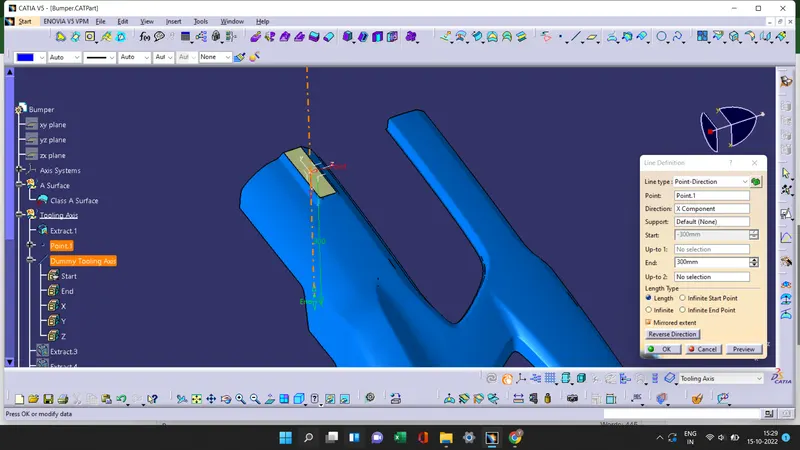

• Create a dummy tooling axis by taking point 1 as a reference.

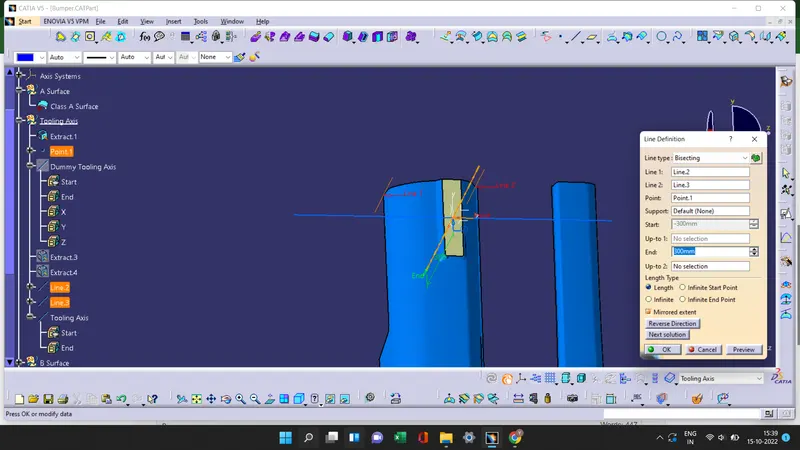

• By taking 2 plane poimts as a reference draw lines from the points and create Bisecting line with line 2 and line 3 with the point we get the Tooling Axis and publish that tooling axis.

Draft analysis

Draft analysis is a method to check the draft angle of the model in various faces and to creates draft on the surface to reduce the friction in the Ejection process.

Procedure to Draft analysis

Draft analysis 1

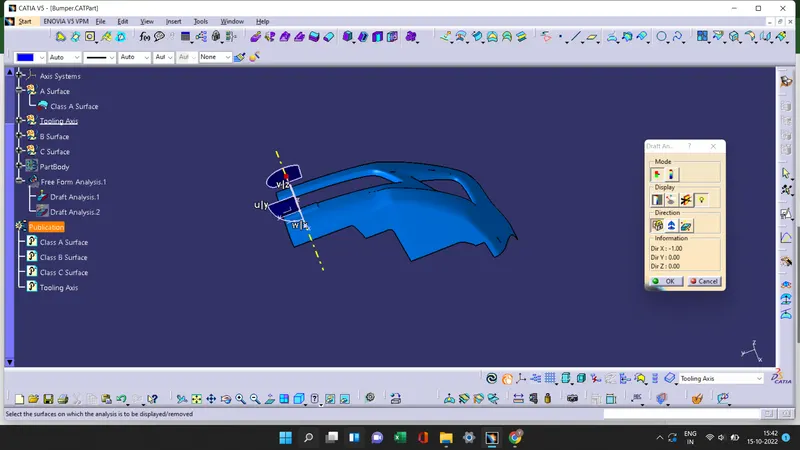

• In draft analysis 1 we taking Class A Surface to draft.
• Check the view mode and change it to material mode.

• Select the draft analysis tool in the tool bar and select Campass in the Direction option of the draft analysis tool. Then move the campass on the tooling axis at draft direction and lock the draft direction.

• Useing the running pointer we see the draft angle at different surfaces of the Bumper.
• Then by useing the color scale option we can change the Draft angle.
• The green color shows if the draft angle is 3 degree,red shows if the draft angle is between 0 to 3 and blue shows the negative draft angle.

Draft analysis 2

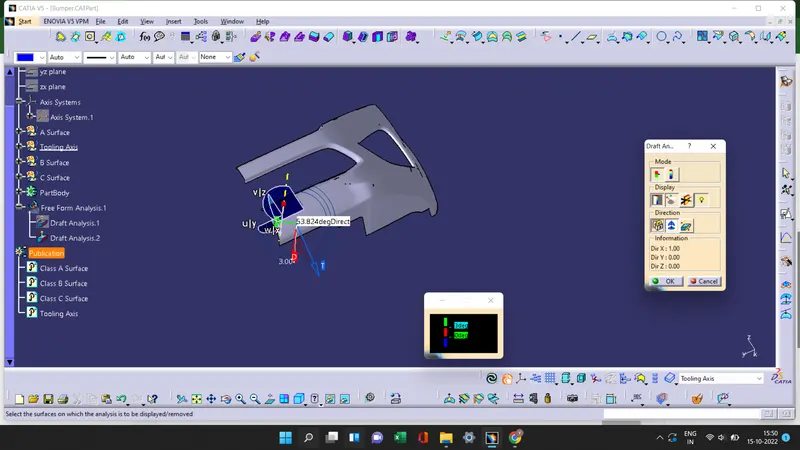

• In draft analysis 2 we taking Final Solid surface to draft.
• Select the draft analysis tool in the tool bar and select Campass in the Direction option of the draft analysis tool. Then move the campass on the tooling axis at draft direction and lock the draft direction.
• Useing the running pointer we see the draft angle at B surface and C Surface of the Coin Holder.

• Then by useing the color scale option we can change the Draft angle. The green color shows if the draft angle is 3 degree,red shows if the draft angle is between 0 to 3 and blue shows the negative draft angle.

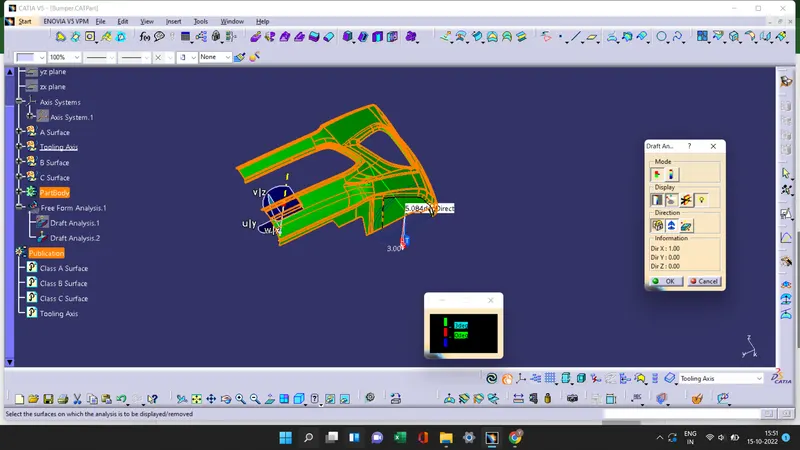

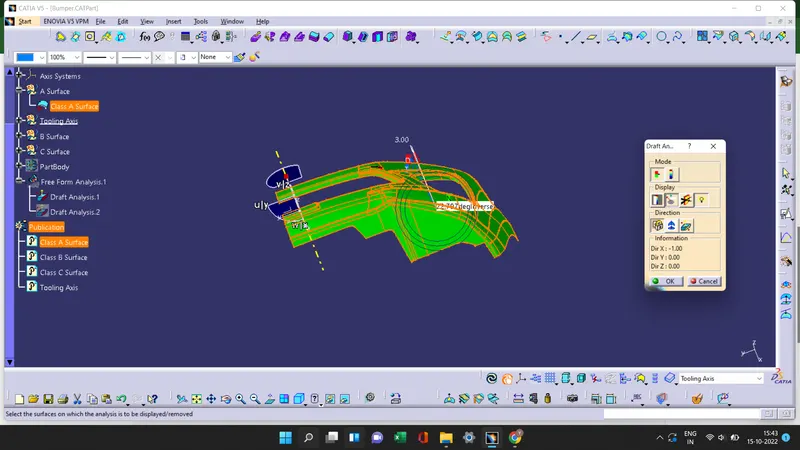

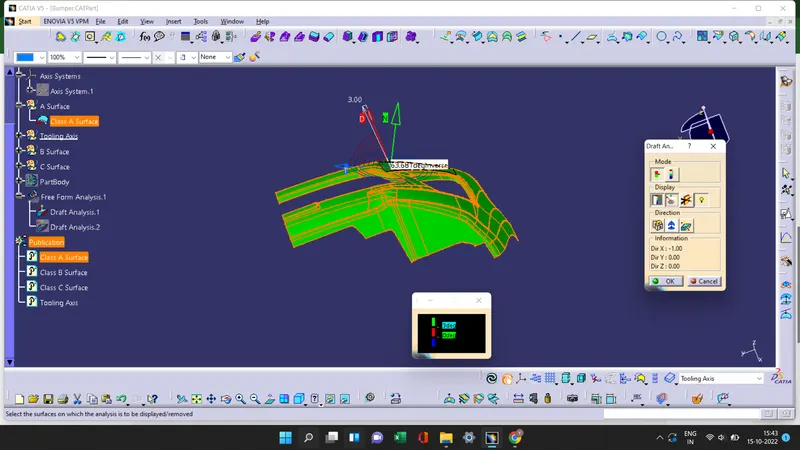

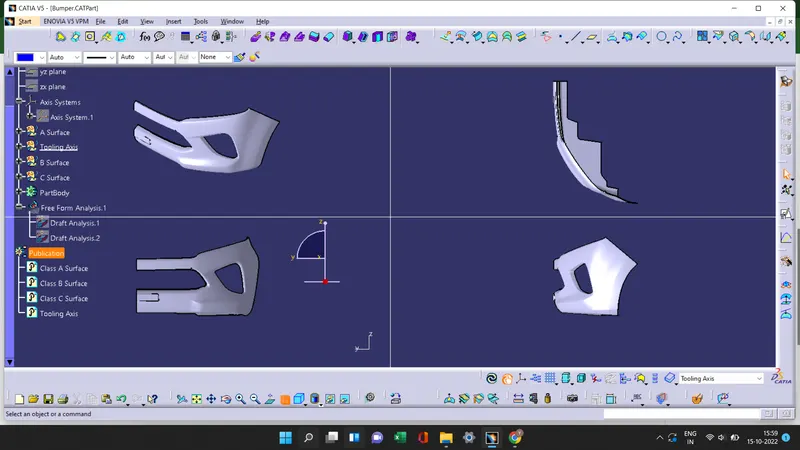

Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component

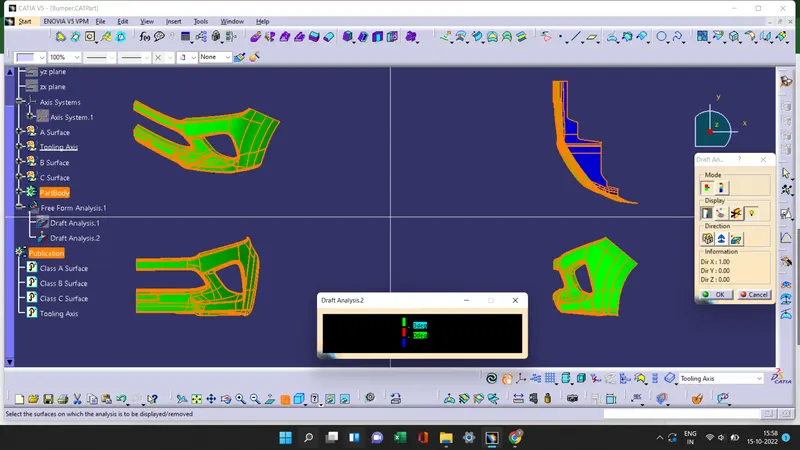

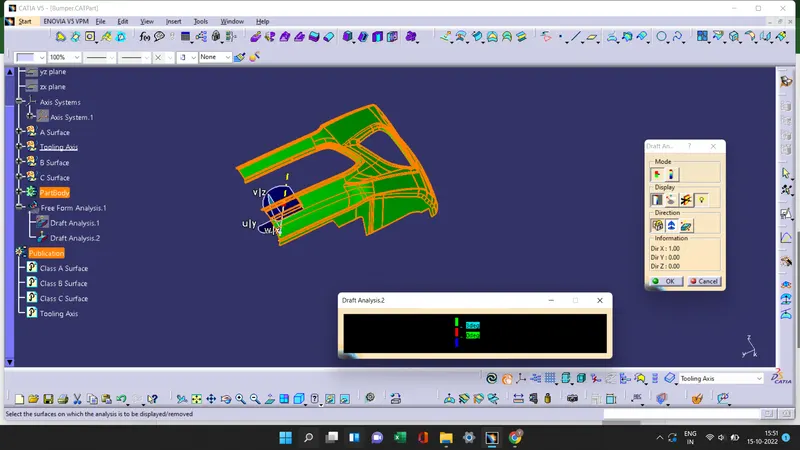

Screenshots of the solid model with the proper color code of the draft angle in various orientations

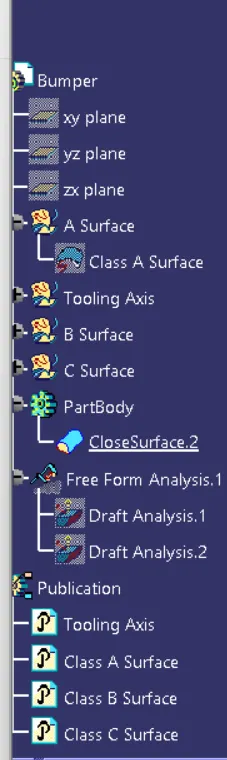

Tree
