Project 1_Comparative study of different storey buildings for Seismic forces



AIM : Comparative study of different storey buildings for Seismic forces

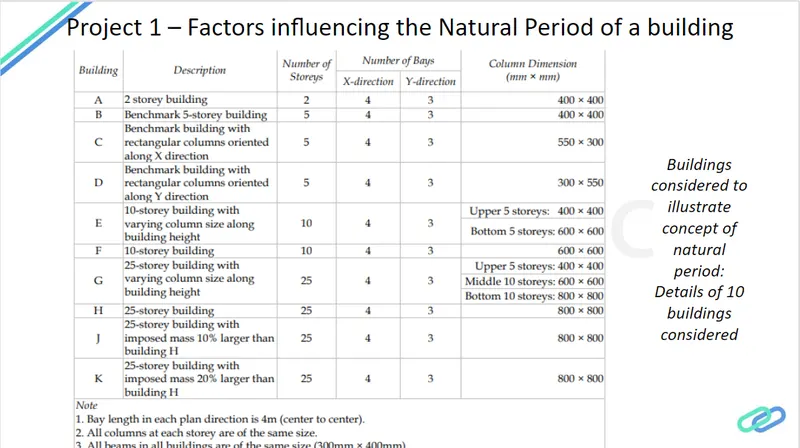

INTRODUCTION : There are 10 project of different story building (A, B, C, D, E, F, G, H, J, K).

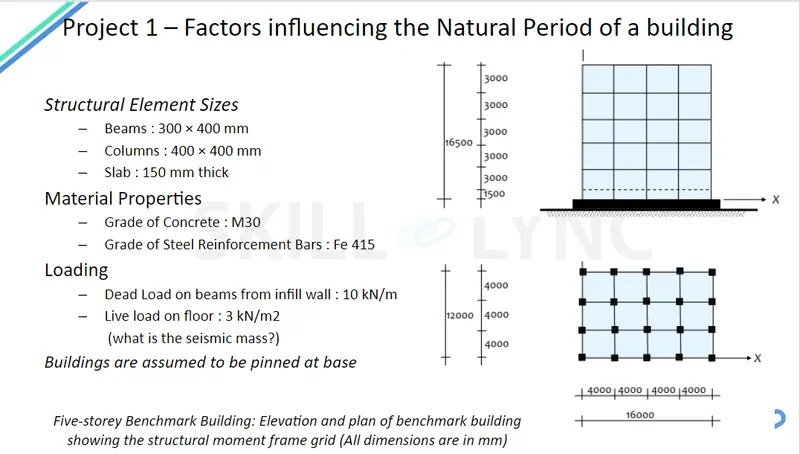

Factors influencing the dynamic characteristics of a building

    Buildings oscillate during earthquake shaking. The oscillation causes inertia force to be induced in the building.

    The intensity and duration of oscillation, and the amount of inertia force induced in a building depend on features of buildings, called their dynamic characteristics, in addition to the characteristics of the                  earthquake shaking (beyond the control of an engineer) itself.

    The important dynamic characteristics of buildings are modes of oscillation and damping (assumed constant in most practical cases). A mode of oscillation of a building is defined by associated Natural Period             and Deformed Shape in which it oscillates.

    Every building has a number of natural frequencies (how many?), at which it offers minimum resistance to shaking induced by external effects (like earthquakes and wind) and internal effects (like motors fixed        on it).

    Each of these natural frequencies and the associated deformation shape of a building constitute a Natural Mode of Oscillation.

    The mode of oscillation with the smallest natural frequency (and largest natural period) is called the Fundamental Mode; the associated natural period T1 is called the Fundamental Natural Period.

    Regular buildings held at their base from translation in the three directions, have two fundamental translational natural periods, Tx1 and Ty1, associated with its horizontal translational oscillation along X and Y        directions, respectively, and one fundamental rotational natural period Tθ1 associated with its rotation about an axis parallel to Z axis.





Factors influencing the Natural Period of a building









       Effect of stiffness on T: Compare fundamental natural periods of buildings E & F as well as G & H. Why is there a marginal or significant difference in the fundamental natural periods?





       Effect of mass on T: Compare fundamental natural periods of buildings H, J and K. Have the buildings become more flexible or stiff due to change in mass?



       Effect of Building Height on T: How does the fundamental natural periods of Buildings A, B, F and H change with change in building height?





       Effect of Column Orientation on T: How does the fundamental natural periods of Buildings B, C and D change with change in column orientation?







Factors influencing the Mode shape of oscillations

    Mode shape of oscillation associated with a natural period of a building is the deformed shape of the building when shaken at the natural period. Hence, a building has as many mode shapes as the number of        natural periods.

    For a building, there are infinite numbers of natural period. But, in the mathematical modeling of building, usually the building is discretized into a number of elements. The junctions of these elements are            called nodes. Each node is free to translate in all the three Cartesian directions and rotate about the three Cartesian axes. Hence, if the number of nodes of discretization is N, then there would be 6N modes of      oscillation, and associated with these are 6N natural periods and mode shapes of oscillation.

   Effect of Flexural Stiffness of Structural Elements on mode shapes: Compare fundamental mode shape of Building B in two situations when flexural stiffness of beams relative to that of adjoining columns is           very small versus when it is large.







   Effect of Axial Stiffness of Vertical Members on mode shapes: Compare fundamental mode shape of Building H in two situations when axial cross-sectional area of columns is very small versus when it is large.



   Effect of Degree of Fixity at column bases on mode shape: Compare fundamental mode shape of Building B in two situations when base of columns is pinned versus when it is fixed.

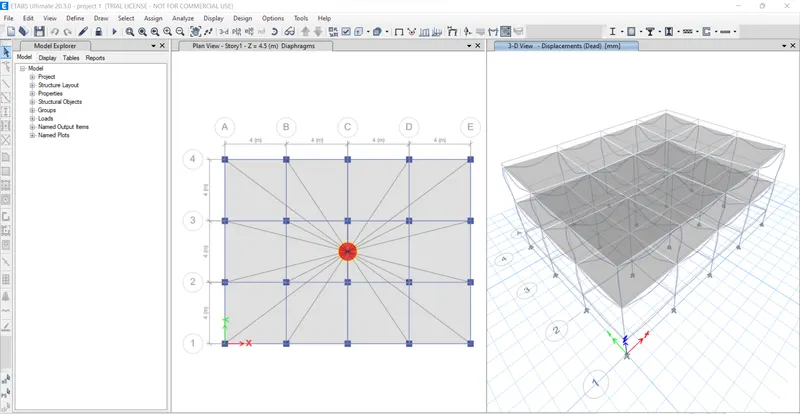

Building A

Given,

2 storey building

number of bay

X direction 4,  Y direction 3

size of beam 400X400mm

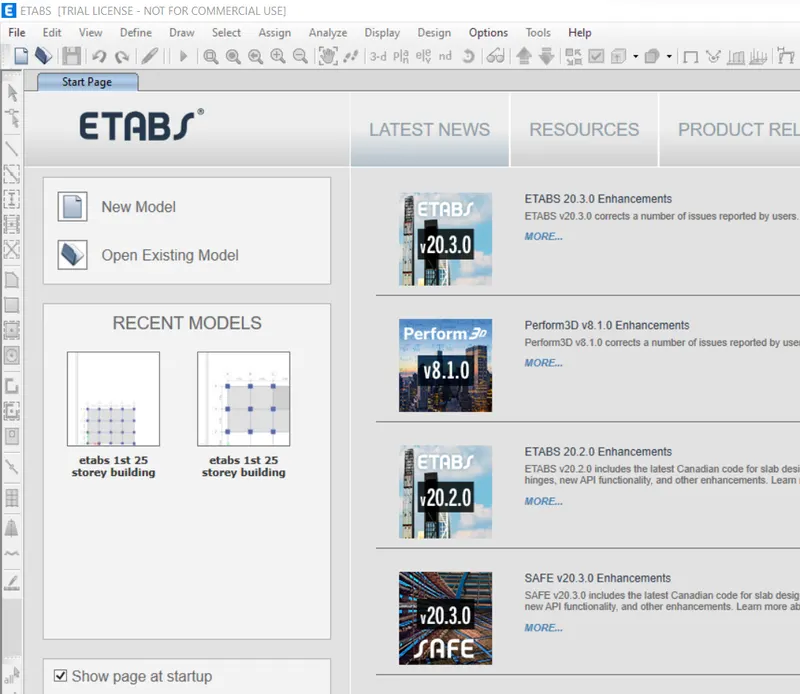

step 1) open the etabs software and go for new model

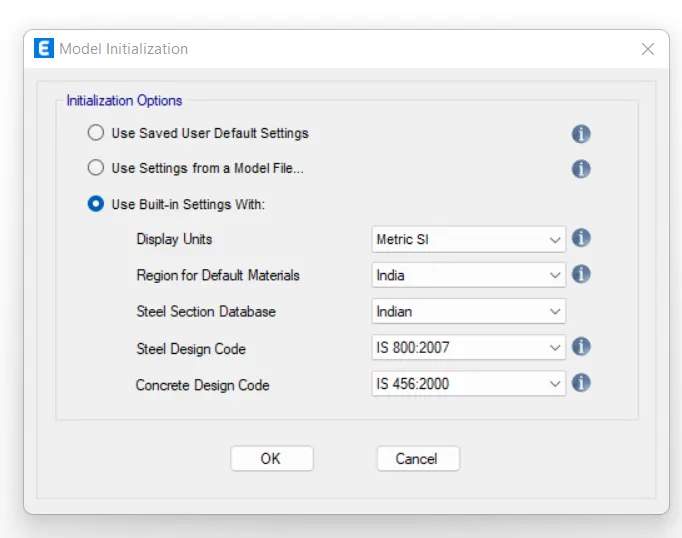

then set units and press ok in intialization optionn

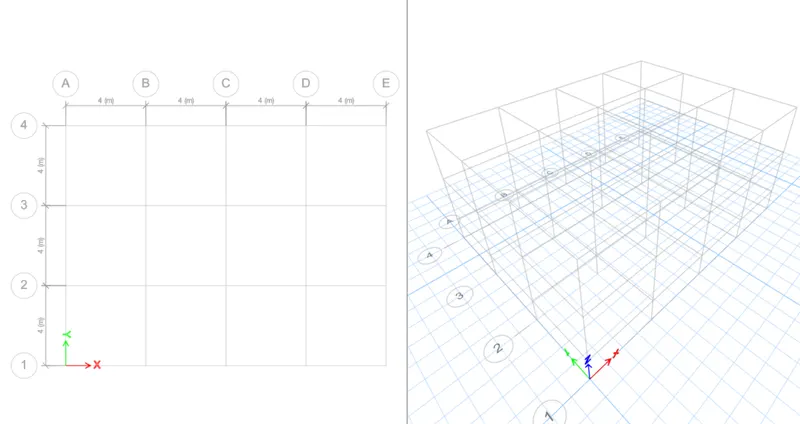

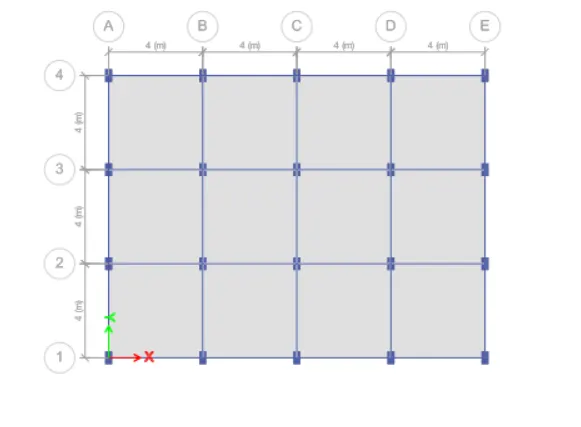

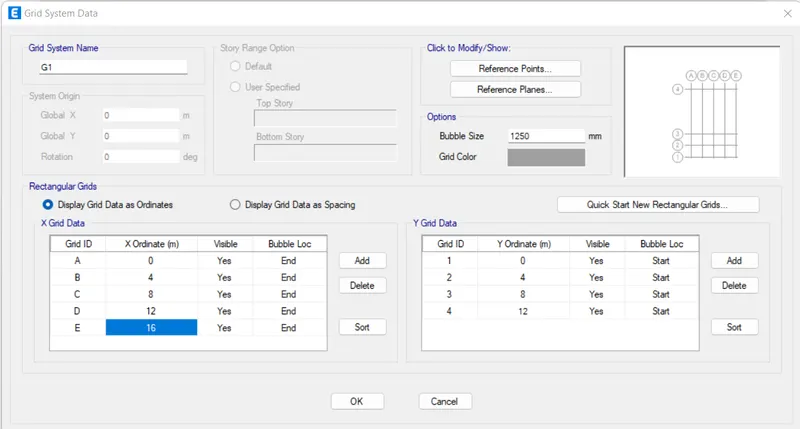

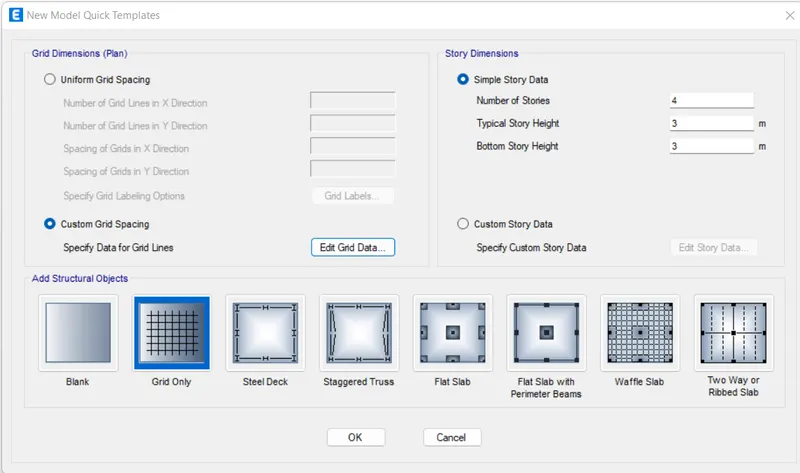

step 2) set grid spacing and custom storey data from quick templet



first go to edit custom grid spacing

set no. of bay and spacing between two grids and press ok



now storey data

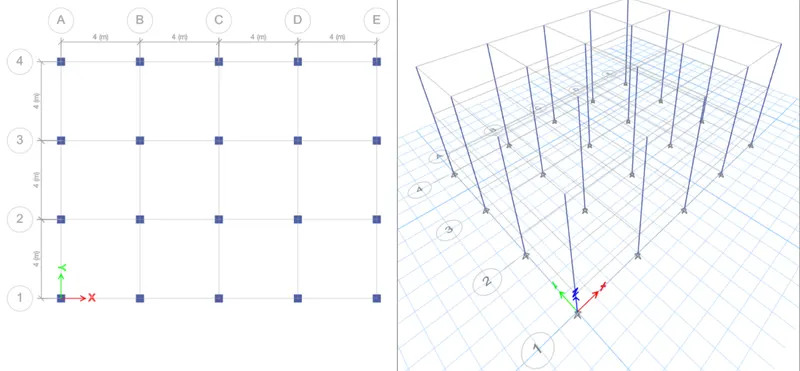

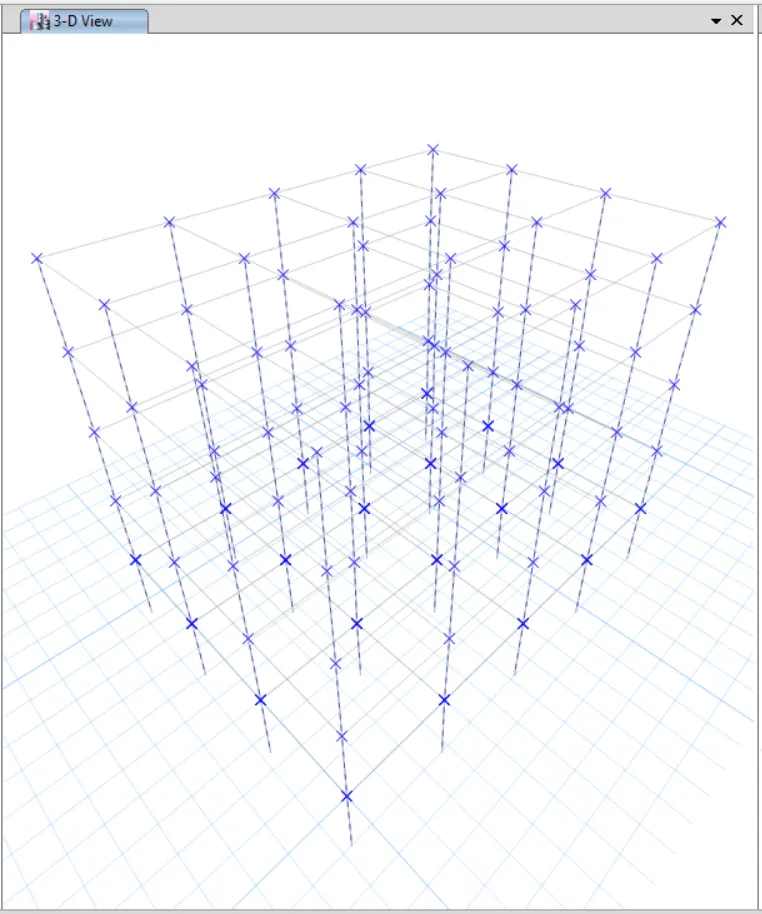

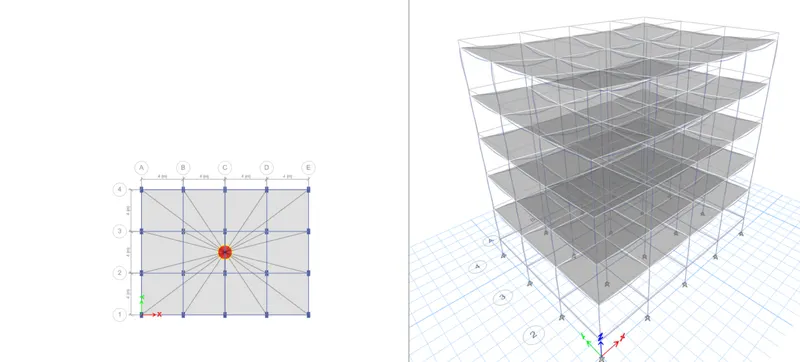

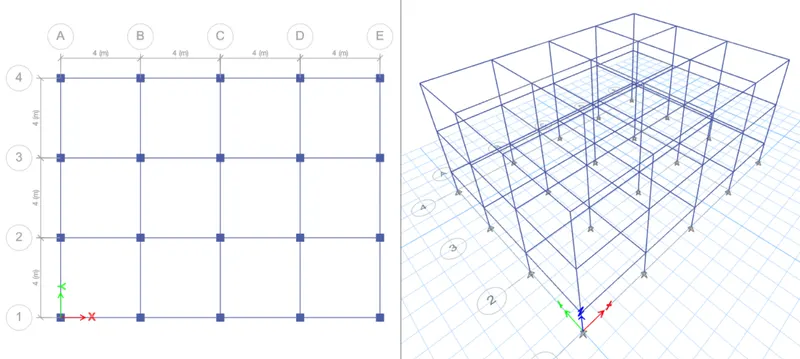

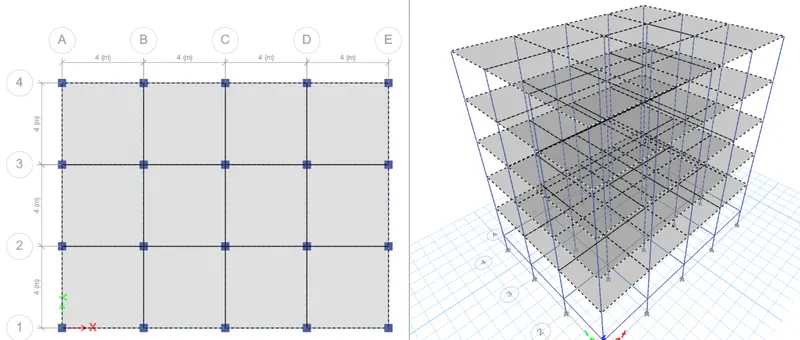

our building frame are created



step 3) go to material proprty from define

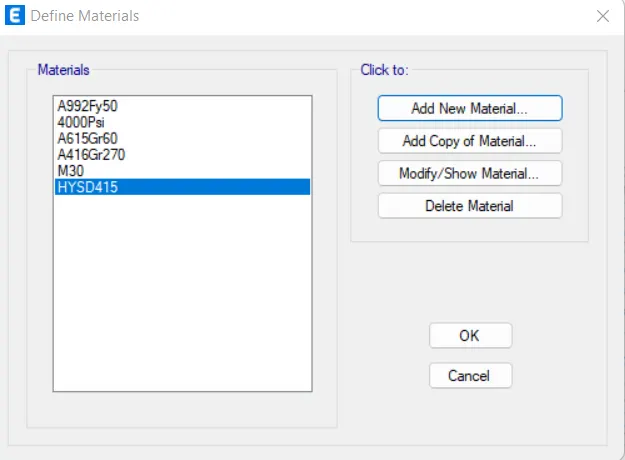

add new material of concrete M30 and steel fe 415



step 4) now going for section

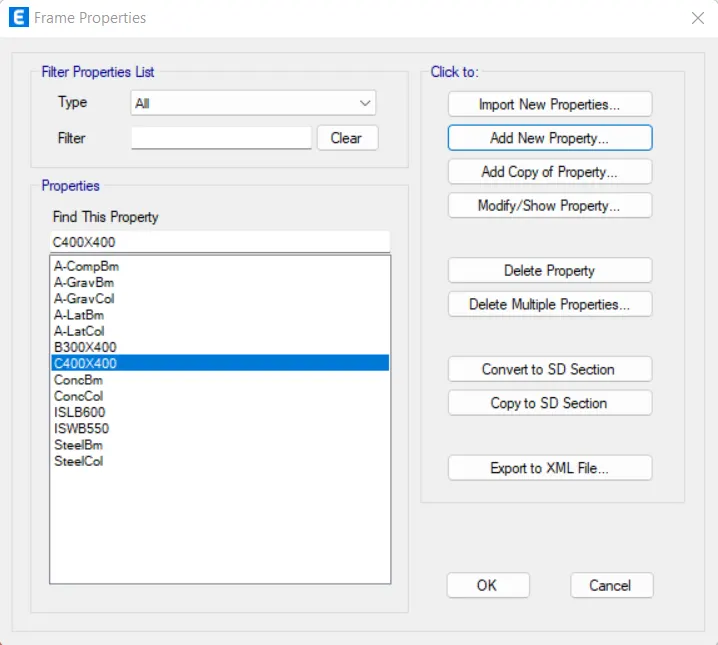

add column frame and beam section according to given size and material

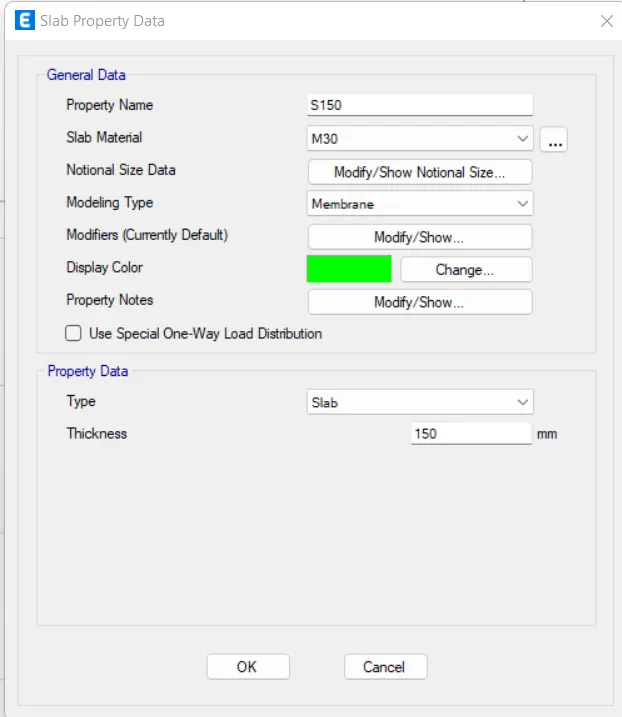

step 5) go for slab section

add 150mm thick membrane slab with M30 grade concrete

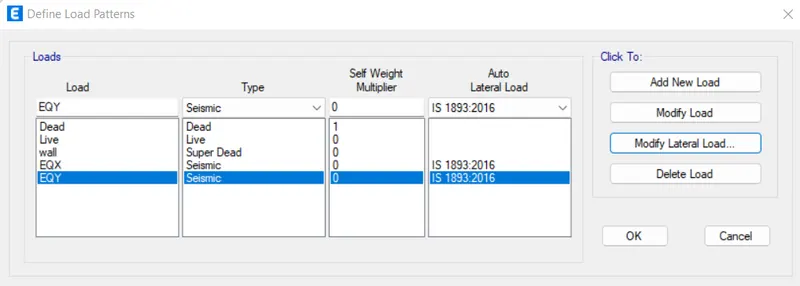

step 6) go for load patterns

click on load patterns option from define

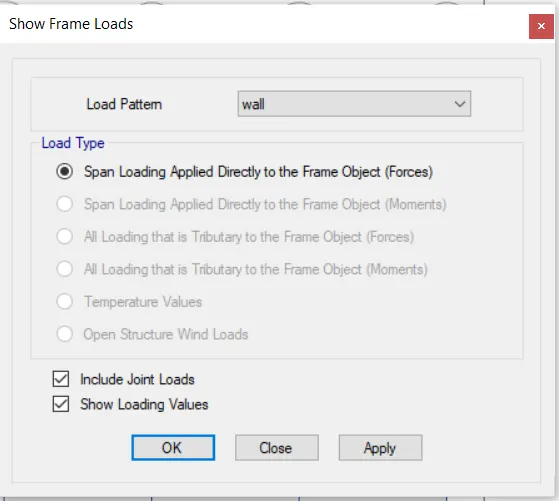

now we add load for wall

and earthquake in X and Y respectively

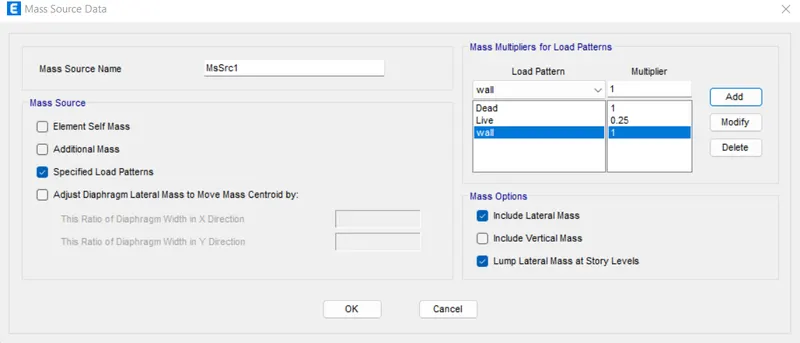

step 7) go for mass source

add 1 for dead load and wall

and 0.25 for live load

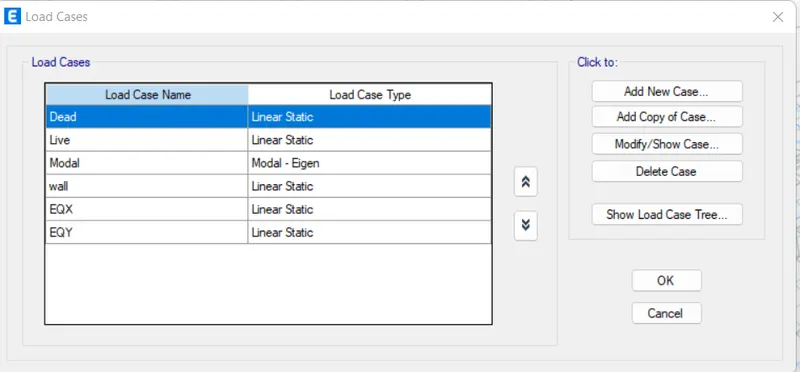

step 8) now go for load cases

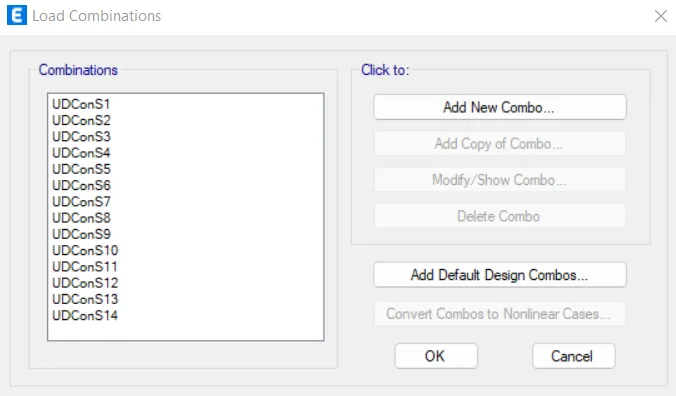

step 9) create load combination

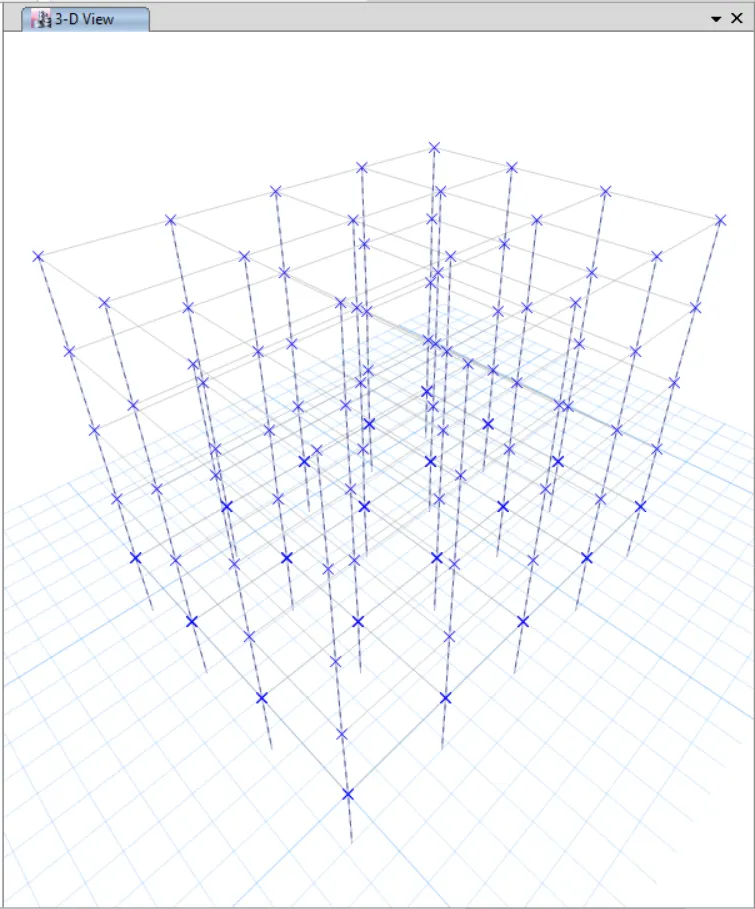

step 10) now go for column modelling

clickm on draw column option

change working plane as all stories





step 11) beam modelling

go to quick draw beam change working plane as all storey

and draw the beam to take a cursor between two grids

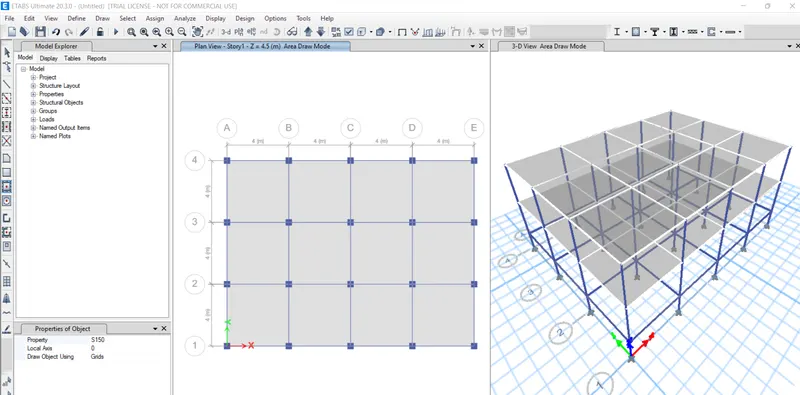

step 12) slab draw

go to quick draw slab

draw only for storey one and two

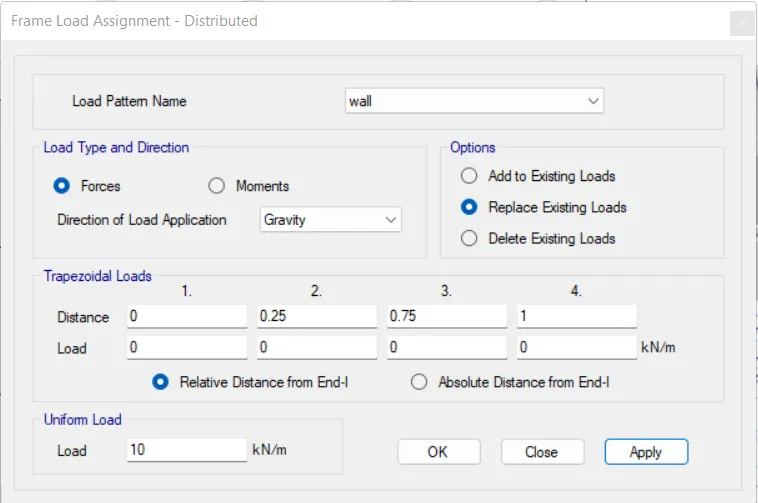

step 13) assign loads

select beam properties from beam

to select beams



now assign loads on slabs

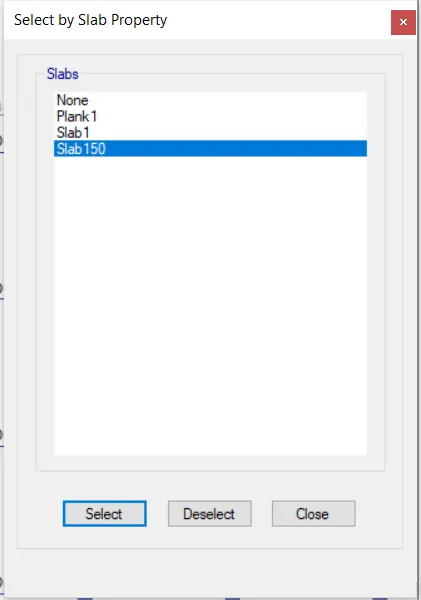

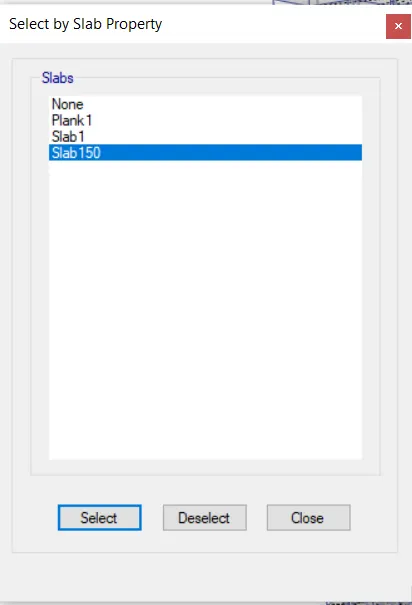

select slab from select option

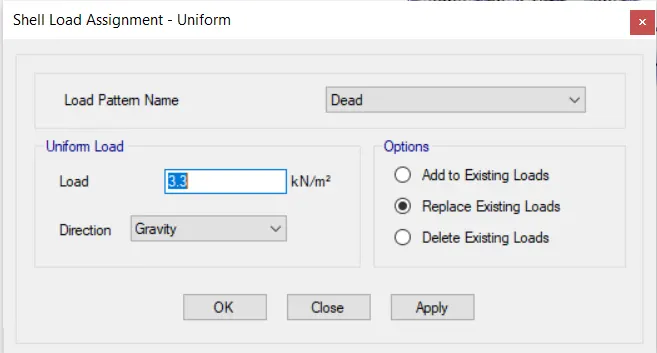

then assign slab load from assign

assign 10Kn/m as live load

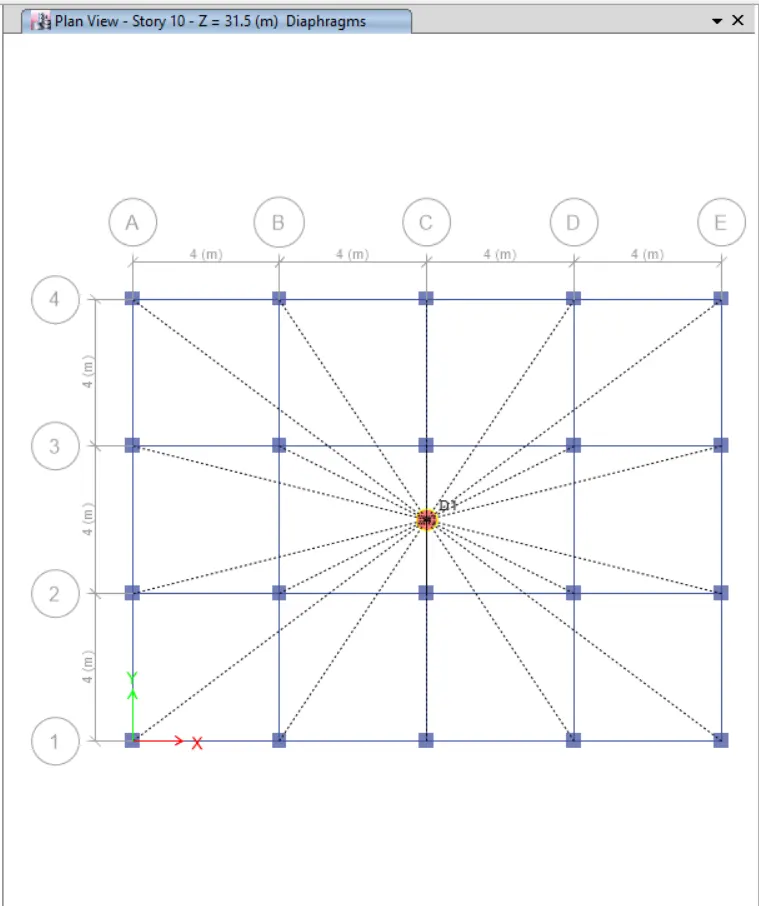

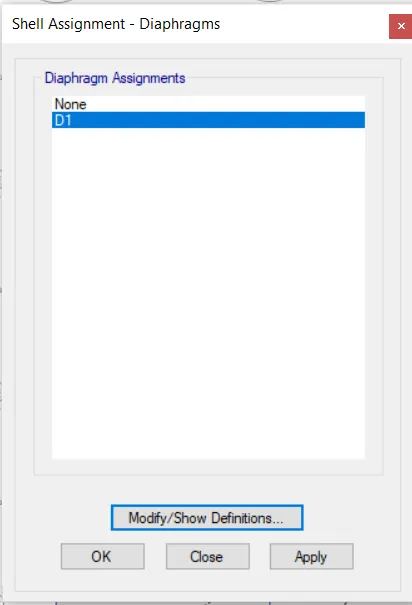

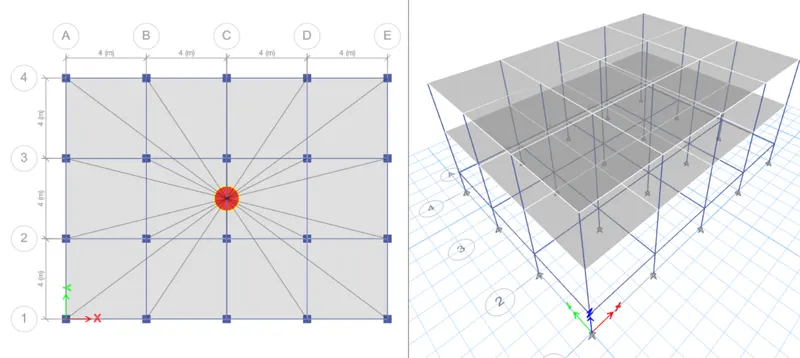

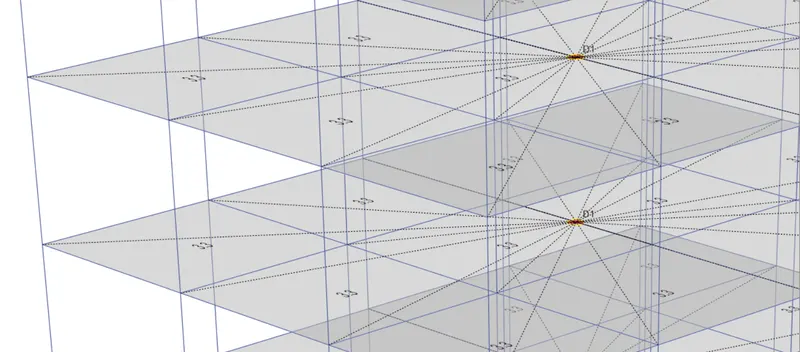

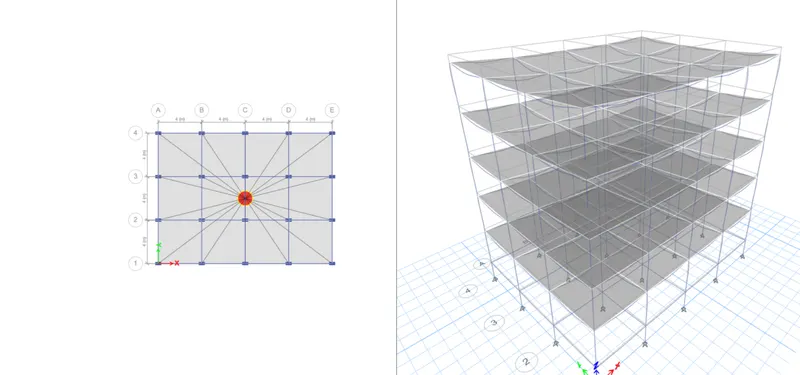

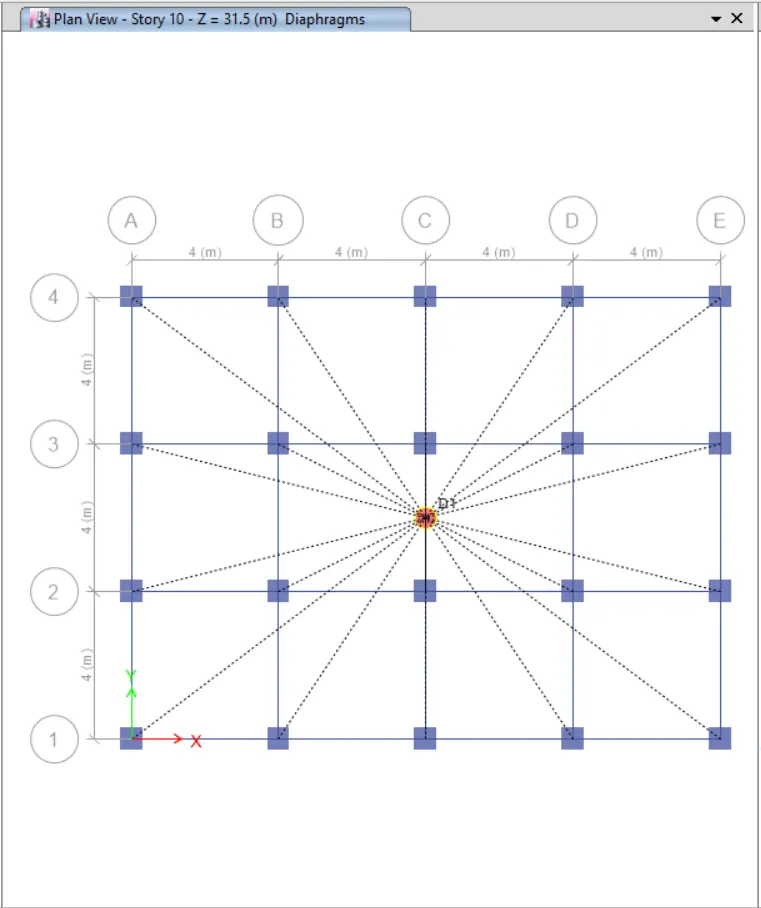

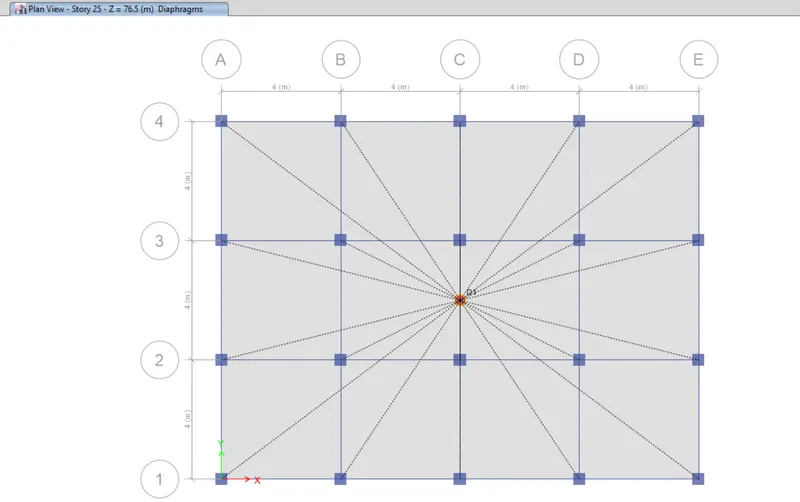

step 15) diaphragms property

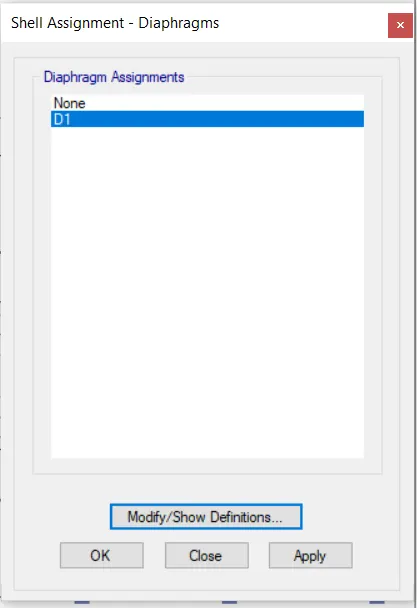

select all the slabs from select option

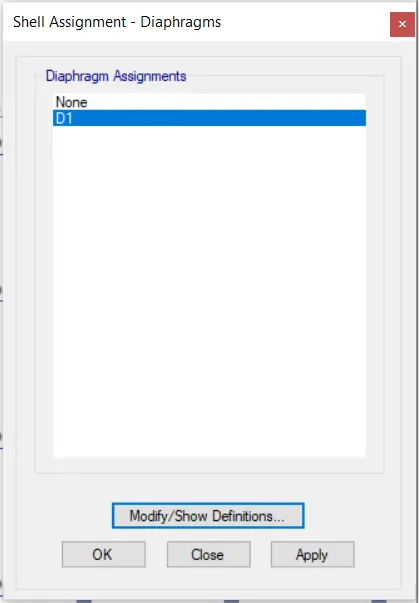

and assign diaphragms



step 16) run analysis

after complition of modelling part run the analysis

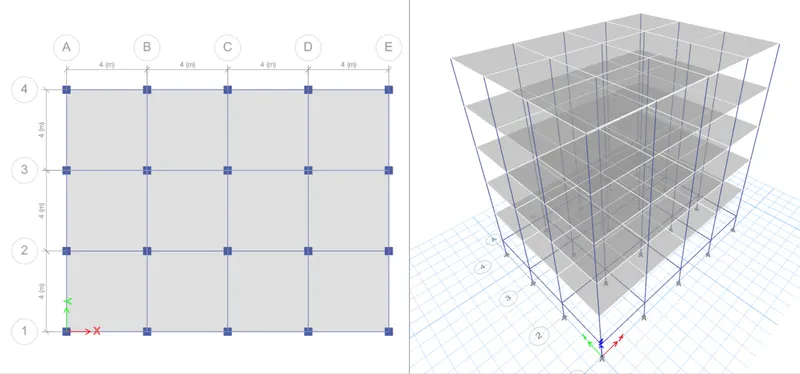

Building B



Given,

5 storey building

number of bay

X direction 4,  Y direction 3

size of beam 400X400mm



step 1) open the etabs software and go for new model





then set units and press ok in intialization optionn



step 2) set grid spacing and custom storey data from quick templet



first go to edit custom grid spacing

set no. of bay and spacing between two grids and press ok



now storey data



our building frame are created



step 3) go to material proprty from define

add new material of concrete M30 and steel fe 415



step 4) now going for section

add column frame and beam section according to given size and material





step 5) go for slab section

add 150mm thick membrane slab with M30 grade concrete



step 6) go for load patterns

click on load patterns option from define

now we add load for wall

and earthquake in X and Y respectively



step 7) go for mass source

add 1 for dead load and wall

and 0.25 for live load



step 8) now go for load cases



step 9) create load combination



step 10) now go for column modelling

clickm on draw column option

change working plane as all stories





step 11) beam modelling

go to quick draw beam change working plane as all storey

and draw the beam to take a cursor between two grids



step 12) slab draw

go to quick draw slab

draw only for storey one and two





step 13) assign loads

select beam properties from beam

to select beams



now assign loads on slabs

select slab from select option

then assign slab load from assign

assign 10Kn/m as live load



step 15) diaphragms property

select all the slabs from select option

and assign diaphragms



step 16) run analysis

after complition of modelling part run the analysis

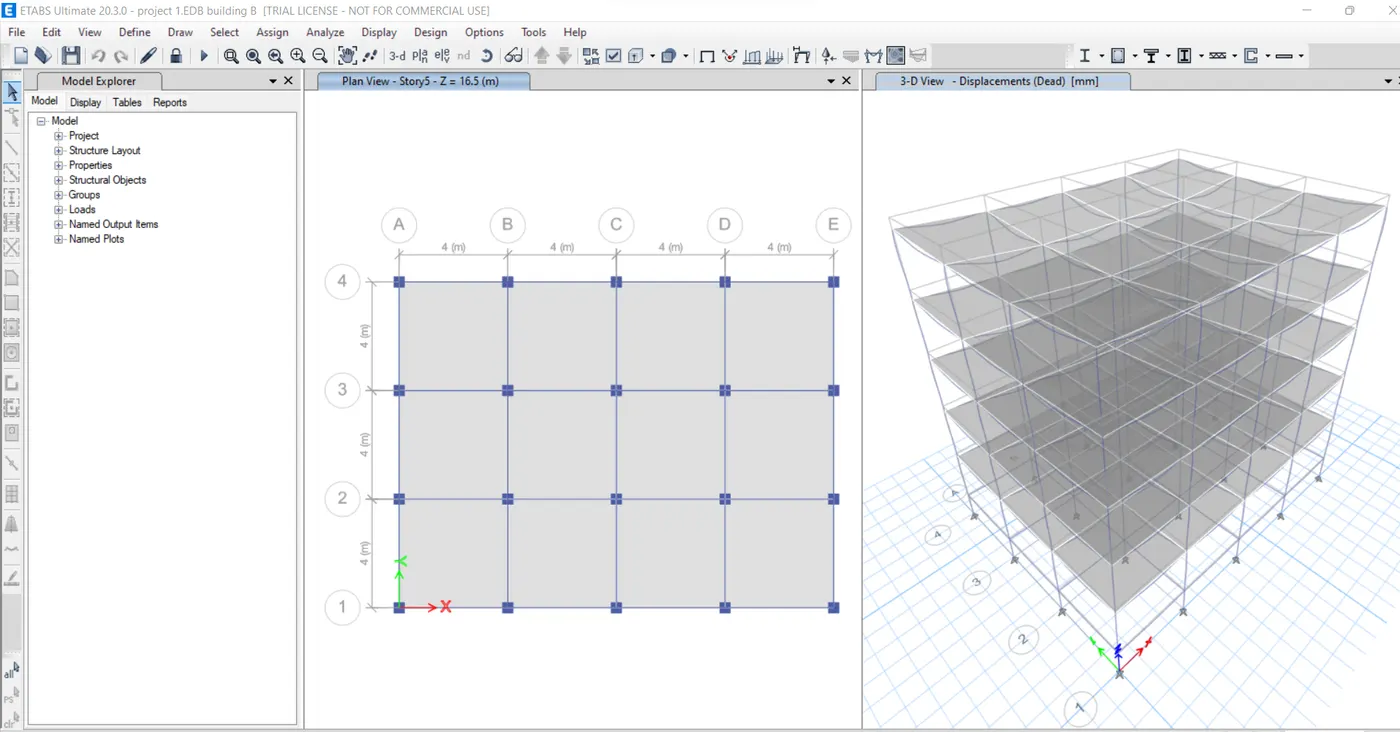

Building C



Given,

5 storey building

number of bay

X direction 4,  Y direction 3

size of beam 550X300mm



step 1) open the etabs software and go for new model





then set units and press ok in intialization optionn



step 2) set grid spacing and custom storey data from quick templet



first go to edit custom grid spacing

set no. of bay and spacing between two grids and press ok



now storey data



our building frame are created



step 3) go to material proprty from define

add new material of concrete M30 and steel fe 415



step 4) now going for section

add column frame and beam section according to given size and material

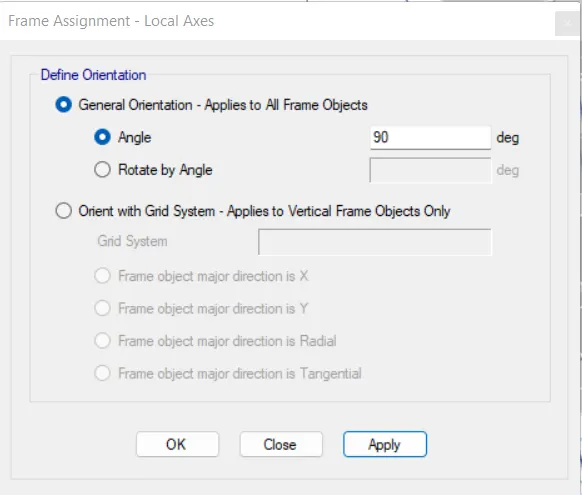

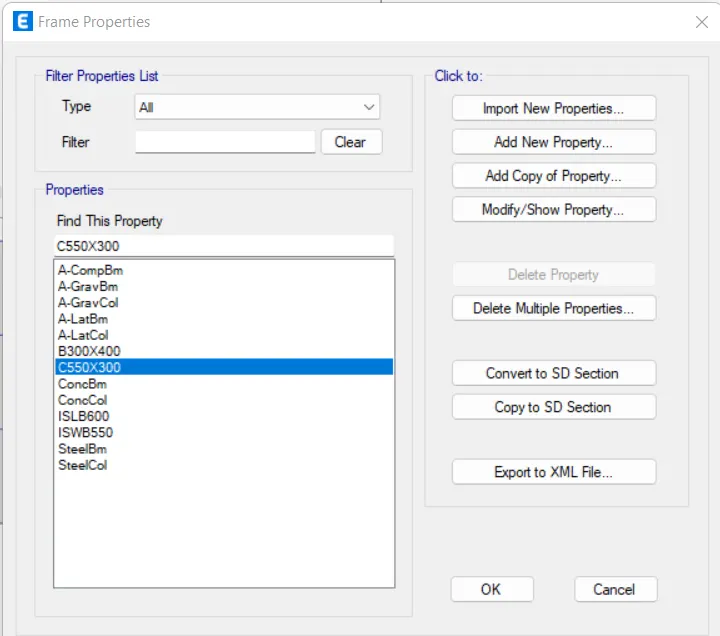

assign the loacal axis at X direction

by giving 90degree rotation





step 5) go for slab section

add 150mm thick membrane slab with M30 grade concrete



step 6) go for load patterns

click on load patterns option from define

now we add load for wall

and earthquake in X and Y respectively



step 7) go for mass source

add 1 for dead load and wall

and 0.25 for live load



step 8) now go for load cases



step 9) create load combination



step 10) now go for column modelling

clickm on draw column option

change working plane as all stories





step 11) beam modelling

go to quick draw beam change working plane as all storey

and draw the beam to take a cursor between two grids



step 12) slab draw

go to quick draw slab

draw only for storey one and two





step 13) assign loads

select beam properties from beam

to select beams



now assign loads on slabs

select slab from select option

then assign slab load from assign

assign 10Kn/m as live load



step 15) diaphragms property

select all the slabs from select option

and assign diaphragms



step 16) run analysis

after complition of modelling part run the analysis

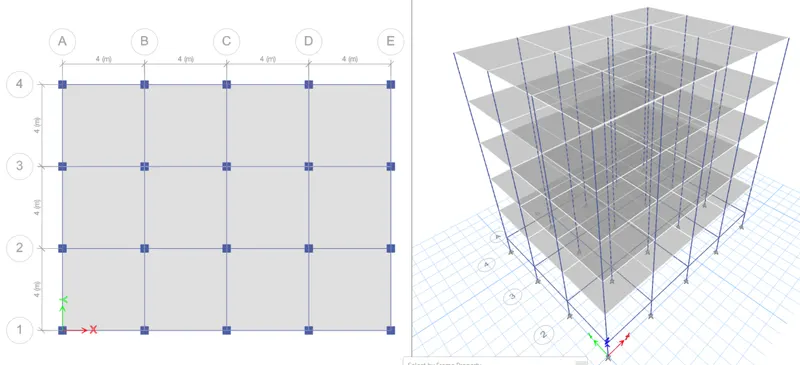

Building D



Given,

5 storey building

number of bay

X direction 4,  Y direction 3

size of beam 300X550mm

oriented along y direction



step 1) open the etabs software and go for new model





then set units and press ok in intialization optionn



step 2) set grid spacing and custom storey data from quick templet



first go to edit custom grid spacing

set no. of bay and spacing between two grids and press ok



now storey data



our building frame are created



step 3) go to material proprty from define

add new material of concrete M30 and steel fe 415



step 4) now going for section

add column frame and beam section according to given size and material



assign the loacal axis at X direction

by giving 90degree rotation





step 5) go for slab section

add 150mm thick membrane slab with M30 grade concrete



step 6) go for load patterns

click on load patterns option from define

now we add load for wall

and earthquake in X and Y respectively



step 7) go for mass source

add 1 for dead load and wall

and 0.25 for live load



step 8) now go for load cases



step 9) create load combination



step 10) now go for column modelling

clickm on draw column option

change working plane as all stories





step 11) beam modelling

go to quick draw beam change working plane as all storey

and draw the beam to take a cursor between two grids



step 12) slab draw

go to quick draw slab

draw only for storey one and two





step 13) assign loads

select beam properties from beam

to select beams



now assign loads on slabs

select slab from select option

then assign slab load from assign

assign 10Kn/m as live load



step 15) diaphragms property

select all the slabs from select option

and assign diaphragms



step 16) run analysis

after complition of modelling part run the analysis

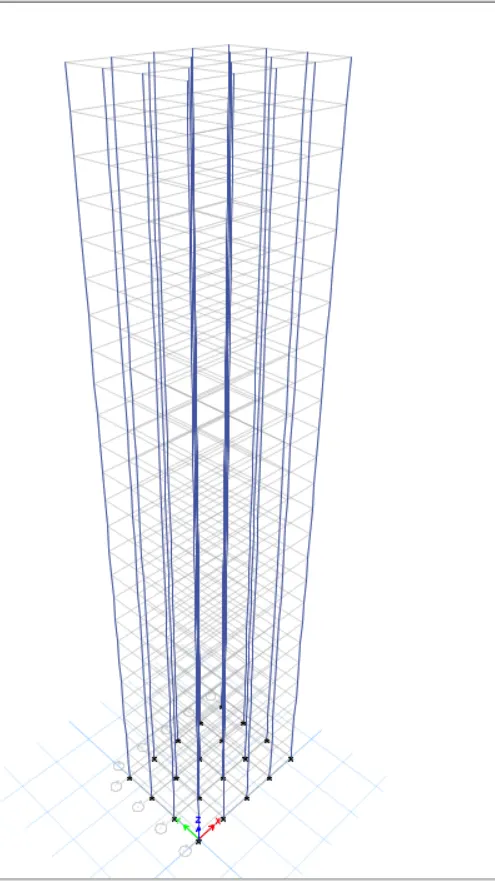

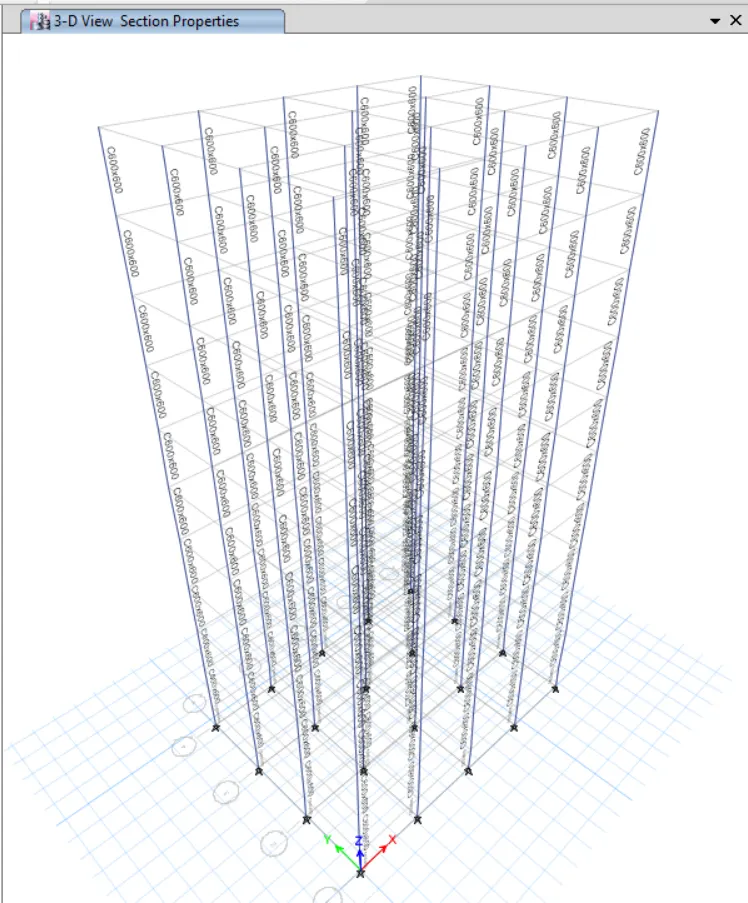

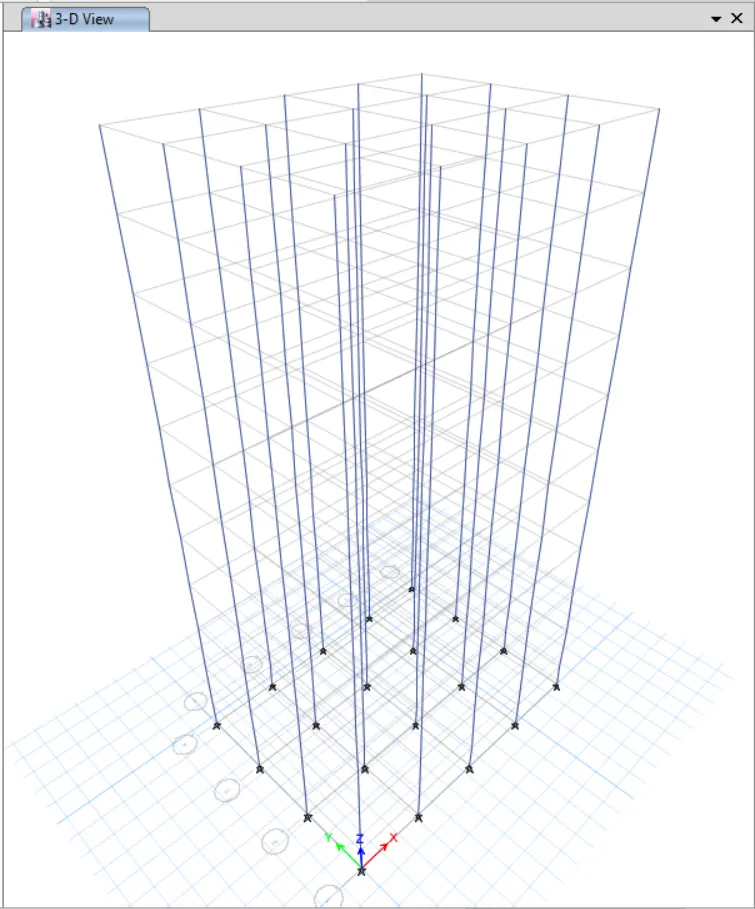

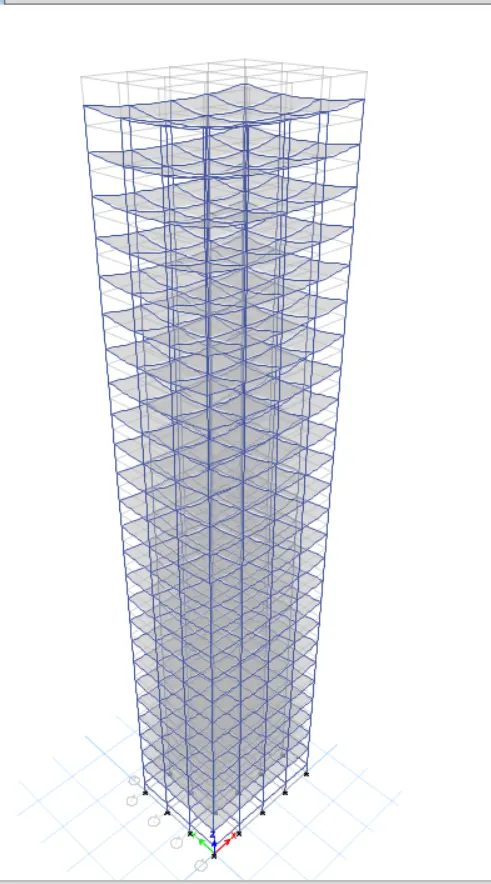

BUILDING E (G+ 10 )

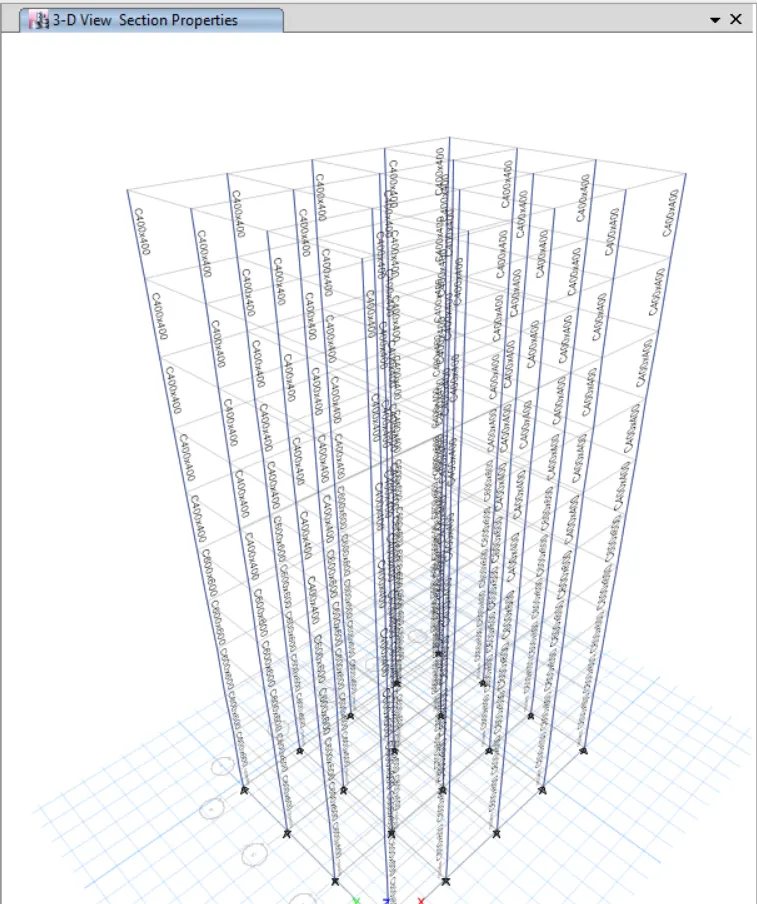

Column sizes :

for top 5 storeys: C 400X400

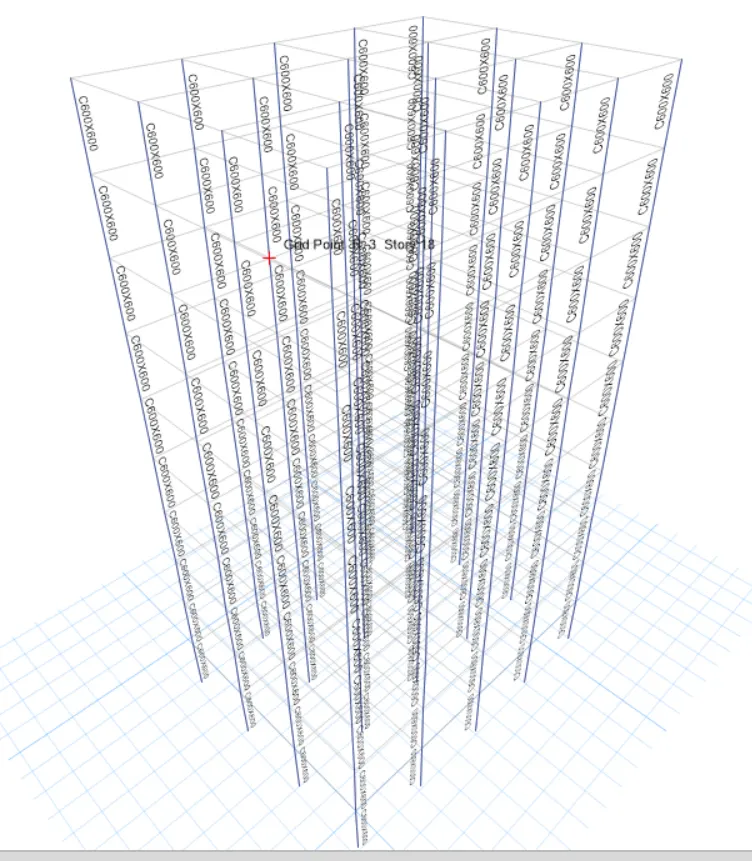

 Column sizes

for bottom 5 storeys: C600X600



PROCEDURE :

 In this model, we need to add up 5 more storeys to our model.

In addition, we also need to assign different column sizes on different floors.

 we'll first save the ETABS file for building D as a new model for building E.

Then, edit the story data as we have done for our previous models in ETABS.

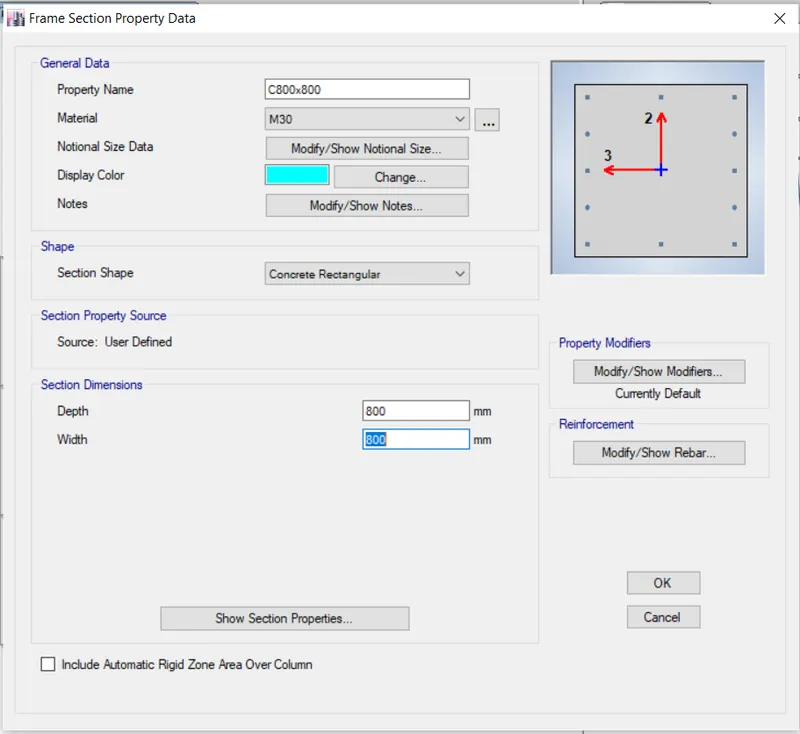

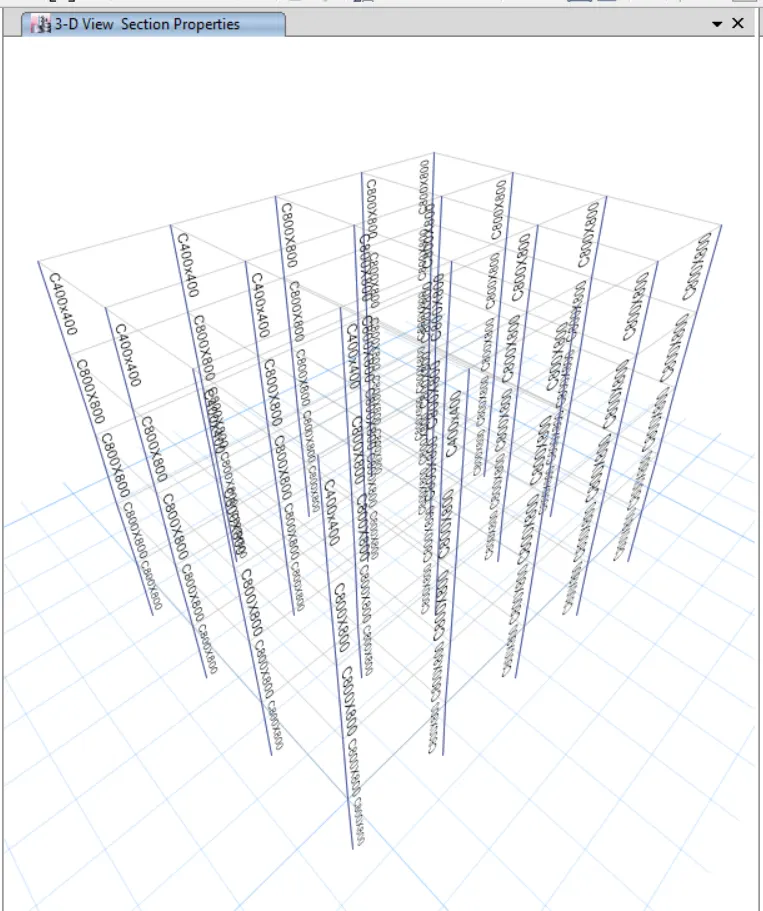

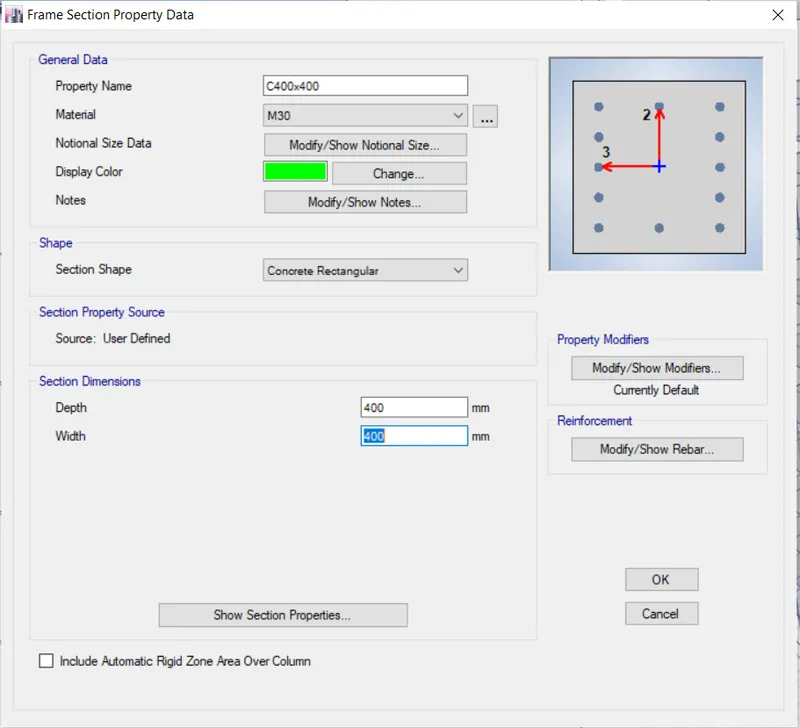

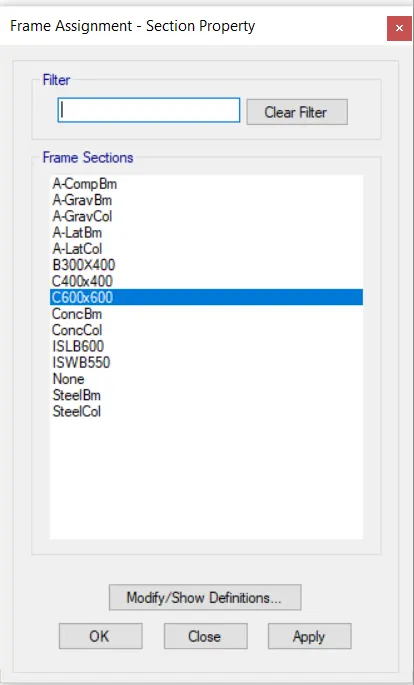

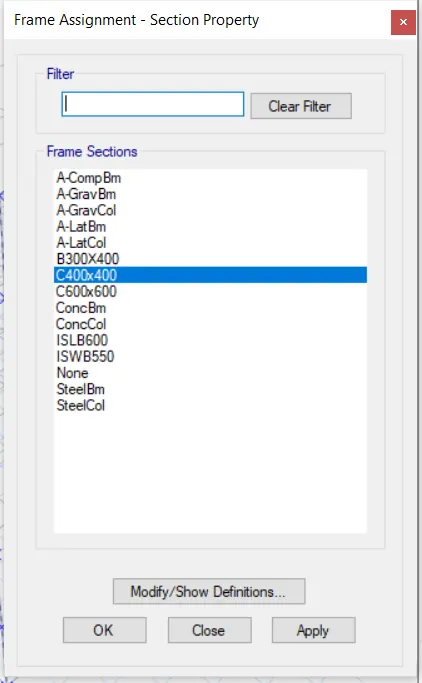

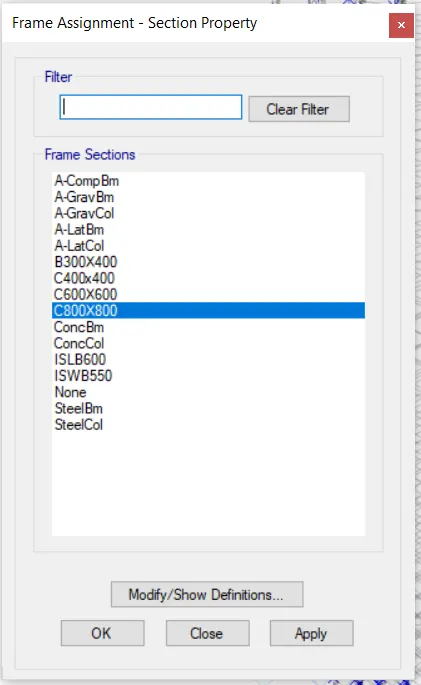

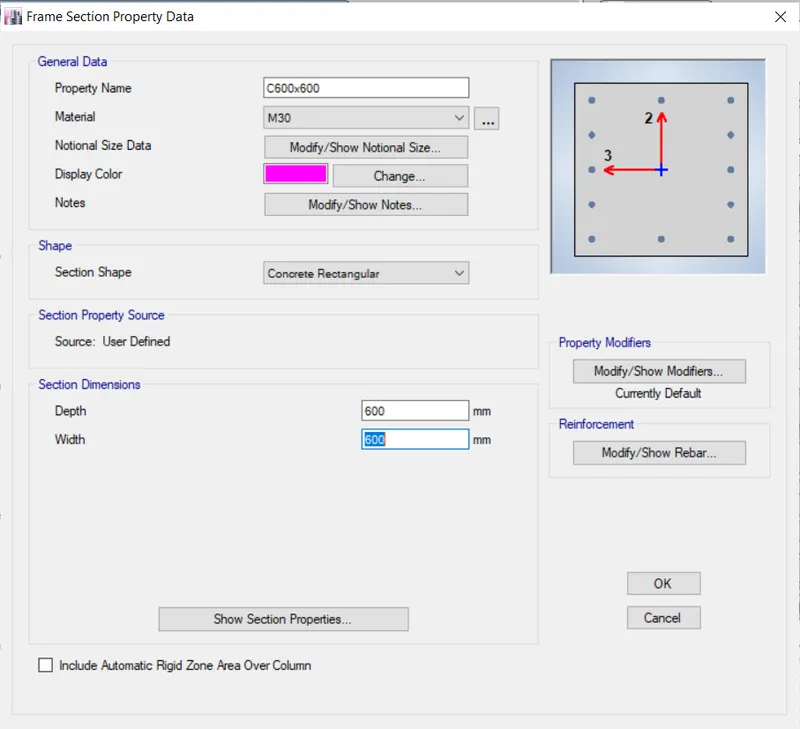

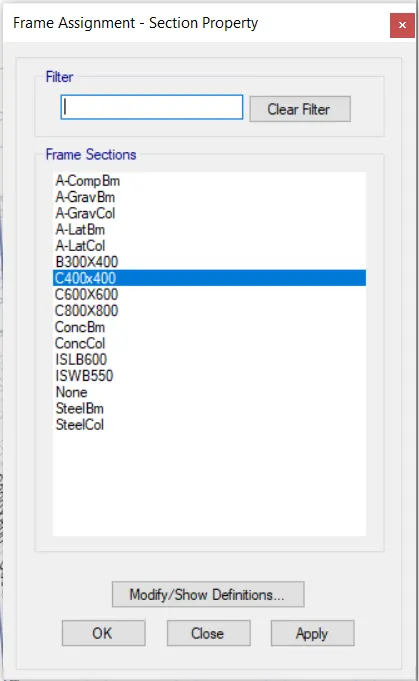

Then, we need to add two new column sections with the required directions and assign them at appropriate floors in our model as specified.

STEP 1

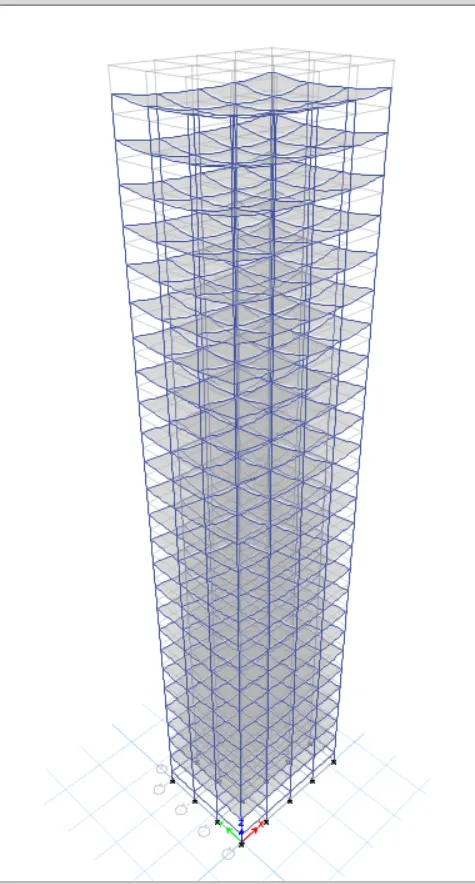

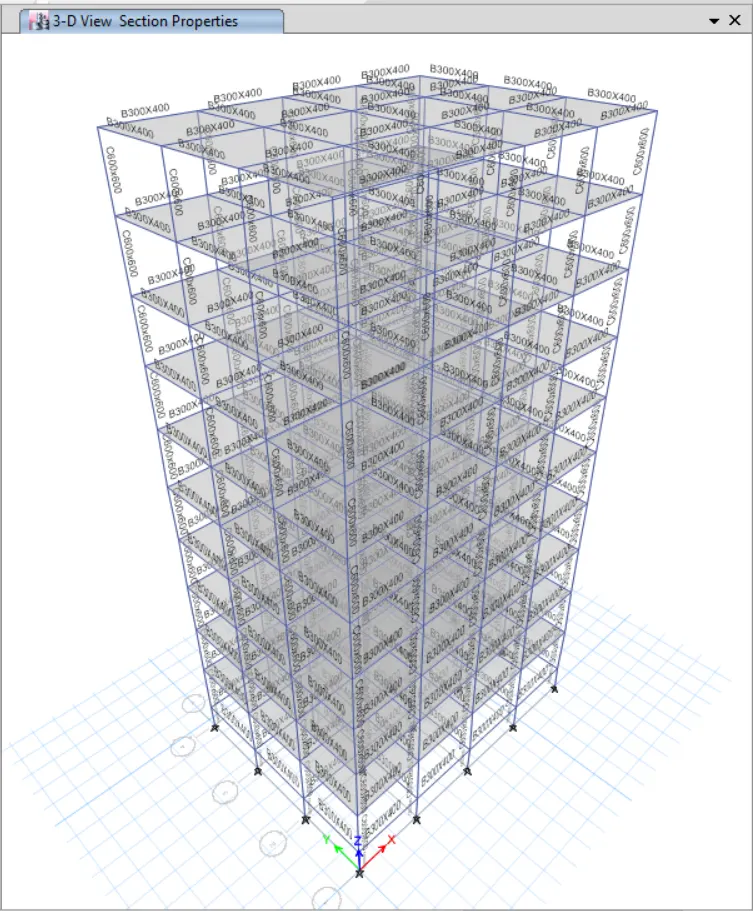

Add 5 more story in previous structure

so that go to the Edit option

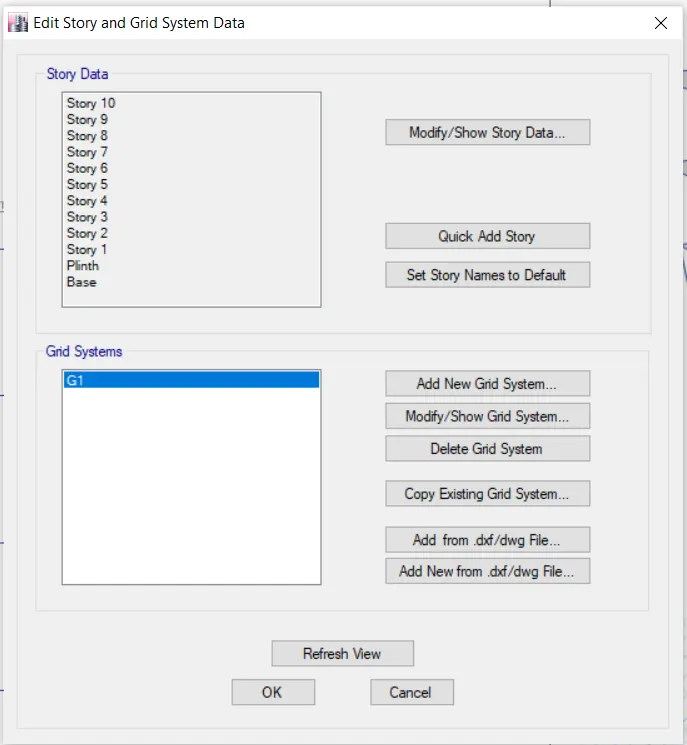

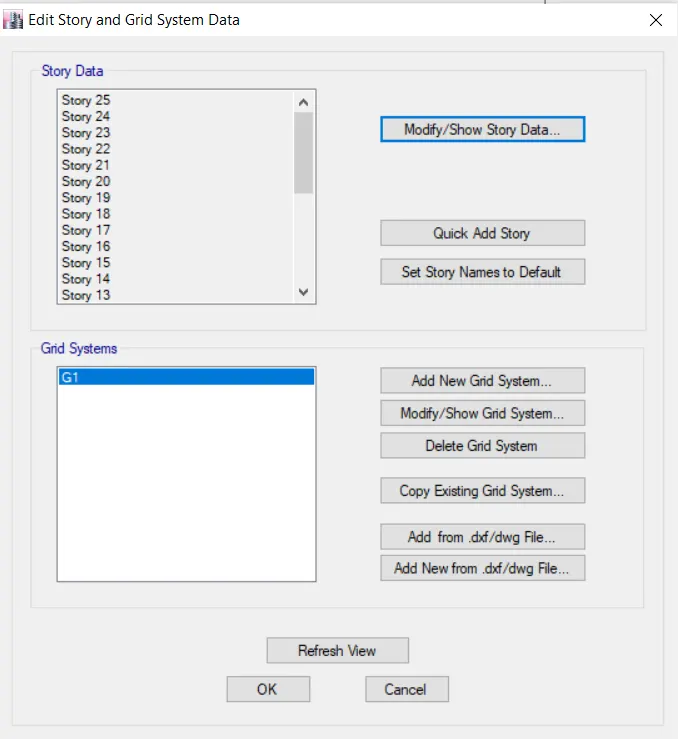

click on Edit Story And Grid System

one dialogbox is open

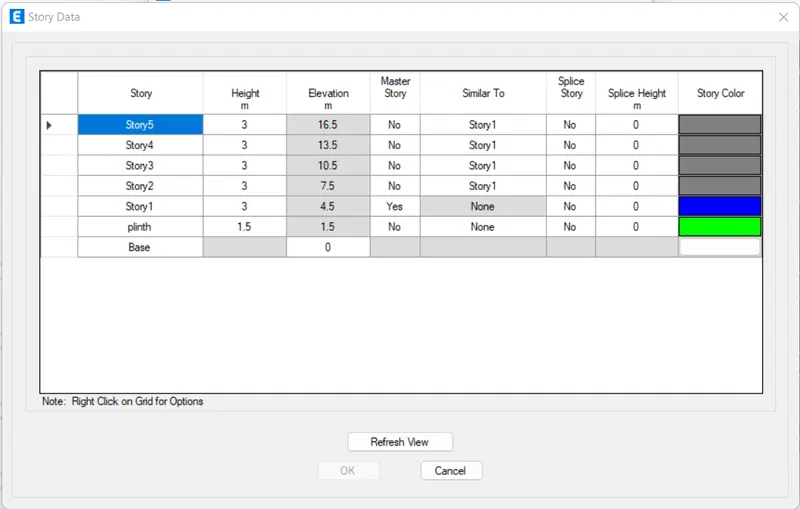

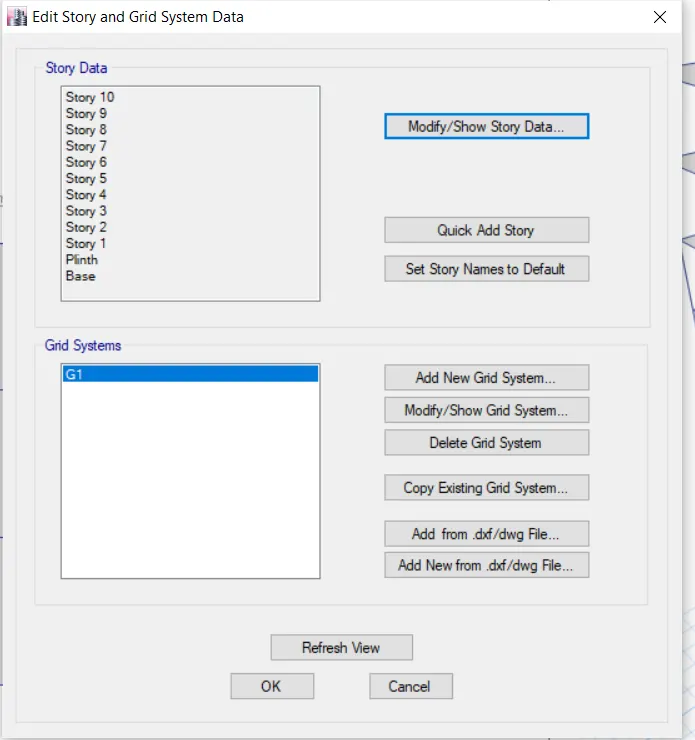

from that click on Modify Story Data option

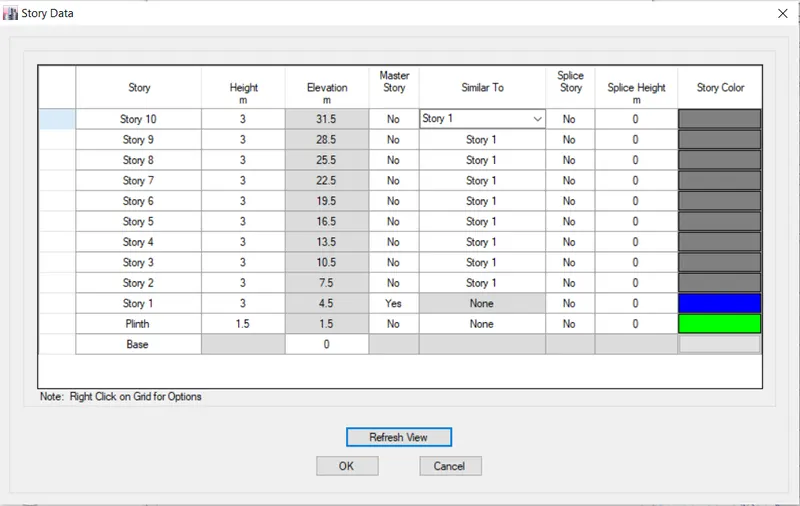

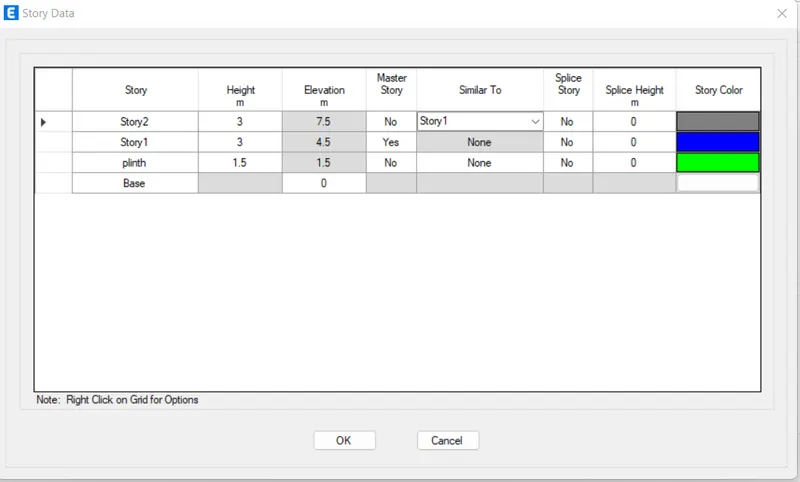

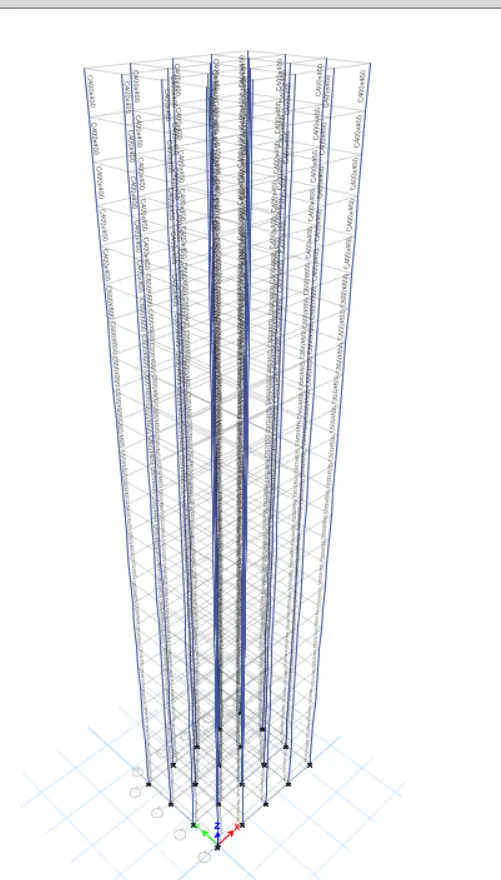

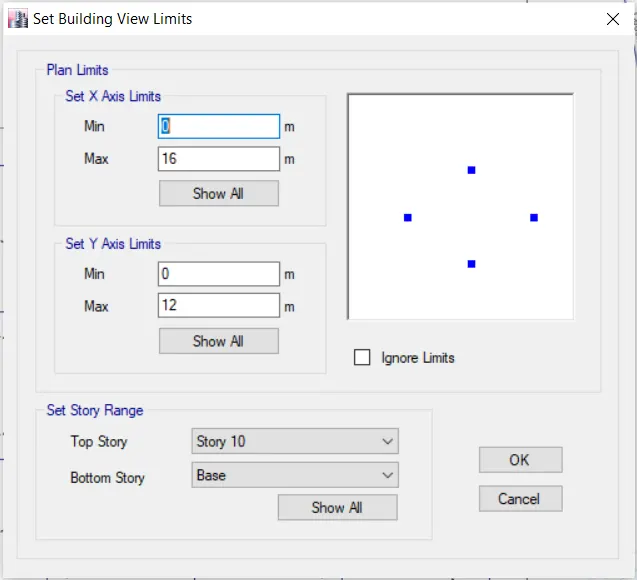

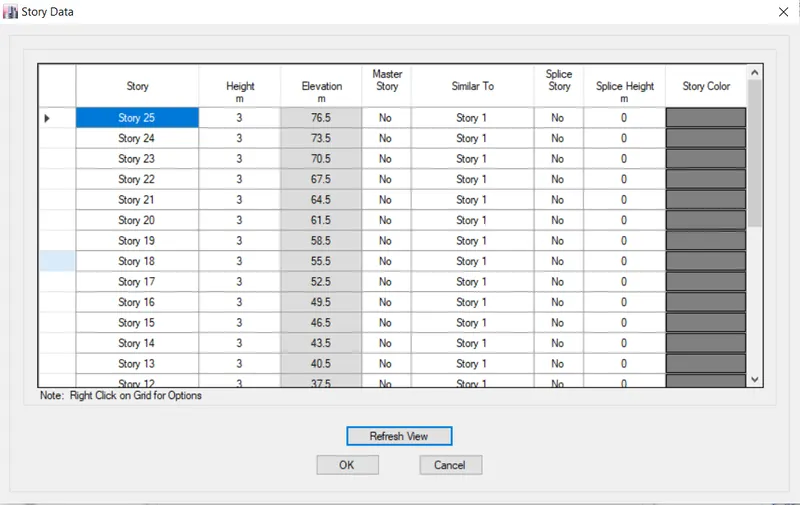

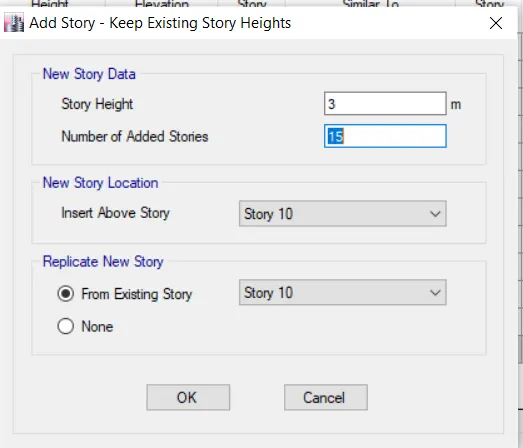

add 5 story there shown below

refresh it and then click OK

click ok

STEP 2

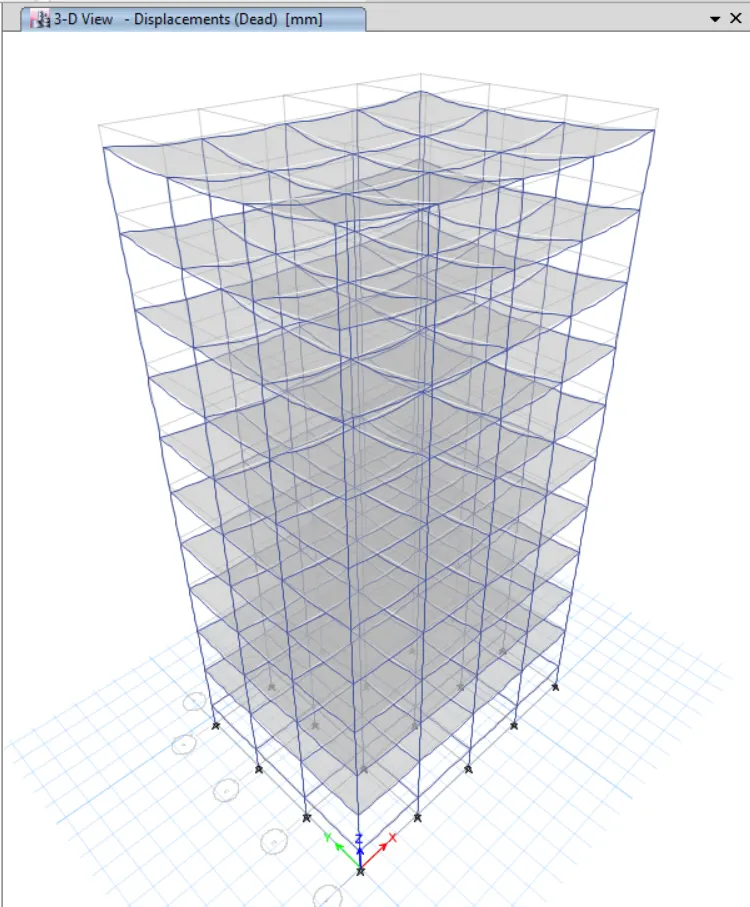

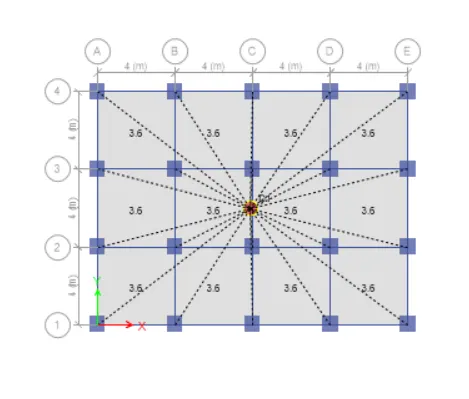

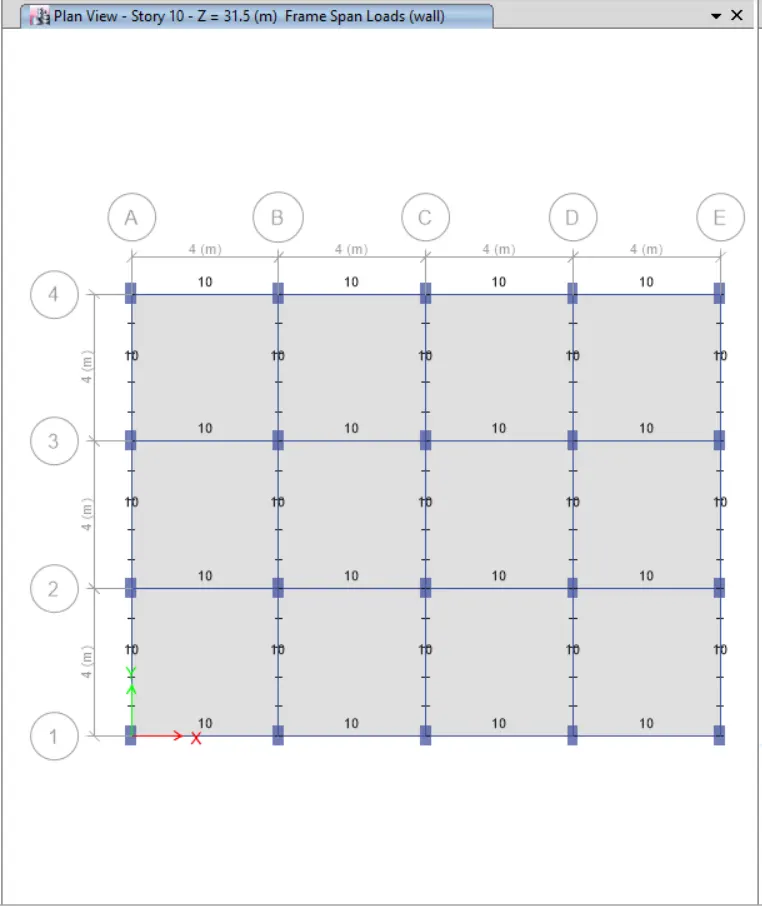

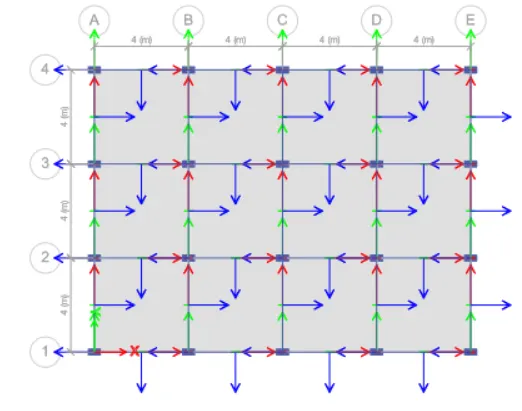

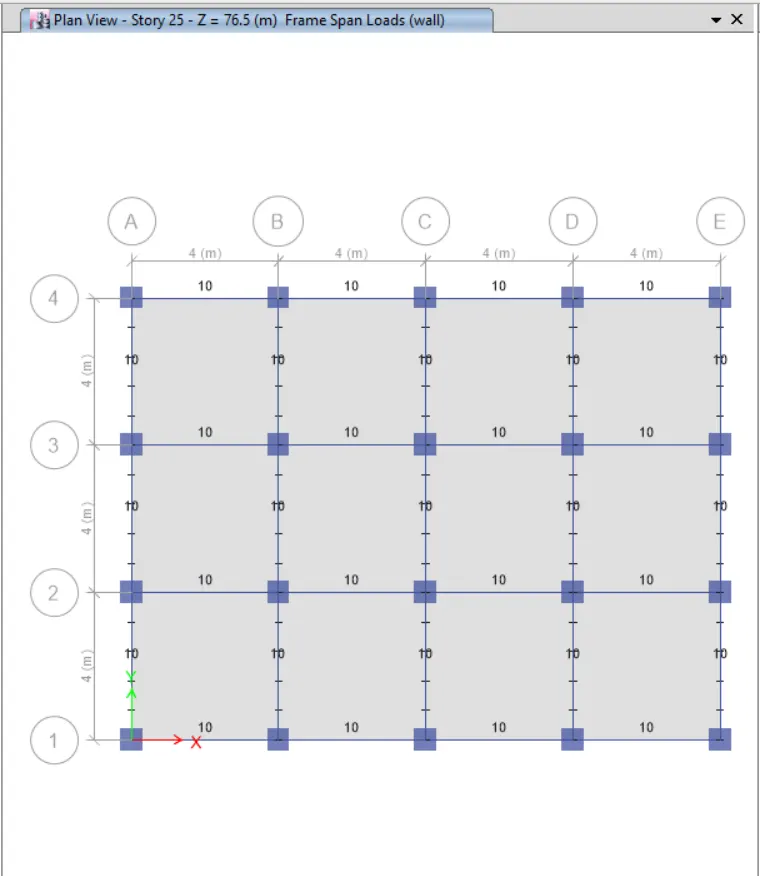

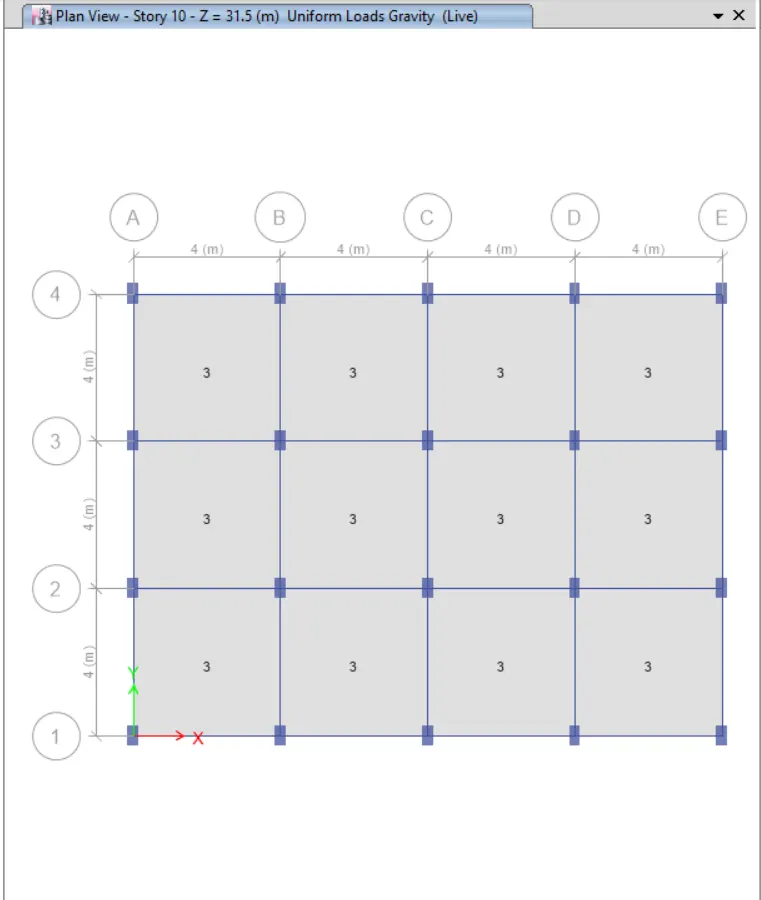

Check the wall load and floor load of the structure

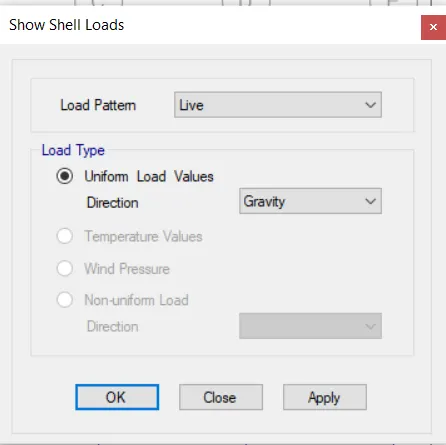

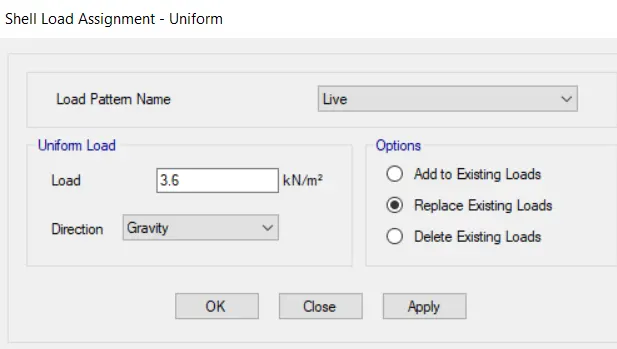

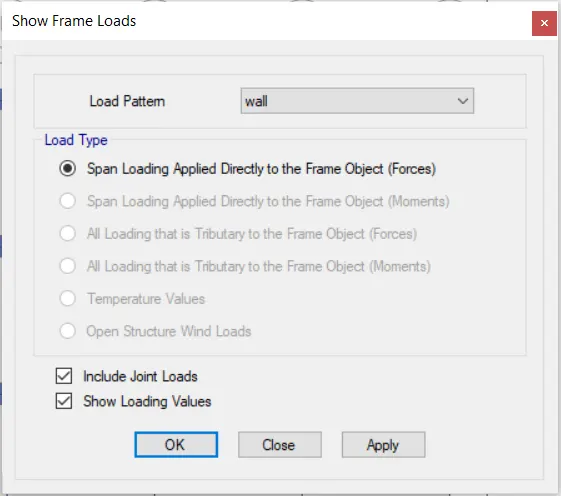

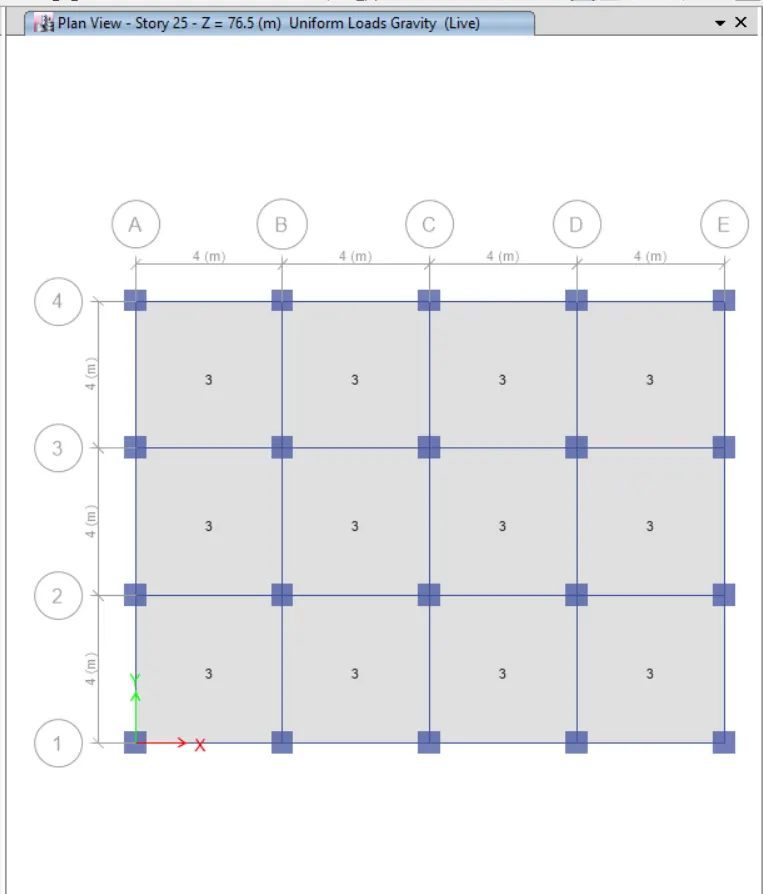

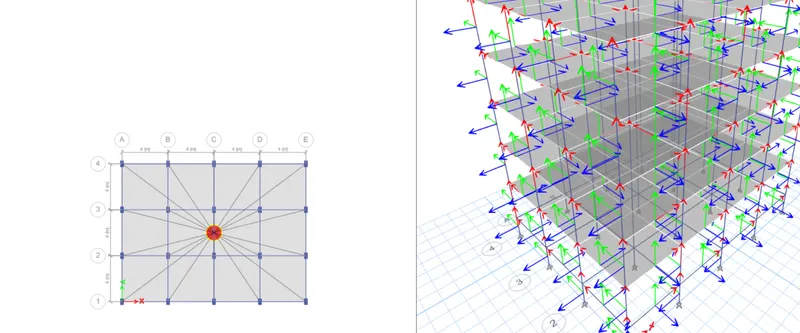

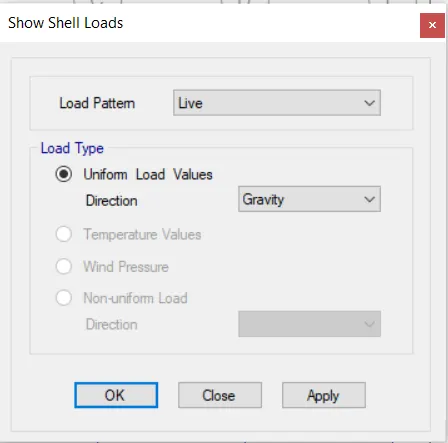

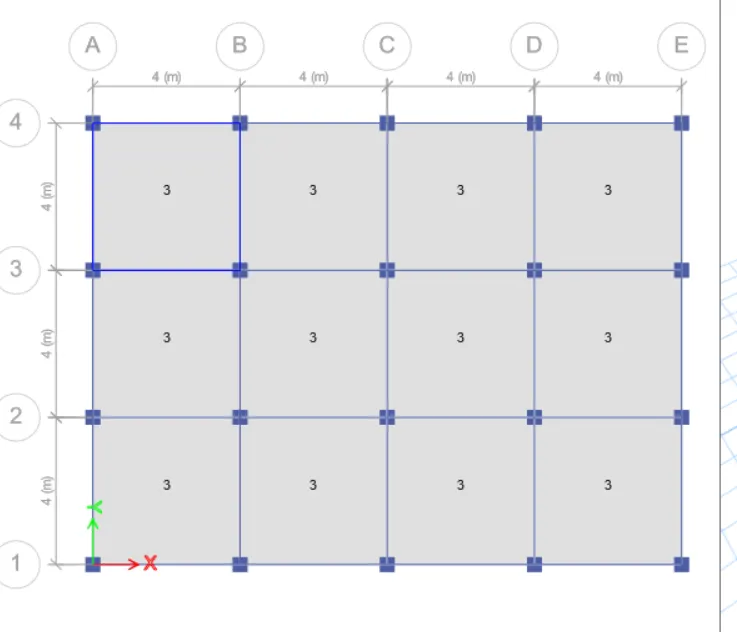

click on Display shell load assign

select the load pattern as live load

click on APPLY and ok

again click on Display Frame Load Assign

select the load pattern as wall load

Click on Apply and then OK .



STEP 3

Change the column size as 600x600

so that click on Define tab

then Section properties

then Frame section

select the c550x300

then click on Modify section

one dialogbox is open shown below

give the property name as c600x600

give the depth as 600

and width as 600

click OK .

Then Add one more new column size 400 by 400

so that click on Add new proprties

give the name as c400x400

then width of column as 400

depth as 400

Click OK

STEP 4

Select the column only

for that hide the beam and floor

click on set view point tab

and unselect the beam and floor and then click ok

click ok



STEP 5

Select the column from floor 6 to 10

so that , click on view tab

Then click on Set Building view Limits

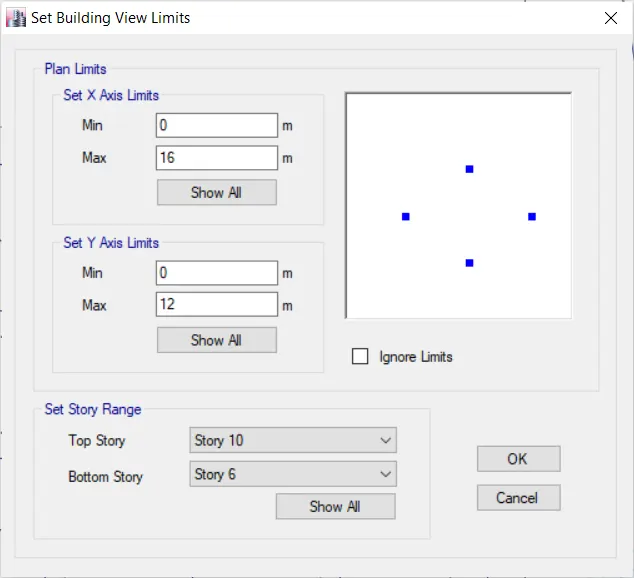

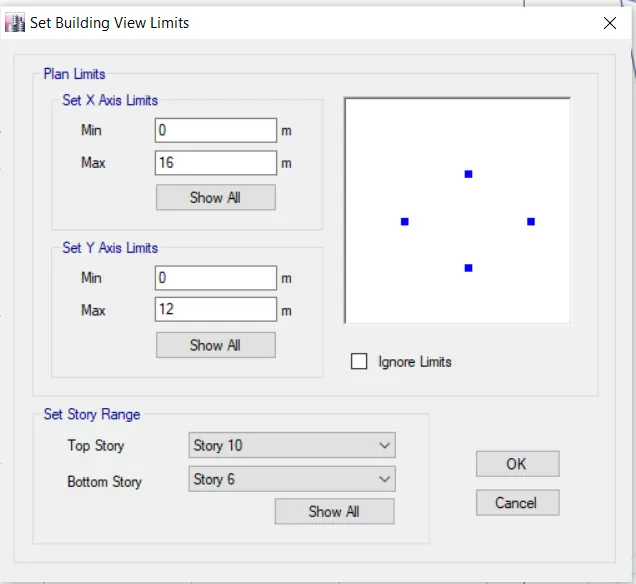

one dialogbox is open

from that select the Top story as Story 10

and base story as story 6

then click ok .

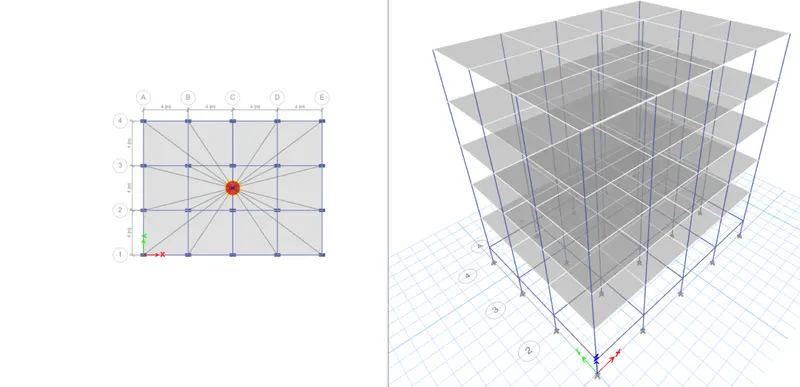

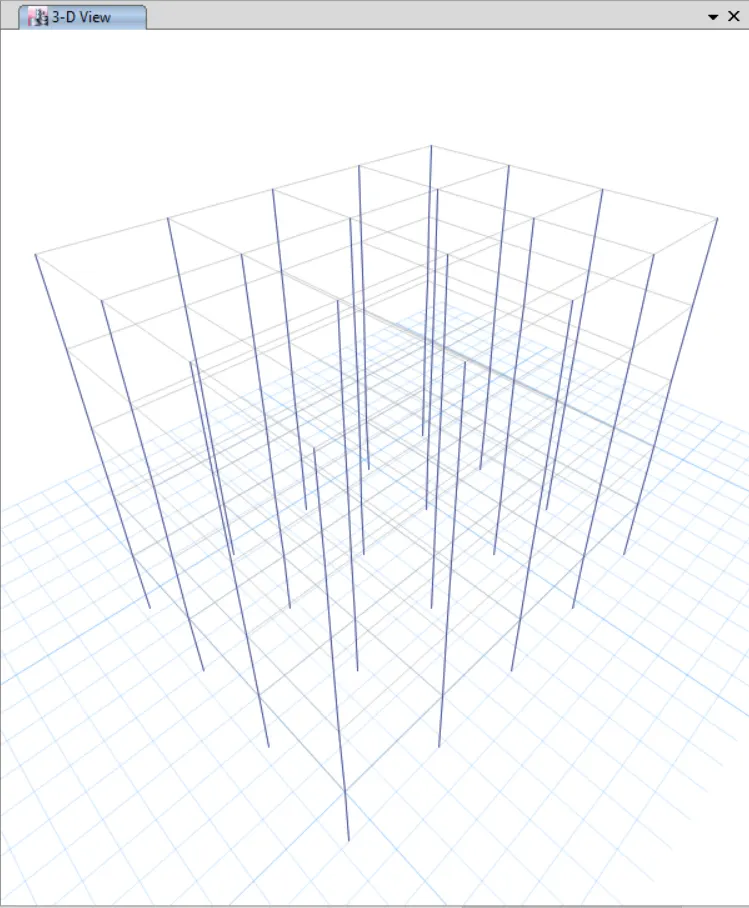

3D VIEW :

Select the all columns

then click on Assign tab

then click on Frame and then click on Section Properties

one dialogbox is open

select the c400x400 and then click on APPY and then ok

3D VIEW



STEP 5

Then checked for diaphragms

so that select the slab first

go to the select option

then click on properties and slab section

one dialogbox is open

click on seect and then close it .

then click on Assign tab

then click on shell

and then diaphragms

one dialogbox is open

click on Appy and then OK



STEP : 6

RAN ANALYSIS

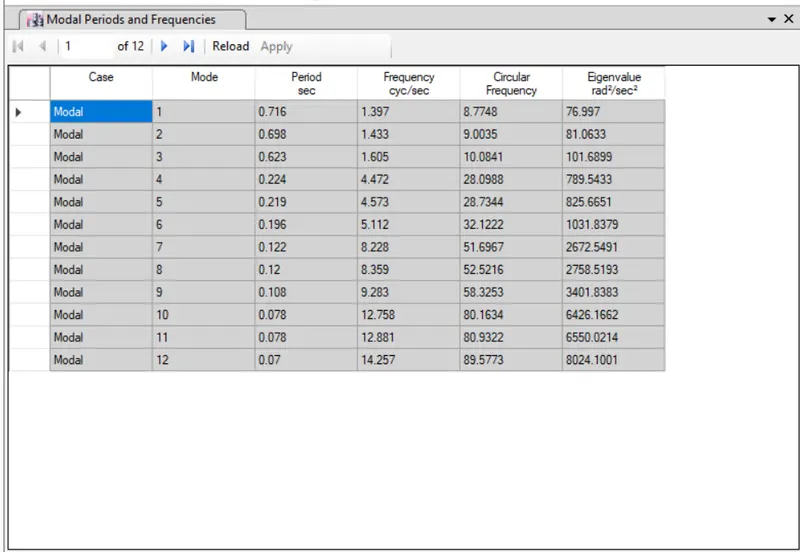

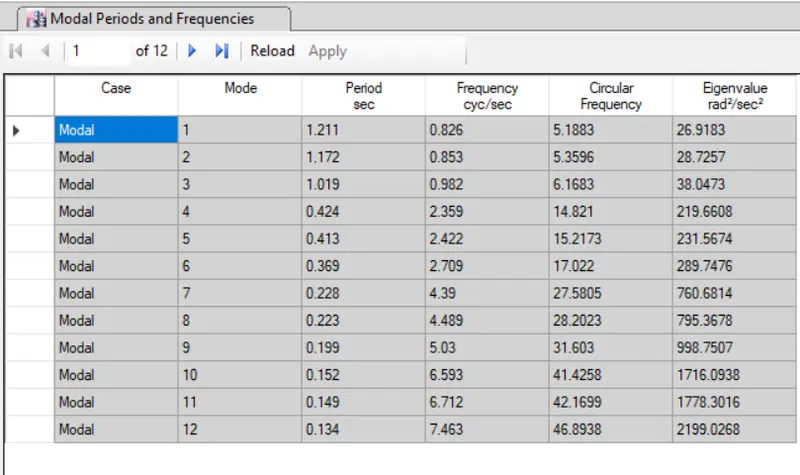

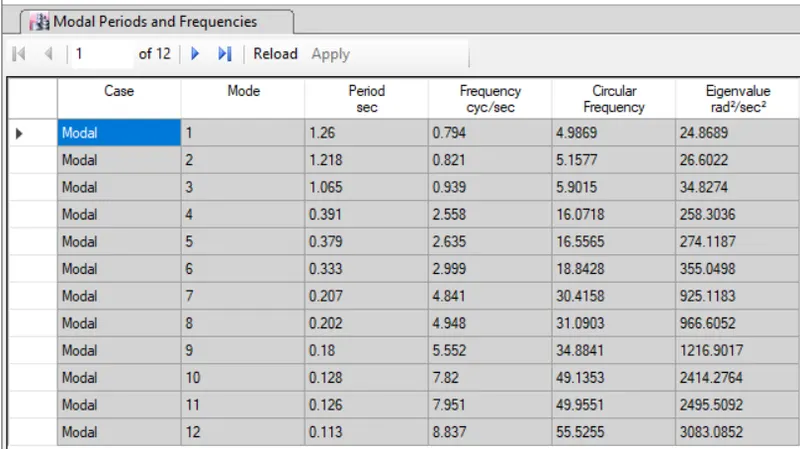

RESULTS :





BUILDING F (G+10)

Throughout the structure having same columns size

no need to much editng in the previous structure

jast change the column size from story 6 to 10 as 600x600

PROCEDURE :

STEP 1

Hides the beams and floor

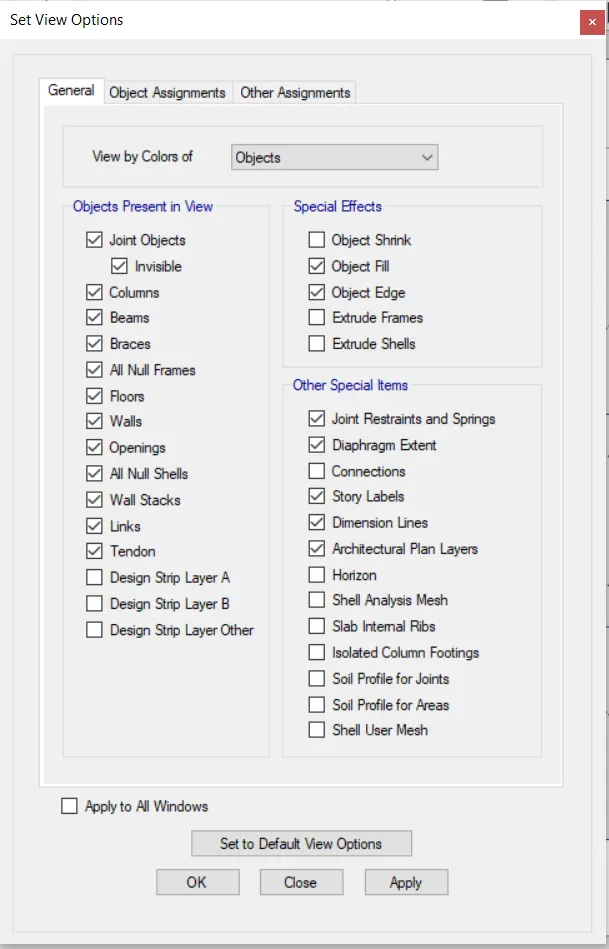

so that click on Set Display Option

and just unselect the Beams and floor

click on Apply and then OK

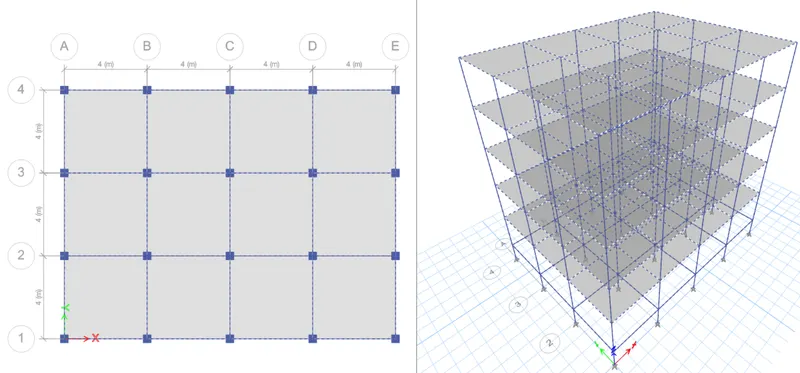

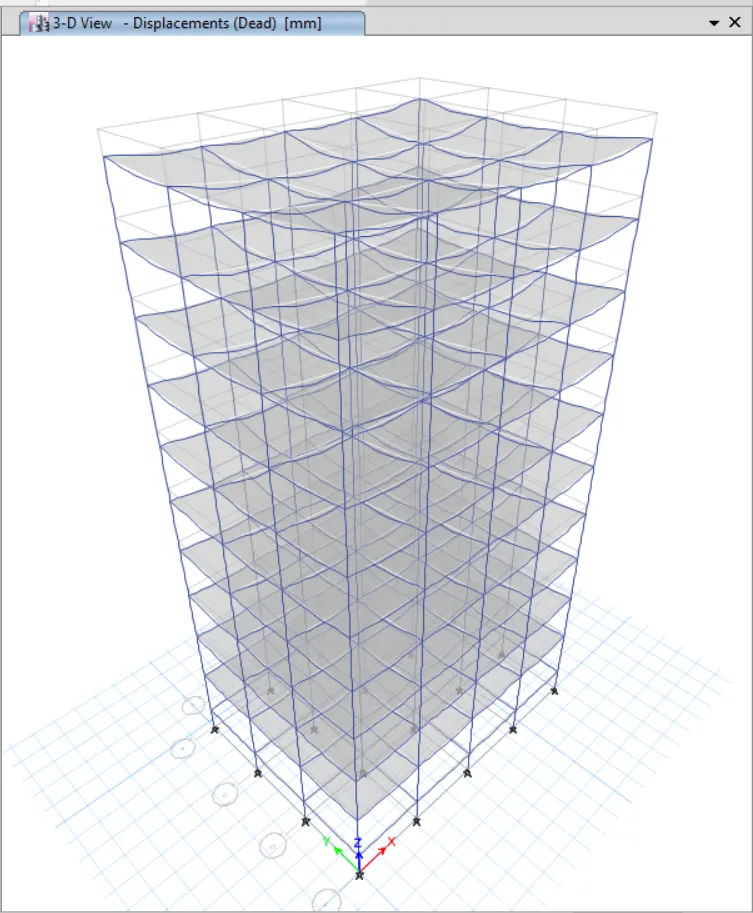

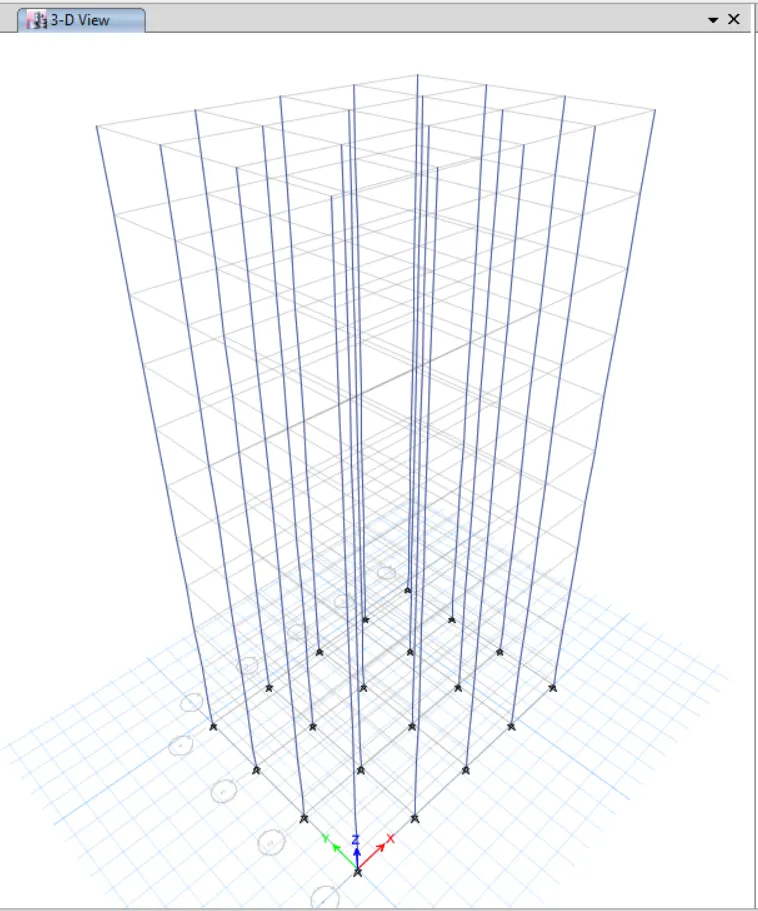

3D VIEW :

STEP 2

Select the columns from story 6 to 10

so that click on View tab

Set Building LImets

then one dialogbox is open

from that click on

tao story as 10 story and

base story as 6 story

click on OK

STEP 3

Change the columns size as 600x600

so that jast select the columns

click on Assign tab

then click on Frame and then Section Properties

then one dialogbox is open

from that click on c600x600 columns

click on APPLY AND THEN OK .

Then click on view tab

then click on Set Building View Limets

one dialogbox is open

from that select the top story as 10 story

and bottom as base

click ok .

3d view :

STEP 4

Again select the beams ad floors

click on Set Display Option

open dialogbox is open

from that click on Beam and slab

and then click ok

3d VIEW :

STEP 5

Check for diaphergram

so first select the slab

click on Select the tab

and click on Properties

then Slab section

one dialogbox is open

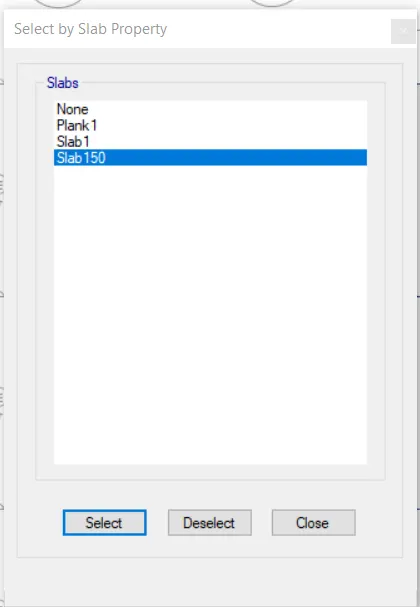

select the slab150

and then closed it .

Then click on Assign tab

click on Shell and the diaphergrm

one dialogbox is open

click on D1

Then click on APPLY  and then OK .



STEP 6

RUN ANALYSIS :

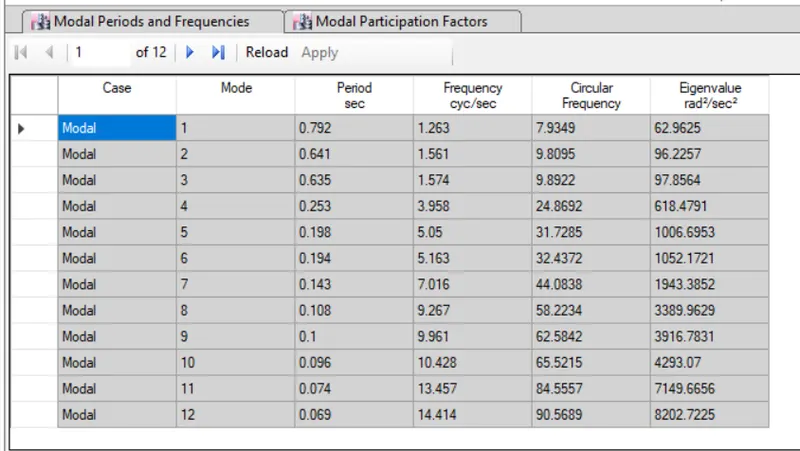

RESULTS :





 BUILDING G (G+25)

Columns for top 5 stories: C400X400

Columns for middle 10 stories: C600x600

Columns for bottom 10 stories: C800x800



PROCEDURE :

 we need to add 15 new stories and assign different column sizes on different floors.

We can follow the exact procedure that has already been explained for the previous project to create this model by editing building F. The same

STEP 1

Click on File manu

then click on Save As then give the fine name as BUILDING G

STEP 2

Add more 15 story in previous story

so that click on Edit

then click on Edit Story And Grid System Data option

one dialogbox is open

from this click on Modify /Show Story data

again one dialogbox is open

from that add more 15 story

click ok

click ok

click ok .



STEP 3

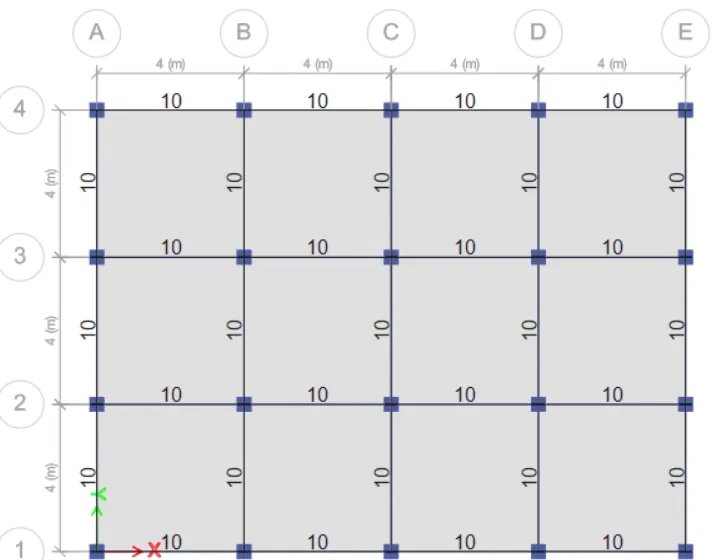

check the live load and wall loads of the structure

Check Live load :

click on Display Shell Load Assign

one dialogbox is open

select the load pattern as Live load

click on Apply and then OK .

Check wall load

so that click on Display Frame Load Assign tab

one dialogbox is open

select the load pattern as wall load

click on Appy and then OK



STEP 4

define columns

c400x400

c600600

c800x800 .

so that click on Define tab

then Frame section

one dialogbox is open

create a new column

c800x800

click on OK .

STEP 5

Apply different size of columns for each story

so that click first hide the beams and floors of the structure .

click on Set Display View tab

unselect the beam and floors option

click on Apply and then OK .



STEP 6

Click on assign tab

then click on Frame and then Section Properties

one dialogbox is open

select the c400x400

click on Appy and then OK .

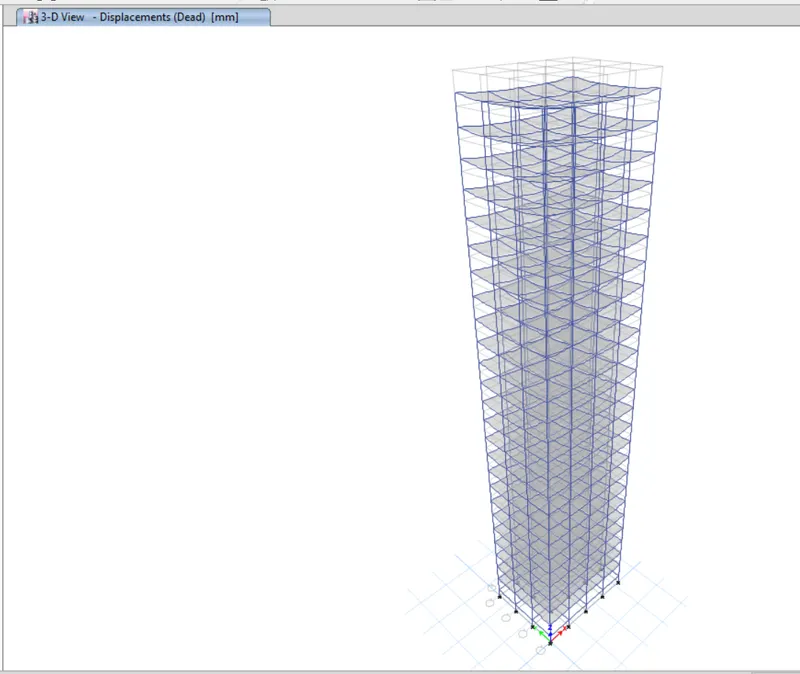

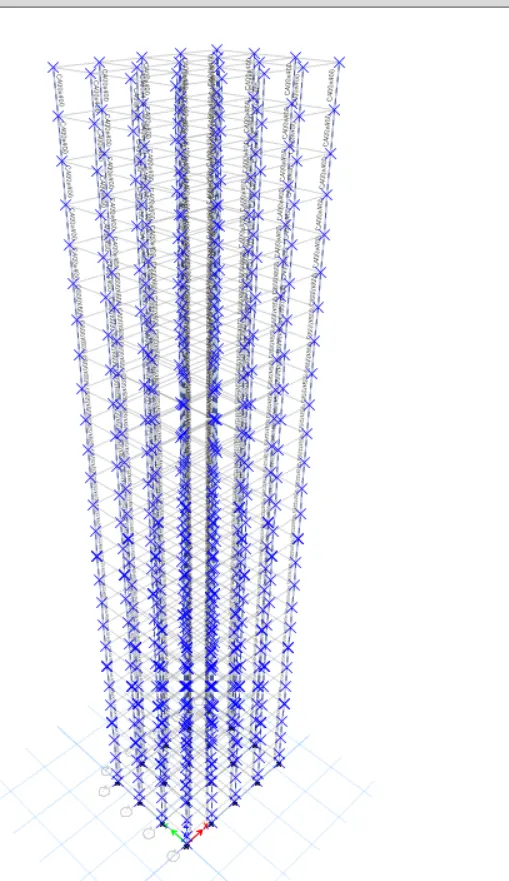

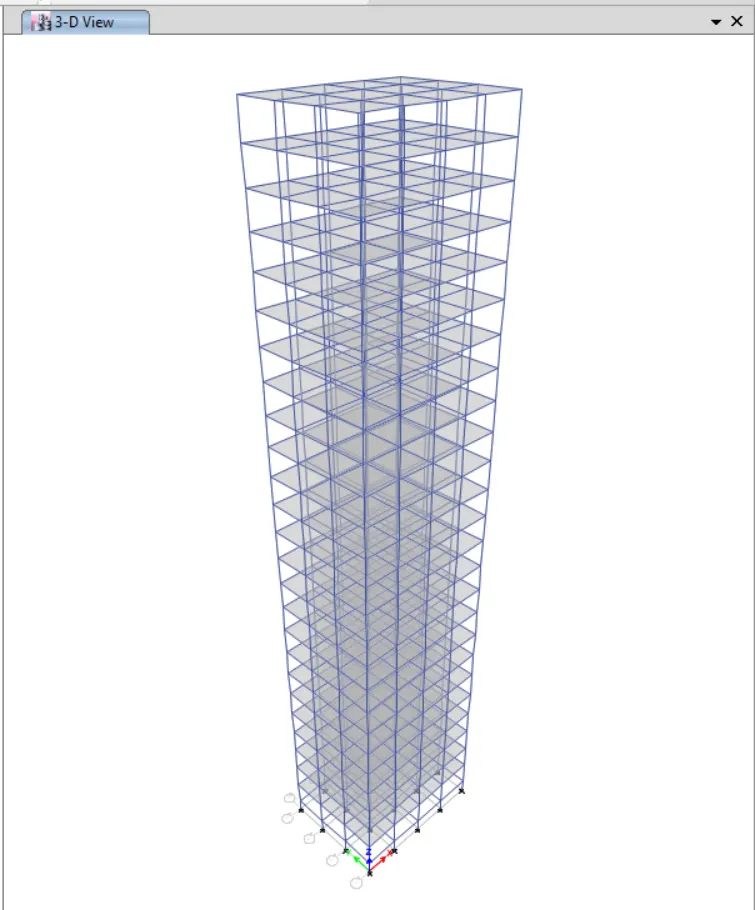

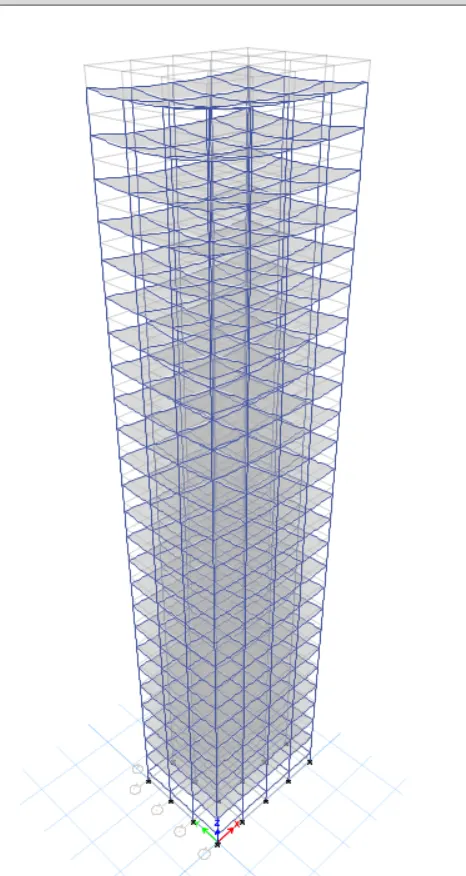

3D VIEW :



Middle 10 story provided with column size as 600x600

again click on View option

then click on Set Building Limets option

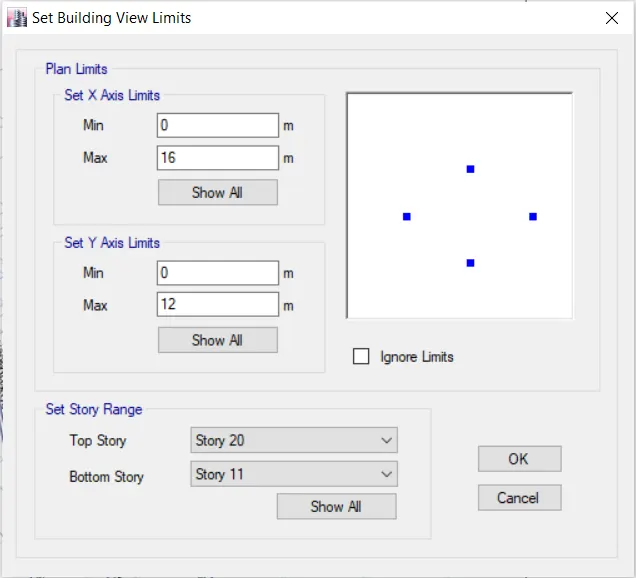

one dialogbox is open

select the top story as story 20

and bottom story as story 11

click on OK .

then click on Assign tab

then click on Frame and then Section Properties

one dialogbox is open as shown below



again click on View Option

click on set building view limets

then Make visible beam and slab of the structure

click on Set Display Views Option

and select the Beam and Slab Option

and then click on OK.

STEP 7

CHECK for diaphragms

first select the slab

click on Select tab

then again click on Select and then properties , next is slab section

one dialogbox is open

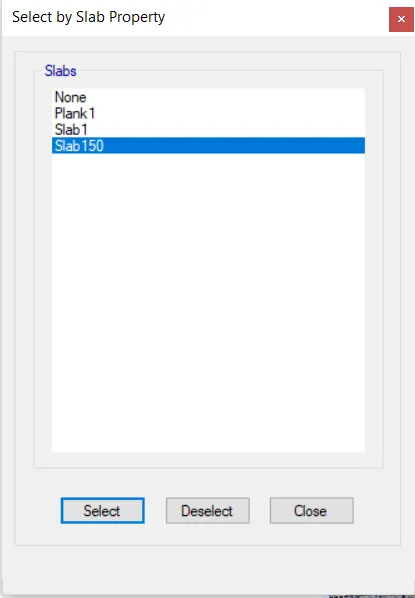

from that click on Slab150

click on Select and then closed it

click on Assign tab

the click on Shell and then Diaphragms

one new dialogbox is open

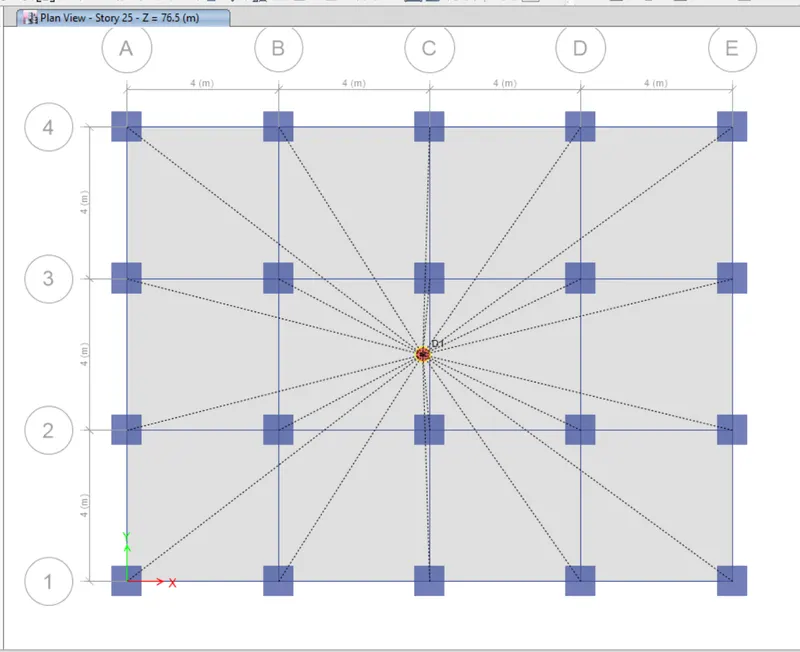

from that select D1

click on APPLY and the OK



STEP 8

RUN ANALYSIS

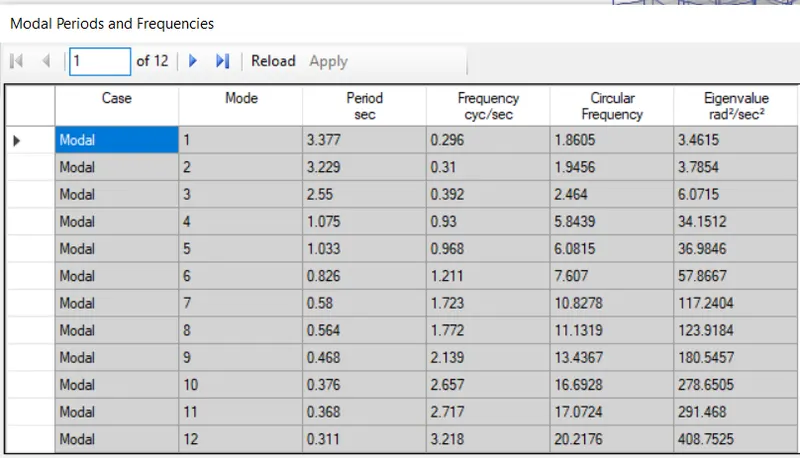

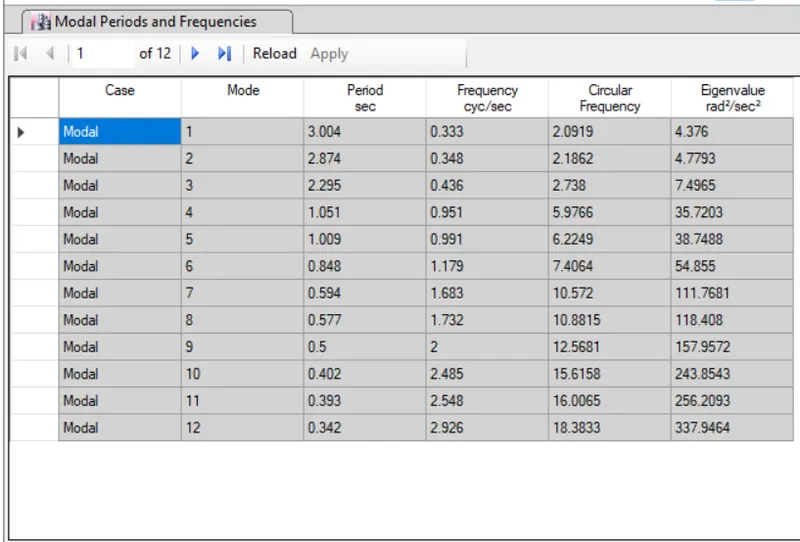

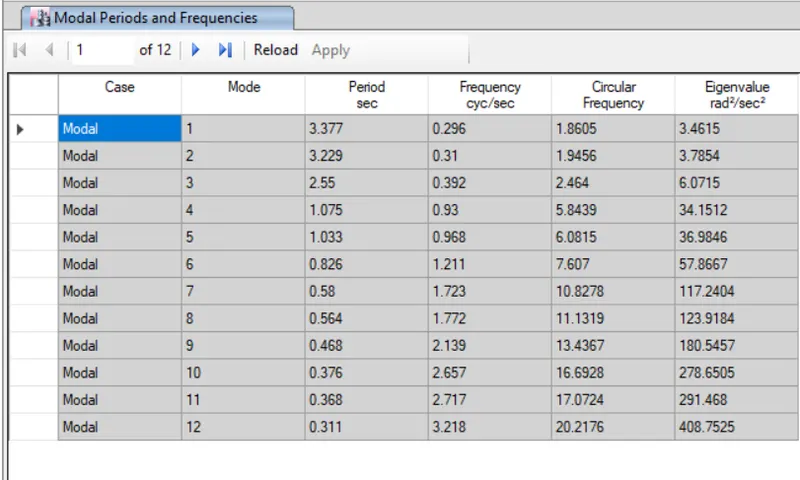

RESULTS  :





BUILDING H  (G-25)

All column size is 800x800

PROCEDURE :

First click on File option

then click on Save as

Give the file name as BUILDING H

and the save it

STEP 2

First hide the Beam and floor

and the click on APPLY and the OK

STEP 3

Assign all columns as 800x800

so that first select the columns

then click on Assign tab

then click on Frame and then section properties

one dialogbox is open

From that click on c800x800

click on APPLY and Then OK .

STEP 4

Select the beam and slab

so that click on set display option

then select the beam , floor and diaphragms option

click on APPLY and then OK .



STEP 5

RUN ANALYSIS :

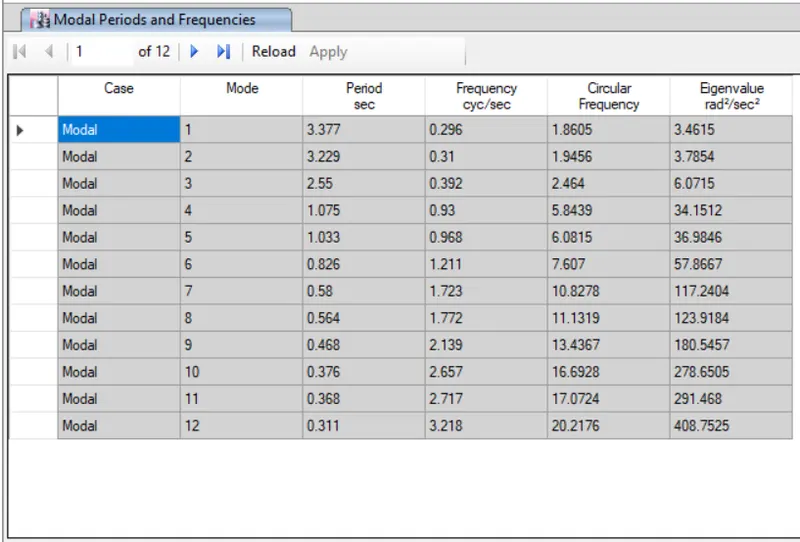

RESULTS :







BUILDING J (G+25)

IN THIS CASE INCREATSE THE 10 % IMPOSED LOAD MEANS LIVE LOAD

PROCEDURE :

STEP 1

Select the all the slab

click on Select tab

then click on select tab then section properties and slab section

one new dialogbox is open

from that click on Slab150

then click on Select and then closed

STEP 2

Increase the 10 % of live load

so that click on Assign tab

then shell load

then click on Unifom

one dialogbox is open

give the load as 3.3

then click on APPLY and then ok

STEP 3

RUN ANALYSIS :

RESULTS :





BUILDING K (G+25)

In this case the increase the mass of the building by 20 persent imposed load means live load .

PROCEDURE :

STEP 1

Click on File tab

then click on Save as give the file name as BUILDING K

And then save it .

STEP 2

Increase the live load by 20 persent

click on Select tab

then again click on Select and then properties and

then slab section .

one dialogbox is open

select the Slab150



select it and then closed it .



STEP 3

Assign load

so that click on Assign tab

then click on Shell load

then click on Uniform

one new dialogbox is open

from that select the load pattern as live load

then give the load 3.6

click on APPY and then ok

STEP 4

RUN ANALYSIS :

RESULTS :





RESULTS :

Results-All the 10 buildings were modelled and analysed successfully.



A] Effect of stiffness on T: Compare fundamental nature periods of building E&F as well as G & H.

Why id there a marginal or significant difference in the fundamental natural periods?





Model Type No of Stories Column configuration Results Conclusion
Building E 10

Upper 5 stories = 400x400 mm

Bottom 5 Stories = 600x600 mm

  As we could see that by changing the column sizes there will not be any effect on Natural period, it remains Same
Building F 10

Column Size = 600x600mm

Uniform throught Building



As we could see that in Building H has uniform column section but it has more natural time period

Building G 25

Column Sizes

Bottom 10 story (800x800 mm)

Upper 10 story (600x600 mm)

Top upper 5 story (400x400 mm)



Where as building G has large column at its base and  reduces as we go higher level.

But it has less natural time period as compared to H = ___

Building H 25

Column size = 800x800 mm

Uniform throught Building

  So we can conclude that providing larger size of column at base and reducing the size at higher level will reduces the Natural time period











B]  Effect of mass on T: Compare fundamental natural periods of buildings H,J and K. Have the buildings become more flexible or            stiff due to change in mass



Model Type No of stories Percentage increase in Load (Mass) Result Conclusion
Building H 25 Load is taken as 3KN/m2   As we could see that time period is increase as we increase the load or mass
Building J 25 Load Increase by 10% (3.3kn/m2)   Therefore time period is directly proportional to the mass of the building
Building K 25 Load Increase by 20% (3.6kn/m2)



C]  Effect of building Height on T: How does the fundamental natural periods of Buildings A,B,F and H change with change in                  building height?



Model Type  No of stories Height of Building Results  Conclusion
Building  2 7.5 m

As we could see that the height of the building increases the natural time period is also increases

Therefore, the natural period 'T' is also directly proportional to the building height

Building B 5 16.5 m
Building F 10 31.5 m
Building H 25 46.5 m



D]  Effect of column orientation on T: How does the fundamental natural periods of building B, C and D change with change in                column orientation?



Model Type No of dtories Column orientation Results Conclusion
Building B 5

Equal in Both Direction

400x400 mm

  As we could see that when column is orientad in X and Y direction in Time period
Building C 5

In X direction

550x300 mm

  So we can say that in Y direction Lateral Displacement is more as compared to X direction
Building D 5

In Y direction

300x550 mm







E]  Effect of flexural stiffness of structural elements on mode shapes: Compare fundamental mode

shape of building B in two situations when the flexural stiffness of beams relative to that of adjoining columns is very small versus it is large



Model Type No of stories Flexural stiffness of beam Results Conclusion
Building B 5 100%   If you decrease the flexural stiffness of beams,the overall flexural strenght of the beam is also going to reduce which increase the Natural period of time
10%



F]  Effect of Axial Stiffness of vertical Members on mode shapes: Compare the fundamental mode shape of building H in two situations when the axial cross-sectional area of columns is very small versus when it is large.



Model Type No of stories Axial Stiffness of Columns Results Conclusion
Building H 25 100%   As we axial stiffness of columns decrease, the fundamental natural period of the building increases regardless of its structural geometry
10%









G]  Effect of degree of fixity at column bases on mode shape: Compare the fundamental mode shape of Building B in two dituations when the base of columns is pinned versus when it is fixed.



Model Type No of stories  Base support Result  Conclusion
Building B               5         Pinned

As we can see that in pinned support natural time period is more as compared to fixed support.

Therefore fixed support will provide more resistance as compared to pinned support

        Fixed







  • BUILDING A



  • BUILDING B



  • BUILDING C





  • BUILDING D



  • BUILDING E



  • BUILDING F



  • BUILDING G



  • BUILDING H



  • BUILDING J



  • BUILDING K
  • Project 1_Comparative study of different storey buildings for Seismic forces



    AIM : Comparative study of different storey buildings for Seismic forces



    INTRODUCTION : There are 10 project of different story building (A, B, C, D, E, F, G, H, J, K).

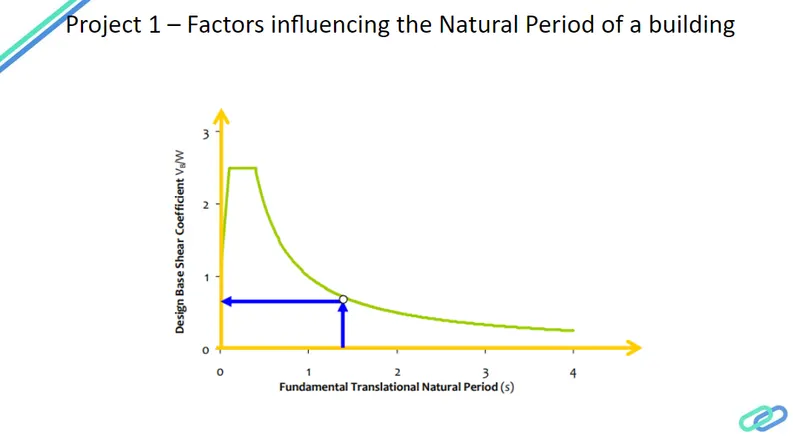

    Factors influencing the dynamic characteristics of a building

        Buildings oscillate during earthquake shaking. The oscillation causes inertia force to be induced in the building.

        The intensity and duration of oscillation, and the amount of inertia force induced in a building depend on features of buildings, called their dynamic characteristics, in addition to the characteristics of the                  earthquake shaking (beyond the control of an engineer) itself.

        The important dynamic characteristics of buildings are modes of oscillation and damping (assumed constant in most practical cases). A mode of oscillation of a building is defined by associated Natural Period             and Deformed Shape in which it oscillates.

        Every building has a number of natural frequencies (how many?), at which it offers minimum resistance to shaking induced by external effects (like earthquakes and wind) and internal effects (like motors fixed        on it).

        Each of these natural frequencies and the associated deformation shape of a building constitute a Natural Mode of Oscillation.

        The mode of oscillation with the smallest natural frequency (and largest natural period) is called the Fundamental Mode; the associated natural period T1 is called the Fundamental Natural Period.

        Regular buildings held at their base from translation in the three directions, have two fundamental translational natural periods, Tx1 and Ty1, associated with its horizontal translational oscillation along X and Y        directions, respectively, and one fundamental rotational natural period Tθ1 associated with its rotation about an axis parallel to Z axis.





    Factors influencing the Natural Period of a building









           Effect of stiffness on T: Compare fundamental natural periods of buildings E & F as well as G & H. Why is there a marginal or significant difference in the fundamental natural periods?





           Effect of mass on T: Compare fundamental natural periods of buildings H, J and K. Have the buildings become more flexible or stiff due to change in mass?



           Effect of Building Height on T: How does the fundamental natural periods of Buildings A, B, F and H change with change in building height?





           Effect of Column Orientation on T: How does the fundamental natural periods of Buildings B, C and D change with change in column orientation?







    Factors influencing the Mode shape of oscillations

        Mode shape of oscillation associated with a natural period of a building is the deformed shape of the building when shaken at the natural period. Hence, a building has as many mode shapes as the number of        natural periods.

        For a building, there are infinite numbers of natural period. But, in the mathematical modeling of building, usually the building is discretized into a number of elements. The junctions of these elements are            called nodes. Each node is free to translate in all the three Cartesian directions and rotate about the three Cartesian axes. Hence, if the number of nodes of discretization is N, then there would be 6N modes of      oscillation, and associated with these are 6N natural periods and mode shapes of oscillation.

       Effect of Flexural Stiffness of Structural Elements on mode shapes: Compare fundamental mode shape of Building B in two situations when flexural stiffness of beams relative to that of adjoining columns is           very small versus when it is large.







       Effect of Axial Stiffness of Vertical Members on mode shapes: Compare fundamental mode shape of Building H in two situations when axial cross-sectional area of columns is very small versus when it is large.



       Effect of Degree of Fixity at column bases on mode shape: Compare fundamental mode shape of Building B in two situations when base of columns is pinned versus when it is fixed.





    Building A

    Given,

    2 storey building

    number of bay

    X direction 4,  Y direction 3

    size of beam 400X400mm



    step 1) open the etabs software and go for new model





    then set units and press ok in intialization optionn



    step 2) set grid spacing and custom storey data from quick templet



    first go to edit custom grid spacing

    set no. of bay and spacing between two grids and press ok



    now storey data



    our building frame are created



    step 3) go to material proprty from define

    add new material of concrete M30 and steel fe 415



    step 4) now going for section

    add column frame and beam section according to given size and material





    step 5) go for slab section

    add 150mm thick membrane slab with M30 grade concrete



    step 6) go for load patterns

    click on load patterns option from define

    now we add load for wall

    and earthquake in X and Y respectively



    step 7) go for mass source

    add 1 for dead load and wall

    and 0.25 for live load



    step 8) now go for load cases



    step 9) create load combination



    step 10) now go for column modelling

    clickm on draw column option

    change working plane as all stories





    step 11) beam modelling

    go to quick draw beam change working plane as all storey

    and draw the beam to take a cursor between two grids



    step 12) slab draw

    go to quick draw slab

    draw only for storey one and two





    step 13) assign loads

    select beam properties from beam

    to select beams



    now assign loads on slabs

    select slab from select option

    then assign slab load from assign

    assign 10Kn/m as live load



    step 15) diaphragms property

    select all the slabs from select option

    and assign diaphragms



    step 16) run analysis

    after complition of modelling part run the analysis







    Building B



    Given,

    5 storey building

    number of bay

    X direction 4,  Y direction 3

    size of beam 400X400mm



    step 1) open the etabs software and go for new model





    then set units and press ok in intialization optionn



    step 2) set grid spacing and custom storey data from quick templet



    first go to edit custom grid spacing

    set no. of bay and spacing between two grids and press ok



    now storey data



    our building frame are created



    step 3) go to material proprty from define

    add new material of concrete M30 and steel fe 415



    step 4) now going for section

    add column frame and beam section according to given size and material





    step 5) go for slab section

    add 150mm thick membrane slab with M30 grade concrete



    step 6) go for load patterns

    click on load patterns option from define

    now we add load for wall

    and earthquake in X and Y respectively



    step 7) go for mass source

    add 1 for dead load and wall

    and 0.25 for live load



    step 8) now go for load cases



    step 9) create load combination



    step 10) now go for column modelling

    clickm on draw column option

    change working plane as all stories





    step 11) beam modelling

    go to quick draw beam change working plane as all storey

    and draw the beam to take a cursor between two grids



    step 12) slab draw

    go to quick draw slab

    draw only for storey one and two





    step 13) assign loads

    select beam properties from beam

    to select beams



    now assign loads on slabs

    select slab from select option

    then assign slab load from assign

    assign 10Kn/m as live load



    step 15) diaphragms property

    select all the slabs from select option

    and assign diaphragms



    step 16) run analysis

    after complition of modelling part run the analysis







    Building C



    Given,

    5 storey building

    number of bay

    X direction 4,  Y direction 3

    size of beam 550X300mm



    step 1) open the etabs software and go for new model





    then set units and press ok in intialization optionn



    step 2) set grid spacing and custom storey data from quick templet



    first go to edit custom grid spacing

    set no. of bay and spacing between two grids and press ok



    now storey data



    our building frame are created



    step 3) go to material proprty from define

    add new material of concrete M30 and steel fe 415



    step 4) now going for section

    add column frame and beam section according to given size and material



    assign the loacal axis at X direction

    by giving 90degree rotation





    step 5) go for slab section

    add 150mm thick membrane slab with M30 grade concrete



    step 6) go for load patterns

    click on load patterns option from define

    now we add load for wall

    and earthquake in X and Y respectively



    step 7) go for mass source

    add 1 for dead load and wall

    and 0.25 for live load



    step 8) now go for load cases



    step 9) create load combination



    step 10) now go for column modelling

    clickm on draw column option

    change working plane as all stories





    step 11) beam modelling

    go to quick draw beam change working plane as all storey

    and draw the beam to take a cursor between two grids



    step 12) slab draw

    go to quick draw slab

    draw only for storey one and two





    step 13) assign loads

    select beam properties from beam

    to select beams



    now assign loads on slabs

    select slab from select option

    then assign slab load from assign

    assign 10Kn/m as live load



    step 15) diaphragms property

    select all the slabs from select option

    and assign diaphragms



    step 16) run analysis

    after complition of modelling part run the analysis









    Building D



    Given,

    5 storey building

    number of bay

    X direction 4,  Y direction 3

    size of beam 300X550mm

    oriented along y direction



    step 1) open the etabs software and go for new model





    then set units and press ok in intialization optionn



    step 2) set grid spacing and custom storey data from quick templet



    first go to edit custom grid spacing

    set no. of bay and spacing between two grids and press ok



    now storey data



    our building frame are created



    step 3) go to material proprty from define

    add new material of concrete M30 and steel fe 415



    step 4) now going for section

    add column frame and beam section according to given size and material



    assign the loacal axis at X direction

    by giving 90degree rotation





    step 5) go for slab section

    add 150mm thick membrane slab with M30 grade concrete



    step 6) go for load patterns

    click on load patterns option from define

    now we add load for wall

    and earthquake in X and Y respectively



    step 7) go for mass source

    add 1 for dead load and wall

    and 0.25 for live load



    step 8) now go for load cases



    step 9) create load combination



    step 10) now go for column modelling

    clickm on draw column option

    change working plane as all stories





    step 11) beam modelling

    go to quick draw beam change working plane as all storey

    and draw the beam to take a cursor between two grids



    step 12) slab draw

    go to quick draw slab

    draw only for storey one and two





    step 13) assign loads

    select beam properties from beam

    to select beams



    now assign loads on slabs

    select slab from select option

    then assign slab load from assign

    assign 10Kn/m as live load



    step 15) diaphragms property

    select all the slabs from select option

    and assign diaphragms



    step 16) run analysis

    after complition of modelling part run the analysis





    BUILDING E (G+ 10 )

    Column sizes :

    for top 5 storeys: C 400X400

     Column sizes

    for bottom 5 storeys: C600X600



    PROCEDURE :

     In this model, we need to add up 5 more storeys to our model.

    In addition, we also need to assign different column sizes on different floors.

     we'll first save the ETABS file for building D as a new model for building E.

    Then, edit the story data as we have done for our previous models in ETABS.

    Then, we need to add two new column sections with the required directions and assign them at appropriate floors in our model as specified.

    STEP 1

    Add 5 more story in previous structure

    so that go to the Edit option

    click on Edit Story And Grid System

    one dialogbox is open

    from that click on Modify Story Data option

    add 5 story there shown below

    refresh it and then click OK

    click ok

    STEP 2

    Check the wall load and floor load of the structure

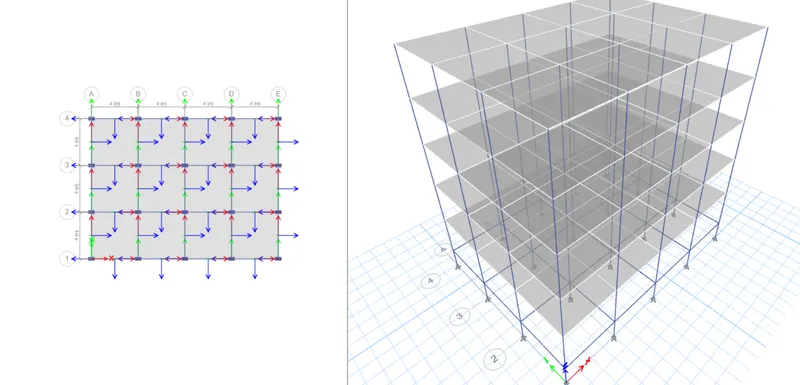

    click on Display shell load assign

    select the load pattern as live load

    click on APPLY and ok

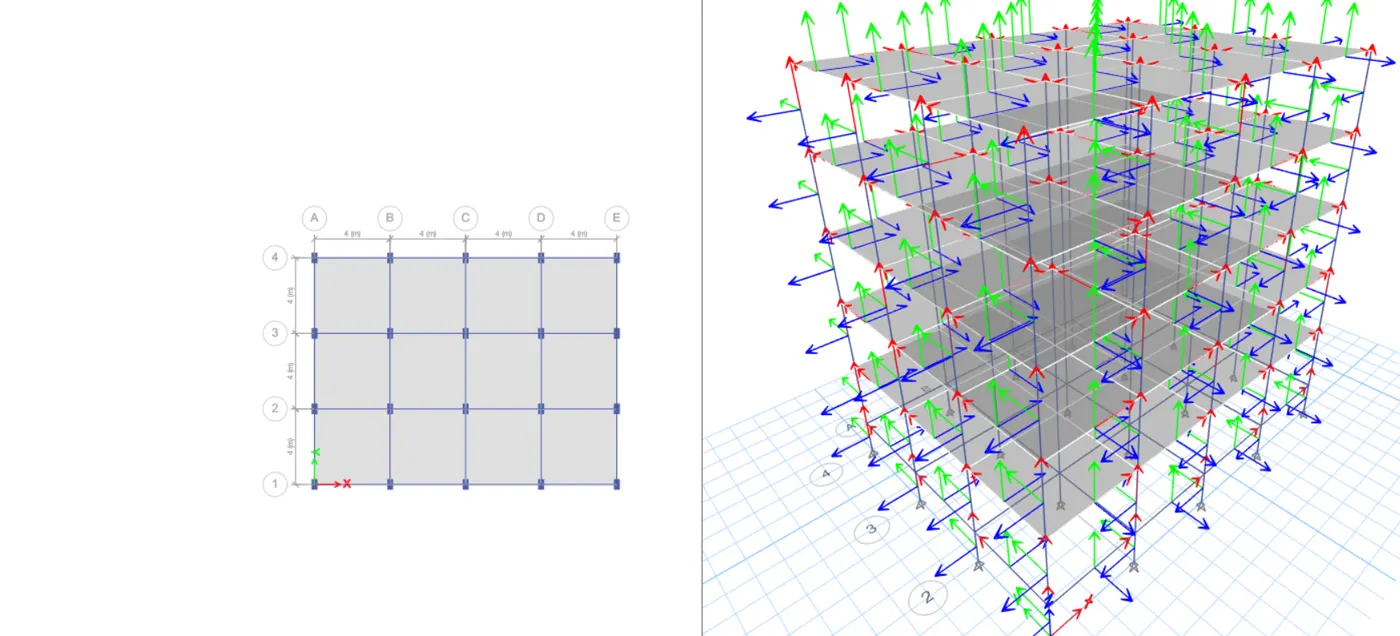

    again click on Display Frame Load Assign

    select the load pattern as wall load

    Click on Apply and then OK .



    STEP 3

    Change the column size as 600x600

    so that click on Define tab

    then Section properties

    then Frame section

    select the c550x300

    then click on Modify section

    one dialogbox is open shown below

    give the property name as c600x600

    give the depth as 600

    and width as 600

    click OK .

    Then Add one more new column size 400 by 400

    so that click on Add new proprties

    give the name as c400x400

    then width of column as 400

    depth as 400

    Click OK

    STEP 4

    Select the column only

    for that hide the beam and floor

    click on set view point tab

    and unselect the beam and floor and then click ok

    click ok



    STEP 5

    Select the column from floor 6 to 10

    so that , click on view tab

    Then click on Set Building view Limits

    one dialogbox is open

    from that select the Top story as Story 10

    and base story as story 6

    then click ok .

    3D VIEW :

    Select the all columns

    then click on Assign tab

    then click on Frame and then click on Section Properties

    one dialogbox is open

    select the c400x400 and then click on APPY and then ok

    3D VIEW



    STEP 5

    Then checked for diaphragms

    so that select the slab first

    go to the select option

    then click on properties and slab section

    one dialogbox is open

    click on seect and then close it .

    then click on Assign tab

    then click on shell

    and then diaphragms

    one dialogbox is open

    click on Appy and then OK



    STEP : 6

    RAN ANALYSIS

    RESULTS :





    BUILDING F (G+10)

    Throughout the structure having same columns size

    no need to much editng in the previous structure

    jast change the column size from story 6 to 10 as 600x600

    PROCEDURE :

    STEP 1

    Hides the beams and floor

    so that click on Set Display Option

    and just unselect the Beams and floor

    click on Apply and then OK

    3D VIEW :

    STEP 2

    Select the columns from story 6 to 10

    so that click on View tab

    Set Building LImets

    then one dialogbox is open

    from that click on

    tao story as 10 story and

    base story as 6 story

    click on OK

    STEP 3

    Change the columns size as 600x600

    so that jast select the columns

    click on Assign tab

    then click on Frame and then Section Properties

    then one dialogbox is open

    from that click on c600x600 columns

    click on APPLY AND THEN OK .

    Then click on view tab

    then click on Set Building View Limets

    one dialogbox is open

    from that select the top story as 10 story

    and bottom as base

    click ok .

    3d view :

    STEP 4

    Again select the beams ad floors

    click on Set Display Option

    open dialogbox is open

    from that click on Beam and slab

    and then click ok

    3d VIEW :

    STEP 5

    Check for diaphergram

    so first select the slab

    click on Select the tab

    and click on Properties

    then Slab section

    one dialogbox is open

    select the slab150

    and then closed it .

    Then click on Assign tab

    click on Shell and the diaphergrm

    one dialogbox is open

    click on D1

    Then click on APPLY  and then OK .



    STEP 6

    RUN ANALYSIS :



    RESULTS :





     BUILDING G (G+25)

    Columns for top 5 stories: C400X400

    Columns for middle 10 stories: C600x600

    Columns for bottom 10 stories: C800x800



    PROCEDURE :

     we need to add 15 new stories and assign different column sizes on different floors.

    We can follow the exact procedure that has already been explained for the previous project to create this model by editing building F. The same

    STEP 1

    Click on File manu

    then click on Save As then give the fine name as BUILDING G

    STEP 2

    Add more 15 story in previous story

    so that click on Edit

    then click on Edit Story And Grid System Data option

    one dialogbox is open

    from this click on Modify /Show Story data

    again one dialogbox is open

    from that add more 15 story

    click ok

    click ok

    click ok .



    STEP 3

    check the live load and wall loads of the structure

    Check Live load :

    click on Display Shell Load Assign

    one dialogbox is open

    select the load pattern as Live load

    click on Apply and then OK .

    Check wall load

    so that click on Display Frame Load Assign tab

    one dialogbox is open

    select the load pattern as wall load

    click on Appy and then OK



    STEP 4

    define columns

    c400x400

    c600600

    c800x800 .

    so that click on Define tab

    then Frame section

    one dialogbox is open

    create a new column

    c800x800

    click on OK .

    STEP 5

    Apply different size of columns for each story

    so that click first hide the beams and floors of the structure .

    click on Set Display View tab

    unselect the beam and floors option

    click on Apply and then OK .



    STEP 6

    Click on assign tab

    then click on Frame and then Section Properties

    one dialogbox is open

    select the c400x400

    click on Appy and then OK .

    3D VIEW :



    Middle 10 story provided with column size as 600x600

    again click on View option

    then click on Set Building Limets option

    one dialogbox is open

    select the top story as story 20

    and bottom story as story 11

    click on OK .

    then click on Assign tab

    then click on Frame and then Section Properties

    one dialogbox is open as shown below



    again click on View Option

    click on set building view limets

    then Make visible beam and slab of the structure

    click on Set Display Views Option

    and select the Beam and Slab Option

    and then click on OK.

    STEP 7

    CHECK for diaphragms

    first select the slab

    click on Select tab

    then again click on Select and then properties , next is slab section

    one dialogbox is open

    from that click on Slab150

    click on Select and then closed it

    click on Assign tab

    the click on Shell and then Diaphragms

    one new dialogbox is open

    from that select D1

    click on APPLY and the OK



    STEP 8

    RUN ANALYSIS



    RESULTS  :





    BUILDING H  (G-25)

    All column size is 800x800

    PROCEDURE :

    First click on File option

    then click on Save as

    Give the file name as BUILDING H

    and the save it

    STEP 2

    First hide the Beam and floor

    and the click on APPLY and the OK

    STEP 3

    Assign all columns as 800x800

    so that first select the columns

    then click on Assign tab

    then click on Frame and then section properties

    one dialogbox is open

    From that click on c800x800

    click on APPLY and Then OK .

    STEP 4

    Select the beam and slab

    so that click on set display option

    then select the beam , floor and diaphragms option

    click on APPLY and then OK .



    STEP 5

    RUN ANALYSIS :

    RESULTS :







    BUILDING J (G+25)

    IN THIS CASE INCREATSE THE 10 % IMPOSED LOAD MEANS LIVE LOAD

    PROCEDURE :

    STEP 1

    Select the all the slab

    click on Select tab

    then click on select tab then section properties and slab section

    one new dialogbox is open

    from that click on Slab150

    then click on Select and then closed

    STEP 2

    Increase the 10 % of live load

    so that click on Assign tab

    then shell load

    then click on Unifom

    one dialogbox is open

    give the load as 3.3

    then click on APPLY and then ok

    STEP 3

    RUN ANALYSIS :

    RESULTS :





    BUILDING K (G+25)

    In this case the increase the mass of the building by 20 persent imposed load means live load .

    PROCEDURE :

    STEP 1

    Click on File tab

    then click on Save as give the file name as BUILDING K

    And then save it .

    STEP 2

    Increase the live load by 20 persent

    click on Select tab

    then again click on Select and then properties and

    then slab section .

    one dialogbox is open

    select the Slab150



    select it and then closed it .



    STEP 3

    Assign load

    so that click on Assign tab

    then click on Shell load

    then click on Uniform

    one new dialogbox is open

    from that select the load pattern as live load

    then give the load 3.6

    click on APPY and then ok

    STEP 4

    RUN ANALYSIS :

    RESULTS :





    RESULTS :

    Results-All the 10 buildings were modelled and analysed successfully.



    A] Effect of stiffness on T: Compare fundamental nature periods of building E&F as well as G & H.

    Why id there a marginal or significant difference in the fundamental natural periods?





    Model Type No of Stories Column configuration Results Conclusion
    Building E 10

    Upper 5 stories = 400x400 mm

    Bottom 5 Stories = 600x600 mm

      As we could see that by changing the column sizes there will not be any effect on Natural period, it remains Same
    Building F 10

    Column Size = 600x600mm

    Uniform throught Building



    As we could see that in Building H has uniform column section but it has more natural time period

    Building G 25

    Column Sizes

    Bottom 10 story (800x800 mm)

    Upper 10 story (600x600 mm)

    Top upper 5 story (400x400 mm)



    Where as building G has large column at its base and  reduces as we go higher level.

    But it has less natural time period as compared to H = ___

    Building H 25

    Column size = 800x800 mm

    Uniform throught Building

      So we can conclude that providing larger size of column at base and reducing the size at higher level will reduces the Natural time period











    B]  Effect of mass on T: Compare fundamental natural periods of buildings H,J and K. Have the buildings become more flexible or            stiff due to change in mass



    Model Type No of stories Percentage increase in Load (Mass) Result Conclusion
    Building H 25 Load is taken as 3KN/m2   As we could see that time period is increase as we increase the load or mass
    Building J 25 Load Increase by 10% (3.3kn/m2)   Therefore time period is directly proportional to the mass of the building
    Building K 25 Load Increase by 20% (3.6kn/m2)



    C]  Effect of building Height on T: How does the fundamental natural periods of Buildings A,B,F and H change with change in                  building height?



    Model Type  No of stories Height of Building Results  Conclusion
    Building  2 7.5 m

    As we could see that the height of the building increases the natural time period is also increases

    Therefore, the natural period 'T' is also directly proportional to the building height

    Building B 5 16.5 m
    Building F 10 31.5 m
    Building H 25 46.5 m



    D]  Effect of column orientation on T: How does the fundamental natural periods of building B, C and D change with change in                column orientation?



    Model Type No of dtories Column orientation Results Conclusion
    Building B 5

    Equal in Both Direction

    400x400 mm

      As we could see that when column is orientad in X and Y direction in Time period
    Building C 5

    In X direction

    550x300 mm

      So we can say that in Y direction Lateral Displacement is more as compared to X direction
    Building D 5

    In Y direction

    300x550 mm







    E]  Effect of flexural stiffness of structural elements on mode shapes: Compare fundamental mode

    shape of building B in two situations when the flexural stiffness of beams relative to that of adjoining columns is very small versus it is large



    Model Type No of stories Flexural stiffness of beam Results Conclusion
    Building B 5 100%   If you decrease the flexural stiffness of beams,the overall flexural strenght of the beam is also going to reduce which increase the Natural period of time
    10%



    F]  Effect of Axial Stiffness of vertical Members on mode shapes: Compare the fundamental mode shape of building H in two situations when the axial cross-sectional area of columns is very small versus when it is large.



    Model Type No of stories Axial Stiffness of Columns Results Conclusion
    Building H 25 100%   As we axial stiffness of columns decrease, the fundamental natural period of the building increases regardless of its structural geometry
    10%









    G]  Effect of degree of fixity at column bases on mode shape: Compare the fundamental mode shape of Building B in two dituations when the base of columns is pinned versus when it is fixed.



    Model Type No of stories  Base support Result  Conclusion
    Building B               5         Pinned

    As we can see that in pinned support natural time period is more as compared to fixed support.

    Therefore fixed support will provide more resistance as compared to pinned support

            Fixed







    • BUILDING A



    • BUILDING B



    • BUILDING C





    • BUILDING D



    • BUILDING E



    • BUILDING F



    • BUILDING G



    • BUILDING H



    • BUILDING J



    • BUILDING K

Leave a comment

Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

Please  login to add a comment

Other comments...

No comments yet!
Be the first to add a comment

Read more Projects by MUNAGALA NARESH (45)

To Design slab and foundation for an RC residential building using TSD

Objective:

1.Design the slab and foundation of the model. Outline the thought process for designing of the elements (column, beam, slab and foundations)Aim - To design the slab and foundation of the model.Tools Used - 1st Order analysis, Analysis all ( static ), Status , check panel ,Properties window etc. Procedure -Open the…

calendar

03 Aug 2024 01:47 PM IST

    Read more

    Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER

    Objective:

    Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. The building to be designed for dead, live, wind and seismic loading.Report of each member to be generated and extract drawings for structural…

    calendar

    03 Aug 2024 01:46 PM IST

    • DESIGN
    Read more

    To Generate report for Steel Industrial and RC structures using TSD

    Objective:

    ) Generate report for the steel building design from challenges 1 – 6 along with the loading summary AIM : To Generate report for the steel building design from challenges 1 – 6 along with the loading summary INTRODUCTION : Open the model.If needed, number the model. ...On the Drawings & reports…

    calendar

    03 Aug 2024 01:40 PM IST

    • BIM
    • Tekla Structural Designer
    Read more

    To Generate seismic loading based on IS code and to run the analysis using TSD

    Objective:

    1. Generate seismic loading based IS codal provisions and zone II. Any other data you can assume and input accordingly. AIM: To generate seismic loading based IS codal provisions and zone II. INTRODUCTION:Seismic load indicates how much seismic energy (waves of energy that travel through the earth) a…

    calendar

    14 Jul 2024 05:57 AM IST

      Read more

      Schedule a counselling session

      Please enter your name
      Please enter a valid email
      Please enter a valid number

      Related Courses

      coursecard

      Linear Algebra

      Recently launched

      20 Hours of Content

      coursecardcoursetype

      Post Graduate Program in Infrastructure - Engineering Design and Project Management

      4.5

      127 Hours of Content

      coursecardcoursetype

      Post Graduate Program in CFD Solver Development

      4.8

      119 Hours of Content

      coursecard

      Introduction to OpenFOAM Development

      4.9

      18 Hours of Content

      coursecard

      FEA using SOLIDWORKS

      4.8

      4 Hours of Content

      Schedule a counselling session

      Please enter your name
      Please enter a valid email
      Please enter a valid number

      logo

      Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

      https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

      Our Company

      News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
      map
      EpowerX Learning Technologies Pvt Ltd.
      4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
      mail
      info@skill-lync.com
      mail
      ITgrievance@skill-lync.com

      Top Individual Courses

      Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

      Top PG Programs

      Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

      Skill-Lync Plus

      Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

      Trending Blogs

      Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

      © 2025 Skill-Lync Inc. All Rights Reserved.

                  Do You Want To Showcase Your Technical Skills?
                  Sign-Up for our projects.
