Creating a Floor plan, Footing detail and Isometric view using AutoCad

C1. Cross section of load bearing wall over spread footing Aim: to draw cross section of load bearing wall over spread footing using AutoCAD software. Procedure: Open AutoCAD In the command box type QNEW Click on imperical,advance setup,decimal In the command box type units Select decimal,precision set to 0.00,angle set…

    • MUNAGALA NARESH

      updated on 04 Sep 2022

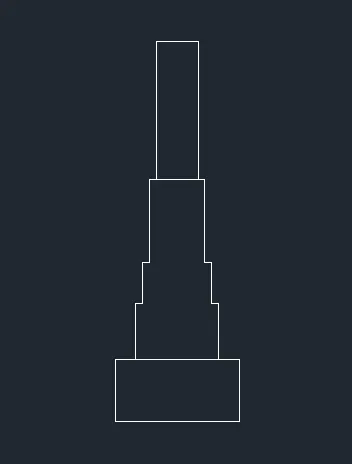

    C1. Cross section of load bearing wall over spread footing

    Aim: to draw cross section of load bearing wall over spread footing using AutoCAD software.

    Procedure:

    • Open AutoCAD
    • In the command box type QNEW
    • Click on imperical,advance setup,decimal
    • In the command box type units
    • Select decimal,precision set to 0.00,angle set to decimal degree
    • Type ds in the command box
    • Snap spacing(x and y spacing)=0.5
    • Grid spacing(x and y spacing)=0.5
    • Create a reactangle by typing"REC" in the command box.
    • Specify the first corner point.
    • Click on dimension in the command box.
    • Specify the length of rectangle=0.9 units in command box.
    • Specify the width of rectangle=0.25 units in command box.
    • Create another rectangle "REC" in the command box.
    • Specify the first corner point which is 0.2 units from the starting point of first rectangle.
    • Click on dimensions in command box.
    • Specify the length of rectangle as 0.5 units.
    • Specify the width of reactangle as 0.4 units.
    • Create the third rectangle command"REC"
    • Specify the first corner point point 0.05 units from the corner of the second rectangle.
    • Click on dimension in command box.
    • Specify the length of rectangle as 0.4 units.
    • Specify the width of rectangle as 0.4 units.
    • Draw the line from the corner of third rectangle using command "L"
    • Give the length as 1.15 units then move downwards and give value 0.15 units and then right and give length as 1.15 units.
    • Create the fourth rectangle using command "REC"
    • Specify the first corner point at a distance of 0.05 from the thrid rectangle
    • Click on dimensions and give the length as 0.3 and width as 0.6 units.
    • Now go to the point where we  drew the line and at a distance of 0.3 draw another line giving distance of 0.15 units vertically and 0.3 units horizontally.Repeat till 3 steps are created.
    • Draw another rectangle above fourth rectangle using command "REC"
    • Specify the corner point as the corner point of fourth rectangle.
    • Click on dimensions giving length as 0.3 units and width as 0.05 units.
    • Draw the fifth rectangle using command -"REC"
    • Specify the corner point as the corner of fourth rectangle.
    • Click on dimension and give length as 0.3 units and width as 1 units.

    Result:

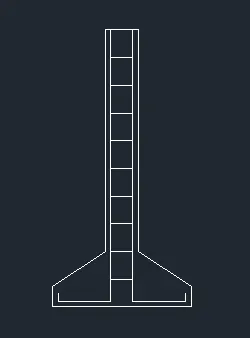

    C2. Cross section of a isolated footing

    Aim: To draw Cross section of a isolated footing using AutoCAD software.

    Procedure:

    • Open AutoCAD
    • In the command box type QNEW
    • Click on imperical,advance setup,decimal
    • In the command box type units
    • Select decimal,precision set to 0.00,angle set to decimal degree
    • Type ds in the command box
    • Snap spacing(x and y spacing)=0.5
    • Grid spacing(x and y spacing)=0.5
    • Draw line with command "l" and give 1 units.
    • L command and give the relative coordinates as @0,0.15
    • Give the next coordinate as @0.38,0.25
    • Next coordinate is @0,1.6
    • Next coordinate @0.24,0
    • Next coordinate @0,-1.6
    • Next coordinate @0.38,-0.25
    • Next coordinate @0,-0.15 or close.
    • Now draw a line at a distance of 0.04 units from the top with line command
    • Give value 0.04,then give the length of 1st line as 1.96.
    • Next coordinate @-0.38,0 for the 2nd line
    • Draw the third line,bend by giving the coordinate @0,0.06
    • Copy the first line by command "co' click displacement and give value of 0.16 units.
    • Copy the 2nd horizontal line by"co " specify base point and drag to the desired position.
    • Copy the 3rd line by giving command"co" and select the base point and drag it.
    • Give offset from top line with an oofset distance of 0.2 units
    • give command "o" and select the object giving offset distance as 0.2 and select multiple option for 9 such lines.
    • trim the excess lines.

    Result: C/S of isolated footing is shown:

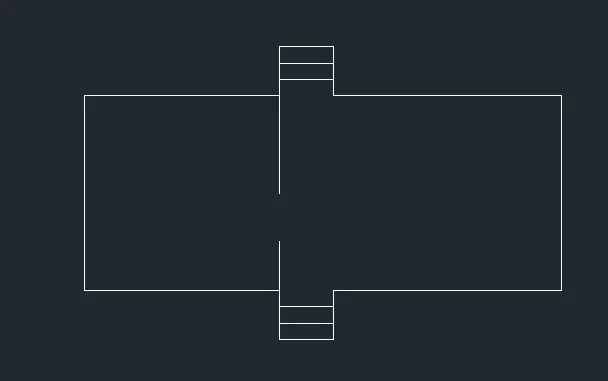

    C3. Line diagram of a two bedroom building

    Aim: To draw line diagram of two bedroom building using AutoCAD software.

    Procedure:

    • Open AutoCAD
    • In the command box type QNEW
    • Click on imperical,advance setup,decimal
    • In the command box type units
    • Select decimal,precision set to 0.00,angle set to decimal degree
    • Type ds in the command box
    • Snap spacing(x and y spacing)=0.5
    • Grid spacing(x and y spacing)=0.5
    • Select Polyline from ribbon and create a bedroom of 3.6*3.6
    • Command "PL" click a point and move the cursor in (-y axis) and give 0.9 units.
    • now move the cursor to left(-x axis) and give 3.6 units
    • Move to top (+y axis) and give distance as 3.6 and then the cursor to (+ x axis) and give 3.6 units and finally move to (- y axis) and give 1.8 units.
    • The step outline is created using Line tool.
    • Now from the corner point of 1.8 units draw a vertical line at a distance of 0.9 units.
    • Now move the cursor to (+x axis) and give a distance of 1 unit.
    • Again 0.9 unit is given moving the cursor to - y direction.
    • Now the living room is also drwn using polyline.
    • Command "pl" from the last point start the polyline
    • Give 4.2 unit in positive x direction.
    • Now move the cursor to -y direction and give 3.6 units.
    • Now move the cursor to -x direction and give 3.6 units.
    • Create outline step again.
    • Command "l" select the last point drawn.
    • Move the cursor to -y direction draw 0.9 units.
    • Move the cursor to -x direction draw 1 unit.
    • Move the cursor to +y direction draw 0.9 units.
    • Create the steps using offset
    • Command"o" give offset distance as 0.3 unit and select the object.
    • Click on multiple and move the cursor to the direction where it is to be drawn.
    • Repeat for the other side also.

    Result: The line diagram of two bedroom is drawn.

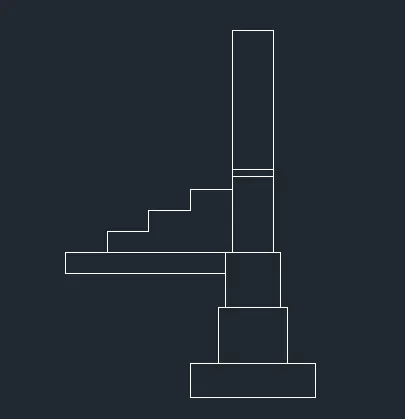

    C4: Cross section of a load bearing wall showing foundation details

    Aim: to draw cross section of a load bearing wall showing foundation details using AutoCAD software.

    Procedure:

    • Open AutoCAD
    • In the command box type QNEW
    • Click on imperical,advance setup,decimal
    • In the command box type units
    • Select decimal,precision set to 0.00,angle set to decimal degree
    • Type ds in the command box
    • Snap spacing(x and y spacing)=0.5
    • Grid spacing(x and y spacing)=0.5
    • Create a rectangle using command"REC"
    • Specify the starting point and click on dimensions and give the length as 0.9 units and width as 0.45 units.
    • Select polyline using command "pl" and specify the first point 0.15 unit from the corner of rectangle.
    • With the cursor pointing in +y direction give the distance as 0.4 units.
    • With the cursor pointing in +x direction give the distance as 0.05 units.
    • With the cursor pointing in +y direction give the distance as 0.3 units.
    • With the cursor pointing in +x direction give the distance as 0.05 units.
    • With the cursor pointing in +y direction give the distance as 0.6 units.
    • With the cursor pointing in +x direction give the distance as 0.4 units.
    • With the cursor pointing in -y direction give the distance as 0.6 units.
    • With the cursor pointing in +x direction give the distance as 0.05 units.
    • With the cursor pointing in -y direction give the distance as 0.3 units.
    • With the cursor pointing in +x direction give the distance as 0.05 units.
    • With the cursor pointing in -y direction give the distance as 0.4 units.
    • The top portion is drawn by polyline.
    • Command "pl" select the first point at a distance of 0.05 units from the last point.
    • With the cursor pointing in +y direction draw 1 units.
    • With the cursor pointing in +x direction draw 0.3 units.
    • With the cursor pointing in -y direction draw 1 units.

    Result: The C/S of load bearing wall foundation is shown below

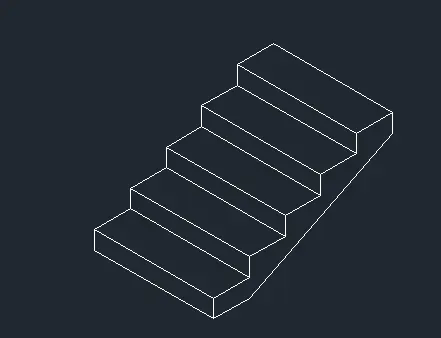

    C5. Isometric view of steps

    Aim: To draw the isometric view of steps using AutoCAD software.

    Procedure:

    • Open AutoCAD
    • In the command box type QNEW
    • Click on imperical,advance setup,decimal
    • In the command box type units
    • Select decimal,precision set to 0.00,angle set to decimal degree
    • Type ds in the command box
    • Activate the isometric view from the toggle bar then snap off,grid off and make sure ortho mode is on.
    • From the isometric drafting select isoplane left.
    • Give command "l" and move the cursor tp -x direction and give 1 units.
    • Moving the cursor to +y direction and give 0.15 units.
    • Moving the cursor to +x direction and gain give 1 unit again cursor to -y direction give 0.15 unit.
    • Change the isometric drafting to isoplane top.
    • Move the cursor to back and give 0.3 units from the last drawn point.
    • Move the cursor to right direction and give 1 unit
    • Move the cursor to front and give 0.3 unit.
    • Change the isometric drafting to isoplane right.
    • Copy the object with ortho off.
    • Command "co" and specify the base point and place it to new point and repeat for 4 steps.
    • With isoplane right draw a horizontal distance of 0.3 units from the starting point of stair.
    • Draw a vertical distance of 0.15 units from the last stair .
    • Join the two points with ortho off and the stair is drawn.

    Result: The steps are drawn in isometric view.

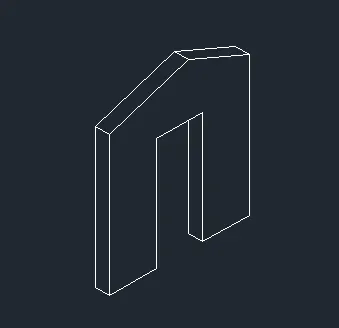

    C6. Isometric view of Gable wall

    Aim: To draw the isometric view of gable wall using AutoCAD software.

    Procedure:

    • Open AutoCAD
    • In the command box type QNEW
    • Click on imperical,advance setup,decimal
    • In the command box type units
    • Select decimal,precision set to 0.00,angle set to decimal degree
    • Type ds in the command box
    • To work with isometric view use command "ds" keep the snap off,grid off and put isometric snap on
    • Make sure the ordtho mode is on
    • Command "l" and move the cursor to left 1 units
    • With the cursor pointing upwards give 3 units.
    • Draw 3 units to right and 3 units downwards.
    • Select isoplane right,take line command and draw  line upwards 2.42 units from the starting point.
    • Draw 1 unit towards the right and 2.42 units downwards.
    • Click on the end point and close the figure.
    • Change to isoplane left and draw 0.3 units as thickness on the left side.
    • Give the thickness of opening with isoplane left0.3 units towards left and 2.12 unit upwards.
    • Extend the thickness line of opening 1.13 units upwards and total 3.25 units from bottom.
    • With ortho off,draw a line between the corner of left side and the projected line done just before this step.
    • Draw it to the other side also till it meets the right corner.
    • Draw the vertical line with ortho on to join the centre portion and erase the projected and horizontal lines.
    • Copy both the inclined lines and join the right end.

    Result: The isometric view of gable wall is drawn.





    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by MUNAGALA NARESH (45)

    To Design slab and foundation for an RC residential building using TSD

    Objective:

    1.Design the slab and foundation of the model. Outline the thought process for designing of the elements (column, beam, slab and foundations)Aim - To design the slab and foundation of the model.Tools Used - 1st Order analysis, Analysis all ( static ), Status , check panel ,Properties window etc. Procedure -Open the…

    calendar

    03 Aug 2024 01:47 PM IST

      Read more

      Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER

      Objective:

      Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. The building to be designed for dead, live, wind and seismic loading.Report of each member to be generated and extract drawings for structural…

      calendar

      03 Aug 2024 01:46 PM IST

      • DESIGN
      Read more

      To Generate report for Steel Industrial and RC structures using TSD

      Objective:

      ) Generate report for the steel building design from challenges 1 – 6 along with the loading summary AIM : To Generate report for the steel building design from challenges 1 – 6 along with the loading summary INTRODUCTION : Open the model.If needed, number the model. ...On the Drawings & reports…

      calendar

      03 Aug 2024 01:40 PM IST

      • BIM
      • Tekla Structural Designer
      Read more

      To Generate seismic loading based on IS code and to run the analysis using TSD

      Objective:

      1. Generate seismic loading based IS codal provisions and zone II. Any other data you can assume and input accordingly. AIM: To generate seismic loading based IS codal provisions and zone II. INTRODUCTION:Seismic load indicates how much seismic energy (waves of energy that travel through the earth) a…

      calendar

      14 Jul 2024 05:57 AM IST

        Read more

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        Related Courses

        coursecard

        Design loads considered on bridges

        Recently launched

        10 Hours of Content

        coursecard

        Design of Steel Superstructure in Bridges

        Recently launched

        16 Hours of Content

        coursecard

        Design for Manufacturability (DFM)

        Recently launched

        11 Hours of Content

        coursecard

        CATIA for Medical Product Design

        Recently launched

        5 Hours of Content

        coursecardcoursetype

        Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

        Recently launched

        0 Hours of Content

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        logo

        Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

        https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

        Our Company

        News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
        map
        EpowerX Learning Technologies Pvt Ltd.
        4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
        mail
        info@skill-lync.com
        mail
        ITgrievance@skill-lync.com

        Top Individual Courses

        Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

        Top PG Programs

        Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

        Skill-Lync Plus

        Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

        Trending Blogs

        How to Learn CAD Design: Step-by-Step GuideGD&T Basics: How to Read and Apply GD&T Symbols SolidWorks vs Creo: Best CAD Software to Learn for Mechanical Engineers Engineering Edtech in India: Busting Myths & Building Careers How to Get a Core Mechanical Engineering Job After Graduation

        © 2025 Skill-Lync Inc. All Rights Reserved.

                    Do You Want To Showcase Your Technical Skills?
                    Sign-Up for our projects.
