Project 1

Model & Design a Proposed Coil Centre, Chennai using STAAD. Pro for following input from Client  Design only a Main Frame with Lean (Grid 2) & Gable Frame without Lean (Grid 15) Assume purlin load as 8.77 kg/m Assume Gantry girder wt. = 158.24 kg/m Assume Rail weight = 53 kg/m Proposed Coil Centre, Chennai…

    • Sharukh Shaikh

      updated on 02 May 2023

    Model & Design a Proposed Coil Centre, Chennai using STAAD. Pro for following input from Client

    Design only a Main Frame with Lean (Grid 2) & Gable Frame without Lean (Grid 15)

    Assume purlin load as 8.77 kg/m

    Assume Gantry girder wt. = 158.24 kg/m

    Assume Rail weight = 53 kg/m

    Proposed Coil Centre, Chennai

     SOLUTION:

    GIVEN:

    Building width: 30m

    Building length: 140m

    Building Height : 11.7m

    Roof slope: :1:10

    Bay spacing : 10m

    • As per the given data make the Geometry in STAAD as shown.

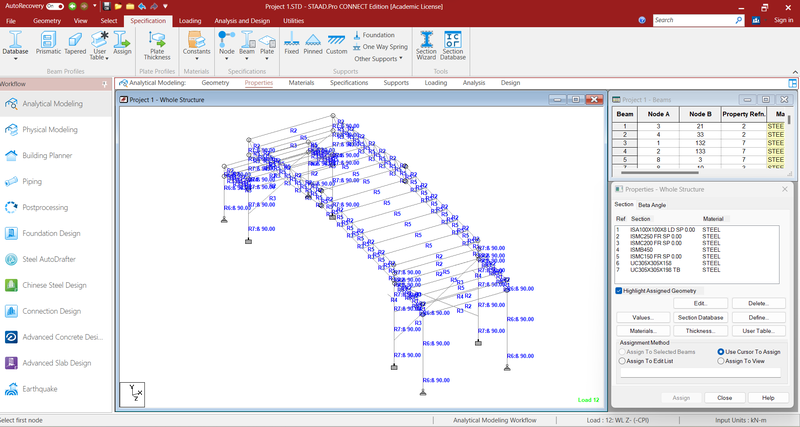

    • Once the geometry is done assing member proper ta all the member.

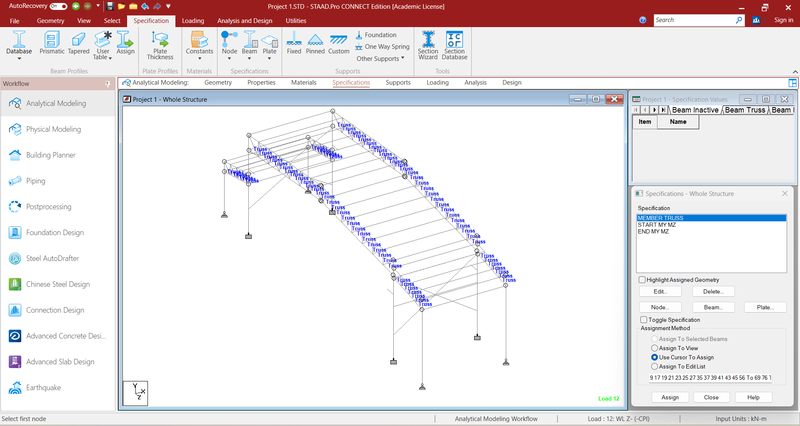

    • Proper specification to the member should be given in order to get the accure result.

    • Once assigning the specification is done we have add the loads as per the given data.
    • Defining Earthquake load as per the data.

    • After defination we have add the basic load cases & & combinations.
    • The basic load cases are added as shown in fig.

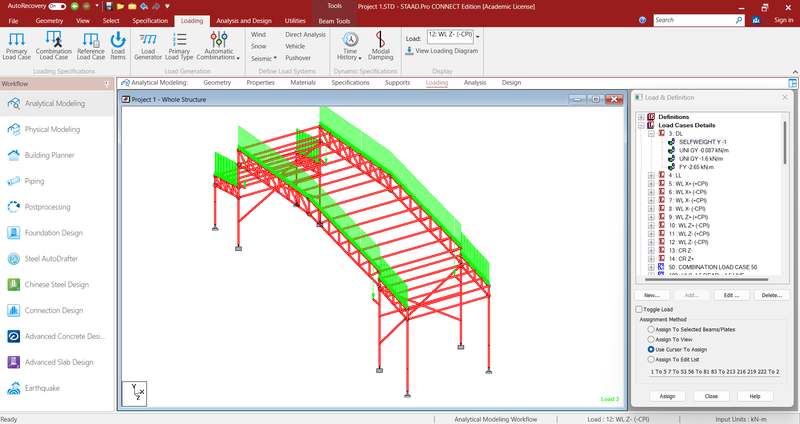

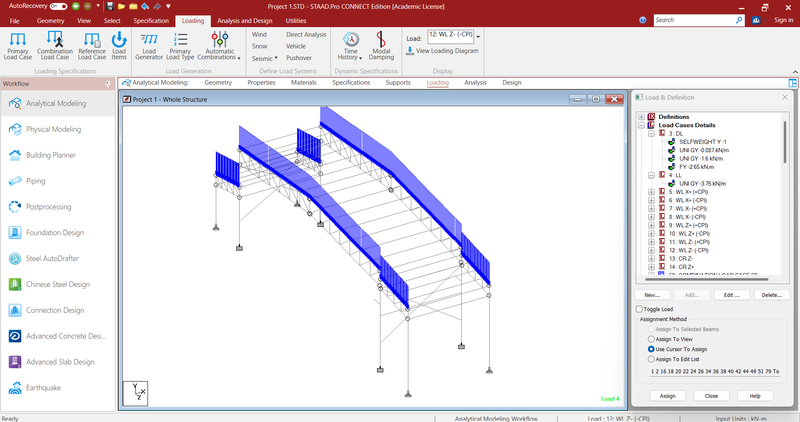

         1. Self weight of member & dead load as per the given data.

        2.Live load on rafter beam as per the given data.

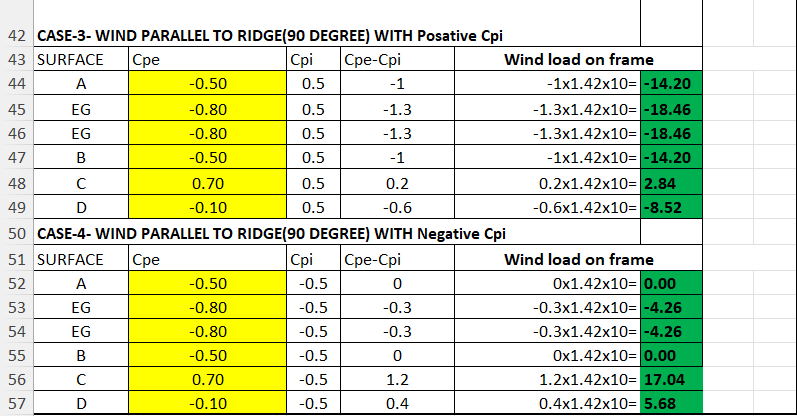

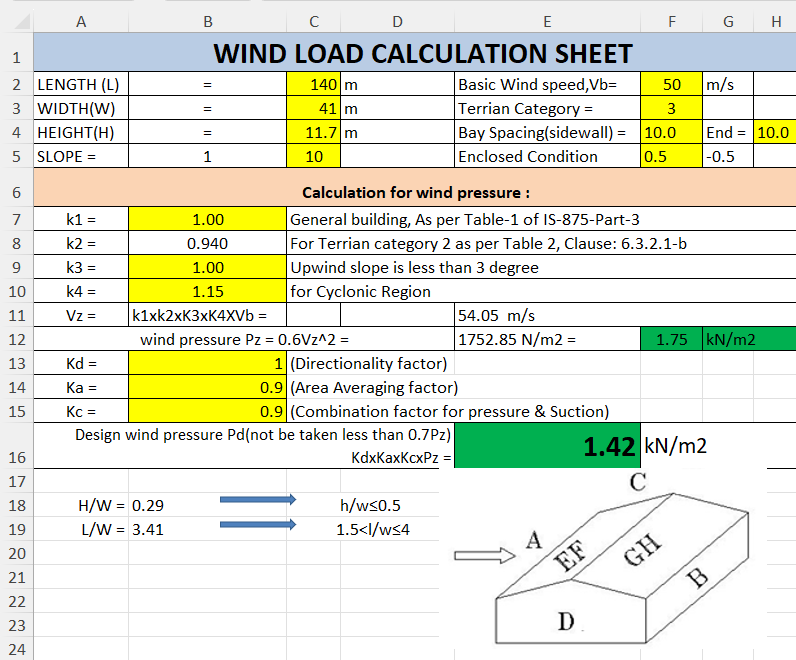

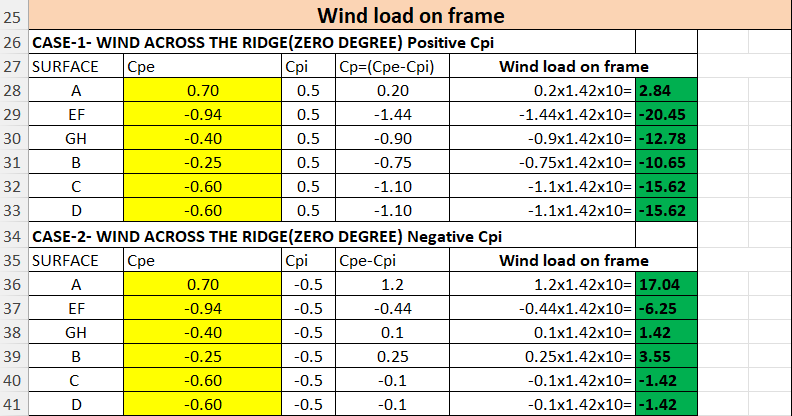

       3.Win load calculation

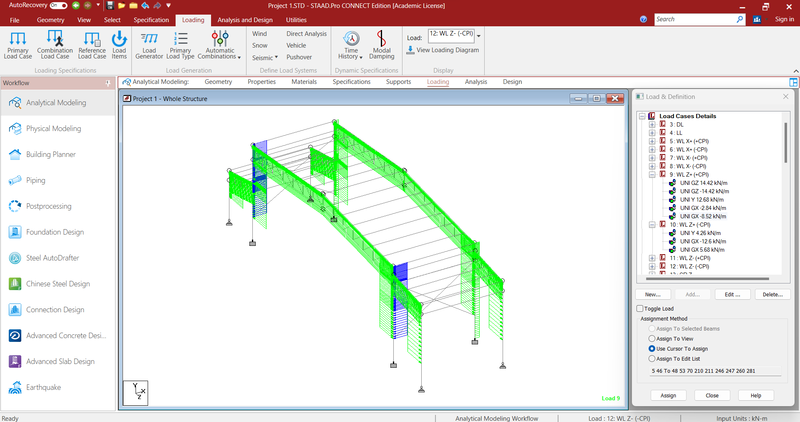

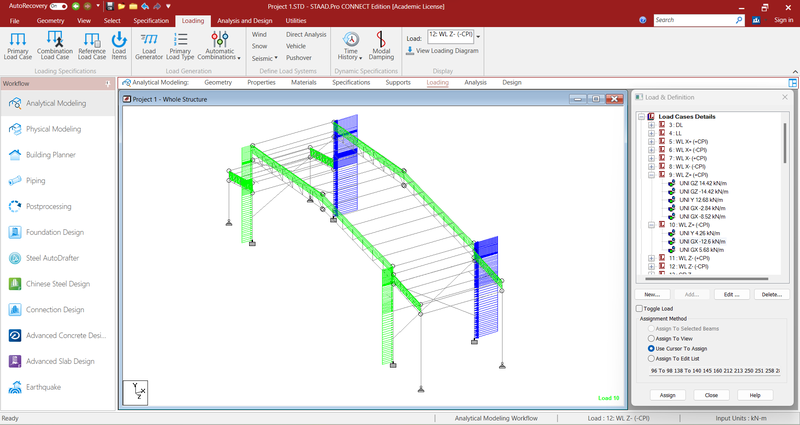

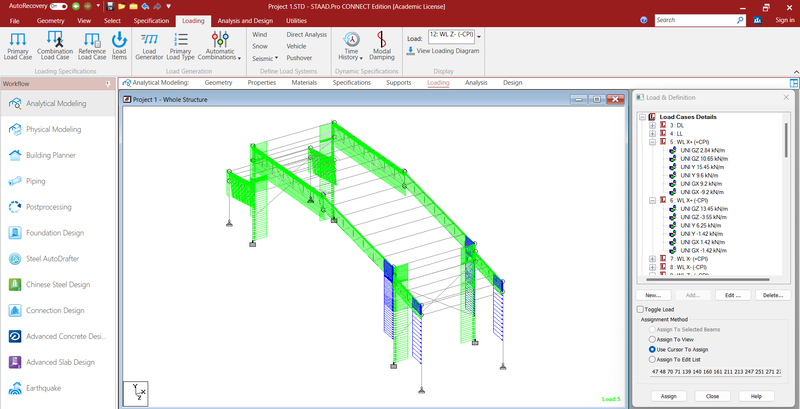

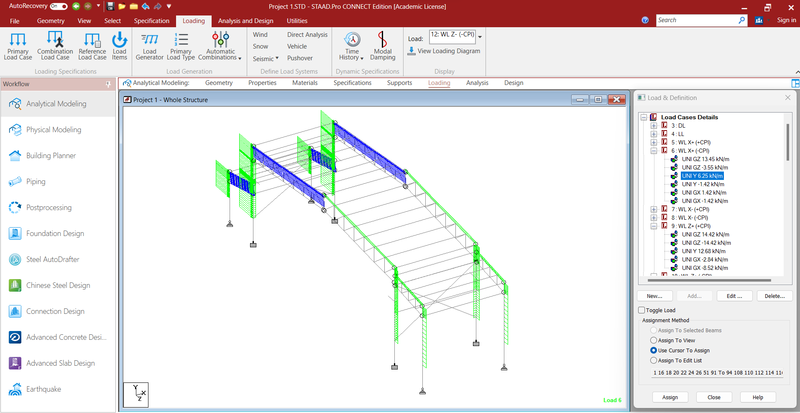

    • The load  application is as per the calculation shown.

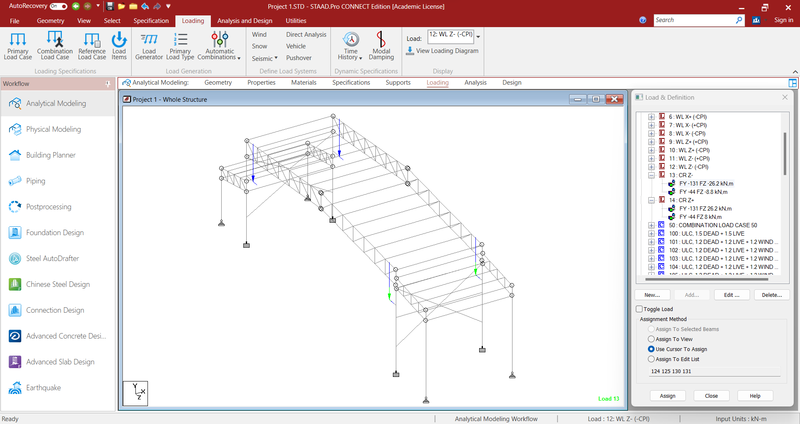

    • Afte successfully application of wind load we have to apply yhe crane load as shown in the fig

    • Once all the load cases are done add the load combination for the following load cases.

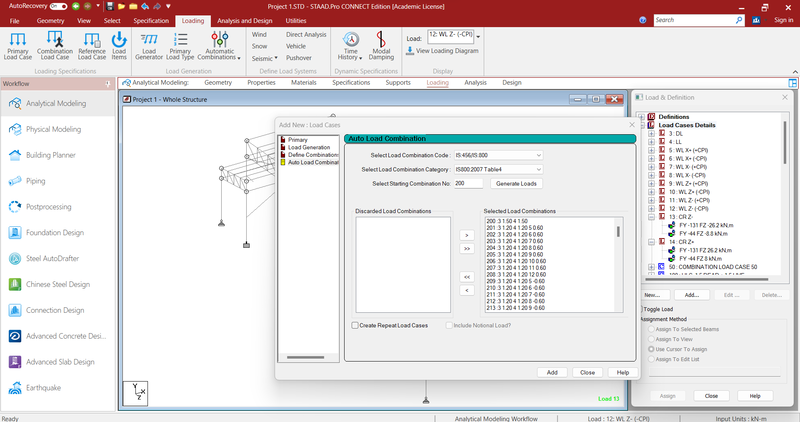

    • Here we have generated automatic load combination from staad only.

    • After adding all the load combination define all the design parameters  and assign it for the same.

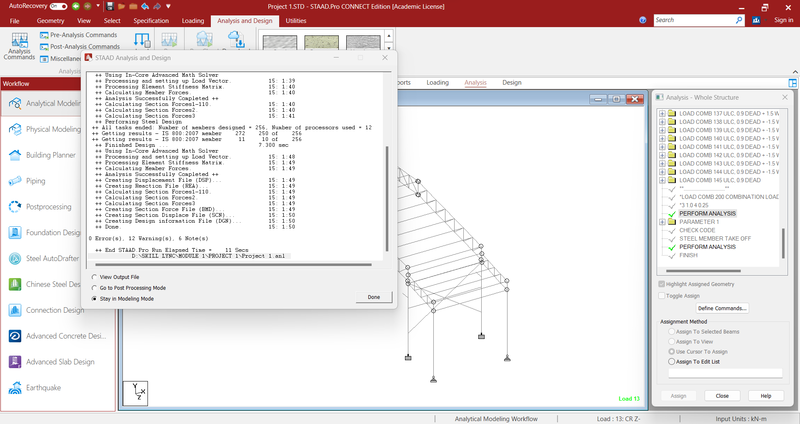

    • once all the design parameters is assigned, give the command Perform analysis & run the analysis.

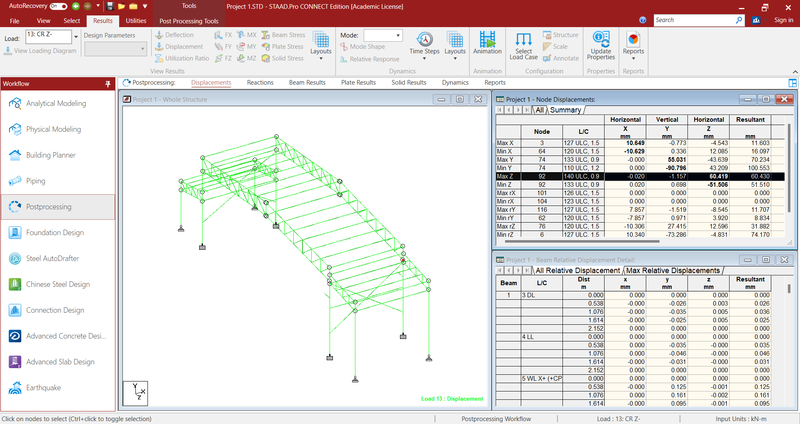

    • one the analysis is successfully done check the deflection limit & verify that all the members are passing .
    • Here the structure is analysed without any error.

    • Altough the deflection seems to be high but it is in limit as per IS 800 2007 Tble no 6

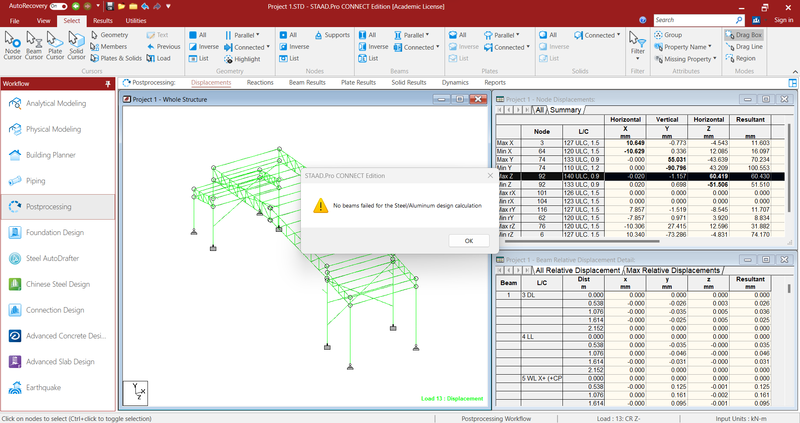

    • Below fig shows no member is failing for the analysis.
