Foundation Design using SAFE

AIM: To Analyse and model Isolated footing as per calculations by using SAFE.



Introduction: design isolated single footing by using safe software and do all required check, and try to design economic and safe structure





Q1. Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations.



Given:

square footing for a column size of 400X400

compression axial load for the load combination of ( 1.5 DL + 1.5 LL ) is 2000Kn

the safe soil bearing capacity is 150KN/M^2 at a depth of 2 meters below EGL

Assume M25 concrete grade



Solution:

step 1)

required data

unfactored load = 2000/1.5 = 1333.3 KN

Dead load breakup = 1333.3/2 = 666.7 KN

Live load breakup = 1333.3/2 = 666.7 KN



subgrade modulus of soil = safe bearing capcity X factored to ultimate / maximum settlement

= 150 X 3 / 0.05 = k = 9000 KN/m^3



Rebar yeild strength ( Fy ) = 500N/mm^2

Rebar ultimate strength ( Fu ) = Say 575 N/mm^2

Elastic modulus of M25 Concrete = 2500 n/mm^2



Step 2)

safe design

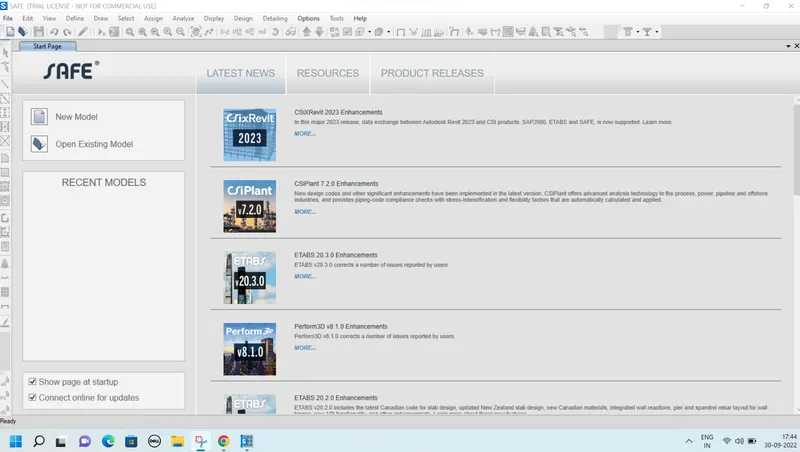

open the safe software

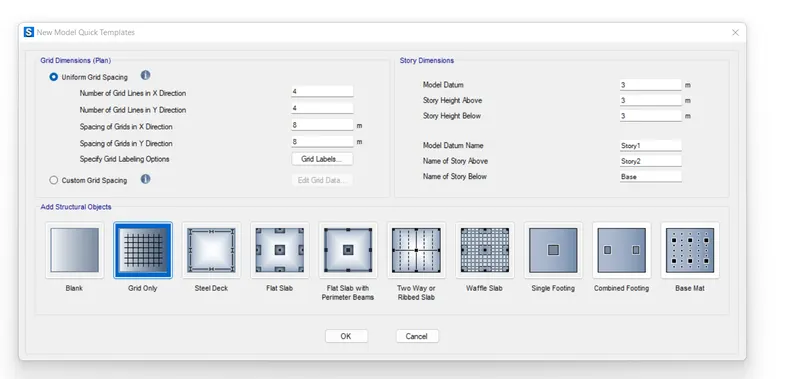

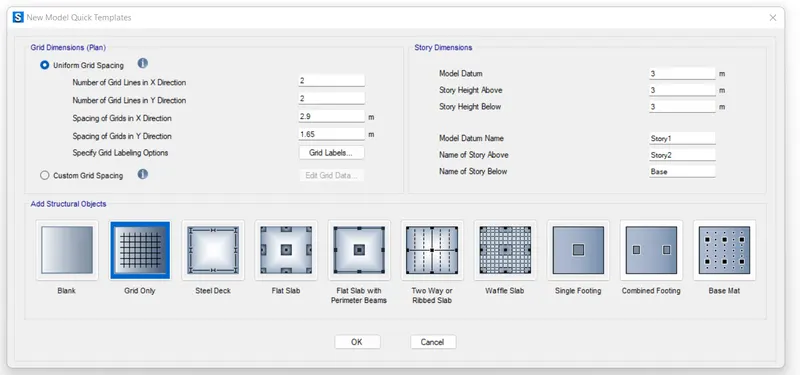

click on the new model



in that choose single footing option

and press ok

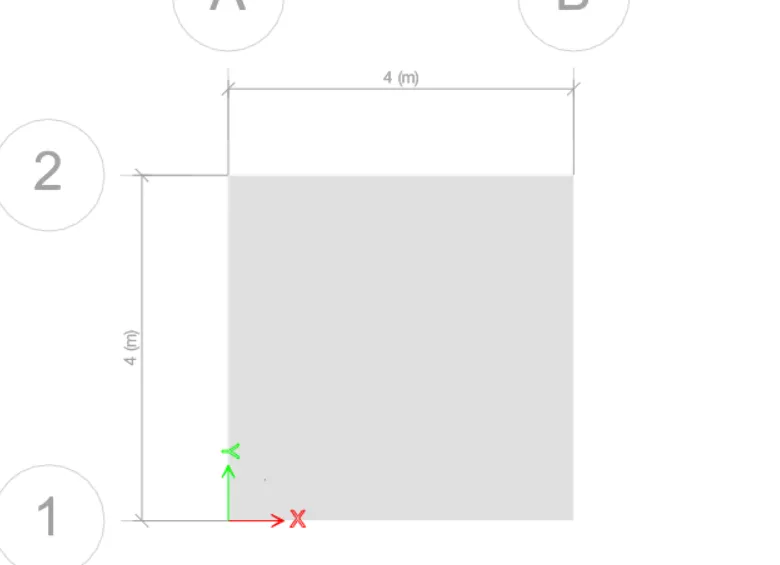

after that fill all information like this \

and press ok





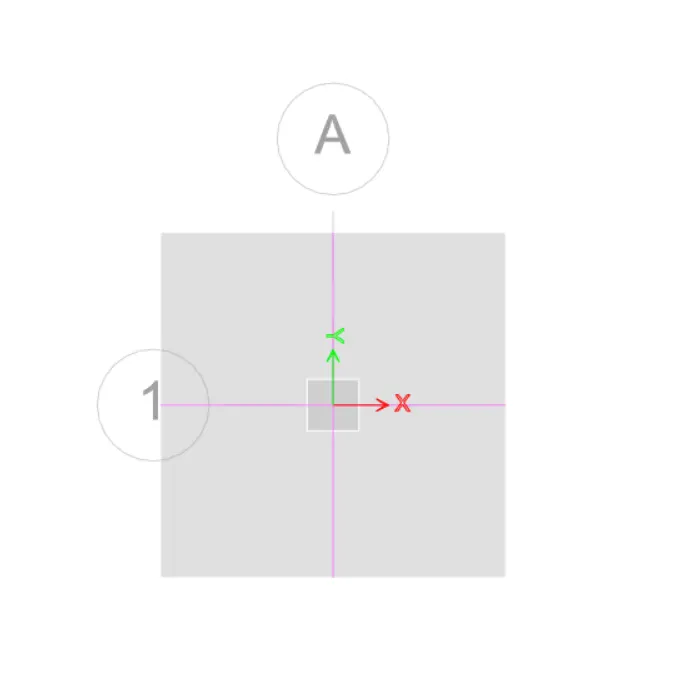

Step 3)

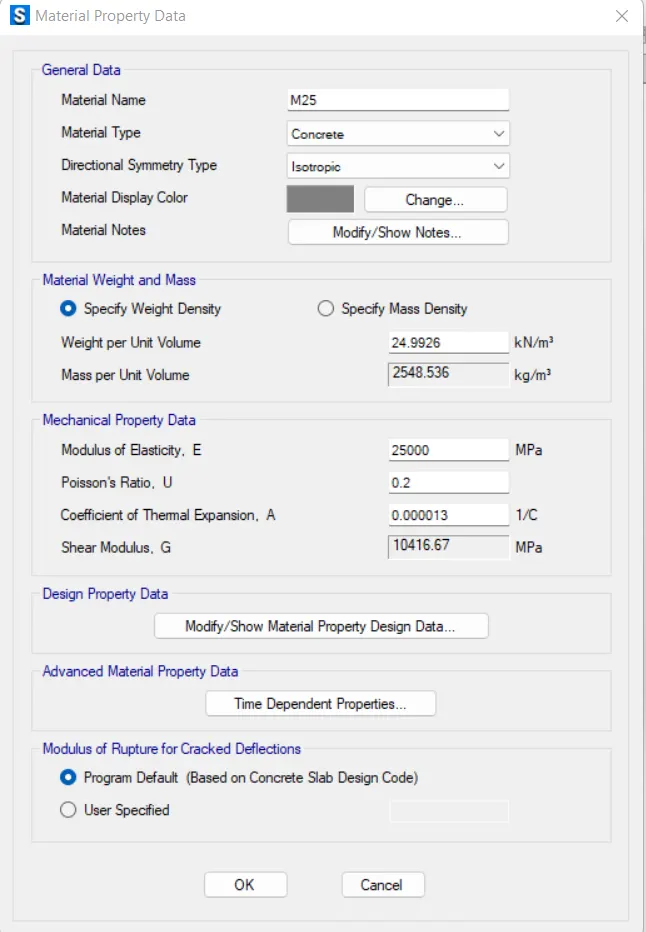

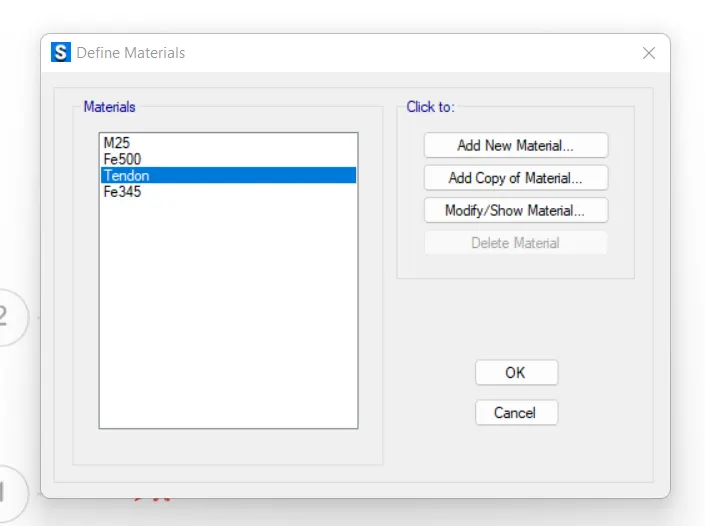

define material property

from define

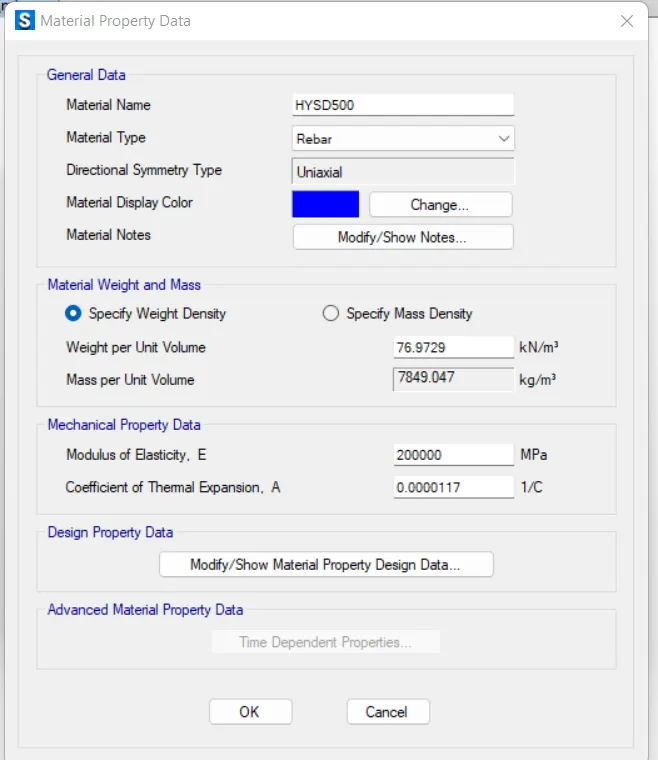

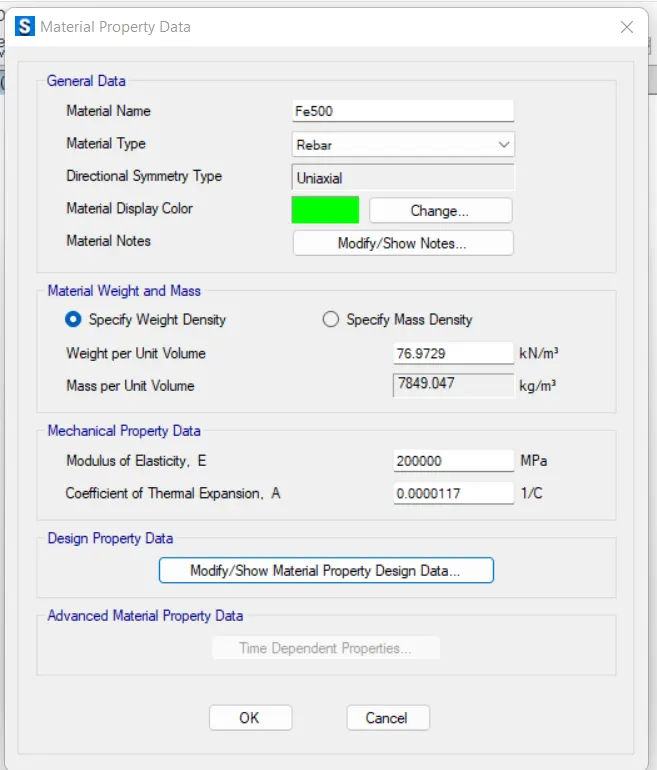

then same for rebar





step 4)

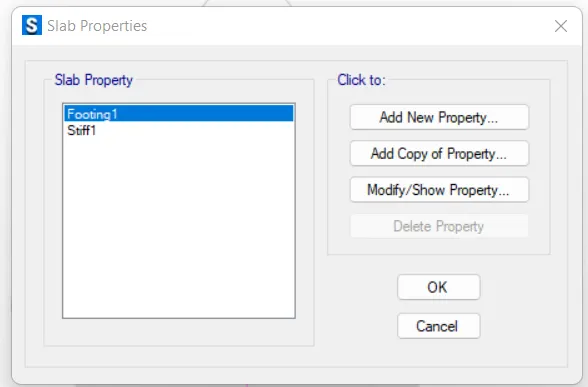

Slab Properties

define slab properties from define





step 5) load cases

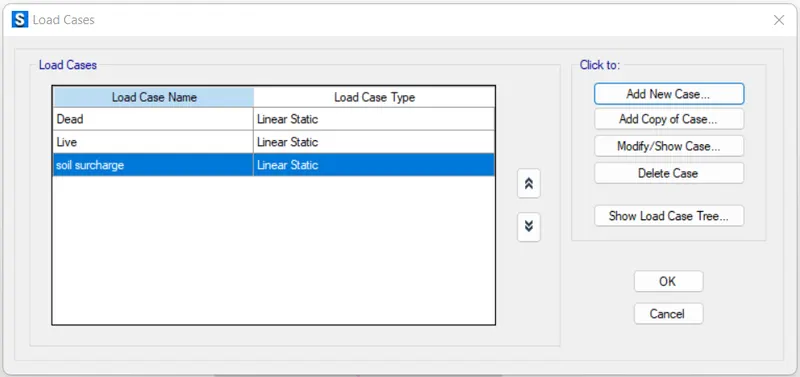

go to load cases from define



step 6) load combination

go to define

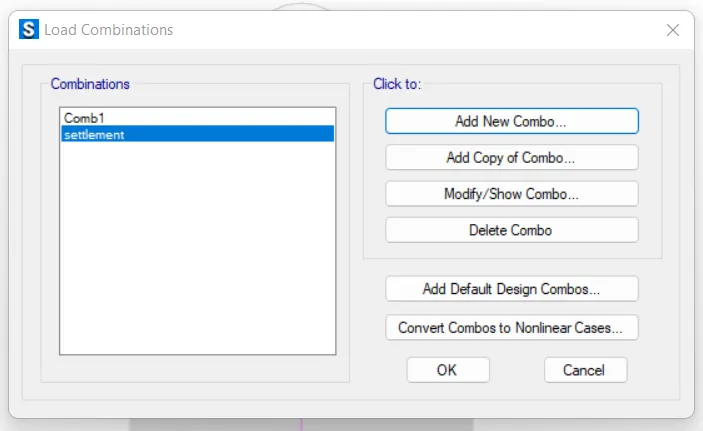

and click on the load combination





step 7) Run the analysis

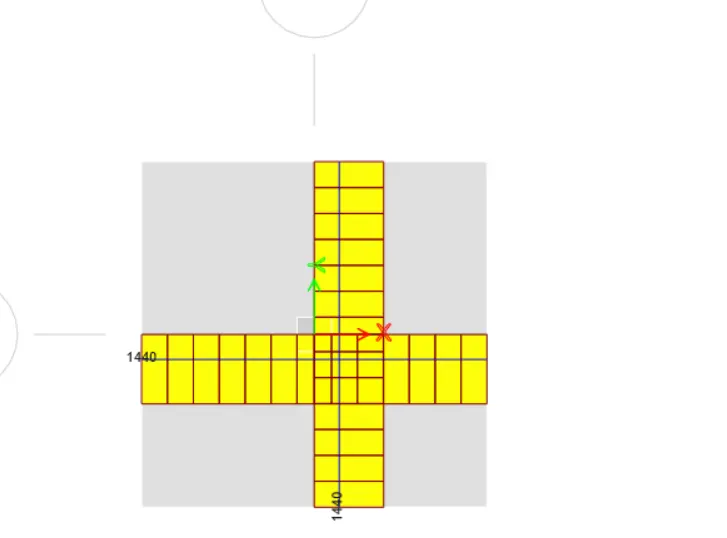

step 8) draw design strip





step 9)

check

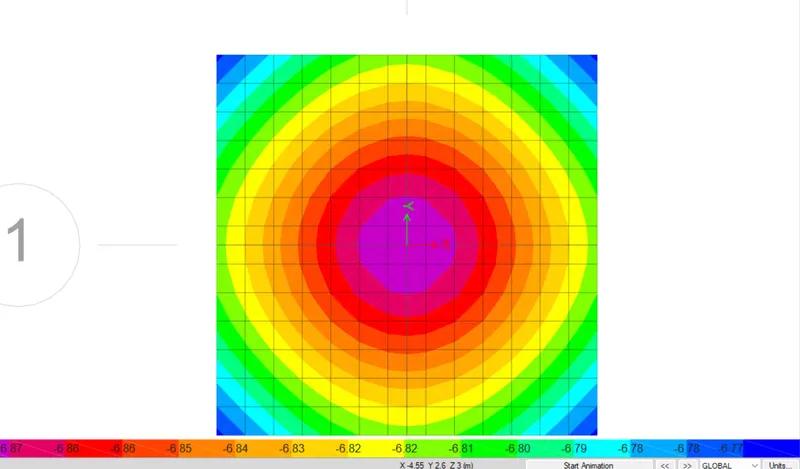

safe bearing capacity

from reaction

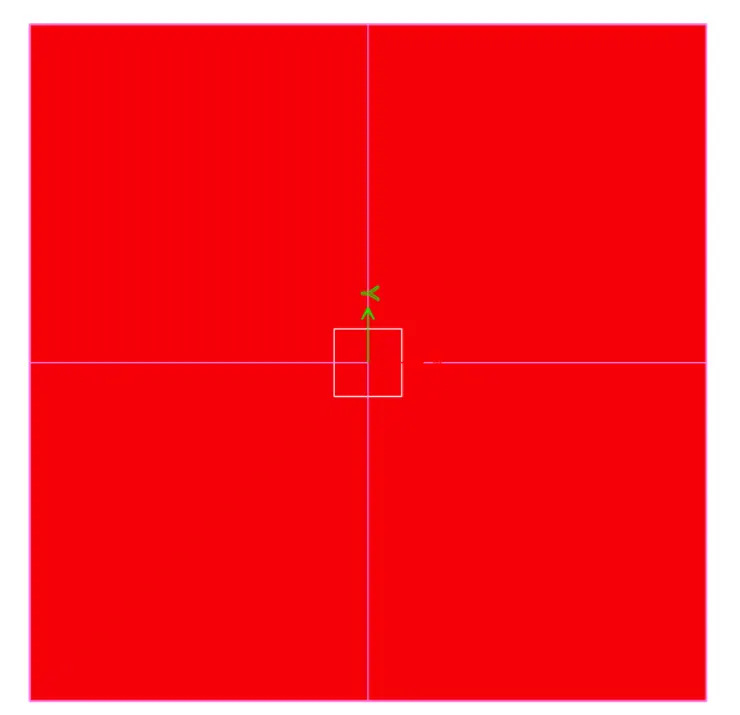

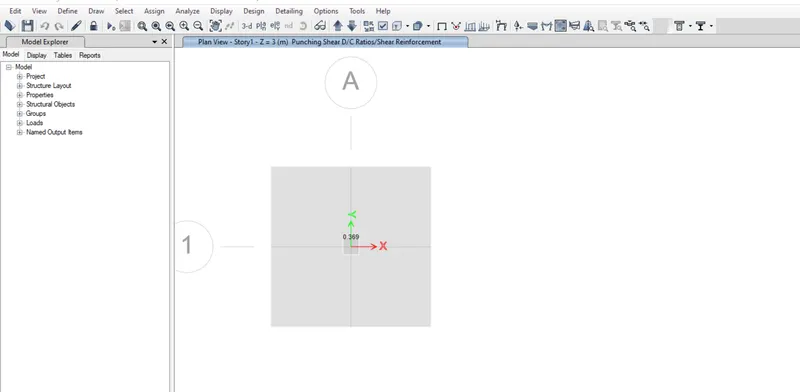

punching shear design





step 10)

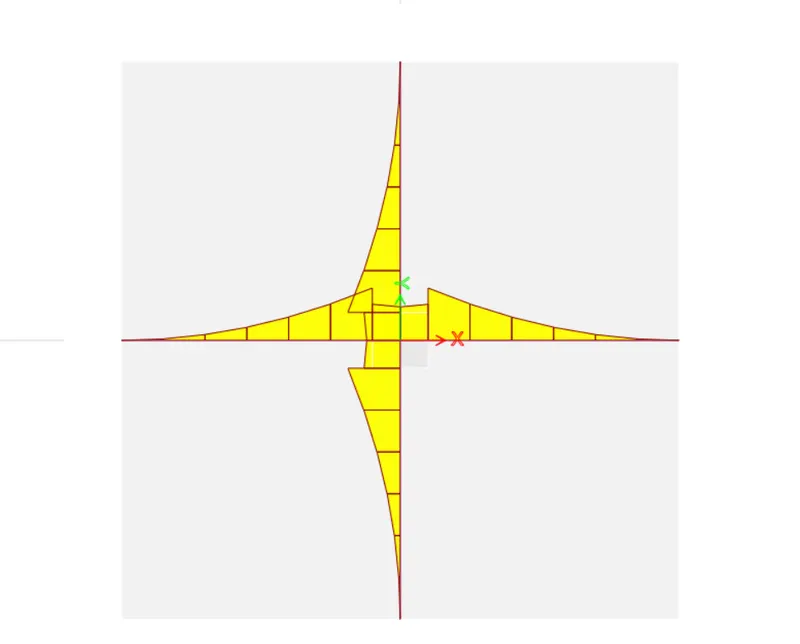

strip forces





flexural reinforcement



Result: our sqaure isometric footing done successfully with all checkn







AIM: to deisgn a pile foundation usig safe software



Introduction: design pile footing by using safe software and do all required check, and try to design economic and safe structure, pile footing is done where hard strata available on depth



Data required

unfactored load = 1175KN

dead load breakup = 1175/2 = 587.5 KN

Live load breakup = 1175/2 = 587.2



Point spring of pile = A X E / L

= 196349 X 25000/ 16000 = 306796 KN

k for SAFE analysis = 306.8 KN/m



Rebar yeild strength (FY) = 500N/mm^2

rebar ultimate strength = 575 N/mm^2

Elastic modulus of M25 concrete = 25000N/mm^2



number of piles required = unfactored load with self weight addition / indivisual pile capacity

= 1175 X 1.1/200 = 6.5

consider 8 piles



take center to center distance between piles = 3 X piles diameter = (1500 mm)

Edge distance from pile center = 1 X pile dimeter = (500mm)



Assume pile cap depth = 500mm



step 2)

safe design

open new model

and put all required information



step 3)

material properties

click on material property from define

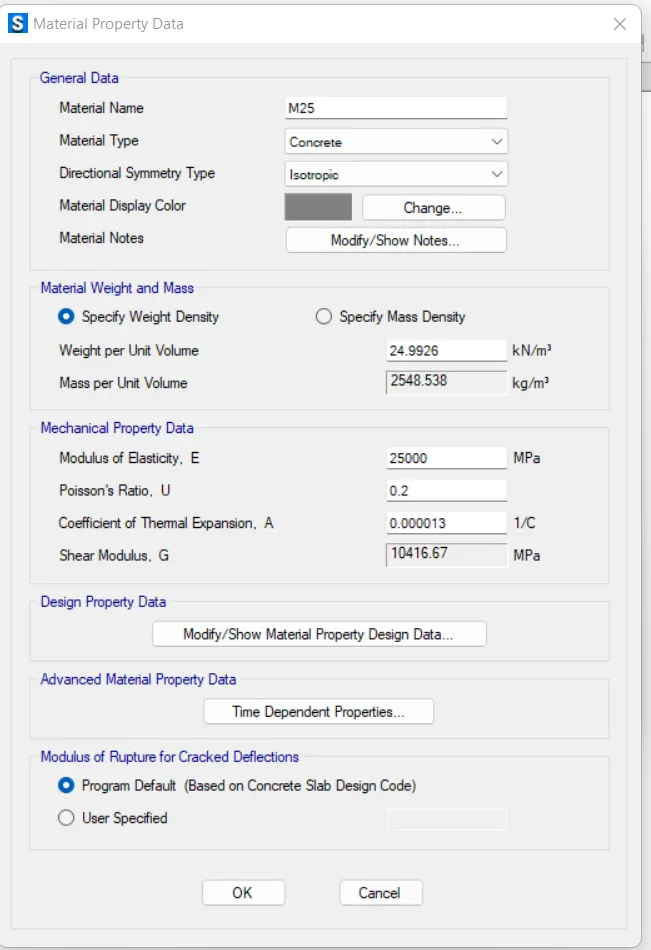

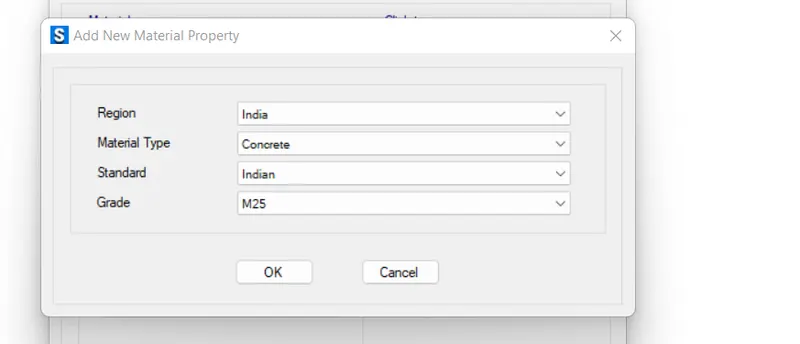

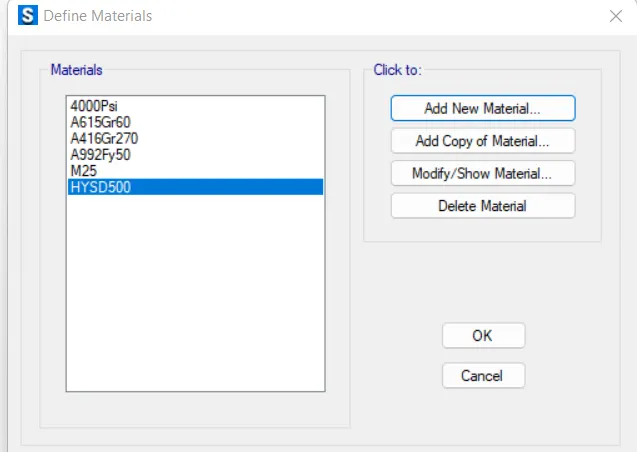

add M25 grade concrete material

and 500fy reabar material







step 4)

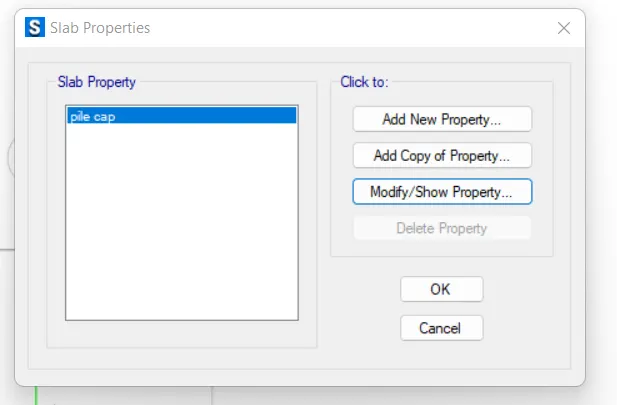

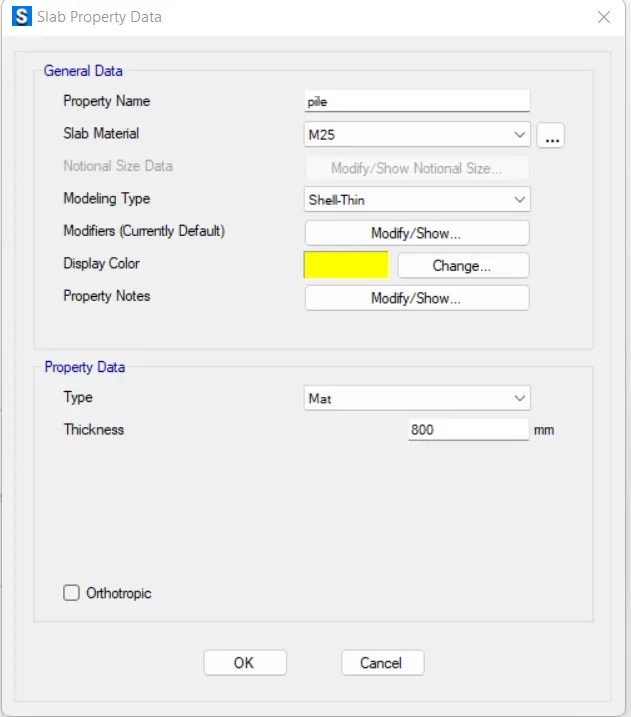

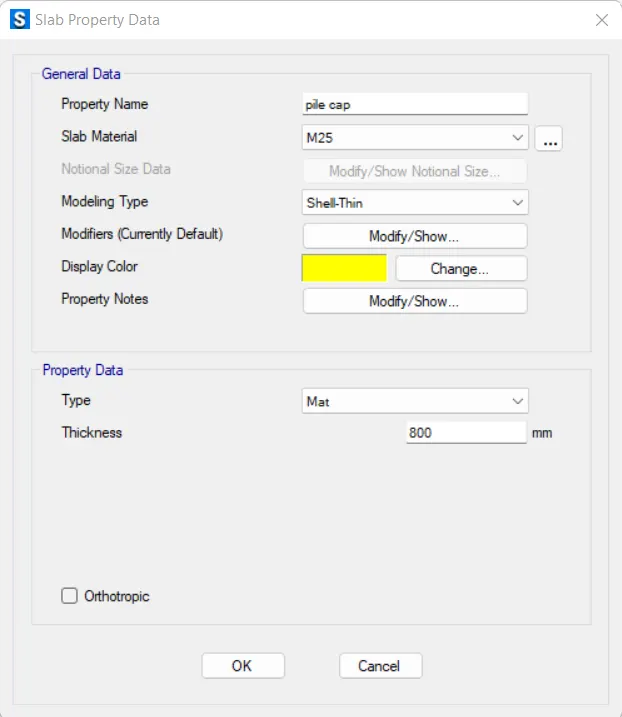

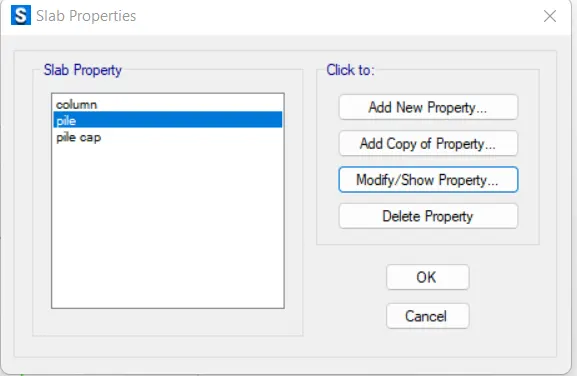

define slab property



step 5)

draw slab

draw the slab by using quick draw tool







step 6) draw refrence point:

draw refrence point

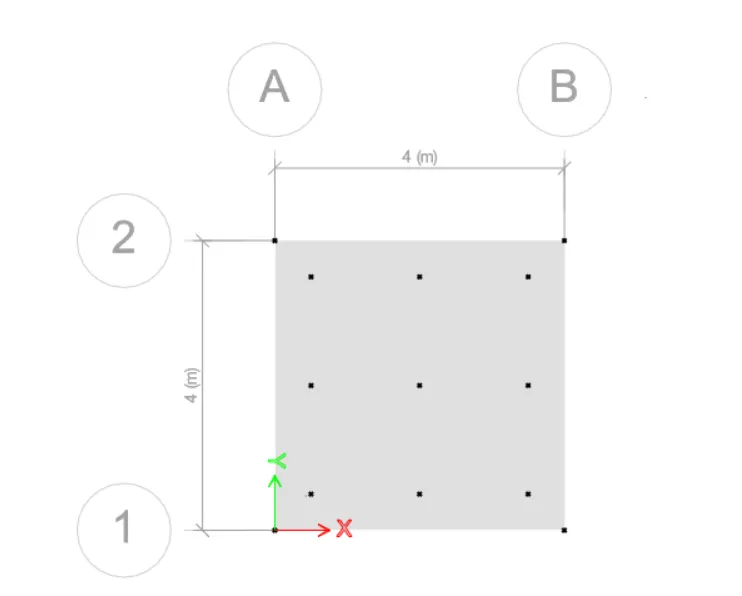

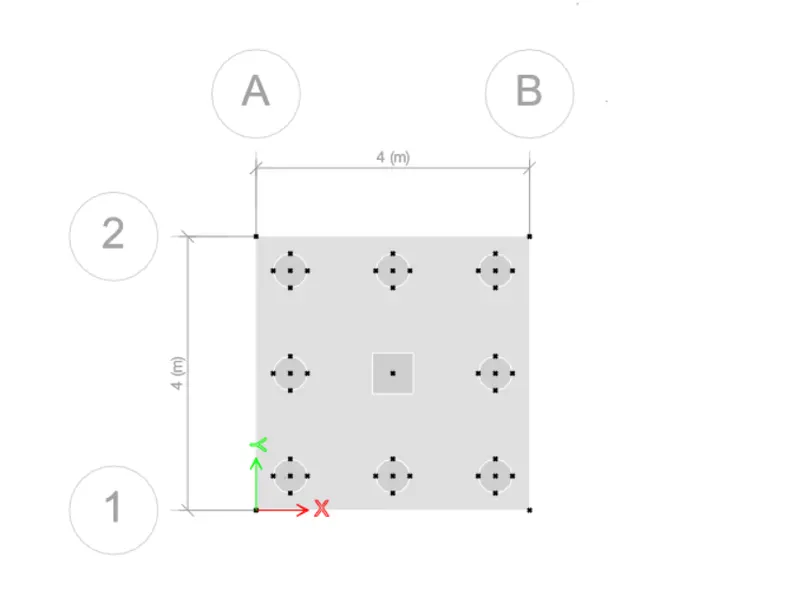

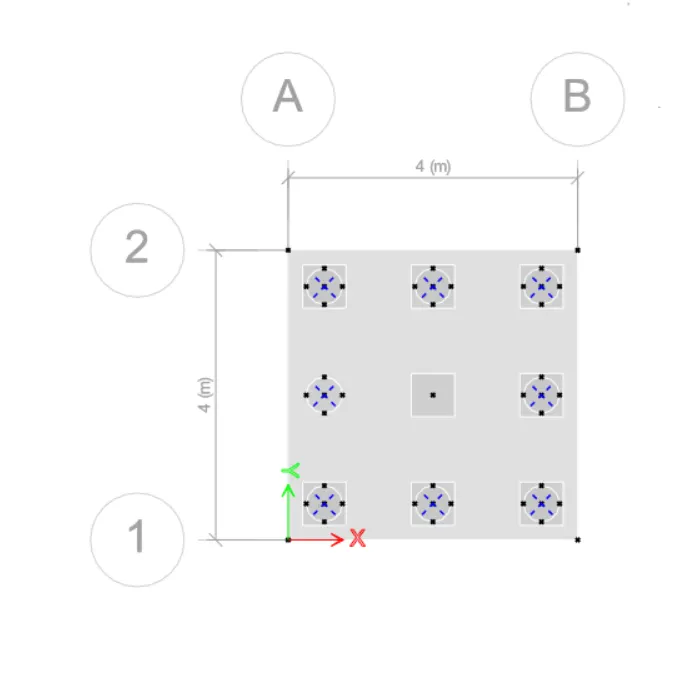

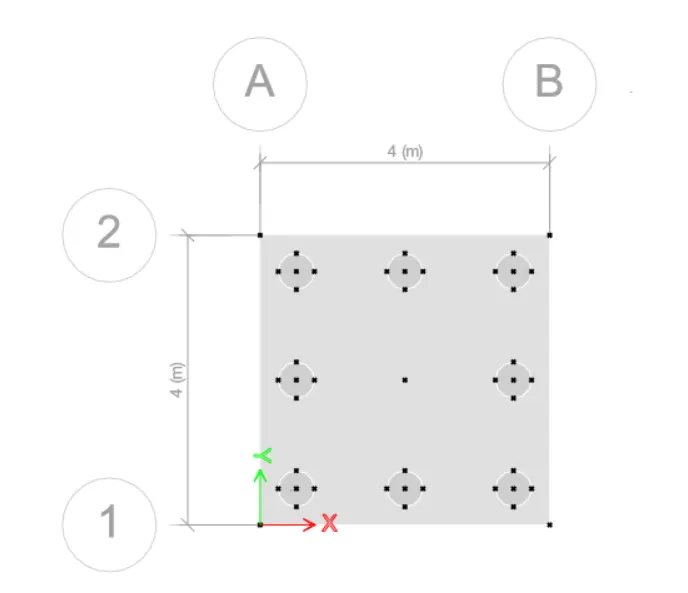

where we loacate the pile by the help of draw refrence point and replicate option from edit

like that



step 7) add the pile

add the piles at the point

draw the pile by using quick draw area around pint

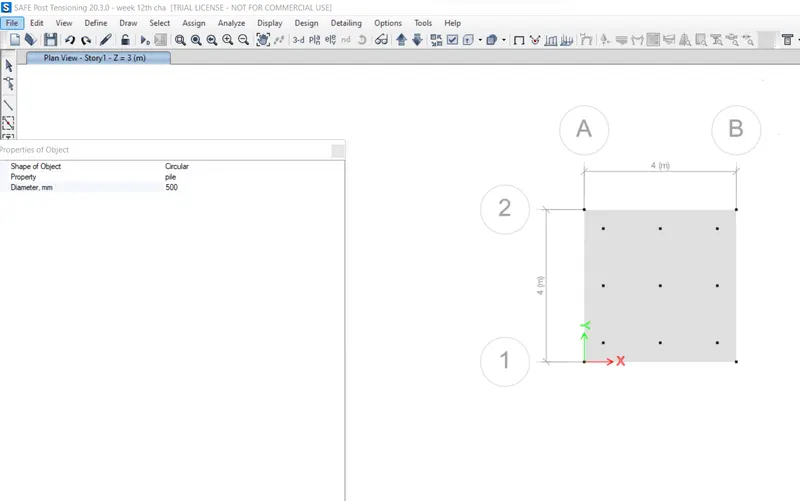

set dia as 500mm

and draw by cursor



like that



step 8) same draw column

by choosing rectangular slab

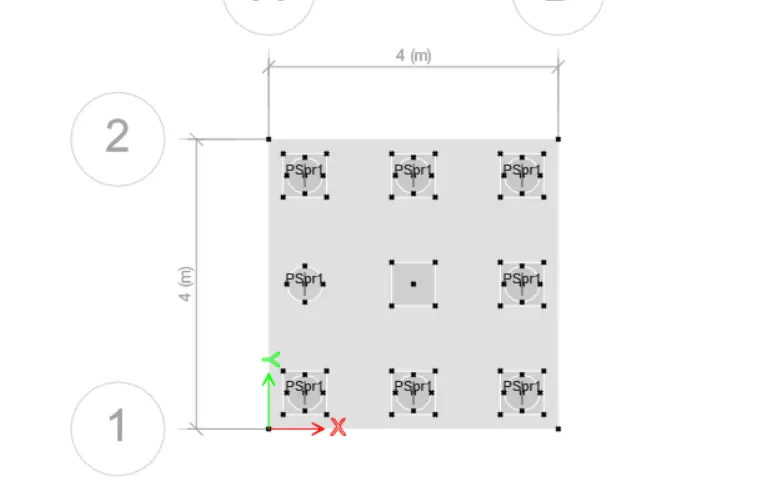

step 9) assign a spring

selcect all the pile point

now go to draw

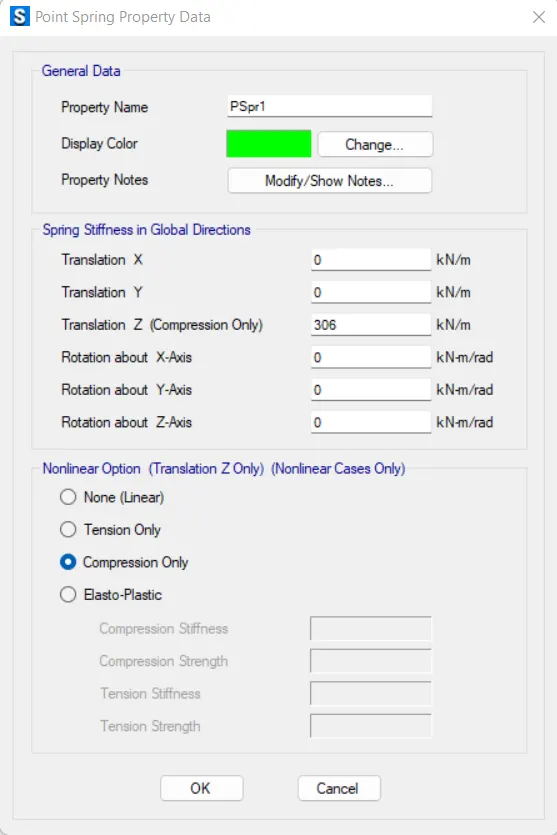

then support data and point spring



step 10) add load

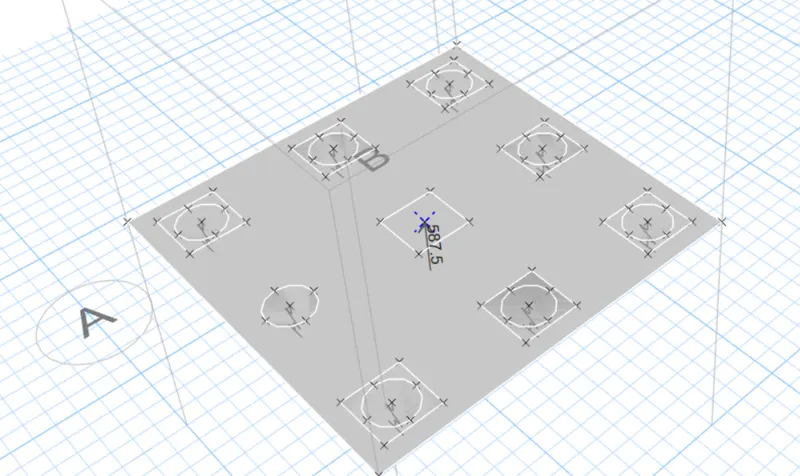

assign load to column

simply select the column point

go to assign

go to joint load

and then select garvity dead and live load are 587.5 kn









step 11) check design preference

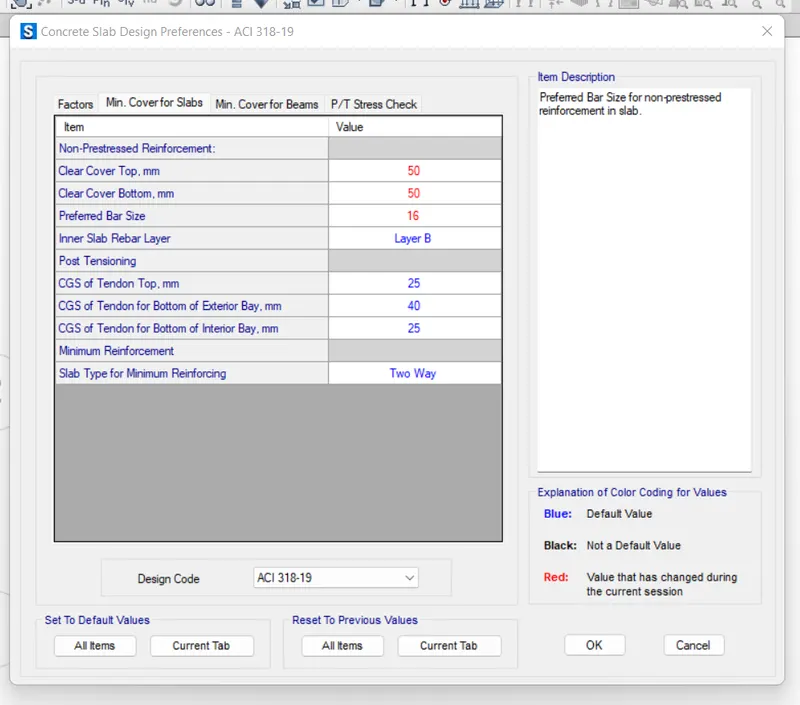

check design prefrence before analysis from design option



step 12) run the analysis

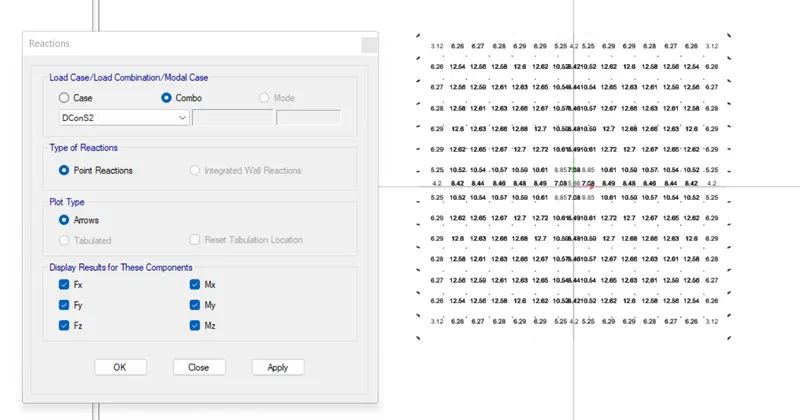

step 13) check for rection

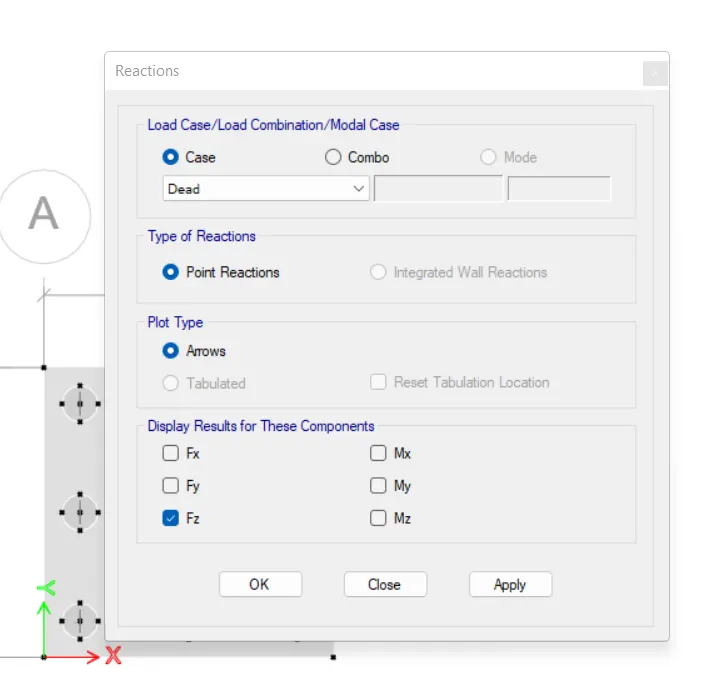

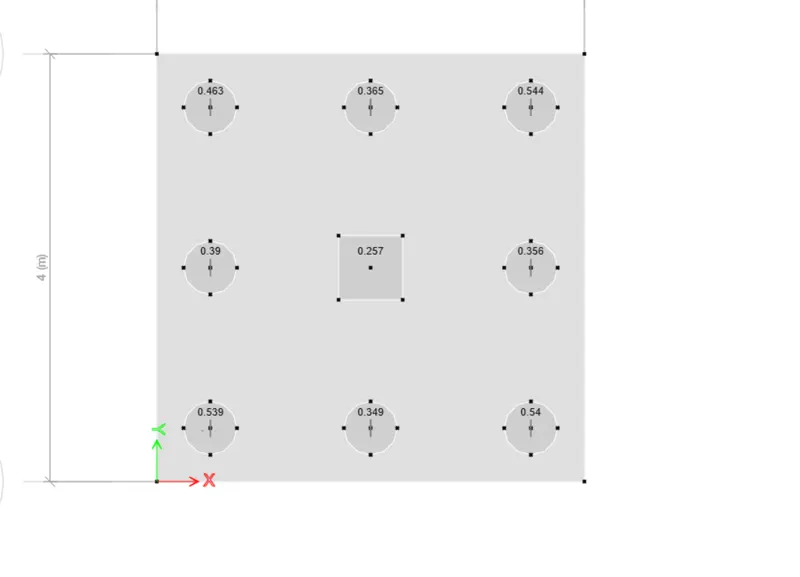

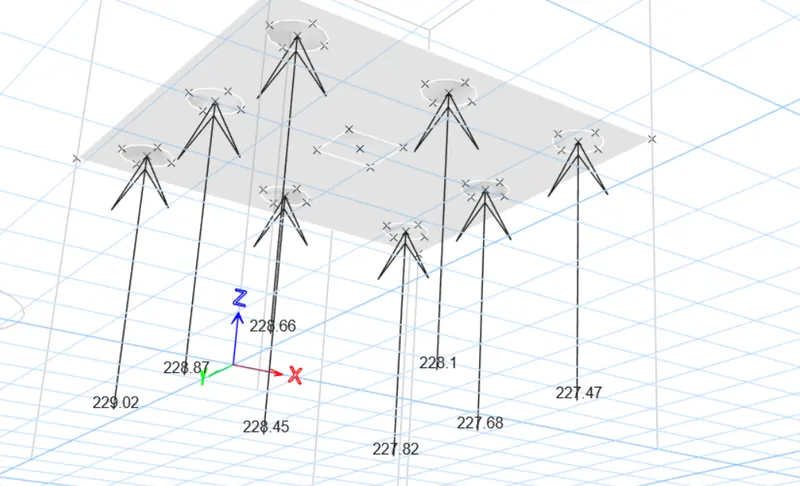

check base rection for unfactored load

when we design for steel we need to check for factored load

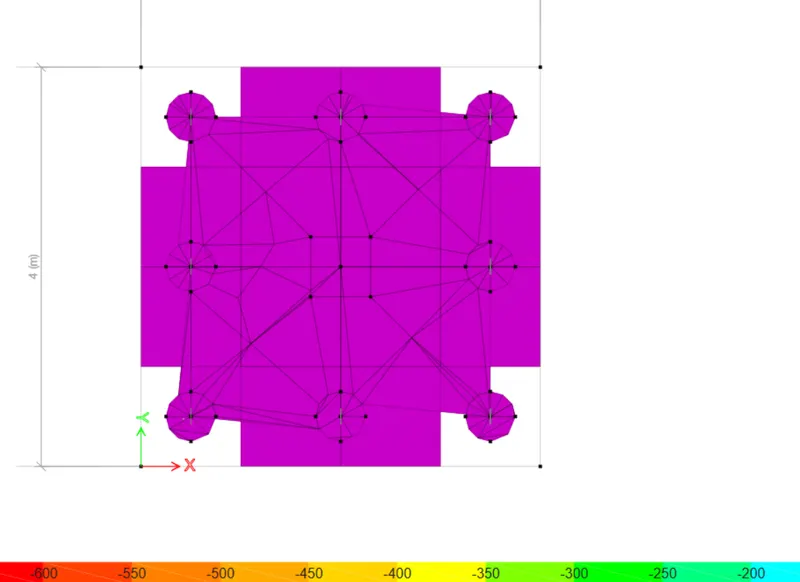

step 14) check for punching shear design

from disply option



step 15) design strip

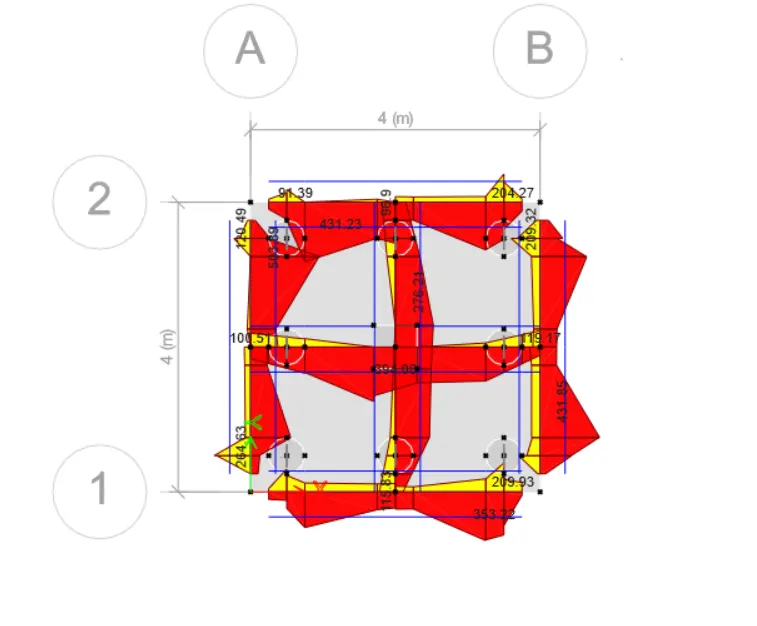

to know the area of steel required

go to edit option

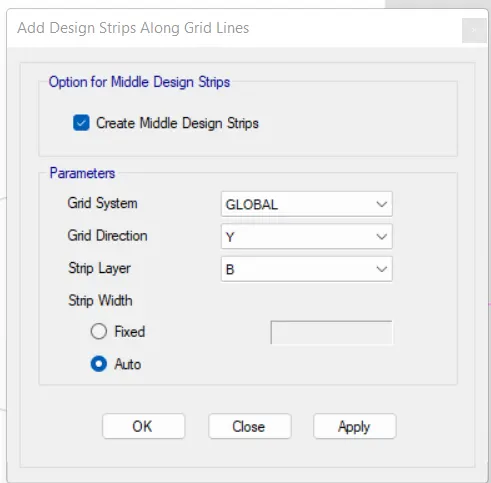

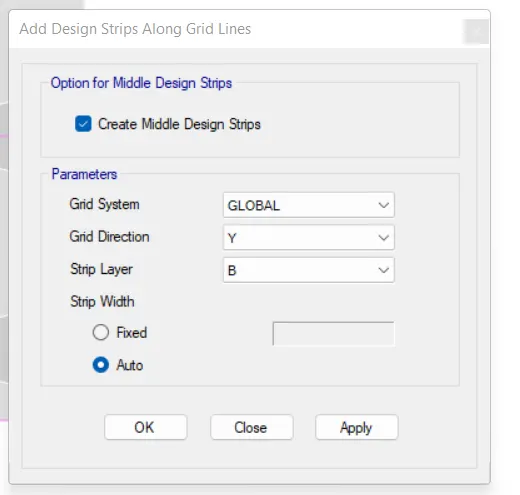

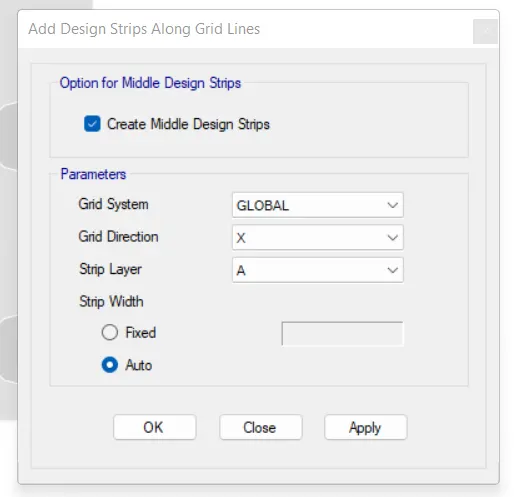

and click on add design strip

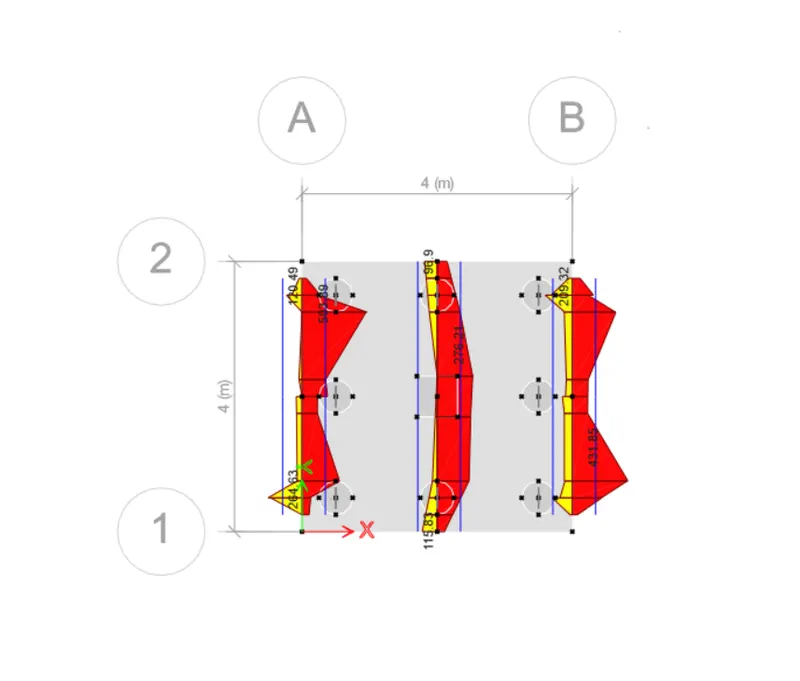

same do for Y direction and strip layer B



so strip is assign for X and Y direction

check width of strip

from display option

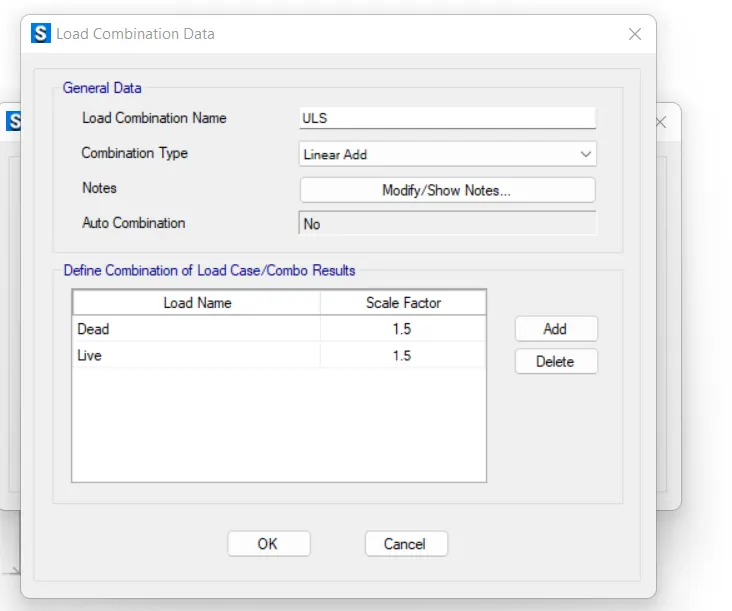

step 16) define load combination

from define option





step 16) again run the analysis

and check the r/f required

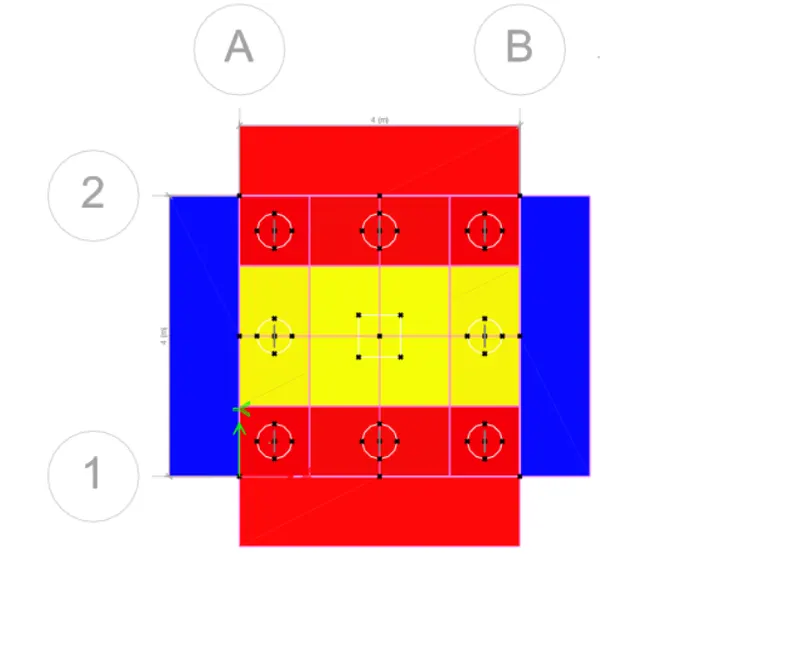

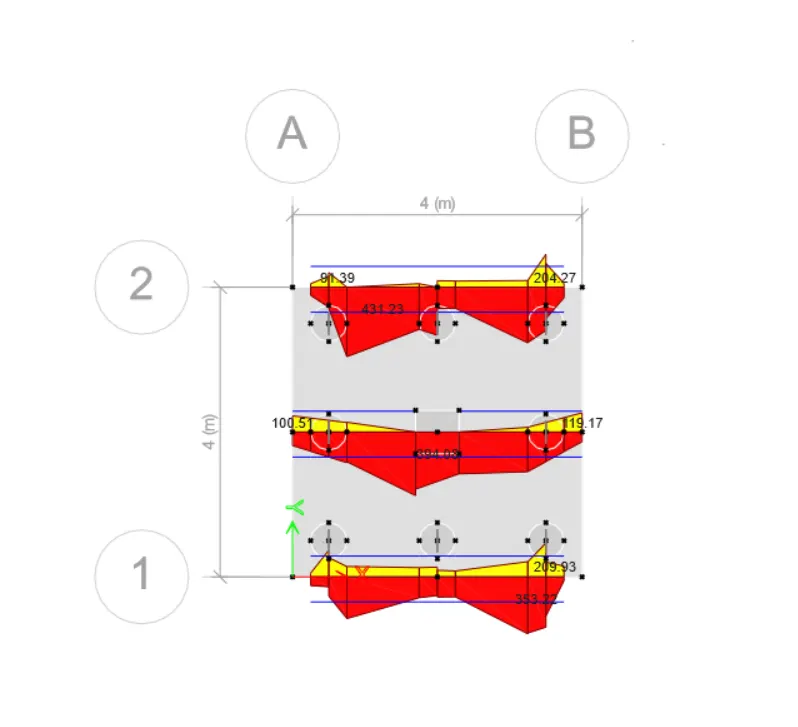

go to display option then slab design

and strip A press apply



and for strip B for y direction steel



Result: design of pile foundation is done successfully with given data

and also done all check satisfy

and get quantity of steel required
