Drafting of various geometries using Chamfer, Fillet tool in AutoCad

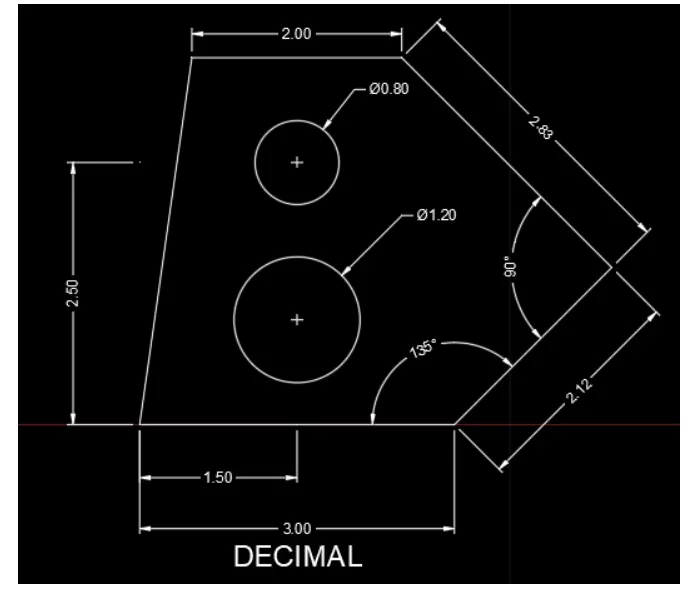

1. AIM:- To draft the following geometry 1 by using AutoCAD 2022 drafting software PROCEDURE:- Click on AutoCAD application and open the application Type a command QNEW to save the file Limits and limax is used  Zoom command is also used Type a command units  Select decimal in type,0.00 in precision and meters…

    • Sandeep Ghosh

      updated on 26 Aug 2021

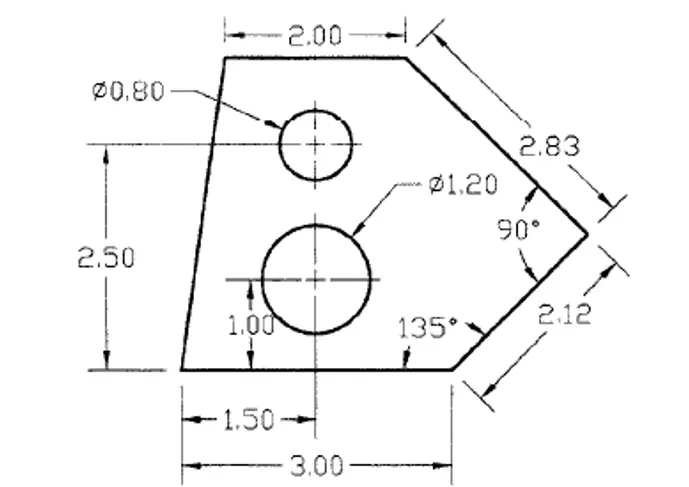

    1. AIM:- To draft the following geometry 1 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select decimal in type,0.00 in precision and meters in units to scale inserted content.
    • Type a command Line
    • Specify first point:-1,1
    • Specify next point:-@3,0
    • Specify next point:-@2.12<45
    • Specify next point:-@2.83<135
    • Specify next point:-@-2,0
    • Specify next point:-1,1

    Type a command circle

    • Specify centre point of circle:-2.5,2
    • Specify diameter of circle:-1.2
    • Type a command circle
    • Specify centre point for circle:-2.5,3.5
    • Specify diameter of circle:-0.80
    • Dimensions are marked by using commands such as DIMLINEAR,DIMANGULAR etc
    • Drafting of above geometry is done

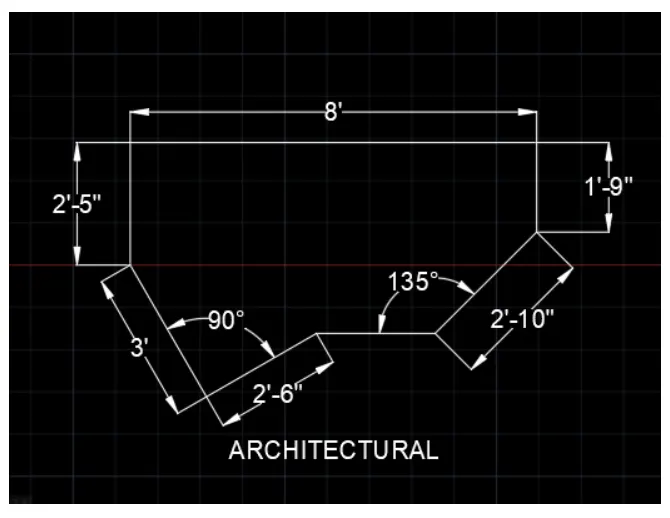

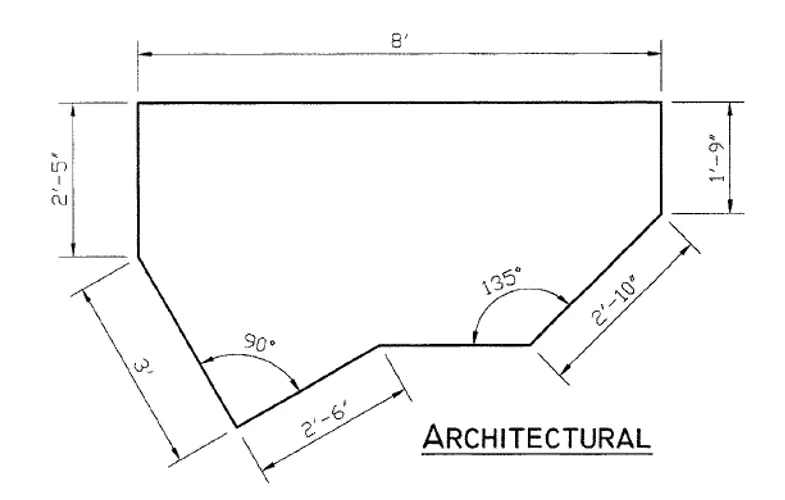

    2. AIM:- To draft the following geometry 2 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select architectural in type,0'-0" in precision and inches in units to scale inserted content
    • Type a command line
    • Specify first point:-7,1
    • Specify next point:-@3'<135
    • Specify next point:-2'6"<45
    • Type a command line
    • Specify first point:-7,1
    • Specify next point:-@0,2'5"
    • Specify next point:-@8',0
    • Specify next point:-@0,1'9"
    • Specify next point:-@2'10"<225
    • Joined the end point of the line.Press Escape
    • Dimensions are marked by using commands such as DIMLINEAR,DIMANGULAR etc
    • Drafting of above geometry is done

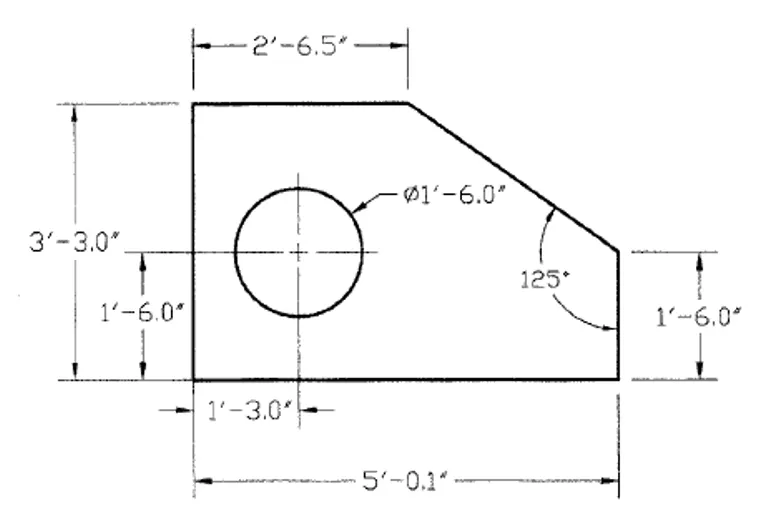

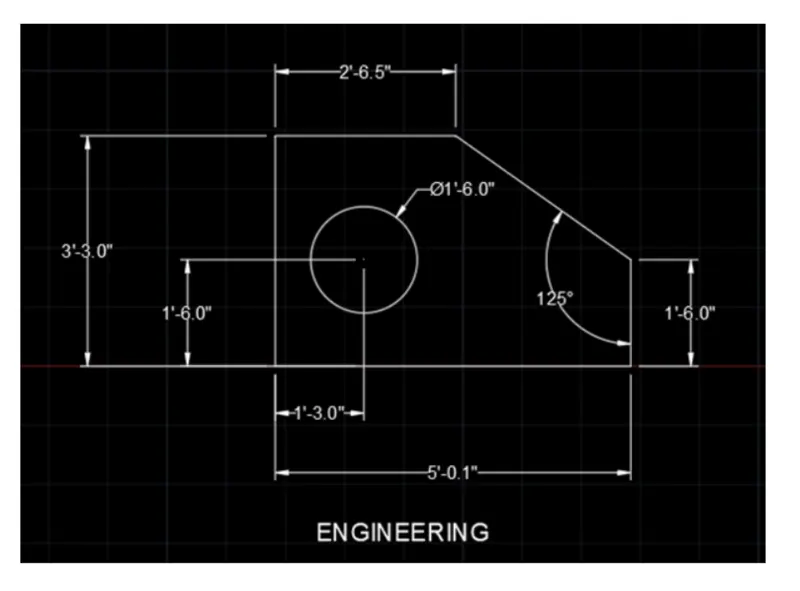

    3. AIM:- To draft the following geometry 3 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select Engineering in type,0'-0.0" in precision and inches in units to scale inserted content
    • Type a command line
    • Specify first point:-12,1
    • Specify next point:-@0,3'3"
    • Specify next point:-@2'6.5",0
    • Press Escape
    • Type a command line
    • Specify first point:-12,1
    • Specify next point:-@5'0.1",0
    • Specify next point:-@1'6",0
    • Press escape.Click ortho off
    • Type a command line
    • Join the end point of the inclined line.Press Escape
    • Dimensions are marked by using commands such as DIMLINEAR,DIMANGULAR etc
    • Drafting of above geometry is done

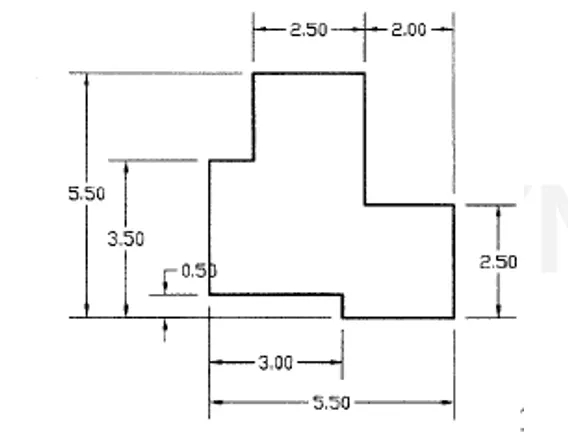

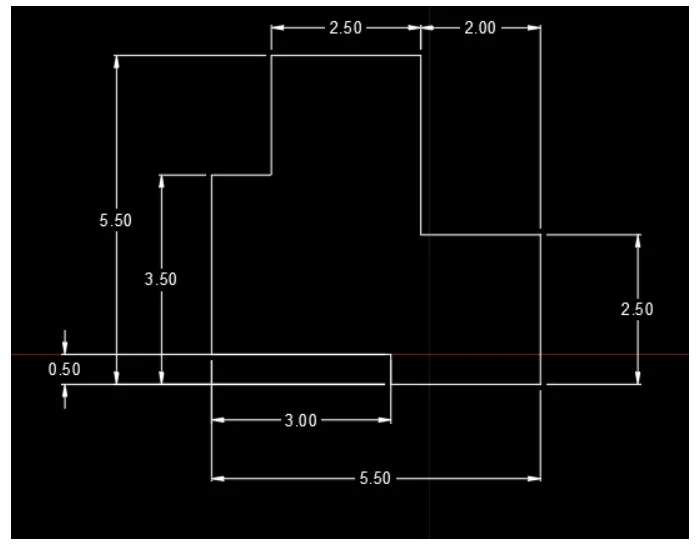

    4. AIM:- To draft the following geometry 4 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select decimal in type,0.00 in precision and meters in units to scale inserted content.Press OK
    • Type a command line
    • Specify first point:-16,1
    • Specify next points:-@3,0
    • Specify next points:-@0,-0.5
    • Specify next points:-@2.5,0
    • Specify next points:-@0,2.5
    • Specify next points:-@-2,0
    • Specify next points:-@3,0
    • Specify next points:-@-2.5,0
    • Specify next points:-@0,-2
    • Specify next points:-@-1,0
    • Specify next points:-@0,-3
    • Press Escape
    • Dimensions are marked by using commands such as DIMLINEAR
    • Drafting of above geometry is done

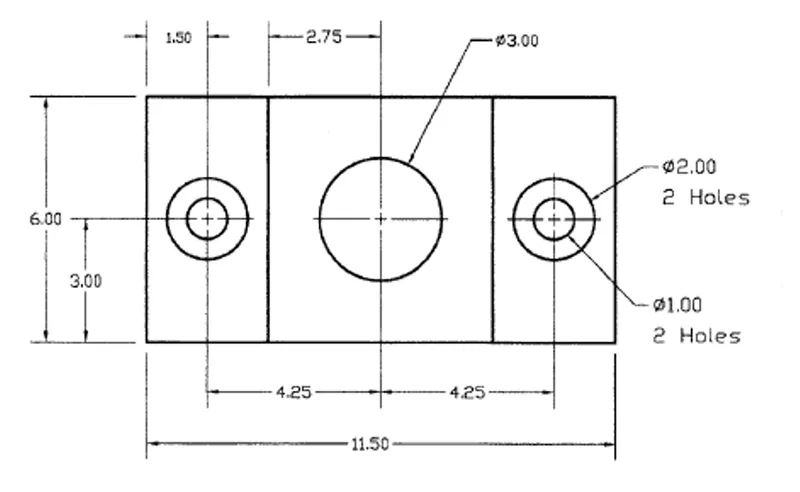

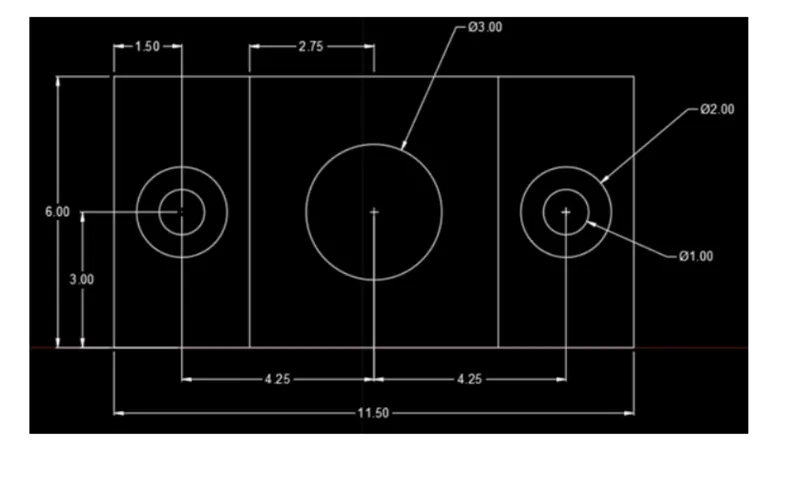

    5.AIM:- To draft the following geometry 5 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select decimal in type,0.00 in precision and meters in units to scale inserted content.Press OK
    • Type a command line
    • Specify first point:-23,1
    • Specify next points:-@11.50,0
    • Specify next points:-@0,6
    • Specify next points:-@-11.50,0
    • Specify next points:-close
    • Type a command line
    • Specify first point:-23,1
    • Specify next points:-@3,0
    • Specify next points:-@0,6
    • Specify next points:-@4.5,0
    • Specify next points:-@0,-6.Press Escape
    • Command:-Circle
    • Specify centre point of circle:-24.5,4
    • Specify diameter of circle:-1
    • Command:-Circle
    • Specify centre point of circle:-24.5,4
    • Specify diameter of circle:-2
    • Command:-Circle
    • Specify centre point of circle:-28.75,4
    • Specify diameter of circle:-3
    • Command:-Circle
    • Specify centre point of circle:-33,4
    • Specify diameter of circle:-1
    • Command:-Circle
    • Specify centre point of circle:-33,4
    • Specify diameter of circle:-2.Press Escape
    • Dimensions are marked by using commands such as DIMLINEAR,DIMANGULAR etc
    • Drafting of above geometry is done

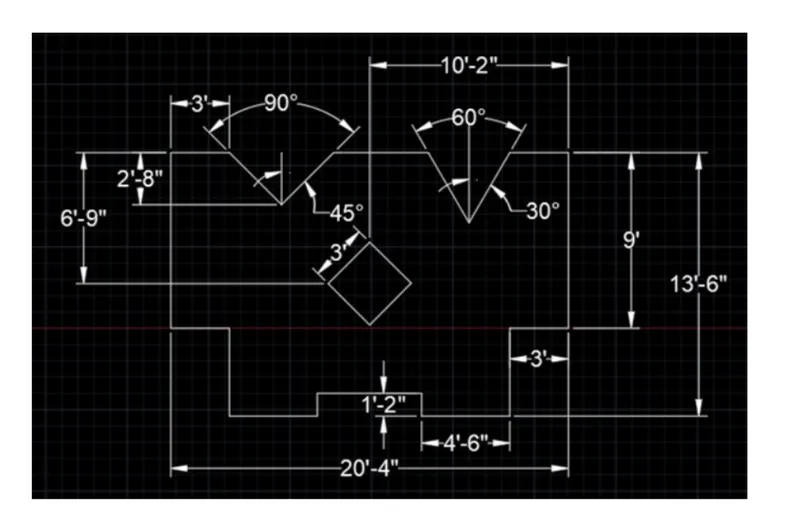

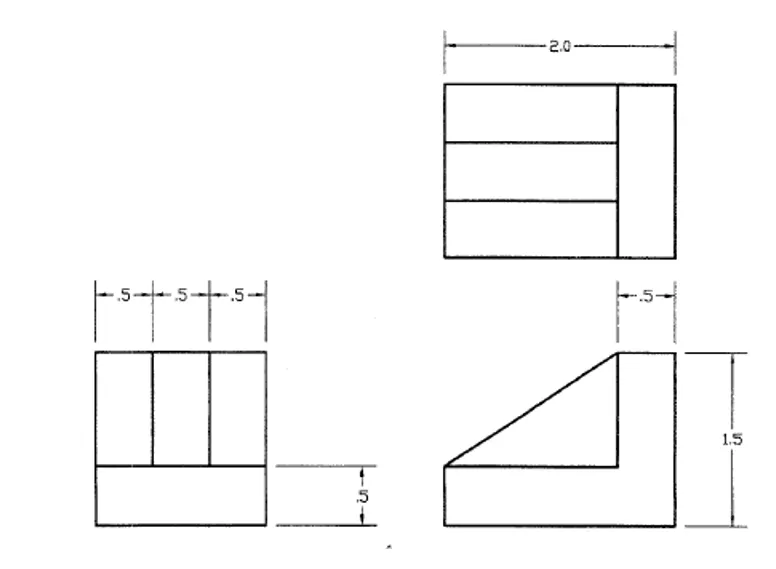

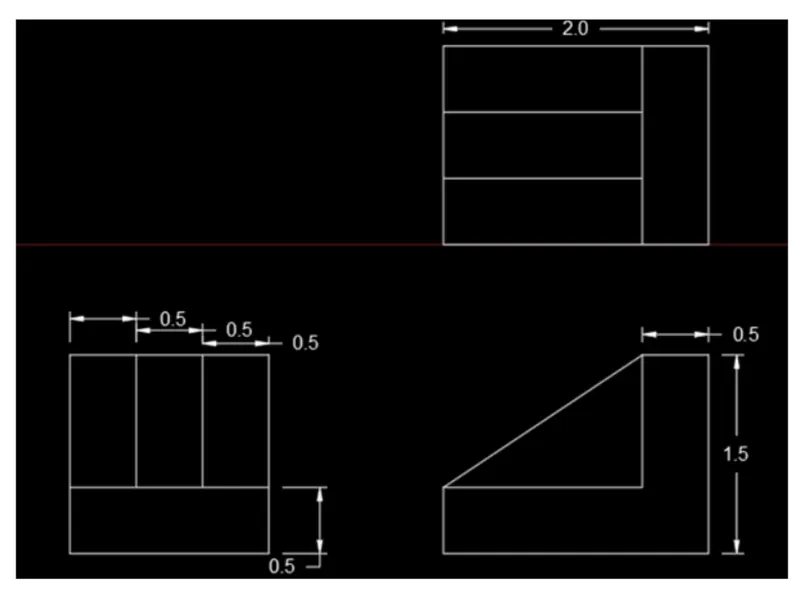

    6. AIM:- To draft the following geometry 6 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select decimal in type,0.00 in precision and meters in units to scale inserted content.Press OK
    • Type a command line
    • Specify first point:-36,1
    • Specify next point:-@1.5,0
    • Specify next point:-@0,0.5
    • Specify next point:-@-1.5,0. Press Escape
    • Type a command line
    • Specify first point:-36,1
    • Specify next point:-@0,1.5
    • Specify next point:-@0.5,0
    • Specify next point:-@0,-1.
    • Specify next point:-@0.5,0
    • Specify next point:-@0,-1.Press Escape
    • Command:-Line
    • Specify first point:-39,1
    • Specify next point:-@2,0
    • Specify next point:-@0,1.5
    • Specify next point:-@-0.5,0
    • Specify next point:-@0,-1
    • Specify next point:-@-1.5,0
    • Specify next point:-@0,-0.5
    • Specify next point:-@2<213.69.Press Escape
    • Type a command line
    • Specify first point:-39,5
    • Specify next point:-@1.5,0
    • Specify next point:-@0.5,0
    • Specify next point:-@0,1.5
    • Specify next point:-@-2,0
    • Specify next point:-close
    • Type a command offset
    • Specify offset distance:-0.5
    • Specify offset distance:-0.5.
    • Type a command line
    • Specify first point:-41,6.5
    • Specify next point:-@-0.5,0
    • Specify next point:-@0,-1.5. Press escape
    • Type a command trim
    • Trimming the unwanted lines
    • Dimensions are marked by using commands such as DIMLINEAR,DIMANGULAR etc
    • Drafting of above geometry is done

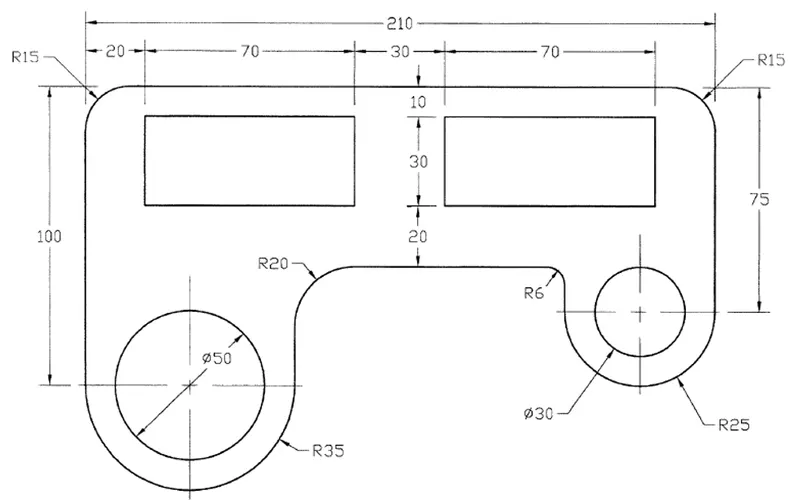

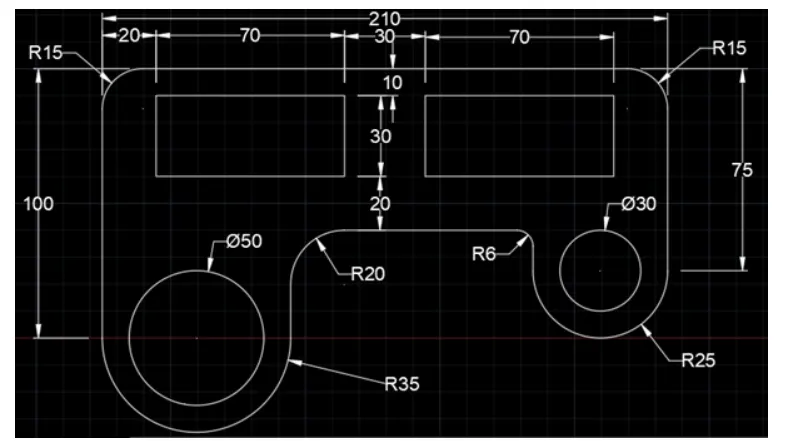

    7. AIM:- To draft the following geometry 7 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select decimal in type,0.00 in precision and meters in units to scale inserted content.Press OK
    • Type a command line
    • Specify first point:-0,0
    • Specify next point:-@0,100
    • Specify next point:-@210,0
    • Specify next point:-@0,-75
    • Specify next point:-@-50,0
    • Specify next point:-@15,0. Press Escape
    • Type a command line
    • Specify first point:-@70,0.Press Escape
    • Type a command circle
    • Specify centre point of circle:-25,0
    • Specify diameter of circle:-50
    • Ribbon the arc (Start,end,radius)
    • Click on start and end point of the line
    • Specify radius of arc:-35
    • Ribbon the arc (Start,end,radius)
    • Click on start and end point of the line
    • Specify radius of arc:-25
    • Type a command circle
    • Specify radius of circle:-15
    • Type a command rectangle
    • Specify corner point of rectangle
    • Specify length of rectangle:-70
    • Specify width of rectangle:-30.Press Escape
    • Type a command rectangle
    • Specify corner point of rectangle
    • Specify length of rectangle:-70
    • Specify width of rectangle:-30.Press Escape
    • Type a command fillet
    • Select radius
    • Specify fillet radius:-15
    • Select first point and second point of the line to get the fillet radius.Press Escape
    • Type a command fillet
    • Select radius
    • Specify fillet radius:-15
    • Select first point and second point of the line to get the fillet radius.Press Escape
    • Type a command fillet
    • Select radius
    • Specify fillet radius:-20
    • Select first point and second point of the line to get the fillet radius.Press Escape
    • Type a command fillet
    • Select radius
    • Specify fillet radius:-6
    • Select first point and second point of the line to get the fillet radius.Press Escape
    • Dimensions are marked by using commands such as DIMLINEAR,DIMANGULAR etc
    • Drafting of above geometry is done

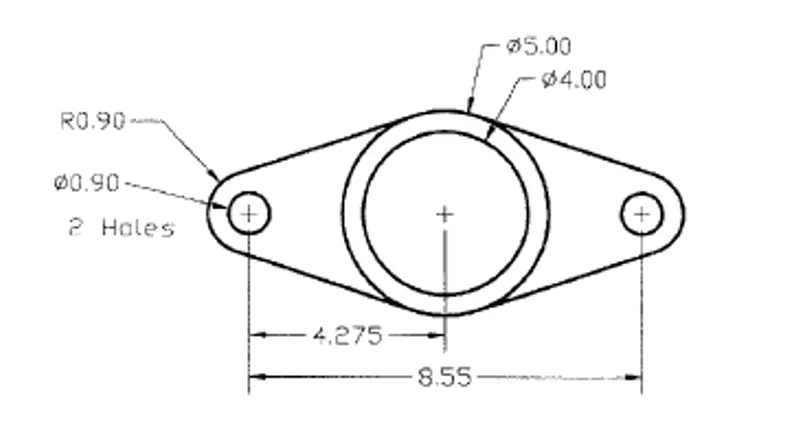

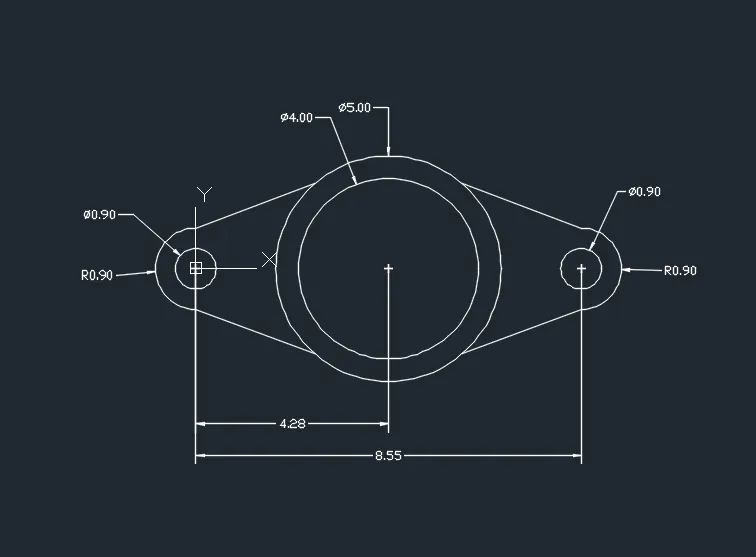

    8. AIM:- To draft the following geometry 8 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select decimal in type,0.000 in precision and meters in units to scale inserted content.Press OK
    • Type a command circle
    • Specify centre point of circle:-0,0
    • Specify diameter of circle:-0.90
    • Type a command circle
    • Specify centre point of circle:-4.275,0
    • Specify diameter of circle:-4
    • Type a command circle
    • Specify centre point of circle:-4.275,0
    • Specify diameter of circle:-5
    • Type a command circle
    • Specify centre point of circle:-8.55,0
    • Specify diameter of circle:-0.90
    • Ribbon the arc (Start,end,radius)
    • Click on start and end point of the radius
    • Specify radius of arc:-0.90
    • Similarly draw the arc on right hand side as the same stated above for.
    • Switch ortho mode off.
    • Draw  the inclined lines
    • Type a command trim
    • Trimming the unwanted lines
    • Dimensions are marked by using commands such as DIMLINEAR,DIMANGULAR etc
    • Drafting of above geometry is done

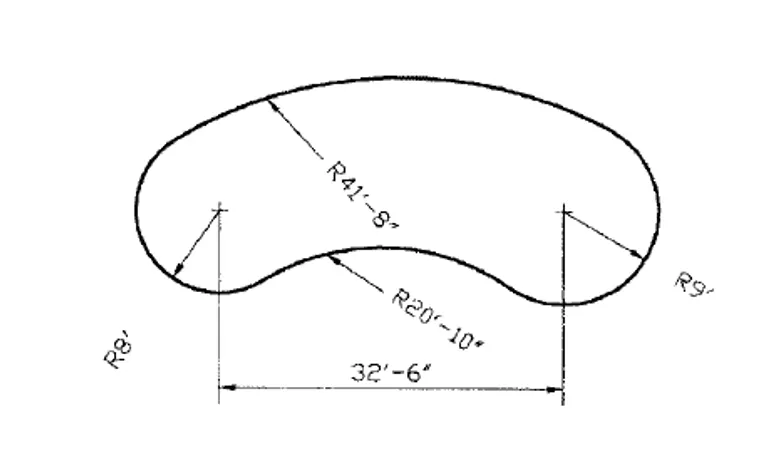

    9. AIM:- To draft the following geometry 9 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select architectural in type,0'-0" in precision and inches in units to scale inserted content

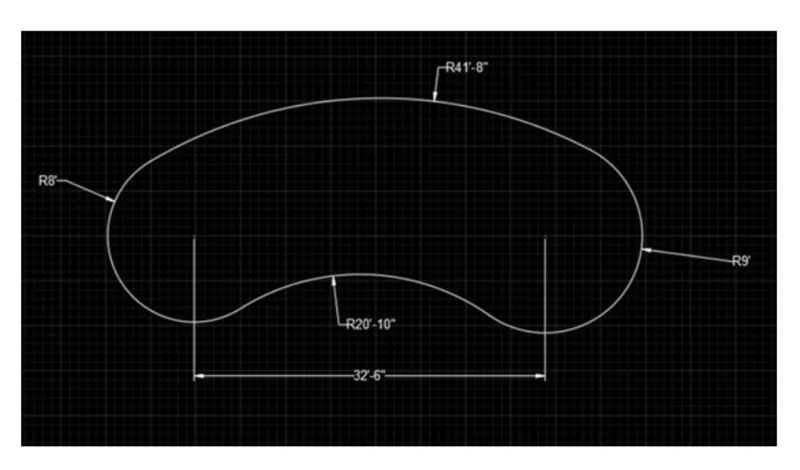

    • Type a command circle
    • Type a command line
    • Specify first point:-0,0
    • Specify next point:-32'6",0
    • Type a command circle
    • Specify centre point of circle:-0,0
    • Specify radius of circle:-8'
    • Type a command circle
    • Specify centre point of circle:-32'6",0
    • Specify radius of circle:-9'
    • Type a command circle
    • Select tan,tan,radius'
    • Click two tangents
    • Enter 20'10" as radius
    • Type a command circle
    • Select tan,tan,radius
    • Click two tangents
    • Enter 41'8" as radius
    • Type a command trim
    • Trimming the unwanted portion to get the required shape
    • Dimensions are marked by using commands such as DIMLINEAR,DIMANGULAR etc
    • Drafting of above geometry is done

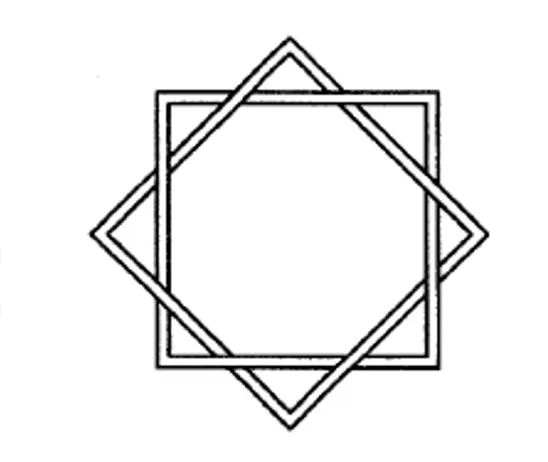

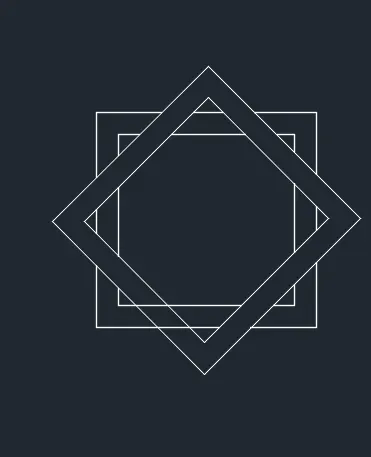

    10. AIM:- To draft the following geometry 10 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select decimal in type,0.000 in precision and meters in units to scale inserted content.Press OK
    • Type a command line
    • Specify first point:-0,0
    • Specify next point:-@12,0
    • Specify next point:-@0,12
    • Specify next point:-@-12,0
    • Specify next point:-close
    • Type a command offset
    • Specify offset distance:-0.5
    • Type a command trim
    • Trim the unwanted lines
    • Type a command Object snap
    • Click mid point and object snap to be on
    • Draw mid point on both sides
    • Type a command rotate
    • Click and select all opposite corner of the object
    • Select the base point of the object
    • Select copy of the object
    • Specify rotation angle:-45
    • Type a command trim
    • Trimming the unwanted lines
    • Drafting of above geometry is done

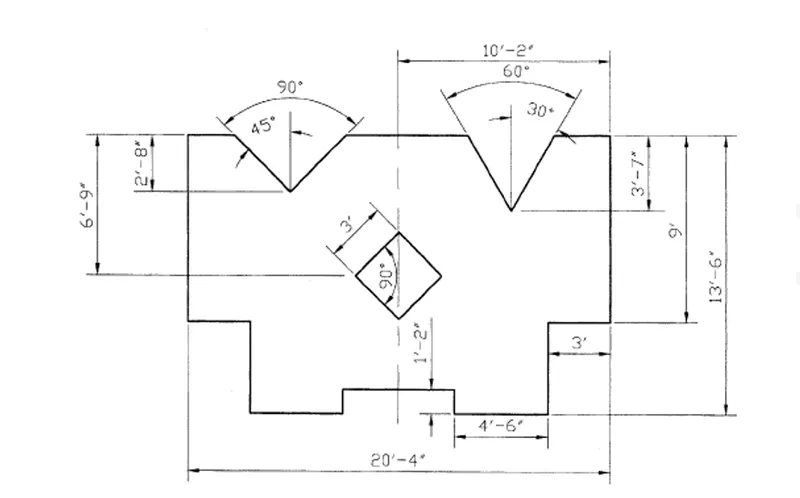

    11. AIM:- To draft the following geometry 11 by using AutoCAD 2022 drafting software

    PROCEDURE:-

    • Click on AutoCAD application and open the application
    • Type a command QNEW to save the file
    • Limits and limax is used
    • Zoom command is also used
    • Type a command units
    • Select architectural in type,0'-0" in precision and inches in units to scale inserted content
    • Type a command line
    • Specify first point:-0,0
    • Specify next point:-@3',0
    • Specify next point:-@0,-4'6"
    • Specify next point:-@4'6",0
    • Specify next point:-@0,1'2"
    • Specify next point:-@5'4",0
    • Specify next point:-@0,-1'2"
    • Specify next point:-@4'6",0
    • Specify next point:-@0,4'6"
    • Specify next point:-@3',0
    • Specify next point:-@0,9'
    • Specify next point:-@-3',0
    • Specify next point:-@-20'4",0
    • Specify next point:-@0,-3'7"
    • Type a command Object snap
    • Click mid point and object snap to be on
    • Draw mid point of the line from 4'6"
    • Ortho mode off
    • Joined the end point of the inclined line
    • Similarly draw the opposite end of the inclined line
    • Type a command line
    • Specify first point:-@3',0
    • Specify next point:-@0,-2'8"
    • Type a command Object snap
    • Click mid point and object snap to be on
    • Draw mid point of the line from 4'6"
    • Ortho mode off
    • Joined the end point of the inclined line
    • Similarly draw the opposite end of the inclined line
    • Type a command line
    • Type a command rectangle
    • Select corner point of the rectangle
    • Specify length of rectangle:-3'
    • Specify width of rectangle:-3'
    • Type a command rotate
    • Click and select all opposite corner of the object
    • Select the base point of the object
    • Select copy of the object
    • Specify rotation angle:-45
    • Type a command trim
    • Trimming the unwanted lines
    • Dimensions are marked by using commands such as DIMLINEAR,DIMANGULAR etc
    • Drafting of above geometry is done

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Sandeep Ghosh (41)

    Week 1 Challenge

    Objective:

    1. 1. Write the steps involved to upload a .std file through web mail?    2. Name the different materials that can be designed using STAAD Pro.    3. Is it possible to capture images in STAAD Pro? If yes how?    4. Name the three ways by which you can create a model.    5. Write…

    calendar

    19 Dec 2022 05:41 PM IST

      Read more

      Foundation Design using SAFE

      Objective:

      1.Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations. AIM:-  To model the isolated footing by using  SAFE and to analyze and to design it to verify the size, depth and calculation of steel provided INTRODUCTION:-…

      calendar

      14 Oct 2022 03:42 AM IST

        Read more

        Design of Shallow Foundation (Isolated Footings)

        Objective:

        1. Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 meters below E.G.L. Participants are free to go for either a tapered or stepped footing. Besides the total axial load,…

        calendar

        08 Oct 2022 06:08 PM IST

          Read more

          Structural Modelling using Etabs 2018

          Objective:

          ` 1. The architectural drawings for a G+7 residential building in zone 5 has been provided. The floor plan is the same for all 7 floor levels. Possible column positions have also been provided. Conceptualize a framing plan layout and then model the building in Etabs. The following architectural drawings have been provided:…

          calendar

          06 Oct 2022 11:13 AM IST

          • ETABS
          Read more

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          Related Courses

          coursecard

          Design loads considered on bridges

          Recently launched

          10 Hours of Content

          coursecard

          Design of Steel Superstructure in Bridges

          Recently launched

          16 Hours of Content

          coursecard

          Design for Manufacturability (DFM)

          Recently launched

          11 Hours of Content

          coursecard

          CATIA for Medical Product Design

          Recently launched

          5 Hours of Content

          coursecardcoursetype

          Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

          Recently launched

          0 Hours of Content

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          logo

          Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

          https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

          Our Company

          News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
          map
          EpowerX Learning Technologies Pvt Ltd.
          4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
          mail
          info@skill-lync.com
          mail
          ITgrievance@skill-lync.com

          Top Individual Courses

          Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

          Top PG Programs

          Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

          Skill-Lync Plus

          Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

          Trending Blogs

          Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

          © 2025 Skill-Lync Inc. All Rights Reserved.

                      Do You Want To Showcase Your Technical Skills?
                      Sign-Up for our projects.
