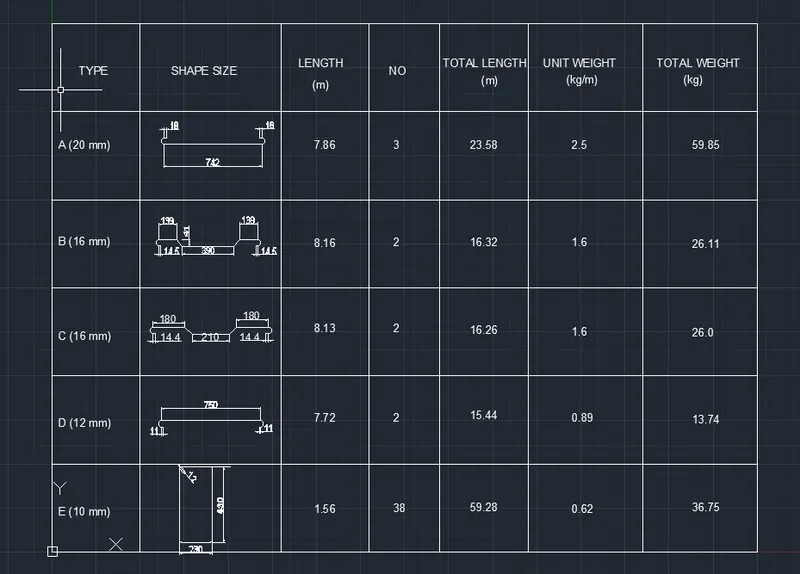

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

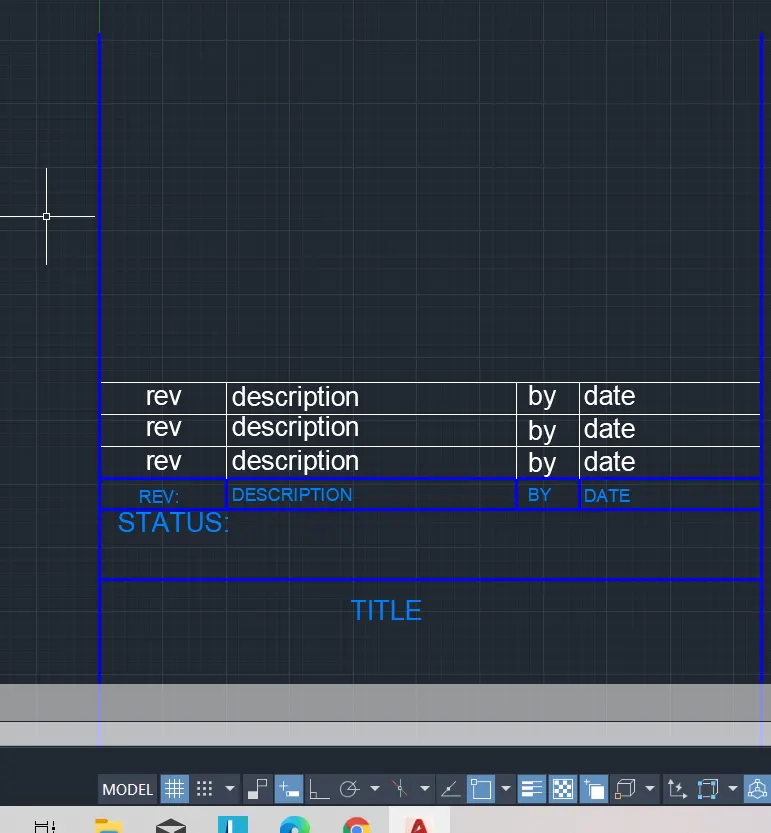

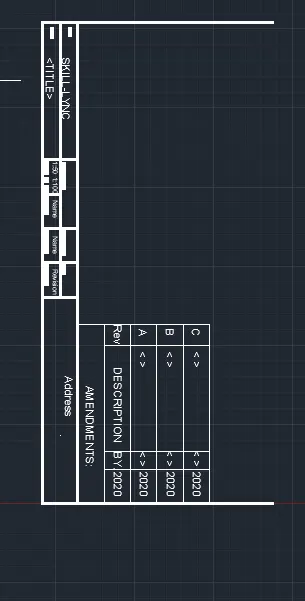

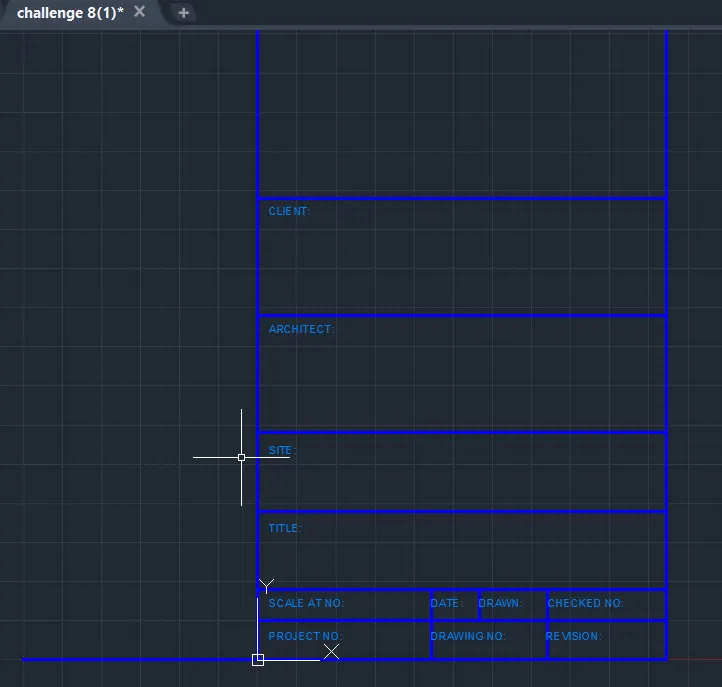

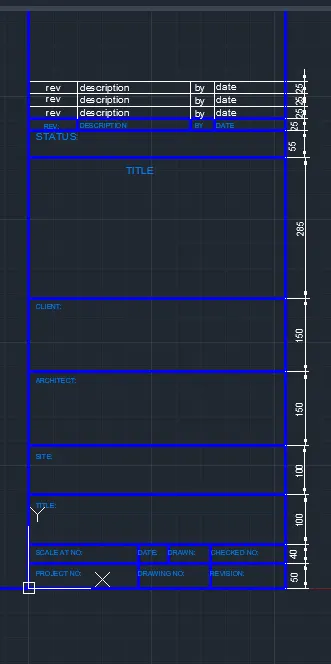

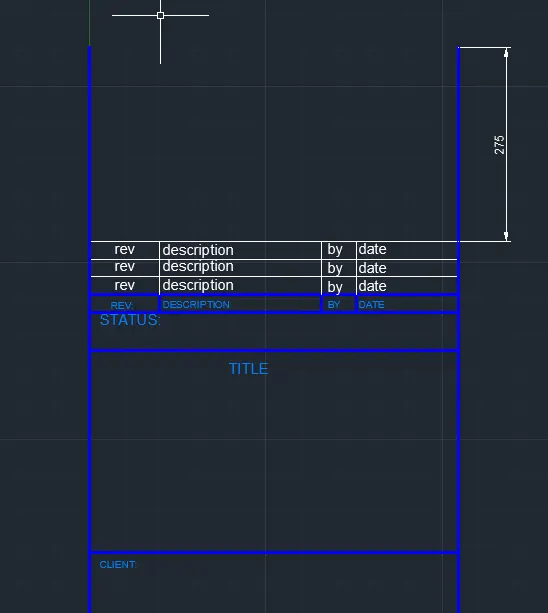

1.AIM:- To create the templates of the title block with the use of AutoCAD 2022 INTRODUCTION:-Title block are created by use of set of commands such as line,offset,block etc. PROCEDURE:- Open the AutoCAD 2022 Application Software Type a command QNEW to save the file Type a command UNITS Select Decimal in type, precision…

    • Sandeep Ghosh

      updated on 24 Oct 2021

    1.AIM:- To create the templates of the title block with the use of AutoCAD 2022

    INTRODUCTION:-Title block are created by use of set of commands such as line,offset,block etc.

    PROCEDURE:-

    • Open the AutoCAD 2022 Application Software
    • Type a command QNEW to save the file

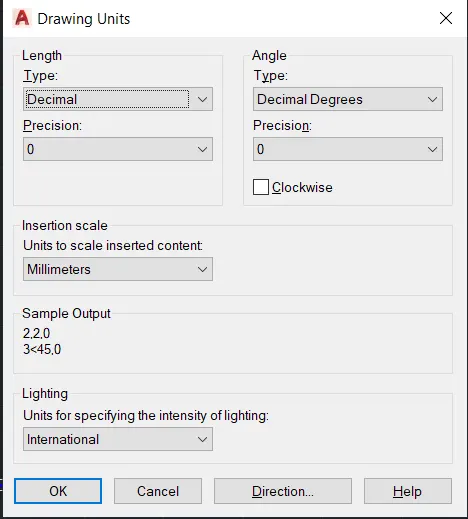

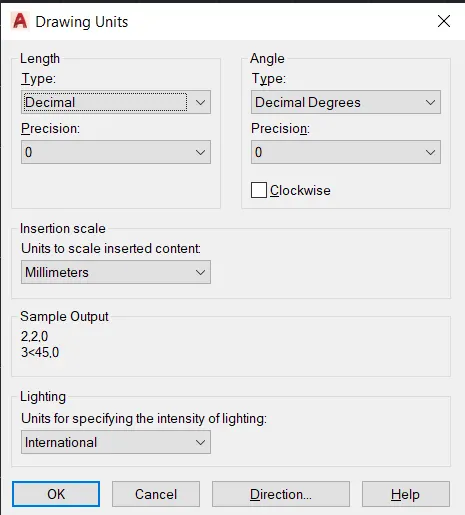

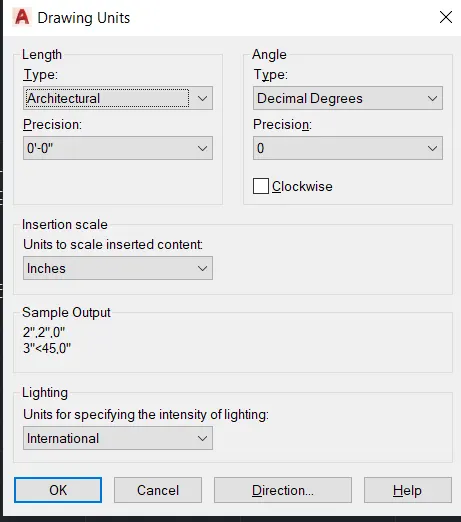

    • Type a command UNITS
    • Select Decimal in type, precision in 0 and units to scale inserted content in millimetres.

    • Limits and limmax command is used
    • Zoom command is also used
    • Type a command line
    • Specify first point:-0,0
    • Specify next point:-@522,0
    • Specify next point:-@0,1030
    • Specify next point:-@-522,0
    • Specify next point:-@0,-1030
    • Press Escape
    • Type a command offset
    • Specify offset distance:-50 horizontally up from the line @522,0
    • Specify offset distance:-40 horizontally up from the previous offset line 50
    • Specify offset distance:-100 horizontally up from the previous offset line 40
    • Specify offset distance:-100 horizontally up from the previous offset line 100
    • Specify offset distance:-150 horizontally up from the previous offset line 100
    • Specify offset distance:-150 horizontally up from the previous offset line 150
    • Specify offset distance:-285 horizontally up from the previous offset line 150
    • Specify offset distance:-55 horizontally up from the previous offset line 285
    • Specify offset distance:-25 horizontally up from the previous offset line 55 in three consecutive steps
    • Press Escape

    • Type a command offset

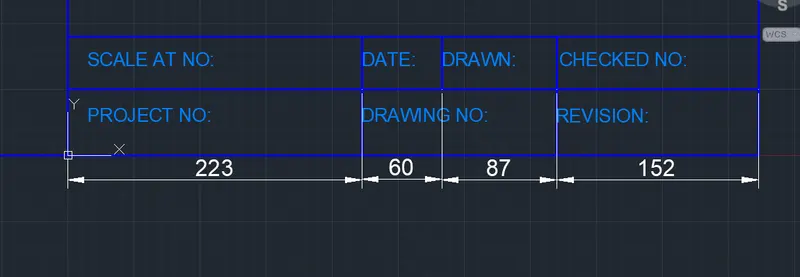

    • Specify offset distance:-223 vertically left from the line @0,-1030
    • Specify offset distance:-60 vertically left from the previous offset line 223
    • Specify offset distance:-87 vertically left from the previous offset line 60
    • Specify offset distance:-152 vertically left from the previous offset line 87
    • Press Escape
    • Type a command trim
    • Trimmed the unwanted lines

    • Type a command offset

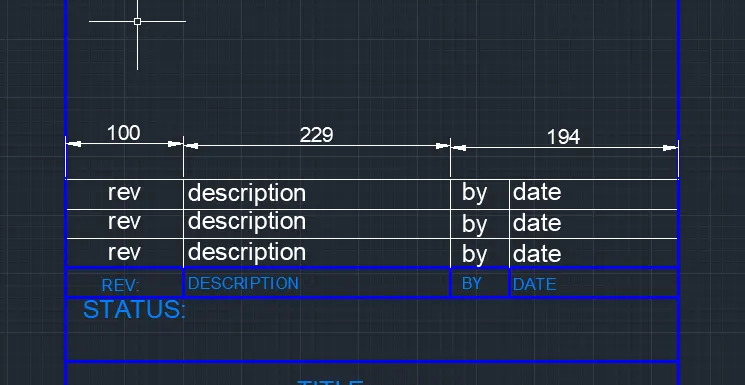

    • Specify offset distance:-100 vertically left from the previous offset line @0,-1030
    • Specify offset distance:-229 vertically left from the previous offset line 100
    • Specify offset distance:-194 vertically left from the previous offset line 194
    • Press Escape
    • Type a command trim
    • Trimmed the unwanted lines

    • Type a command line
    • Specify first point:-522,1030
    • Specify next point:-@0,275
    • Press Escape

    • Type a command offset
    • Specify offset distance:-522 from the previous line @0,275

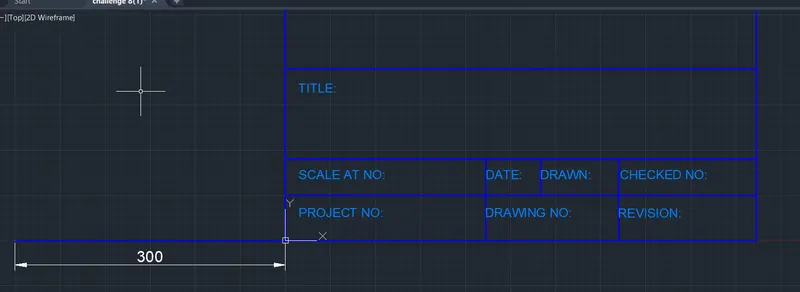

    • Type a command line
    • Specify first point:-0,0
    • Specify next point:-@-300,0
    • Press Escape

    • Type a command dtext
    • Specify text height:-12
    • Specify rotation angle:-0

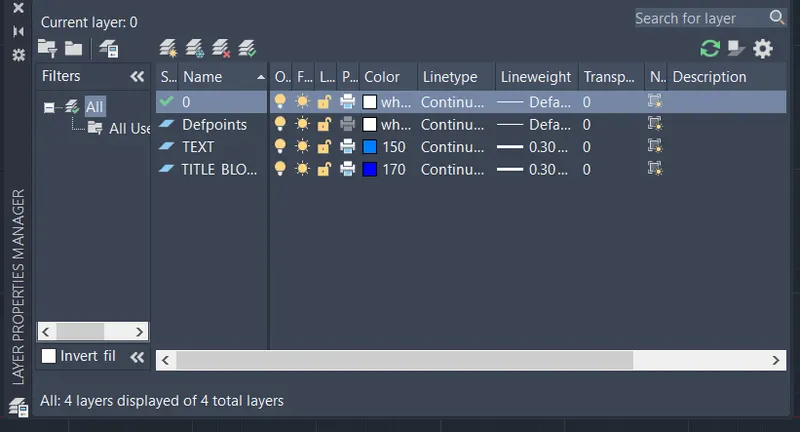

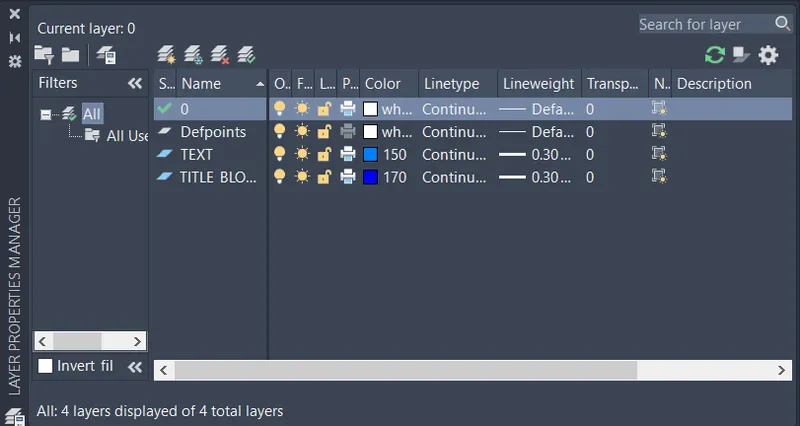

    • Type a commnad LA
    • Select the layer type based on linetype,lineweight and color

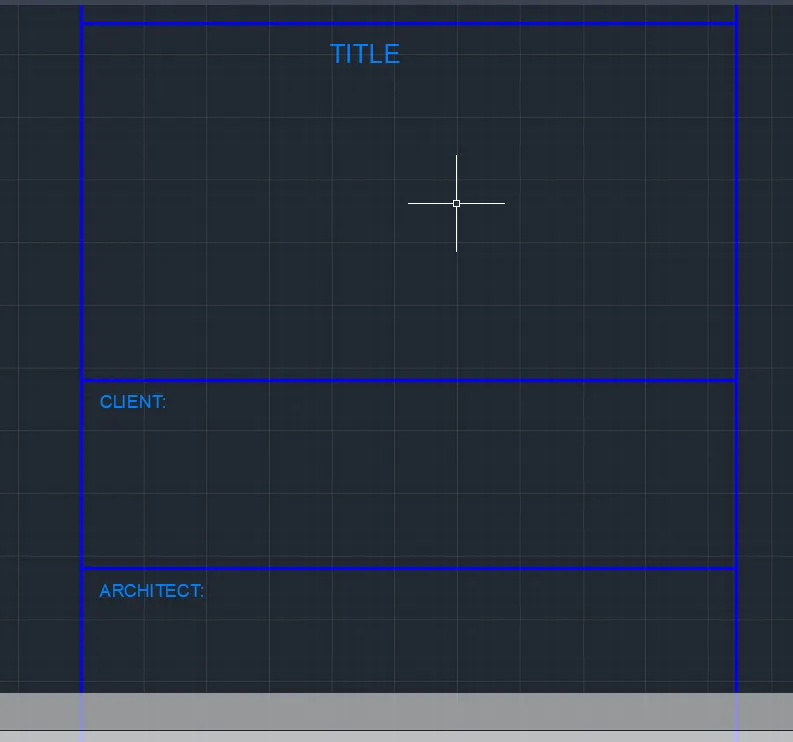

    • Type a command line
    • Specify first point:-710,0
    • Specify next point:-@728,0
    • Specify next point:-@0,1521
    • Press Escape
    • Type a command line
    • Specify first point:-710,1521
    • Specify next point:-@728,0
    • Presss Escape
    • Type a command offset
    • Specify offset distance:-110 vertically left from the line @0,1521
    • Specify offset distance:-651 horizontally up from the previous offset line 100
    • Specify offset distance:-111 horizontally up from the previous offset line 651
    • Specify offset distance:-109 horizontally up from the previous offset line 111
    • Specify offset distance:-108 horizontally up from the previous offset line 109
    • Specify offset distance:-108 horizontally up from the previous offset line 108
    • Specify offset distance:-435 horizontally up from the previous offset line 108
    • Press Escape
    • Type a command offset
    • Specify offset distance:-55 vertically left from the line @0,1521
    • Specify offset distance:-55 vertically left from the line 55
    • Press Escape
    • Type a command offset
    • Specify offset distance:-565 horizontally up from the line @728,0
    • Press Escape
    • Type a command offset
    • Specify offset distance:-195 vertically left from the previous offset line @0,1521
    • Press Escape
    • Type a command offset
    • Specify offset distance:-83 vertically left from the line 195 in 4 consecutive steps
    • Press Escape
    • Type a comman trim
    • Trimmed the unwanted lines
    • Specify offset distance:-
    • Type a command dtext
    • Specify text height:-25
    • Specify rotation angle:-0
    • Type a command LA

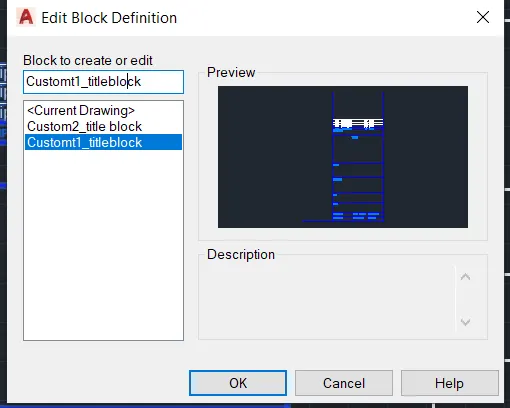

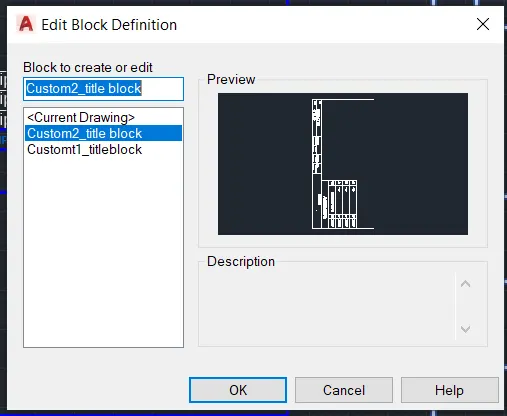

    • Type a command BLOCK
    • Type to create a block Custom1_titleblock and Custom2_title block

    RESULT:- The given text has been drwan with the use of AutoCAD 2022

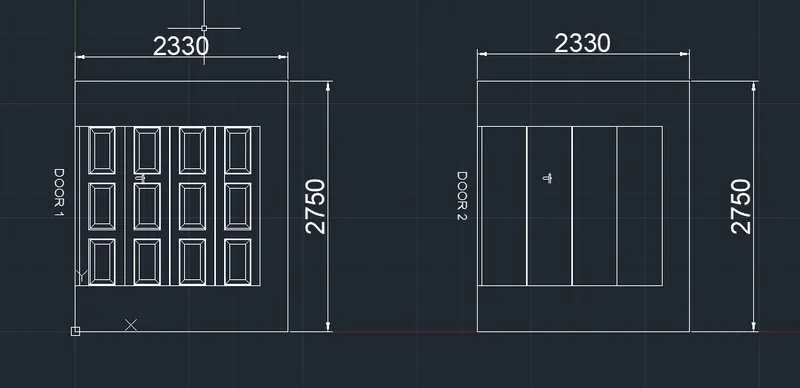

    2.AIM:-To create the door type for warehouse with the use of AutoCAD 2022

    INTRODUCTION:-Door type for warehouse are created by use of set of commands such as line,offset,block etc.

    PROCEDURE:-

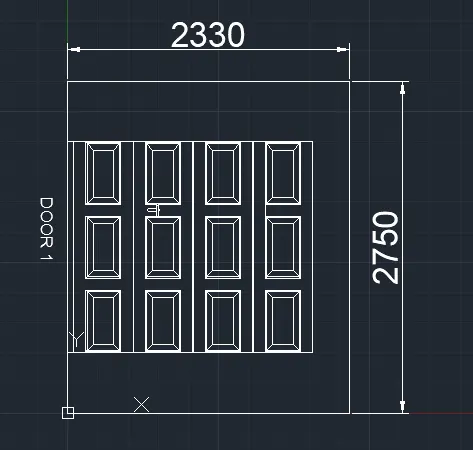

    a) D1

    • Open the AutoCAD 2022 Application Software
    • Type a command QNEW to save the file
    • Type a command UNITS
    • Select Decimal in type, precision in 0 and units to scale inserted content in millimetres.

    • Limits and limmax command is used
    • Zoom command is also used
    • Type a command line
    • Specify first point:-0,0
    • Specify next point:-@2330, 0
    • Specify next point:-@0,2750
    • Specify next point:-@-2330,0
    • Specify next point:-@0,-2750
    • Press Escape
    • Type a command offset
    • Specify offset distance:-2030 vertically left from the line @0,-2750
    • Type a command offset
    • Specify offset distance:-500 horizontally down from the line @-2330,0
    • Specify offset distance:-500 horizontally up from the line @2330,0
    • Press Escape
    • Type a command offset
    • Specify offset distance:-50 vertically left from the line @0,-1750
    • Type a command trim.Trimmed the unwanted lines
    • Type a command offset
    • Specify offset distance:-491 vertically left from the line in four consecutive steps
    • Specify offset distance:-5 vertically left from the offset line 491 in four consecutive steps
    • Press Escape
    • Type a command line
    • Specify first point:-150,1730
    • Specify next point:-@291,0
    • Specify next point:-@0,500
    • Specify next point:-@-291,0
    • Specify next point:-@0,-500
    • Type a command offset
    • Specify offset distance:-10 in four directions
    • Type a command trim
    • Trimmed the unwanted lines
    • Type a command DTEXT
    • Specify text height:-25
    • Specify rotation angle:-270

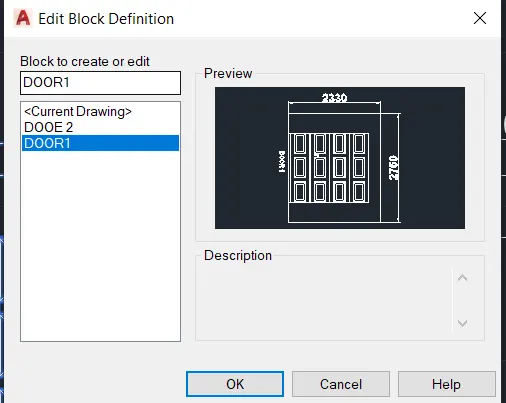

    • Type a command block
    • Type to create a block Door 1

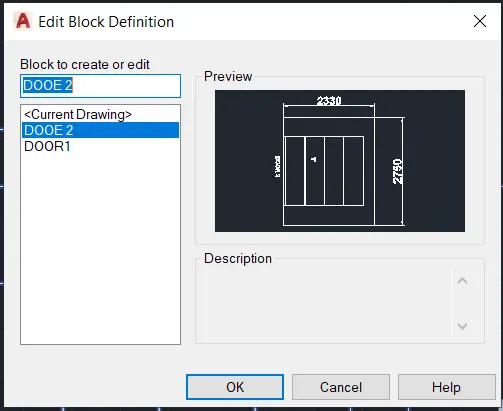

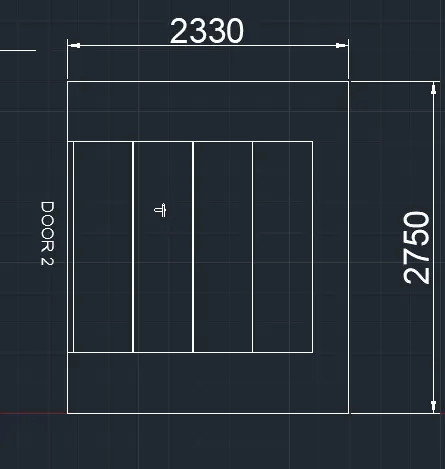

    b) D2

    • Type a command line
    • Specify first point:-4408,0
    • Specify next point:-@2330, 0
    • Specify next point:-@0,2750
    • Specify next point:-@-2330,0
    • Specify next point:-@0,-2750
    • Press Escape
    • Type a command offset
    • Specify offset distance:-2030 vertically left from the line @0,-2750
    • Type a command offset
    • Specify offset distance:-500 horizontally down from the line @-2330,0
    • Specify offset distance:-500 horizontally up from the line @2330,0
    • Press Escape
    • Type a command offset
    • Specify offset distance:-50 vertically left from the line @0,-1750
    • Type a command trim.Trimmed the unwanted lines
    • Type a command offset
    • Specify offset distance:-491 vertically left from the line in four consecutive steps
    • Specify offset distance:-5 vertically left from the offset line 491 in four consecutive steps
    • Type a command DTEXT
    • Specify text height:-25
    • Specify rotation angle:-270
    • Type a command block
    • Type to create a block Door 2

    RESULT:- The given door has been drawn with the use of AutoCAD 2022

    3.AIM:-To create each electrical symbol as a block with the given legend by AutoCAD 2022

    INTRODUCTION:-Electrical symbols and blocks along with legend are created by use of set of commands such as line,offset,block etc.

    PROCEDURE:-

    • Open the AutoCAD 2022 Application Software
    • Type a command QNEW to save the file
    • Type a command UNITS
    • Select Decimal in type, precision in 0 and units to scale inserted content in millimetres.

    • Limits and limmax command is used
    • Zoom command is also used

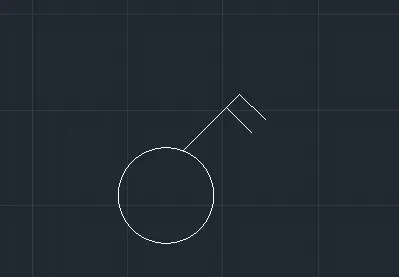

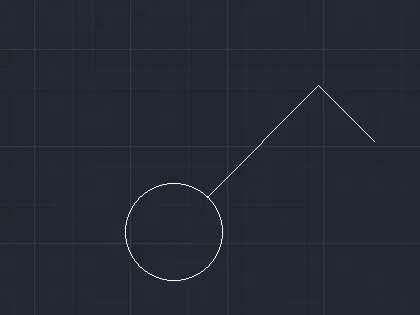

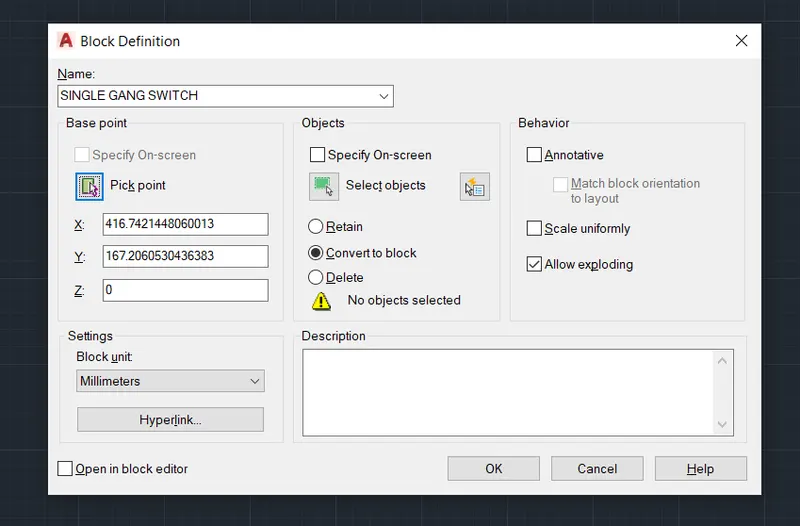

    a) Single Gang Switch

    • Type a command circle
    • Specify centre of circle:-0,0
    • Specify radius of circle:-25
    • Draw a line inclined at an angle 45 on both the sides

    • Type a command block

    • Select the points and objects and insert it in the given legend

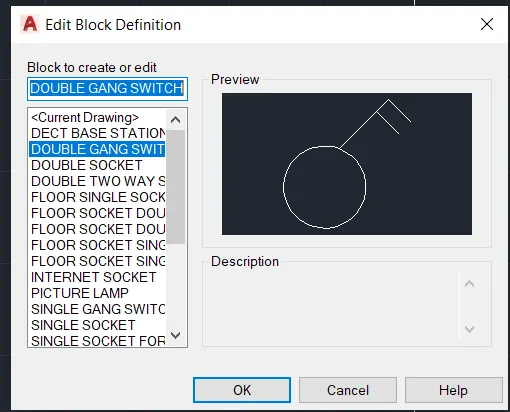

    b) Double Gang Switch

    • Type a command circle
    • Specify centre of circle:-0,0
    • Specify radius of circle:-25
    • Draw a line inclined at an angle 45 on both the sides



    • Type a command block

    • Select it and insert it in the given legend
    • Similarly draw various electrical line symbols,create a block and then insert it in the given legend.

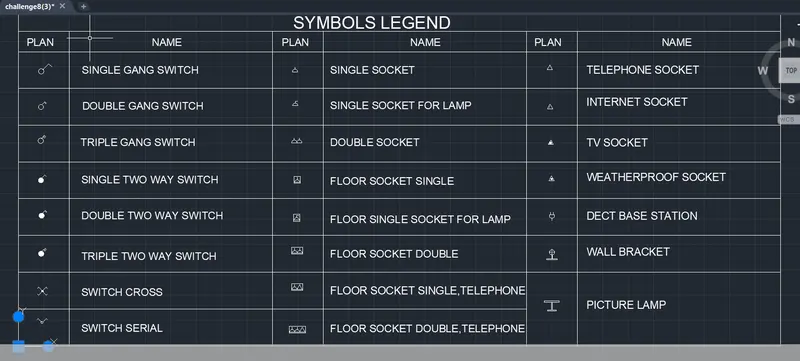

    c) Text line along with symbol legends

    • Type a command line
    • Specify first point:-0,0
    • Specify next point:-@7500,0
    • Specify next point:-@0,3300
    • Specify next point:-@-7500,0
    • Specify next point:-@0,-3300
    • Type a command offset
    • Specify offset distance:-500 vertically left from the previous line @0,-3300 in three consecutive steps
    • Specify offset distance:-2000 vertically left from the previous offset line 500 in three consecutive steps
    • Press Escape
    • Type a command offset
    • Specify offset distance:-200 horizontally down from the previous line @-7500,0
    • Specify offset distance:-200 horizontally down from the previous offset line 200
    • Specify offset distance:-362 horizontally down from the previous offset line in 8 consecutive steps
    • Presss Escape
    • Type a command trim
    • Trimmed the unwanted lines
    • Type a command DTEXT
    • For SYMBOLS LEGEND,specify text width:-125
    • Specify rotation angle:-0
    • Apart from SYMBOLS LEGEND, specify text width:-75
    • Specify rotation angle:-0
    • Type a command insert and insert the various electrical symbols in the given symbol legend

    RESULT:- The given electrical symbol along with symbol legend has been drawn with the use of AutoCAD 2022

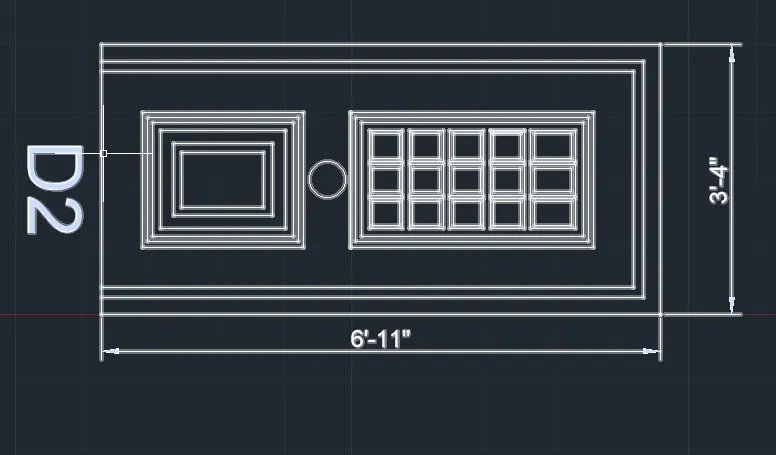

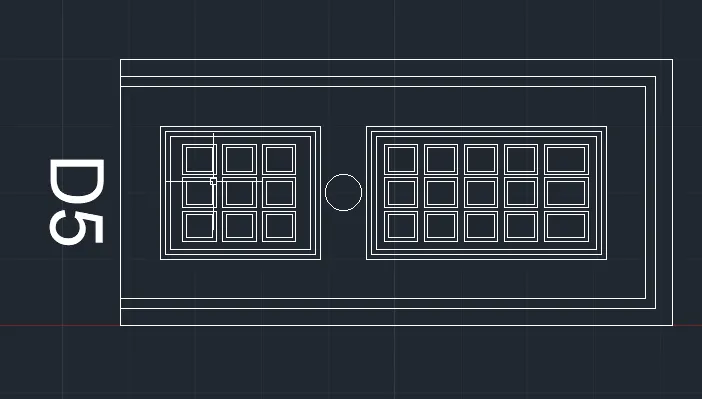

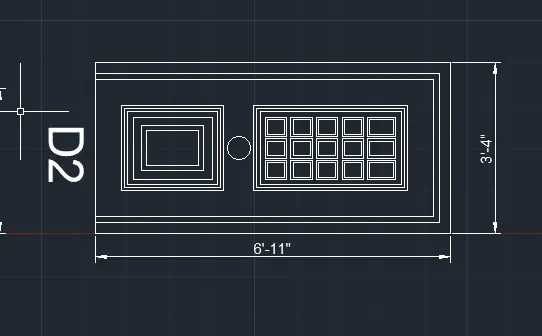

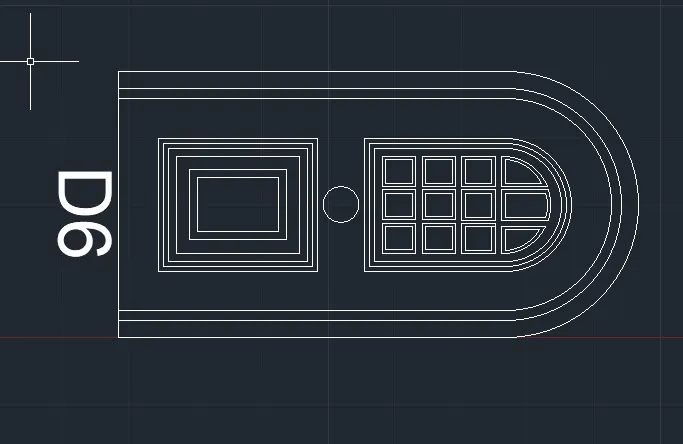

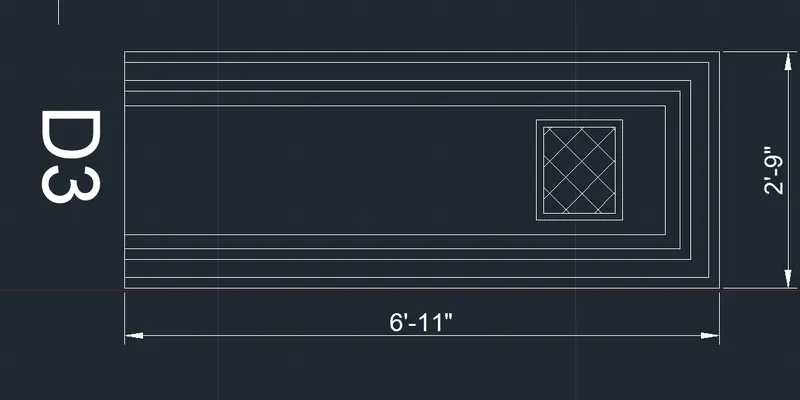

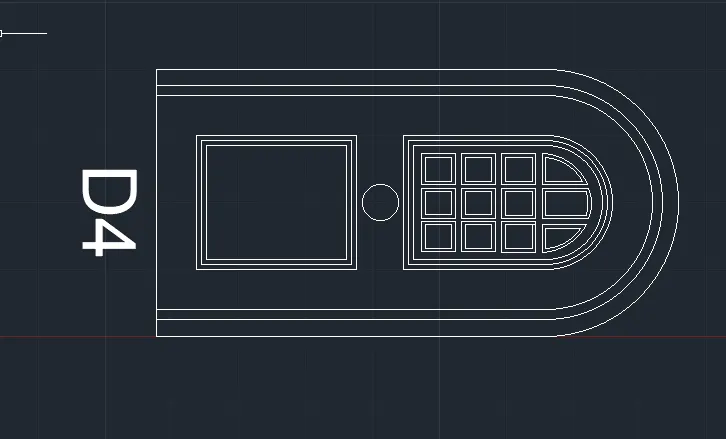

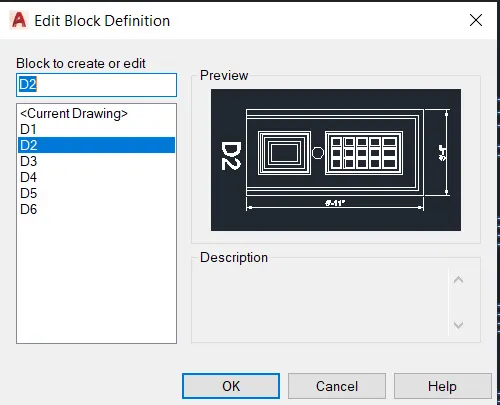

    4.AIM:-To create the door type for residential building as a block with the use of AutoCAD 2022

    INTRODUCTION:- Door type for residential building as a block are created by use of set of commands such as line,offset,block etc.

    PROCEDURE:-

    • Open the AutoCAD 2022 Application Software
    • Type a command QNEW to save the file
    • Type a command UNITS

    • Limits and limmax command is used
    • Zoom command is also used

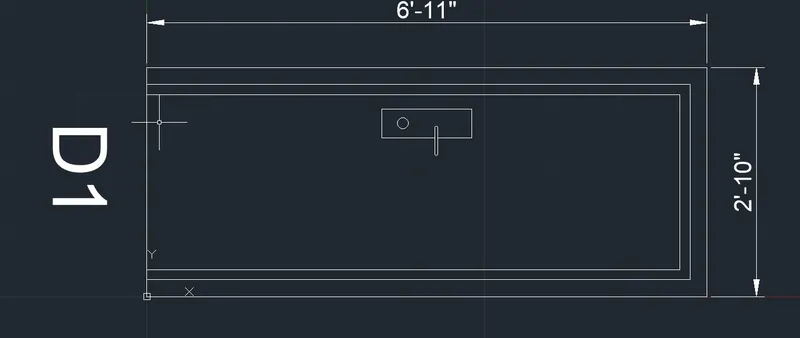

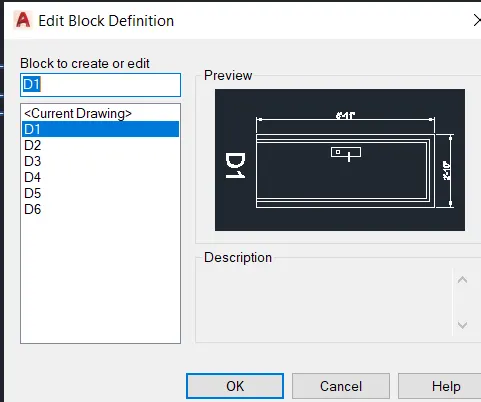

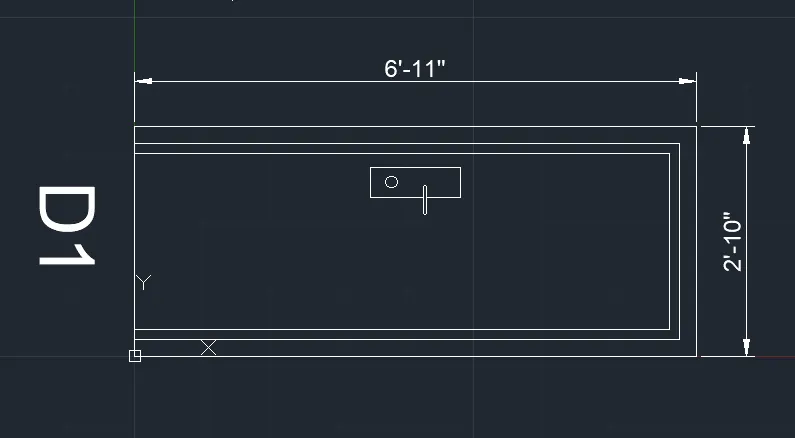

    a) D1

    • Type a command line
    • Specify first point:-0,0
    • Specify next point:-@6'-11",0
    • Specify next point:-@0,2'-10"
    • Specify next point:-@-6'-11",0
    • Specify next point:-@0,-2'-10"
    • Press Escape
    • Type a command offset
    • Specify offset distance:-2.5" on both the three sides
    • Specify offset distance:-1.5" on both the three sides
    • Specify offset distance:-1.5" on both the three sides
    • Type a command trim
    • Trimmed the unwanted lines
    • Draw a rectangle of size 4.5"*1'-4.5" and place it in mid position
    • Draw a circle of radius 1"

    • Type a command block and save it by creating a block D1

    b) D2

    • Type a command line
    • Specify first point:-9'-5",0
    • Specify next point:-@6'-11",0
    • Specify next point:-@0,3'-4"
    • Specify next point:-@-6'-11",0
    • Specify next point:-@0,-3'-4"
    • Type a command offset
    • Specify offset distance:-4.5" on both the three sides
    • Specify offset distance:-1.5" on both the three sides
    • Type a command trim
    • Trimmed the unwanted lines
    • Draw a rectangle of size 2'*1'-8"
    • Type a offset
    • Specify offset distance:-1" on both the four sides in three consecutive steps
    • Type a command trim
    • Trimmed the unwanted lines
    • Type a command offset
    • Specify offset distance:-2" on both the four sides from the previous offset line 1"
    • Type a command trim
    • Trimmed the unwanted lines
    • Draw a circle of radius 4.5"
    • Type a command rectangle
    • Specify length and width of rectangle:-4.5"*5" in five columns and three rows
    • Type a command offset
    • Specify offset distance:-0.5" on both the four sides
    • Type a command trim
    • Trimmed the unwanted lines
    • Type a command block and save it by creating a block D2

    • Similarly draw a various door of residential type with the use of commands such as line,offset,trim etc

    RESULT:-The given door type for residential building has been drawn with the use of AutoCAD 2022



    5.AIM:-To create BBS schedule as a block with the use of AutoCAD 2022

    INTRODUCTION:-BBS schedule as a block are created by use of set of commands such as line,offset,block etc.

    PROCEDURE:-

    • Open the AutoCAD 2022 Application Software
    • Type a command QNEW to save the file
    • Type a command UNITS



    • Limits and limmax command is used
    • Zoom command is also used

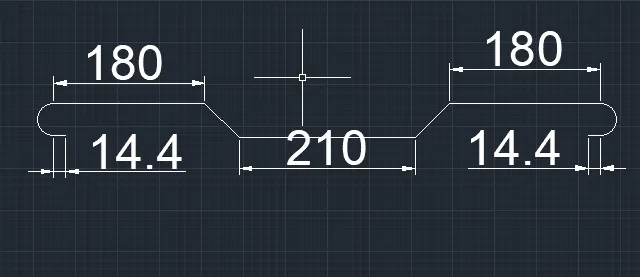

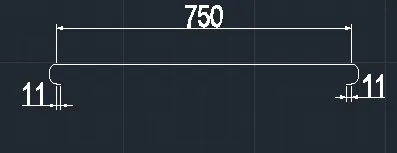

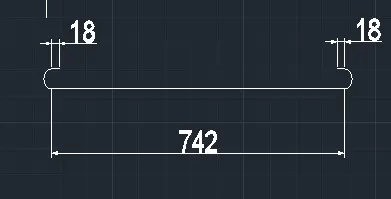

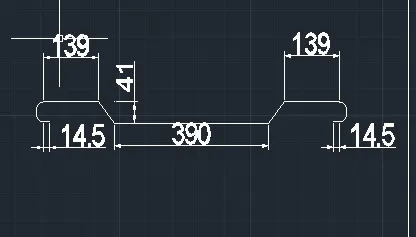

    • Draw a bar of various sizes with the use of commands such as line,fillet,trim etc

    • Type a command block and insert them in the given legen
    • Type a command DTEXT
    • Specify text height:-15
    • Specify rotation angle:-0

    RESULT:-The given bbs has been drawn with the use of AutoCAD 2022







    •



    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Sandeep Ghosh (41)

    Week 1 Challenge

    Objective:

    1. 1. Write the steps involved to upload a .std file through web mail?    2. Name the different materials that can be designed using STAAD Pro.    3. Is it possible to capture images in STAAD Pro? If yes how?    4. Name the three ways by which you can create a model.    5. Write…

    calendar

    19 Dec 2022 05:41 PM IST

      Read more

      Foundation Design using SAFE

      Objective:

      1.Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations. AIM:-  To model the isolated footing by using  SAFE and to analyze and to design it to verify the size, depth and calculation of steel provided INTRODUCTION:-…

      calendar

      14 Oct 2022 03:42 AM IST

        Read more

        Design of Shallow Foundation (Isolated Footings)

        Objective:

        1. Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 meters below E.G.L. Participants are free to go for either a tapered or stepped footing. Besides the total axial load,…

        calendar

        08 Oct 2022 06:08 PM IST

          Read more

          Structural Modelling using Etabs 2018

          Objective:

          ` 1. The architectural drawings for a G+7 residential building in zone 5 has been provided. The floor plan is the same for all 7 floor levels. Possible column positions have also been provided. Conceptualize a framing plan layout and then model the building in Etabs. The following architectural drawings have been provided:…

          calendar

          06 Oct 2022 11:13 AM IST

          • ETABS
          Read more

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          Related Courses

          coursecard

          Design loads considered on bridges

          Recently launched

          10 Hours of Content

          coursecard

          Design of Steel Superstructure in Bridges

          Recently launched

          16 Hours of Content

          coursecard

          Design for Manufacturability (DFM)

          Recently launched

          11 Hours of Content

          coursecard

          CATIA for Medical Product Design

          Recently launched

          5 Hours of Content

          coursecardcoursetype

          Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

          Recently launched

          0 Hours of Content

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          logo

          Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

          https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

          Our Company

          News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
          map
          EpowerX Learning Technologies Pvt Ltd.
          4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
          mail
          info@skill-lync.com
          mail
          ITgrievance@skill-lync.com

          Top Individual Courses

          Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

          Top PG Programs

          Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

          Skill-Lync Plus

          Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

          Trending Blogs

          Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

          © 2025 Skill-Lync Inc. All Rights Reserved.

                      Do You Want To Showcase Your Technical Skills?
                      Sign-Up for our projects.
