Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

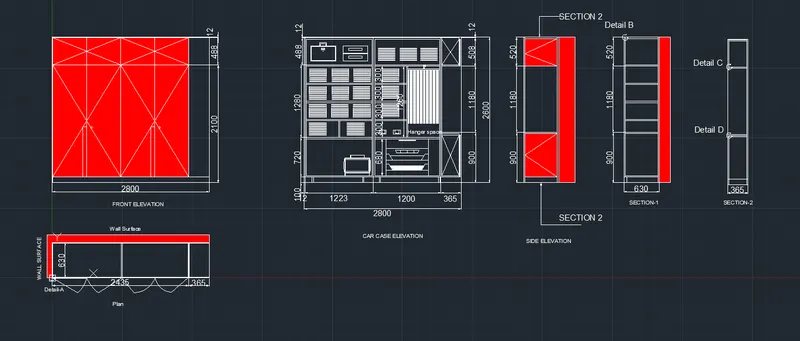

1. AIM:- To draw the elevation and details of wardrobe by using AutoCAD 2022 Introduction:- Elevation and details of wardrobe are created by using the commands such as line,offset etc PROCEDURE:- a) PLAN:- Open the AutoCAD 2022 software Enter units in command box Select decimal in type,0 in precision and millimetres in…

  • CFD
  • HEV
  • MBD
  • Sandeep Ghosh

    updated on 29 Sep 2021

1. AIM:- To draw the elevation and details of wardrobe by using AutoCAD 2022

Introduction:- Elevation and details of wardrobe are created by using the commands such as line,offset etc

PROCEDURE:-

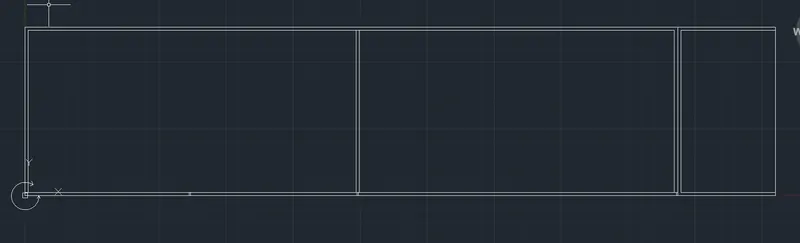

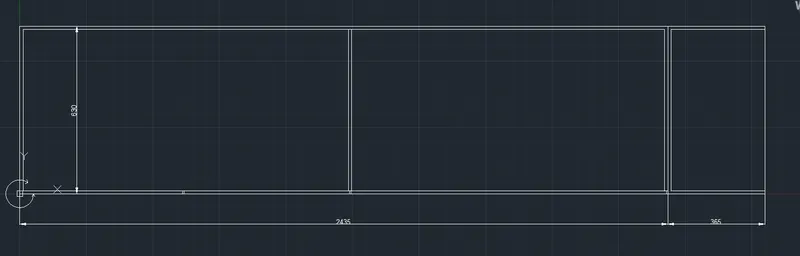

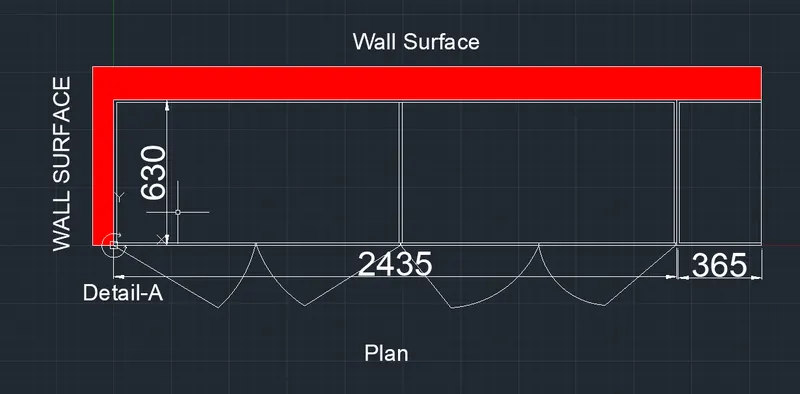

a) PLAN:-

  • Open the AutoCAD 2022 software
  • Enter units in command box

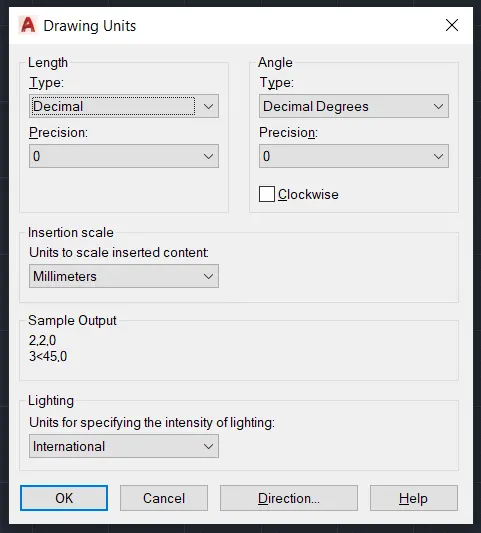

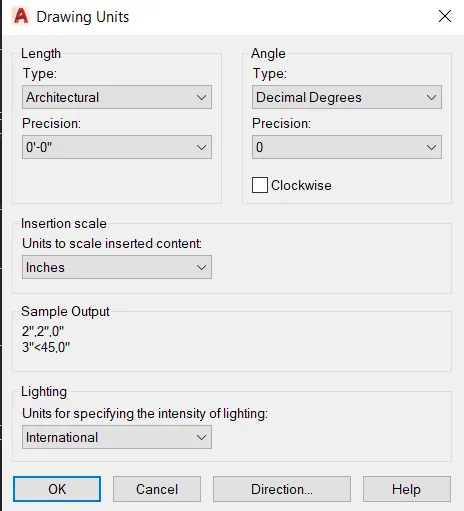

  • Select decimal in type,0 in precision and millimetres in units to scale inserted content.Press OK

  • Limits and limmax command is used
  • Zoom command is also used
  • Type a command line

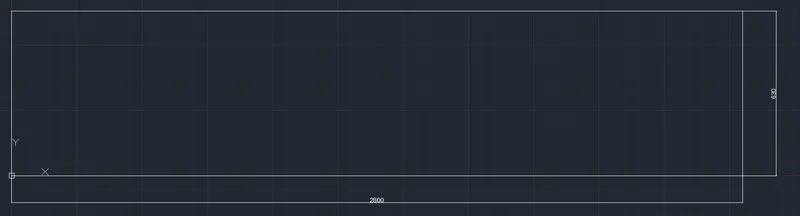

  • Specify first point:-0,0
  • Specify next point:-@2800,0
  • Specify next point:-@0,630
  • Specify next point:-@-2800,0
  • Specify next point:-@0,-630

  • Type a command offset
  • Specify offset distance:-12 horizontally from the line @2800,0
  • Specify offset distance:- 12 horizontally from the line @-2800,0
  • Specify offset distance:- 12 vertically from the line @0,-630
  • Press Escape
  • Type a command offset
  • Specify offset distance:- 12 horizontally from the line @2800,0
  • Specify offset distance:-12 horizontally from the line @-2800,0
  • Specify offset distance:-12 vertically from the line @0,-630
  • Press Escape
  • Type a command offset
  • Specify offset distance:-1223 vertically right from the last offset line 12
  • Specify offset distance:- 12 vertically from the last offset line 1223
  • Press Escape
  • Type a command offset
  • Specify offset distance:-1200 vertically left from the last offset line 12
  • Press Escape
  • Type a command trim. Trimmed the unwanted lines

  • Type a command offset
  • Specify offset distance:- 5
  • Type a command trim. Trimmed the unwanted lines
  • Type a command offset
  • Specify offset distance:- 612 vertically from the line @0,-630
  • Type a command offset
  • Specify offset distance:- 5 vertically from the last offset line 612
  • Press Escape
  • Type a command circle
  • Specify circle of radius:-51 mm
  • Create two arrows
  • Type a command trim. Trimmed the unwanted lines



  • Dimensions are marked by typing the command dimlinear

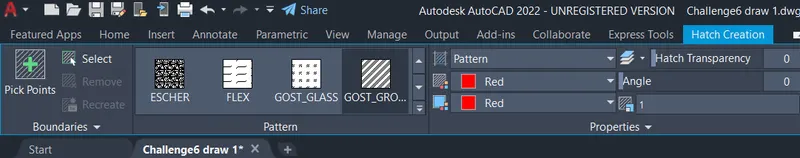

  • Type a command hatch
  • Select hatch pattern of Gost Ground
  • Type a command breakpoint
  • Select the lines for first and last point of the line
  • Pick the internal points and then select the pattern
  • Type a command dtext
  • Specify text height:-70
  • Specify rotation angle:-0
  • Type a command arc
  • Select the first and last point of the line to get the required arc

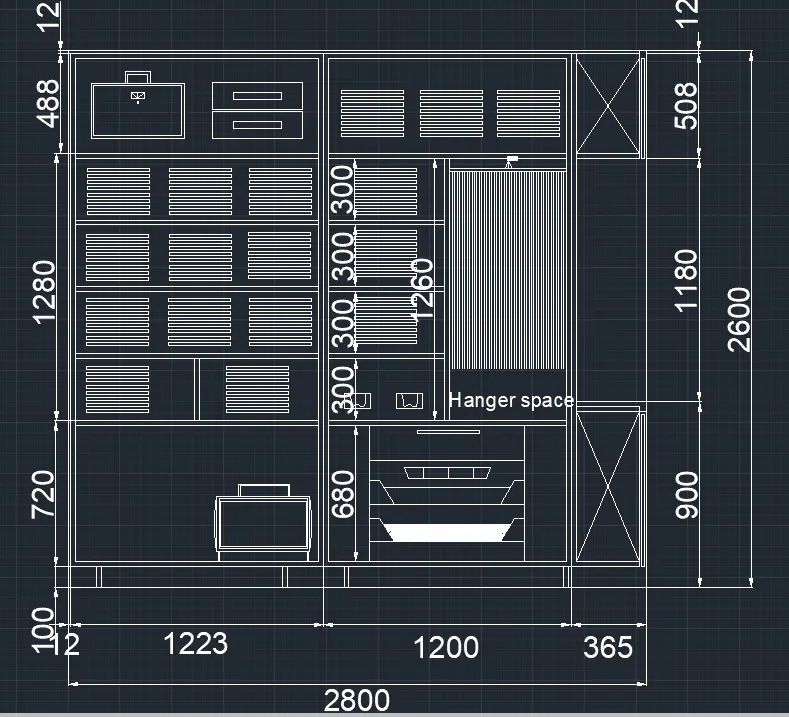

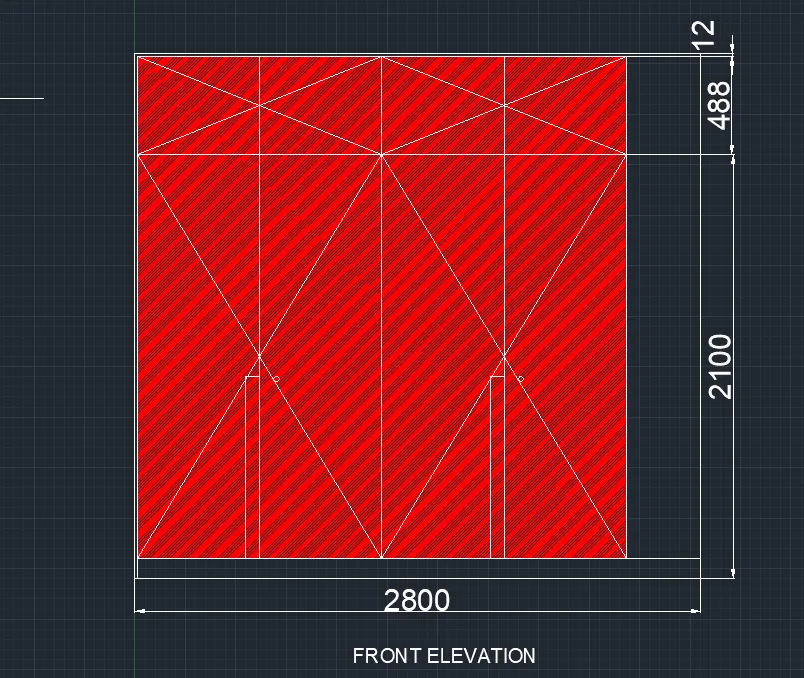

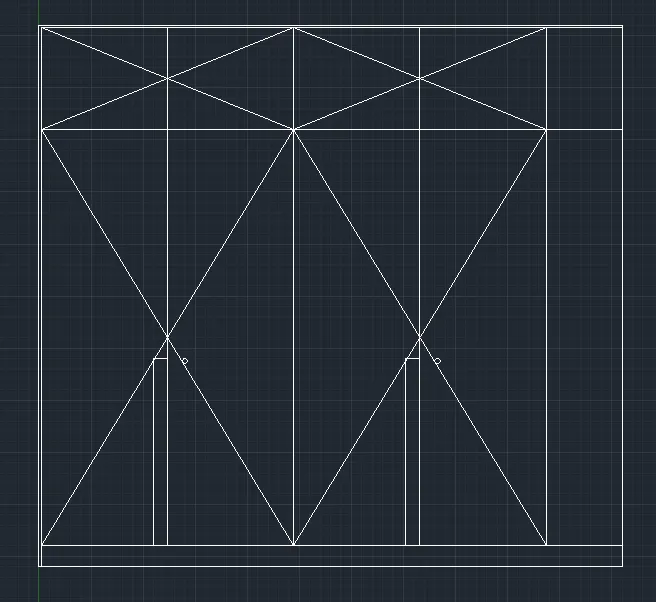

b) Front Elevation

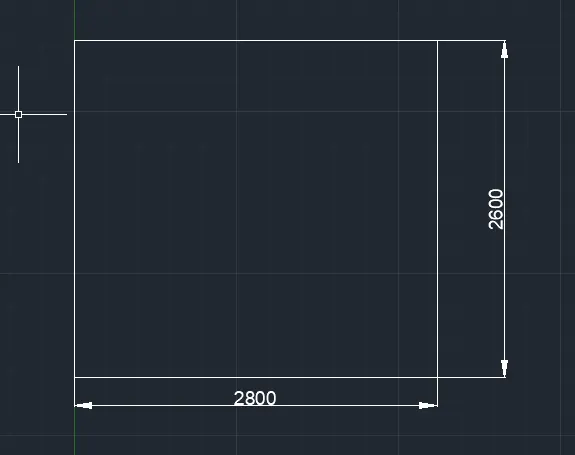

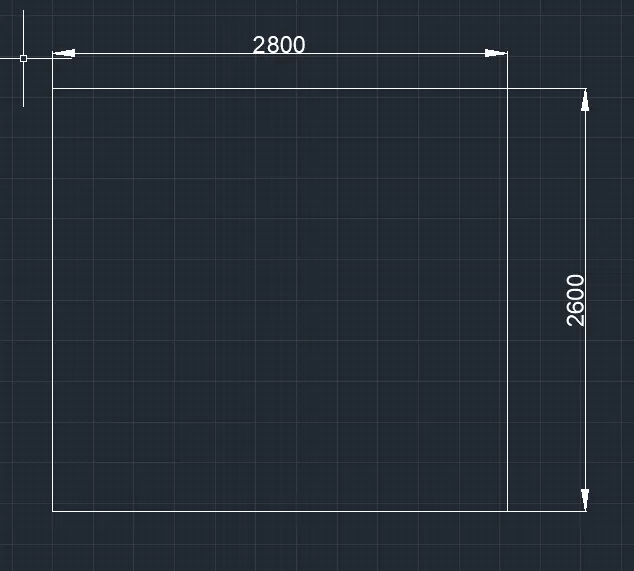

  • Type a command line
  • Specify the point:-0,1700
  • Specify next point:-@2800,0
  • Specify next point:-@0,2600
  • Specify next point:-@-2800,0
  • Specify next point:-@0,-2600

  • Type a command offset
  • Specify offset distance:-12 vertically from the line @0,-2600
  • Specify offset distance:- 12 vertically from the line @-2800,0
  • Press Escape
  • Type a command trim. Trimmed the unwanted lines
  • Type a command offset
  • Specify offset distance:- 365 vertically from the line @0,2600
  • Type a command offset
  • Specify offset distance:-605.75 vertically from the last offset line 12 for 4 consecutive steps
  • Press Escape
  • Type a command line. Joined the inclined lines
  • Type a command line
  • Specify the point:-@-70,0
  • Specify next point:-@0,900
  • Specify next point:-@70,0
  • Specify next point:-@0,-900
  • Type a command trim. Trimmed the unwanted lines
  • Type a command circle
  • Specify circle of radius:-14

  • Dimensions are marked by typing the command DIMLINEAR.
  • Select on the grip line.Move the dimension with text only
  • Type a command dtext
  • Specify text height:-70
  • Specify rotation angle:-0
  • Type a command hatch
  • Select hatch pattern of Gost Ground

  • Type a command breakpoint
  • Select the lines for first and last point of the line
  • Pick the internal points and then select the pattern

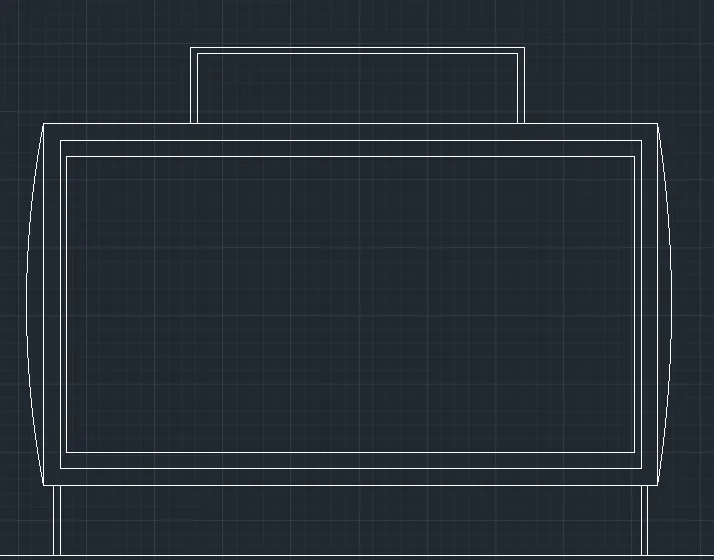

c) Car case Elevation

  • Type a command line
  • Specify the point:-4500,1700
  • Specify next point:-@2800,0
  • Specify next point:-@0,2600
  • Specify next point:-@-2800,0
  • Specify next point:-@0,-2600
  • Press Escape

  • Type a command offset
  • Specify offset line:- 12 vertically from the line @0,-2600
  • Specify offset distance:-12 horizontally from the line @-2800,0
  • Press Escape

  • Type a command offset
  • Specify offset distance:- 1223 vertically from the last offset line 12
  • Press Escape
  • Type a command offset
  • Specify offset distance:-24 vertically left and right from the last offset line 1223
  • Press Escape
  • Type a command offset:-1200 vertically right from the last offset line 1223
  • Press Escape
  • Type a command offset
  • Specify offset distance:-24 vertically right and left from the last offset line 1200
  • Press Escape
  • Type a command offset
  • Specify offset distance:-100 horizontally up from the last offset line @2800,0
  • Type a command offset
  • Specify offset distance:-24 horizontally up from the last offset line 100

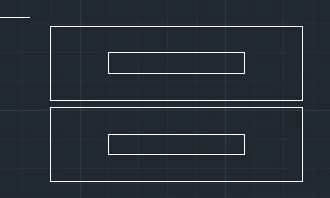

  • Type a command rectangle
  • Specify length and width of the rectangle:-450,265
  • Press Escape
  • Type a command offset
  • Specify offset distance:-12 on both the corners of the rectangle
  • Press Escape
  • Type a command rectangle
  • Specify length and width of the rectangle:-120,56
  • Press Escape

  • Type a command rectangle
  • Specify length and width of the rectangle:-435,128
  • Type a command rectangle
  • Specify length and width of the rectangle:-235,36
  • Press Escape
  • Copy and select the rectangle of same width and length

  • Type a command rectangle
  • Specify length and width of the rectangle:-300,15

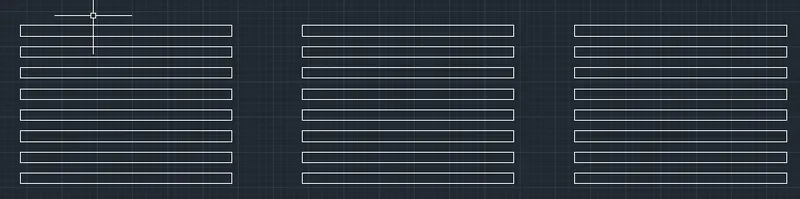

  • Type a command array
  • Select array of rectangular type
  • Specify the number of rows and columns for a rectangle

  • Similarly draw a rectangle of specified length and width
  • Draw a arc from the last and end point of the line
  • Press Escape
  • Type a command Mirror
  • Mirror and move it to the required destination
  • Press Escape
  • Dimensions are marked by typing the command DIMLINEAR.
  • Type a command dtext
  • Specify text height:-70
  • Specify rotation angle:-0

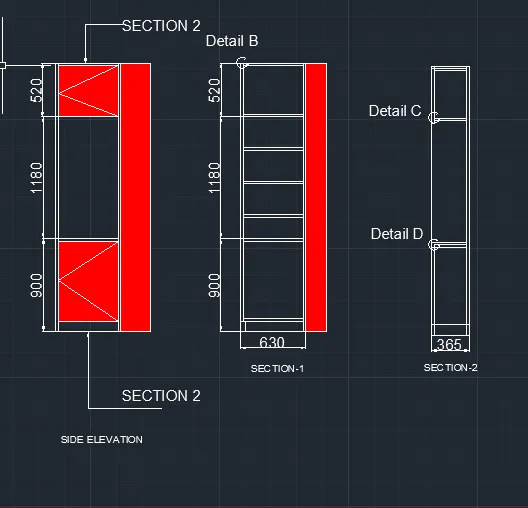

d) Side Elevation

  • Type a command line
  • Specify the point:-@630,0
  • Specify next point:-@0,2600
  • Specify next point:-@-630,0
  • Specify next point:-@0,-2600
  • Type a command offset
  • Specify offset distance:-12 vertically right from the line @0,-2600
  • Specify offset distance:-12 vertically left from the line @0,2600
  • Press Escape
  • Type a command offset
  • Specify offset distance:-100 horizontally up from the line @630,0
  • Type a command offset
  • Specify offset distance:-776 horizontally up from the last offset line 100
  • Press Escape
  • Type a command offset
  • Specify offset distance:-24 horizontally up from the last offset line 776
  • Press Escape
  • Type a command offset
  • Specify offset distance:-1180 horizontally up from the last offset line 24
  • Press Escape
  • Type a command offset
  • Specify offset distance:-496 horizontally up from the last offset line 1180
  • Press Escape
  • Type a command offset
  • Specify offset distance:-24 horizontally up from the last offset line 496
  • Press Escape
  • Type a command Trim
  • Trimmed the unwanted lines
  • Dimensions are marked by typing the command DIMLINEAR.
  • Type a command dtext
  • Specify text height:-70
  • Specify rotation angle:-0
  • Type a command hatch
  • Select hatch pattern of Gost Ground
  • Type a command breakpoint
  • Select the lines for first and last point of the line
  • Pick the internal points and then select the pattern

RESULT:- Elevation and details of wardrobe are created by using AutoCAD 2022

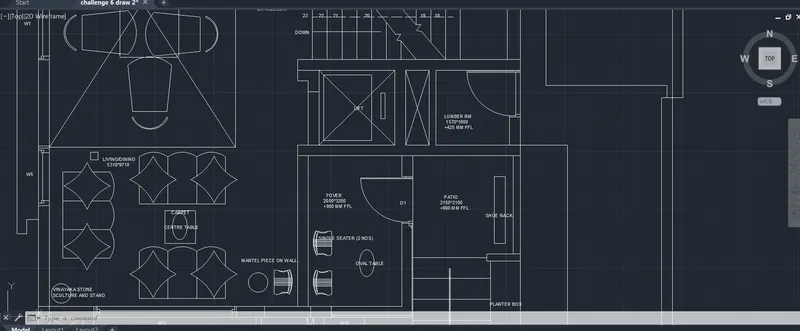

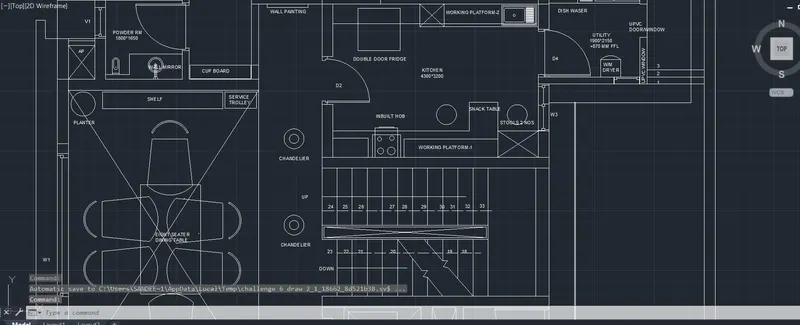

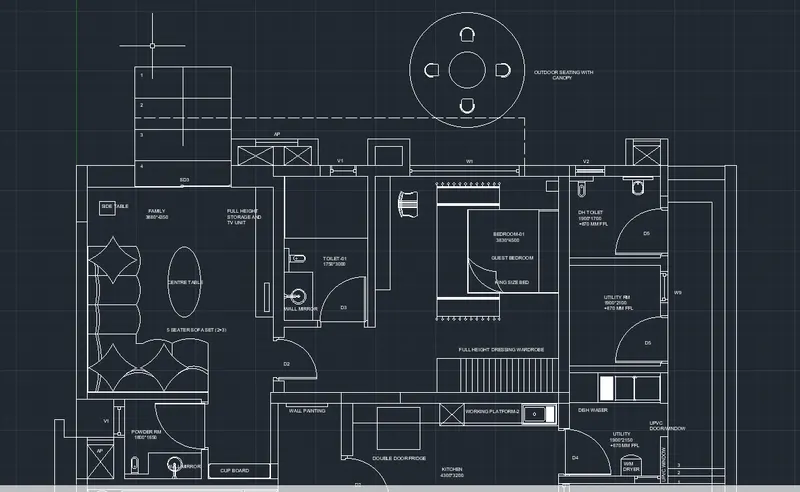

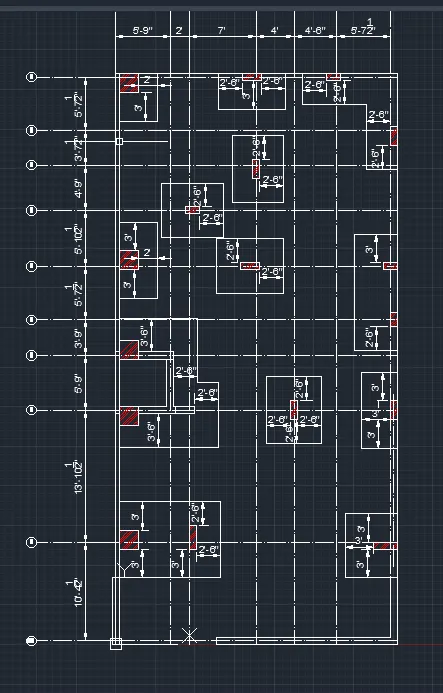

2.AIM:-To draw the floor plan with the use of AutoCAD 2022

INTRODUCTION:- Details of floor plan are created by using the commands such as line,offset etc

PROCEDURE:-

  • Open the AutoCAD 2022 software
  • Enter units in command box
  • Select decimal in type,0 in precision and millimetres in units to scale inserted content.Press OK

  • Limits and limmax command is used
  • Zoom command is also used
  • Type a command line
  • Specify first point:-0,0
  • Specify next point:- @13550,0
  • Specify next point:-@0,17172
  • Specify next point:-@-13550,0
  • Specify next point:-@0,-17172
  • Type a command offset
  • Specify offset distance:- 230 horizontally up from the last  line @13550,0
  • Specify offset distance:- 230 vertically right from the line @0,-17172
  • Press Escape
  • Type a command offset
  • Specify offset distance:-460 vertically left from the line @0,17172
  • Press Escape
  • Type a command offset
  • Specify offset distance:-460 horizontally down from the line @-13550,0
  • Press Escape
  • Type a command Trim. Trimmed the unwanted lines
  • Press Escape

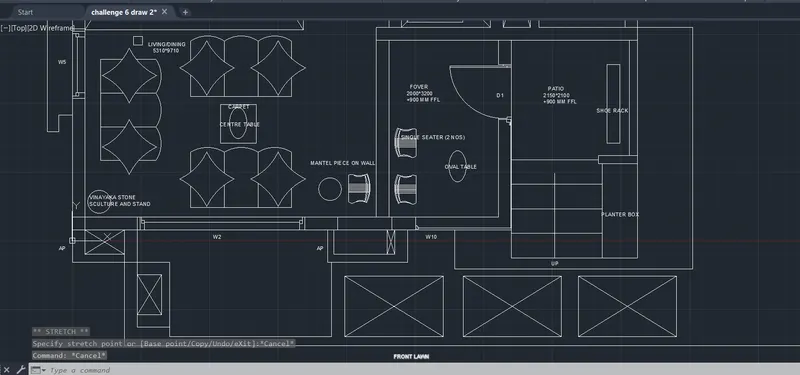

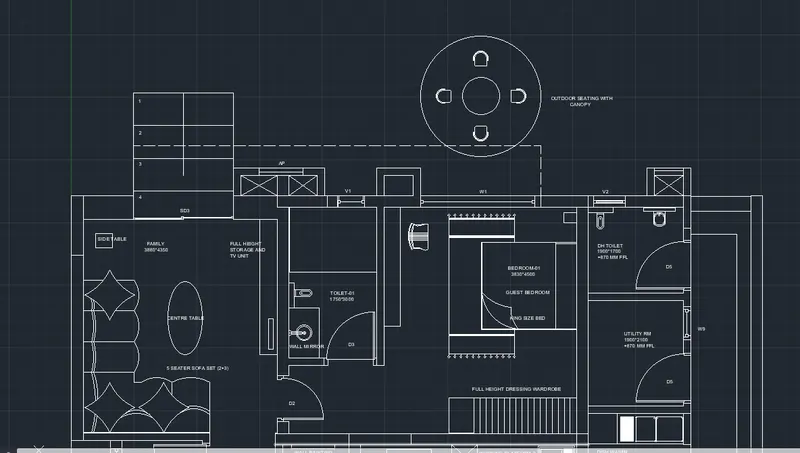

  • Draw a family room,toilet room etc of specified sizes are been drawn with the use of specified given dimension and with a given set of commands such as line,offset,arc etc

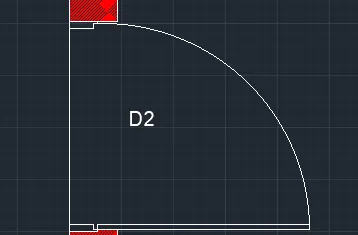

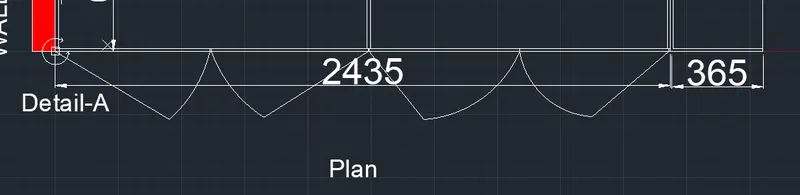

  • Doors are been created with the use of commands such as trim, extend,offset,line and circle

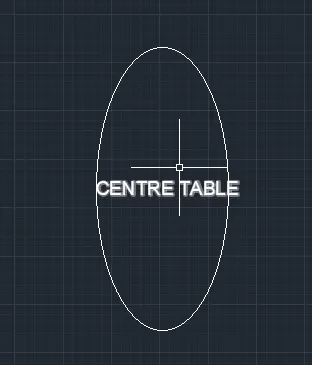

  • Center table have been created with the use of commands such as ellipse

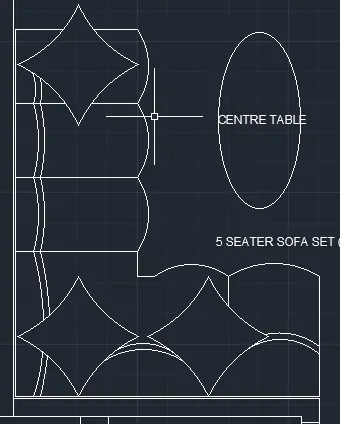

  • Sofa set have been created with the use of commands such as arc,line,offset,extend,trim etc

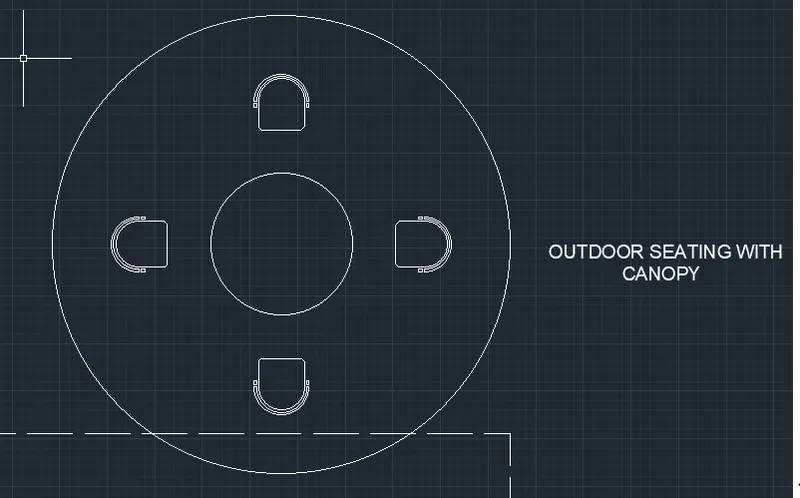

  • Outdoor canopy have been created with the use of commands such as circle,arc,line,offset etc

  • Type a command dtext
  • Specify text height:-70
  • Specify rotation angle:-0

RESULT:- Floor details of given floor are created by AutoCAD 2022

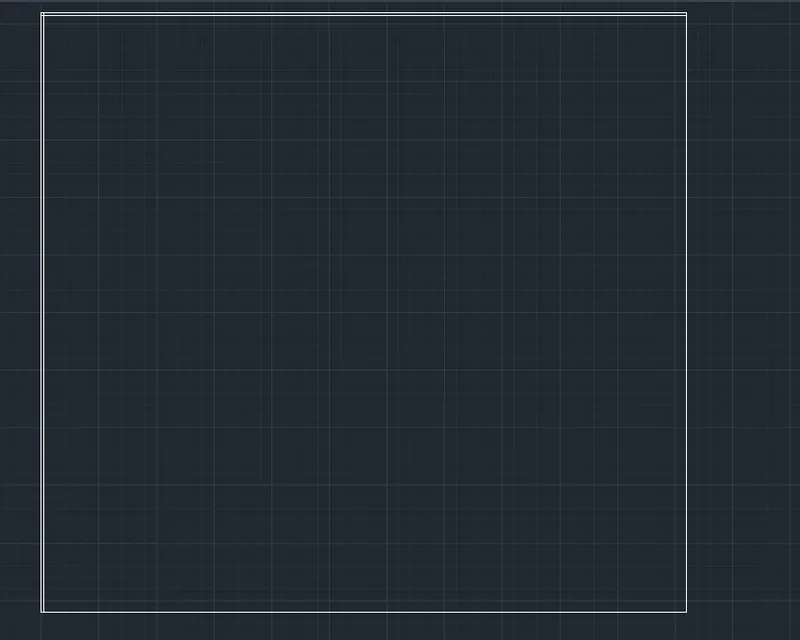

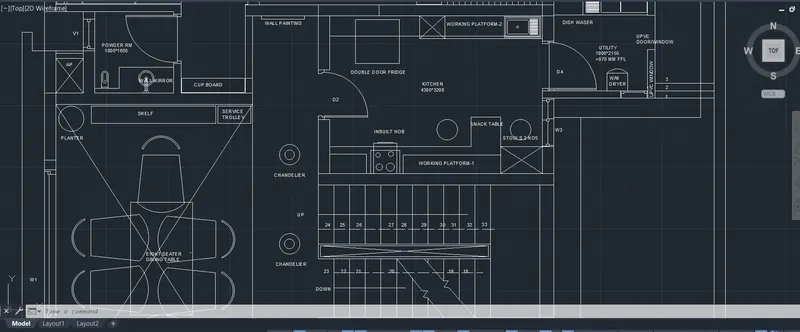

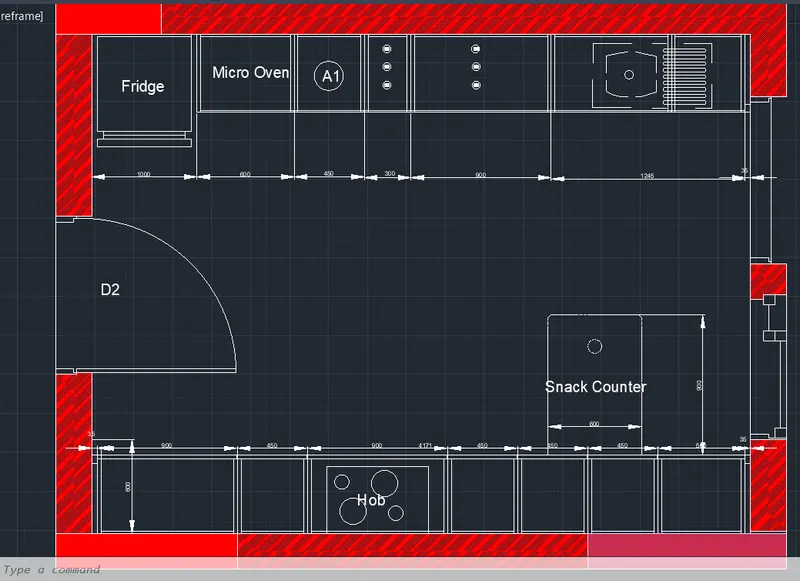

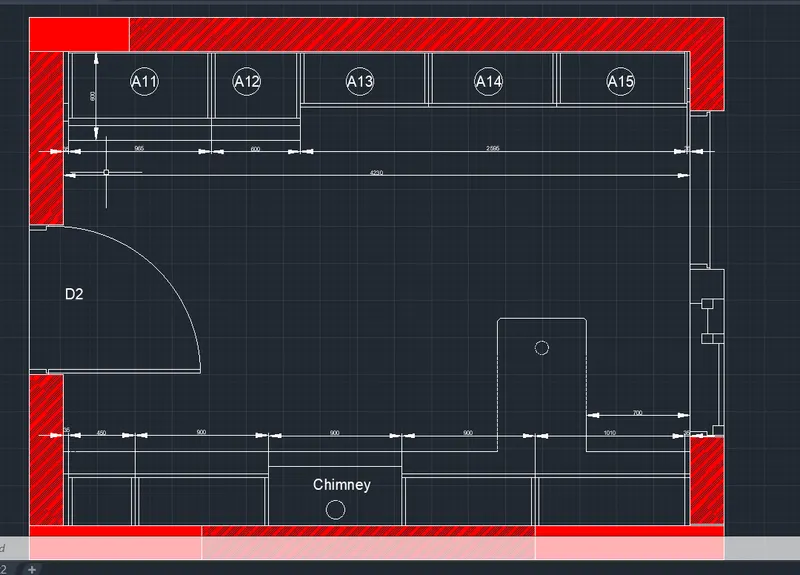

3. AIM:-To create the kitchen layout with the use of AutoCAD 2022

INTRODUCTION:- Details of kitchen layout are created by using the commands such as line,offset etc

PROCEDURE:-

  • Open the AutoCAD 2022 software
  • Type a command QNEW to save the file
  • Enter units in command box
  • Select decimal in type,0 in precision and millimetres in units to scale inserted content.Press OK

  • Limits and limmax command is used'
  • Zoom command is also used
  • Type a command line
  • Specify first point:-0,0
  • Specify next point:-@4690,0
  • Specify next point:-@0,3660
  • Specify next point:@-4690,0
  • Specify next point:-@0,-3660
  • Type a command offset
  • Specify offset distance:-230 on both the corners of the rectangle

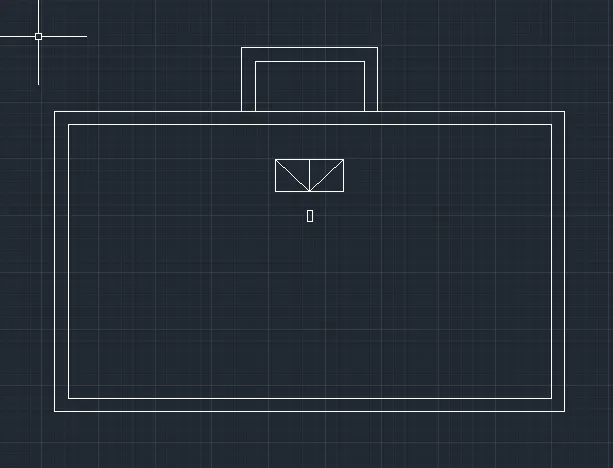

  • Doors are been created with the use of commands such as trim, extend,offset,line and circle

  •  Draw a fridge, microoven etc has to be drawn with the given specified dimensions and with the set of commands such as line.offset,trim etc

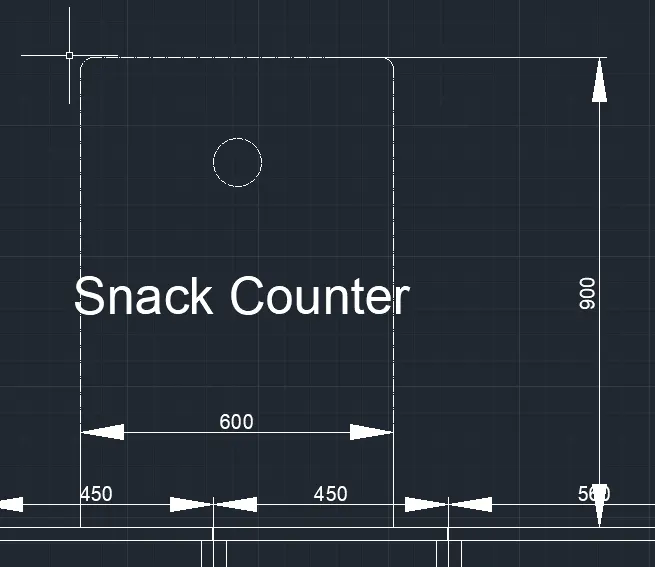

  • Snack counter can be created with the use of commands such as fillet,line,trim etc

  • Dimensions are marked by typing the command DIMLINEAR.
  • Select on the grip line.Move the dimension with text only
  • Type a command dtext
  • Specify text height:-70
  • Specify rotation angle:-0
  • Type a command hatch
  • Select hatch pattern of Gost Ground

  • Type a command breakpoint
  • Select the lines for first and last point of the line
  • Pick the internal points and then select the pattern

RESULT:-Kitchen details of given floor are created by AutoCAD 2022

4.AIM:-To draw the column schedule with the use of AutoCAD 2022

INTRODUCTION:-Details of column schedule are created by using the commands such as line,offset etc

PROCEDURE:-

  • Open the AutoCAD 2022 software
  • Type a command QNEW to save the file
  • Enter units in command box
  • Select decimal in type,0 in precision and millimetres in units to scale inserted content.Press OK

  • Type a command line
  • Specify first point
  • Specify next point:-@1352,0
  • Specify next point:-@0,1466
  • Specify next point:-@-1352,0
  • Specify next point:-@0,-1466
  • Type a command offset
  • Specify offset distance:- 366 from the line @1352,0
  • Type a command trim.Trimmed the unwanted lines
  • Type a command offset
  • Specify offset distance:- 367 from the last offset line 366 in three consecutive steps
  • Type a command trim.Trimmed the unwanted lines

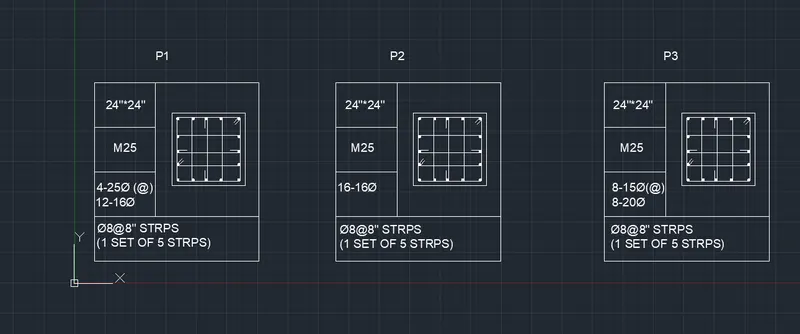

  • To draw a column type a column line of  depth and width 600
  • Type a command offset
  • Specify offset distance:-40 on both the corners of the column
  • Type a command circle
  • Specify circle of radius:-10
  • Type a command copy and move it to the required destination
  • Type a command and trimmed the unwanted lines
  • Dimensions are marked by typing the command DIMLINEAR.
  • Select on the grip line.Move the dimension with text only
  • Type a command dtext
  • Specify text height:-70
  • Specify rotation angle:-0
  • Type a command hatch
  • Select hatch pattern of Gost Ground
  • Dimensions are marked by typing the command DIMLINEAR.
  • Select on the grip line.Move the dimension with text only
  • Type a command dtext
  • Specify text height:-70
  • Specify rotation angle:-0



RESULT:-Column details of given floor are created by AutoCAD 2022







  •

5.AIM:- To draw the raft footing details with the use of AutoCAD 2022

INTRODUCTION:-Details of footing details are created by using the commands such as line,offset etc

PROCEDURE:-

  • Open the AutoCAD 2022 software
  • Type a command QNEW to save the file
  • Enter units in command boX
  • Select decimal in type,0 in precision and millimetres in units to scale inserted content.Press OK

  • Type a command line
  • Specify first point:-0,0
  • Specify next point:-@29'7 1/2",0
  • Specify next point:-@0,60'
  • Specify next point:-@-29'7 1/2",0
  • Specify next point:-close
  • Type a command offset
  • Specify offset distance:-9" for exterior wall
  • Specify offset distance:-4.5" for interior wall
  • Draw a footing of specified size with the required dimension
  • Type a centerline of required given linetype ACAD_ISO04W100
  • Dimensions are marked by typing the command DIMLINEAR.
  • Select on the grip line.Move the dimension with text only
  • Select annotate of type 1:1

RESULT:-Raft footing details of given floor are created by AutoCAD 2022



Leave a comment

Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

Please  login to add a comment

Other comments...

No comments yet!
Be the first to add a comment

Read more Projects by Sandeep Ghosh (41)

Week 1 Challenge

Objective:

1. 1. Write the steps involved to upload a .std file through web mail?    2. Name the different materials that can be designed using STAAD Pro.    3. Is it possible to capture images in STAAD Pro? If yes how?    4. Name the three ways by which you can create a model.    5. Write…

calendar

19 Dec 2022 05:41 PM IST

    Read more

    Foundation Design using SAFE

    Objective:

    1.Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations. AIM:-  To model the isolated footing by using  SAFE and to analyze and to design it to verify the size, depth and calculation of steel provided INTRODUCTION:-…

    calendar

    14 Oct 2022 03:42 AM IST

      Read more

      Design of Shallow Foundation (Isolated Footings)

      Objective:

      1. Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 meters below E.G.L. Participants are free to go for either a tapered or stepped footing. Besides the total axial load,…

      calendar

      08 Oct 2022 06:08 PM IST

        Read more

        Structural Modelling using Etabs 2018

        Objective:

        ` 1. The architectural drawings for a G+7 residential building in zone 5 has been provided. The floor plan is the same for all 7 floor levels. Possible column positions have also been provided. Conceptualize a framing plan layout and then model the building in Etabs. The following architectural drawings have been provided:…

        calendar

        06 Oct 2022 11:13 AM IST

        • ETABS
        Read more

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        Related Courses

        coursecardcoursetype

        Post Graduate Program in CFD Solver Development

        4.8

        119 Hours of Content

        coursecard

        Introduction to OpenFOAM Development

        4.9

        18 Hours of Content

        coursecardcoursetype

        Post Graduate Program in Battery Technology for Mechanical Engineers

        4.8

        81 Hours of Content

        coursecard

        Introduction to Battery Technology for Electric Vehicle

        4.8

        22 Hours of Content

        coursecardcoursetype

        Post Graduate Program in Automation & Pre-Processing for FEA & CFD Analysis

        4.7

        81 Hours of Content

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        logo

        Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

        https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

        Our Company

        News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
        map
        EpowerX Learning Technologies Pvt Ltd.
        4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
        mail
        info@skill-lync.com
        mail
        ITgrievance@skill-lync.com

        Top Individual Courses

        Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

        Top PG Programs

        Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

        Skill-Lync Plus

        Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

        Trending Blogs

        How to Learn CAD Design: Step-by-Step GuideGD&T Basics: How to Read and Apply GD&T Symbols SolidWorks vs Creo: Best CAD Software to Learn for Mechanical Engineers Engineering Edtech in India: Busting Myths & Building Careers How to Get a Core Mechanical Engineering Job After Graduation

        © 2025 Skill-Lync Inc. All Rights Reserved.

                    Do You Want To Showcase Your Technical Skills?
                    Sign-Up for our projects.
