Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

AIM:

To Create a layout of the plan and section A of the project in challenges 7 .

PROCEDURE:

In the command prompt type units > mm> decimal
In the command prompt type limax >100,100
In the command prompt type limits>

In the command prompt type layout > template>Tutorial arch .m

In the command prompt type Ms to specify the center of the plot
Then click on the title box to edit the title

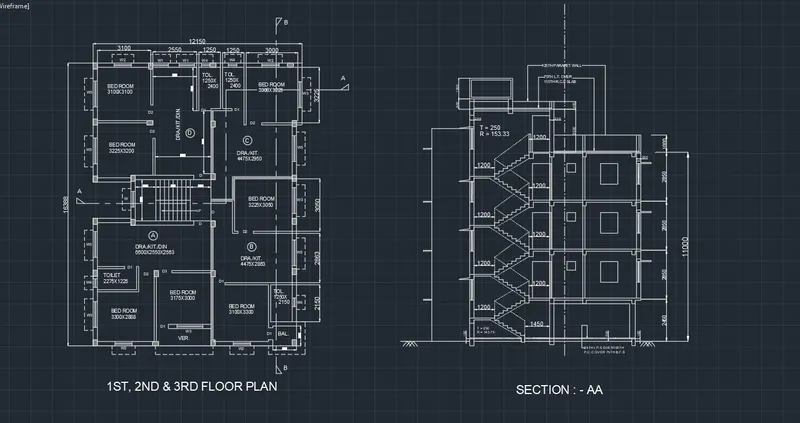

In the command prompt type Mv to add the view

In the command prompt type ctrl +p to plot it

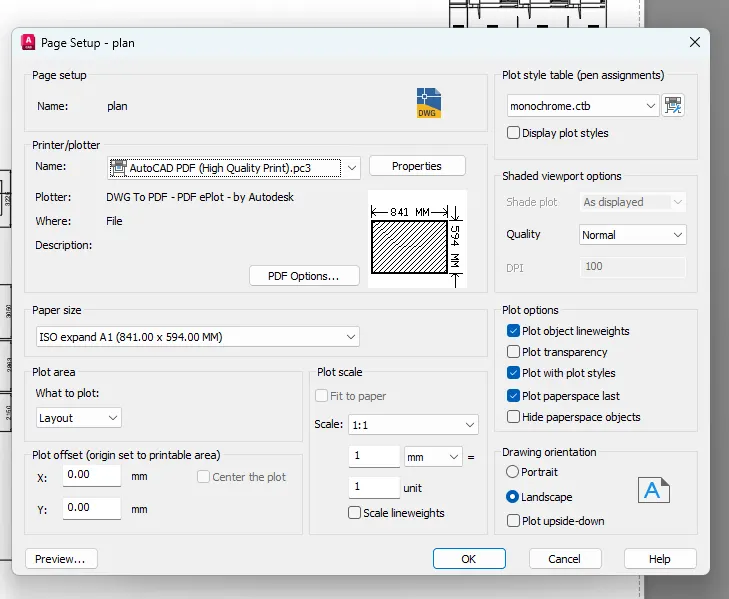

In the command prompt type page setup manager.

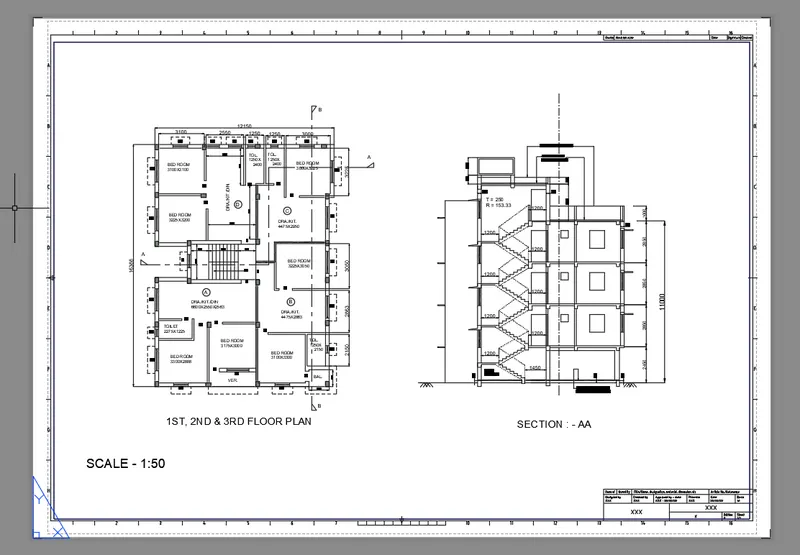

FINAL RESULT:

2) Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the
Figure. Use the A4 Size page for the layout. Take a plot.

AIM:

To create the layout of the kitchen drawn in challenge 9 . Use an A4 size page for the layout and take a plot

PROCEDURE:

In the command prompt type ps and ms to adjust the view

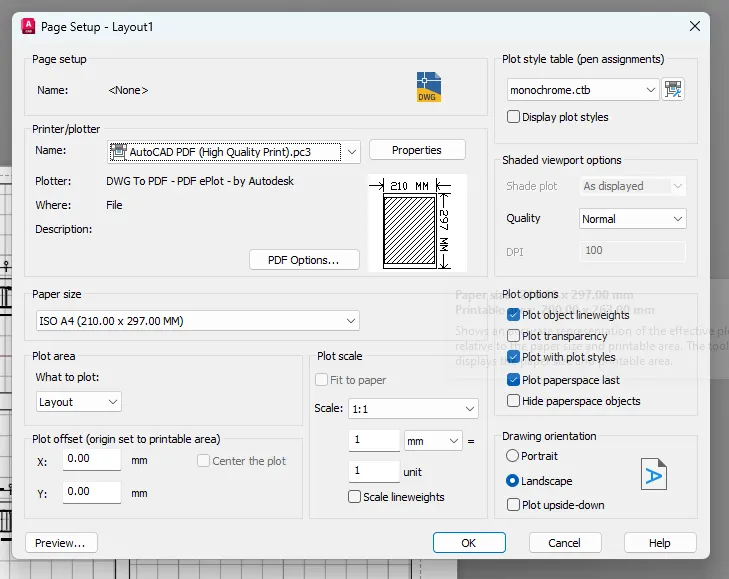

In the command prompt type page setup to make the size A4 change
Click on the arrow mark to change the view

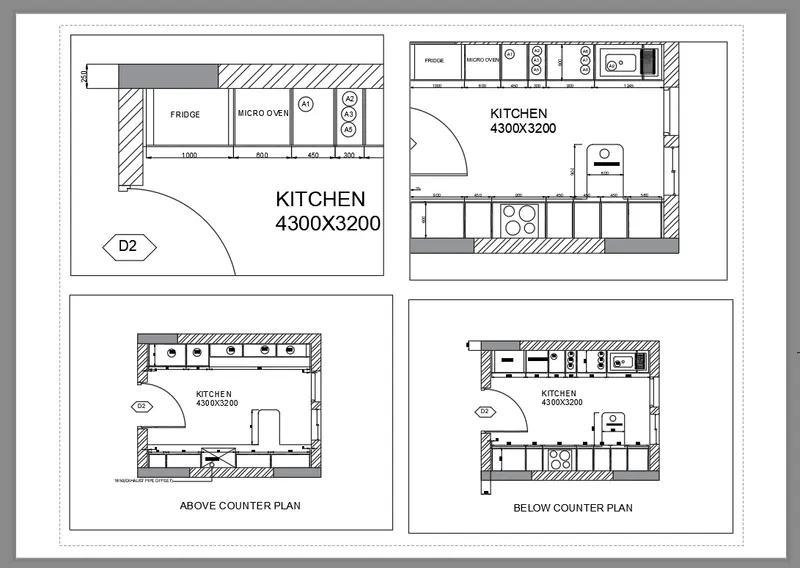

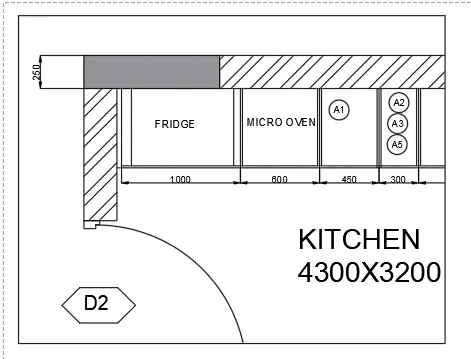

Set the images one by one on the A4 sheet by using layout option at the top and zoon in the images by using MS command.

FINAL RESULT:

3. Create a layout of the section created in Challenge 9. Use the scale as mentioned in the Figure. Use the MV command to create multiple viewports. Take a plot.

AIM:

To Create a layout of the section created in challenges 9

PROCEDURE:

Open the file in which challenge 9 is created
go to the layout in the command prompt type MV
change the scale accordingly scale
in the command prompt using Ms and ps adjust the view accordingly

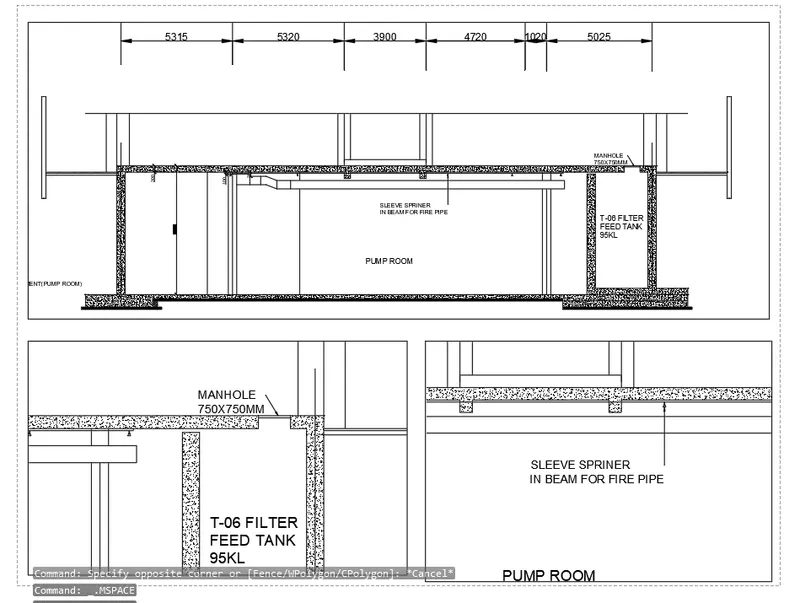

FINAL RESULT:
