Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1)

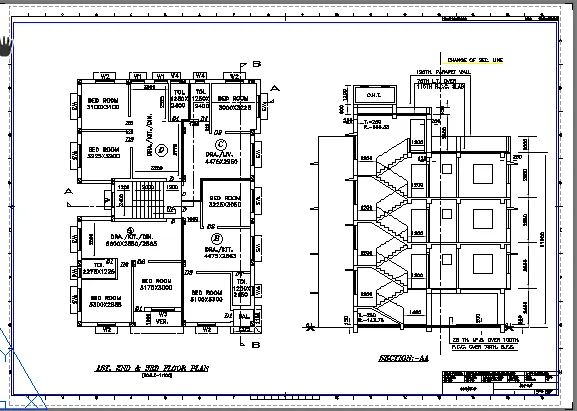

Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-
mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for
the layout. Take a plot.

• AIM:

      To Create a layout of the plan and section A of the project in challenges 7 .

    PROCEDURE:

•  In the command prompt type units > mm> decimal
• In the command prompt type limax >100,100
• In the command prompt type limits>0,0

• In the command prompt type layout > template>Tutorial arch .m

• In the command prompt type Ms to specify the centre of the plot

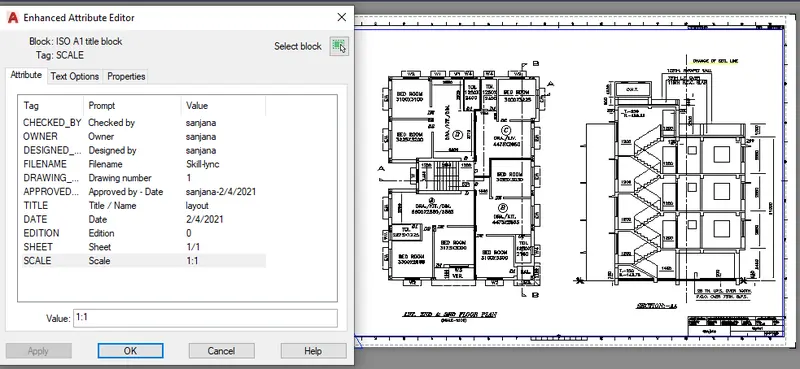

• Then click on the tittle box to edit the tiitle
• In the command prompt type Mv to add the view

• In the command prompt type ctrl +p to plot it

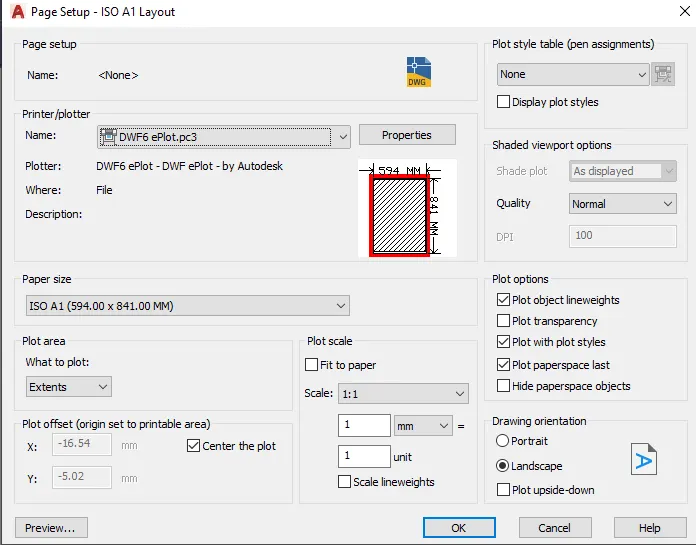

• In the command prompt type pagesetup

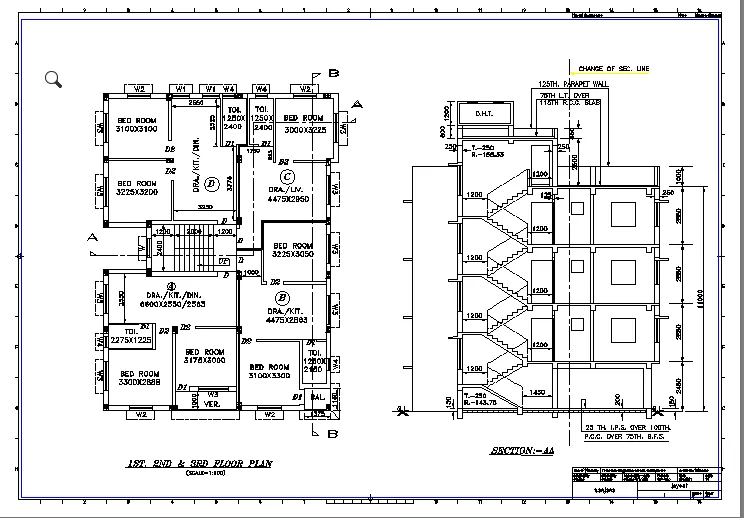

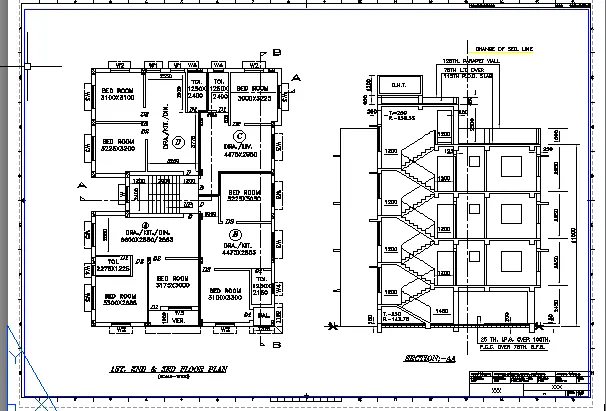

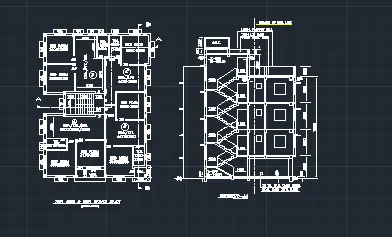

 Final result :

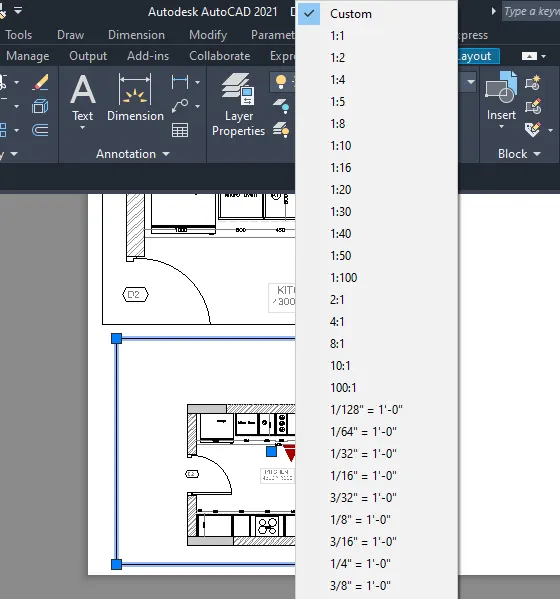

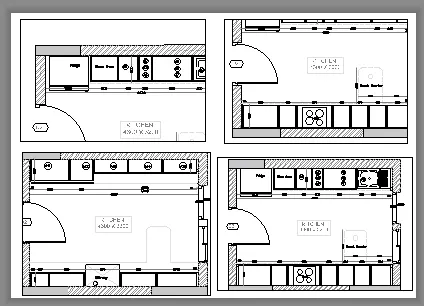

2) Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the
Figure. Use A4 Size page for the layout. Take a plot.

• AIM:

To create layout of the kitchen drawn in challenge 9 . Use A4 size page for the layout  and take a plot

• PROCEDURE:

• In the command prompt type ps and ms to adjust the view

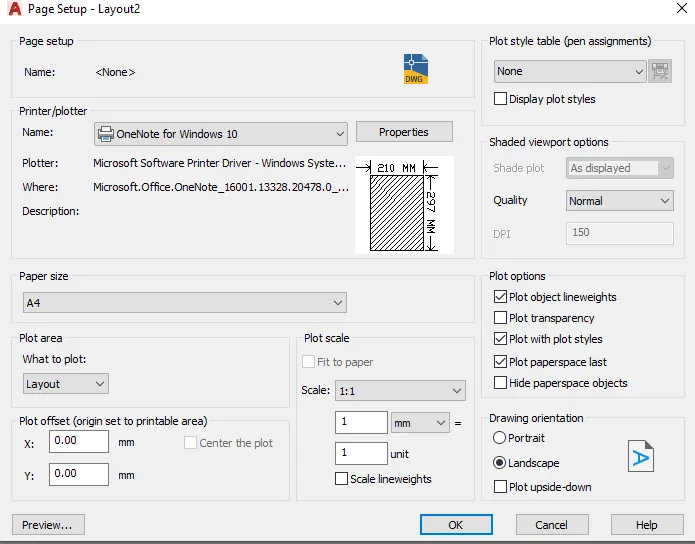

• In the command prompt type pagesetup to make the size to A4 change
• Click on the arrow mark to change the view

FINAL RESULT:

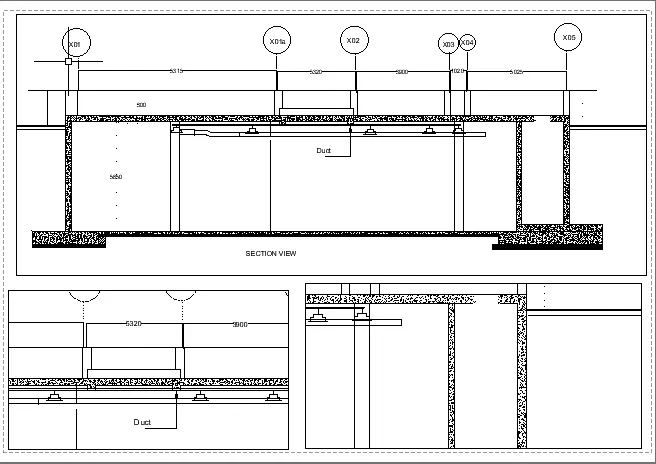

3. Create a layout of the section created in Challenges 9.Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

• AIM:

To Create  layout of the section created in challenges 9

• PROCEDURE:

• Open the file in which challenge 9 is created
• go to layout in the command prompt type MV
• change the scale accordingly scale
• in the command prompt using Ms and ps adjust the view accordingly

• RESULT:
