  3. Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

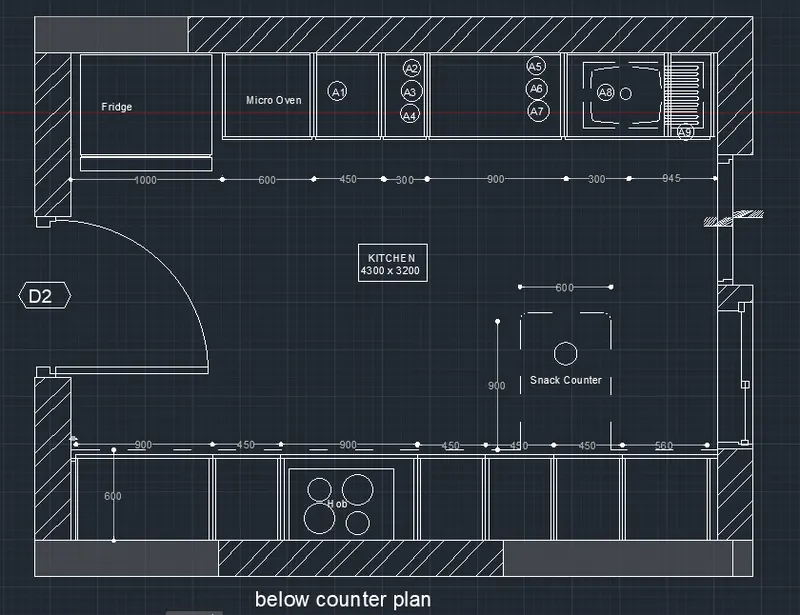

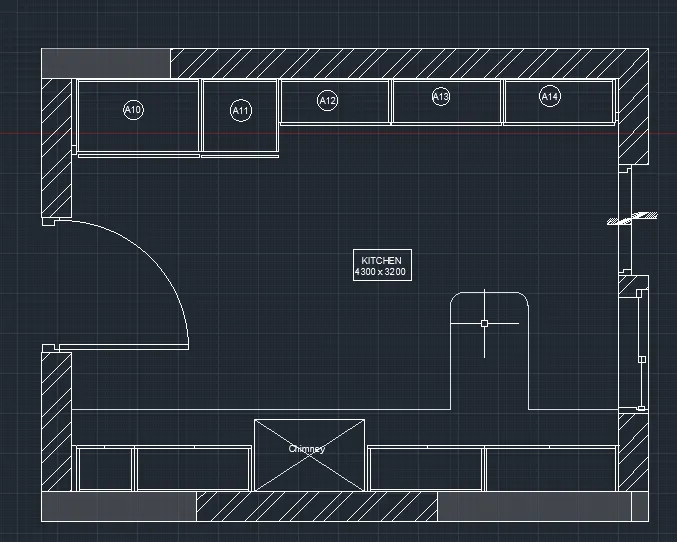

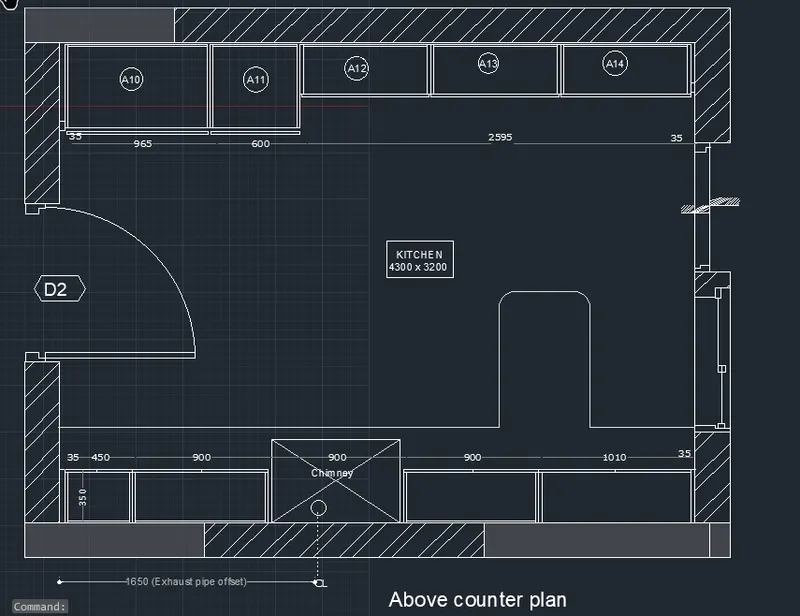

Aim:         To Create the Kitchen Layout and to  Also, use proper dimension techniques to dimension the kitchen               layout. Also, insert text wherever required. All dimensions are in mm.       Procedure: step 1: units are set to mm limits and limax are also set  zoom comand is also used  Step 2: In the command…

    • Md Sameer

      updated on 21 Sep 2022

    • Aim:

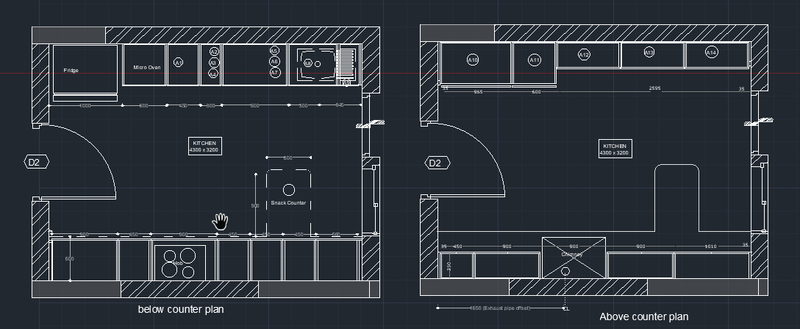

            To Create the Kitchen Layout and to  Also, use proper dimension techniques to dimension the kitchen               layout. Also, insert text wherever required. All dimensions are in mm.

          Procedure:

    • step 1:
    • units are set to mm
    • limits and limax are also set
    • zoom comand is also used
    • Step 2:

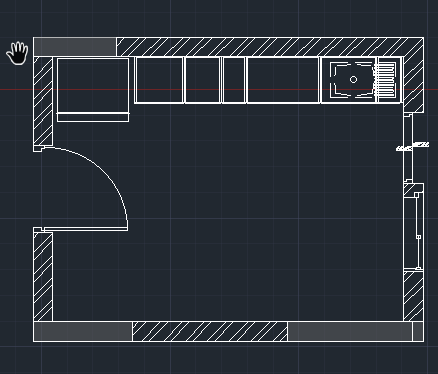

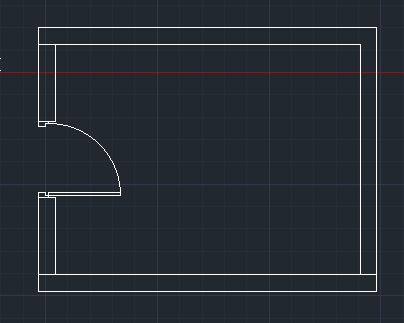

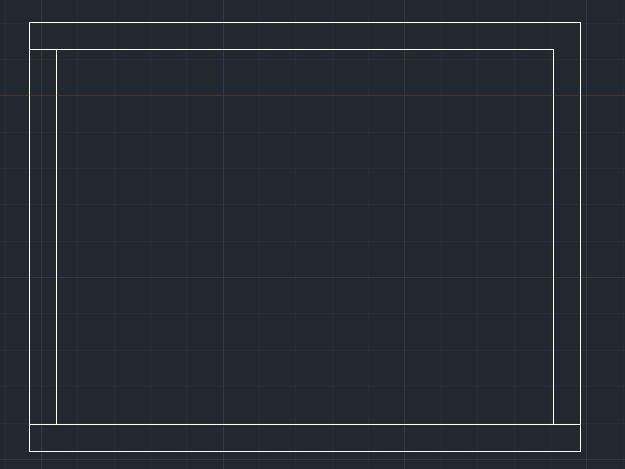

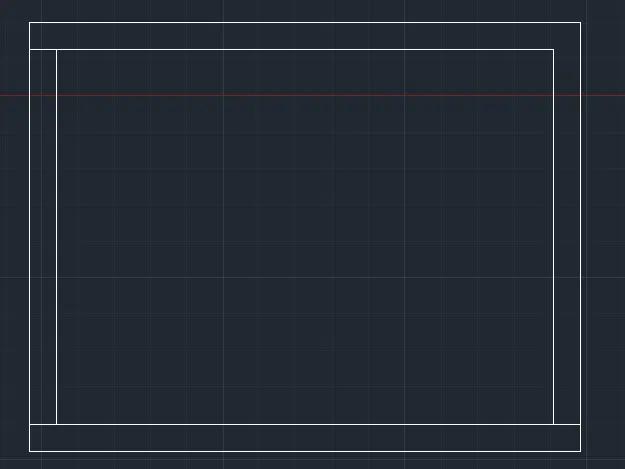

    • In the command prompt type rec and the dimensions are 4734 x 3688 mm

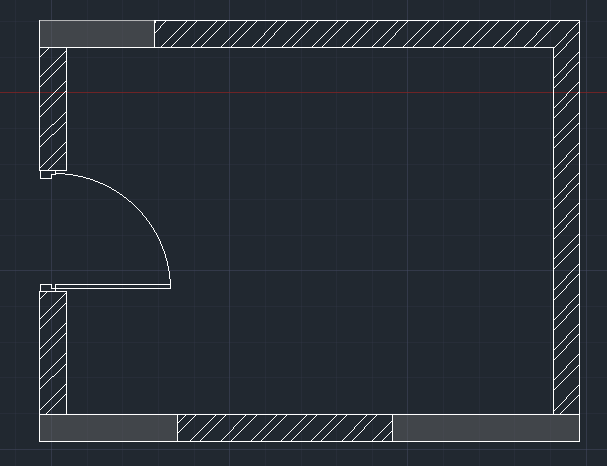

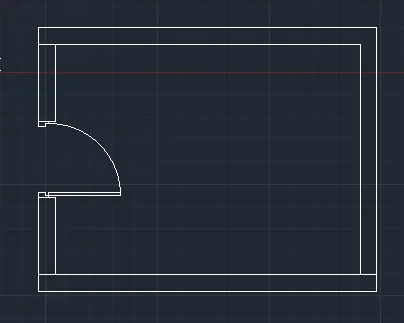

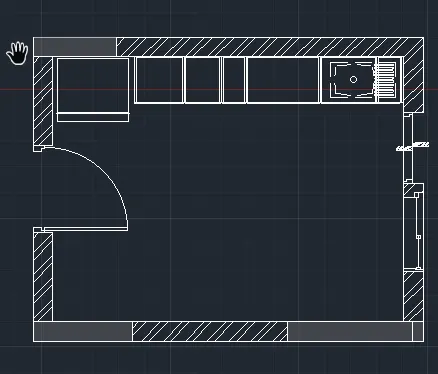

      In the command prompt type offset and offset it to the distance of 230mm

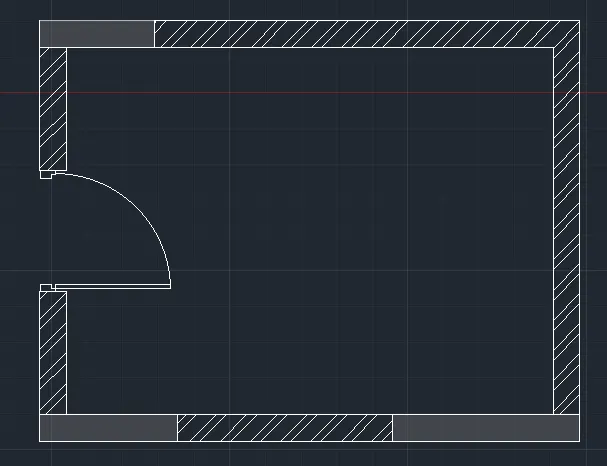

      Using arc and lines the door is drawn

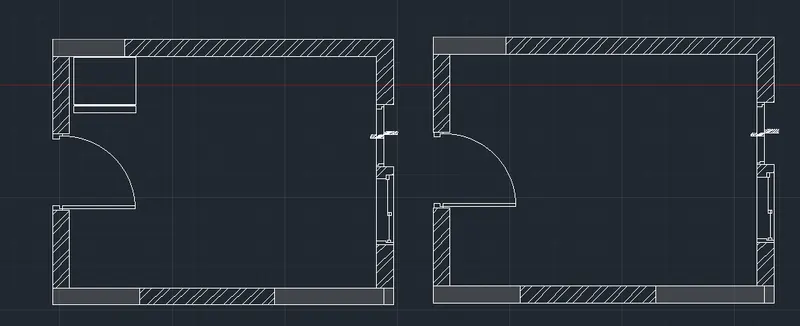

      In the command prompt type hatch to hatch the model

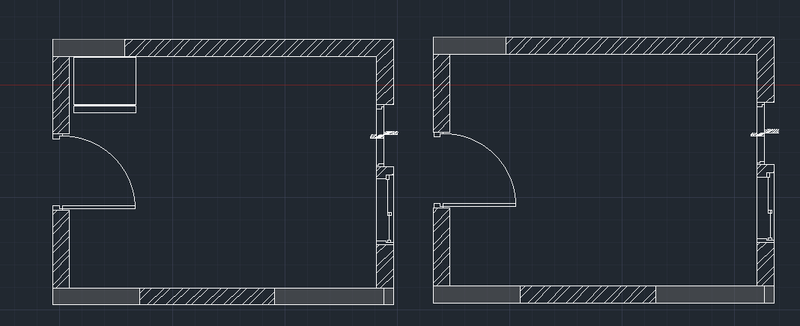

      In the command prompt type rec > dimensions , to do the fridge
      In the command prompt type offset and offset it to the desired distace to get the Micro Oven
      In the command prompt type trim to trim the extras
      In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560
      In the command prompt type offset and offset it to the vertical distance of 600
      In the command prompt type trim to trim the extras

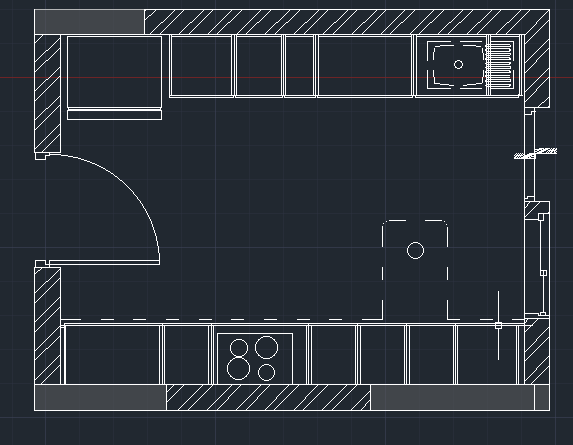

      In the command prompt type line type and load the dotted lines
      In the command prompt type text to text the given annotations

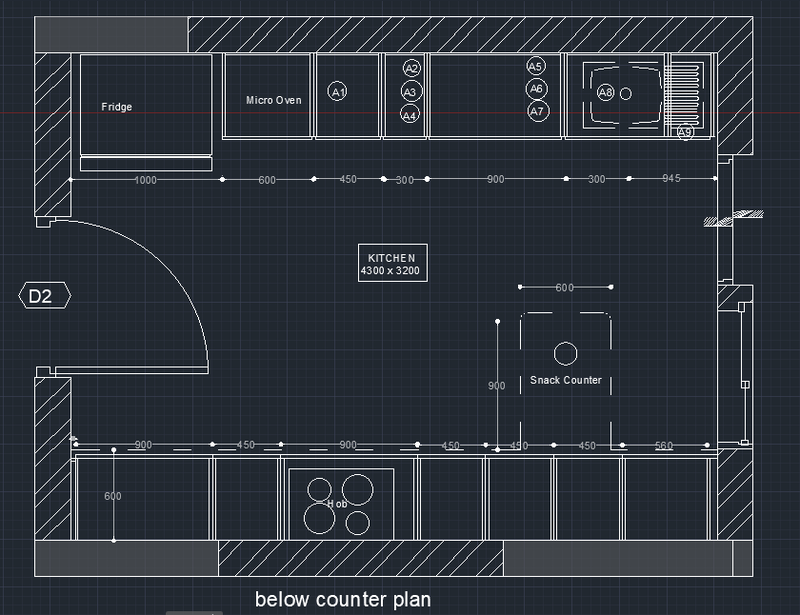

      In the command prompt type dimensions to given the dimensions to your plan
      In the command prompt even the leader command is used to name the dimensions

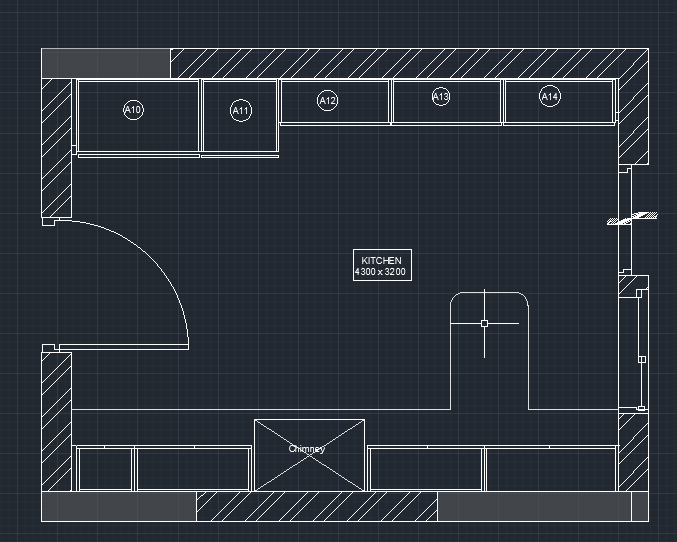

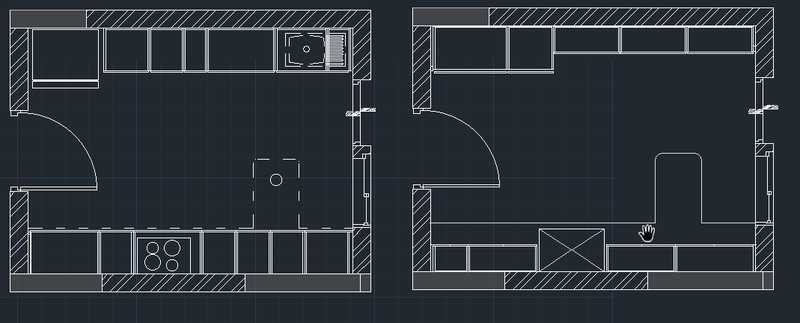

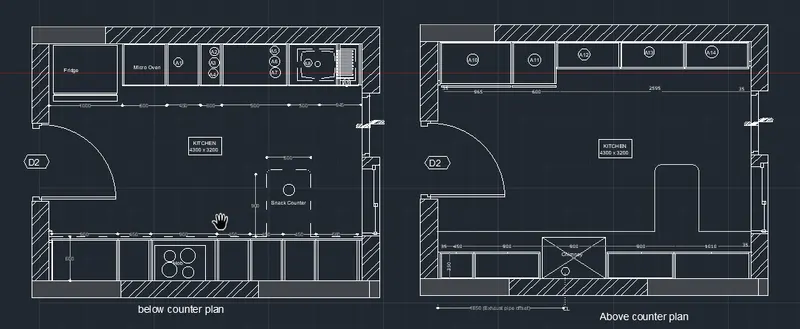

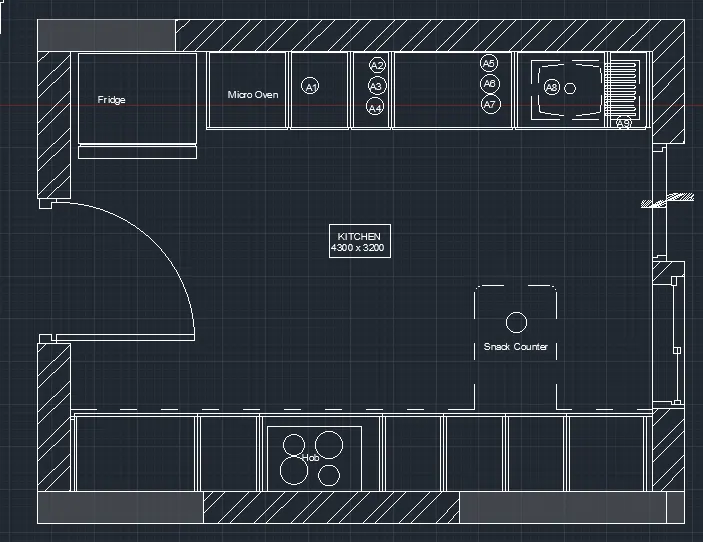

    FINAL RESULT :

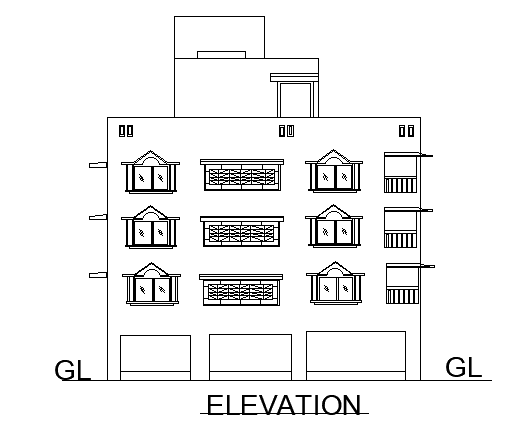

    2. Create the elevation of the plan created in the Challenges 7 and apply proper hatch in the walls, doors,
    windows, and other architectural elements. Refer to the dimensions in Plans and sections in Challenges 7.
    Refer to the elevation that needed to be created.

    • AIM:

    To create the elevation of the plan with hatch

    PROCEDURE:

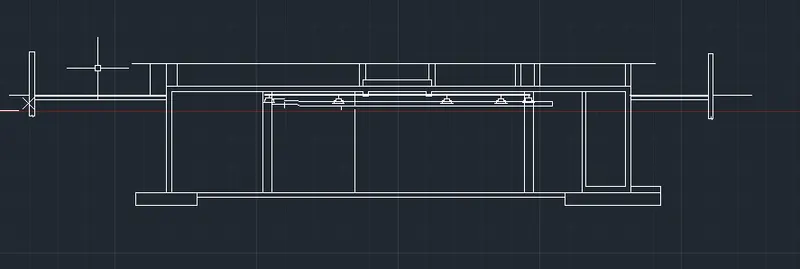

    • In the command prompt type l to draw the lines
    • In the command prompt type rec to draw the rectangle
    • In the command prompt type arc to draw the arc
    • Therefore, the window is created

    • In the command prompt type l to draw the lines
    • In the command prompt type rec to draw the rectangle

    • In the command prompt type l to draw the lines
    • In the command prompt type rec to draw the rectangle

    •  In the command prompt type rec to draw the rectangles

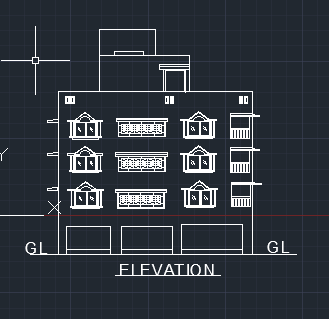

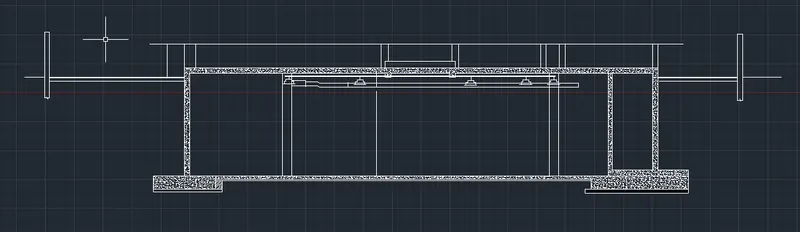

    FINAL RESULT:

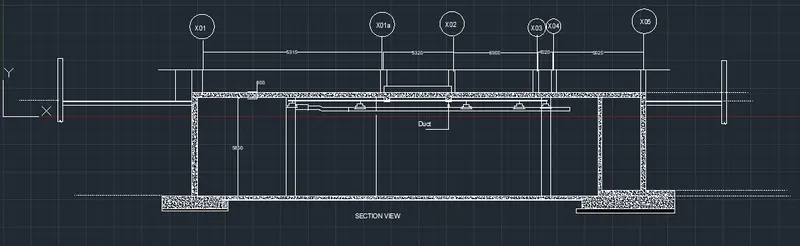

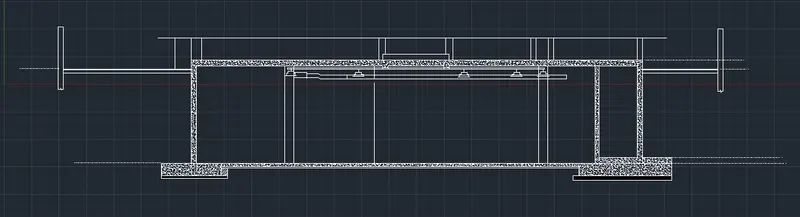

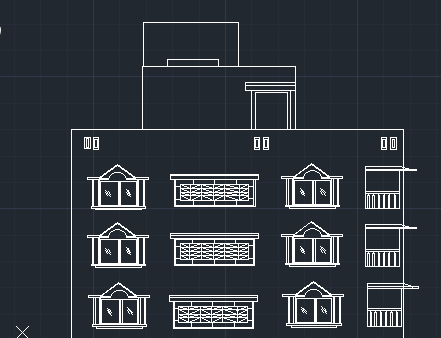

     3. Create the section view of an industrial building as shown in Figure. Provide appropriate hatches and
    dimensions wherever required. Also, provide annotations to the drawing.

    • AIM:

    To create the section view of an industrial building .

    • PROCEDURE:
    • In the command prompt type l to draw the lines .
    • In the Ribbon bar > Hatch > AR.CONC.
    • In the command prompt type rec to draw the rectangle.

    •  In the Ribbon bar > hatch > AR-Conc

    •  In the command prompt type LT to get the dotted lines
    • In the command prompt type c to draw the circle
    • In the command prompt type Mt to draft the text
    • In the command prompt type dim to draft the dimensions

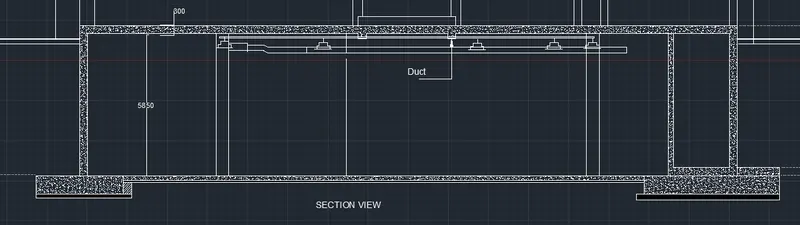

     RESULT:
