  3. Creation of geometries by Coordinate system methods using AutoCad

Creation of geometries by Coordinate system methods using AutoCad

Aim:  - To create the geometrical shapes P1 & P2 using all coordinate system methods using line tool, also finding the missing dimensions by analyzing the sample drawings. Civil-related problems- To draw the profile and trusses using any of the four coordinate system methods. Introduction: There are two coordinate…

    • Ram Prasad

      updated on 23 May 2022

    Aim:  - To create the geometrical shapes P1 & P2 using all coordinate system methods using line tool, also finding the missing dimensions by analyzing the sample drawings.

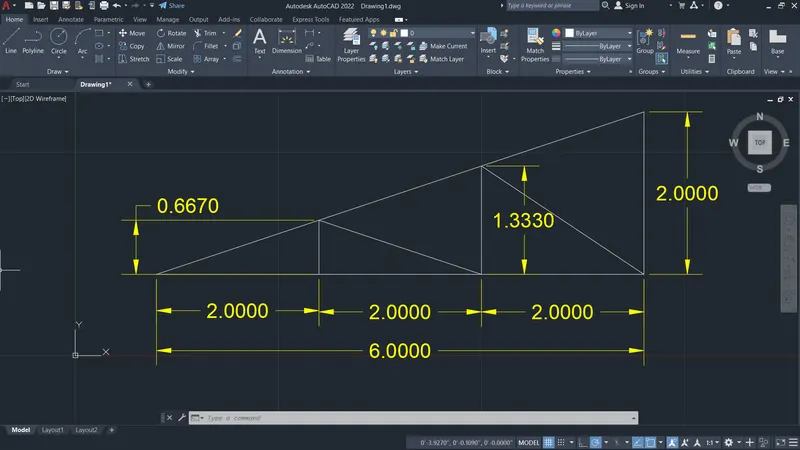

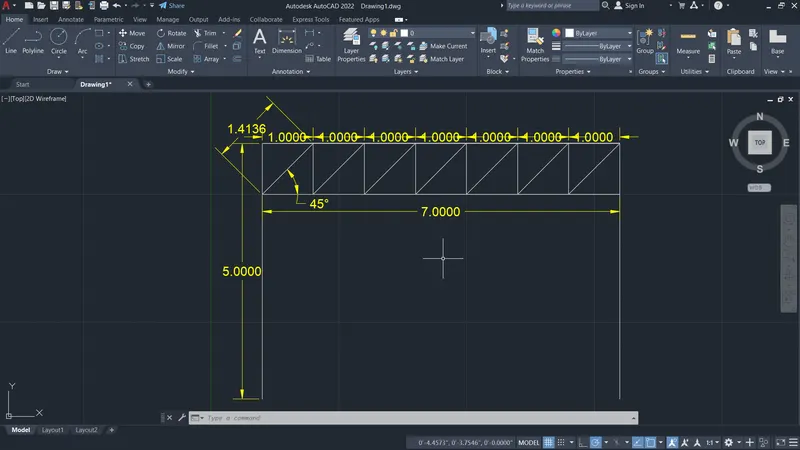

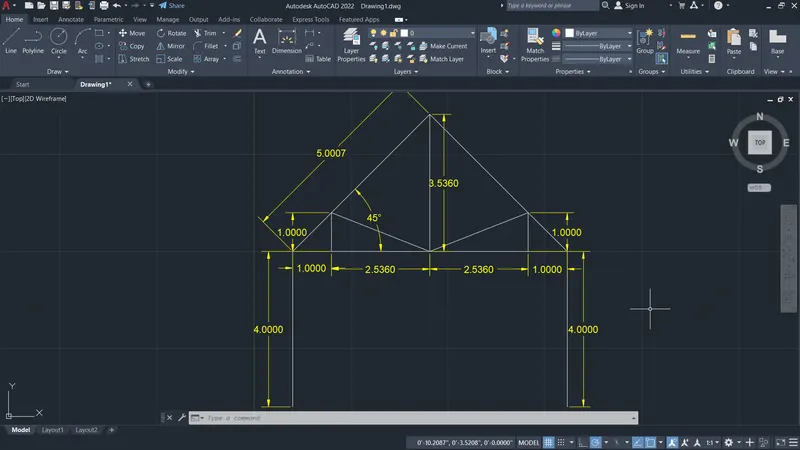

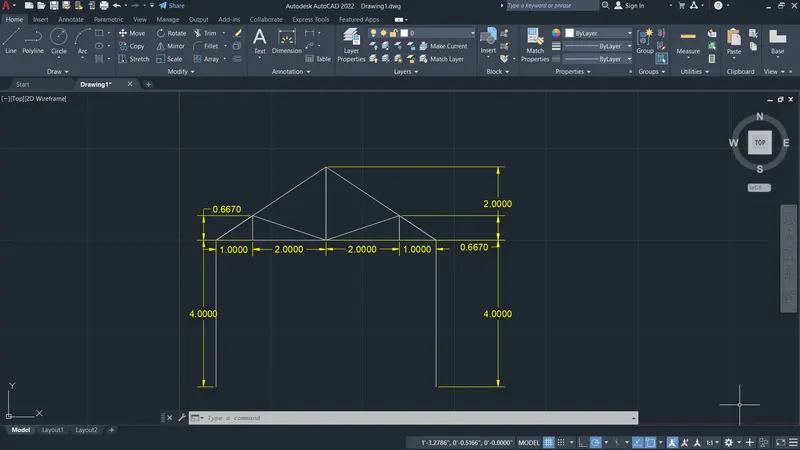

    • Civil-related problems- To draw the profile and trusses using any of the four coordinate system methods.

    Introduction:

    There are two coordinate systems in AutoCAD: Cartesian and Polar. AutoCAD's absolute and relative coordinates apply accordingly to these coordinate systems. Coordinate Systems: The coordinate system is a system in which numbers are used to determine the unique location of points and/or other geometric elements. Coordinates can also be set in AutoCAD with the mouse by typing (setting) the coordinate values ​​on the command line and
    by entering the coordinates using dynamic input. There are three types of coordinate systems. Absolute coordinate systems

    1. Relative coordinate systems
    2. Relative rectangular coordinates
    3. Relative polar coordinates
    4. Direct distance entry



    1. Absolute coordinate system: In this system, all points are placed at a specified distance in the x and y (sometimes z) axes from a common origin (usually 0,0).



    1. Relative coordinate system: The position of a relative coordinate is defined by its distance from a reference In AutoCAD, using this system, the first point of the drawing/geometry is always absolute, i.e., H. it is referred to the origin (0.0) and then all subsequent positions are set relative to their previous point.





    1. Relative rectangular coordinates: it is a coordinate system that specifies each point by a pair of numerical coordinates on the x-axis and y-axis. In this system, periods after the first period are written as '@xy' on the command



    1. Relative Polar Coordinates: This system gives the distance (longitude) and angle of a given point relative to its previous In the relative polar coordinate system, points are specified by typing @distance angle (ENTER) on the command line.



    Procedure:

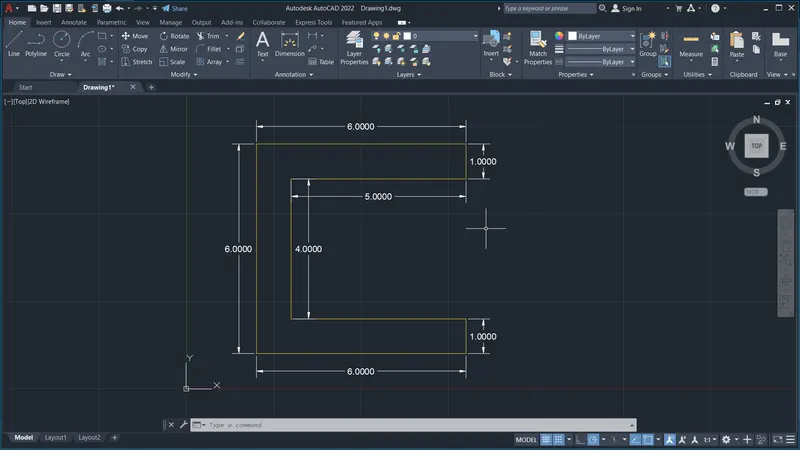

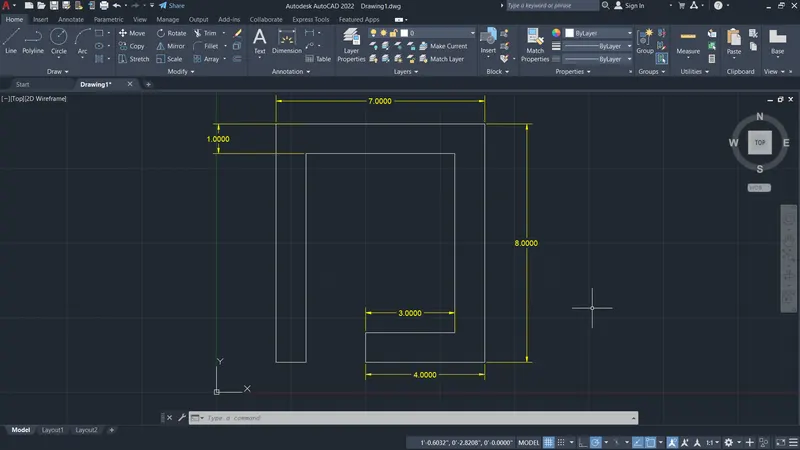

    1. Creating geometrical shapes P1 & P2 using all the coordinate systems.

    - P1

    1. a) Absolute coordinate system: -
    2. Select line tool from the ribbon tab/ write line in command box, it will show "specify the first point"
    3. Check if the pointer input is in polar or cartesian format and the coordinate system is absolute or not. The coordinate system should be absolute for this drawing.

    iii. Enter the first point as (2,1).

    1. Next, the command ask to enter next point.
    2. Specify the next point as (8,1)
    3. Specify the next point as (8,2)

    vii. Specify the next point as (3,2)

    viii. Specify the next point as (3,6)

    1. Specify the next point as (8,6)
    2. Specify the next point as (8,7)
    3. Specify the next point as (2,7)

    xii. Specify the next point as (2,1), else click on the close in command prompt.

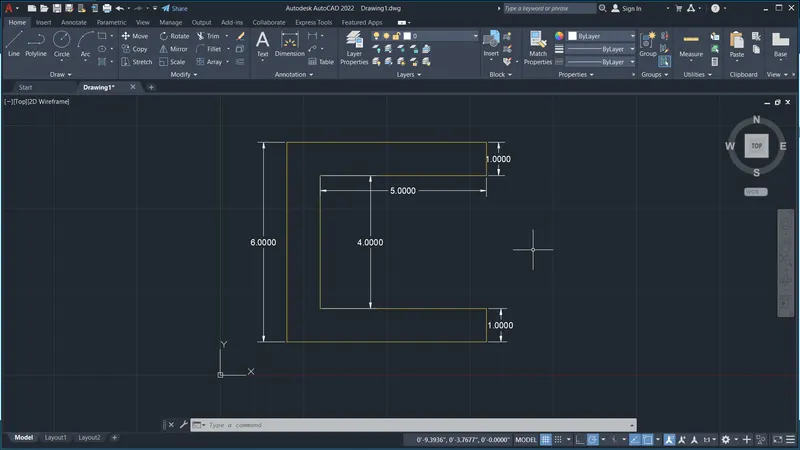

    1. b) Relative coordinate system: -

    Change the coordinate system to relative then,

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Specify the next coordinate of point 2 as @6,0 in the command line.
    1. Specify the next coordinate of point 3 as @0,1 in the command line.
    2. Specify the next coordinate of point 4 as @-5,0 in the command line.
    3. Specify the next coordinate of point 5 as @0,4 in the command line.
    • Specify the next coordinate of point 6 as @5,0 in the command line.
    • Specify the next coordinate of point 7 as @0,1 in the command line.
    1. Specify the next coordinate of point 8 as @-6,0 in the command line.
    2. Click 'Close on the command line.

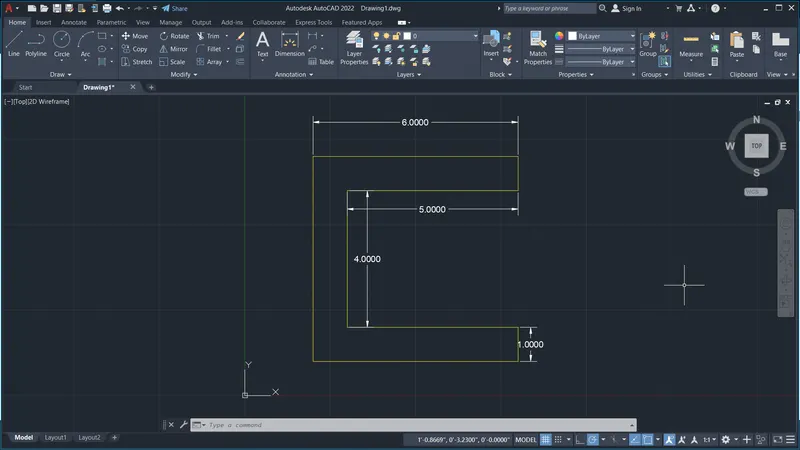

    1. c) Relative polar coordinate:
    2. Select the Line tool by entering 'LINE' command in the command tab.
    3. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Specify the next coordinate of point 2 as @6<0° in the command line.
    1. Specify the next coordinate of point 3 as @1<90° in the command line.
    2. Specify the next coordinate of point 4 as @5<180° in the command line.
    3. Specify the next coordinate of point 5 as @4<90° in the command line.
    • Specify the next coordinate of point 6 as @5<0° in the command line.
    • Specify the next coordinate of point 7 as @1<90° in the command line.
    1. Specify the next coordinate of point 8 as @6<180° in the command line.
    2. Click 'Close on the command line/ Specify the next coordinate of point 9 as @6<270° in the command line.



    d) Direct distance entry:

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Enter the length of point 2 as 6 in the command line towards +ve x-axis.
    1. Enter the length of point 3 as I in the command line towards +ve y-axis.
    2. Enter the length of point 4 as 5 in the command line towards -ve x-axis.
    3. Enter the length of point 5 as 4 in the command line towards +ve y-axis.
    • Enter the length of point 6 as 5 in the command line towards +ve x-axis.
    • Enter the length of point 7 as l in the command line towards +ve y-axis.
    1. Enter the length of point 8 as 6 in the command line towards -ve x-axis.
    2. Click 'Close' on the command line.

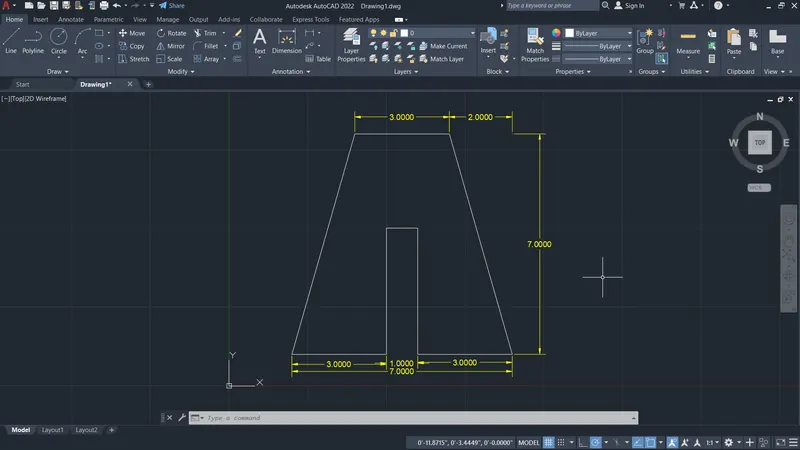

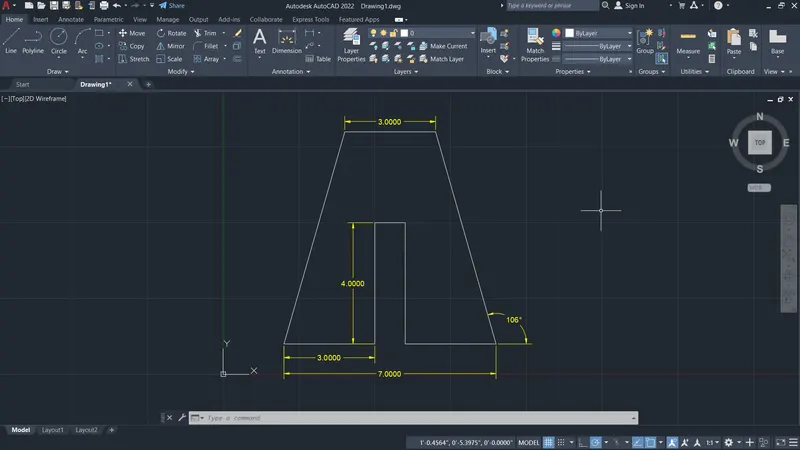

    • P2
    1. Absolute Coordinate system: -



    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Specify the next coordinate of point 2 as 5,1 in the command line.
    1. Specify the next coordinate of point 3 as 5,5 in the command line.
    2. Specify the next coordinate of point 4 as 6,5 in the command line.
    3. Specify the next coordinate of point 5 as 6,1 in the command line.
    • Specify the next coordinate of point 6 as 9,1 in the command line.
    • Specify the next coordinate of point 7 as 7,8 in the command line.
    1. Specify the next coordinate of point 8 as 4,8 in the command line.
    2. Click Close' on the command line.

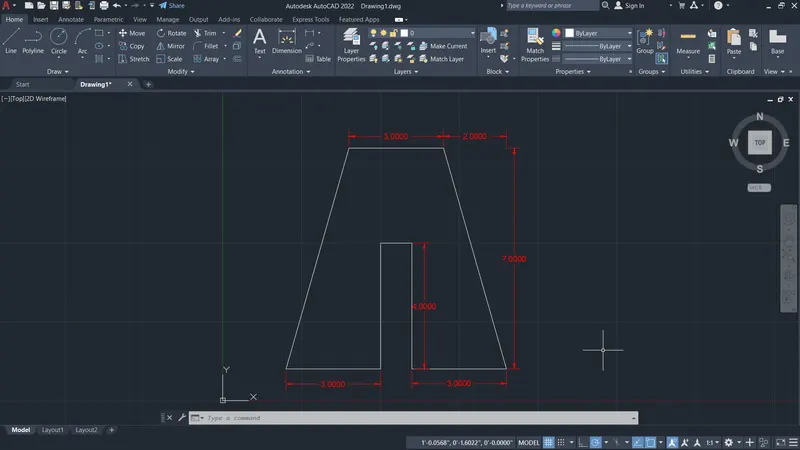

    1. Relative coordinate system: -



    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Specify the next coordinate of point 2 as @3,0 in the command line.
    1. Specify the next coordinate of point 3 as @0,4 in the command line.
    2. Specify the next coordinate of point 4 as @1,0 in the command line.
    3. Specify the next coordinate of point 5 as @0, -4 in the command line.
    • Specify the next coordinate of point 6 as @3,0 in the command line.
    • Specify the next coordinate of point 7 as @-2,7 in the command line.
    1. Specify the next coordinate of point 8 as @-3,0 in the command line.
    2. Click 'Close' on the command line or specify the next coordinate of point 9 as @-2, -7 in the command line.



    1. Relative polar coordinate system: -



    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Specify the next coordinate of point 2 as @3<0 in the command line.
    1. Specify the next coordinate of point 3 as @4<90 in the command line.
    2. Specify the next coordinate of point 4 as @l<0 in the command line.
    3. Specify the next coordinate of point 5 as @4<270 in the command line.
    • Specify the next coordinate of point 6 as @3<0 in the command line.
    • Specify the next coordinate of point 7 as @7<106 in the command line.
    1. Specify the next coordinate of point 8 as @3<180 in the command line.
    2. Click 'Close' on the command line or specify the next coordinate of point 9 as @7<254 in the command line.



    1. Direct distance entry: -
    2. Select the Line tool by entering 'LINE' command in the command tab.
    3. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Enter the length of point 2 as 3 in the command line towards +ve x-axis.
    1. Enter the length of point 3 as 4 in the command line towards +ve y-axis.
    2. Enter the length of point 4 as I in the command line towards +ve x-axis.
    3. Enter the length of point 5 as 4 in the command line towards -ve y-axis.
    • Enter the length of point 6 as 3 in the command line towards +ve x-axis.
    • Enter the length of point 7 as 7 in the command line at an angle of <106 from +ve x-direction while keeping polar tracking on.
    1. Enter the length of point 8 as 3 in the command line towards -ve x-axis.
    2. Click 'Close' on the command line.

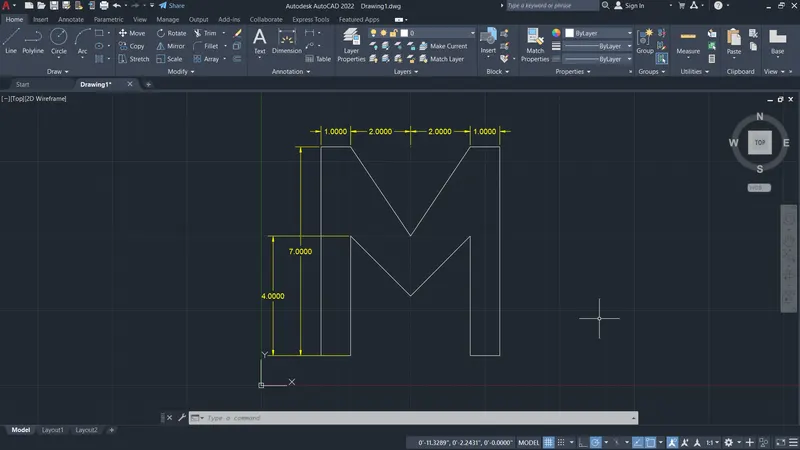

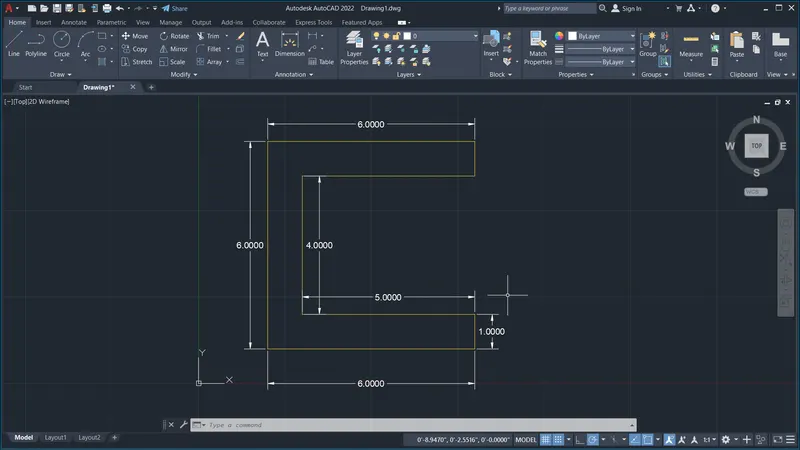

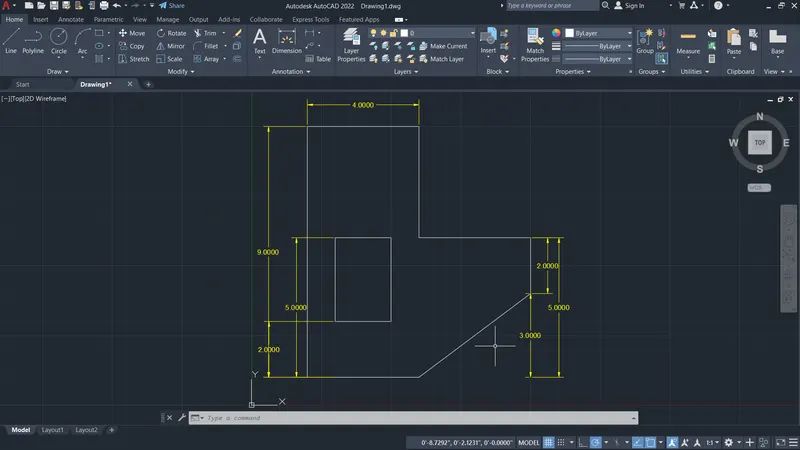

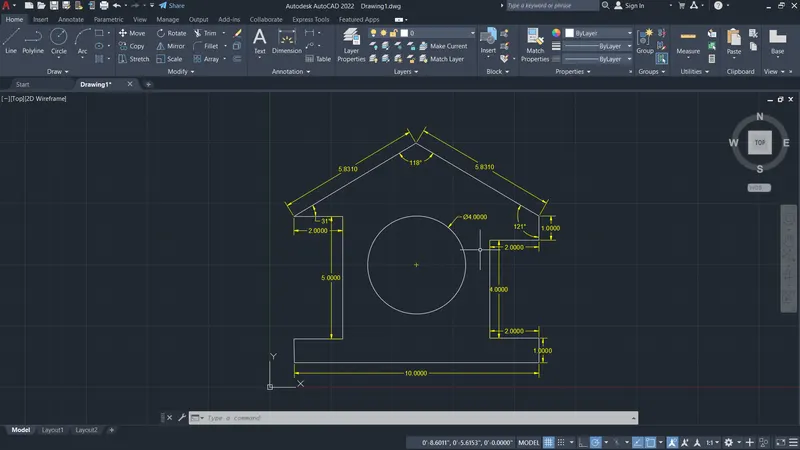

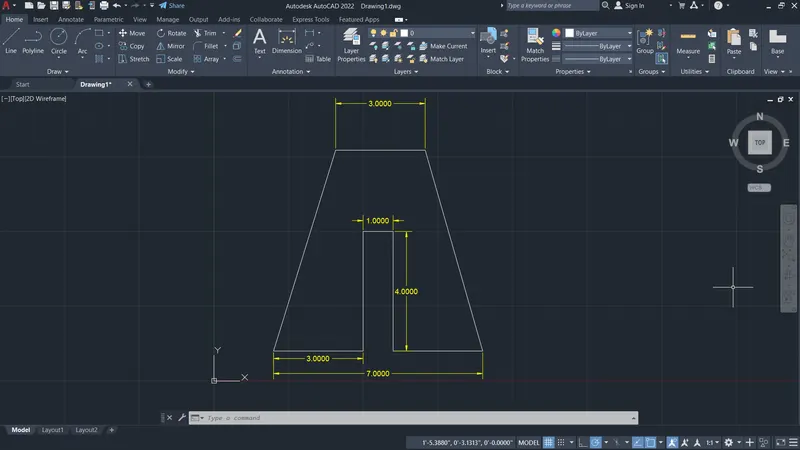

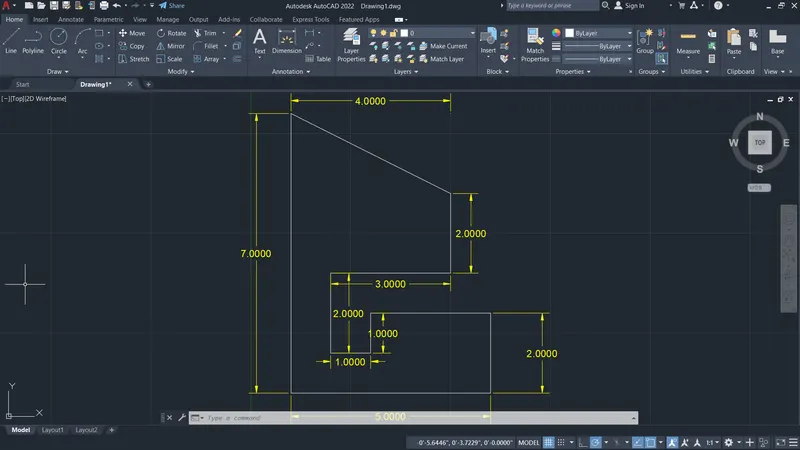

    Drawing the geometrical shapes from P4 to P10 using any coordinate system: -

    P4 USING RELATIVE COORDINATE SYSTEM:

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Specify the next coordinate of point 2 as @1,0 in the command line.
    1. Specify the next coordinate of point 3 as @0,4 in the command line.
    2. Specify the next coordinate of point 4 as @2, -2 in the command line.
    3. Specify the next coordinate of point 5 as @2, 2 in the command line.
    • Specify the next coordinate of point 6 as @0, -4 in the command line.
    • Specify the next coordinate of point 7 as @1,0 in the command line.
    1. Specify the next coordinate of point 8 as @0,7 in the command line.
    2. Specify the next coordinate of point 9 as @-2, -3 in the command line.
    3. Specify the next coordinate of point 10 as @-2,3 in the command line.
    • Specify the next coordinate of point 11 as @-1,0 in the command line.
    • Click 'Close' on the command line or specify the next coordinate of point 12 as @0, -7 in the command line.







    P5 USING RELATIVE COORDINATE SYSTEM:

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Specify the next coordinate of point 2 as @1,0 in the command line.
    1. Specify the next coordinate of point 3 as @0,7 in the command line.
    2. Specify the next coordinate of point 4 as @5, 0 in the command line.
    3. Specify the next coordinate of point 5 as @0, -6 in the command line.
    • Specify the next coordinate of point 6 as @-3,0 in the command line.
    • Specify the next coordinate of point 7 as @0, -1 in the command line.
    1. Specify the next coordinate of point 8 as @4,0 in the command line.
    2. Specify the next coordinate of point 9 as @0,8 in the command line.
    3. Specify the next coordinate of point 10 as @-7,0 in the command line.
    • Click 'Close' on the command line or specify the next coordinate of point 11 as @0, -8 in the command line.







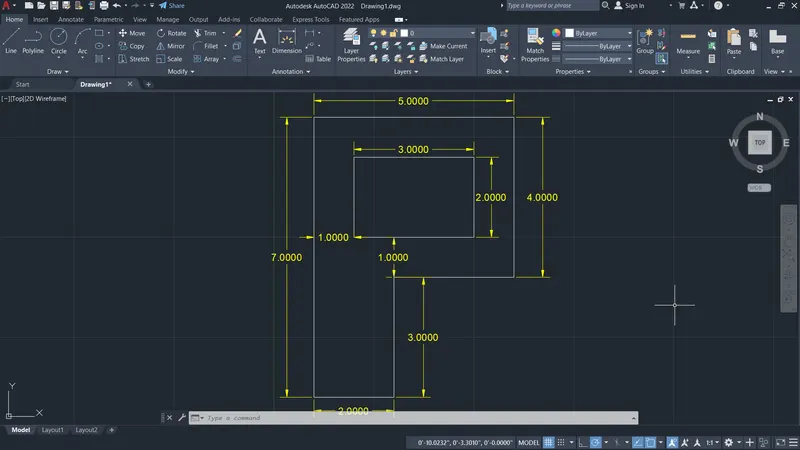

    P6 USING RELATIVE COORDINATE SYSTEM:

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Specify the next coordinate of point 2 as @4,0 in the command line.
    1. Specify the next coordinate of point 3 as @4,3 in the command line.
    2. Specify the next coordinate of point 4 as @0, 2 in the command line.
    3. Specify the next coordinate of point 5 as @-4,0 in the command line.
    • Specify the next coordinate of point 6 as @0,4 in the command line.
    • Specify the next coordinate of point 7 as @-4,0 in the command line.
    1. Specify the next coordinate of point 8 as @0,-9 in the command line.
    2. Select line tool again
    3. Specify the starting coordinate of point 9 as 3,3 in the command line.
    • Specify the next coordinate of point 10 as @2,0 in the command line.
    • Specify the next coordinate of point 11 as @0,3 in the command line.
    • Specify the next coordinate of point 12 as @-2,0 in the command line.
    1. Click 'Close' on the command line or specify the next coordinate of point 13 as @0, -3 in the command line.

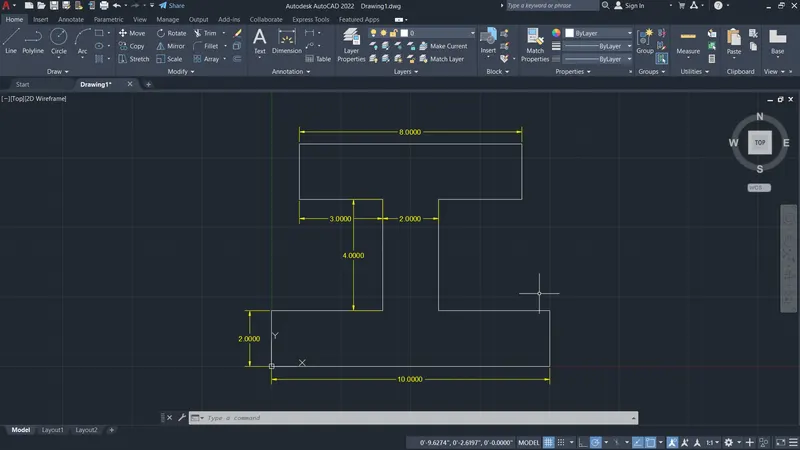

    P7 USING RELATIVE COORDINATE SYSTEM:

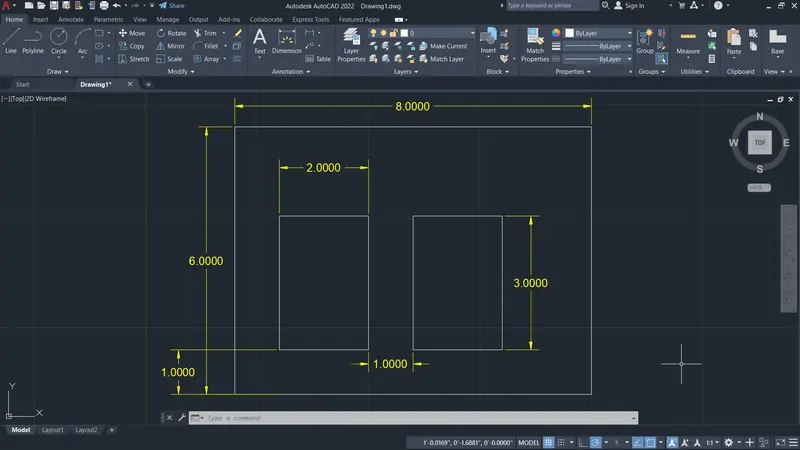

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 2,1 in the command line.
    • Specify the next coordinate of point 2 as @8,0 in the command line.
    1. Specify the next coordinate of point 3 as @0,6 in the command line.
    2. Specify the next coordinate of point 4 as @-8, 0 in the command line.
    3. Click 'Close' on the command line.
    • Select line tool again
    • Specify the starting coordinate of point 5 as 3,2 in the command line.
    1. Specify the next coordinate of point 6 as @2,0 in the command line.
    2. Specify the next coordinate of point 7 as @0,3 in the command line.
    3. Specify the next coordinate of point 8 as @-2,0 in the command line.
    • Click 'Close' on the command line.
    • Select line tool again
    • Specify the starting coordinate of point 9 as 6,2 in the command line.
    1. Specify the next coordinate of point 10 as @2,0 in the command line.
    • Specify the next coordinate of point 11 as @0,3 in the command line.
    • Specify the next coordinate of point 12 as @-2,0 in the command line. Click 'Close' on the command line.







    P8 USING RELATIVE COORDINATE SYSTEM:

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 0,0 in the command line.
    • Specify the next coordinate of point 2 as @10,0 in the command line.
    1. Specify the next coordinate of point 3 as @0,2 in the command line.
    2. Specify the next coordinate of point 4 as @-4, 0 in the command line.
    3. Specify the next coordinate of point 5 as @0,4 in the command line.
    • Specify the next coordinate of point 6 as @3,0 in the command line.
    • Specify the next coordinate of point 7 as @0,2 in the command line.
    1. Specify the next coordinate of point 8 as @-8,0 in the command line.
    2. Specify the starting coordinate of point 9 as @0, -2 in the command line.
    3. Specify the next coordinate of point 10 as @3,0 in the command line.
    • Specify the next coordinate of point 11 as @0, -4 in the command line.
    • Specify the next coordinate of point 12 as @-4,0 in the command line.
    • Click 'Close' on the command line.





    P9 USING RELATIVE COORDINATE SYSTEM:

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 1,1 in the command line.
    • Specify the next coordinate of point 2 as @5,0 in the command line.
    1. Specify the next coordinate of point 3 as @0,2 in the command line.
    2. Specify the next coordinate of point 4 as @-3, 0 in the command line.
    3. Specify the next coordinate of point 5 as @0, -1 in the command line.
    • Specify the next coordinate of point 6 as @-1,0 in the command line.
    • Specify the next coordinate of point 7 as @0,2 in the command line.
    1. Specify the next coordinate of point 8 as @3,0 in the command line.
    2. Specify the starting coordinate of point 9 as @0, 2 in the command line.
    3. Specify the next coordinate of point 10 as @4,2 in the command line.
    • Click 'Close' on the command line.



    P10 USING DIRECT DISTANCE ENTRY:

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 1,1 in the command line.
    • Enter the length of point 2 as 2 in the command line towards +ve x-axis.
    1. Enter the length of point 3 as 3 in the command line towards +ve y-axis.
    2. Enter the length of point 4 as 3 in the command line towards +ve x-axis.
    3. Enter the length of point 5 as 4 in the command line towards +ve y-axis.
    • Enter the length of point 6 as 5 in the command line towards -ve x-axis.
    • Click 'Close' on the command line.
    1. Specify the starting coordinate of point 7 as 5,2 in the command line.
    2. Enter the length of point 8 as 3 in the command line towards +ve x-axis.
    3. Enter the length of point 9 as 2 in the command line towards +ve y-axis.
    • Enter the length of point 10 as 3 in the command line towards -ve x-axis.
    • Click 'Close' on the command line.



    1. Civil related problems- To draw the profile and trusses using any of the four coordinate system methods.

    Drawing Profile-wood using direct distance entry method:

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point 1 as 0,0 in the command line.
    • Enter the length of point 2 as 10 in the command line towards +ve x-axis.
    1. Enter the length of point 3 as I in the command line towards +ve y-axis.
    2. Enter the length of point 4 as 2 in the command line towards -ve x-axis.
    3. Enter the length of point 5 as 4 in the command line towards +ve y-axis.
    • Enter the length of point 6 as 2 in the command line towards +ve x-axis.
    • Enter the length of point 7 as 831 in the command line at an angle of <149.036 from +ve x-direction while keeping polar tracking on.
    1. Enter the length of point 8 as 5.831 in the command line at an angle of <210.964 from +ve x-direction while keeping polar tracking on.
    2. Enter the length of point 9 as 2 in the command line towards +ve x-axis.
    3. Enter the length of point 10 as 5 in the command line towards -ve y-axis.
    • Enter the length of point 11 as 2 in the command line towards +ve x-axis.
    • Click 'Close' on the command line.
    • Select the Circle tool by entering 'CIRCLE' command in the command tab.
    1. Specify centre point of circle as 5,4.
    • Specify radius of circle as 2.



    DRAWING QUEEN POST USING RELATIVE RECTANGULAR COORDINATE SYSTEM:

    1. Select the Line tool by entering 'LINE command in the command tab.
    2. Specify the starting coordinate of point l as 1,1 in the command line.
    • Specify the next coordinate of point 2 as @4,0 in the command line.
    1. Specify the next coordinate of point 3 as @3.536,3.536 in the command line.
    2. Specify the next coordinate of point 4 as @3.536, -3.536 in the command line.
    3. Specify the next coordinate of point 5 as @0, -4 in the command line.
    • Press 'Esc' to cancel the LINE command.
    • Select the Line tool again by entering 'LINE' command in the command tab.
    1. Join the points 2 and 4.
    2. Press 'Esc' to cancel the LINE command.
    3. Specify the next coordinate of point 10 as @0, -1 in the command line.
    • Press 'Esc' to cancel the LINE command.
    • Select the Line tool again by entering 'LINE' command in the command tab.
    • Specify the next coordinate of point 6 as 4.536,5 in the command line.
    1. Specify the next coordinate of point 7 as @-2.536,1 in the command line.
    • Specify the next coordinate of point 8 as @0, -1 in the command line.
    • Press 'Esc' to cancel the LINE command.
    • Select the Line tool again by entering 'LINE' command in the command tab.
    • Specify the coordinate of point 6 as 4.536,5 in the command line.
    1. Specify the next coordinate of point 9 as @2.536.1 in the command line.
    • Join points 3 and 6.
    • Press Esc' to cancel the LINE command.



    Drawing truss 2 using Relative rectangular coordinate system:

    1. Select the Line tool by entering 'LINE command in the command tab.
    2. Specify the starting coordinate of point l as 1,1 in the command line.
    • Specify the next coordinate of point 2 as @4,0 in the command line.
    1. Specify the next coordinate of point 3 as @3,2 in the command line.
    2. Specify the next coordinate of point 4 as @3, -2 in the command line.
    3. Specify the next coordinate of point 5 as @0, -4 in the command line.
    • Press 'Esc' to cancel the LINE command.
    • Select the Line tool again by entering 'LINE' command in the command tab.
    1. Join the points 2 and 4.
    2. Press 'Esc' to cancel the LINE command.
    3. Specify the next coordinate of point 10 as @0, -0.667 in the command line.
    • Press 'Esc' to cancel the LINE command.
    • Select the Line tool again by entering 'LINE' command in the command tab.
    • Specify the next coordinate of point 6 as 3.6056, 2 in the command line.
    1. Specify the next coordinate of point 7 as @-2,0.6670 in the command line.
    • Specify the next coordinate of point 8 as @0, -0.6670 in the command line.
    • Press 'Esc' to cancel the LINE command.
    • Select the Line tool again by entering 'LINE' command in the command tab.
    • Specify the coordinate of point 5 as 3.6056,2 in the command line.
    1. Specify the next coordinate of point 9 as @2,0.6670 in the command line.
    • Join points 3 and 6.
    • Press Esc' to cancel the LINE command.



    Drawing truss 3 using relative rectangular coordinate system: -





    Drawing mono pitch using absolute coordinate system:

    1. Select the Line tool by entering 'LINE' command in the command tab.
    2. Specify the starting coordinate of point I as 1,1 in the command line.
    • Specify the next coordinate of point 2 as 7,1 in the command line.
    1. Specify the next coordinate of point 3 as 7,3 in the command line.
    2. Click 'Close' on the command line.
    3. Select the Line tool by entering 'LINE' command in the command tab.
    • Specify the next coordinate of point 4 as 3,1 in the command line.
    • Specify the next coordinate of point 5 as 3,1.667 in the command line.
    1. Specify the next coordinate of point 6 as 5,1 in the command line.
    2. Specify the next coordinate of point 7 as 5,2.333 in the command line.
    3. Specify the next coordinate of point 8 as 7,1 in the command line.
    • Press 'Esc' to cancel the LINE command.





    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Ram Prasad (33)

    Structural Modelling using Etabs 2018

    Objective:

    Q: The architectural drawings for a G+7 residential building in zone 5 has been provided. The floor plan is the same for all 7 floor levels. Possible column positions have also been provided. Conceptualize a framing plan layout and then model the building in Etabs. The following architectural drawings have been provided:…

    calendar

    23 Mar 2023 05:06 AM IST

    • ETABS
    Read more

    Analysis & Design of RCC shear walls in the model using ETABS

    Objective:

    The etabs file for a G+6 building is provided. Run the analysis and design the RCC shear walls (show in the etabs model). The following challenge deals specifically with the shear wall of size 300x1500 at grid A-11 in the structural model. Aim: Extract values of longitudinal steel ratio, boundary element length and shear…

    calendar

    20 Feb 2023 06:42 AM IST

    • ETABS
    Read more

    Reinforcement detailing of Columns from ETABS output

    Objective:

    Reinforcement detailing of columns in Etabs 2018. The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections. 3A 3B Provide details of longitudinal reinforcement for the two columns,…

    calendar

    11 Feb 2023 06:14 AM IST

    • ETABS
    Read more

    Reinforcement Detailing of Beams from ETABS output

    Objective:

    Challenge 7 – Detailed design of concrete buildings -1 Detail design of beams in Etabs 2018. The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two continuous beams on the 1st floor.        …

    calendar

    07 Feb 2023 12:12 PM IST

    • ETABS
    Read more

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    Related Courses

    coursecard

    Design loads considered on bridges

    Recently launched

    10 Hours of Content

    coursecard

    Design of Steel Superstructure in Bridges

    Recently launched

    16 Hours of Content

    coursecard

    Design for Manufacturability (DFM)

    Recently launched

    11 Hours of Content

    coursecard

    CATIA for Medical Product Design

    Recently launched

    5 Hours of Content

    coursecardcoursetype

    Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

    Recently launched

    0 Hours of Content

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    logo

    Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

    https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

    Our Company

    News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
    map
    EpowerX Learning Technologies Pvt Ltd.
    4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
    mail
    info@skill-lync.com
    mail
    ITgrievance@skill-lync.com

    Top Individual Courses

    Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

    Top PG Programs

    Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

    Skill-Lync Plus

    Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

    Trending Blogs

    Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

    © 2025 Skill-Lync Inc. All Rights Reserved.

                Do You Want To Showcase Your Technical Skills?
                Sign-Up for our projects.
