Creating Walls, Partition walls and Floors for a residential layout using REVIT

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2





AIM : TO CREATE A FLOOR FOR THE LAYOUT CREATED IN CHALLENGE 2

INTRODUCTION :

                    A FLOOR IS THE LOWER HORIZONTAL SURFACE OF ANY SPACE IN A BUILDING , INCLUDING FINISHES THAT ARE LAID AS PART OF THE PERMANENT CONSTRUCTION.



A FLOOR TYPICALLY PROVIDES :

                 STRUCTURAL SUPPORT FOR THE CONTENTS OF THE ROOM , ITS OCCUPANTS , AND THE WEIGHT OF THE FLOOR ITSELF.
                 RESISTANCE TO THE PASSAGE OF MOISTURE , HEAT , AND SOUND.
                A SURFACE FINISH THAT MAY CONTRIBUTE TO THE LOOK , FEEL , AND ACOUSTICS OF A SPACE.



PROCEDURE  :

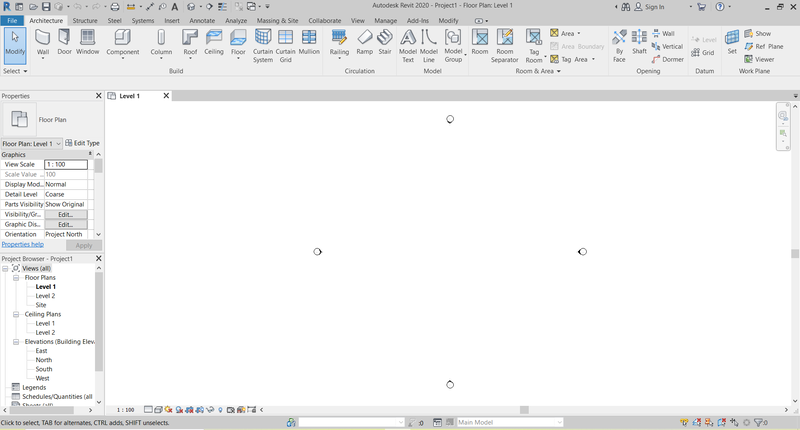

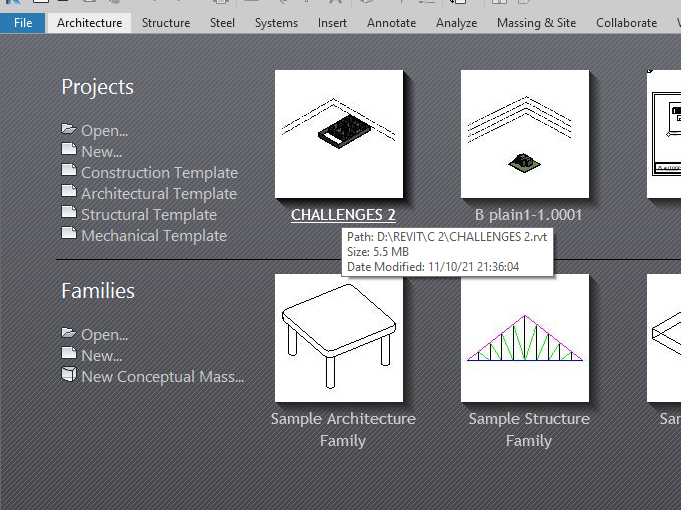

STEP 1 : OPEN LAYOUT CREATED IN CHALLENGE 2

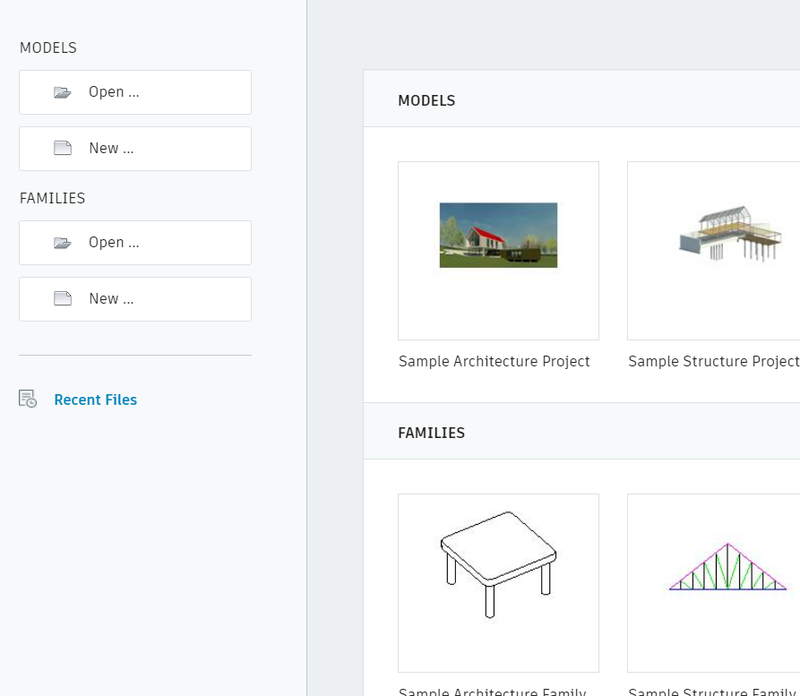

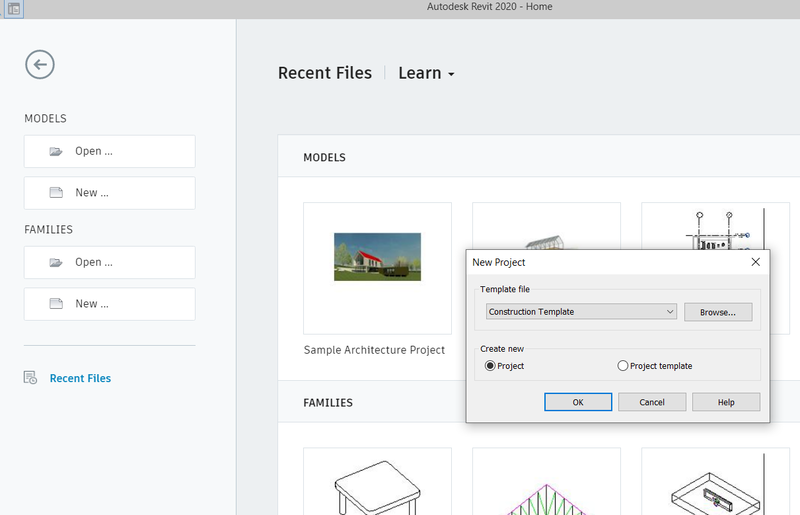

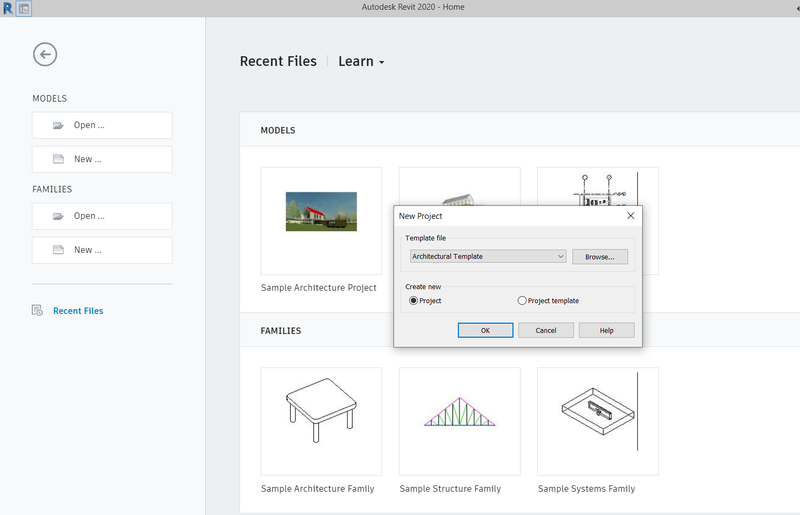

DOUBLE CLICK ON THE REVIT ICON

GO TO NEW OPTION

THEN TEMPLATE FILE AS ARCHITECTURAL TEMPLATE

CREATE NEW AS A PROJECT

CLICK ON OK

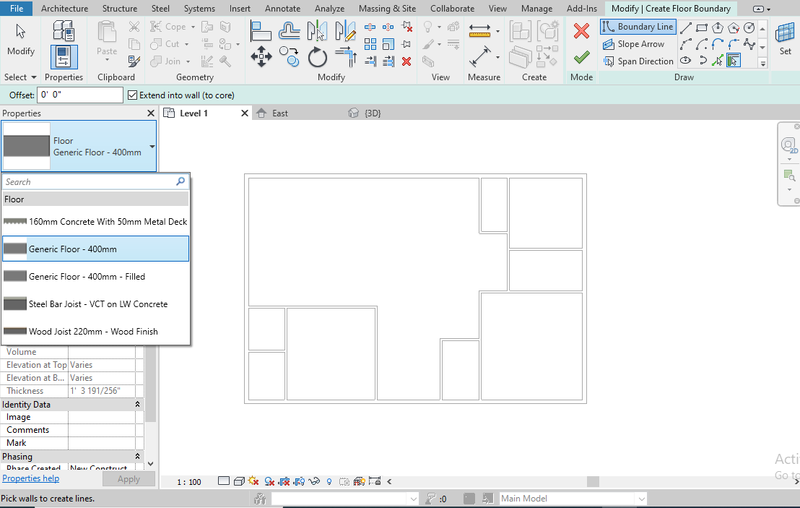

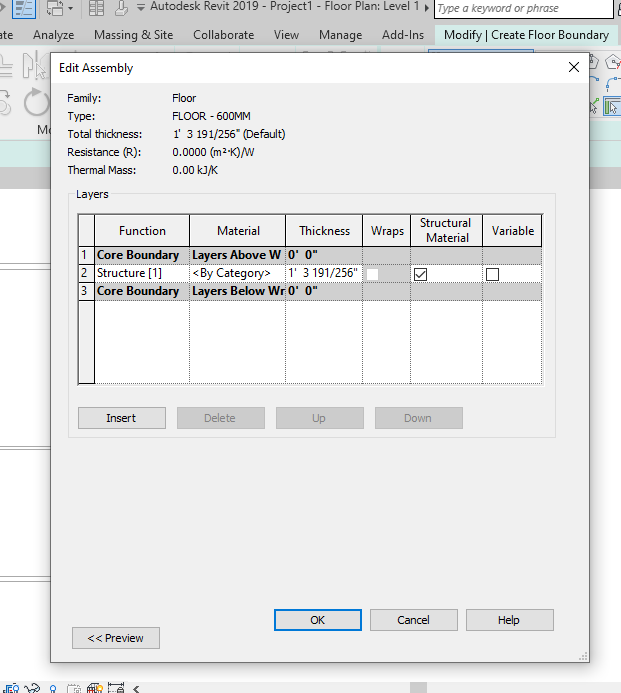

STEP 2 : CREATING FLOOR TYPE

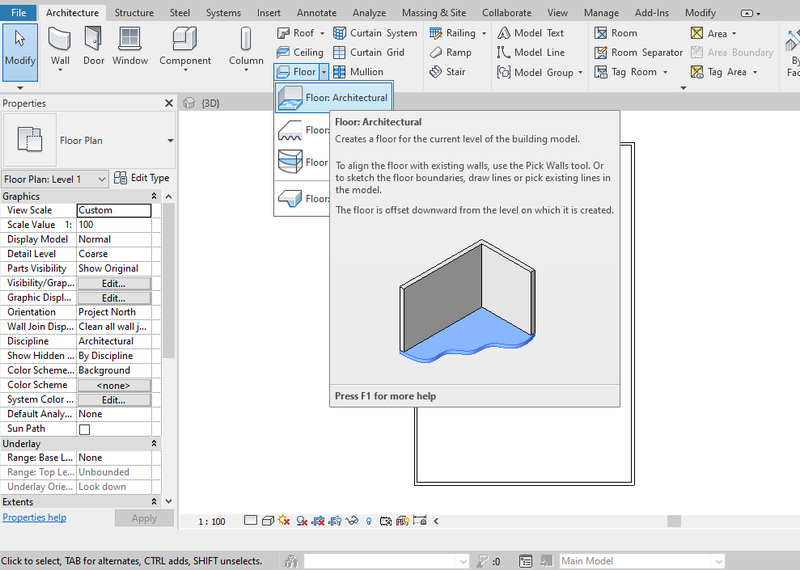

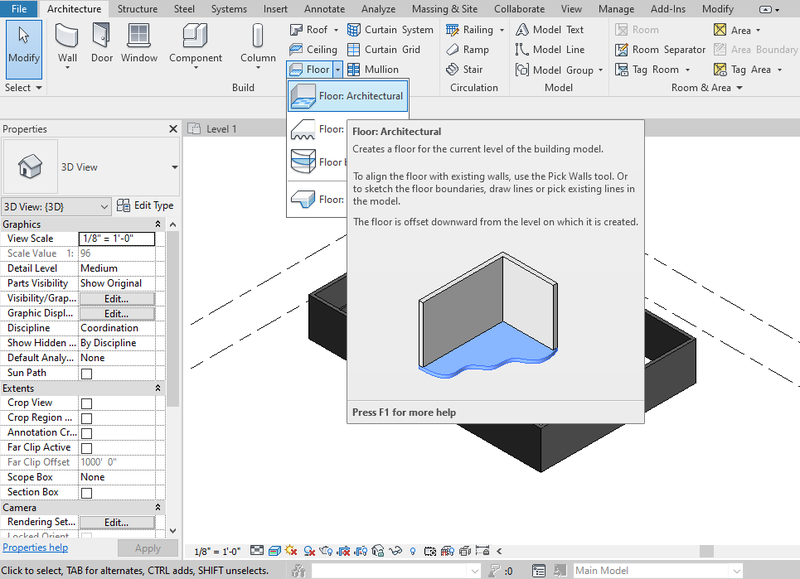

GO TO ARCHITECTURE TAB

GO TO BUILD

GO TO FLOOR OPTION

TAKE FLOOR ARCHITECTURE

THEN TAKE REQUIRED DRAW COMMAND

THEN DRAW AS YOUR REQUIRED LAYOUT

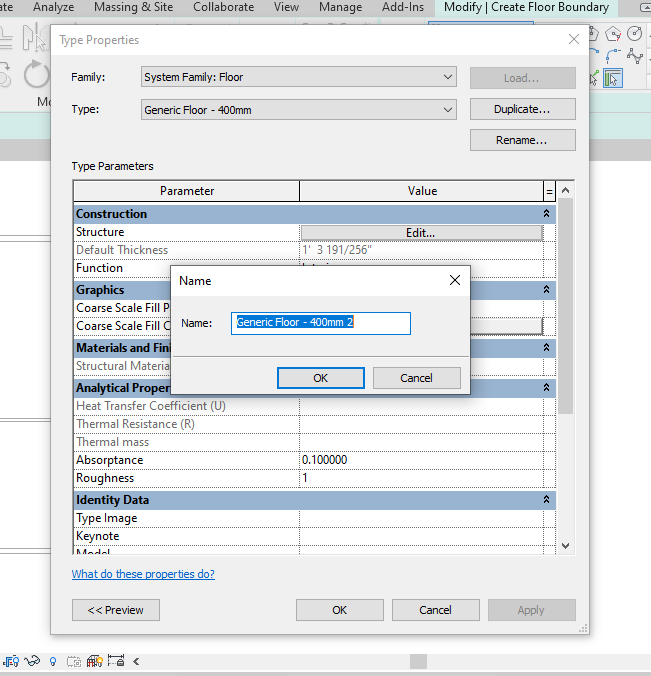

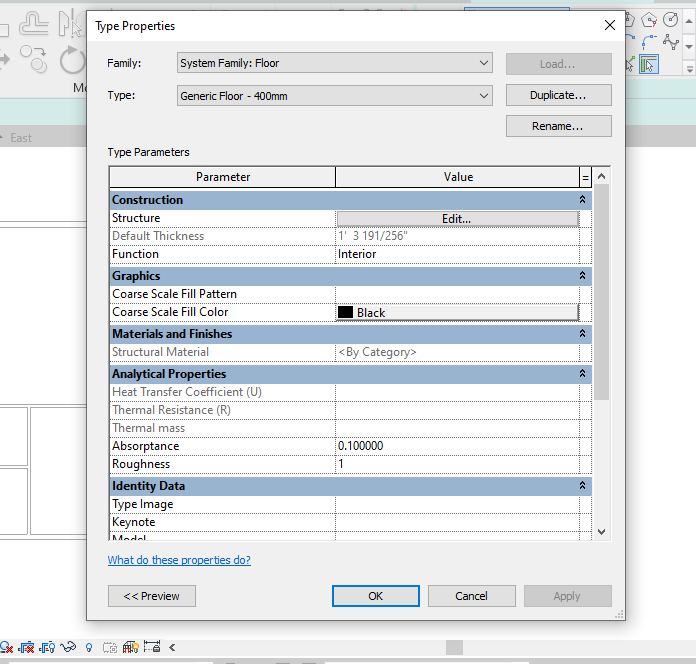

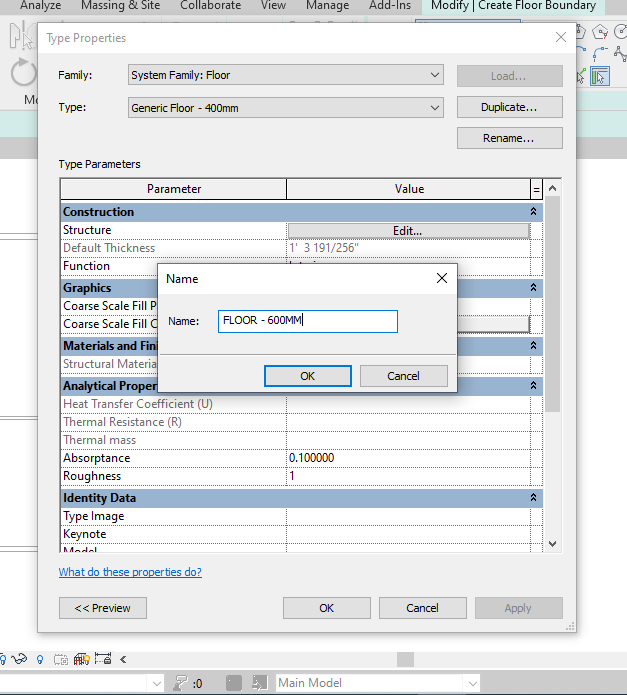

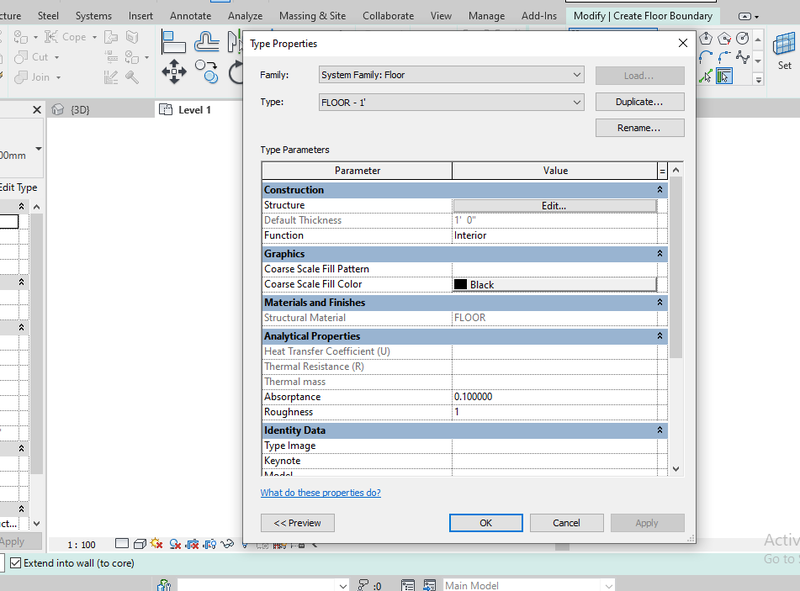

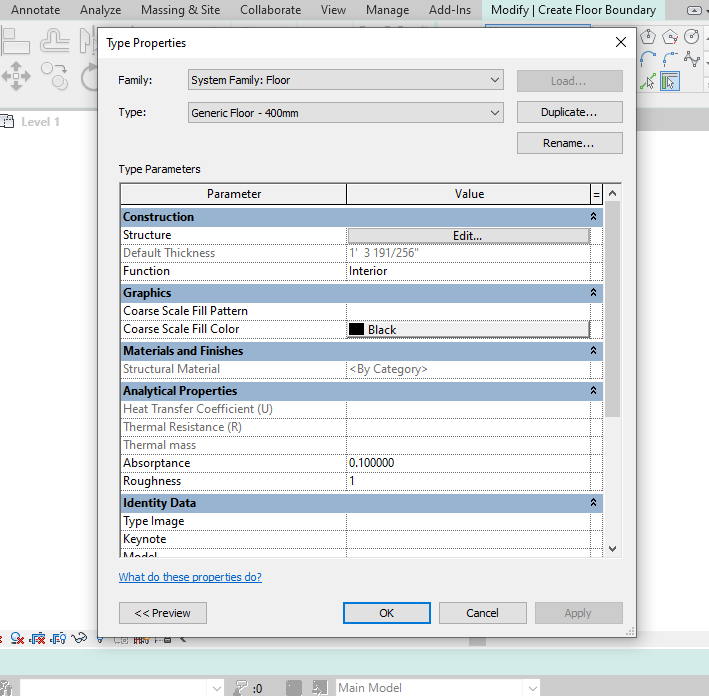

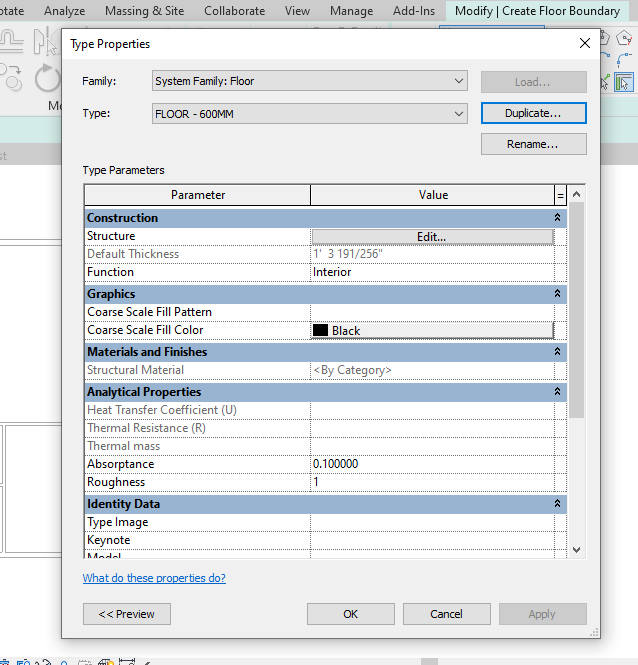

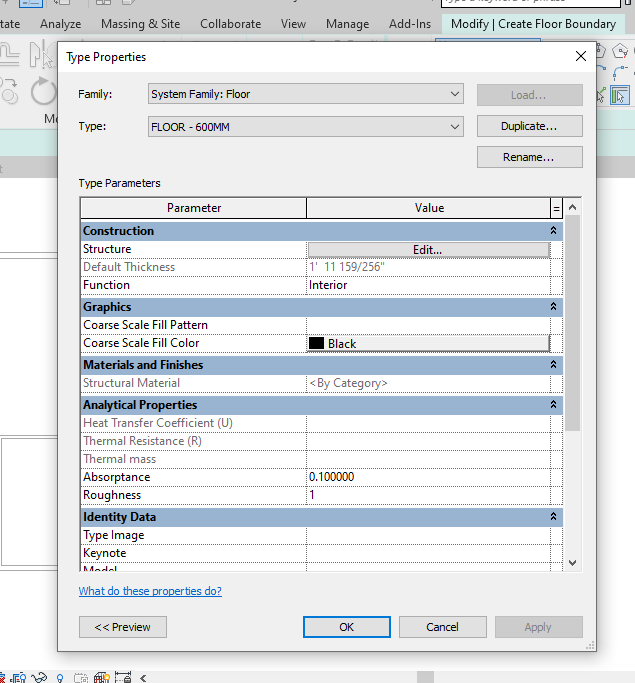

THEN GO TO EDIT TYPE IN PROPERTIES

THEN DUPLICATE

THEN GIVE THE NAME AS YOUR REQUIRED

CLICK ON OK

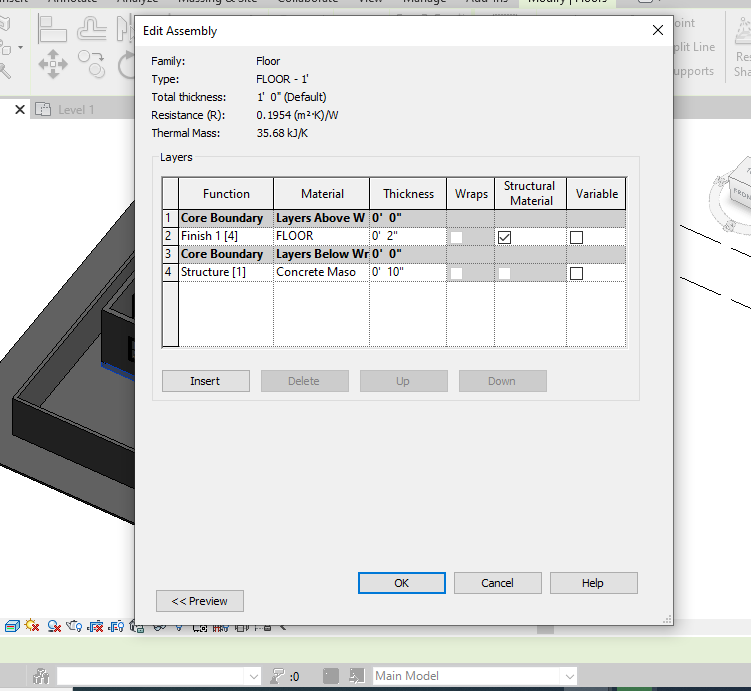

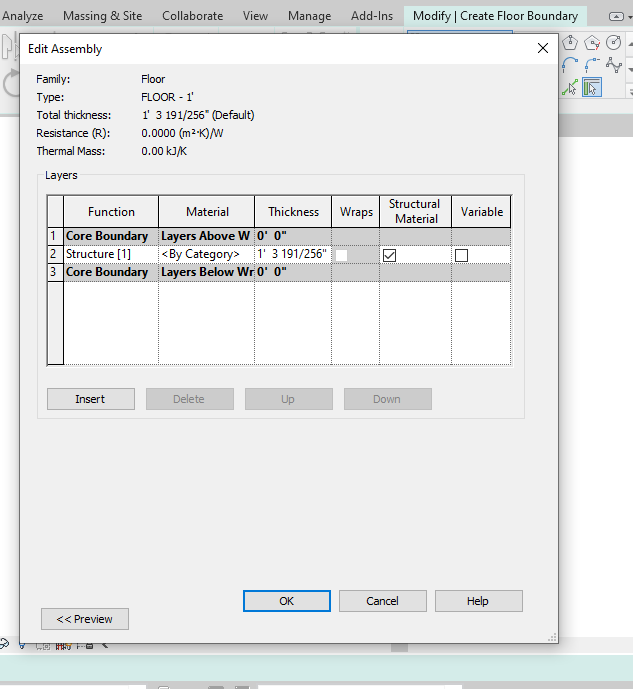

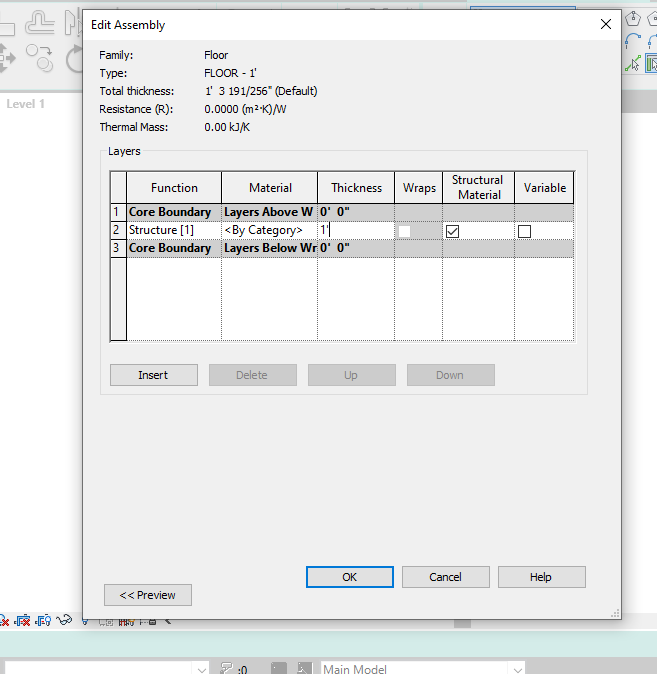

THEN EDIT

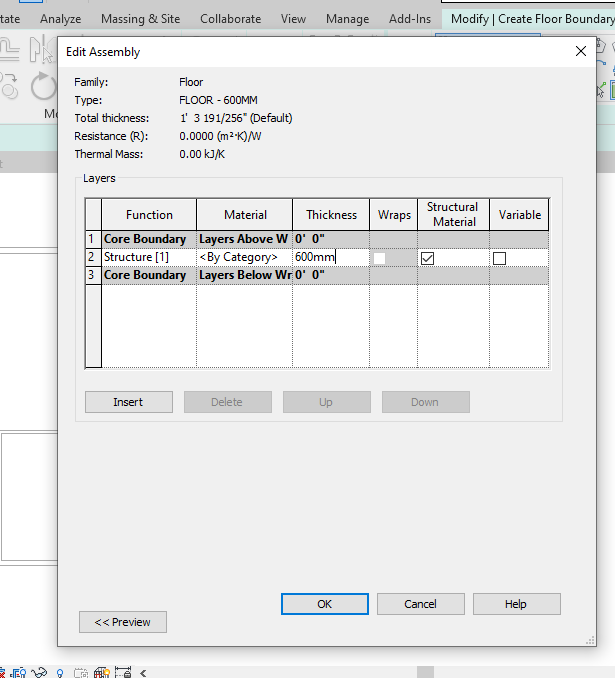

GIVE THE THICKNESS AS YOUR REQUIRED

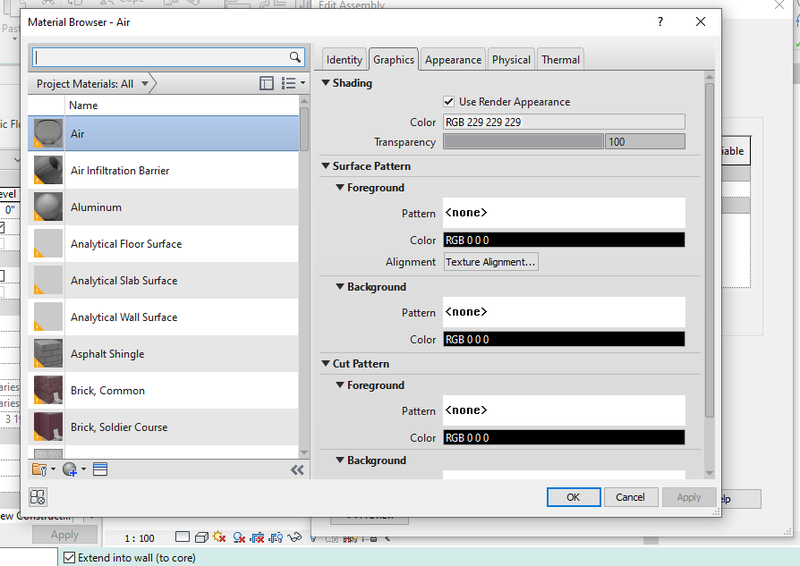

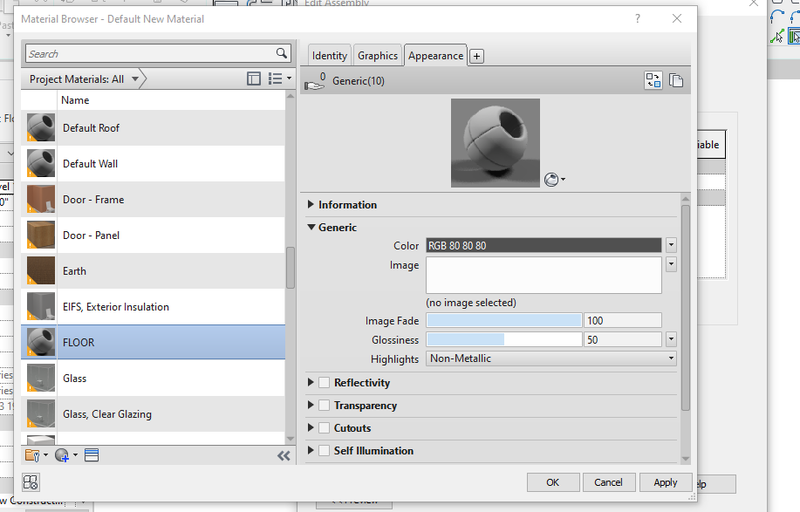

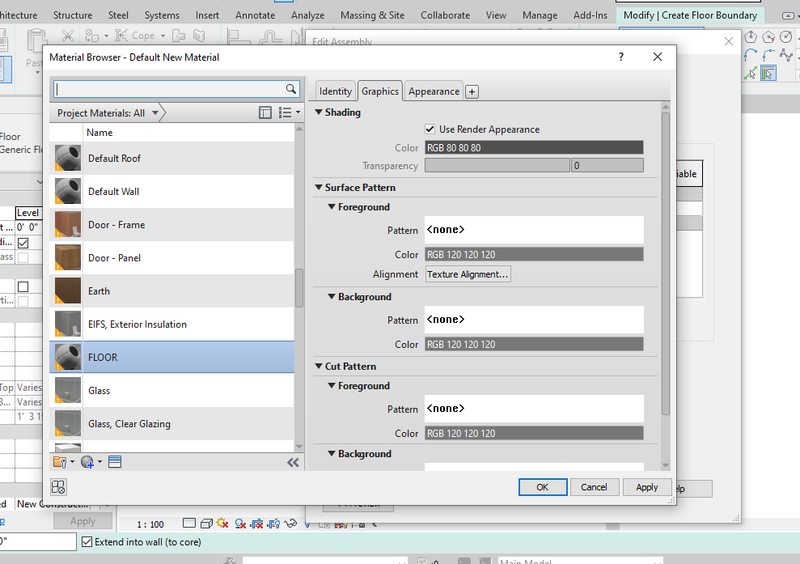

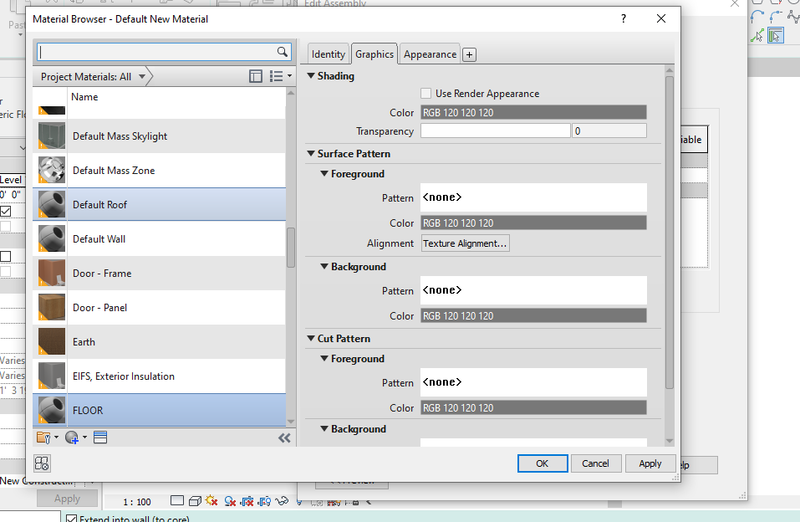

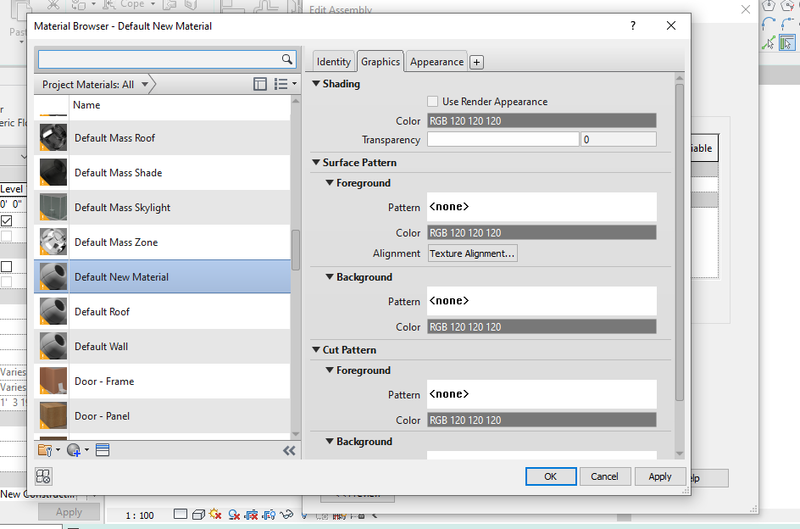

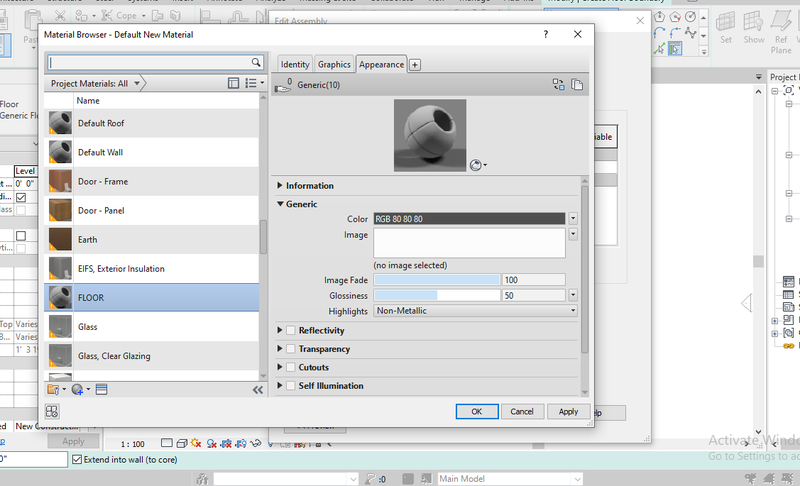

GO TO MATERIAL OPTION

THEN GO TO CREATE AND DUPLICATE MATERIAL

SELECT NEW MATERIAL

GIVE THE NAME AS YOUR REQUIRED

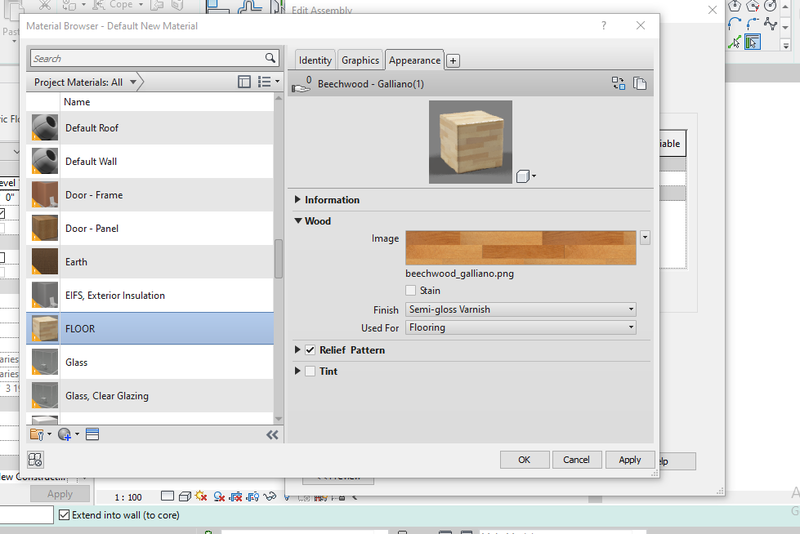

GO TO APPEARANCE

TURN ON THE USE RENDER APPEARANCE

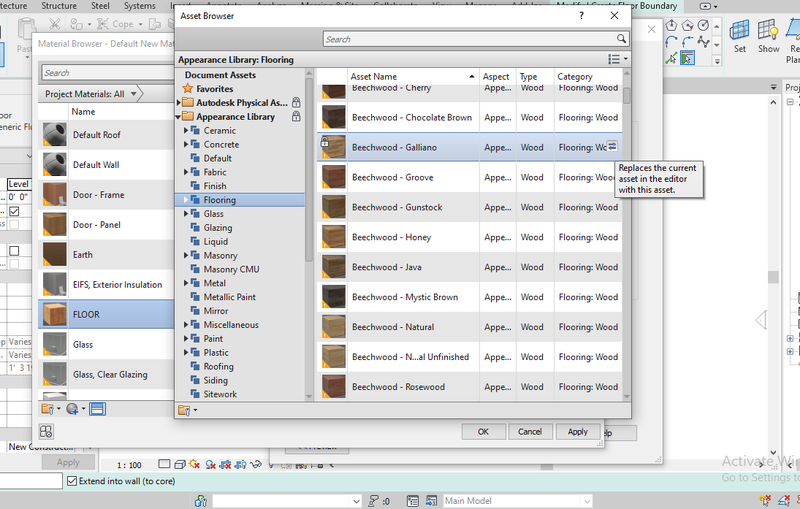

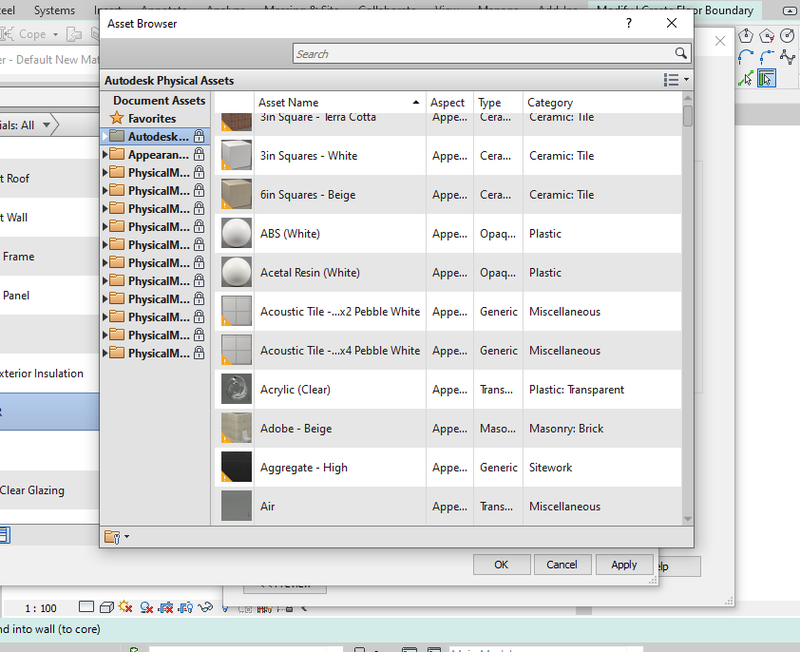

GO TO REPLACE THIS ASSET MATERIAL

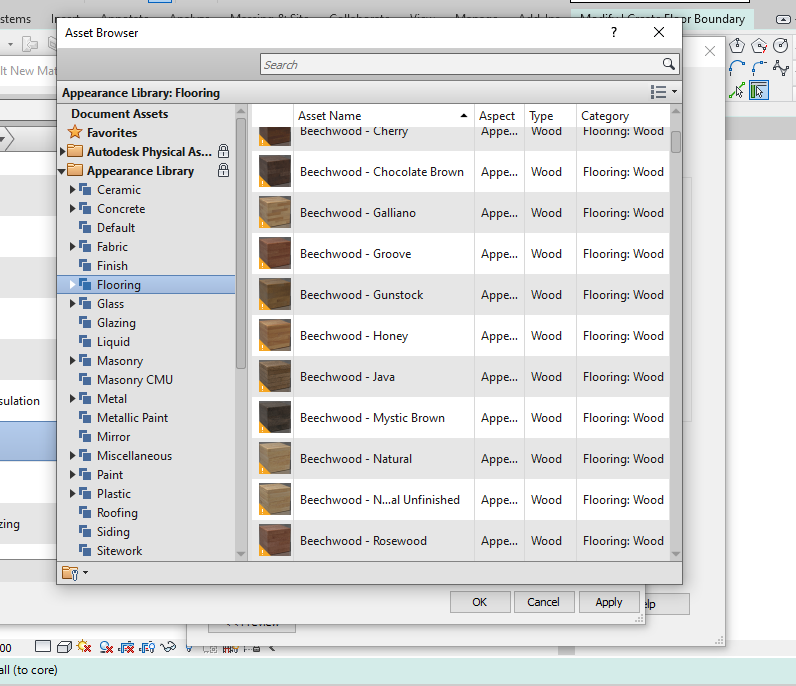

THEN APPEARANCE LIBRARY

THEN SELECT AS YOUR REQUIRED MATERIAL

CLICK ON OK

CLICK ON OK

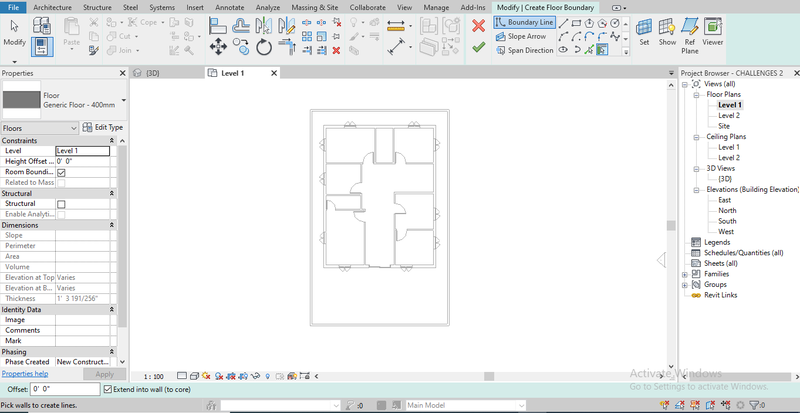

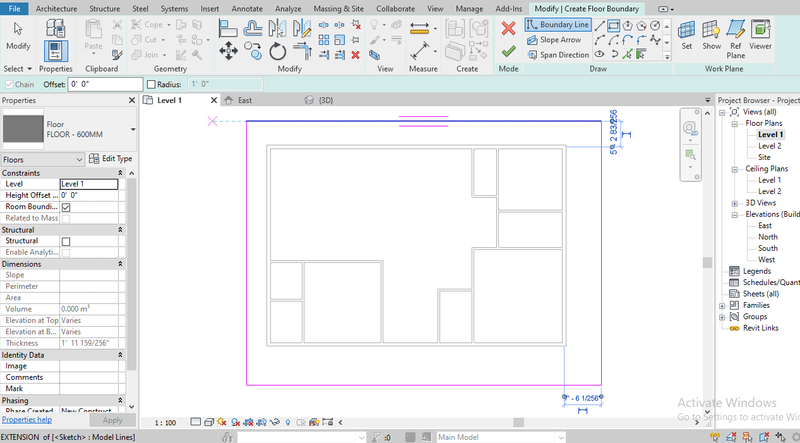

STEP 3 : ADDING FLOOR TO LAYOUT

GO TO GROUND FLOOR LEVEL

THEN DRAW AS YOUR REQUIRED LAYOUT

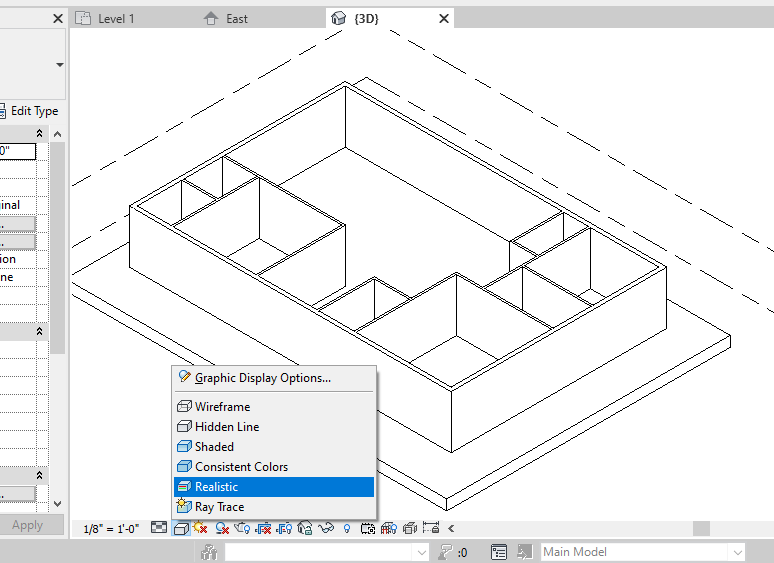

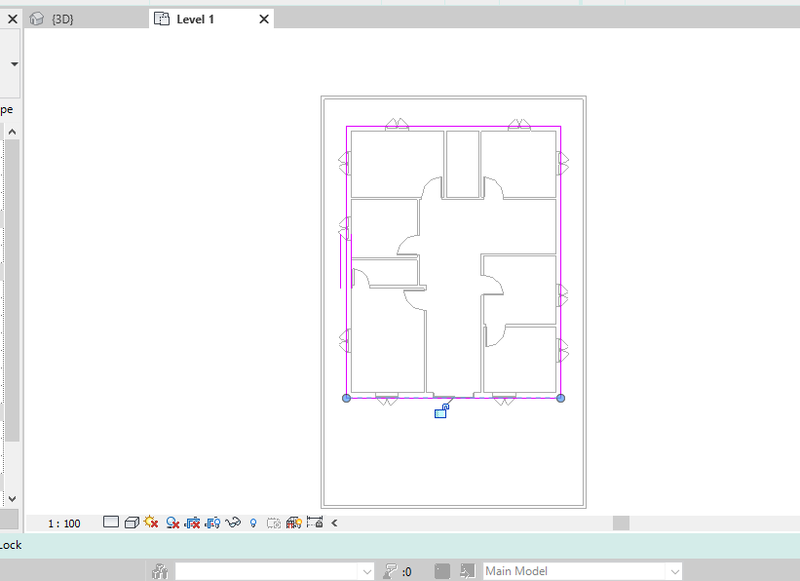

RESULT  :

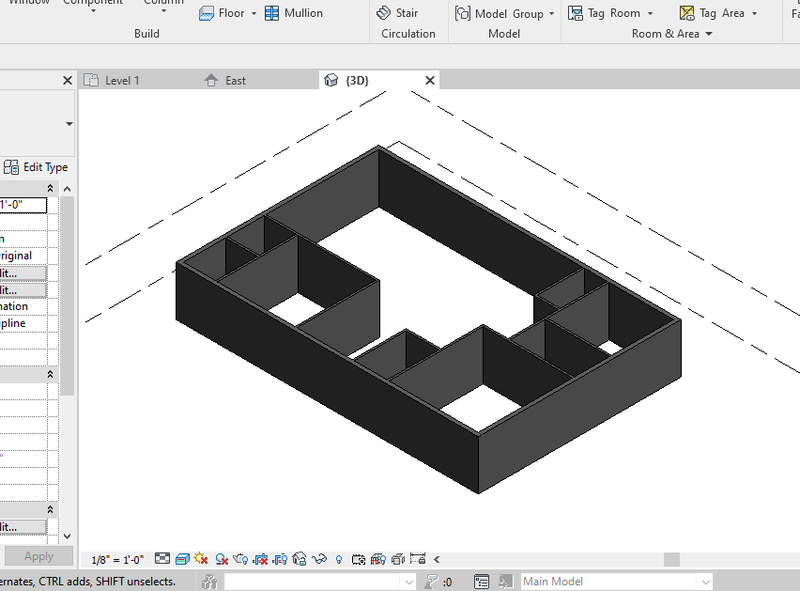

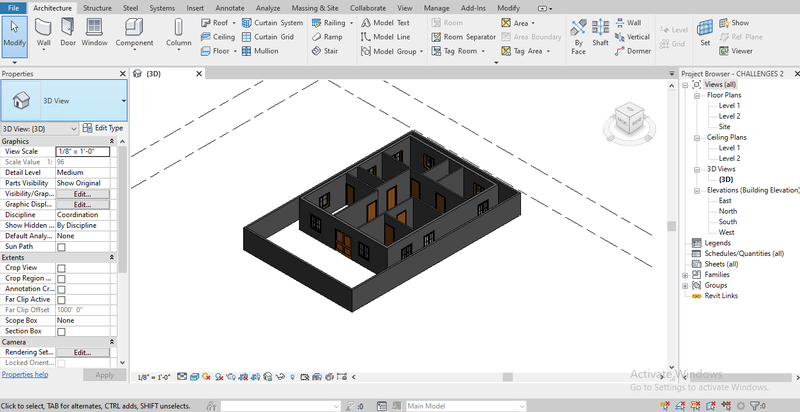

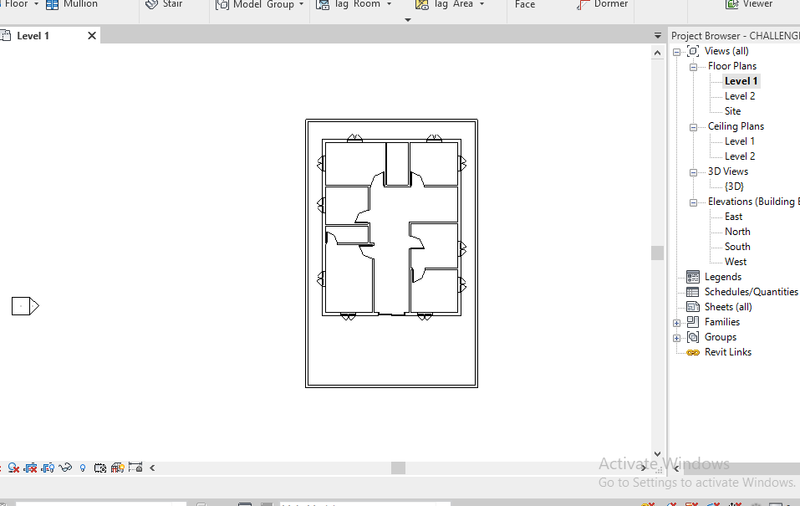

               THE RESULT CONSISTS OF A GROUND FLOOR PLAN AND 3D VIEW OF THE LAYOUT WHICH SHOWS THE CREATED FLOOR TYPE IS GENERIC FLOOR.







2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.



a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected

b. Which option is convenient for modeling walls, By Height or By Depth?



AIM : TO CREATE A FLOOR FOR THE LAYOUT CREATED IN CHALLENGE 2



INTRODUCTION :

                        A WALL IS A STRUCTURE AND A SURFACE THAT DEFINES AN AREA , CARRIES A LOAD , PROVIDES SECURITY , SHELTER , OR SOUNDPROOFING OR IS DECORATIVE.
                       THERE ARE MANY KINDS OF WALLS , INTERNAL AND EXTERNAL WAL.



PROCEDURE  :

 STEP 1 : OPEN LAYOUT SAVED IN QUESTION 1

DOUBLE CLICK ON THE REVIT ICON

GO TO NEW OPTION

THEN TEMPLATE FILE AS ARCHITECTURAL TEMPLATE

CREATE NEW AS A PROJECT

CLICK ON OK

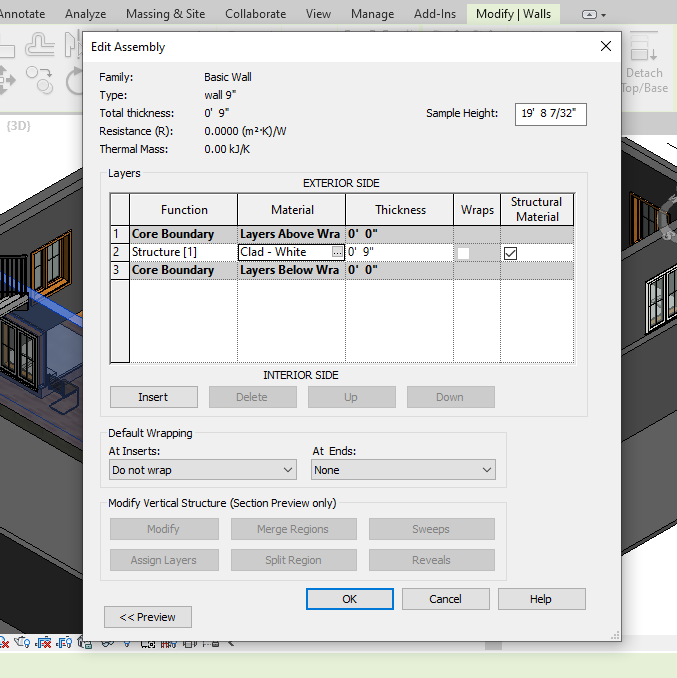

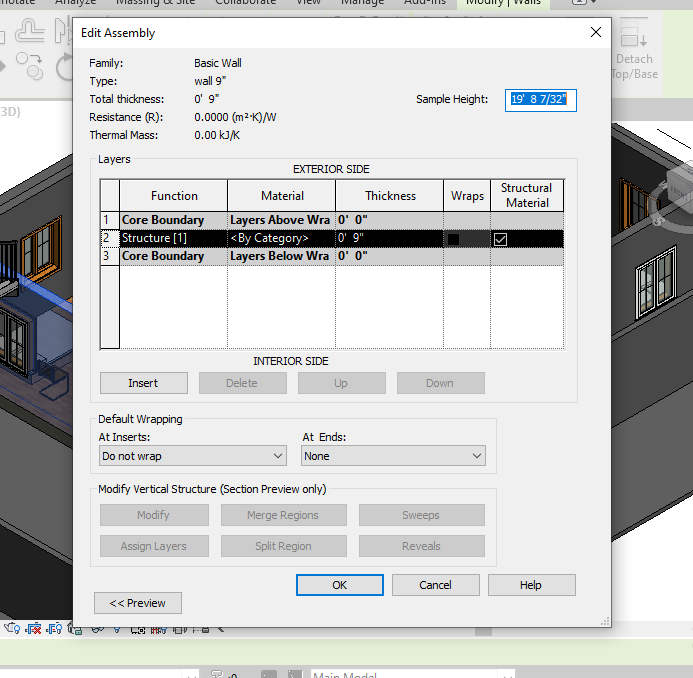

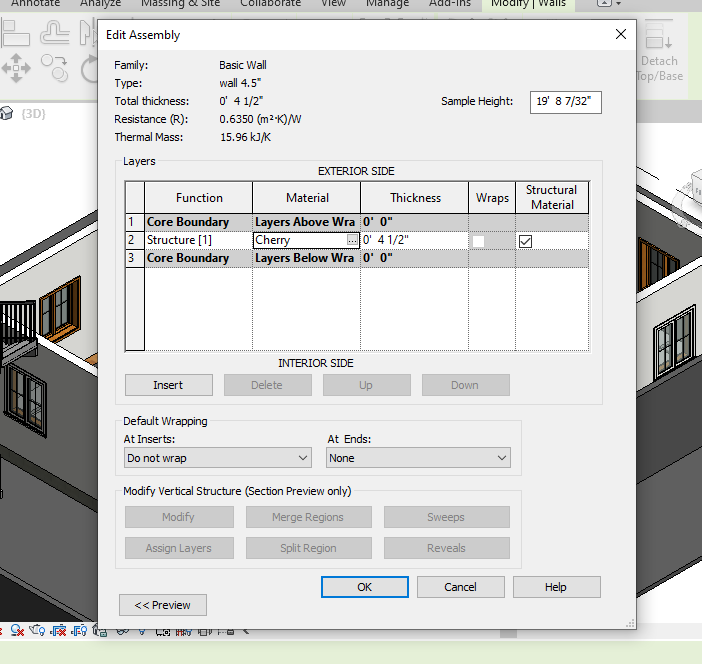

STEP 2 : CREATING OUTER WALL MATERIAL

SELECT THE WALL

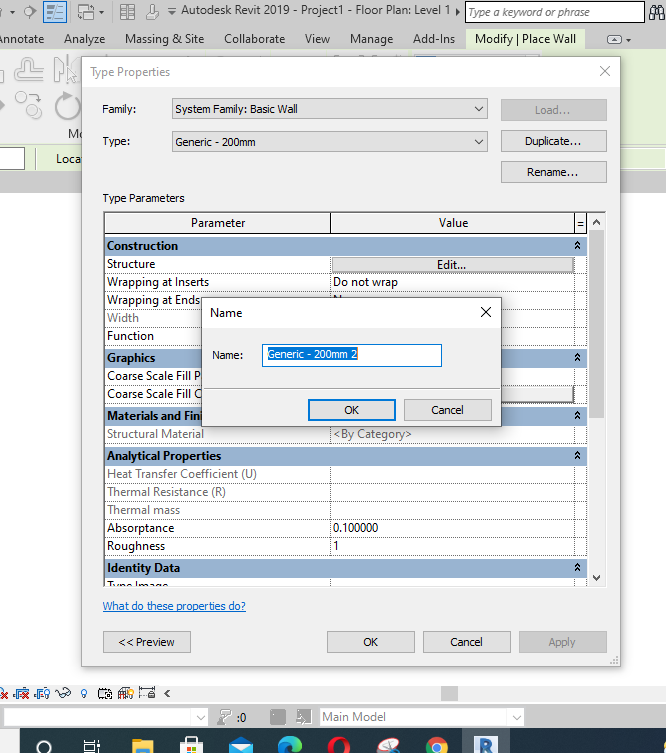

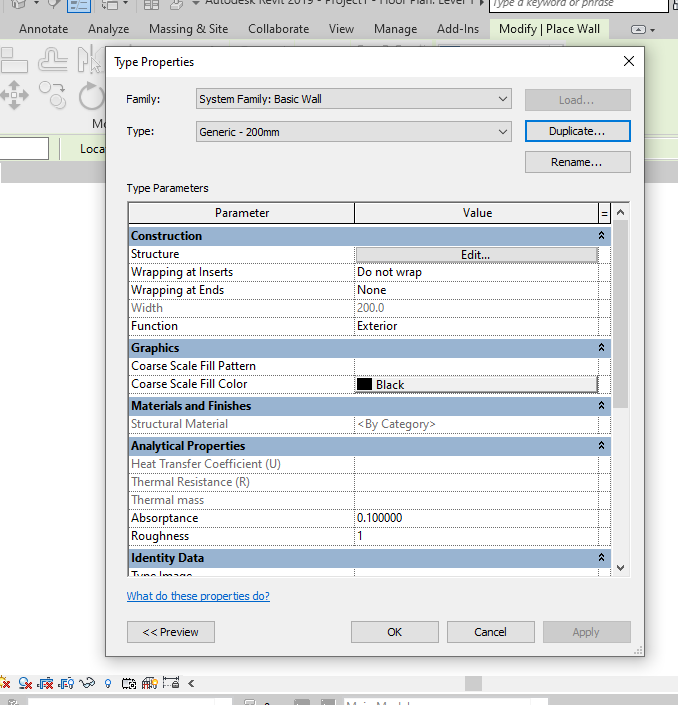

GO TO EDIT TYPE IN PROPERTIES

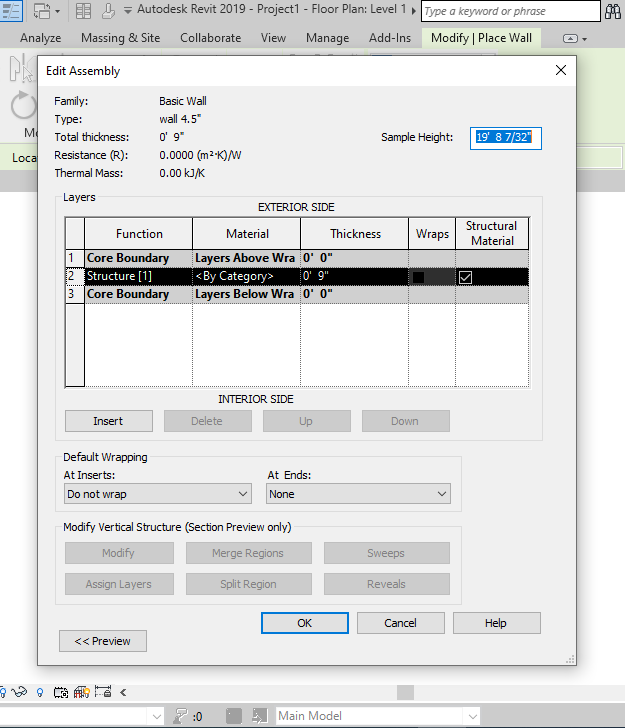

GO TO EDIT

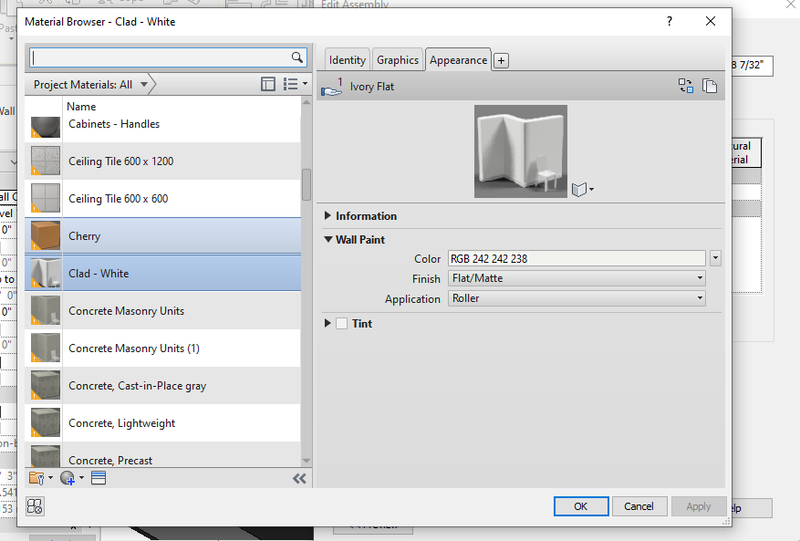

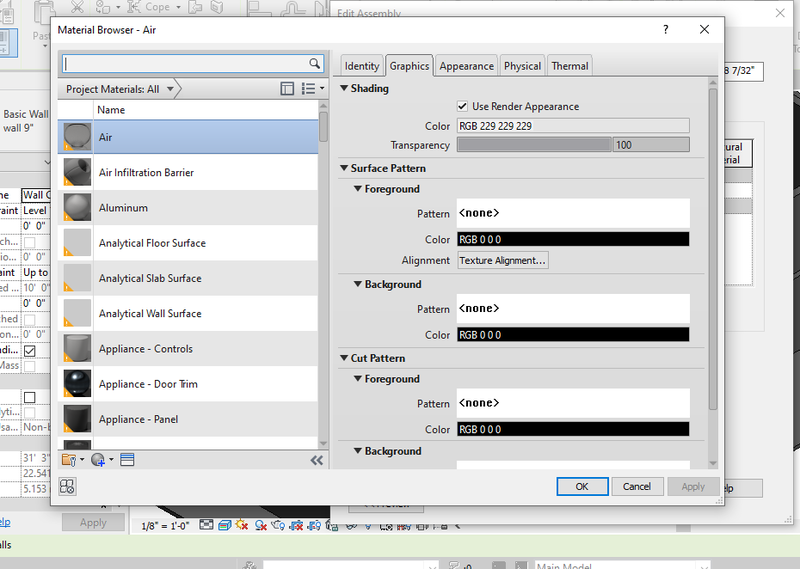

GO MATERIAL OPTION

THEN GO TO CREATE AND DUPLICATE MATERIAL

SELECT NEW MATERIAL

GIVE THE NAME AS YOUR REQUIRED

GO TO APPEARANCE

TURN ON THE USE RENDER APPEARANCE

GO TO REPLACE THIS ASSET MATERIAL

THEN APPEARANCE LIBRARY

THEN SELECT AS YOUR REQUIRED MATERIAL

CLICK ON OK

CLICK ON OK



STEP 3 : CREATING INTERIOR WALL MATERIAL

SELECT THE WALL

GO TO EDIT TYPE IN PROPERTIES

GO TO EDIT

GO MATERIAL OPTION

THEN GO TO CREATE AND DUPLICATE MATERIAL

SELECT NEW MATERIAL

GIVE THE NAME AS YOUR REQUIRED

GO TO APPEARANCE

TURN ON THE USE RENDER APPEARANCE

GO TO REPLACE THIS ASSET MATERIAL

THEN APPEARANCE LIBRARY

THEN SELECT AS YOUR REQUIRED MATERIAL

CLICK ON OK

CLICK ON OK

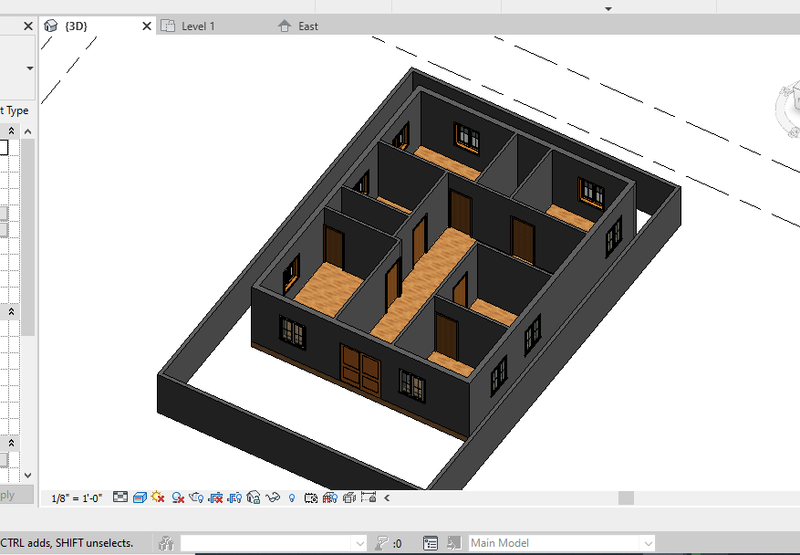

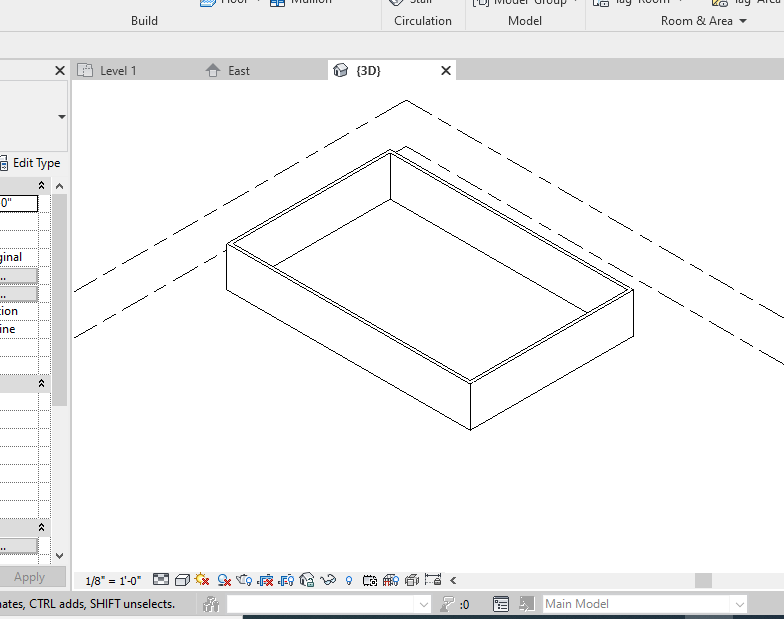

RESULT :

               TEXTURE OF WALL IS AS FOLLOWS

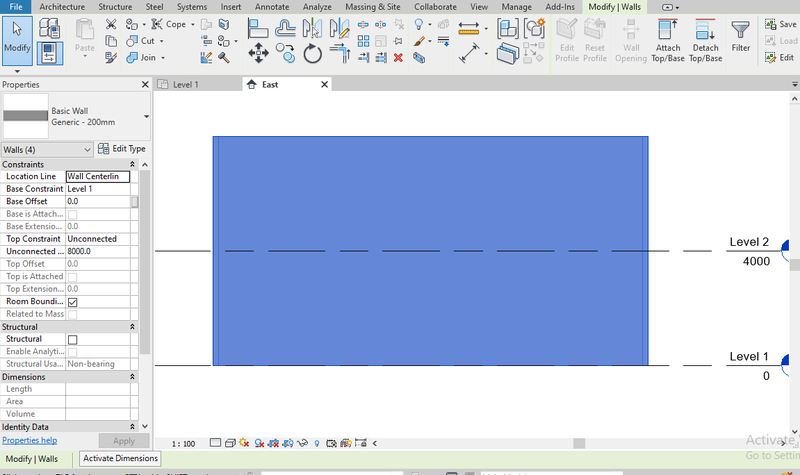

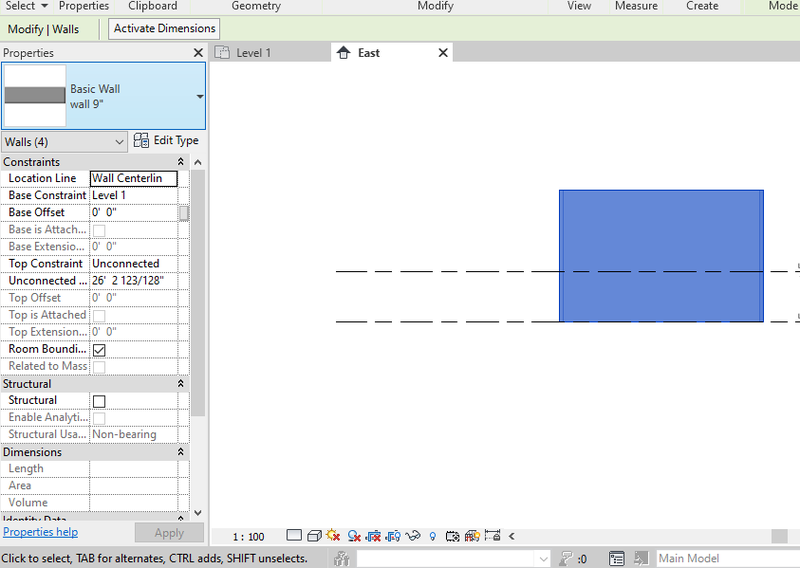

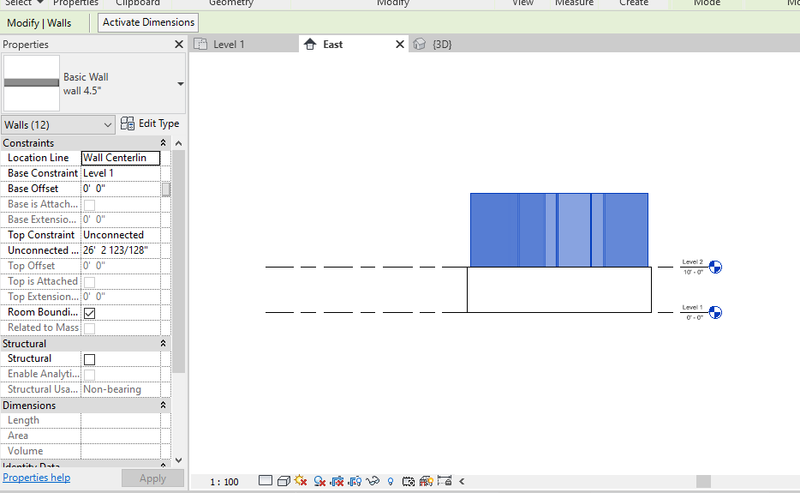

A  :

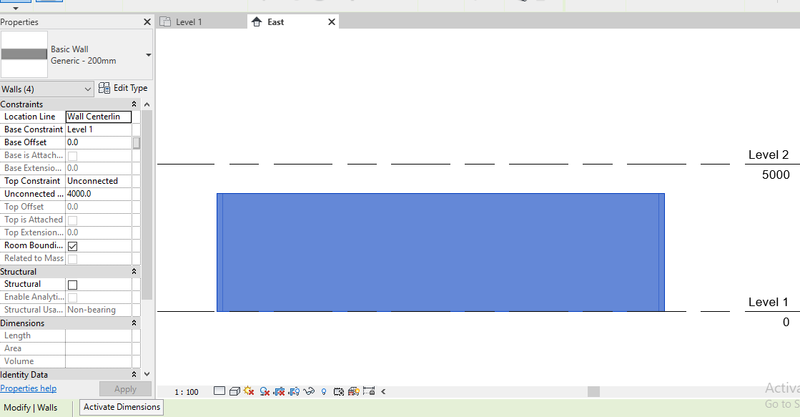

      SELECT WALL

GO TO PROPERTIES

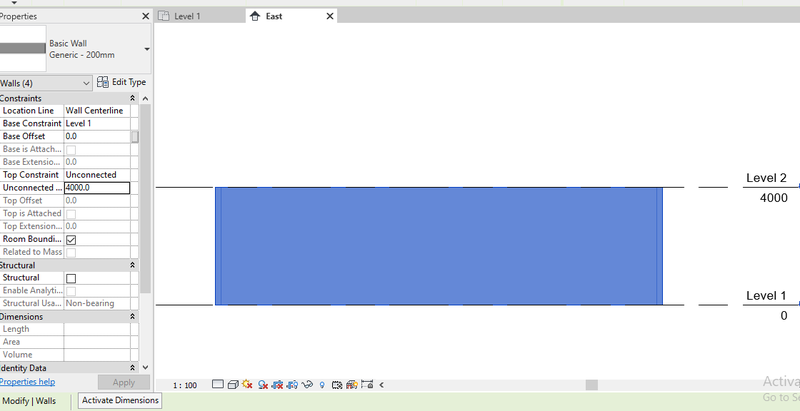

THEN CHANGE THE UNCONNECTED DISTANCE AS 4000

HEAR I AM NOT CHANGE THE CONSTRAINED AS UNCONNECTED ONLY

CLICK ON APPLY

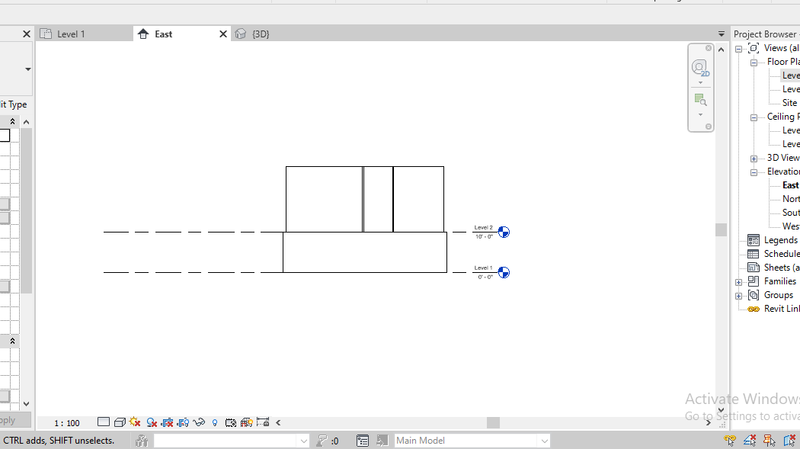

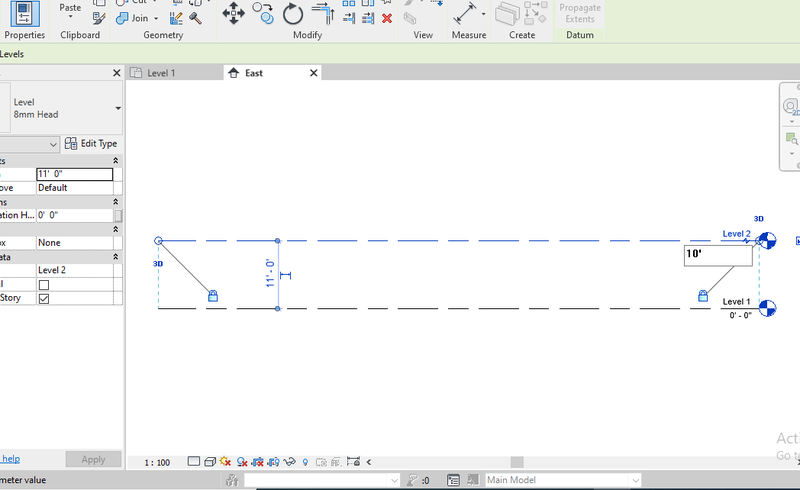

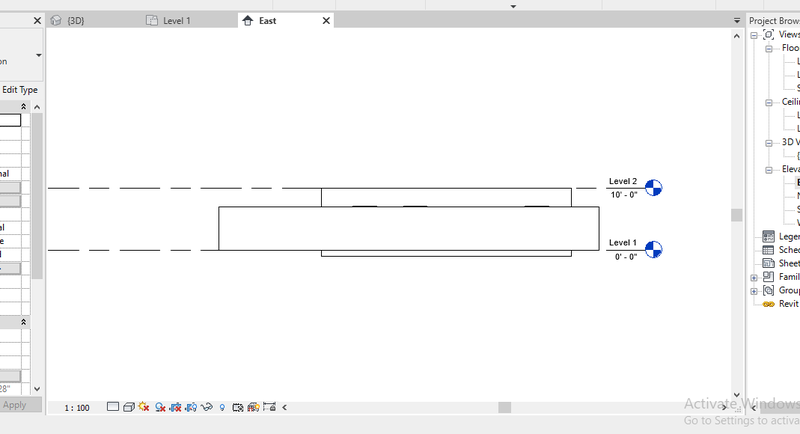

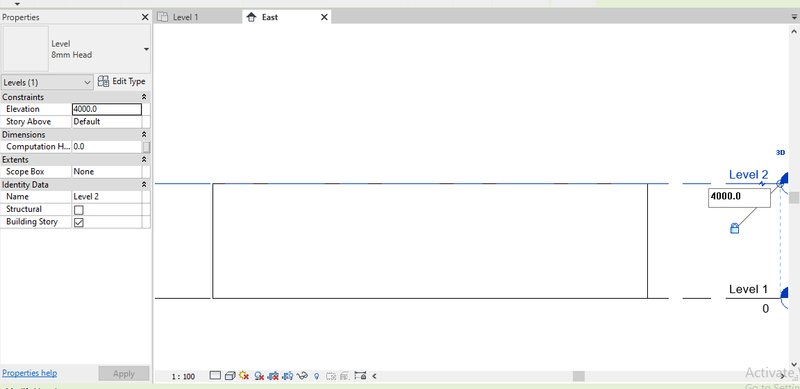

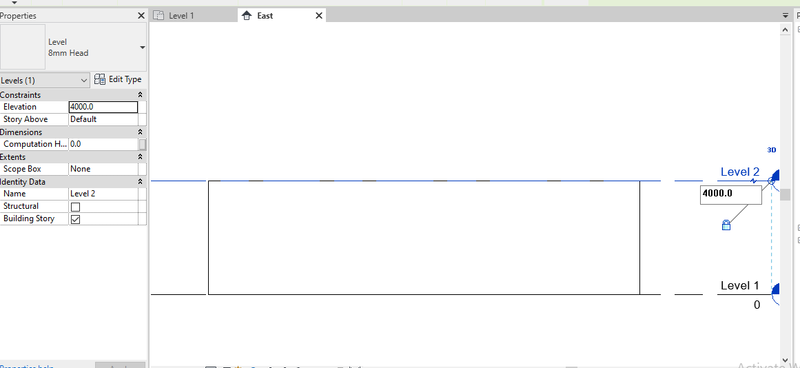

NOW GO TO ANY ELEVATION VIEW

SELECTTHELEVEL 2

CHANGE THE LEVEL 2 HEIGHT

HEAR WE ABSROBRE

NOT CHANGE THE WALL HEIGHT

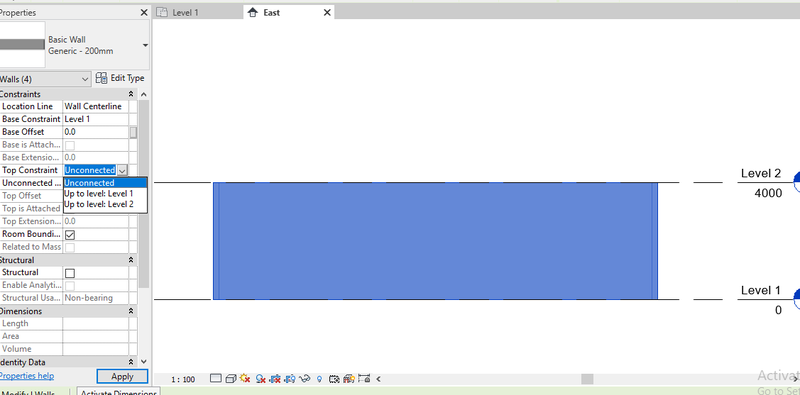

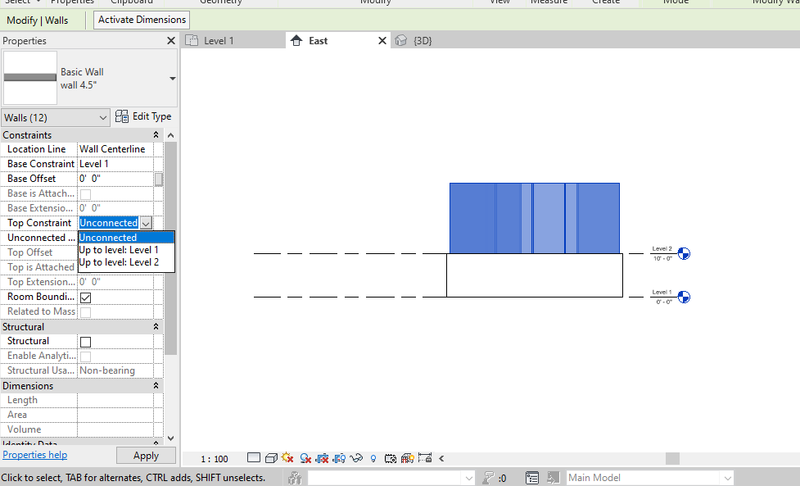

B  :

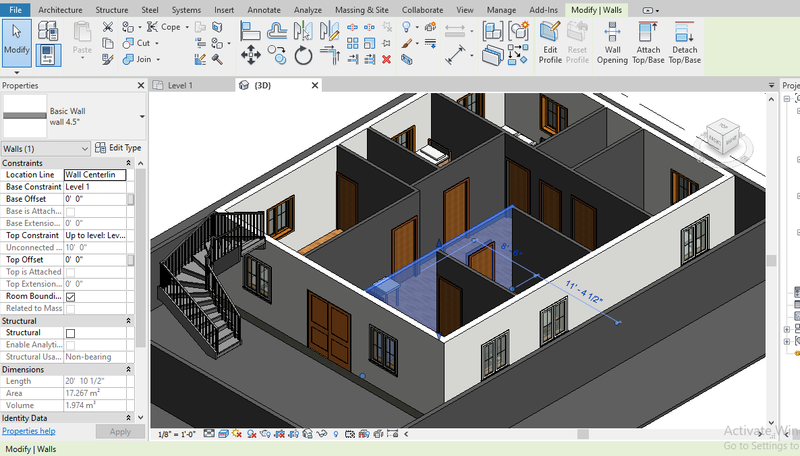

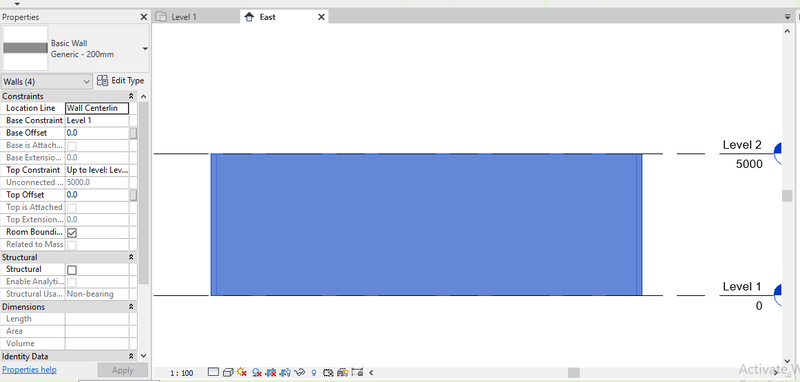

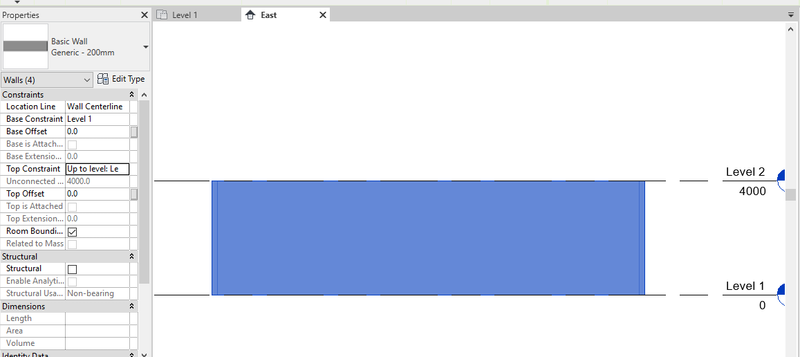

      SELECT WALL

GO TO PROPERTIES

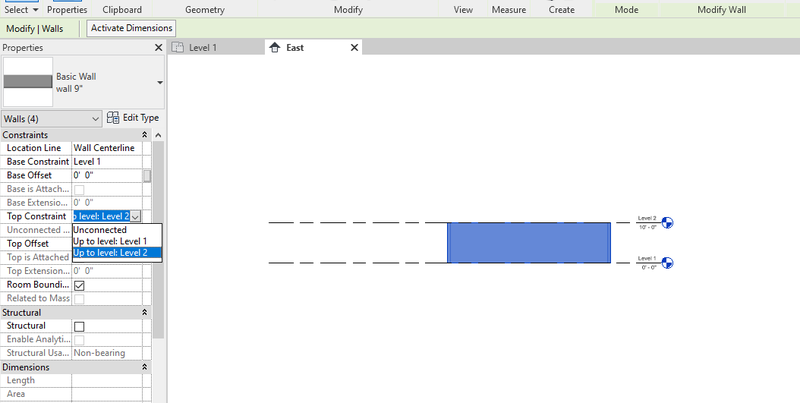

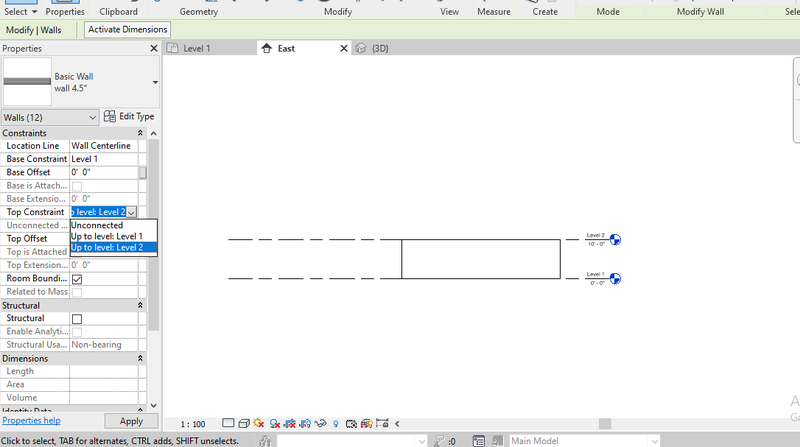

THEN CHANGE THE CONSTRAINT AS UP TO LEVEL 2

HEAR I AM NOT CHANGE THE UNCONNECTED DISTANCE AS CONSTRAINT ONLY

CLICK ON APPLY

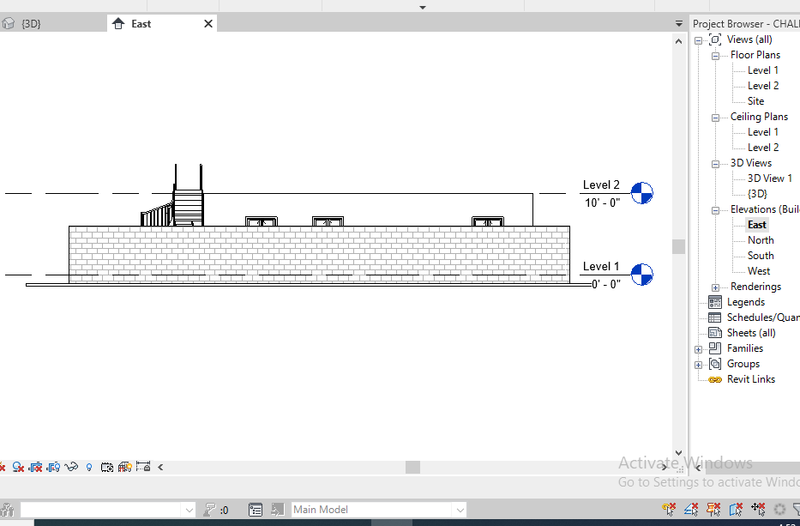

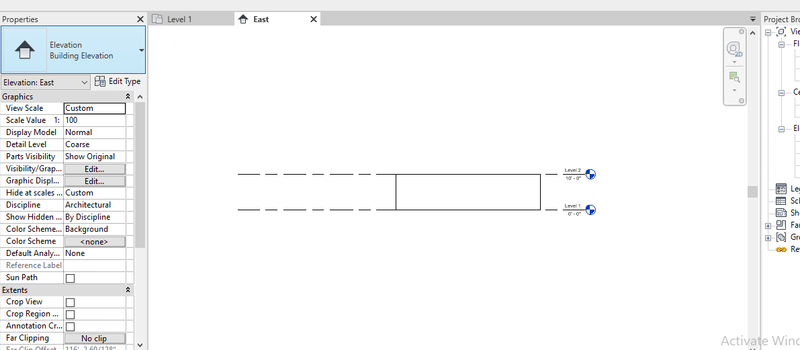

NOW GO TO ANY ELEVATION VIEW

SELECTTHELEVEL 2

CHANGE THE LEVEL 2 HEIGHT

HEAR WE ABSROBRE

 CHANGE THE WALL HEIGHT ALSO









3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align

elements to a different level



AIM : TO COPY THE MODEL CREATED AND PASTE IT ALIGNED TO THE FIRST FLOOR



INTRODUCTION :

                         THE MODEL CREATED CAN BE EXTENDED TO LEVEL 2 OR THE FIRST FLOOR BY COPYING WITH THE ELEMENTS OF THE GROUND FLOOR AND PASTING THEM ON THE FIRST - FLOOR VIEW.



PROCEDURE  :

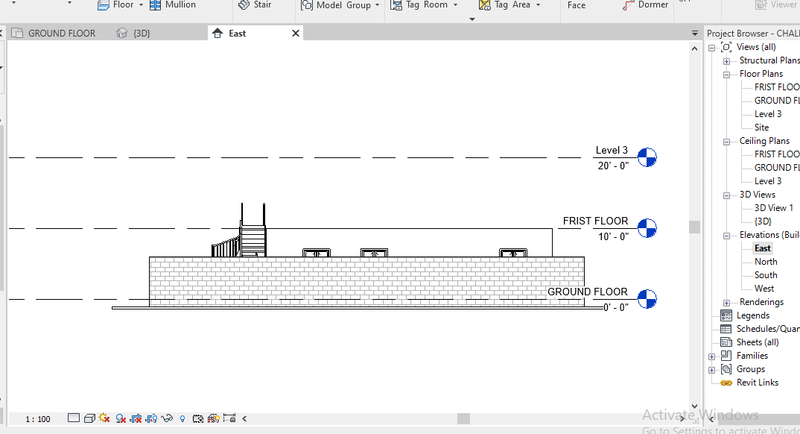

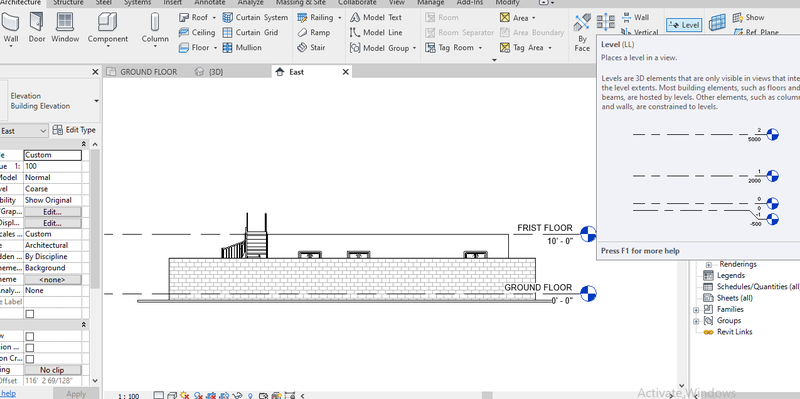

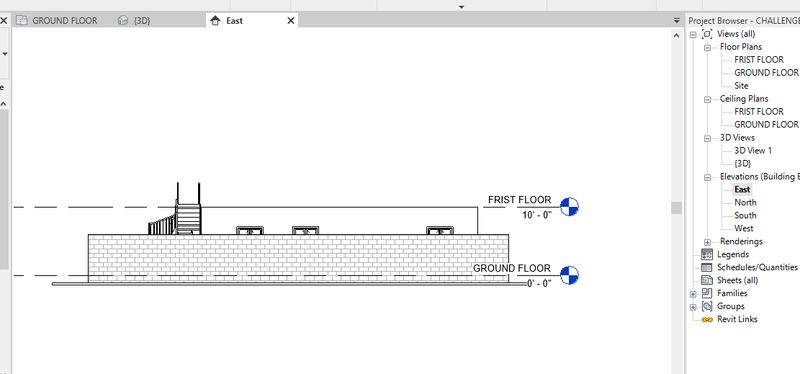

STEP  1  :  TO CREATE THE LEVELS

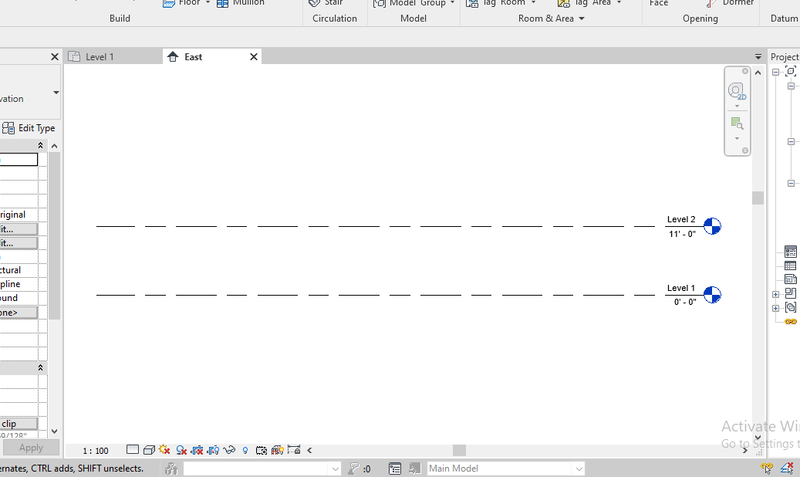

GO TO ANY ELEVATION VIEW IN PROJECT BROWSER

CHANGE THE LEVEL 1 AND LEVEL 2 NAME AS GROUND FLOOR AND FIRST FLOOR LEVEL

THEN GO TO ARCHITECTURE TAB

GO TO DATUM OPTION

NOW TAKE THE LEVEL

TAKE THE DRAW COMMAND AS PICK LINES

AND GIVE THE OFFSET AS YOUR REQUIRED

THENSELECTTHEFIRSTFLOOR LEVEL

THEN CREATE THE AS YOUR REQUIRED LEVEL

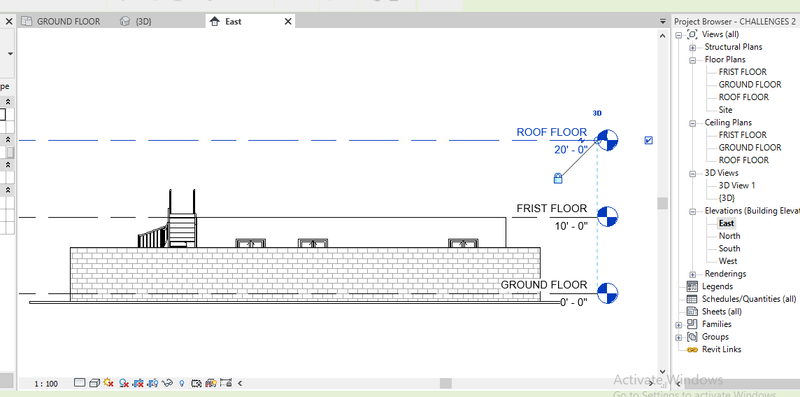

CHANGE THE LEVEL 3NAME AS ROOF FLOOR LEVEL

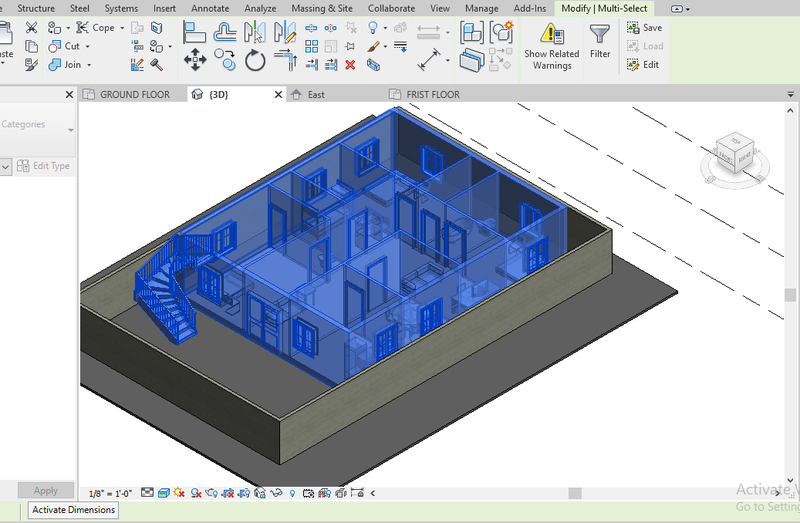

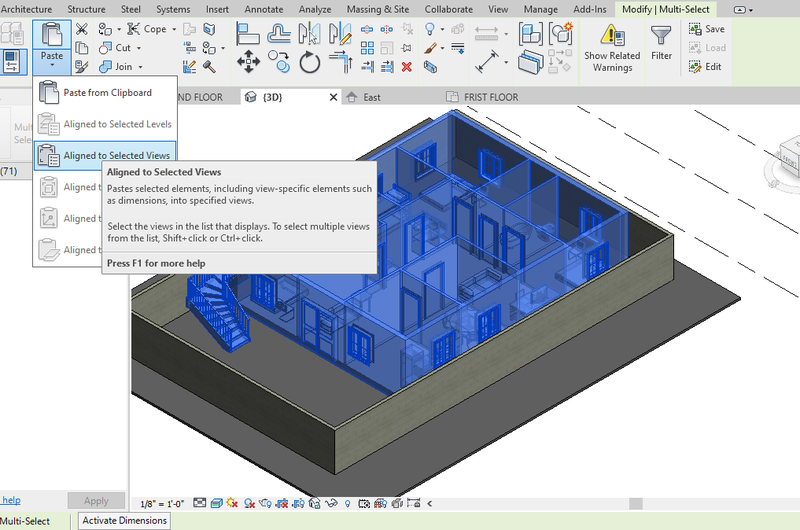

STEP   2  :  TO CREATE THE FIRST FLOOR

THEN SELECT THE GROUND FLOOR AS YOUR REQUIRED PLAN

GO TO MODIFY  / MULTISECT TAB

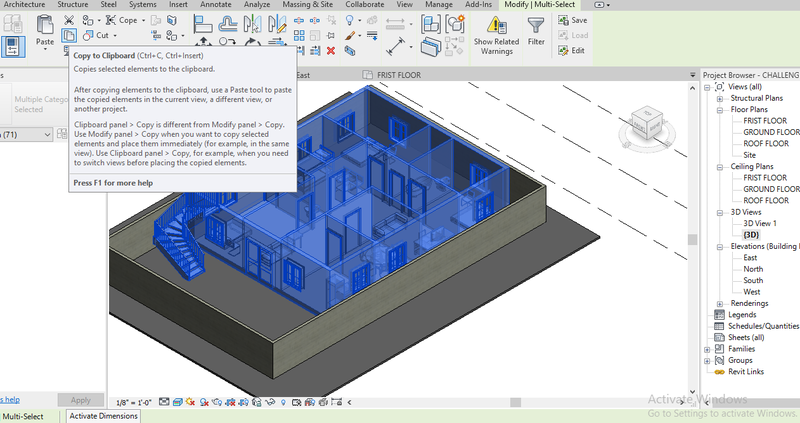

CLICK ON COPY CLIPBOARD

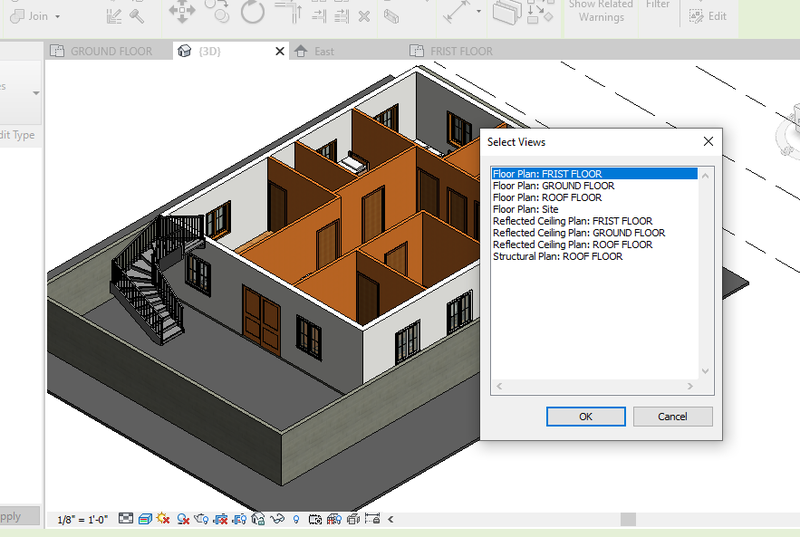

THEN GO TO PASTE DOWN ARROW

THEN SELECT THE REQUIRED FLOOR PLANS

AS A FIRST FLOOR PLAN

THEN CLICK ON OK

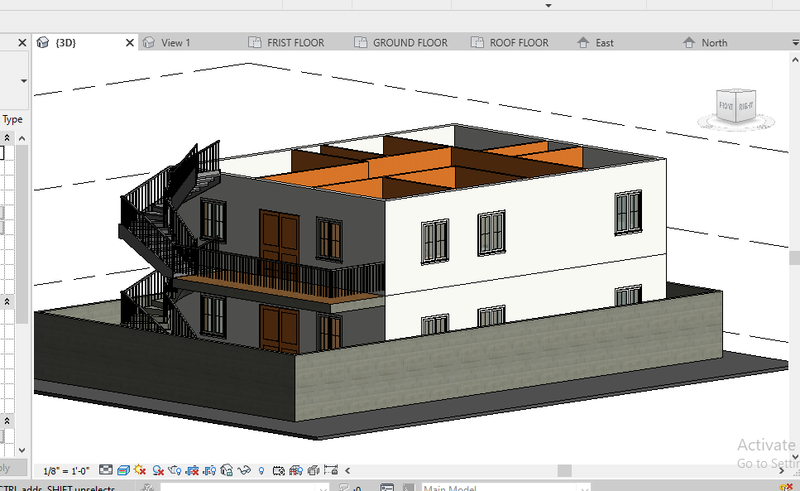

FINALY CREATED FIRST FLOOR PLAN







RESULT  :







4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms



a. Living Room/ Drawing Room ( 15’ X 18’)

b. Dining Room (9’ X 11’)

c. Bed Room ( 9’ X 12’ and 15’ X 11’)

d. Rest Room ( 10’ X 12’ )

e. Kitchen (8’ X 10’)

The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest

rooms based on your creativity and purpose of modeling. Convert units if you are using metric system



AIM  :  TO SEPARATE THE ROOMS USING PARTION WALLS



INTRODUCTION  :

                           PARTITION WALLS ARE USED TO SEPARATE ROOMS OF A RESIDENTIAL HOUSE.
                          THESE WALLS ARE DRAWN BASED ON THE DIMENSIONS OF RESPECTIVE ROOMS.

PROCEDURE  :



STEP  1 :  OPENING REVIT



DOUBLE CLICK ON THE REVIT ICON

GO TO NEW OPTION

THEN TEMPLATE FILE AS ARCHITECTURAL TEMPLATE

CREATE NEW AS A PROJECT

CLICK ON OK





STEP  2 :  UNITS SETUP



GO TO MANAGE TAB IN MANU BAR

TAKE PROJECT UNITS OPTION

THEN GIVE THE REQUIRED UNITS

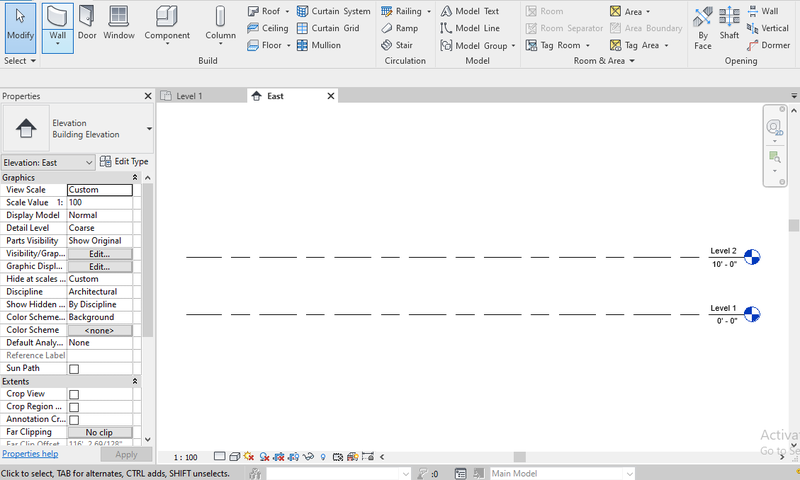

STEP  3  :  LEVELS SETUP



GO  TO PROJECT BROWSER

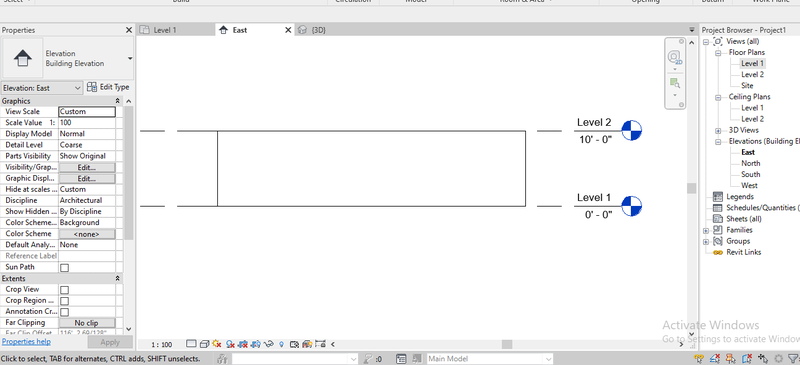

GO TO ANY ELEVATION VIEW

SELECT THE LEVEL 2

CHANGE THE HIGHT AS REQUIRED

THEN FLOOR LEVEL AS LEVEL 1

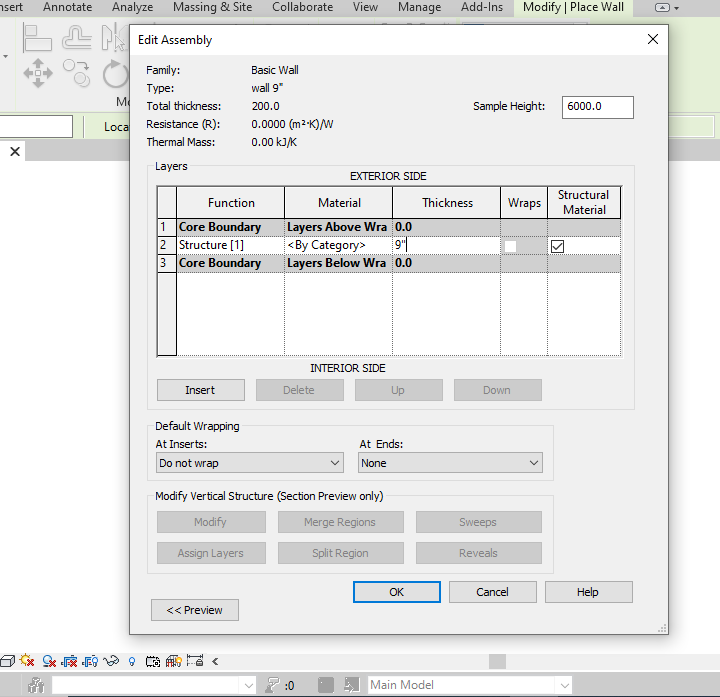

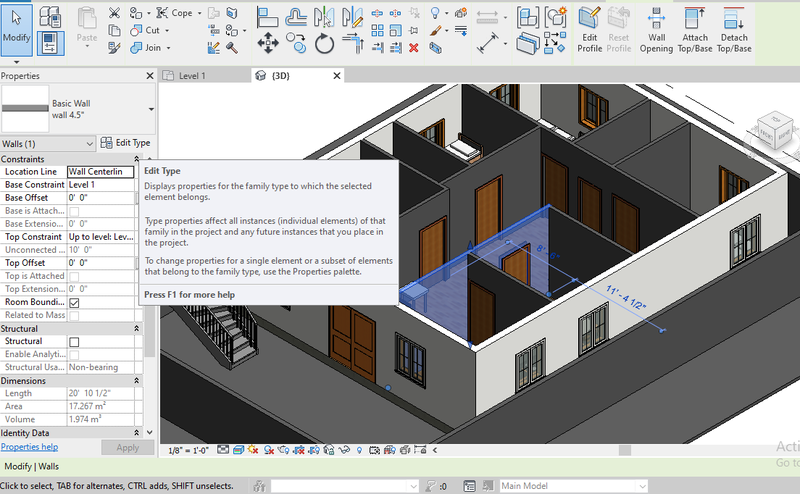

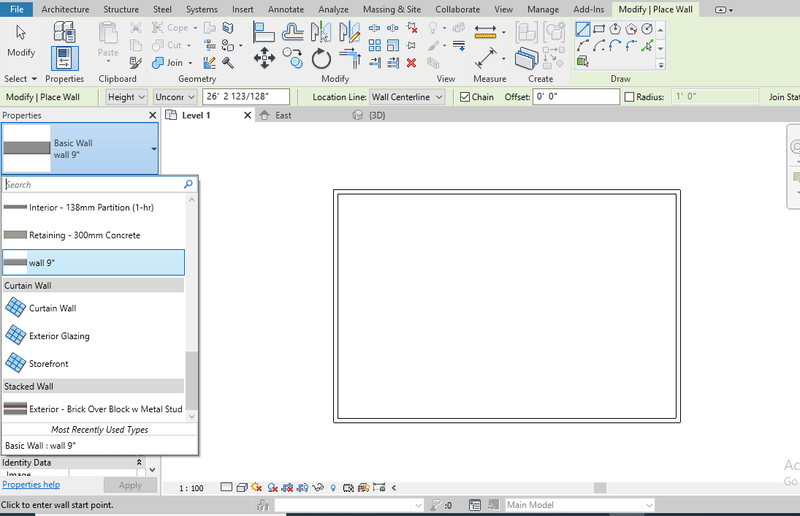

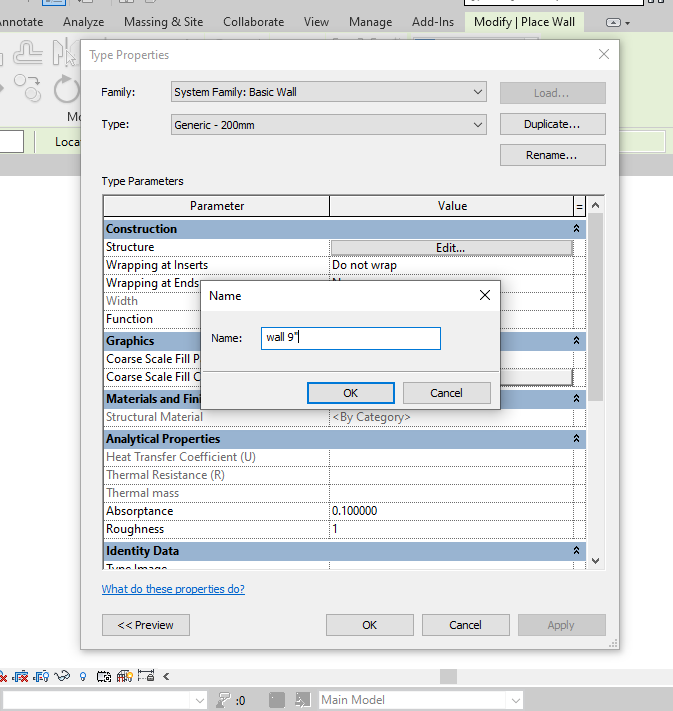

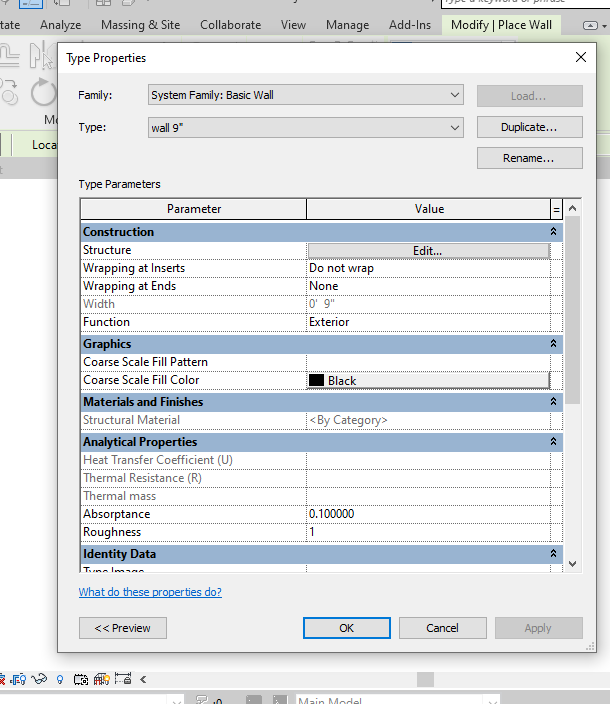

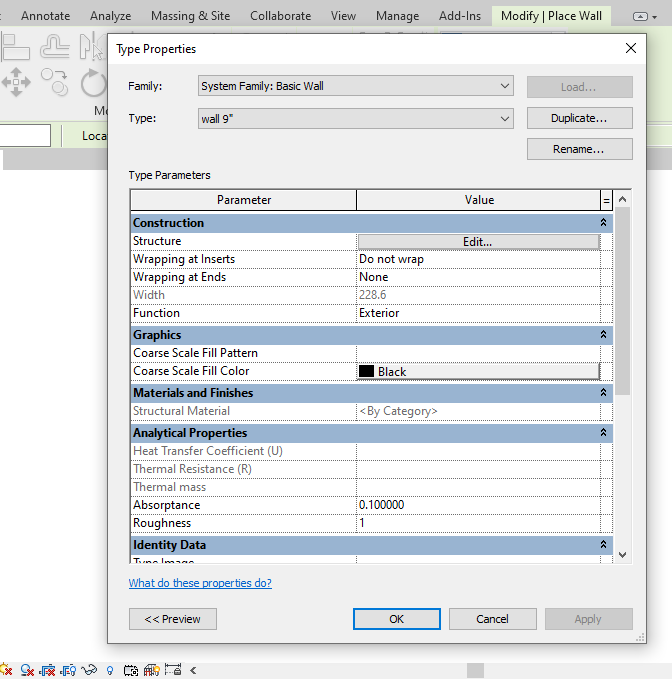

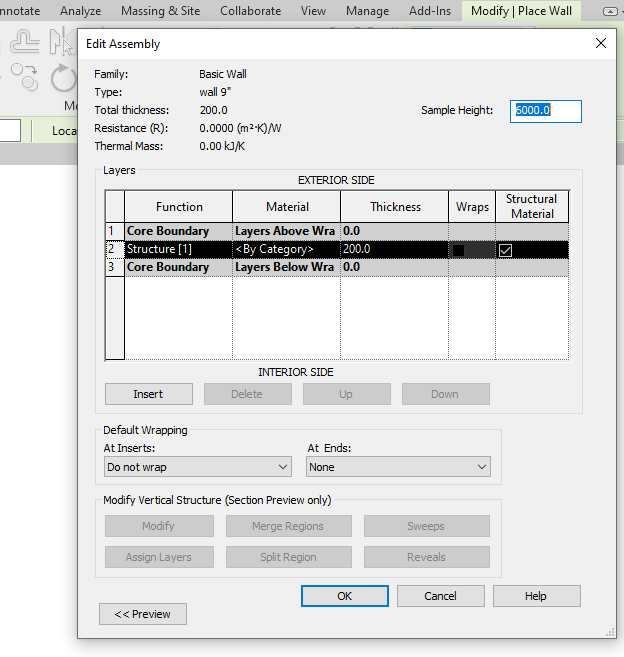

SETP  4  :  TO CREATE 9" WALL

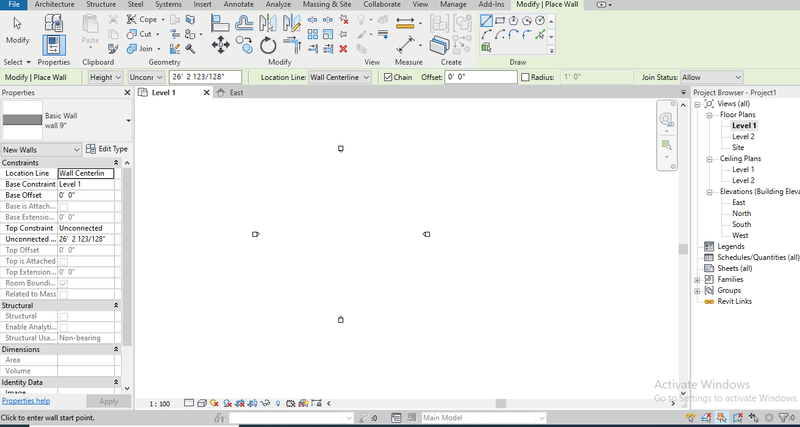

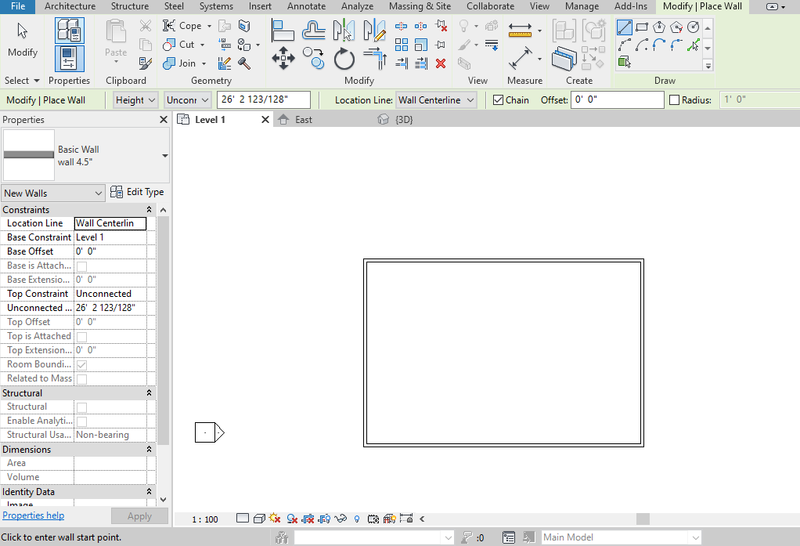

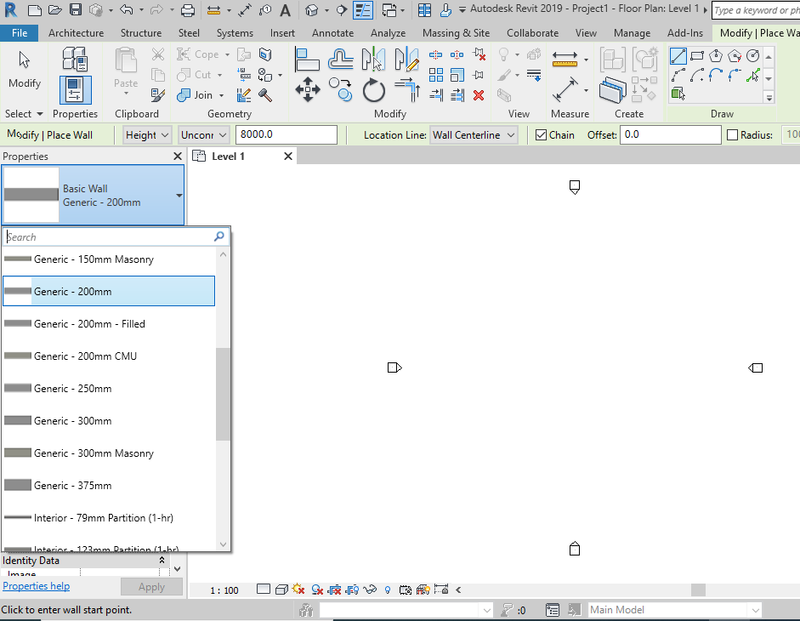

GO TO ARCHITECTURE TAB

THEN TAKE WALL OPTION

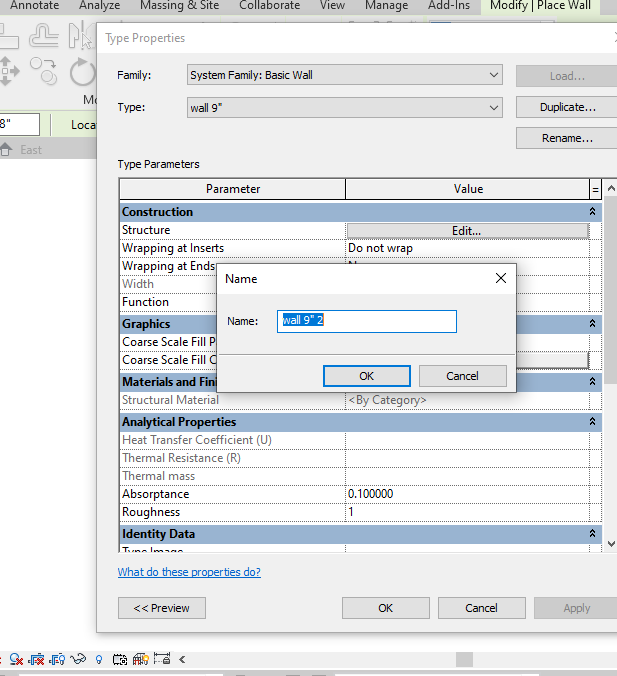

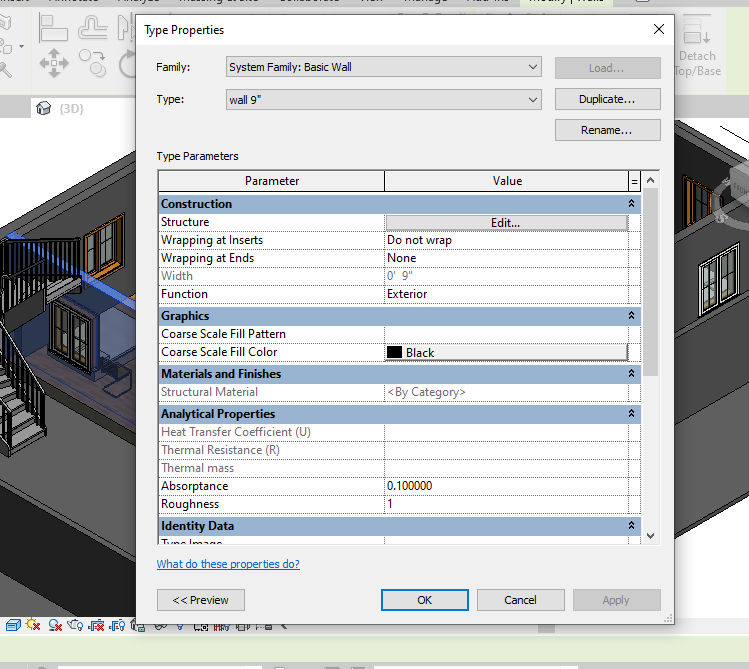

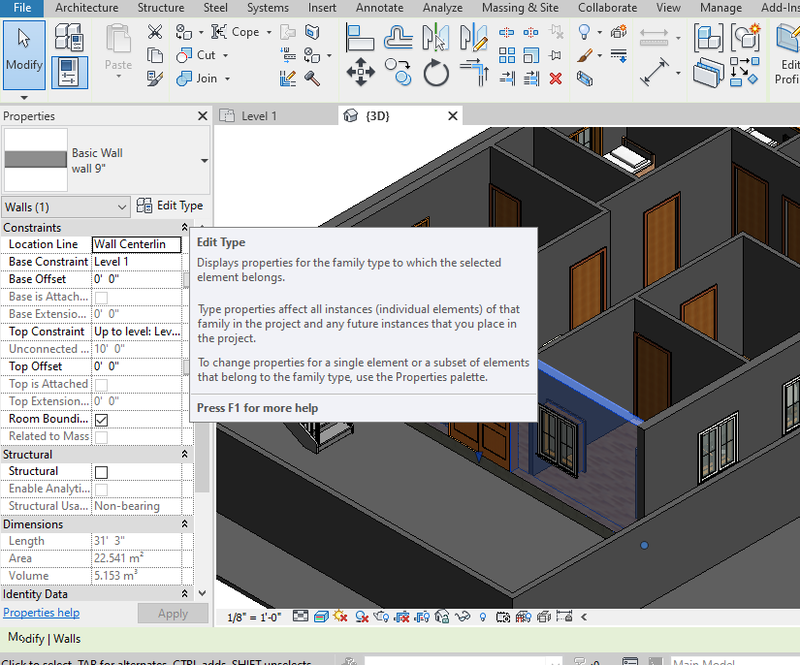

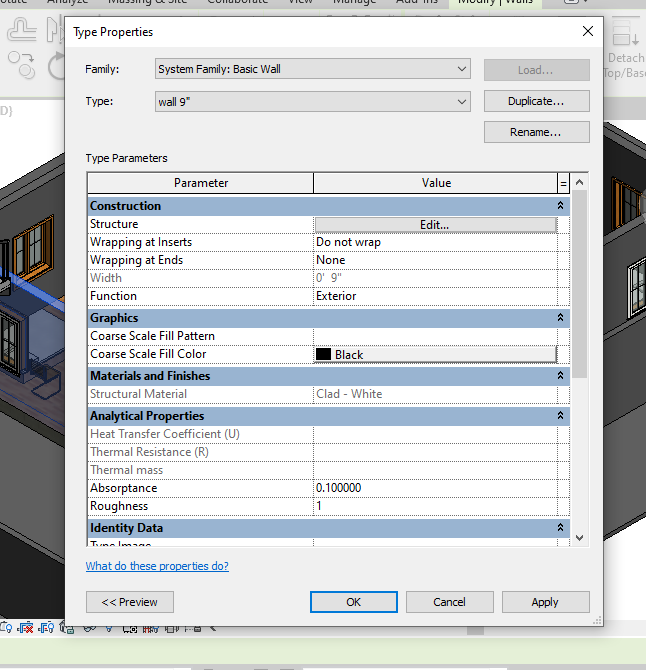

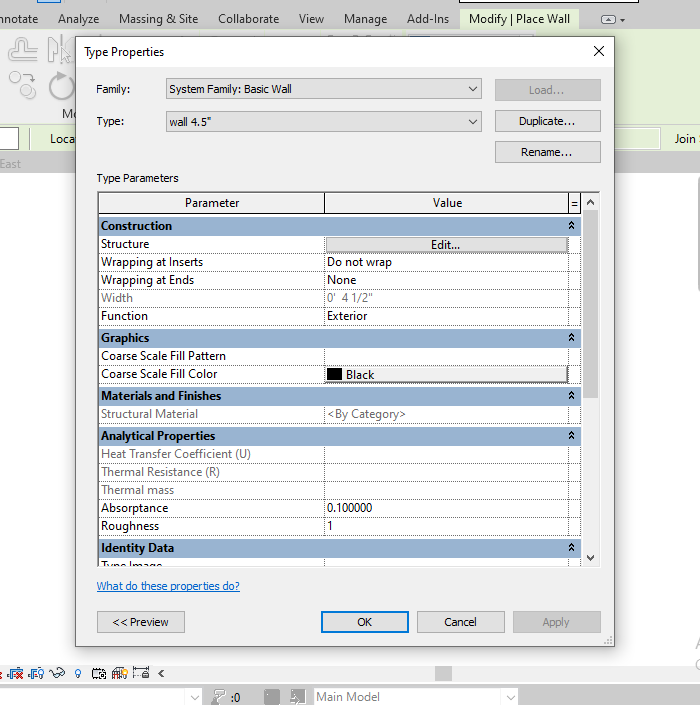

GO TO EDIT TYPE IN PROPERTIES PANEL

CLICK ON DUPLICATE

GIVE THE NAME AS YOUR REQUIRED

CLICK ON OK

CLICK ON OK

NEXT TAKE THE REQUIRED DRAW COMMAND

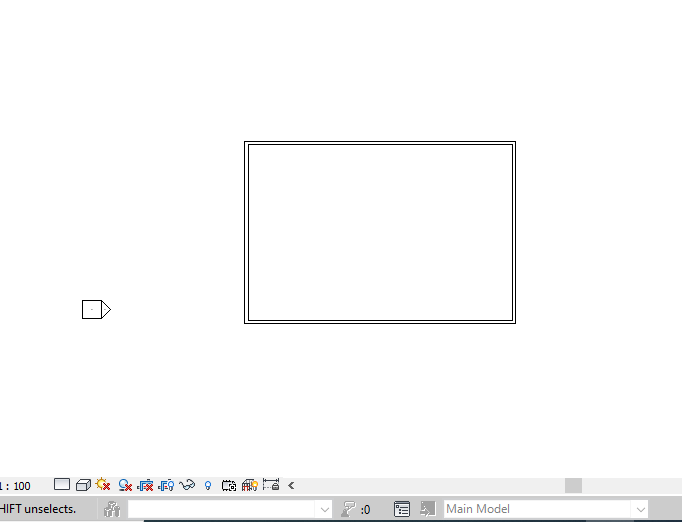

DRAW THE AS PER REQUIRED LAYOUT

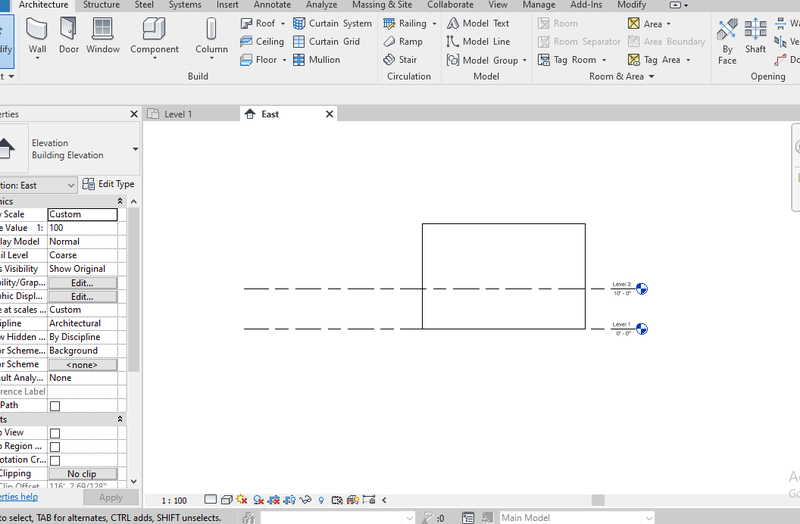

BUT HEIGHT IS MORE

THEN GO TO ELEVATION VIEW

SELECT THE ALL WALLS

THEN SELECT THE TOP CONSTRAINT AS UP TO LEVEL 1

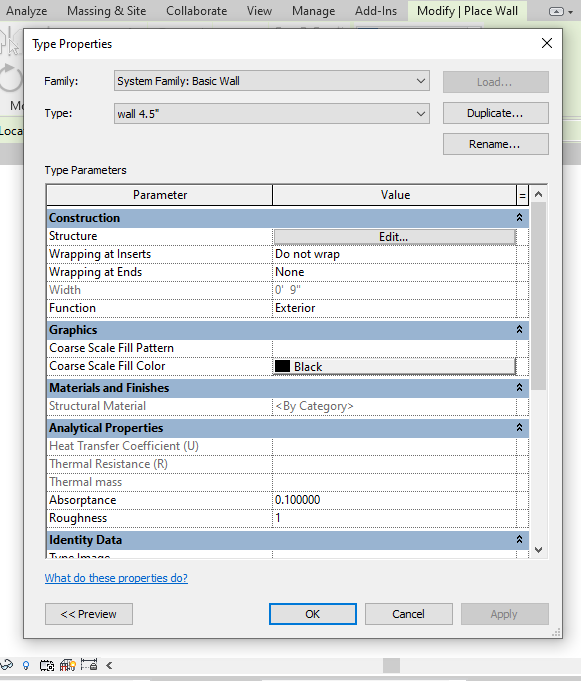

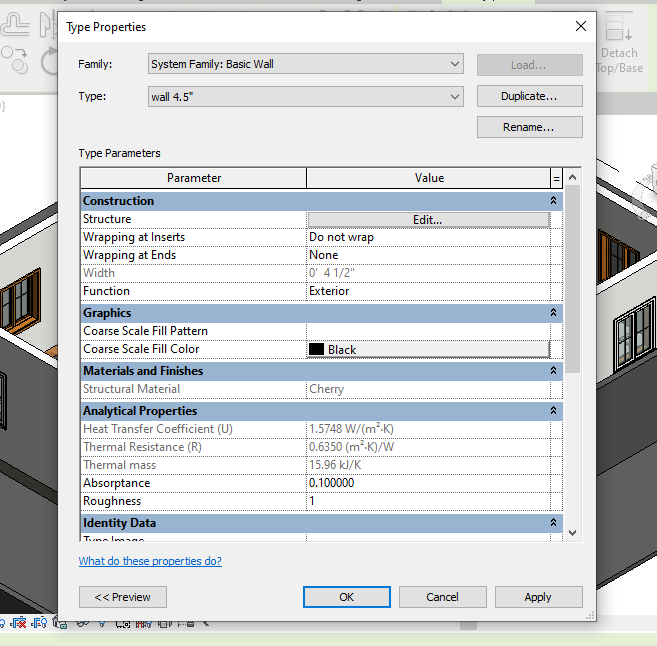

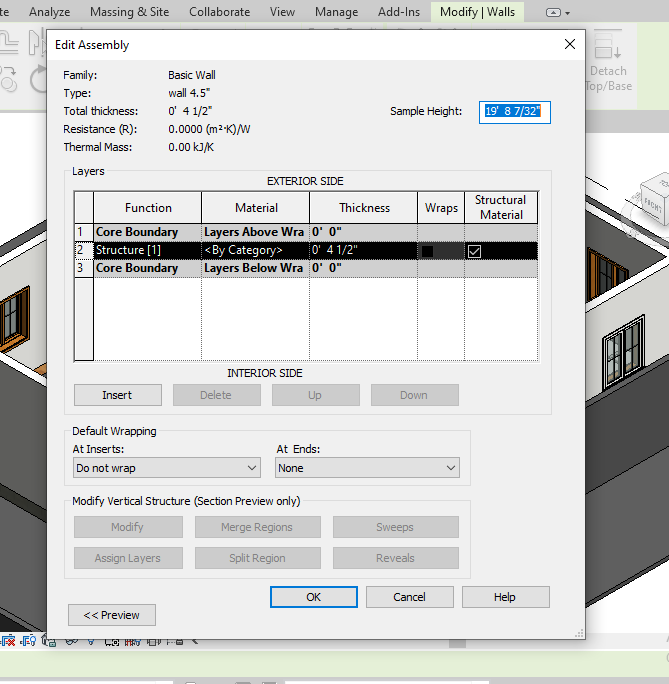

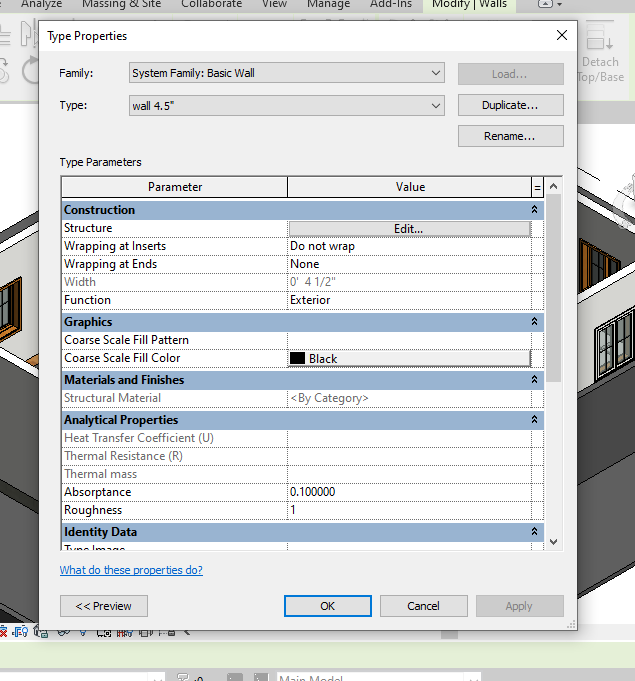

SETP  5  :  TO CREATE 4" WALL



GO TO ARCHITECTURE TAB

THEN TAKE WALL OPTION

GO TO EDIT TYPE IN PROPERTIES PANEL

CLICK ON DUPLICATE

GIVE THE NAME AS YOUR REQUIRED

CLICK ON OK

CLICK ON OK

NEXT TAKE THE REQUIRED DRAW COMMAND

DRAW THE AS PER REQUIRED LAYOUT

BUT HEIGHT IS MORE

THEN GO TO ELEVATION VIEW

SELECT THE ALL WALLS

THEN SELECT THE TOP CONSTRAINT AS UP TO LEVEL 1





STEP  6 :  TO CREATE THE FLOOR

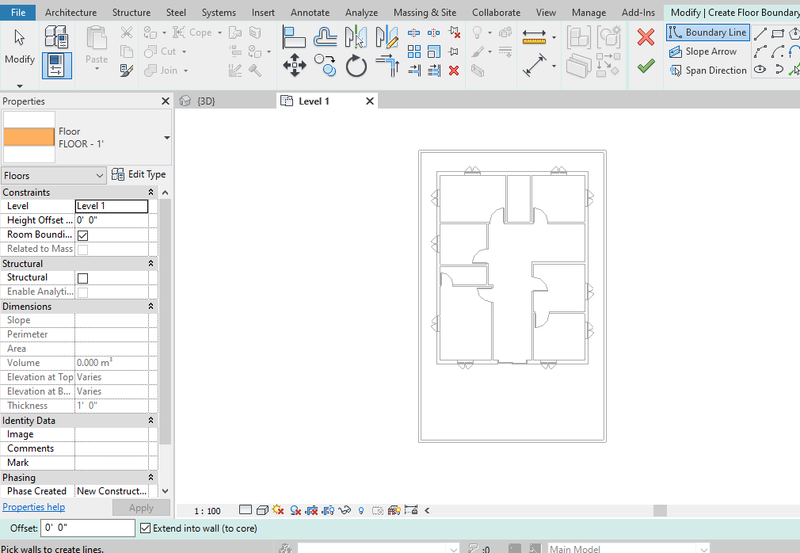

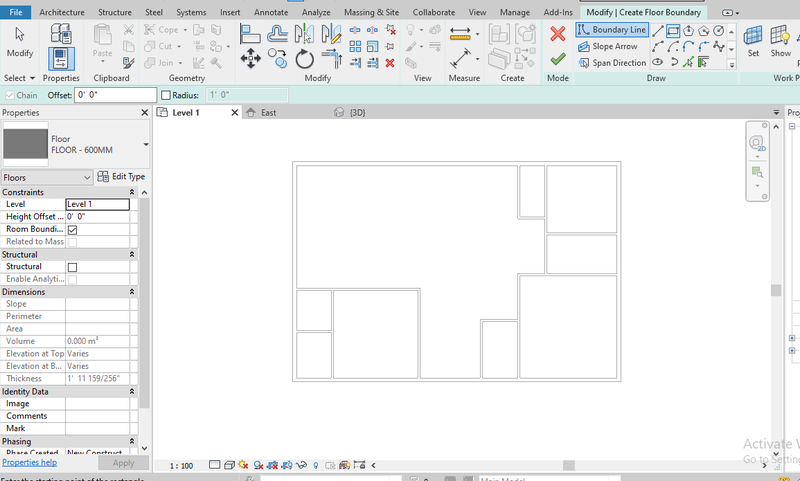

GO TO FLOOR PLAN AS LEVEL 1

GO TO ARCHITECTURE TAB

GO TO TAKE FLOOR

THEN TAKE THE FLOOR ARCHITECTURE

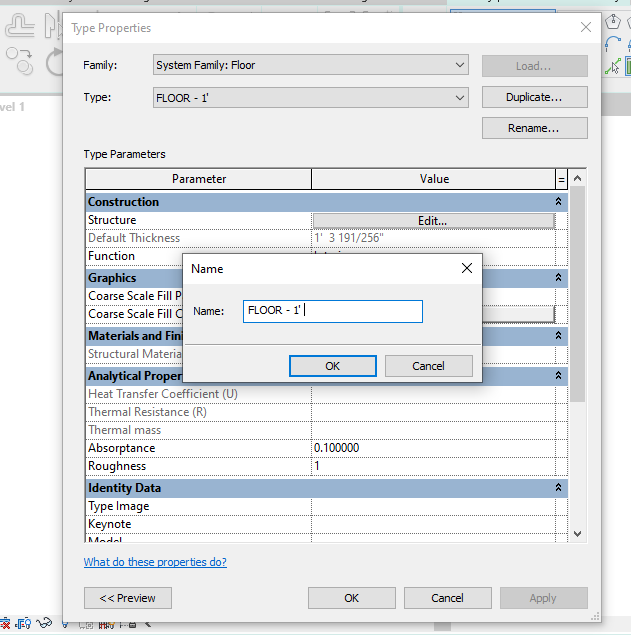

GO TO EDIT TYPE IN PROPERTIES

CLICK ON DUPLICATE

GIVE THE NAME AS YOUR REQUIRED

CLICK ON OK

GO TO EDIT

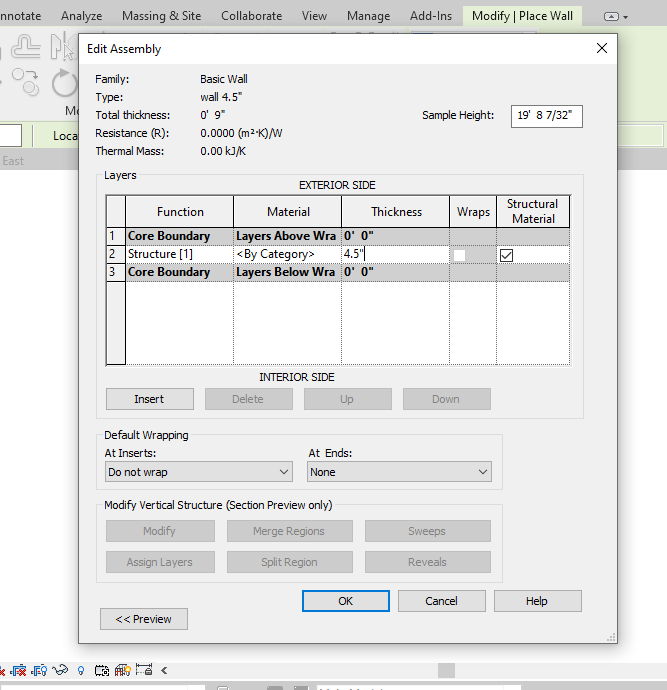

GIVE THE THICKNESS AS YOUR REQUIRED

CLICK ON OK

CLICK ON OK

TAKE THE REQUIRED DRAW COMMAND

THEN DRAW THE BASED ON YOUR LAYOUT

THEN CLICK ON FINSH

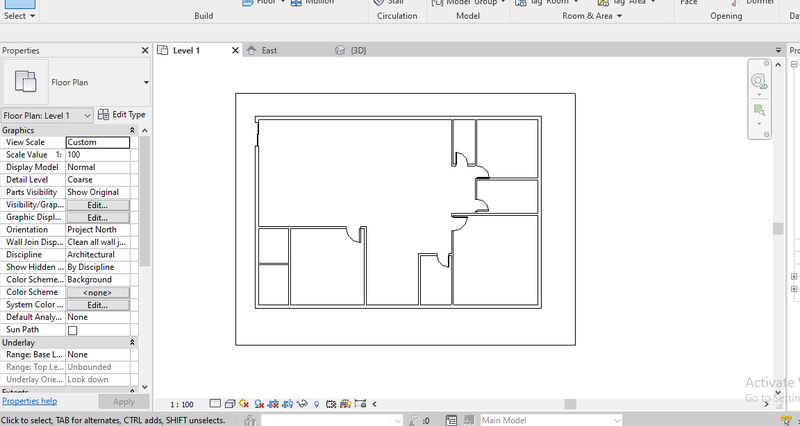

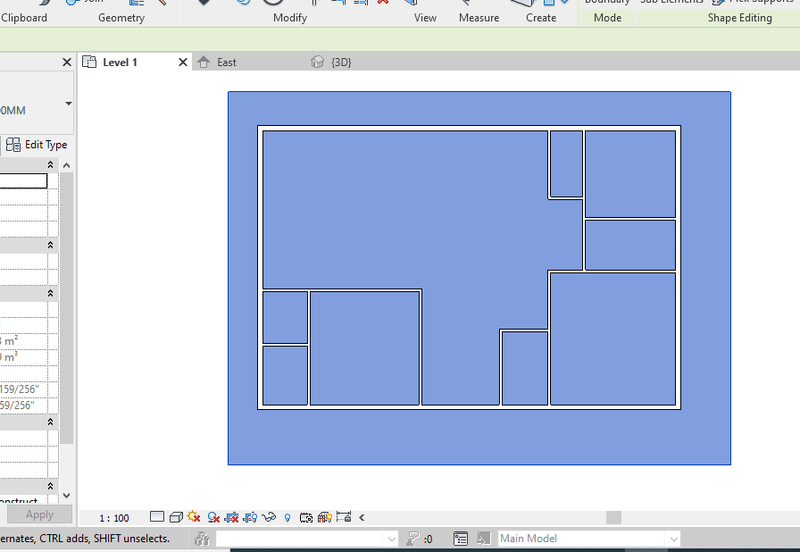

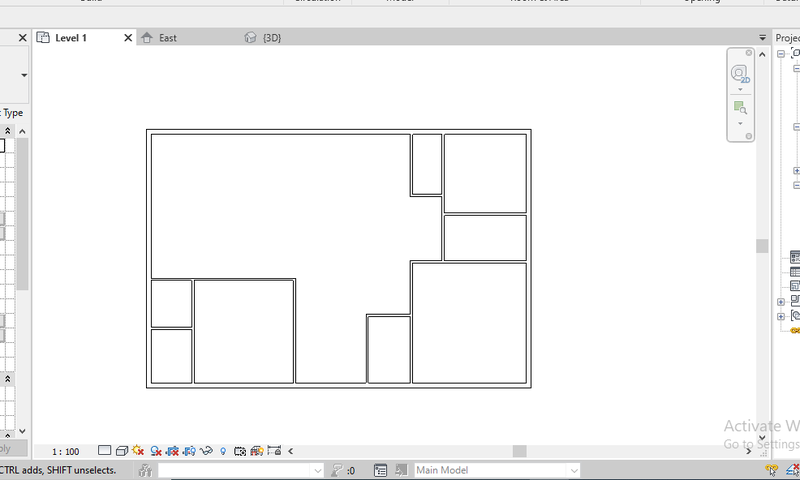

STEP 7 : DRAW THE PARTITIONS AS YOUR REQURIED

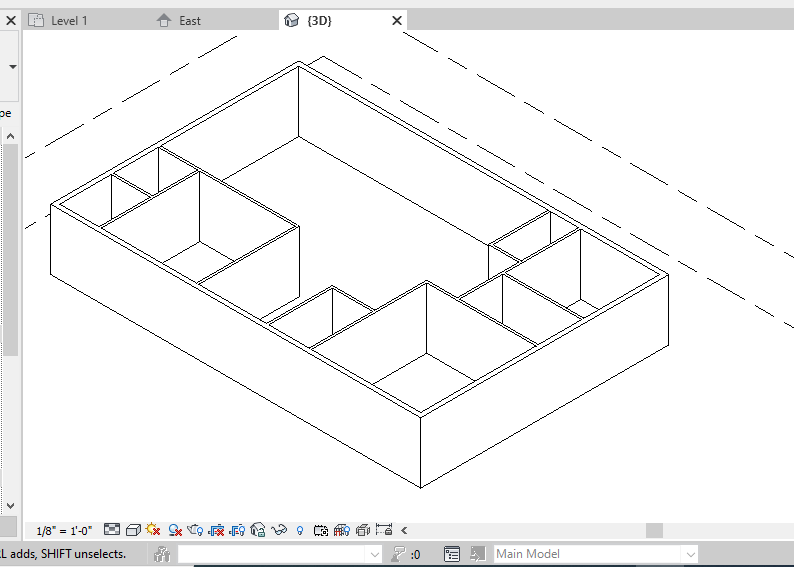

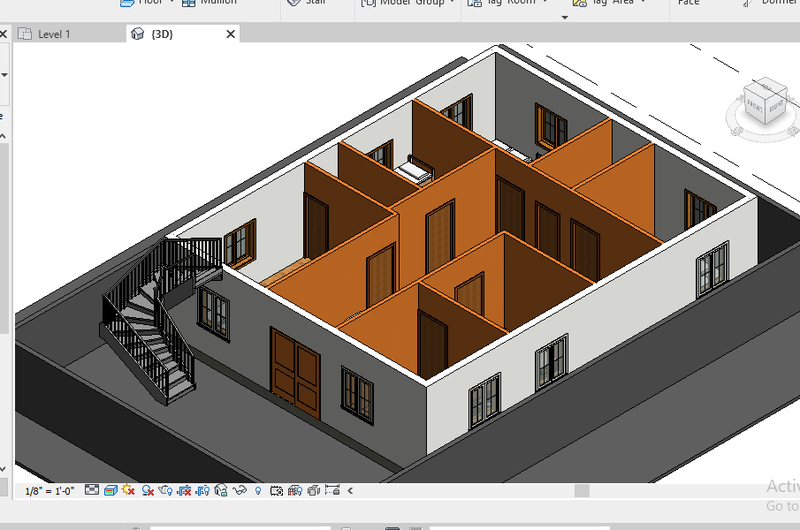

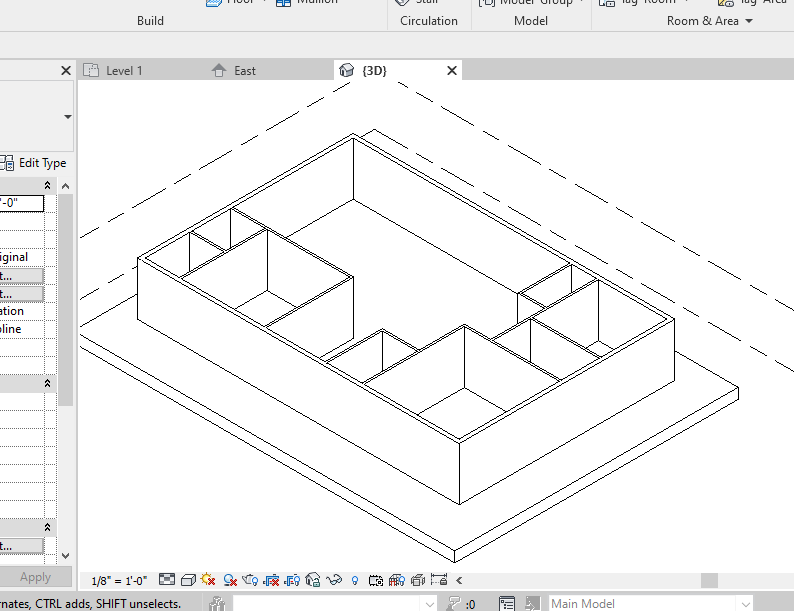

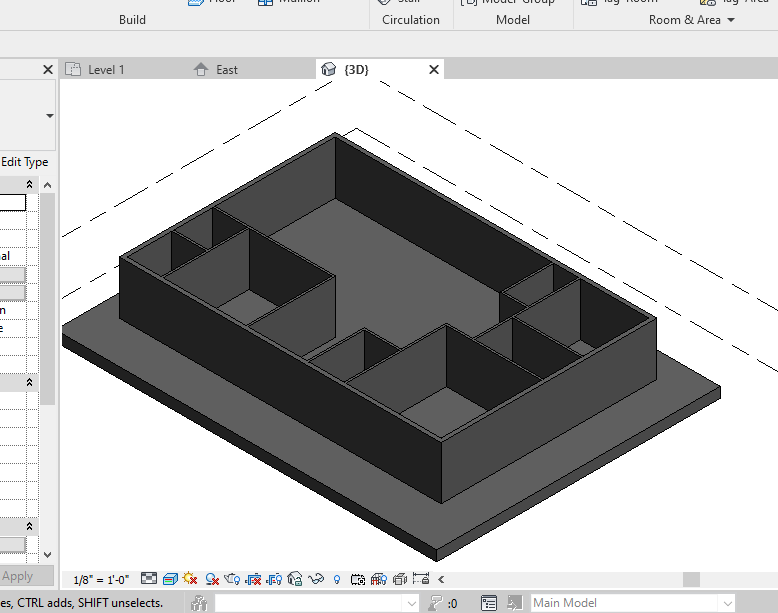

THE ROOMS DRAWN WITH DIMENSIONS ARE SHOWN BELOW
LIVING ROOM - 22' X 23'
KITCHEN - 13' X 13'
DINING - 19' X 18'
POOJA ROOM - 10' X 5'
MASTER BEDROOM - 19' X 18'
BED ROOM - 16' X 16'
STORE ROOM - 7' X 7'
DISHWASHING AND UTILITY ROOM - 7' X 13'

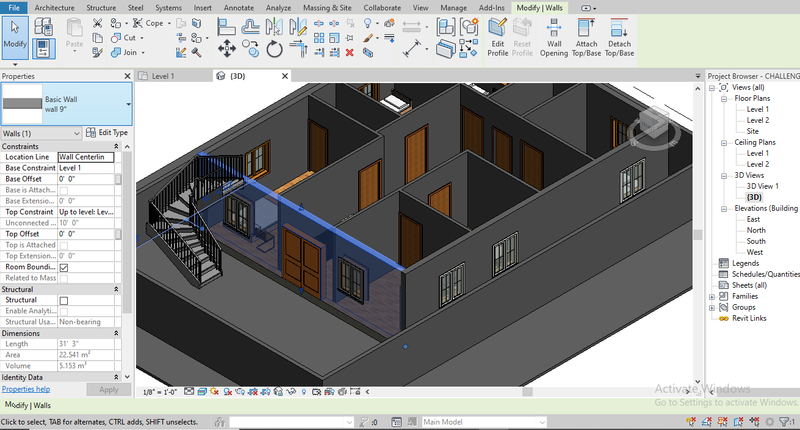

RESULT :









5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

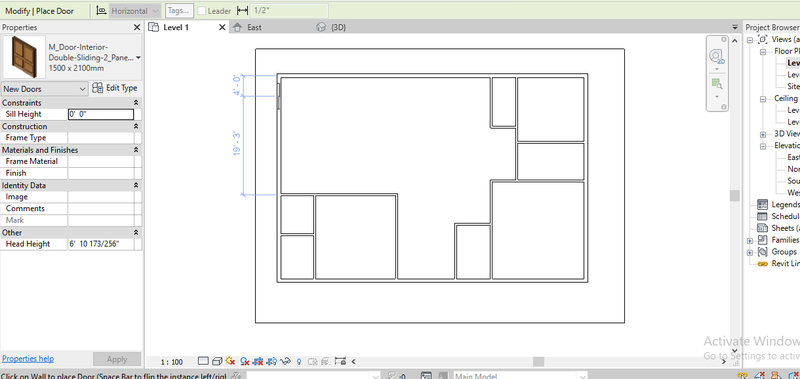

a. Place Doors and windows in the wall at appropriate locations

b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets

c. The Dining Room must include a table and chairs serving the purpose of eating

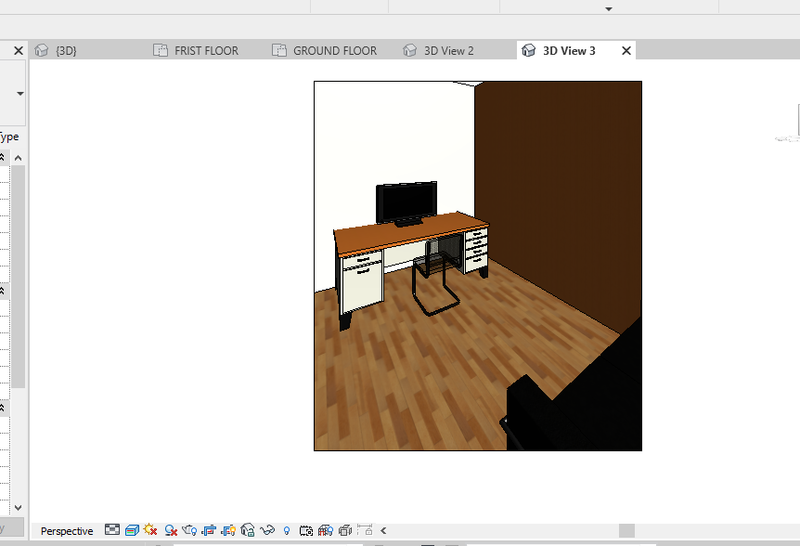

d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair

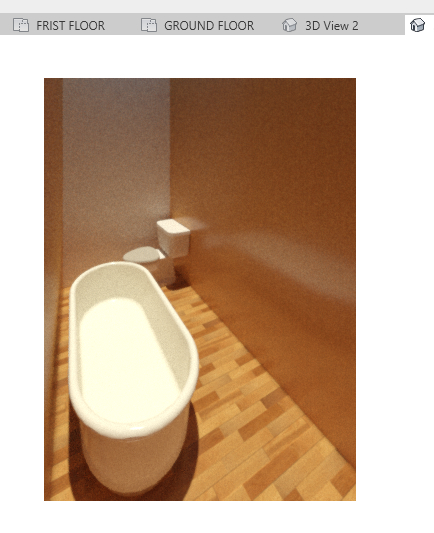

e. Rest room should include bath tub and plumbing fixtures discussed in class

f. Kitchen should include countertops, gas stove cabinet and shelves to store food items

g. The wash/storage room can include washing machines and shelves to store clothes



All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model



AIM : TO INCLUDE THE COMPONENTES REQUIRED IN A RESIDENTAL UNIT

INTRODUCTION :
                      A FAMILY IS A GROUPING OF 2D AND 3D INFORMATION THAT SERVES TO REPRESENT A DISCRETE BUILDING COMPONENT OR ELEMENT IN THE PROJECT.



PROCEDURE  :



STEP 1 : OPENING THE FILE



STEP 2 : LOAD THE RUQURIED FAMILIES

GO TO ARCHITECTURE TAB

SELECT DOORS OPTION

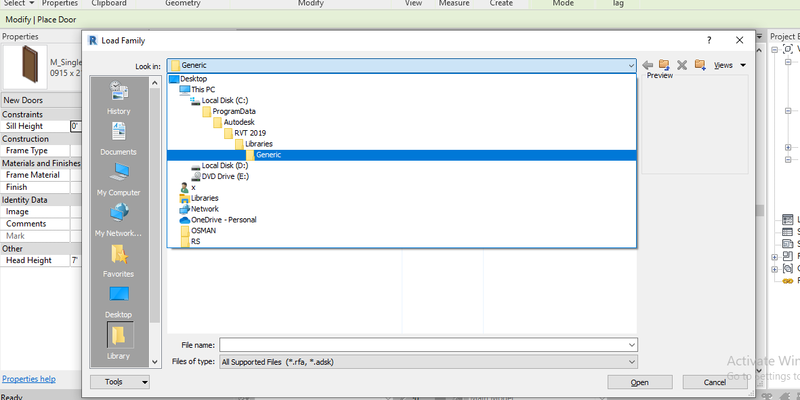

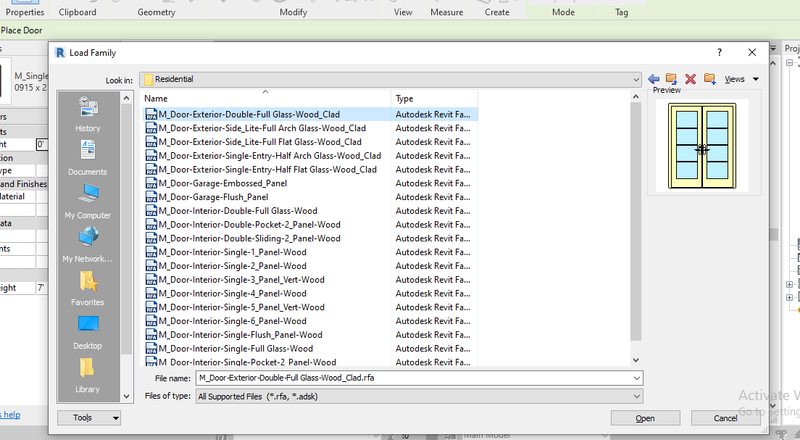

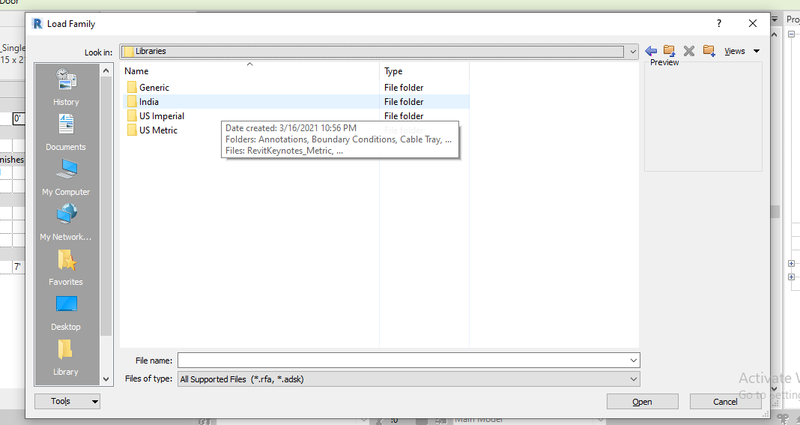

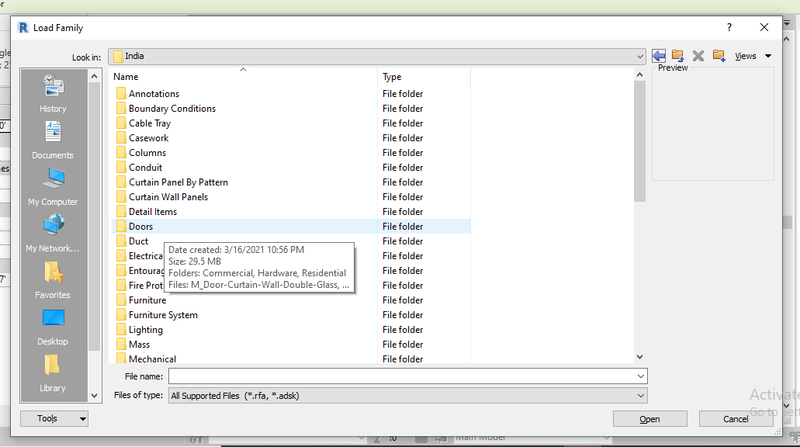

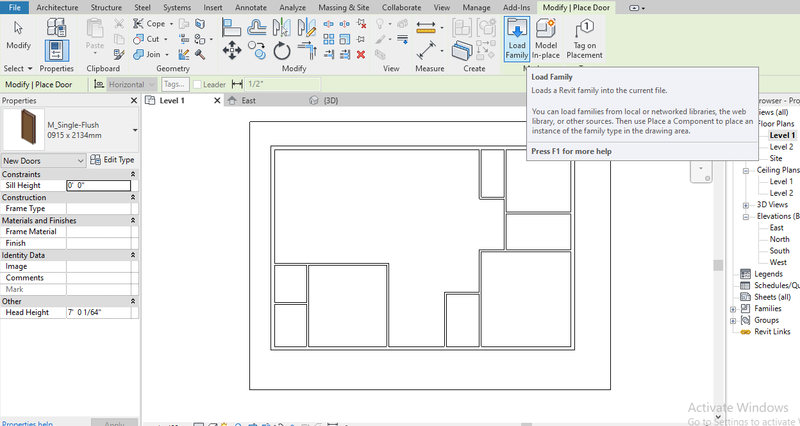

GO TO LOAD FAMILIES

GO TO INDIA

SELECT THE  DOORS OPTION

THEN TAKE THE REQUIRED DOOR TYPE



GO TO ARCHITECTURE TAB

SELECT WINDOWS OPTION

GO TO LOAD FAMILIES

GO TO INDIA

SELECT THE  WINDOWS OPTION

THEN TAKE THE REQUIRED WINDOW TYPE

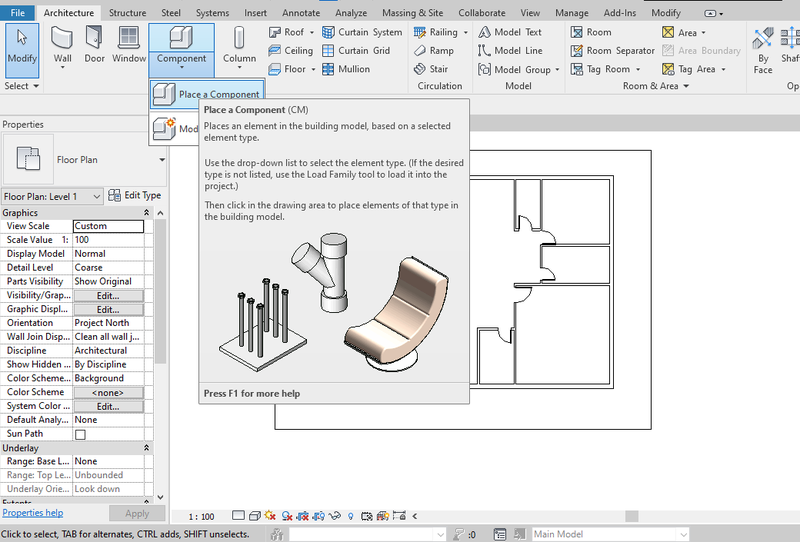

STEP 3 : ADDING THE RESPECTIVE COMPONENTS

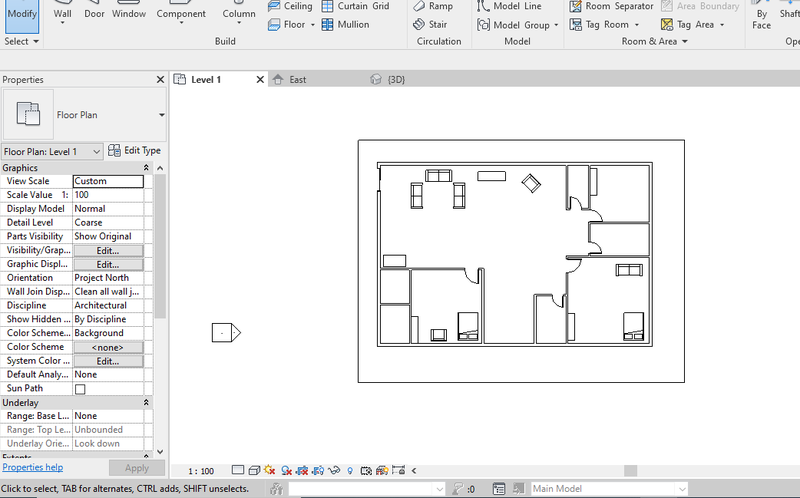

RESULT :

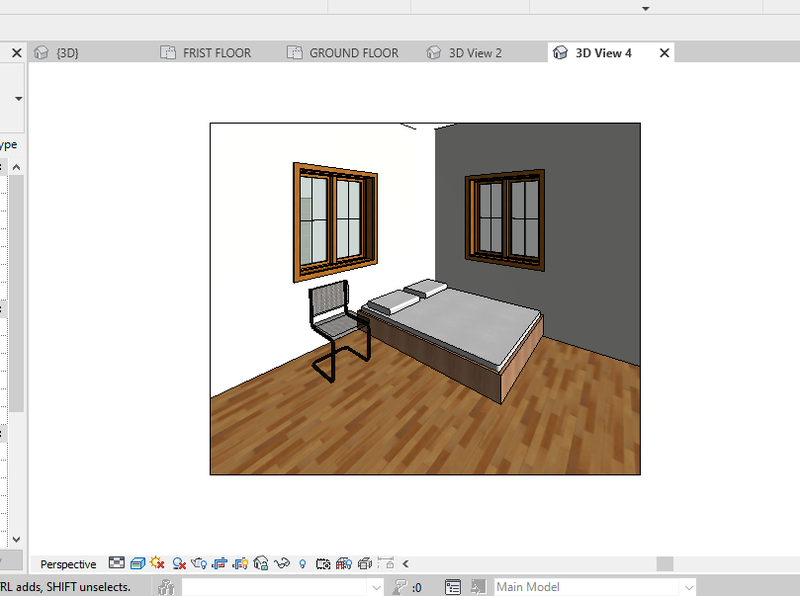

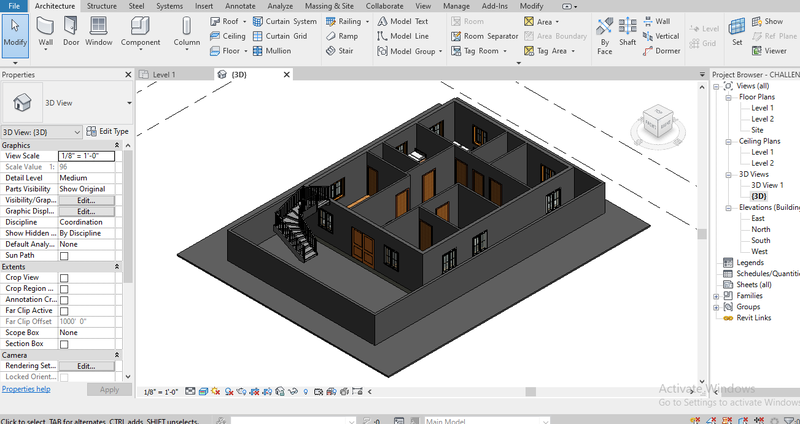

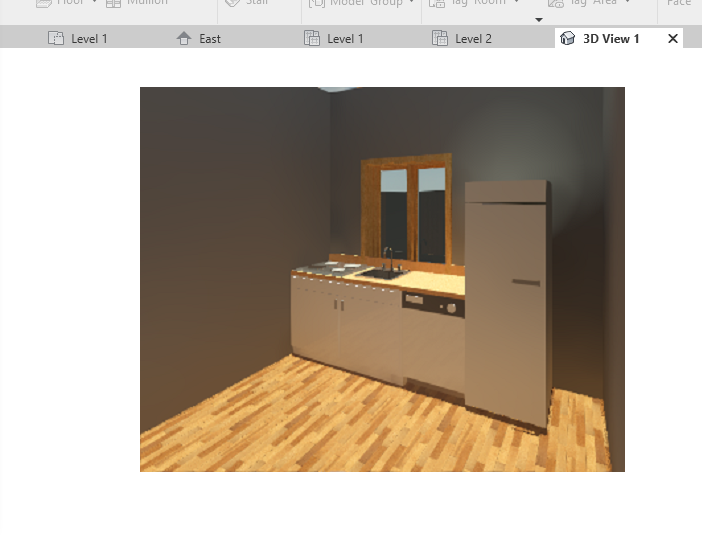

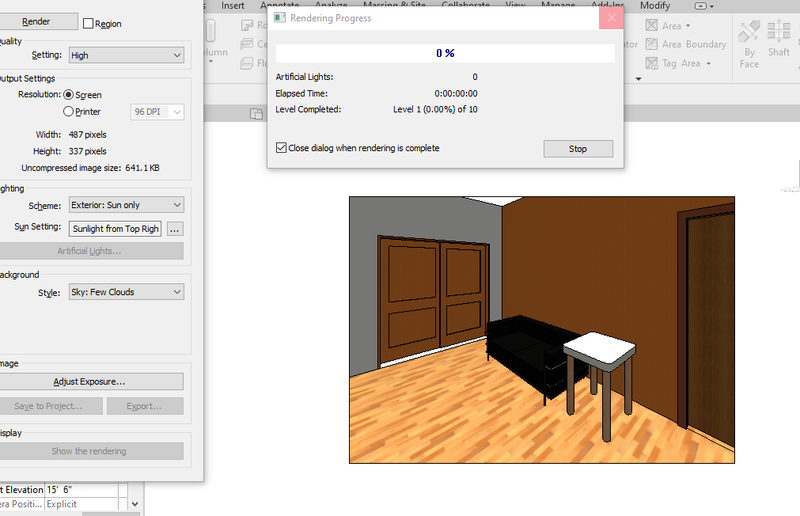

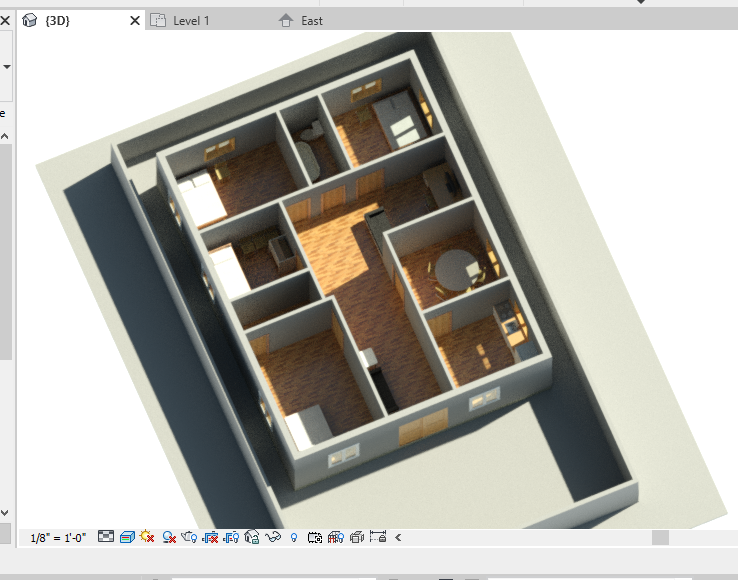

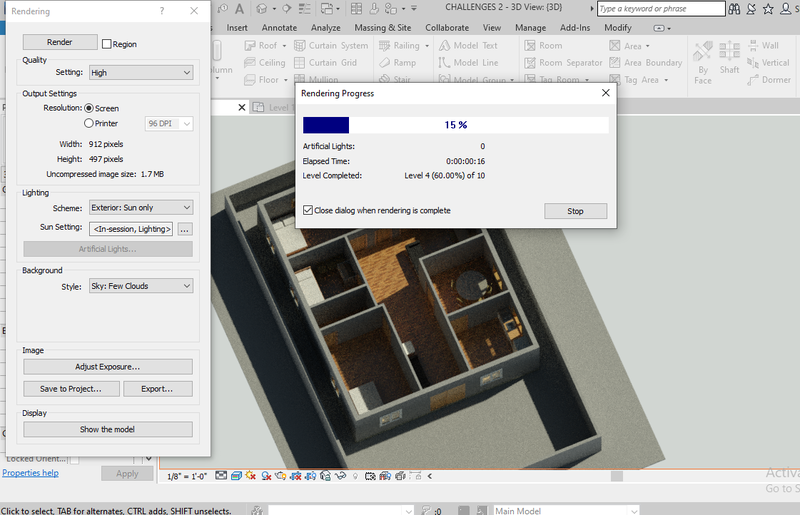

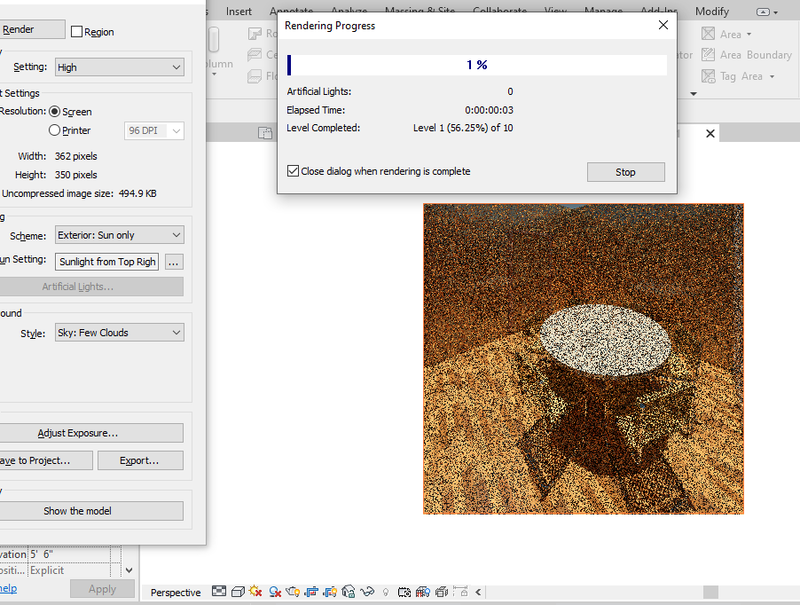

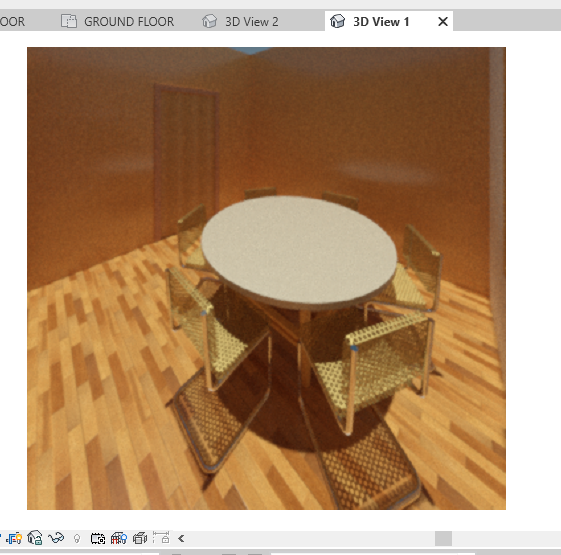

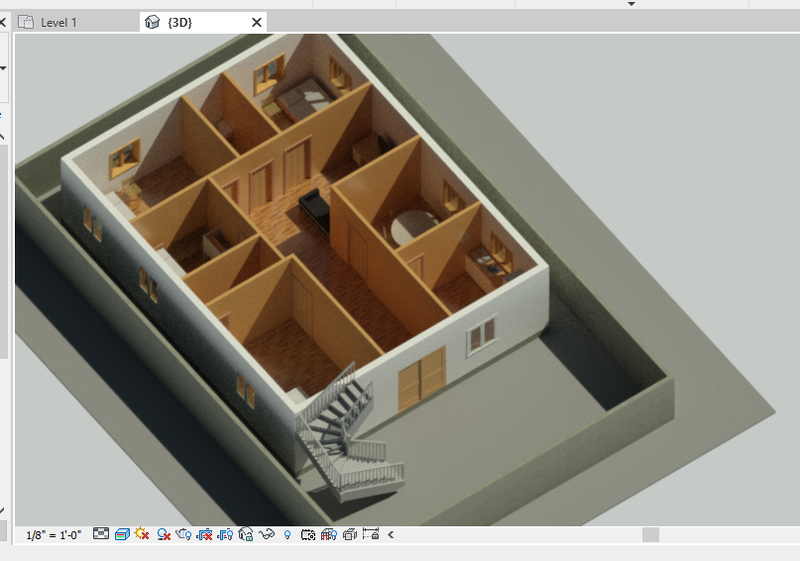

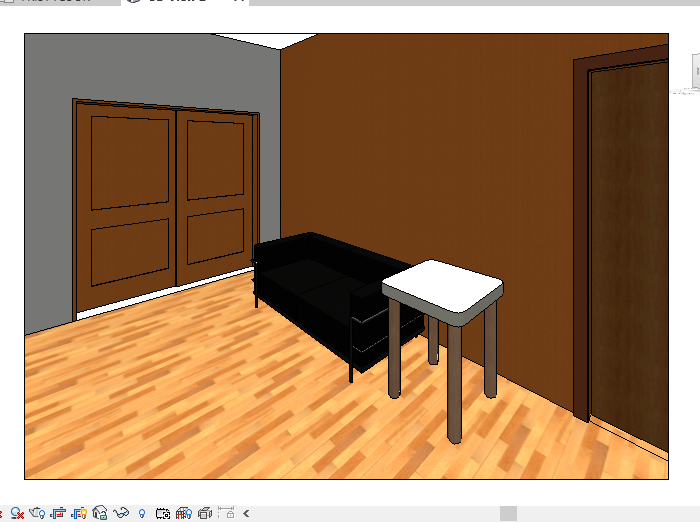

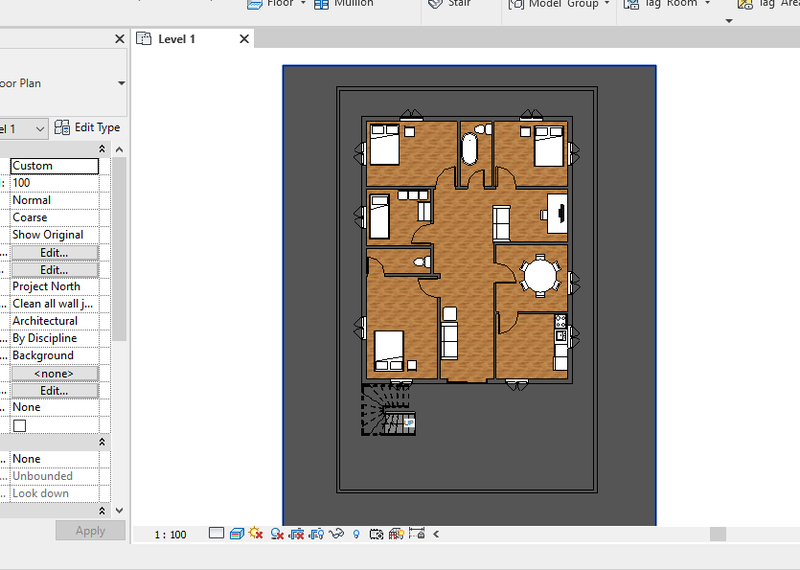

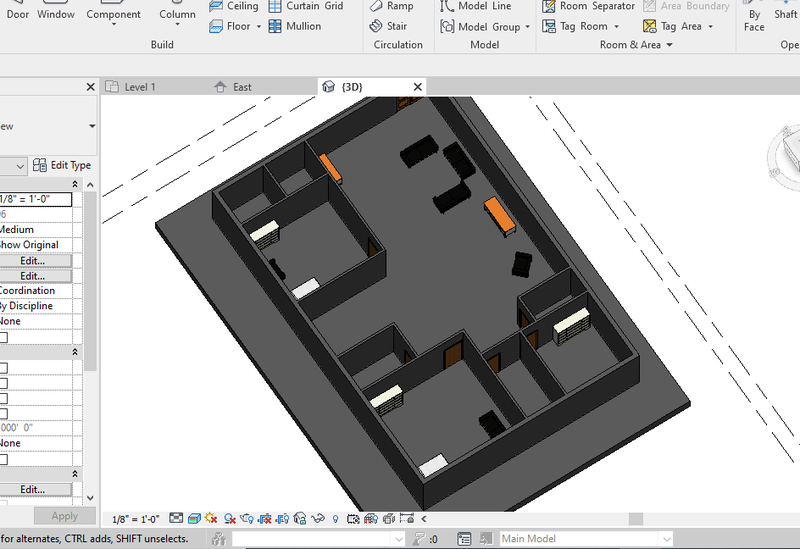

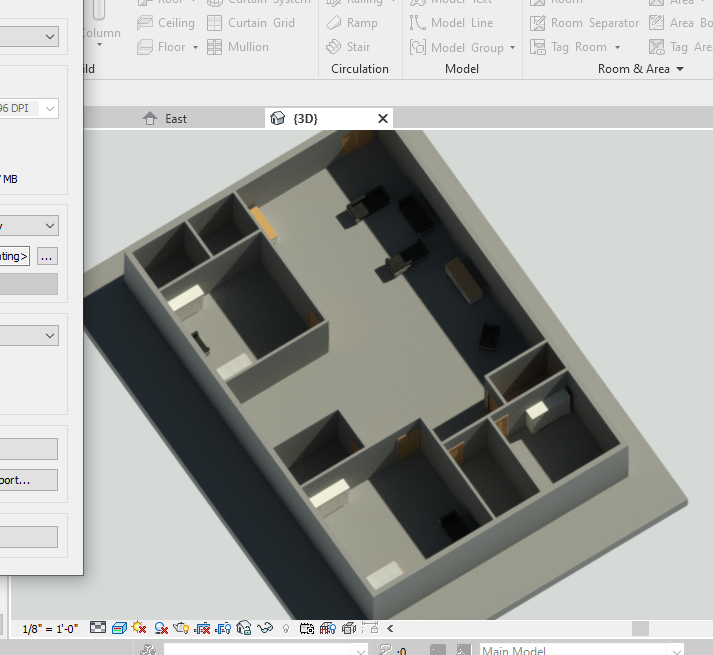

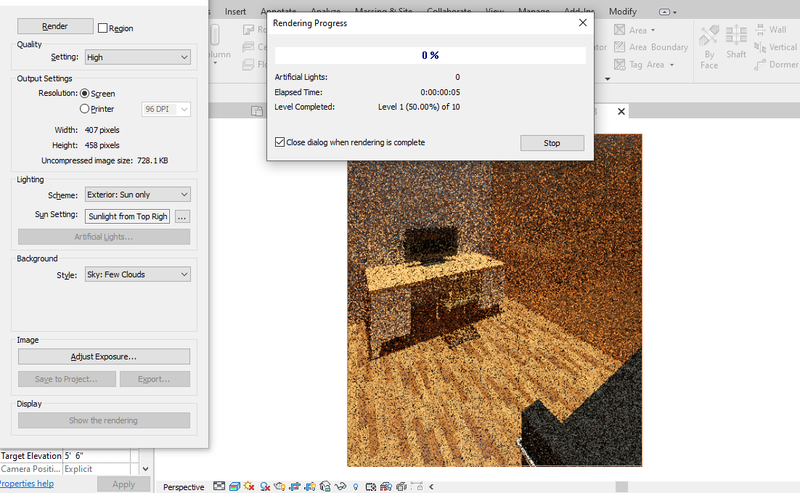

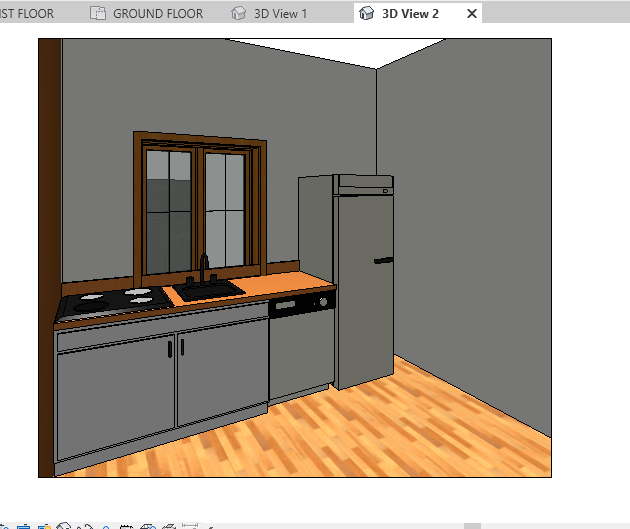

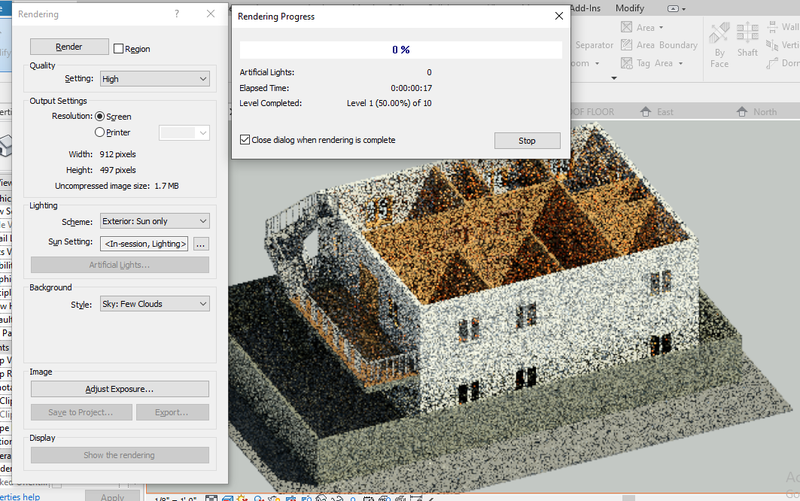

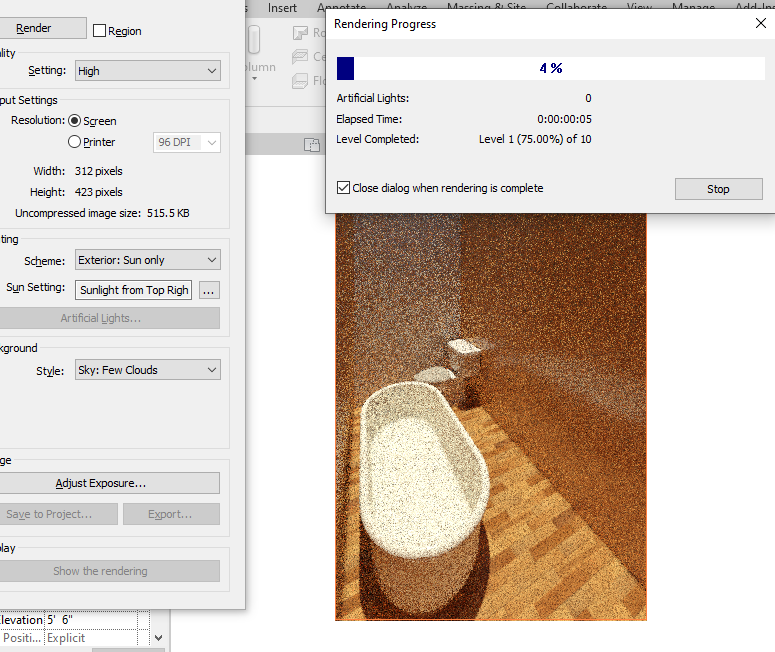

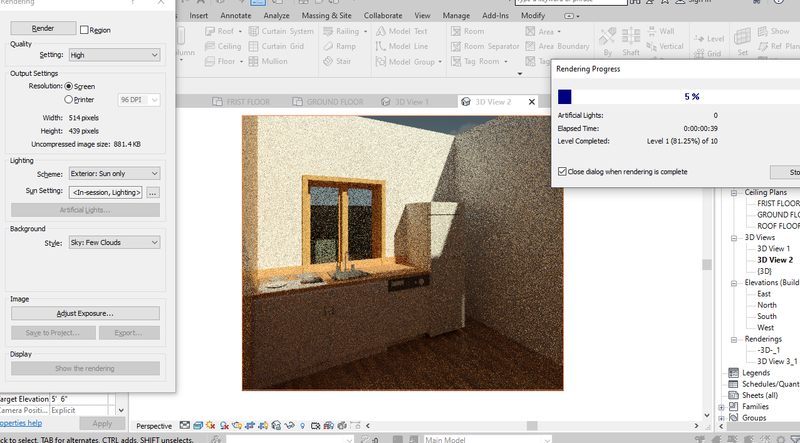

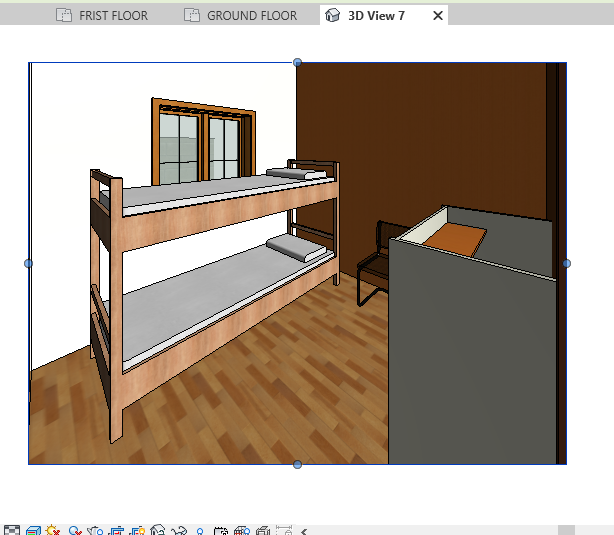

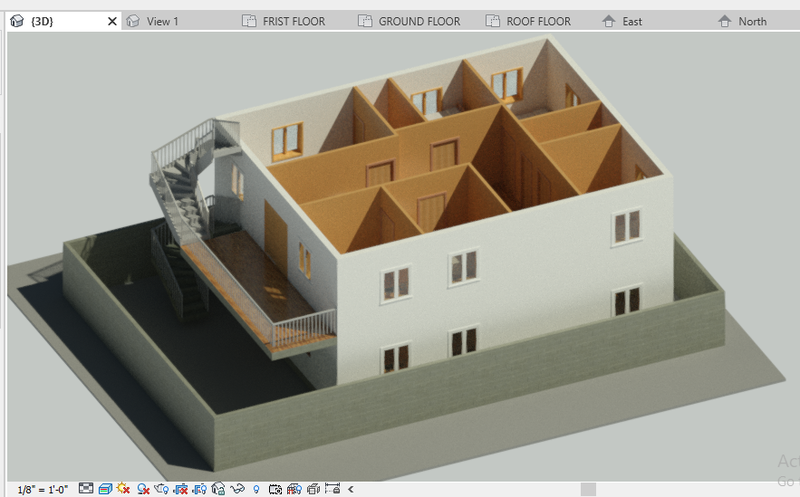

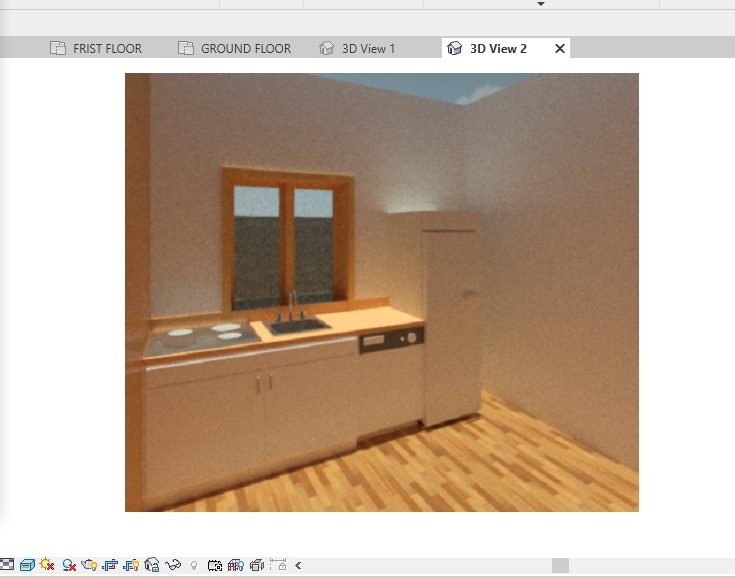

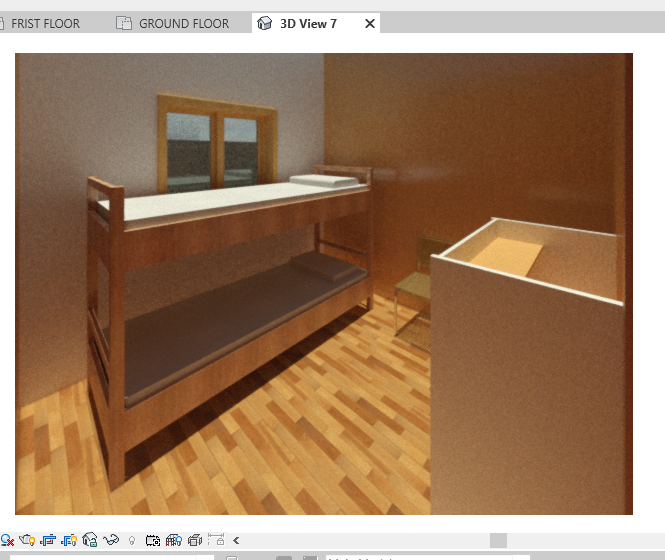

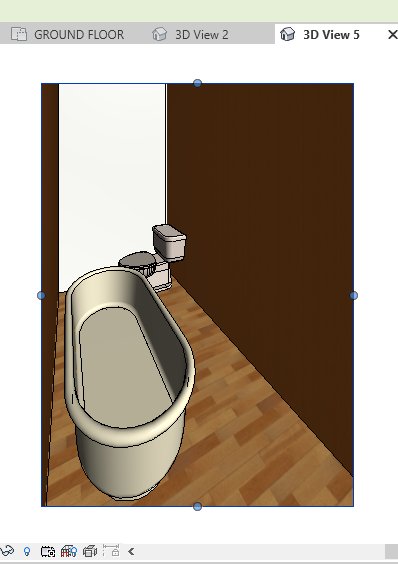

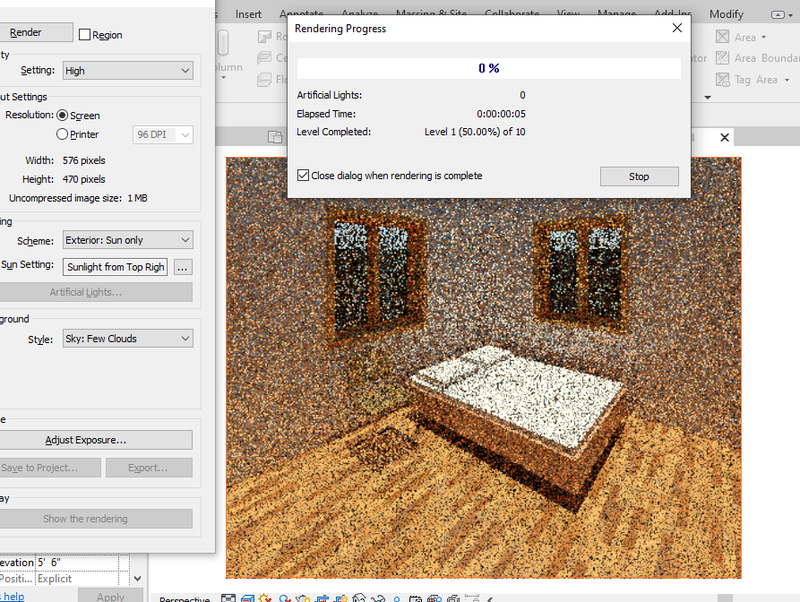

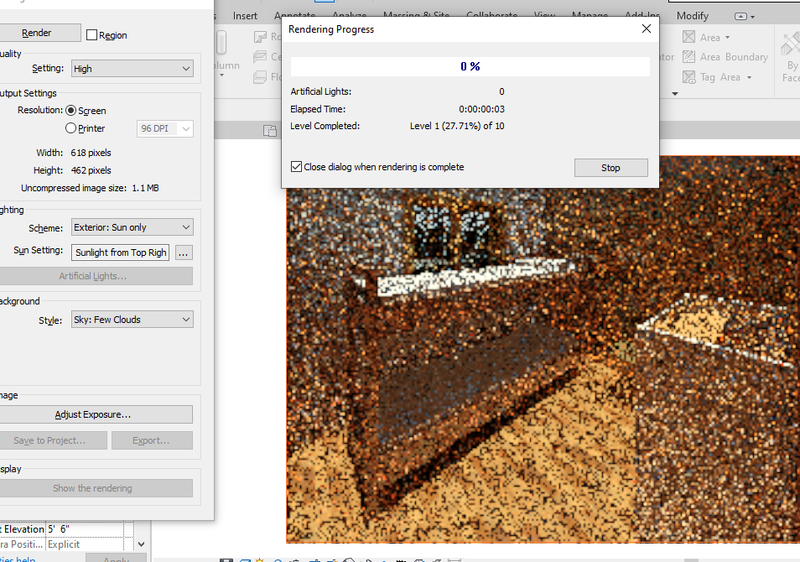

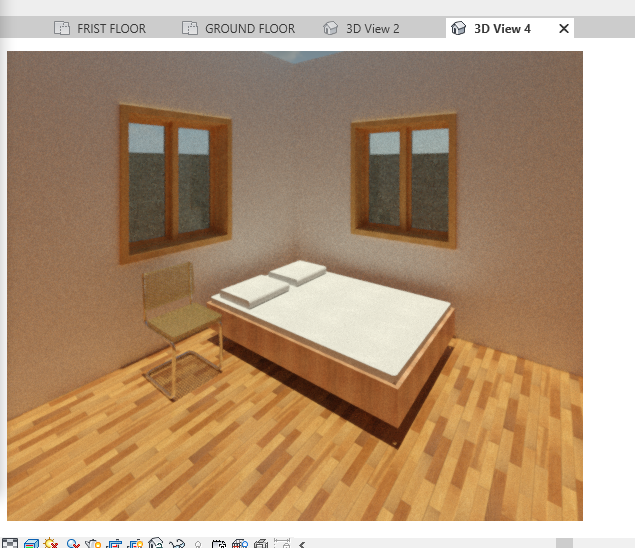

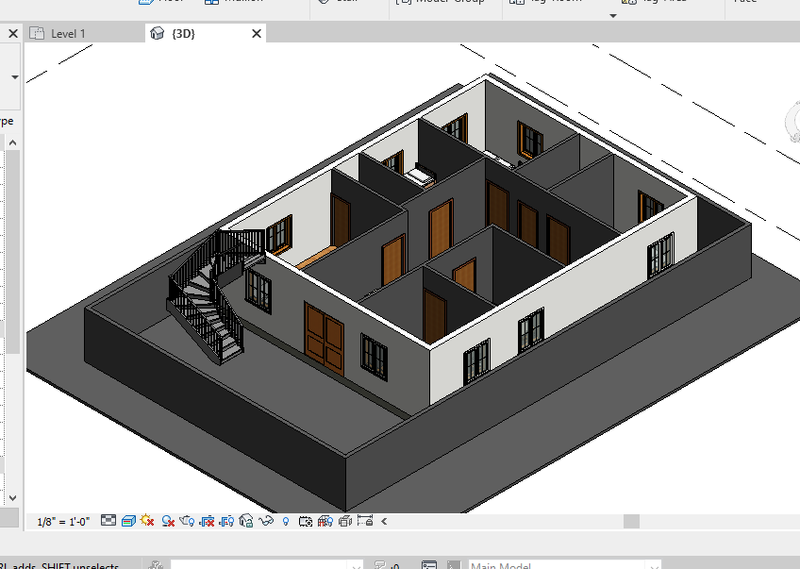

THE FLOOR PLAN VIEW , 3D VIEW , AND RENDERED VIEW OF RESPECTIVE ROOMS WITH RESPECTIVE COMPONENTS AS SHOWN
