Creating a Layout, Section and Elevation with dimensions using AutoCad

AIM- TO DRAW PLAN ELEVATION AND SECTION OF THE HOUSE IN AUTO CAD. INTRODUCTION- Commands used for drawing the plans and drawings below are as follows Line: Draw lines in AutoCAD Polygon: Draws polygons with three or more sides Rectangle: Used to draw rectangles Circle: Command used to draw circles Ellipse: Used to draw…

    • Ram Prasad

      updated on 02 Jul 2022

    AIM- TO DRAW PLAN ELEVATION AND SECTION OF THE HOUSE IN AUTO CAD.

    INTRODUCTION-

    Commands used for drawing the plans and drawings below are as follows

    1. Line: Draw lines in AutoCAD
    2. Polygon: Draws polygons with three or more sides
    3. Rectangle: Used to draw rectangles
    4. Circle: Command used to draw circles
    5. Ellipse: Used to draw ellipse.
    6. Erase - Erase object in the drawing area
    7. Copy - Used to copy one or more objects
    8. Mirror - Command used to mirror an exact duplicate of an object.
    9. Offset - Used to offset one object from another a distance you specify
    10. Extend - Used to extend one line to another
    11. Array - Use to make a rectangular or polar array of an object
    12. Move - Used to move objects around in the drawing area
    13. Rotate - Used to rotate an object around a base point
    14. Scale - Command used to make an object larger or smaller
    15. Trim - Command used to trim an object from another object
    16. Chamfer - Used to put a chamfer between two lines
    17. Fillet - Used to put a fillet between two lines of a radius you specify ETC

    STEPS FOR DRAWING PLAN

    • Open auto Cad and enter UN (Units command) in the command box and select type as decimal and set precision of decimal as 0
    • Select X line command and draw horizontal line and vertical line.
    • Trim the unwanted lines.
    • Now select offset command and give an offset of 250mm to both horizontal and vertical line drawn by X line.
    • Give the offsets as follows in the X direction.
    • Offset 3100 for bedrom.
    • Offset 125 for internal wall.
    • Offset 2250 for kitchen/ drawing room / dining room.
    • Offset 125 for internal wall.
    • Offset 1250 for both toilet
    • Offset 250 for external wall.
    • Give the offsets as follows in the X direction.
    • Offset 3100 for bedroom.
    • Offset 125 for internal wall.
    • Offset 3225 for bedroom.
    • Offset 250 for wall on both sides of stars.
    • Offset 250 for treads.
    • Offset 1200 for landing of staircase.
    • Offset 2400 for width of staircase.
    • Offset 2250 for kitchen dining bedroom.
    • Offset 1000 for veranda.

    DRAWING OF WINDOWS –

    SIZES OF WINDOWS ASSUMED

    • WI= 1000 X 1200
    • W2= 1500 x 1200
    • W3= 1800X 1200
    • W4= 600 X 1050
    • W= 1200x 1200

    DRAWING OF DOORSSIZES OF DOORS ASSUMED

    • D= 1200 X 2100
    • DI= 750 x 2100
    • D2= 900 X 2100
    • Windows are drawn by using line command.
    • Section lines are drawing by using layer and changing the layer type.
    • Hatch- For hatching the columns type hatch in command box- open settings -select pattern-select pattern as AIR-CONC- select global scale factor as 0.7.
    • Dimension-For drawing dimension using dimension tool in the ribbon.
    • Text- For naming of plan use text in ribbon in that use multiline text and keep the height of text as 220.

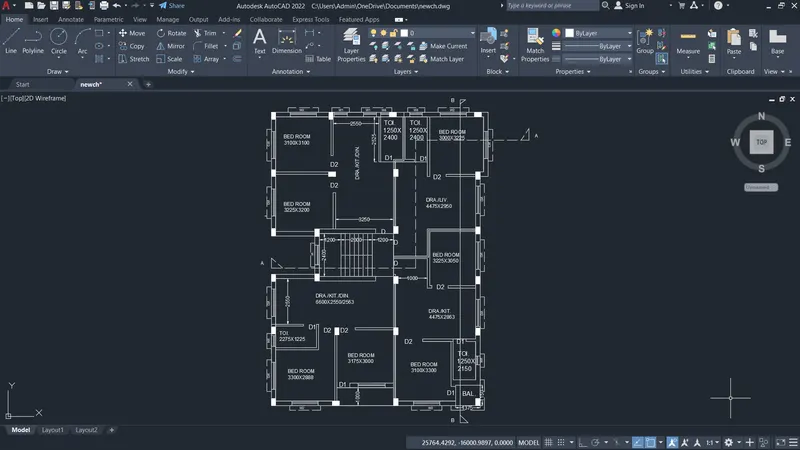

    RESULTS-



    STEPS FOR DRAWING SECTION AA

    • Select x line command and extend the lines from the plan in the downward manner to create projections.
    • Offset 150mm from the ground level.
    • Offset 2450 for ground floor.
    • Offset 2850 for second floor.
    • Offset 2850 for second floor.
    • Offset 2850 for third floor.
    • Offset 1000 for parapet wall.
    • Offset 2500 from terrace level fo mumty.
    • Offset 450 from mumty for parapet wall of mumty.
    • Offset 600 and offset 1200 for O.T.H.
    • For drawing of staircase offset 1250 for tread and offset 143.75 for rise of staircase.
    • Offset 125 below floor level for slab.
    • Draw the chajjas and windows as per the sizes considered and standards.
    • Draw the railing of staircase in dash manner from the layers and change the layer to ACADISO03W100.
    • Give the dimensions by dim linear or dim continue command.
    • Select the multiline text for naming of the section.

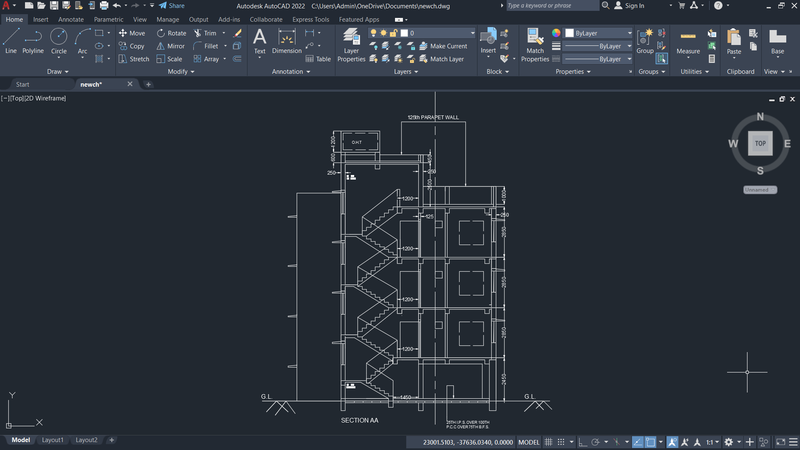

    Result:



    STEPS FOR DRAWING SECTION BB

    • Rotate the entre plan drawn earlier in the 90 degrees direction o draw the section BB.
    • Select x line command and take the projectors of the rotated plan in the downward manner.
    • Take the projections of all internal walls of 125 mm and eternal walls of 250mm.
    • Draw a base line to draw the section BB.
    • Offset 150 from base line.
    • Offset 2450 for ground floor.
    • Offset 2850 for first floor.
    • Offset 2850 for second floor. Offset 2850 for third floor.
    • Offset 1000 for parapet wall.
    • Thickness of slab is assumed to be 125 mm.
    • Offset 125 rom each floor in downward manner.
    • Dimensions- use dim linear or dim continuous for giving the dimensions.
    • Draw the windows as desired by using the line command.

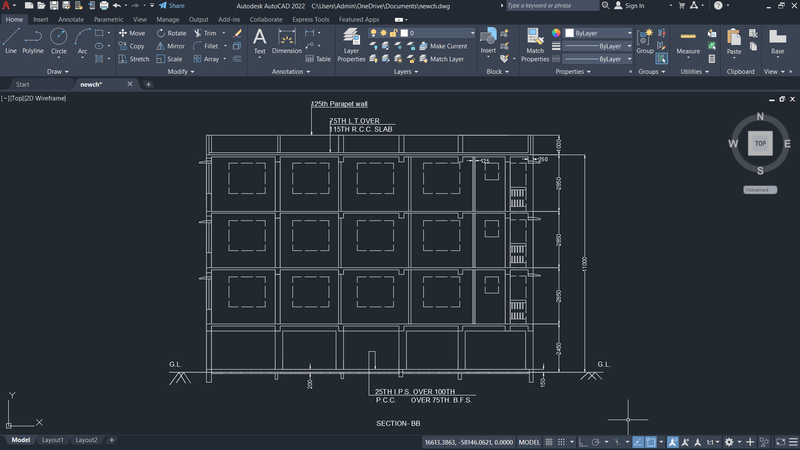

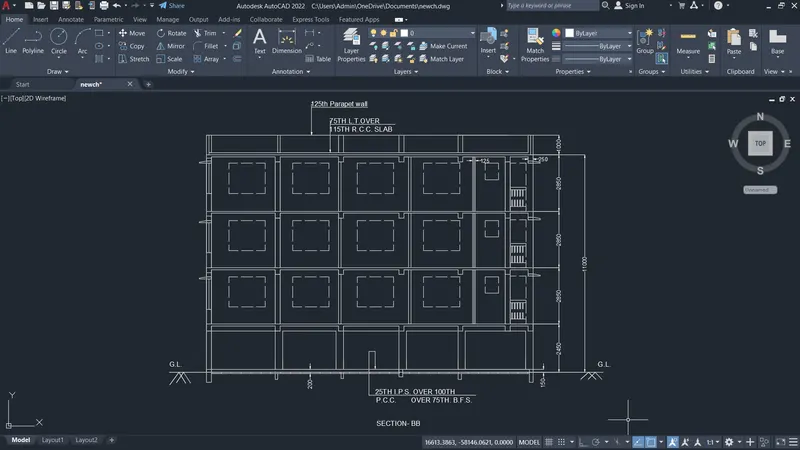

    Result:

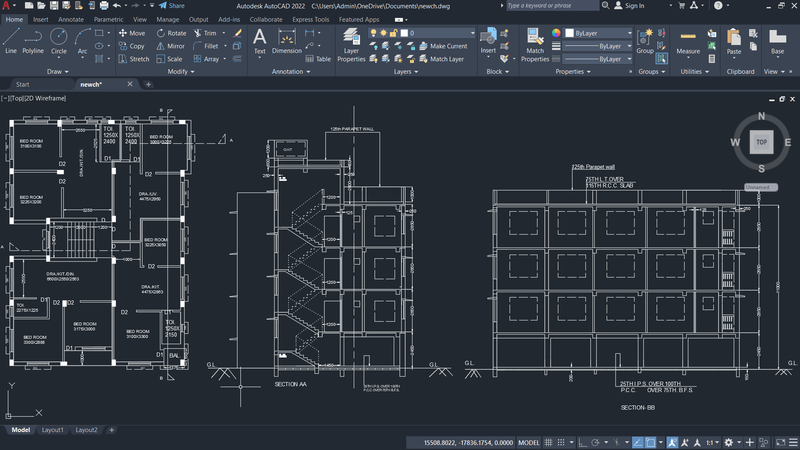

    FINAL DRAWING OF PLAN ELEVATION AND SECTION COMBINED
