Creation of Column Schedule and Drawing Template using AutoCad

AIM: To Create a column schedule as shown in the figure. COMMAND USED: Limits Zoom Xline Line Circle (c) command DO (Donut) Command X (Explode) Command Dim linear DT command ED command MT Command Unit command LW command Extend command Trim command STEP-WISE PROCEDURE: Step - 1 Start with line command (L) Unit and Grid…

    • Ram Prasad

      updated on 19 Jun 2022

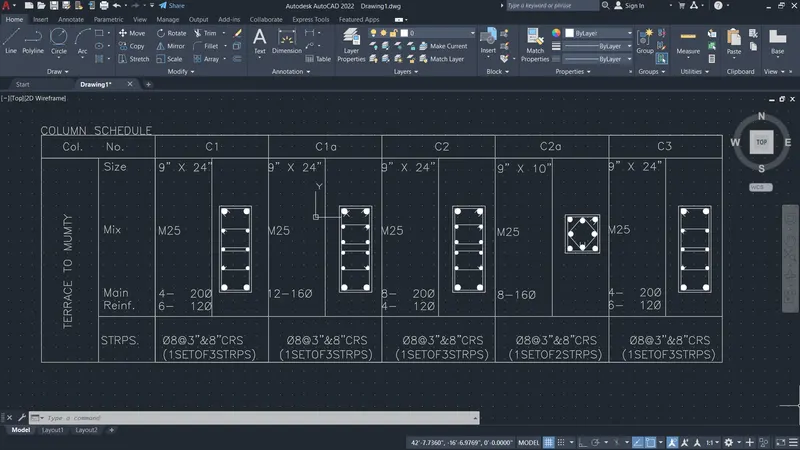

    1. AIM: To Create a column schedule as shown in the figure.

    COMMAND USED:

    • Limits
    • Zoom
    • Xline
    • Line
    • Circle (c) command
    • DO (Donut) Command
    • X (Explode) Command
    • Dim linear
    • DT command
    • ED command
    • MT Command
    • Unit command
    • LW command
    • Extend command
    • Trim command

    STEP-WISE PROCEDURE:

    Step - 1

    • Start with line command (L)
    • Unit and Grid set l" and 1"
    • Enter the X-line command: 1,1
    • Draw the line in both the X and Y-axis
    • Run command offset (0) and create a Table with assumed size as shown in fig.
    • Offset (o) in X direction 1-7" multiple 12 times
    • Offset (o) command in Y direction 9.5", 1'0.4", 10", 1-2.6" and 10"
    • Trimmed all extra lines as fig. with command (TRIM)



    Step - 2

    1st: Column size 9" x 24", 10 Reinforcement bar and I set of 3 strips used:

    • Enter the xline command: 1,1
    • Make a rectangle box for column size 9" x 24" with Command (REC)
    • Specify the point and make the rectangle @9,24
    • Run command offset (0) and create 0.5" on the inner side for column cover approx. 20mm (0.5")
    • Make a circle with (C) command with the tangent corner of rectangle box X and Y direction
    • (MI) the command for mirror of the circle in the X direction
    • Explode command (x) for inner rectangle box
    • Divide command for reinforcement rod shown (5 nos. in one side)
    • Copy both circle and paste in divided 5 points (including 1st copied circle point)
    • Donut (DO) command used for Circle filled for shown Reinforcement rod
    • Join the circle with line as per shown strips
    • Fillet all corners as per the drawing
    • Trimmed all extra line as per fig. required.

    Similarly draw the C1a, C2 & C3 columns, following the measurements given in the diagram.



    4th: Column size 9" x 10", 8 Reinforcement bar and 1 set of 2 strips used:

    • Enter the xline command: 1,1
    • Make a rectangle box for column size 9" x 10" with Command (REC)
    • Specify point and make the rectangle @9,10
    • Run command offset (0) and create 0.5" in inner side for column cover approx. 20mm (0.5")
    • Make a circle with (C) command with tangent corner of rectangle box X and Y direction
    • (MI) command for mirror of circle in X direction
    • Explode command (x) for inner rectangle box
    • Divide command for reinforcement rod shown (3 nos. in one side)
    • Copy both circle and paste in divided 3 points (including 1st copied circle point) in Y direction
    • Copy both circle and paste in divided 2 points (including 1st copied circle point) in X direction
    • Donut (DO) command used for Circle filled for shown Reinforcement rod
    • Join the circle with line as per shown strips
    • Fillet all corners as per drawing
    • Trimmed all extra line as per fig. required.



    Step - 3

    • Enter the DT Command
    • Font used romans
    • Enter assumed size of text height 4"
    • Enter Text direction '0'
    • Type 'COLUMN SCHEDULE' and make under line
    • Copy the existing text (Column Schedule) and leave under Abd
    • Type Col. Nos.
    • Copy existing text for C1, C1a, C2, C2a and C3 (Left aligned)
    • Enter the DT Command
    • Font used romans
    • Enter assumed size of text height 2"
    • Enter Text direction 'o'
    • Type 'SIZE
    • Copy for Mix, Main Reinf., Strips and all sizes of (column size (as 9"x24", Mix (as M25), Main Reinf. (As 4-20ø, 6 120(a) and strips details (as Ø8@3"&8" 1 set of 3 strips) centre aligned
    • Enter the DT Command
    • Font used romans
    • Enter assumed size of text height (2.5")
    • Enter Text direction '90'
    • Type 'TERRACE TO MUMTY'



    FINAL RESULT:

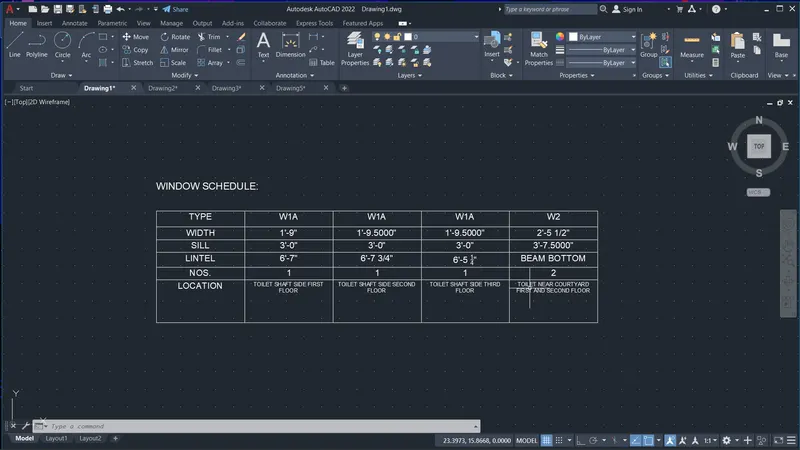

    1. AIM: To Create a window schedule as shown in the figures:



    COMMAND USED:

    • Limits
    • Zoom
    • Xline
    • Line
    • X (Explode) Command
    • Dim linear
    • DT command
    • ED command
    • MT Command
    • Unit command
    • Extend command
    • Trim command



    STEP WISE PROCEDURE:



    Step - 1

    • Start with line command (1)
    • Unit and Grid set l" and 1"
    • Enter the xline command: 1,1
    • Draw the line in both X and Y axis
    • Run command offset (0) and create a table with assumed size as shown in fig.
    • Offset (0) in X direction 1'-11", 2-11", 2-11", 2-11" and 4'-2"
    • Offset (o) command in Y direction 10", 8" (5 times)
    • Trimmed all extra line as fig. with command (TRIM)



    Step - 2

    • Enter the DT Command
    • Font used romans
    • Enter assumed size of text height 4"
    • Enter Text direction 'o'
    • Type the text 'TYPE'
    • Copy existing text for WIDTH, SILL, LINTEL and LOCATION (Left aligned)
    • Enter the DT Command
    • Font used romans
    • Enter assumed size of text height 4"
    • Enter Text direction 'o'
    • Type 'WIA
    • Copy for WIA, W2 and all WIDTH (as 1'-9"), SILL (as 3), LINTEL (as 6'- 7"), NOS. (as 1) & LOCATION (as Toilet shaft side first floor) centre or left aligned as required



    FINAL RESULT:

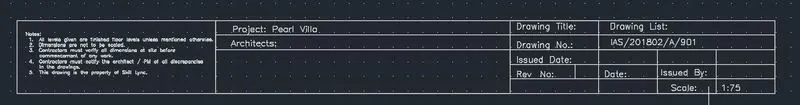

    1. AIM: To Create the drawing template as shown in the figure:< Use the Notes as in the figure>



    COMMAND USED:

    • Limits
    • Zoom
    • REC command for rectangle box
    • MT Command
    • Unit command
    • Offset (o) command
    • Extend
    • Trim command



    STEP WISE PROCEDURE:



    Step -1

    • Start with line command (L)
    • Unit and Grid set 1' and 1"
    • Enter the REC command: 1,1 Draw the rectangle box as assumed size @4,16
    • Enter the MT Command for text
    • Font used 'romans
    • Enter assumed size of text height 4"
    • Enter Text direction 'o'

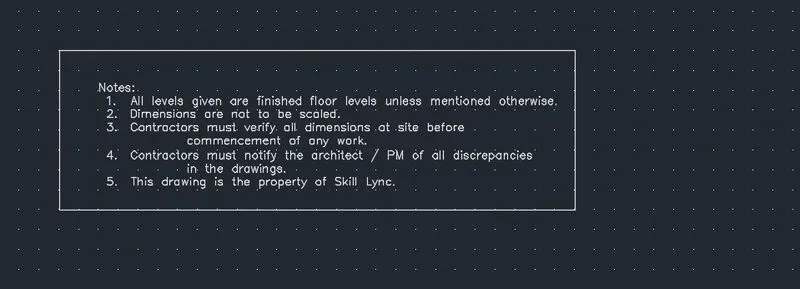

    • Type the text Notes: Enter
    • Tipped with number list (Justify aligned)



    Step-2

    • Start with line command (L)
    • Unit and Grid set 1" and 1"
    • Extend the rectangle box 36' in X direction
    • Offset the box in outer side with assumed size 1"
    • Draw the line, Extend and trim as required as per shown in fig.
    • Enter the MT Command for text
    • Font used 'romans
    • Enter assumed size of text height 4"
    • Enter Text direction 'o'
    • Copy the existing text and paste for (Project, Architect, drawing title, drawing no., issued date, rev. no., Drawing list, issued by, scale, etc.) and type as per shown in fig.



    FINAL RESULT:

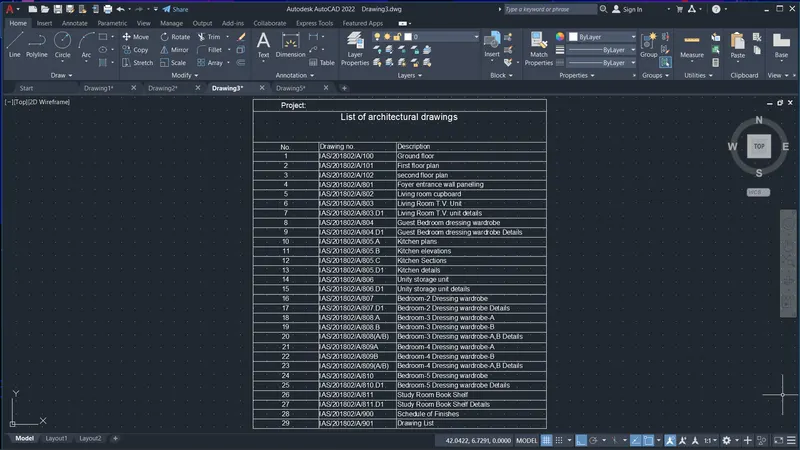

    1. AIM: To Create the list of drawing schedules as shown in the figure:



    COMMAND USED:

    • Limits
    • Zoom
    • Line
    • MT Command
    • Unit command
    • Offset (0) command
    • Extend
    • Trim command



    STEP WISE PROCEDURE:

    Step-1

    • Start with line command (L)
    • Unit and Grid set l' and 1"
    • Enter the xline command: 1,1
    • Draw the line in both X and Y axis
    • Run command offset (o) and create a table with assumed size as shown in fig.
    • Offset (0) in X direction 1'-10.4", 8-5.8" and 12'-9.9"
    • Offset (o) command in Y direction 10" and Array 29
    • Offset (o) command in Y direction 1"-8" and 10"
    • Trimmed all extra line as fig. with command (TRIM)



    Step - 2

    • Enter the DT Command
    • Font used 'Arial
    • Enter assumed size of text height 4"
    • Enter Text direction '0'
    • Type the text 'PROJECT'
    • Copy existing text for LIST OF ARCHITECTURAL DRAWING, NO, DRAWING NO. and DESCRIPTION (WITH Left aligned)
    • Enter the DT Command
    • Font used 'Romans
    • Enter assumed size of text height 4"
    • Enter Text direction '0'
    • Type 'T'
    • Press Tab on the keyboard and Type IAS/201802/A/100
    • Press Tab on the keyboard and Type Ground Floor plan
    • Repeat 29 times for all sr. no.29 rows



    FINAL RESULT:

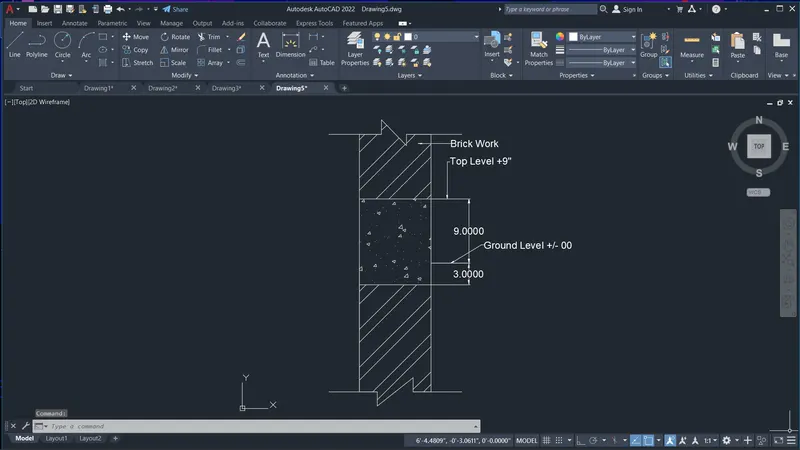

    1. AIM: To Create the Beam detail as shown in the figure and provide text wherever given.

    COMMAND USED:

    • Limits
    • Zoom
    • Line
    • DT Command
    • Unit command
    • Offset (o) command
    • Extend
    • Trim command



    STEP WISE PROCEDURE:

    Step -1

    • Start with line command (1)
    • Unit and Grid set l" and 1"
    • Enter the line command: 1,1
    • Draw the assumed line size 3-11.3" in Y axis
    • Run command offset (o) in X direction 9" as shown in fig.
    • Enter the Line command: 1,1
    • Draw a line in X direction 9"
    • Offset (0) in Y direction 1-6.9", 3", 9" and 1-4.4"

    Step-2

    • Start Hatch command (H)
    • Fill as per drawing

    Step - 3

    • Enter the DT Command
    • Font used 'Arial
    • Enter assumed size of text height 4"
    • Enter Text direction '0'
    • Type the text 'Brick Work
    • Copy existing text for type 'Top-Level +9" and Ground Level +/-00

    FINAL RESULT:

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Ram Prasad (33)

    Structural Modelling using Etabs 2018

    Objective:

    Q: The architectural drawings for a G+7 residential building in zone 5 has been provided. The floor plan is the same for all 7 floor levels. Possible column positions have also been provided. Conceptualize a framing plan layout and then model the building in Etabs. The following architectural drawings have been provided:…

    calendar

    23 Mar 2023 05:06 AM IST

    • ETABS
    Read more

    Analysis & Design of RCC shear walls in the model using ETABS

    Objective:

    The etabs file for a G+6 building is provided. Run the analysis and design the RCC shear walls (show in the etabs model). The following challenge deals specifically with the shear wall of size 300x1500 at grid A-11 in the structural model. Aim: Extract values of longitudinal steel ratio, boundary element length and shear…

    calendar

    20 Feb 2023 06:42 AM IST

    • ETABS
    Read more

    Reinforcement detailing of Columns from ETABS output

    Objective:

    Reinforcement detailing of columns in Etabs 2018. The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections. 3A 3B Provide details of longitudinal reinforcement for the two columns,…

    calendar

    11 Feb 2023 06:14 AM IST

    • ETABS
    Read more

    Reinforcement Detailing of Beams from ETABS output

    Objective:

    Challenge 7 – Detailed design of concrete buildings -1 Detail design of beams in Etabs 2018. The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two continuous beams on the 1st floor.        …

    calendar

    07 Feb 2023 12:12 PM IST

    • ETABS
    Read more

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    Related Courses

    coursecard

    Design loads considered on bridges

    Recently launched

    10 Hours of Content

    coursecard

    Design of Steel Superstructure in Bridges

    Recently launched

    16 Hours of Content

    coursecard

    Design for Manufacturability (DFM)

    Recently launched

    11 Hours of Content

    coursecard

    CATIA for Medical Product Design

    Recently launched

    5 Hours of Content

    coursecardcoursetype

    Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

    Recently launched

    0 Hours of Content

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    logo

    Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

    https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

    Our Company

    News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
    map
    EpowerX Learning Technologies Pvt Ltd.
    4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
    mail
    info@skill-lync.com
    mail
    ITgrievance@skill-lync.com

    Top Individual Courses

    Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

    Top PG Programs

    Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

    Skill-Lync Plus

    Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

    Trending Blogs

    How to Learn CAD Design: Step-by-Step GuideGD&T Basics: How to Read and Apply GD&T Symbols SolidWorks vs Creo: Best CAD Software to Learn for Mechanical Engineers Engineering Edtech in India: Busting Myths & Building Careers How to Get a Core Mechanical Engineering Job After Graduation

    © 2025 Skill-Lync Inc. All Rights Reserved.

                Do You Want To Showcase Your Technical Skills?
                Sign-Up for our projects.
