Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

Aim:To create a layout Plan and elevation diagram by using AitoCad software.

Procedure:

• First of all we have to set the units by using in and enter command in the command box.
• Set the value of decimal and dimensions is Mm.
• Then Draw thr perpendicular and horizontal line by using line command is that L+enter .
• Draw the door by using line command and then arc tool.
• By using trim command we can trim the excess line.
• BY using extend command we can also extend the line by clicking that line.(EX+enter).
• Offset is the command we can off set the diagram or line in our sheet.
• Use the singel and multi line text by select the icon or using the command on commend section on our autocad.
• We can also alter the line,offset,text,Array and etc.. by using properties the command is ch + enter or pr + enter.
• Finally save the diagram by using Ctrl+s or File menu.
• Then press Ctrl+P to Print that ,Now go to layout-1 and press MV+Enter,while click the command the dialoge box will be open on that we have to change the required name on that diagram and then print portal we choose the AutoCad PDF high quality.
• Then select the papper size which mesurement is required and then you want and click apply to layout and click ok icon on the dialoge box.
• Now the PDF will be downloded and shown in the PDF formate on another tab.

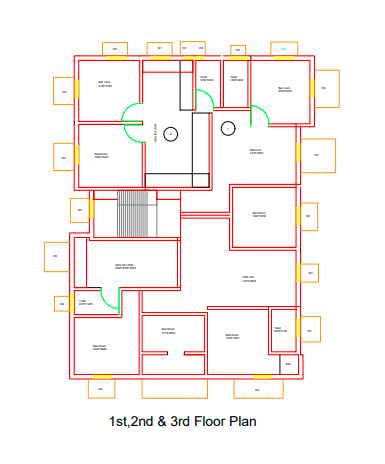

Diagram:

RESULT:By using AutoCad Software we completde our layout Plan and Elevation diagram by using AitoCad software.

2.AIM:To create a layout of the Kitchen drawn in Challenge 9.

Procedure:

• First ofall we have to set the units by usinh un +enter in command box.
• Now we use mm in scale,Then we have to create a rectangle horizontal distance is 4730 mm dia and then vertical distance is 3630 mm .
• The outter wall thick ness is 70mm of both horizontal and vertical direction of the line.
• Then offset the downward of line at the distace is 600mm ,Then off the distance that the required amount of spacing given in the question which on diagram.
• Now same process on upwards horizontal line is same but the fridge distance is 1000mm and the microwave oven is differ the distance then the remaining all are set the line by using offset command .
• Then using text command name the area of the place and the product at the text height is 5 and then using offset command offset the downward line direction of upward line.
• That is 600 and 700 mm ,then use line command to create box the using fillet toll fillet the top edge of the boxs.
• By using h + enter is HATCHING we hilighted the outter wall surfaces.
• Finally save the drawing by using Ctrl+S or file option.

 DIAGRAM:

RESULT:By using AutoCAD software we have completed our layout of the Kitchen drawn in Challenge 9.

3.Aim:To creatre a layout of the section created in Challenges 9.

PROCEDURE:

• Again we have to change the scale as mm on units,Then draw a line at the distance is 15000mm .
• Offset the line distance is 5850mm and then we have to and then using offset tool offset the outter surface of the wall now using dimension mesure the the distance as inner part of the diagram .
• Now use the hatch tool and hatch the specific points.
• Using Singel and Multi Text name the area of the place and then draw the inner portion of the beam and draw the inclined line as shown as z axis line of the beam designs.
• By using outter side of the line will change the type of the line .
• After completing the diagram we have to save by using Ctrl+S or File same option.

DIAGRAM:

RESULT:By using AutoCad software we have completed our layout of the section created in Challenges 9.
