  3. Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

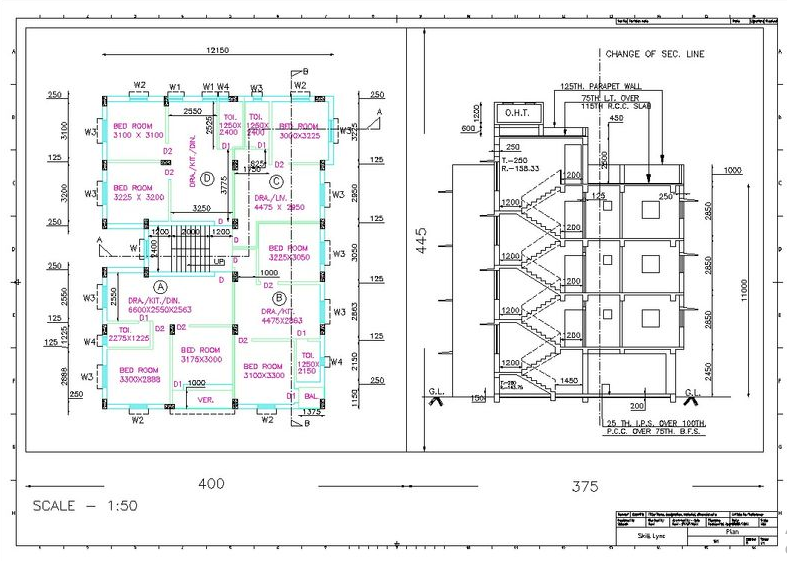

Aim: To create the layout of the plan and section A of the project in challenge 7 as shown in the figure above in AutoCAD Introduction: The layout is created in Auto CAD by using the template Tutorial-mArch.dwt in a scale as given in the figure. The procedure is explained in detail with diagrams of each step…

    • Dharani Donikala

      updated on 22 Oct 2022

    Aim: To create the layout of the plan and section A of the project in challenge 7 as shown in the figure above in AutoCAD

    Introduction: The layout is created in Auto CAD by using the template Tutorial-mArch.dwt in a scale as given in the figure. The procedure is explained in detail with diagrams of each step and the final result is given.

    Procedure:

    step-1: Open AutoCAD

    step-2: Open challenge 7 file

    step-3: Go to Layout

    step-4: Enter "Layout" to create a new layout tab

    step-5: Enter the "MV" command

    step-6: Select "Template"

    step-7: Open a new dialogue box

    step-8: Select Tutorial-mArch template

    step-9: Enter "Pagesetup" in the command line

    step-10: Select Layout and click modify

    step-11: Select ISO A1

    step-12: Select OK

    step-13: Go to the Layout tab

    step-14: Enter the "REC" command

    step-15: Plot Rectangle in paper space

    step-16: Rectangle size 400 X 445

    step-17: Another Rectangle with a dimension of 375 X 445

    step-18: Enter "MV"

    step-19: Select "Object"

    step-20: Select the Rectangle object we drawn

    step-21: Then we have a drawing from a model

    step-22: Enter "MS" model space

    step-23: Select 1:50 scale

    step-24: Enter the "PAN" command to pan the drawing and fit it into the model space

    step-25: Go to another model space

    step-26: Select 1:50 scale

    step-27: Pan section - A from a model

    step-28: Enter "PS"

    step-29: Enter "DIMLIN" to mention the linear dimension of the rectangle

    step-30: Enter "DT" to annotate the scale

    step-31: Enter "ATTEDIT" in the command line

    step-32: Edit the Attributes in the paper space

    step-33: Click OK

    step-33: Go to the Print option

    step-34: Select required properties and go to preview

    step-35: Take a Screenshot and attach it here.

    Result:

                 We create the layout as per shown in figure by using AutoCAD.

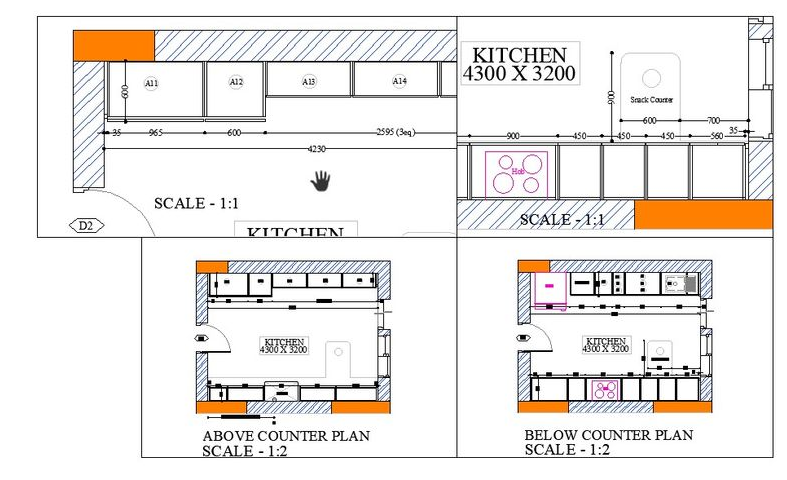

    Aim: To create the layout of the kitchen of the project in challenge 9 as shown in the figure above in AutoCAD

    Introduction: The layout is created in Auto CAD by using the scale given in the figure. The procedure is explained in detail with diagrams of each step and the final result is given.

    Procedure:

    step-1: Open AutoCAD

    step-2: Open challenge 9 file

    step-3: Go to Layout

    step-4: Enter "Layout" to create a new layout tab

    step-5: Enter "Pagesetup" in the command line

    step-6: Select Layout and click modify

    step-7: Select A4

    step-8: Click OK

    step-9: Enter "REC" command to create a rectangle to plot the model into paper space

    step-10: Enter Four rectangle

    step-11: Click OK

    step-12: Enter "MV"

    step-13: Select "Object"

    step-14: Select all the objects in the Paper space

    step-15: Now we have drawing in layout

    step-16: Enter "MS"

    step-17: Select 1:2 scale

    step-18: Pan the kitchen drawing

    step-19: Plot the drawing as shown in figure

    step-20: Click another model space

    step-21: Select 1:2 scale

    step-22: Pan the kitchen drawing

    step-23: Plot the drawing as shown in figure

    step-24: Click another model space

    step-25: Select 1:1 scale

    step-26: Pan the kitchen drawing

    step-27: Plot the drawing as shown in figure

    step-28: Click another model space

    step-29: Select 1:1 scale

    step-30: Pan the kitchen drawing

    step-31: Plot the drawing as shown in the figure

    step-32: Enter "DT" to annotate the scale

    step-33: Go to the Print option

    step-34: Select required properties and go to preview

    step-35: Take a Screenshot and attach it here.

    Result:

                We create the layout as per shown in the figure by using AutoCAD.





    Aim: To create the layout of the kitchen of the project in challenge 9 as shown in the figure above in AutoCAD

    Introduction: The layout is created in Auto CAD by using the scale given in the figure. The procedure is explained in detail with diagrams of each step and the final result is given.

    Procedure:

    step-1: Open AutoCAD

    step-2: Open challenge 9 file

    step-3: Go to Layout

    step-4: Enter "Layout" to create a new layout tab

    step-5: Click OK

    step-6: Enter "REC" command to create a rectangle to plot the model into paper space

    step-7: Enter three rectangle

    step-8: Click OK

    step-9: Enter "MV"

    step-10: Select "Object"

    step-11: Select all the objects in the Paper space

    step-12: Now we have the drawing in layout

    step-13: Enter "MS"

    step-14: Select 1:100 scale

    step-15: Pan the kitchen drawing

    step-16: Plot the drawing as shown in figure

    step-17: Click another model space

    step-18: Select 1:30 scale

    step-19: Pan the kitchen drawing

    step-20: Plot the drawing as shown in the figure

    step-21: Click another model space

    step-22: Select 1:30 scale

    step-23: Pan the kitchen drawing

    step-24: Plot the drawing as shown in the figure

    step-25: Enter "DT" to annotate the scale

    step-26: Go to the Print option

    step-27: Select required properties and go to preview

    step-28: Take a Screenshot and attach it here.

    Result:

                We create the layout as per shown in the figure by using AutoCAD.
