Creating Architectural and Structural model with 3D rendering using REVIT

1) Select the type of structure you want to build from one of the three below        a. Multi Unit Residential Apartment        b. Office Buildings        c. School Ans:- As per the given options in the question I am opting for Multi Unit Residential Apartment…

  • Buildings
  • Dharani Donikala

    updated on 03 Nov 2022

1) Select the type of structure you want to build from one of the three below
        a. Multi Unit Residential Apartment
        b. Office Buildings
        c. School

Ans:- As per the given options in the question I am opting for Multi Unit Residential Apartment

2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC

Ans:- For Geographic and location details assumptions which I have made are:-

1. My project is in residential area (medium populated)

2. Road width in front of my apartment is 60 feet

3. My project is in plain area (geographical)

As per the NBC

Height Limit as per FAR Calculation and as per NBC Table 5 V-1

Min length and width of rooms as per NBC V-1

Fire and safety from NBC part IV

3) Using the structural model, include the following components based on the type of structure selected
        a. Foundation – Isolated / Wall/Matt Foundation
        b. Columns
        c. Beams Connected to Columns
        d. Roof Framing/ Truss
        e. Floor / Decks
        f. Floor Openings for Elevators and Stairs

AIM:- Make a project using structural model and include the following components

Commands used:-

Grids

Levels

Columns

Isolated foundation

Beams

Floor structural

Shaft for lift and staircase

Procedure:-

Open a new file in structural template and save it with a appropiate name

Select collaborate and do the collaboration and make it as a central file

Select Structural and select grids and daw grid in horizontal and vertical

Select the manage tab and select coordinate and select specify coordinate

Specify the coordinate as 0'0" in both the grids and pin it

save it

Open a new template as architectural template and save it with a appropiate name

Select collaborate and do the collaboration and make it as a central file

Select Architectural and select grids and daw grid in horizontal and vertical

Select the manage tab and select coordinate and select specify coordinate

Specify the coordinate as 0'0" in both the grids and pin it

save it

Select the manage link and link the structural template in the architectural

Both the grids will appear

Select the manage tab and accquire the coordinate of the linked grid

select the relocate project and select the gridand overlap them now its good to go

save it

Open the structural template

draw the gids at equal interval in both x axis and y axis

select the elevation plan and draw the levels as 12' from one floor to another

select the floor plan and draw the floor plan as per the drawing or your building structure and copy it till roof

Select the columns at grids and draw columns In properties  tab select the column propeerty and size

Select the footing and draw footings at the columns

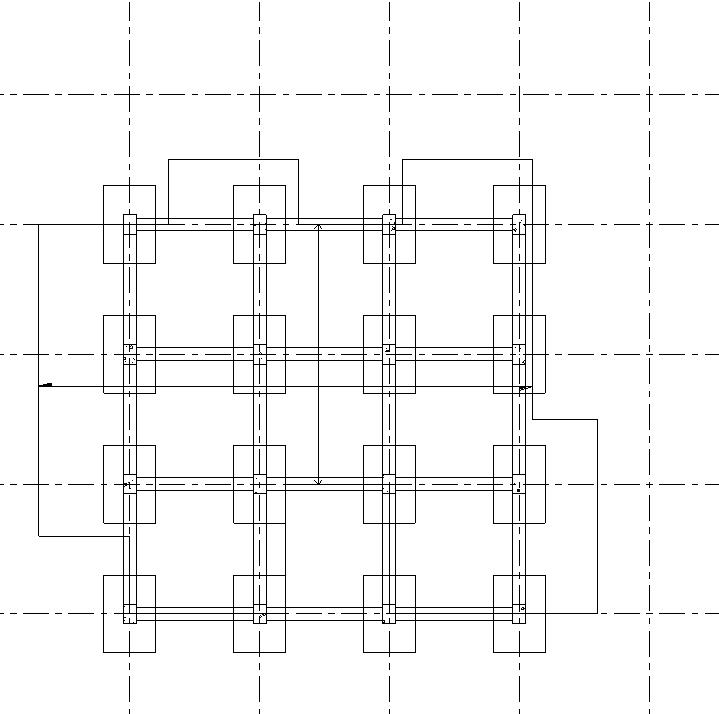

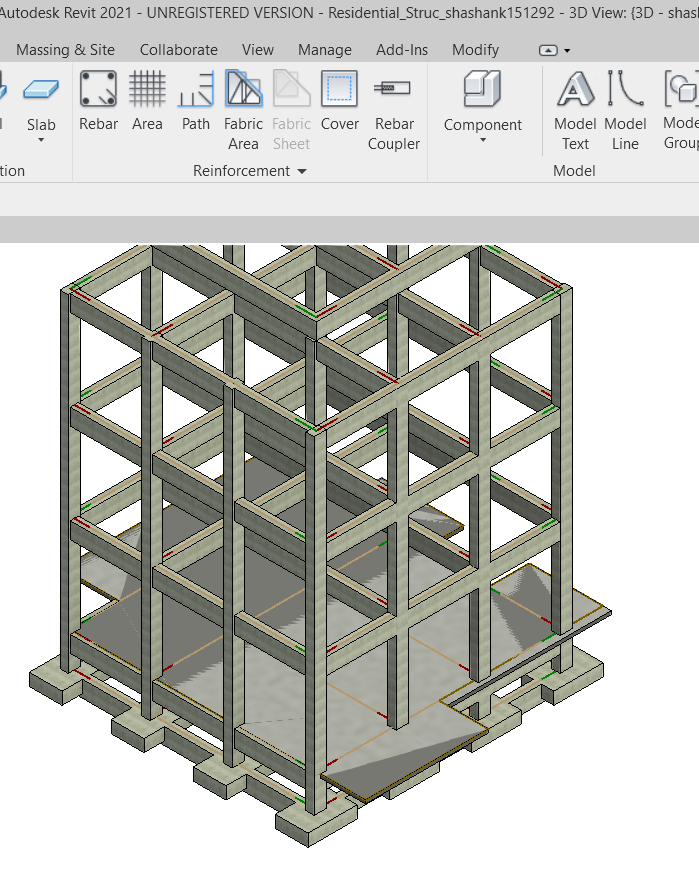

Select the beam and draw beams connected to the columns and select the contraint to First floor from ground floor as beams are at top of the floors

After making beams and columns red line will show that is analytical which can be off by pressing vg and select custom and select annotation and off the anlytical

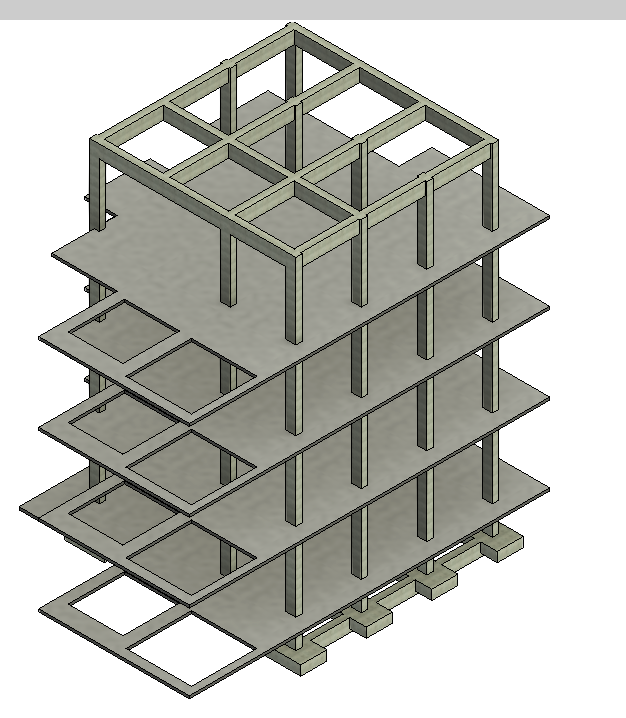

select the shaft for lift opening and staircase opening

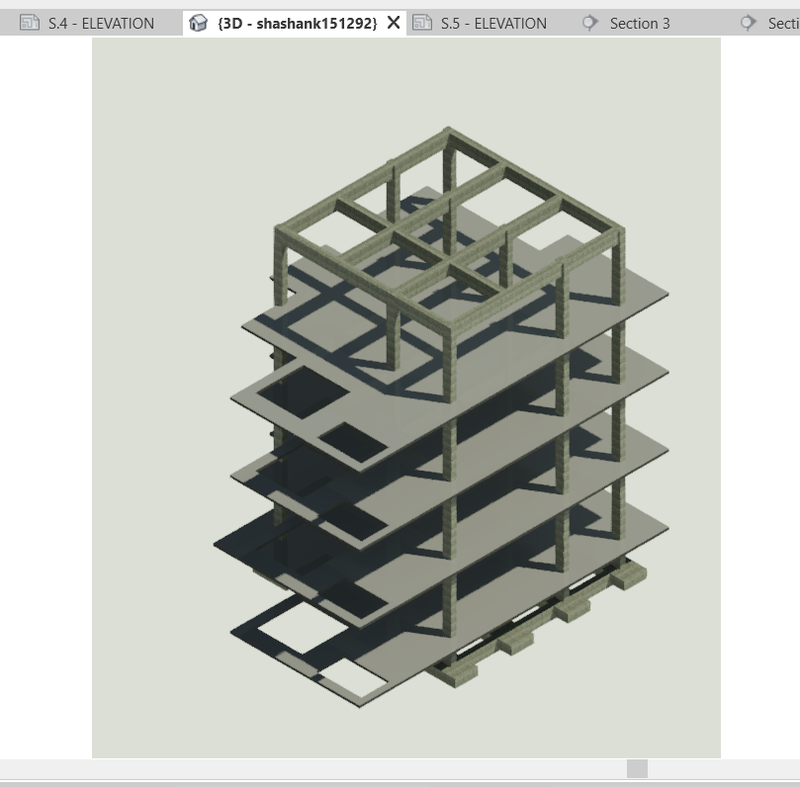

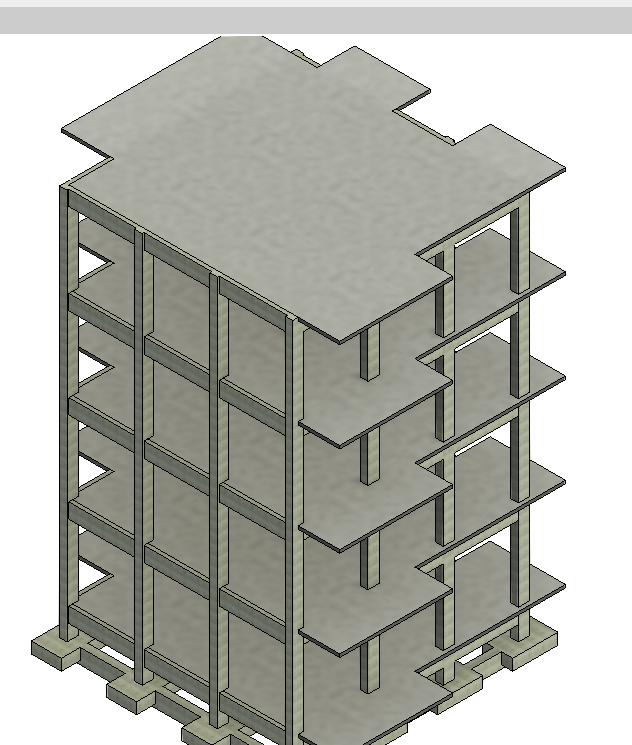

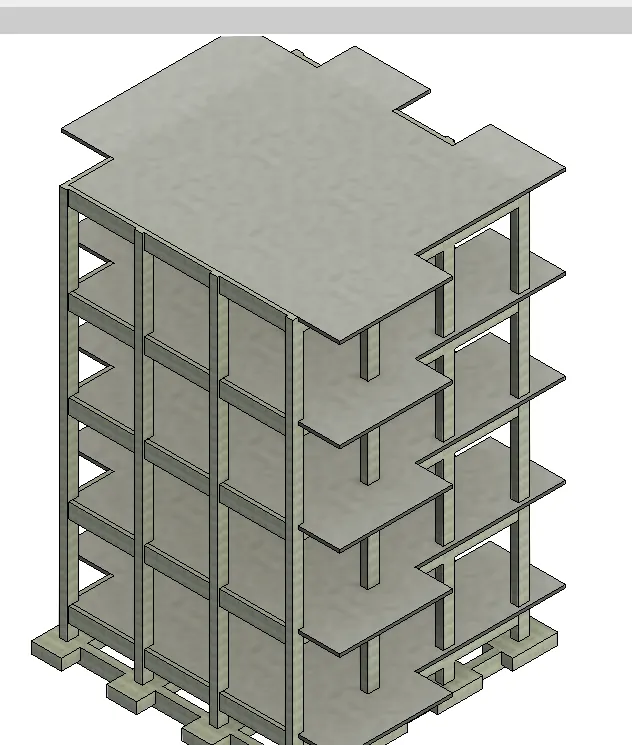

My structure framing plan is ready

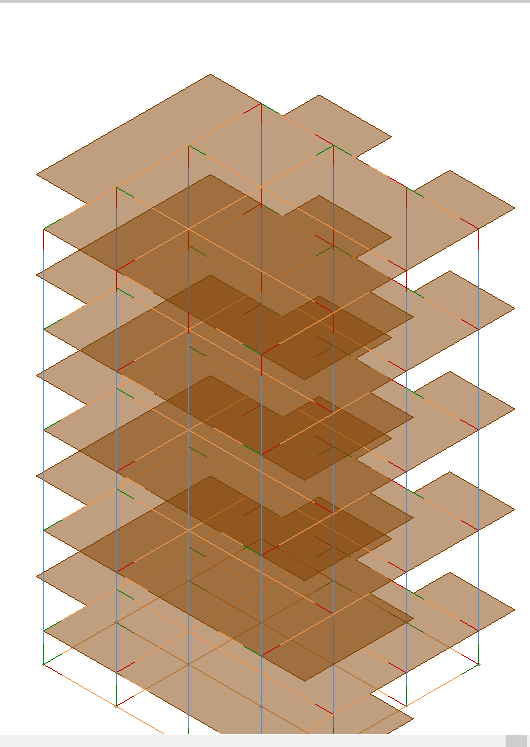

In result I have shown analytical part of the building too as its in structural template revit creates it automatically

Results:-

 4) Using the architectural model, include the following components based on the type of structure selected
        a. Wall Layout with appropriate material and finishing
        b. Exterior façade with fancy finish
        c. Interior partition walls to size rooms
        d. Components to add details to room ( Desk, Chair, Lighting, Plumbing fixtures)
        e. Add components such as stairs Elevators
        f. Have at-least one side of building with curtain walls and glass panels
        g. Include interior and exterior lighting fixtures
        h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

AIM:- Using architectural template create the walls , facade and other components of the building and give a complete building look with all the components

Commands Used:-

walls

material

Partition wall

Components as desk, chair lights etc

Stair

ceiling

roof

windows

doors

Railing

Procedure:-

Open the architectural template and we will see all the grids in the template which we made it in structural template

Select the copy monitor tool and select copy and select the grids

go to the vg setting and select custom in annotation off the grids

Now we will see the grids of architectural only

Select the elevation and do the same as of grids to levels

Select and pin it

Select the exterior wall and draw the walls in the ground floor

Go to the 3d view and select top constraint to roof

Select the wall near the staircase area(lobby) and in property tab select glazed wall

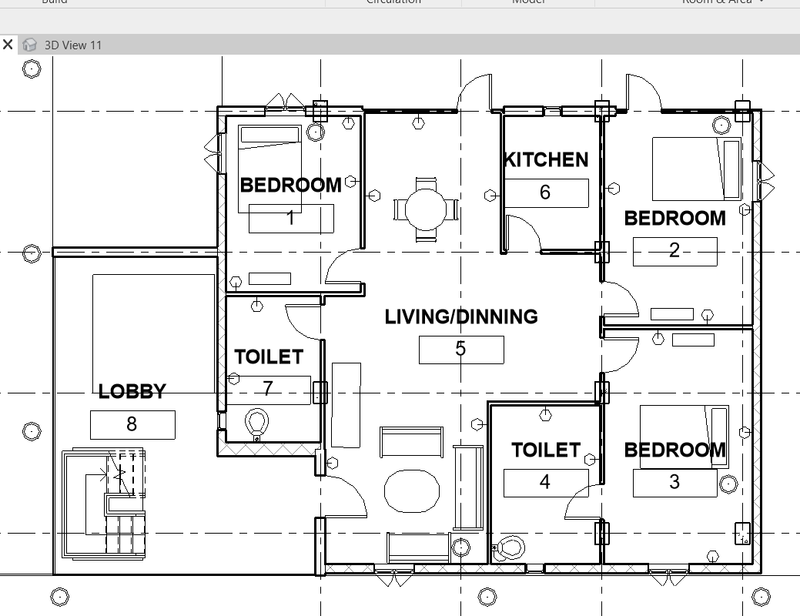

Select the GF plan and select partition wall and draw the roomss, kithen, toilets, etc

select the door and draw the doors whereever required

selct the window and draw the windows where ever required in property tab we can select type of windows

Select all the doors and windows and select copy and paste it to selected level till roof

All the doors and windows are made

select the ceiling and draw ceiling in the ground floor by selecting walls click the tick button

copy all the ceiling and paste it to selected level

select the wall properties and select type of wall to be used

Select the FF plan and select railing and draw railing in the balconies

Select the insert command and select the family and select the components as beds, tables, lights, plumbing fixtures etc

Select the add the component and select the component and add it to its appropiate place

Select the roof and select roof by walls and draw the roof

Select the component of trees and place it at the exterior portion of the building

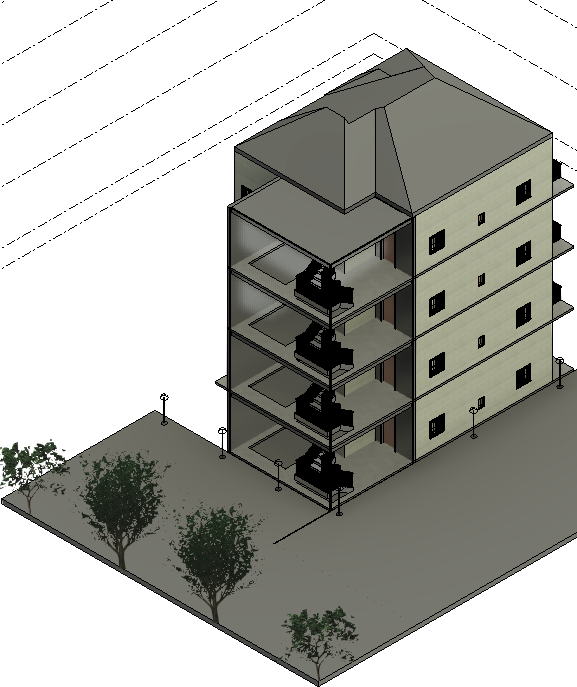

Result:-

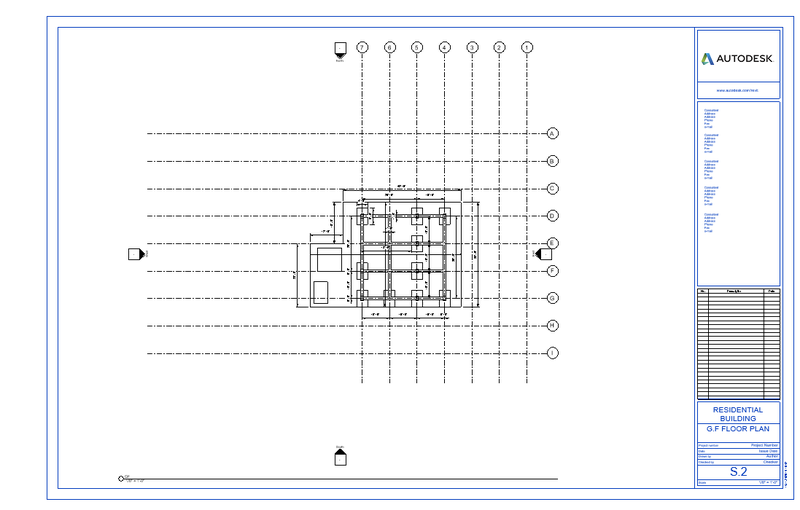

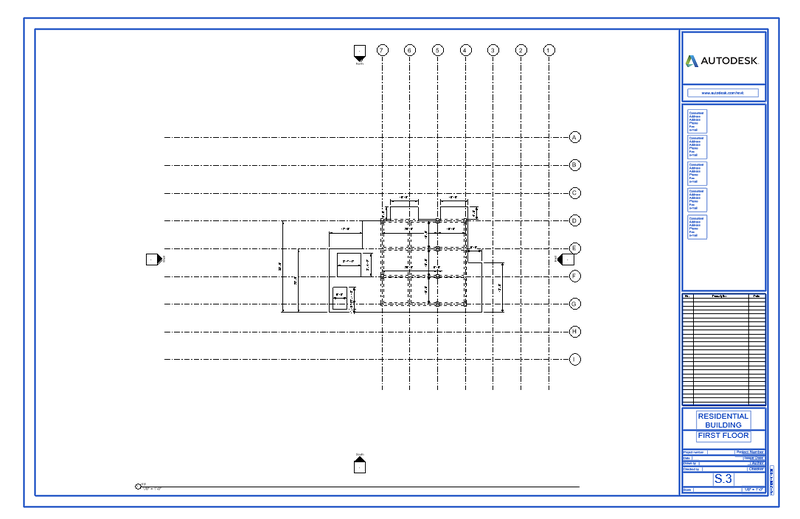

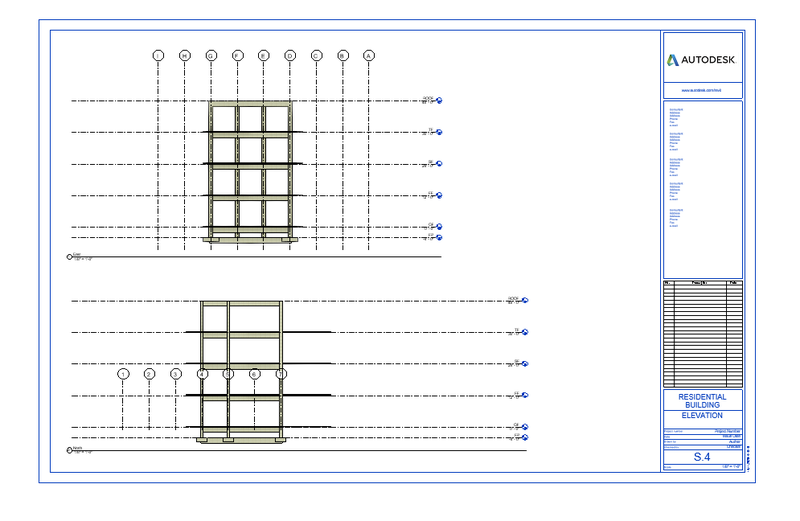

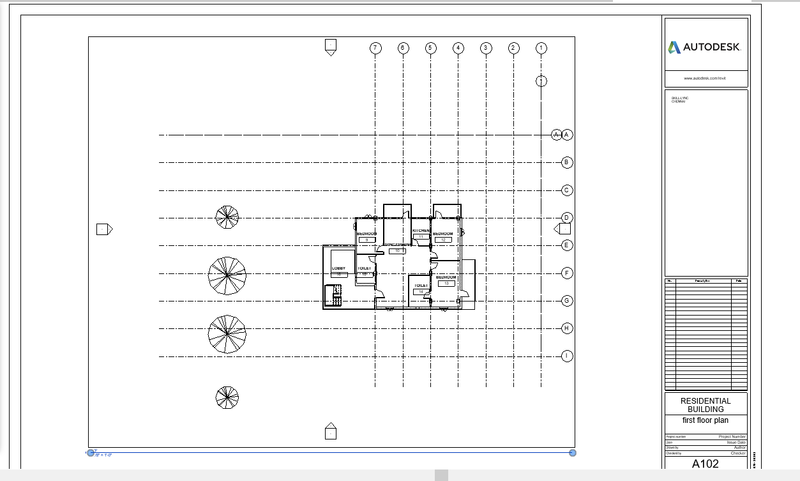

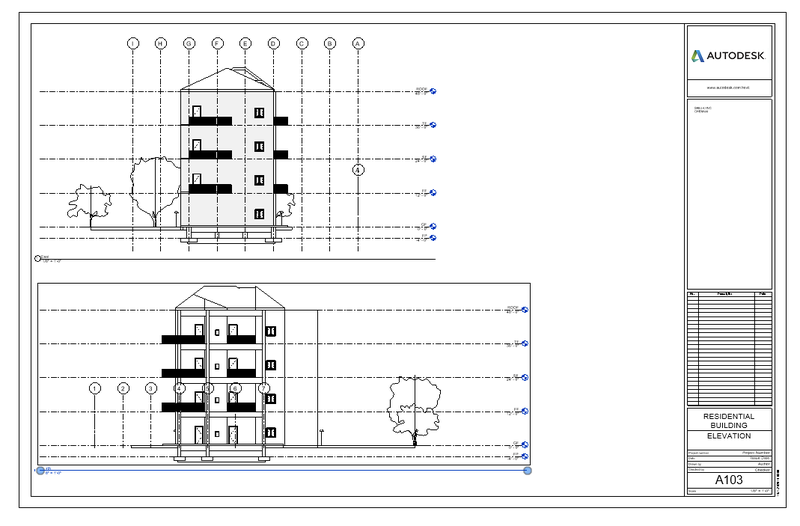

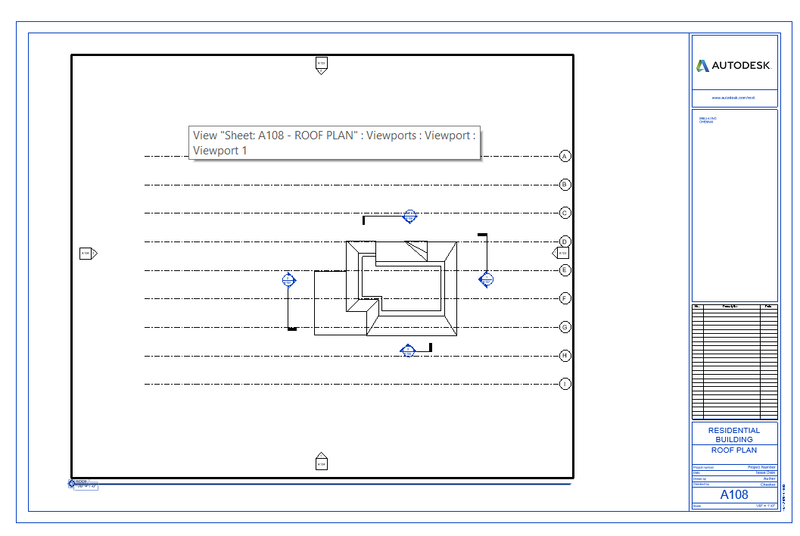

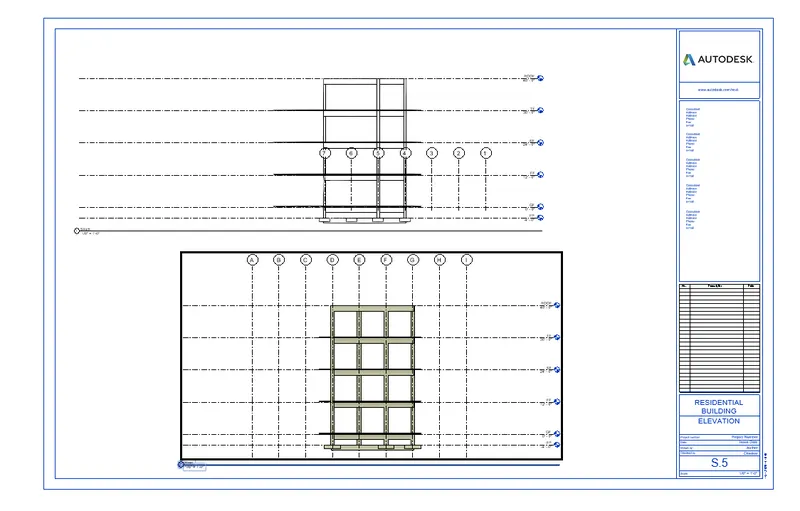

5) Provide set of drawings in architectural and structural model to list the following details with categories and appropriate sheet templates included

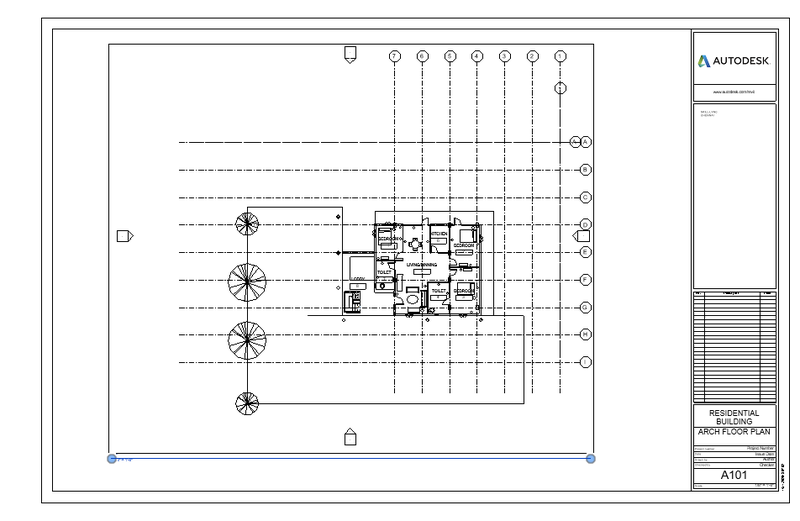

        a. Floor Plans with Annotations

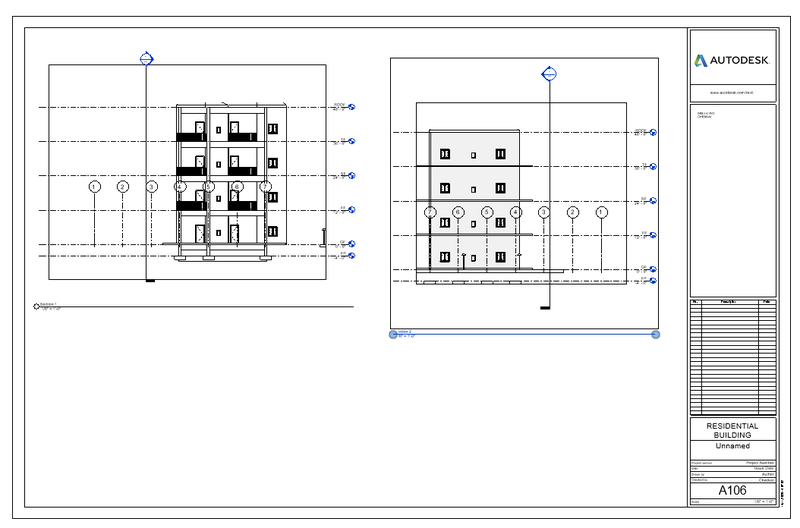

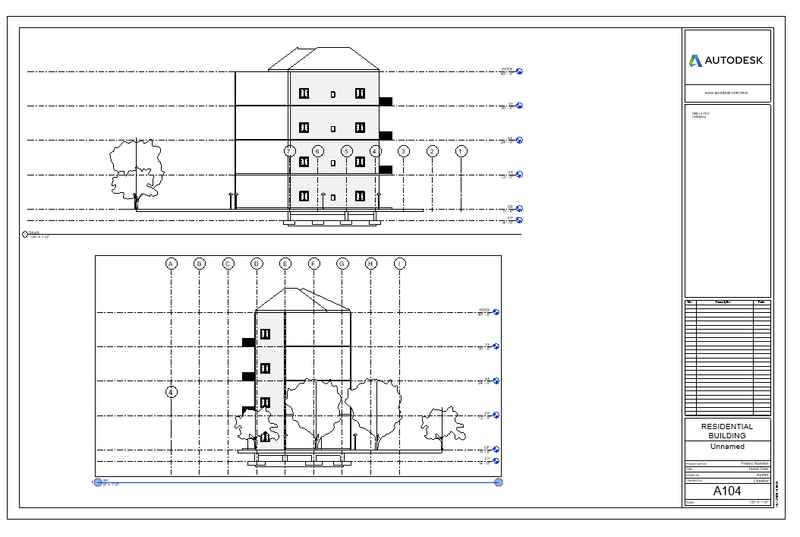

        b. Elevations
        c. Sections

AIM:- USe proper sheet templates for the set of drawings

Commands used:-

Sheets

Edit sheets

Procedure:-

Select the view tab and select sheet and load it from the family

Double click and edit the sheet and load it in the project

Drag the plans , elevations, section in the sheet and rename the sheet and drawing number and name as per the requirment and save it

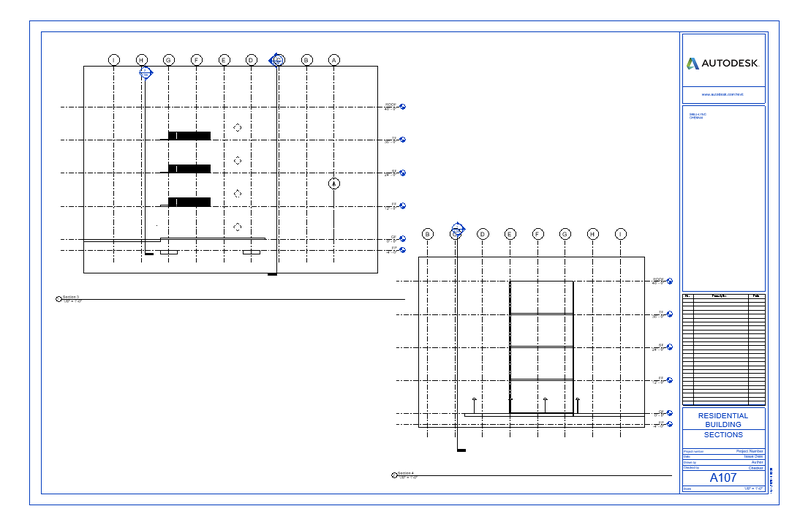

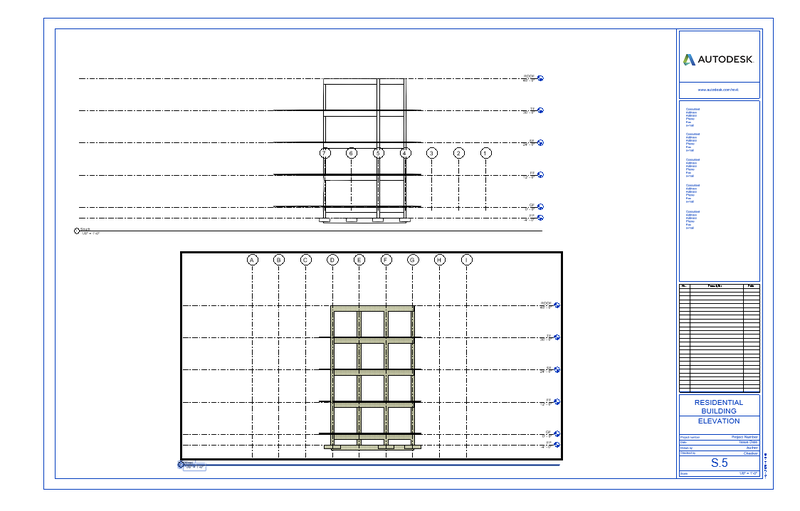

Results:-

6) Using the Rendering settings, Render images of 3D model produced and include the rendered images to the drawing sheets
        a. Rendering from interior rooms
        b. Rendering from out showing topographic features
        c. Rendering through structural framing

Aim:- Render the 3D images

Commands used:-

Render

Procedure

Select the 3D images og the interior rooms, exterior and structural framing and select the render and do the rendering

Select the properties like exterior sun and artificial setting, or artificial setting, clouds etc

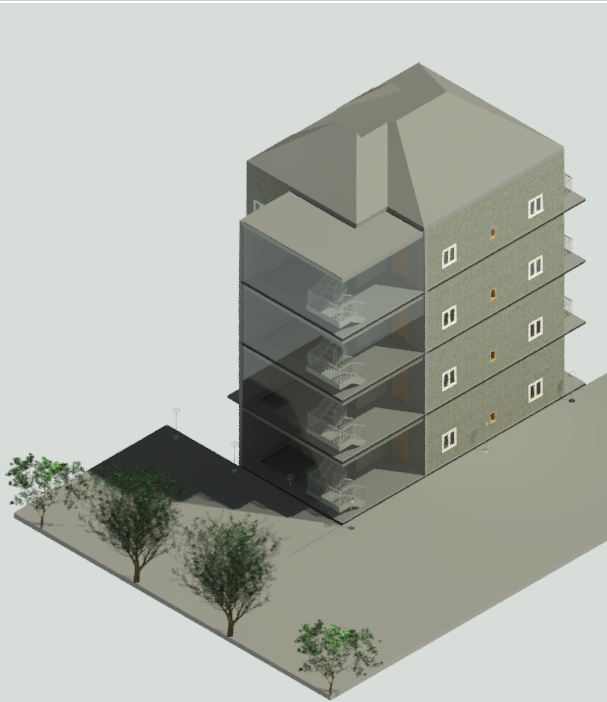

Results:-

7) Print the set of drawing sheets created and submit the drawings from architecture and structure model

Aim:- Print the sets of drawing sheets and submit for execution at site

Commands Used:-

Print

Setup page

Select the plotter

Print

Procedure:-

Select the views and click print option

Adjust the setting of the page and print the drawing sheets

Results:-

P.S I have not printed the sheets as i dont have printer/plotter installed so I am attaching the image of the sheets

As I have not attached all te sheets I have just attached 3 to 4 sheets from both architectural and structural just to show how the prints will look like.
