  3. Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

AIM- 1.creat layout of plan and section , creating viewports ,editing attributes  and taking a plot. 2.to creating kitchen layout in A4 sheet  and take a plot. 3.TO creat multiview ports for  industrial section drawing , scaling it and a plot  is taking .   PROCEDURE - AIM-- TO CREAT LAYOUT OF…

    • Bunti Parashar

      updated on 07 Oct 2022

    AIM-

    1.creat layout of plan and section ,

    creating viewports ,editing attributes

    and taking a plot.

    2.to creating kitchen layout in A4 sheet

    and take a plot.

    3.TO creat multiview ports for

    industrial section drawing ,

    scaling it and a plot  is taking .



    PROCEDURE -

    AIM--

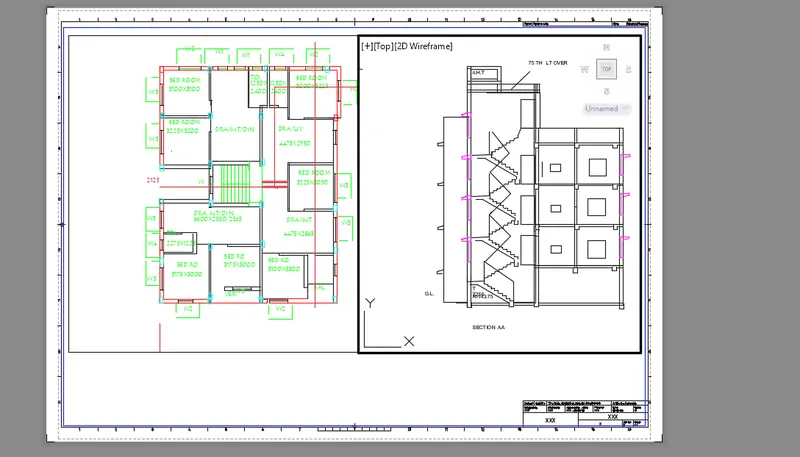

    TO CREAT LAYOUT OF A PLAN

    AND SECTION  USING TEMPLATE

    M.ARCH .dwt

    TO CREAT VIEWPORTS USING

    MV CO. OF SIZE 400X445 AND 375X445

    AND SETTING SCALE 1:50

    2.EDITING ATTRIBUTES IN TEMPLATE

    YAKE A PLOT USING A1 SIZE .



    PROCEDURE --

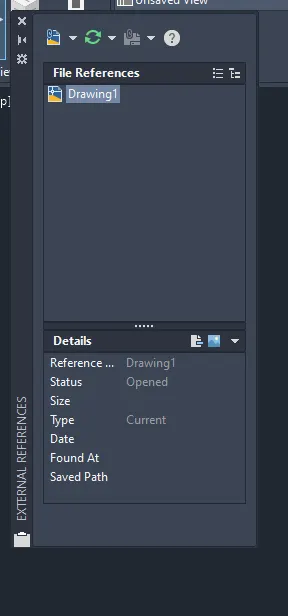

    in command prompt enter 'XREF '

    and on  left corner attch  the DWG.ATTCH

    THE Drawing.

    1.



    -After attching  left click on

    attching drawing file .

    Bind attched file and explode drawing .

    in command prompt type  layout

    and right click on layout select

    rename give rename of  this layout

    as PLAN AND SECTION.



    -TOCREAT TEMPLATE -

    COMMAND GIVE LAYOUT

    select template -select M.ARCH .

    FROMdialouge box select  ISO A1

    layout

    TO CREAT VIEW PORTS

    Use command MV  multiple view

    select object make reactangle in template layout .



    -give CO. MS for model space

    click on view ports set drawing

    click 1st and 2nd recangle and zoom it .

    give scale 1:50

    lock  view ports with help of

    MV CO. so  further zoming will not change .

    -same procedure do in 2nd rectangle .

    EDITTING ATTRIBUTES IN TEMPLATES

    go to paper space commamds PS

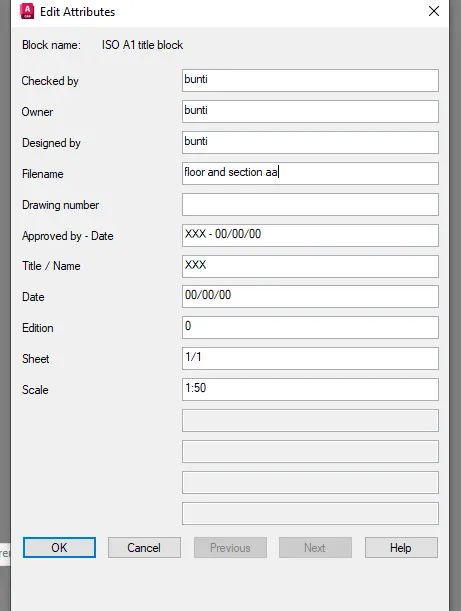

    next give  'ATTEDIT CO. click block

    make attributes

    enter text MT CO.

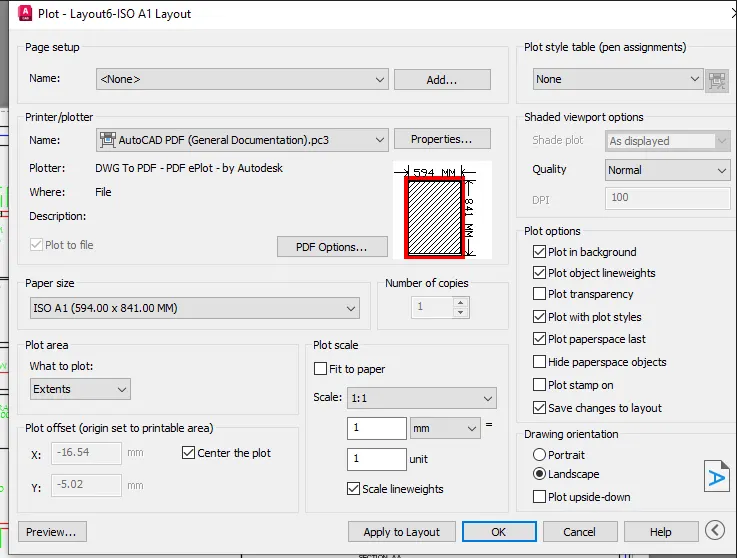

    TAKING PLOT  click

    ctrl+p on keyboard

    layout is plotted



    RESULTS -

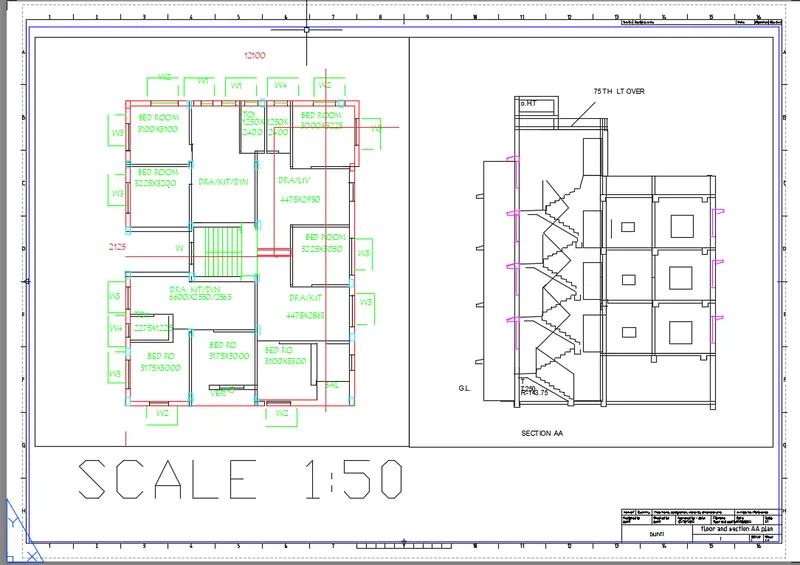

    The layout of desired scale  and type

    is formed as per question by using

    LAYOUT ,MV,MS,PS,ATTEDIT ETC. CO.

    PLEASE REFER TO BELOW SNIPS FOR MORE

    UNDERSTANDING.

















    A2,]

    AIM -

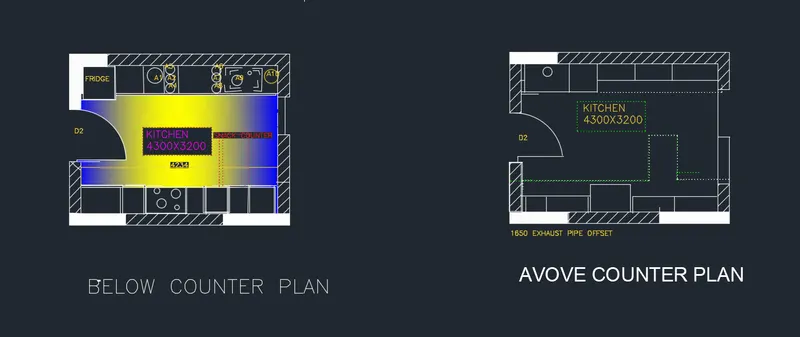

    creat layout of kitchen drawn in

    challange 9 as per question .

    use scale and  use A4 size  page  for layout .

    take a plot .



    INTRODUCTION -

    in present question main aim to

    draw a layout of kitchen ,and

    whole layout creat a A4  paper

    sheet also take  use of MV AND

    MS COMMANDS.



    PROCEDURE -



    -open challange 9 file in autocad .

    -go to layout  section  .,its just beside

    model section in bottom left

    corner of screen .

    -creat new layout on right click

    give name  kitchen layout ,

    and delete other layouts1,2.

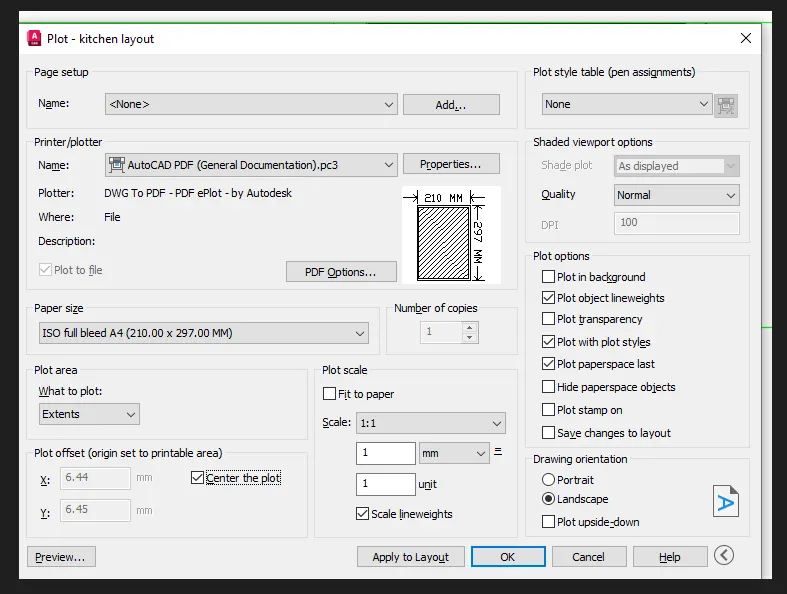

    -now right click name and go to

    page set up option .

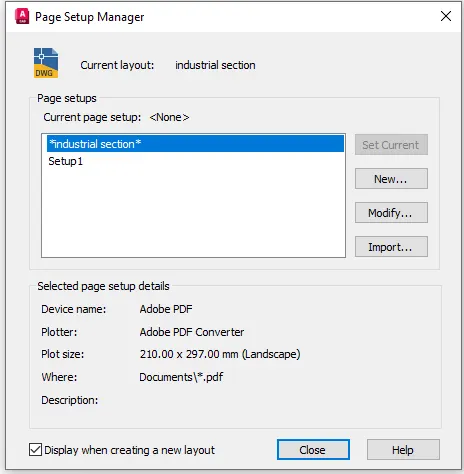

    -there find A4 size paper sheet .

    -now go to MS model space creat  views

    in view menu.

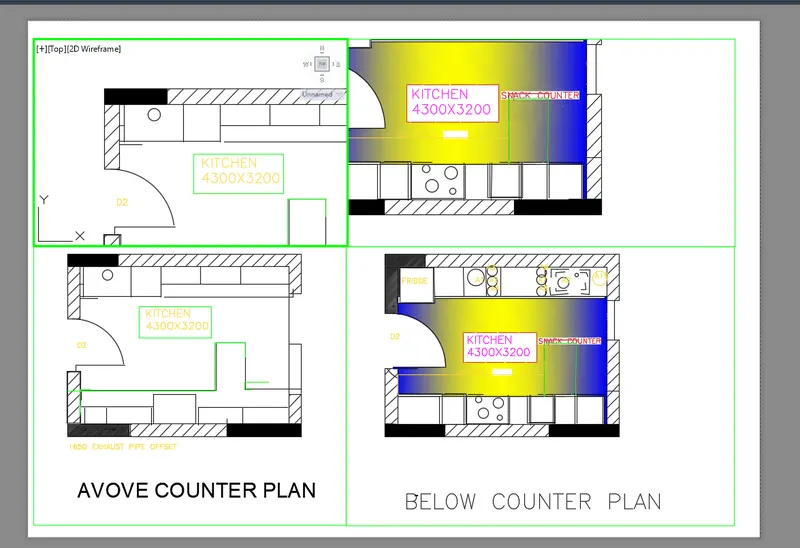

    -diffrent multiviews are created in sheet .

    - now go to in layout section use

    commads MV .

    -NOW brings views into layout

    by creating polyzon or named methode.

    -use MS co. for scale and zoom amd also

    set properly .

    -also take PAN co. for set properly .

    -once layout plan is set properly

    then use the

    -ctrl+p  on key board for plot the layout .

    -the layout is plotted .



    RESULTS-

    THE LAYOUT OF DESIRED SCALE AND TYPE

    IS FORMED AS PER QUESTION USING COMMANDS

    LAYOUT, MV,MS,ATTEDIT ETC.

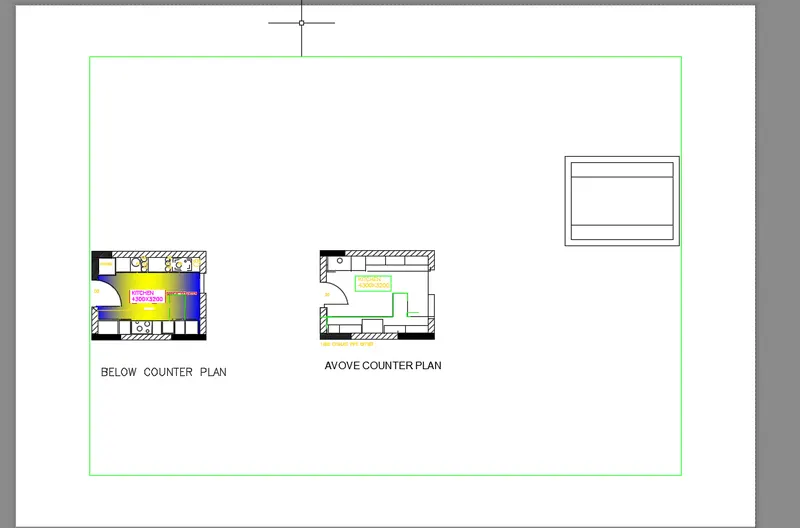

    FOR BETTER UNDERSTANDING GIVEN

    SOME SNIPS BELOW .

















    A3]

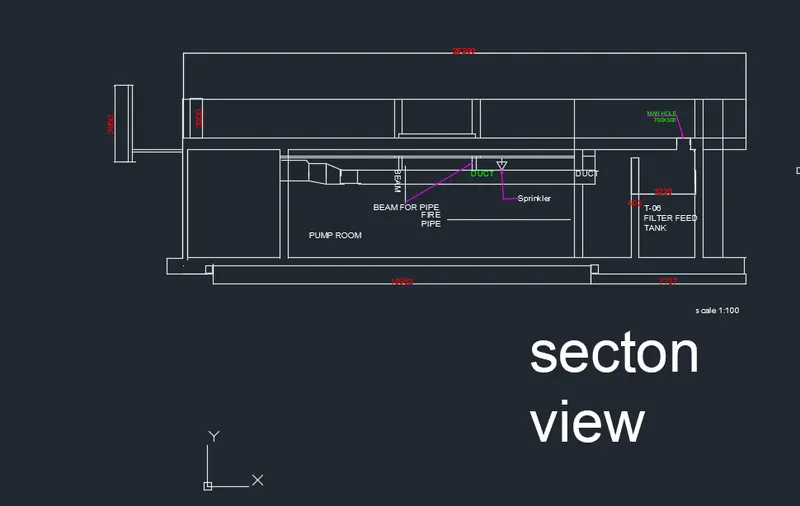

    AIM -

    creat a layout section  in challange 9

    use scale mention in question

    use MV co . for creat multiple views ports.

    take a plot .



    INTRODUCTION -

    IN this question  main aim to creat a layout

    of section industrial building

    which was drawn challange

    9 . whole layout creat A4 paper

    sheet , using MV AND MS commands .



    PROCEDURE -

    -Open challange 9 file in auto cad .

    -go to layout section just besides of model

    section ,left corner of screen ,

    -in layout section do right click

    go to rename and give named layout 1

    and delete other layout 2.

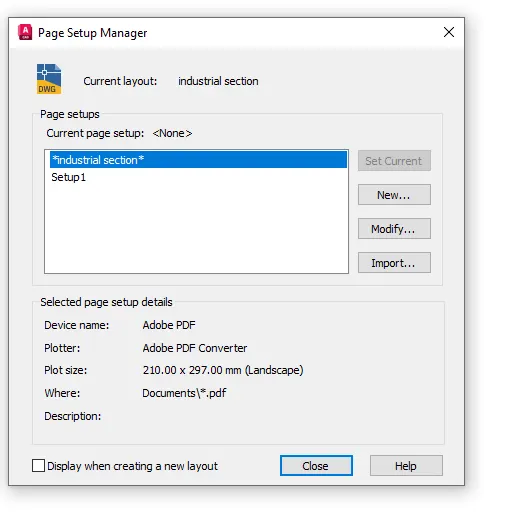

    -do another right click in layout and go to

    page set up option .

    -in here we find A4 size page sheet.

    -go to model space and creat views

    in view menu .

    -3 diffrent views of section are

    created .

    -go layout section GIVE command MV .

    -BRINGS  views in layout section

    views are created polyzon or named

    methode .

    -use MS commands for scaled and zoom

    properly also adjust with help of PAN COMMANDS.

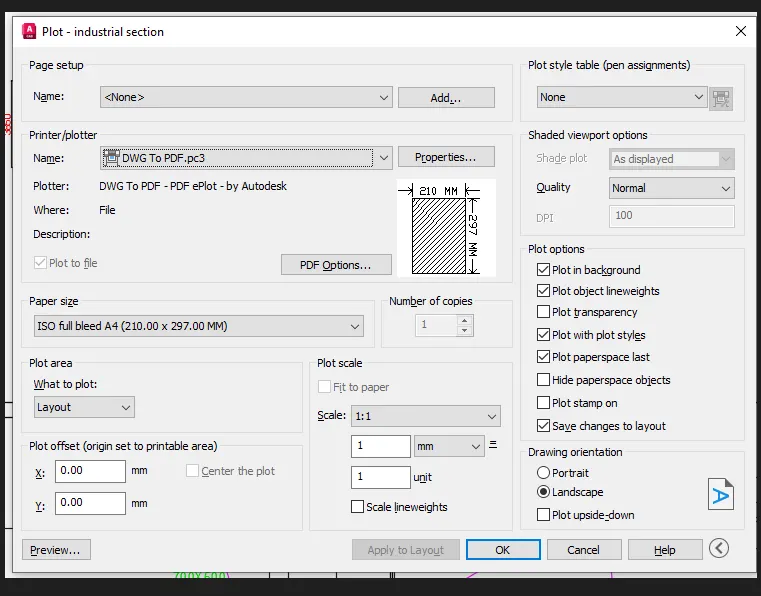

    -ONCE section are set properly

    -go to ctrl +p on keyboard  for plot

    the layout

    -the layput is plotted .



    RESULTS-

    THE LAYOUT OF DESIRED  SCALE

    IS FORMED AS PER PER QUESTION

    USING THE COMMANDS LIKE

    MV, MS , ATTEDIT etc.

    IN BELOW GIVEN SOME SNIPS

    FOR BETTER UNDERSTANDING .

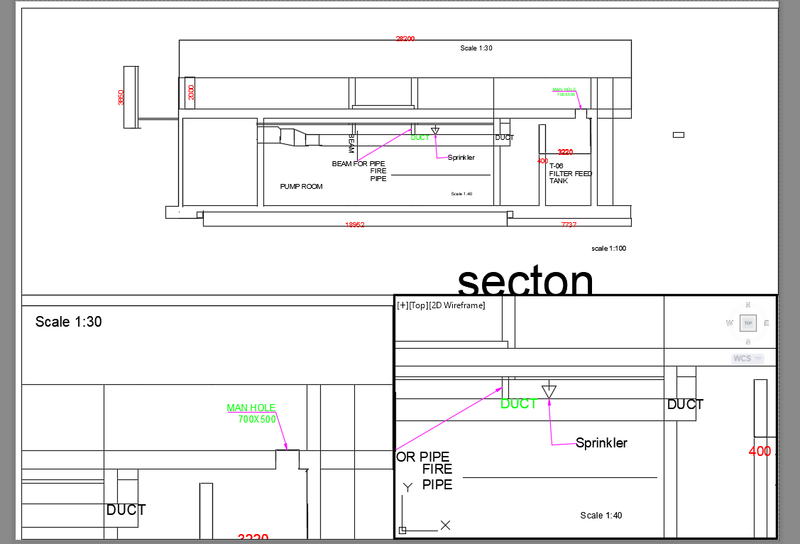

    SNIPS -
