Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

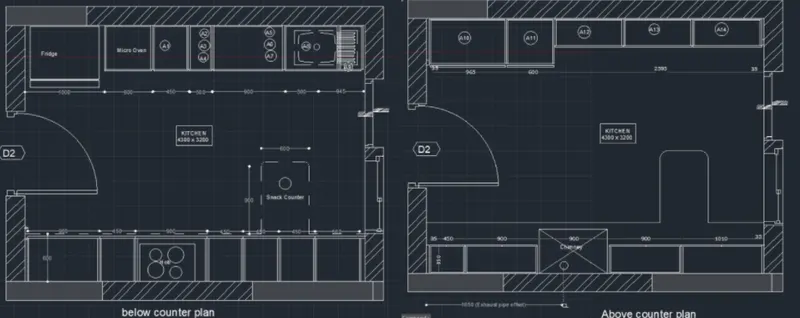

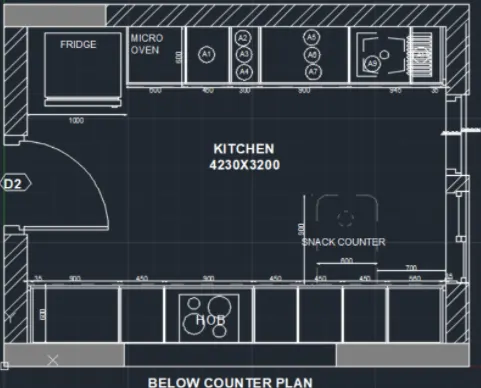

Q1.Aim: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.   Procedure:   step 1: units are set to mm firmits and limax are also set zoom comand is also used Steps for drawing Below Counter Plan…

    • MAYUR KOKANI

      updated on 19 Dec 2021

    Q1.Aim: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.
    All dimensions are in mm.

    Procedure:

    step 1:
    • units are set to mm
    • firmits and limax are also set
    • zoom comand is also used

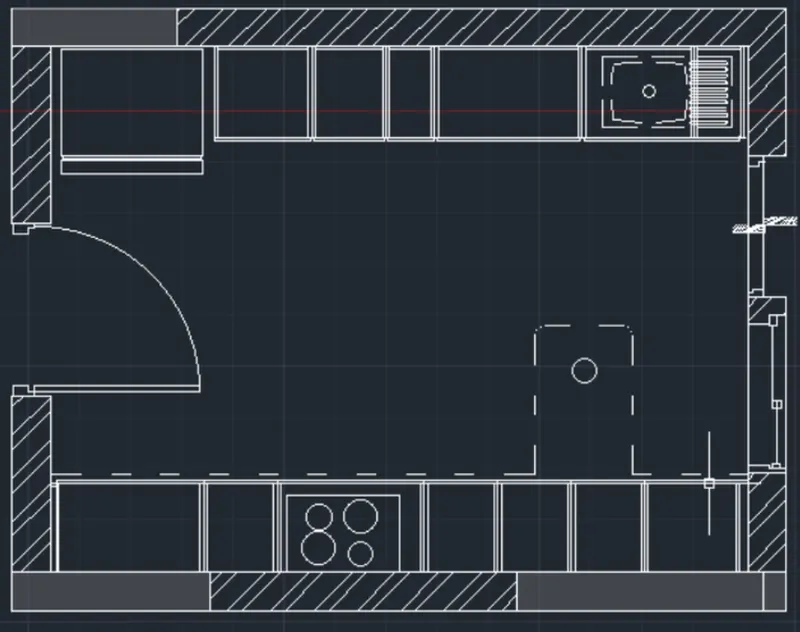

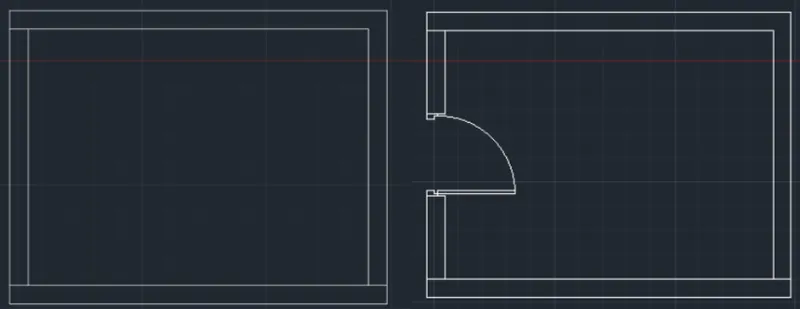

    Steps for drawing Below Counter Plan
    • Open Auto Cad and enter UN (units command in command box and make the type as decimal.
    • Select line command and draw a line of 4300 in X direction and a line of 3200 in Y direction and complete the rectangle.
    • Offset 230 towards all sides of the rectangle outside the figure.
    • Fillet all the offset edges

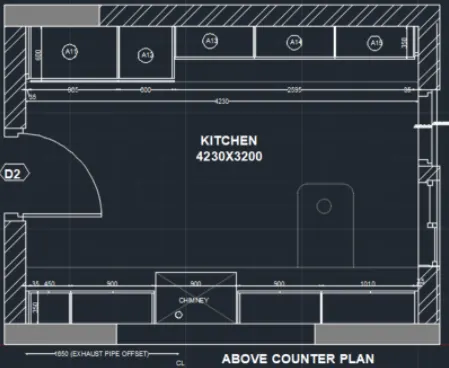

    Steps for drawing Above Counter Plan
    • Open Auto Cad and enter UN (units command) in command box and make the type as decimal. . Select line command and draw a line of 4300 in X direction and a line of 3200 in Y direction and complete the rectangle.
    • Offset 230 towards all sides of the rectangle outside the figure.
    • Fillet all the offset edges.
    • Offset of 600 from top of the room to draw the kitchen platform ink and otta.
    • Give the offset as follows from left side 35 as first offset and again the offset as 965, 600, 2595. Offset 12 mm to both sides in each comer of the room.
    • Offset 350 mm from bottom in middle of kitchen to draw platform.
    • Now enter offset as follows-35, 450, 900, 900, 900, 1010, 35

    Steps for drawing Above Counter Plan
    • Open Auto Cad and enter UN (units command) in command box and make the type as decimal.
    • Select line command and draw a line of 4300 in X direction and a line of 3200 in Y direction and complete the rectangle.
    • Offset 230 towards all sides of the rectangle outside the figure.
    • Fillet all the offset edges.
    • Offset of 600 from top of the room to draw the kitchen platform ink and otta.
    • Give the offset as follows from left side 35 as first offset and again the offset as 965, 600, 2595.
    • Offset 12 mm to both sides in each corner of the room.
    • Offset 350 mm from bottom in middle of kitchen to draw platform.
    • Now enter offset as follows-35, 450, 900, 900, 900, 1010, 35.

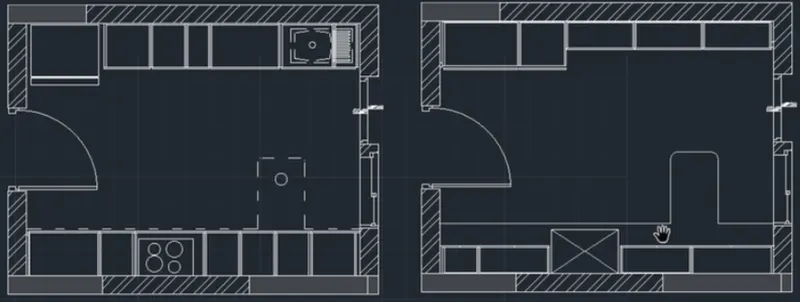

    Steps for Hatching of objects

    • Click Home tab-Draw panel-Hatch
    • On the Properties panel Hatch Type list, select the type of hatch that you want to use.
    • On the Pattern panel, click a hatch pattern or fill. On the Boundaries panel, specify the how the pattern boundary is selected:
    • Pick Points Inserts the hatch or fill within a closed area that is bounded by one or more objects
    • Select Boundary Objects. Inserts the hatch or fill within a closed object.
    • The selection method is retained until you change it
    • Click an area or object to be hatched
    • On the ribbon, make any adjustments as needed.
    • On the Properties panel, you can change the hatch type and colors or modify the transparency level, angle, or scale for the hatch
    • On the expanded Options panel, you can change the draw order to specify whether the hatch and its boundary are displayed in front of or behind other objects
    • Press Enter to apply the hatch and exit the command

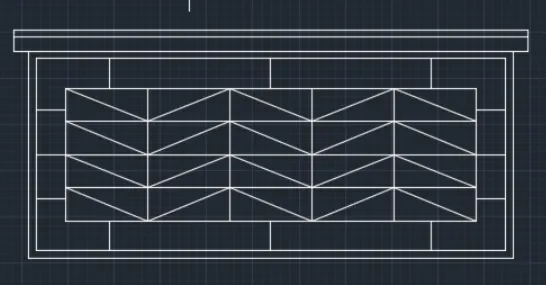

    • Hatch the brick wall with hatch typelas ANS132 and hatch other part as solid and grey colour

    RESULT :

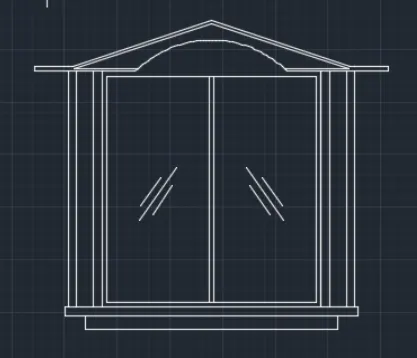

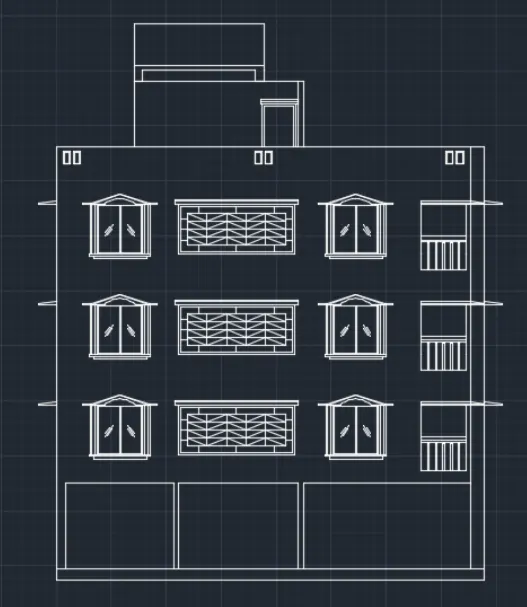

    Q2.AIM :To create the elevation of the plan created in the Challenges 7 and apply proper hatch in the walls, doors, windows, and other architectural elements

    PROCEDURE:

    STEPS FOR DRAWING SECTION
    • Select line command and extend the lines from the plan in the downward manner to create projections.
    • Offset 150mm from the ground level.
    • Offset 2450 for ground floor.
    • Offset 2850 for second floor.
    • Offset 2850 for second floor.
    • Offset 2850 for third floor.
    • Offset 1000 for parapet wall.
    • Offset 2500 from terrace level for mumty.
    • Offset 450 from mumty for parapet wall of murty.
    • Offset 600 and offset 1200 for O.T.H.
    • For drawing of staircase offset 1250 for tread and offset 143.75 for rse of staircase.
    • Offset 125 below floor level for slab.
    • Draw the chajjas and windows as per the sizes considered and standards.
    • Draw the railing of staircase in dash manner from the layers and change the layer to ACADIS003W100.
    • Give the dimensions by dim linear or dim continue command. Select the multiline text for naming of the section.

    Steps for Hatching of objects

    • Click Home tab-Draw panel-Hatch.
    • On the Properties panel Hatch Type list, select the type of hatch that you want to use.
    • On the Pattern panel, click a hatch pattern or fill
    • On the Boundaries panel specify the how the pattern boundary is selected
    • Pick Points. Inserts the hatch or fill within a closed area that is bounded by one or more objects . Select Boundary Objects Inserts the hatch or fill within a closed object
    • The selection method is retained until you change it
    • Click an area or object to be hatched.
    • On the ribbon, make any adjustments as needed
    • On the Properties panel you can change the hatch type and colors or modify the transparency level, angle or scale for the hatch. behind other objects.
    • On the expanded Options panel you can change the draw order to specify whether the hatch and its boundary are displayed in front
    • Press Enter to apply the hatch and exit the command

    RESULT :

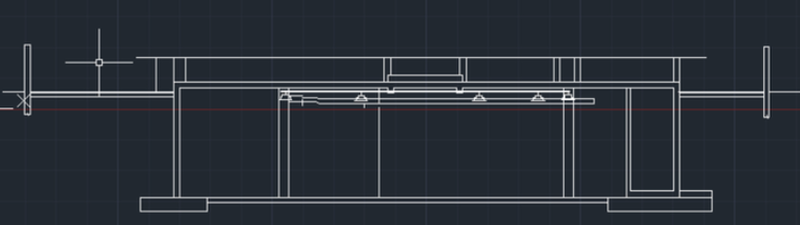

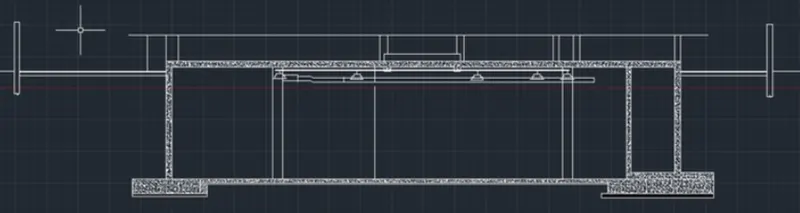

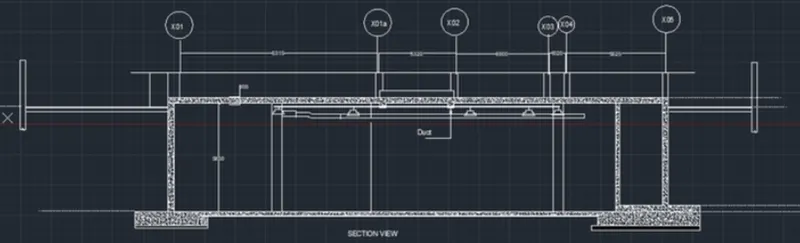

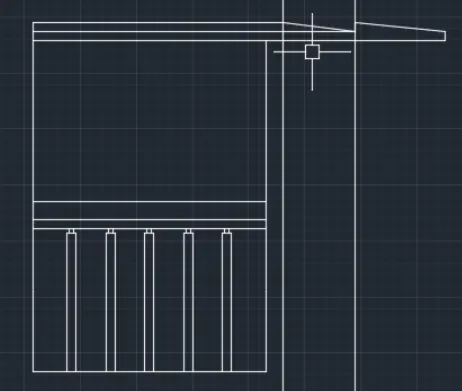

    Q3.AIM: To create the section view of an industrial building.

    PROCEDURE:

    Steps
    • In the command prompt type I to draw the lines.
    • In the Ribbon bar Hatch» AR.CONC.

    • In the command prompt type rec to draw the rectangle.
    • In the command prompt type LT to get the dotted line

    • In the command prompt type Mt to draft the text
    • In the command prompt type c to draw the circle
    • In the command prompt type dim to draft the dimensions
    RESULT:
