Creating 3D Isometric view of various structural elements in AutoCAD

AIM: To draw the 3d isometric view of: 1. Building given plan and elevation 2. Facade of a building 3. Stair 4. Spread footing COMMANDS USED: 1. Extrude. 2. Offset. 3. UCS. 4. Box. 5. Union. 6. Subtract. 7. Move. 8.3d orbit. 9. Boundary. 10. Sweep. 11. Render. Q1.3d isometric view of a building Aim: To create…

MAYUR KOKANI
updated on 20 Dec 2021

AIM: To draw the 3d isometric view of:

1. Building given plan and elevation

2. Facade of a building

3. Stair

4. Spread footing

COMMANDS USED:

1. Extrude.

2. Offset.

3. UCS.

4. Box.

5. Union.

6. Subtract.

7. Move.

8.3d orbit.

9. Boundary.

10. Sweep.

11. Render.

Q1.3d isometric view of a building

Aim: To create 3d isometric view of a building with plan and elevation.

Procedure:

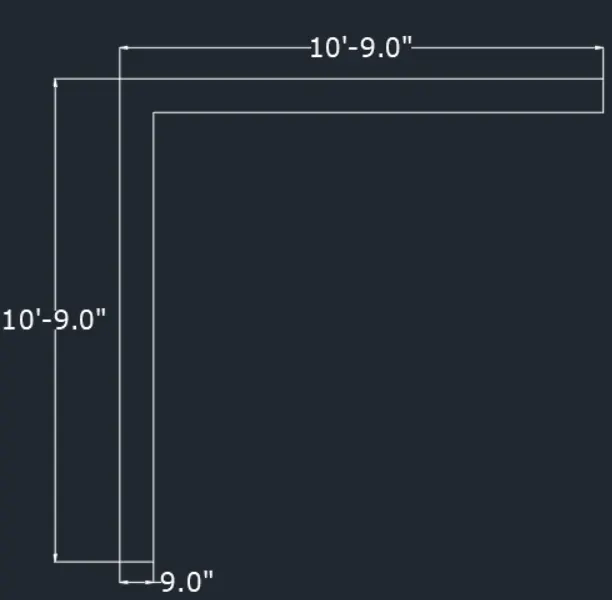

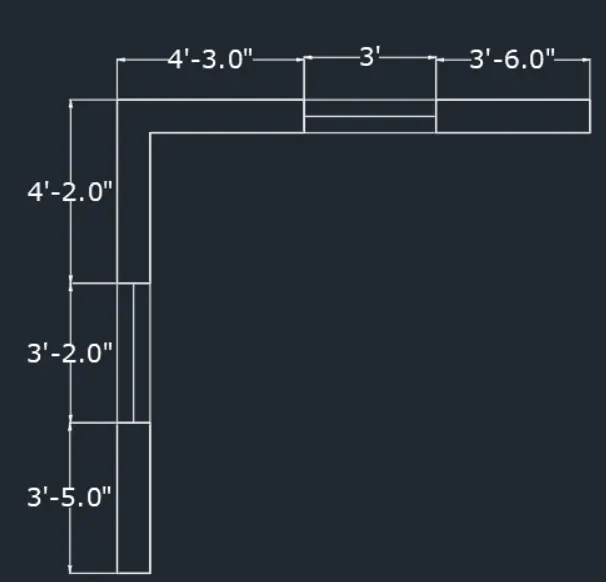

Step 1: Drawing the plan:

In the top view, With line command, draw a line of 10'9" vertically and horizontally such that a L- shape walls formed.Offset 9" line from the two lines.

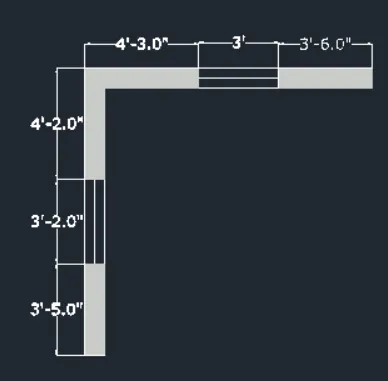

Step 2: Draw the window:

Give offset of 4'2" from the corner of the wall.Again, give offset of 3'2" from that line for the window.

Similarly on the other side also, offset 4'3" from the corner,3' for the window.

Step 3: Making it 3d:

Command "3do" for 3d orbit and orbit the view so that 3d view is seen.Now create a region in the wall area by command "BO" for boundary.Go to shaded view to see the boundary.

Now extrude the region, giving a height of 10' Command "EXTRUDE", give height=10'

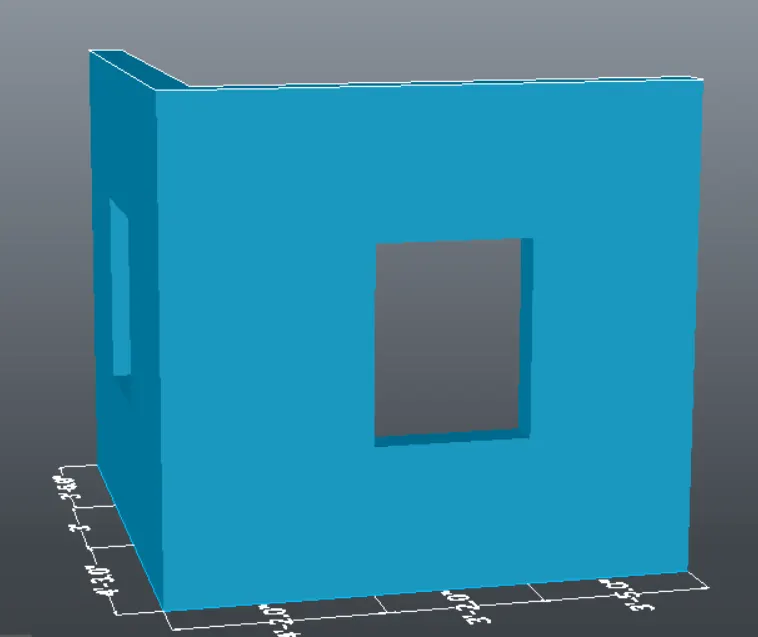

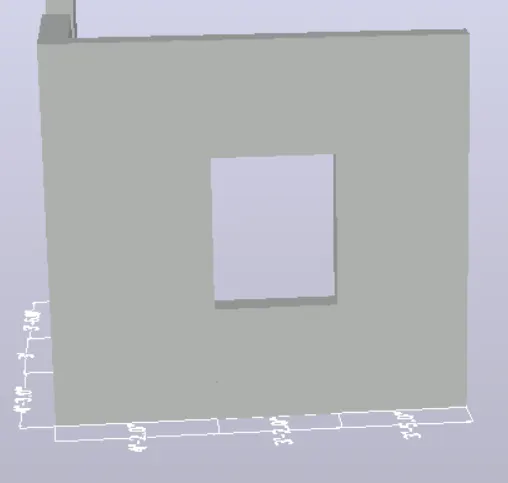

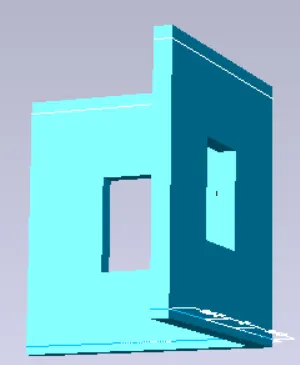

Step 4: Creating opening for windows:

Draw a rectangle over the window portion.Extrude it to 3' i.e., to sill level.

Similarly create a rectangle at the top.Extrude it downwards to a height of 3' from the top.

Create layer for walls and place it in wall layer.

In the top view, by polyline create an outline of the plan .Then place it in the bottom by move command "M" @0,0, -10' Create a region by boundary.Extrude it downwards to a height of 4'.Similarly create a polyline at top and extrude it to a height of 6'. Make it a union and place in wall layer

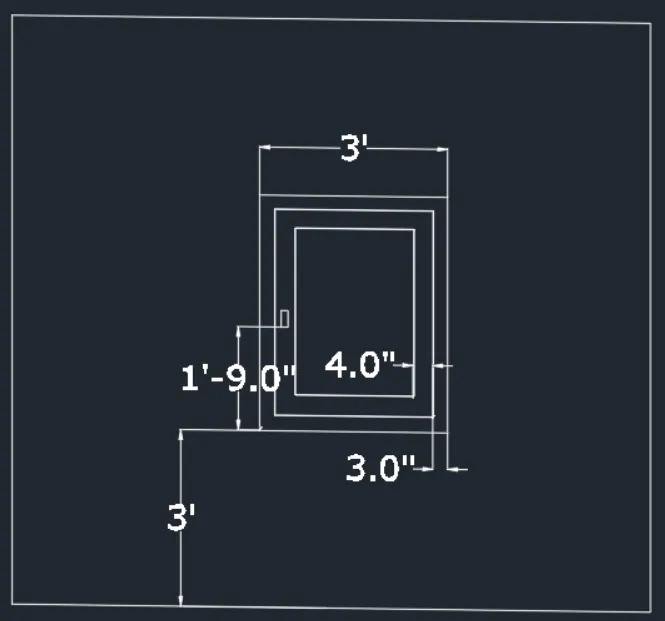

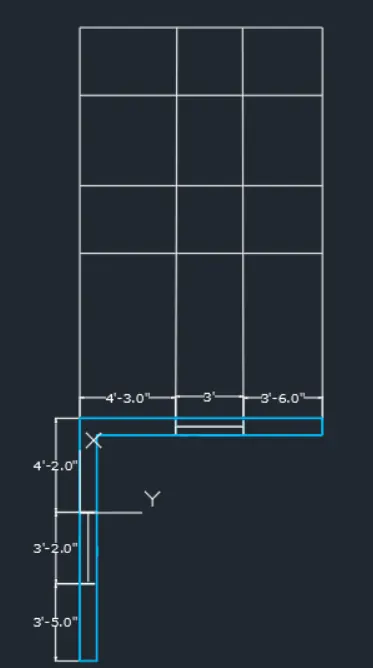

Step 5:Creating elevation in 2D:

Elevation at A-A

Draw the elevation A from the plan in top view.Project the wall line from the plan and also the window lines.

Give the height as 10, then offset lines of 3' from bottom and top to create window

Then offset 3" for the frame and 4" for the mullion.

Also offset 4' downwards for plinth and 6'upwards for the roof slab from the 10:

Create different layers for frame, mullion and glass.

Step 6: Creating 3d of elevation:

Place the 2d drawing in alignment to the 3d Group the elevation by group command, so that all will be in a single selection.

By 3d rotate the image making it parallel to the 3d wall. select the axis then give angle as 90 degree.

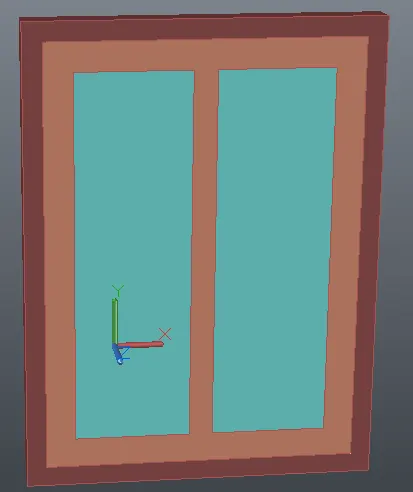

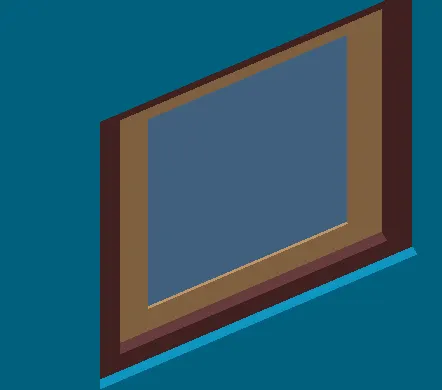

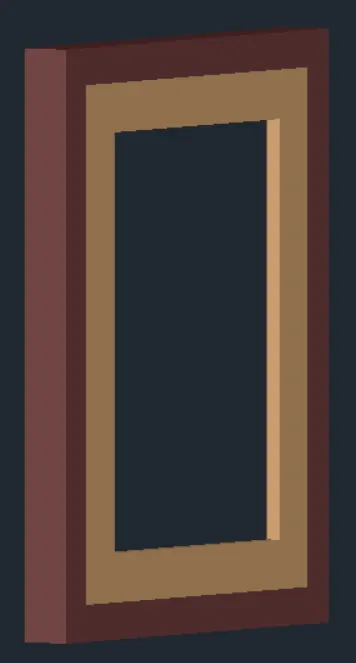

Step 7:Creating frame, mullion and glass of window:

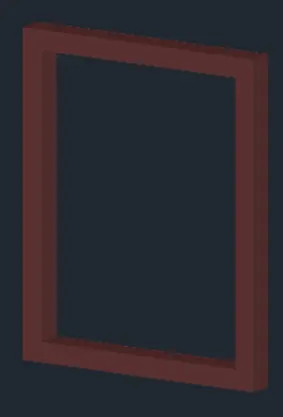

By "bo" command create a region for the frame.

Explode it and delete all other except window.lf region is created fully, subtract, select larger region then smaller one.

Extrude the region, giving -3" value.

Similarly create region for mullions by "BO"- boundary command.Extrude it by -1.2"

Create a region for glass by creating rectangle boundary if boundary is not there.Extrude it by 0.6%

Move the 3d window to the opening of the window created in 3d model Make sure that the mullions are inside the frame and glass is insides the mullions.

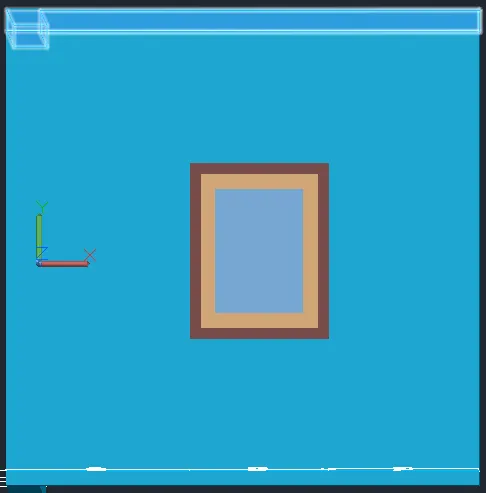

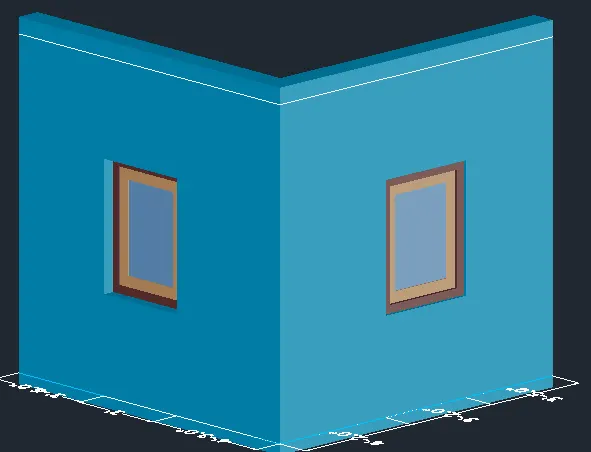

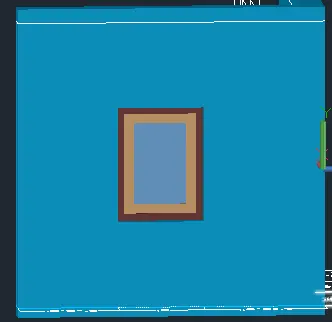

Isometric view of elevation A:

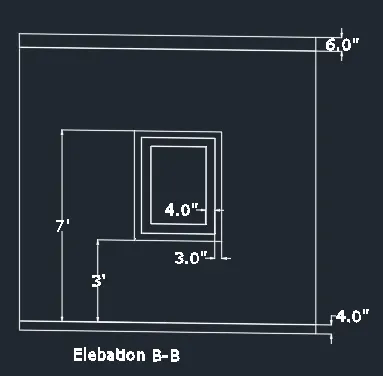

Creating elevation B:

Go to top view and extend the lines from the plan.Draw 4" offset at bottom and 6" at top.

Draw window at a height of 3" from the bottom and offsetting 7' from bottom to get the top of the window.Give the thickness by offsetting the rectangle by 3" for frame and 4" for mullions.

Simillarly create elavation B-B window same as we craeted in the elevation A-A.

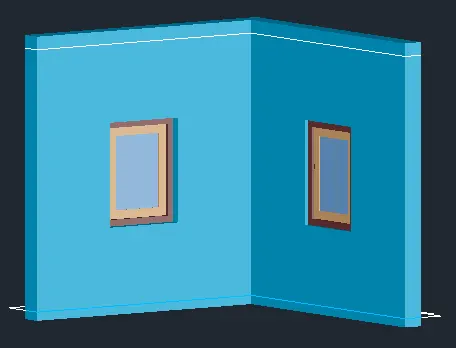

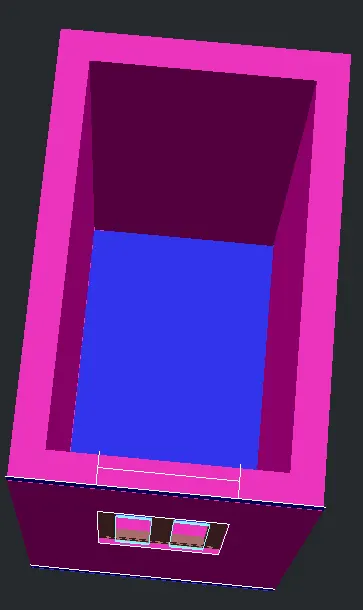

Result

Q2.3d view of a building facade

Aim: Creating 3d view of building facade

Procedure:

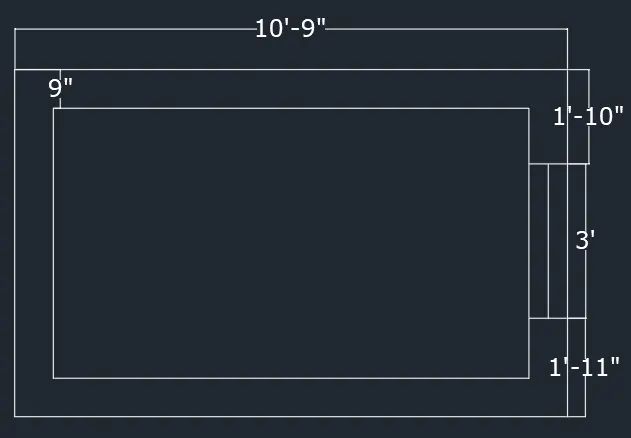

Step 1:Creating the plan:

With rectangle command create a rectangle of 10'9" and 6'9".Offset 9" for the wall thickness.Create window of 3' width.

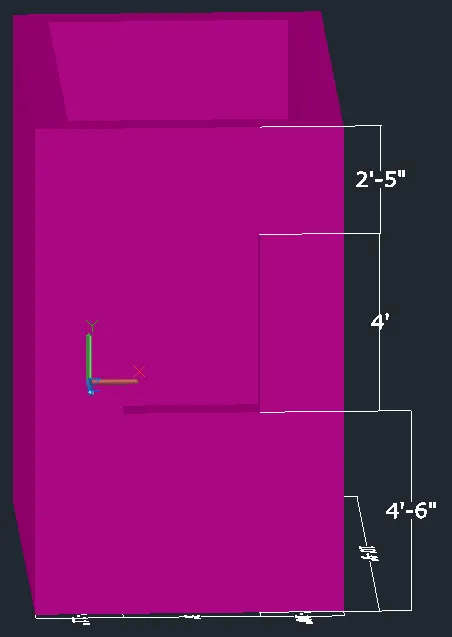

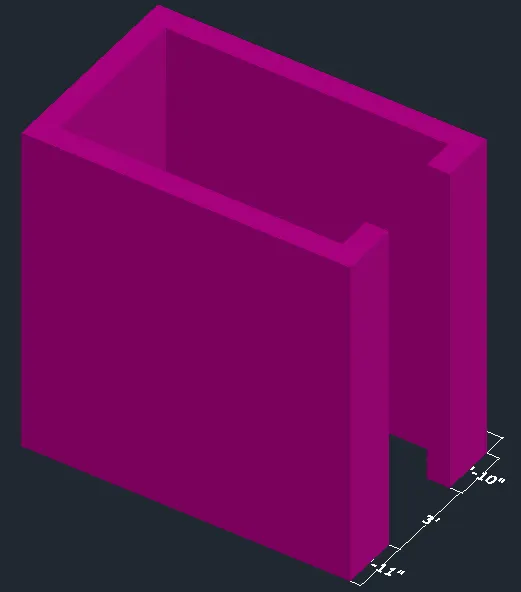

Step 2:Extruding the height:

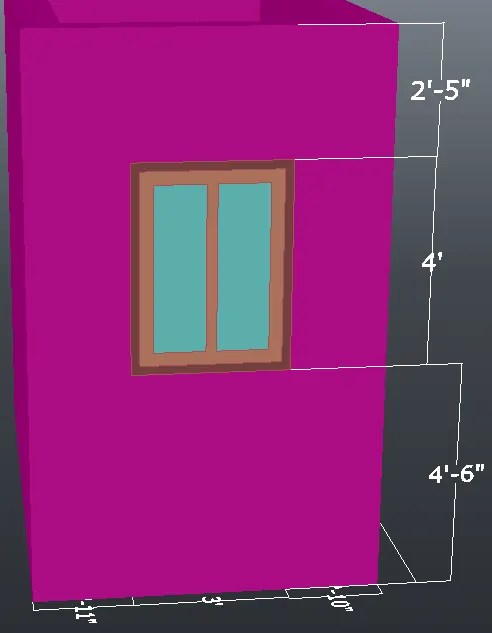

As the sill level height is given as 4'6" and window height as 4, and top height from the window is 2'5".

Total height of one floor =2'5"+4'+4'6" =10'11"

Create a region in the part of wall for extrusion by command "BO".

With extrude command extrude the created region giving a height of 10'-11"

Step 3:Creating windows:

Create a rectangle at the bottom of the window position.

Extrude it to a height of 4'6".Similarly create a rectangle at the top and extrude 2'-5" downwards.

With union command, make all the walls in union.

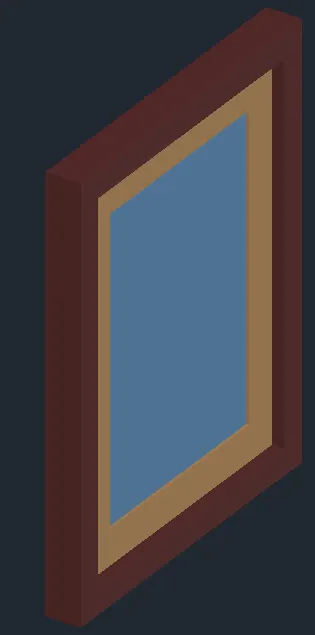

Step 4:

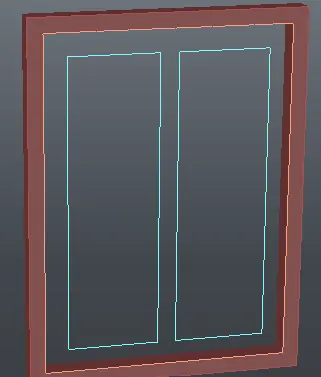

Draw a rectangle of 4'X3 in the top view. Window detailing is done, 2" offset for frame and 3" for mullions, then 12" will be the glass area

Create region in the frame of window by "BO" command, making frame as a layer.

Extrude -3" for the thickness of frame.

For mullions create another region in different layer and extrude -1.2".

For glass also create a region and extrude-0.6"

Move this object and place the window on the gap in 3d wall.

Step 5:Creating floor

Go to top view and create a rectangle.Extrude it by 5

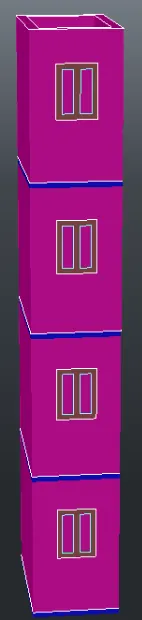

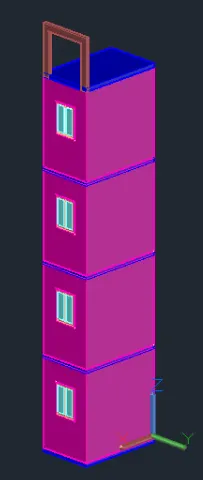

Group the created model and copy the created 1st floor on top.Copy the 4 floors as such

Step 6:

Creating top frame:

Type "UCS" as command and place the ucs on the top face of building.Draw a rectangle with dimensions 9" x 4".

Extrude it by 6'5".Copy it on the other side.

Again, create rectangle on top face.Extrude it by -4".

Create a roof on top by rectangle and extruding it.

Result:

Q3.Creating isometric 3D view of stairs

Aim: To create 3D view of stairs

Procedure:

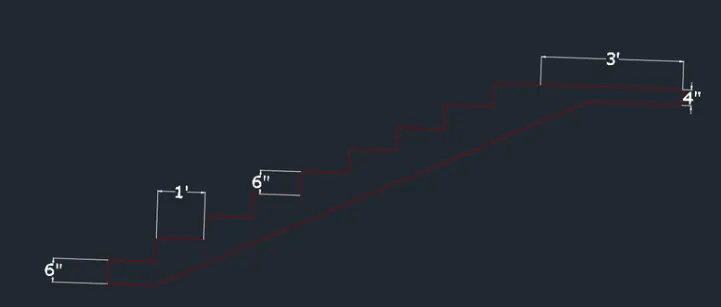

Step 1:Creating steps:

With tread as 1' and riser as 6", draw the steps in the top view 2d wireframe Landing is 3' and the waist slab is 6" thickness.

Join all these to form the section of the stair.

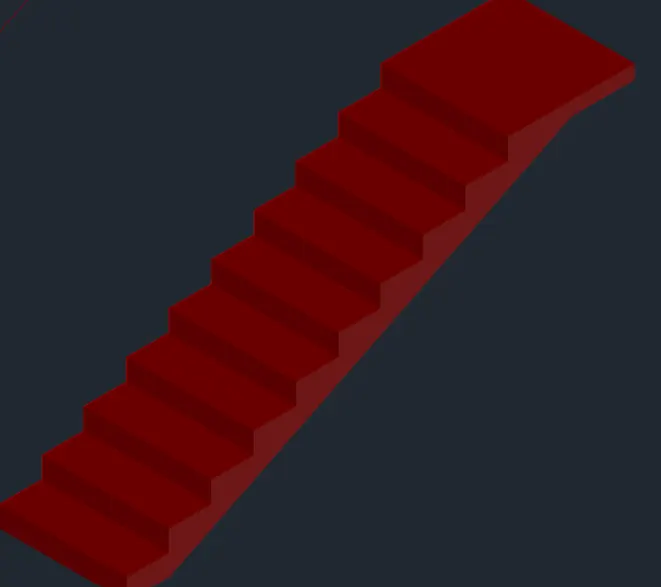

Step 2:Extruding the stair:

Create a region by boundary command.With 3d orbit place the section in such a way that it is visible.

Extrude 3' towards the side as 3' is taken as width of the stair.With 3d rotate-select x axis and give the value 90 degree.

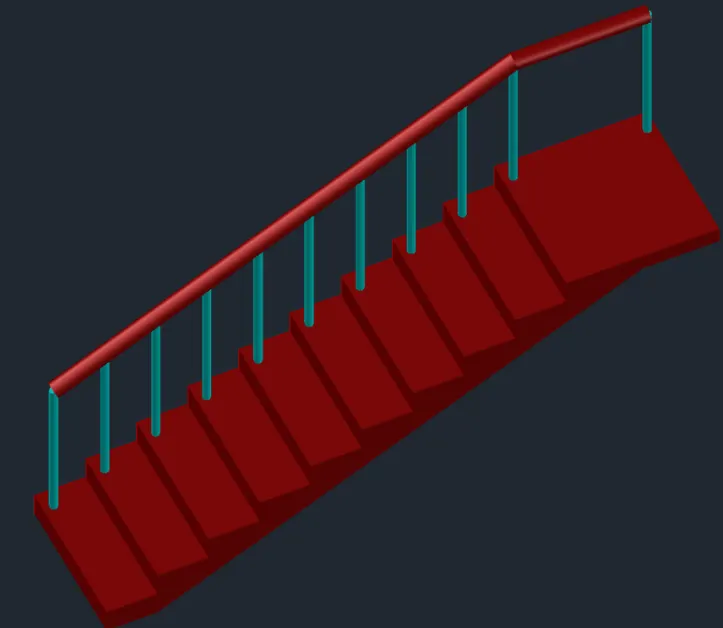

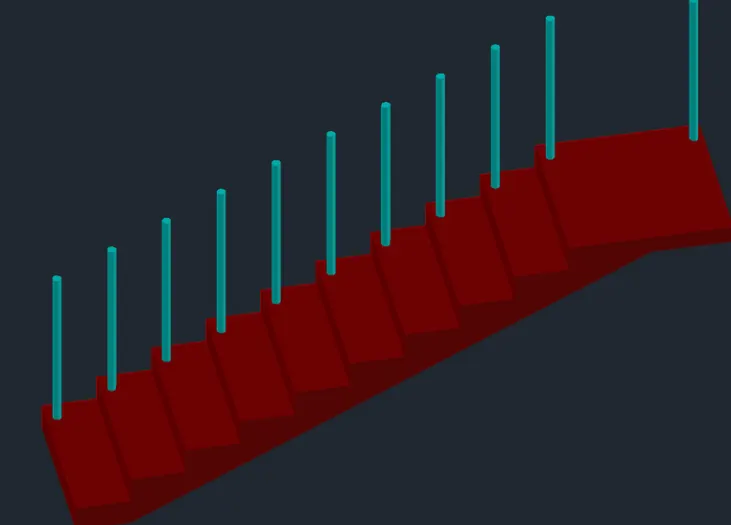

Step:3Creating balustrades and handrails:

Place the UCS on the tread and create a circle of diameter 2". Extrude at a height 3'2".

Copy it in all the treads and also in landing.

For handrails, create a polyline joining the balustrades by "3dpoly". 3d polyline.Create a circle of radius 2" and sweep it by selecting the cin and then the polyline.

Result:

Q4.3D View of a wall with spread footing

Aim: To draw 3d view of wall with spread footing

Procedure :

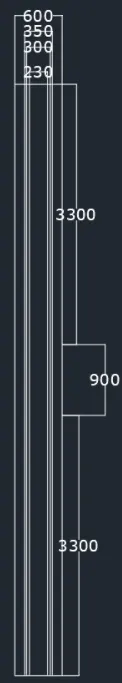

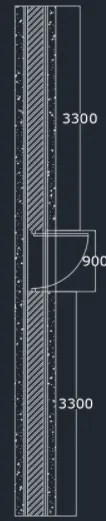

Step 1: Creating the plan - wall:

With line command draw a vertical line of 7500mm and 230mm width

Draw a centre line in wall and offset 150mm on both sides so that the total width is 300mm.

From the 300mm line offset 25mm on both sides then the total width becomes 350mm.

From the centre again offset 300mm on both sides, the total width is 600mm.

Extend the horizontal line.Offset 3300mmfrom both the sides for the door opening of 900mm.

Step 2:Create door in the opening by circle and line.

Hatch the wall, foundation with different hatches.ANS 132 for wall. Solid for footing, AR-CONC for bottom P.C.C.

Step 3:

Making the 2d plan to 3d- footing R.C.C

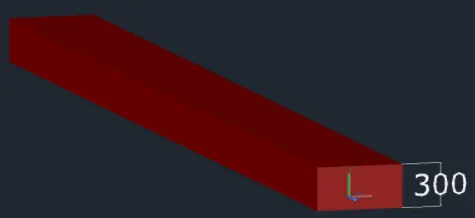

With 3do make a suitable view.Make layers for footing-R.CC, footing-steps, wall and door

Create a rectangle -profile on top of the plan of footing -R.C.C. place in the respective layer and copy it.Create region by boundary command.

Extrude it by 300mm.

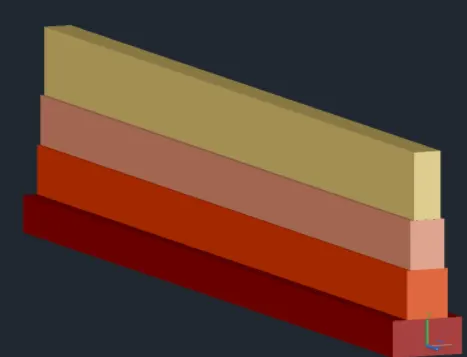

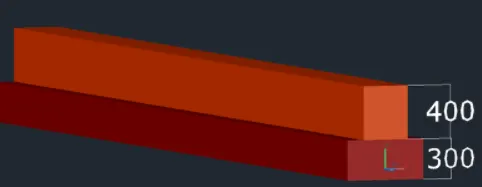

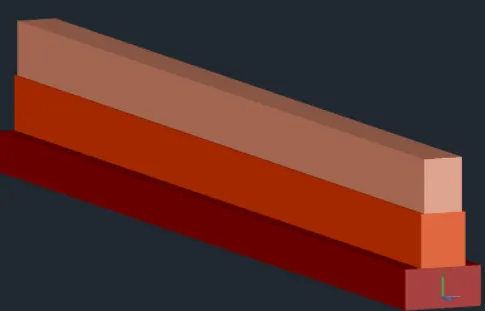

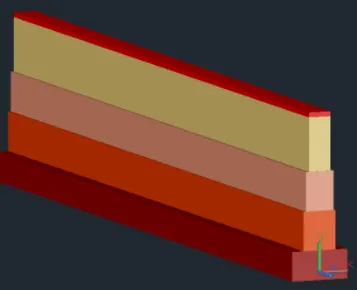

Step 4:Creating footing steps:

Go to top view and create profile for footing step in 2d plan and copy it and place in 3d plan with the help of snap tool.

Create region by "BO" command.Extrude it by 400mm.

Again, create a profile and place such that the midpoint of 2d profile coincides with the 3d object. Create a region and extrude it by 400mm.

Now create a profile for foundation in different layer and place it in top of the 3d model.Extrude it to a height of 550mm.

Step 5:Creating floor:

Create a rectangle for floor and extrude it to a height of 50mm.

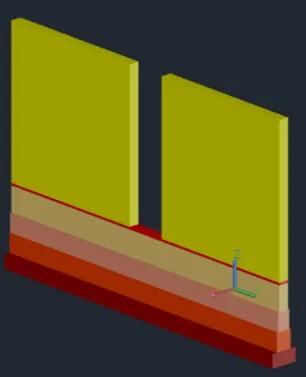

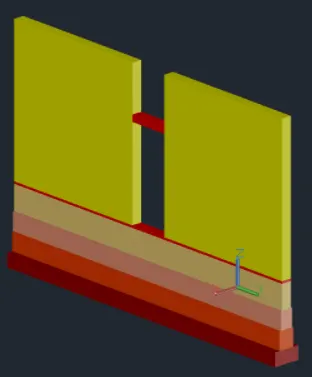

Step 6:Creating wall:

Now create profile for wall on both sides of door.Copy it and place it in 3.d model and extrude at a height of 3300mm,

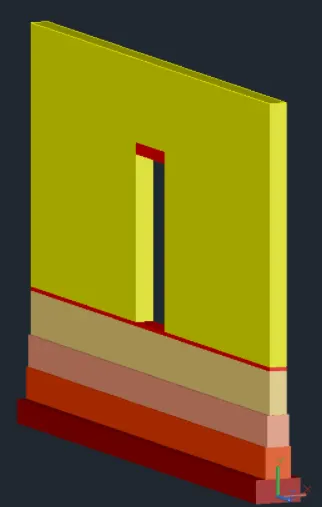

Step 7:Creating lintel beam:

Create a rectangle profile at top.Move it by move command @ 0,0, -1050.

Extrude it at a height of -150mm.

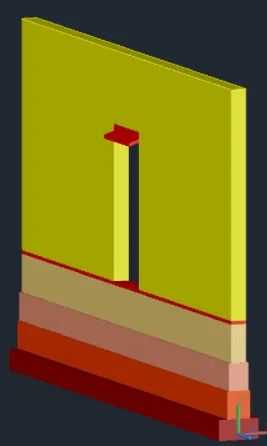

Step 8:Creating the top portion of wall:

Create a rectangle at the top face.Extrude to a height of -1050mm.

With union command, make the extruded part as part of the wall.

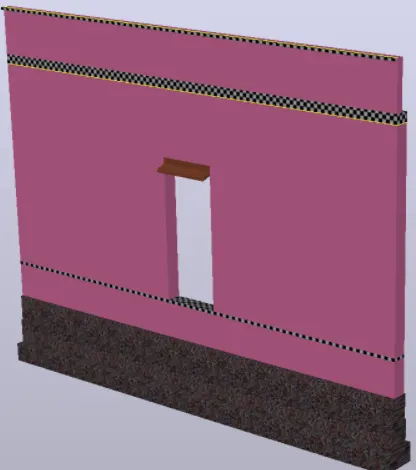

Step 9:Creating Shade:

Keep the ucs on the side face.Draw a horizontal line from bottom of the lintel, then a vertical line 50mm to top.

On the other side draw a vertical line of 100mm upwards, then join these two points of 50 and 100. Group it to single entity.Create region boundary command by placing the ucs on side face of the jamb of door.

Extrude it towards side till the opening.
