Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

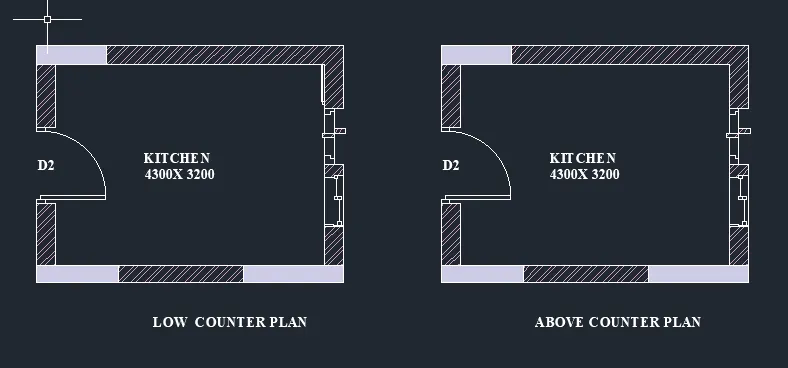

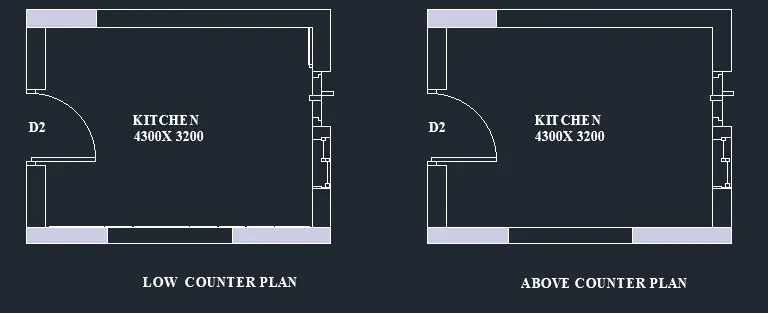

1) Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever
required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others
as per the standards.

Aim:

To Create the Kitchen Layout and to  Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.

Procedure:

step 1:

• units are set to mm
• limits and limax are also set
• zoom comand is also used

Step 2:

In the command prompt type rec and the dimensions are 4734 x 3688 mm
In the command prompt type offset and offset it to the distance of 230mm
Using arc and lines the door is drawn
In the command prompt type hatch to hatch the model
In the command prompt type rec > dimensions , to do the fridge
In the command prompt type offset and offset it to the desired distace to get the Micro Oven
In the command prompt type trim to trim the extras
In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560
In the command prompt type offset and offset it to the vertical distance of 600
In the command prompt type trim to trim the extras
In the command prompt type line type and load the dotted lines
In the command prompt type text to text the given annotations
In the command prompt type dimensions to given the dimensions to your plan
In the command prompt even the leader command is used to name the dimensions

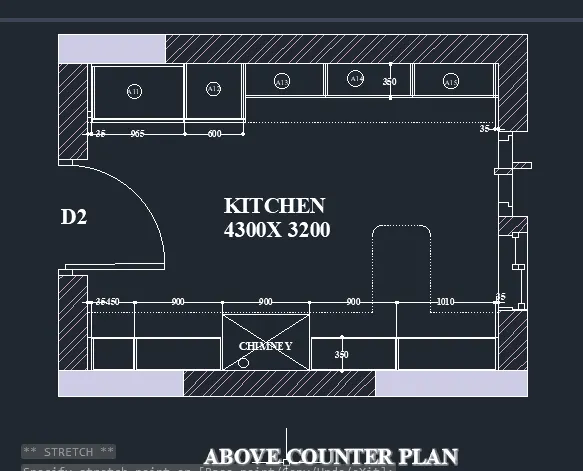

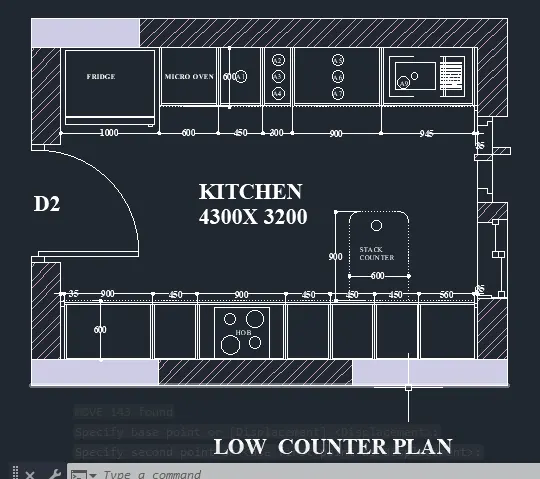

FINAL RESULT :

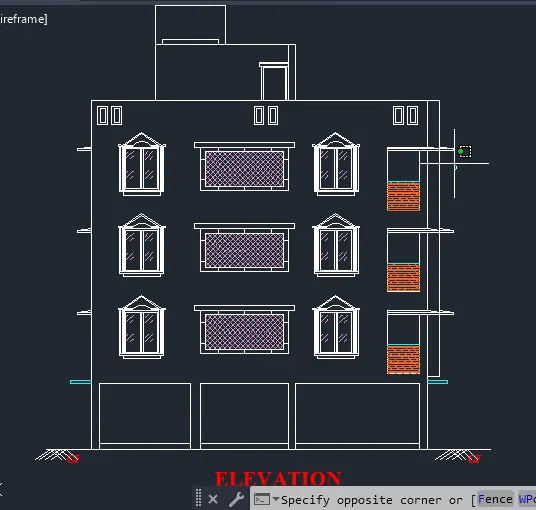

2. Create the elevation of the plan created in the Challenges 7 and apply proper hatch in the walls, doors,
windows, and other architectural elements. Refer to the dimensions in Plans and sections in Challenges 7.
Refer to the elevation that needed to be created.

AIM:

To create the elevation of the plan with hatch

PROCEDURE:

• In the command prompt type l to draw the lines
• In the command prompt type rec to draw the rectangle
• In the command prompt type arc to draw the arc
• Therefore, the window is created
• In the command prompt type l to draw the lines
• In the command prompt type rec to draw the rectangle
• In the command prompt type l to draw the lines
• In the command prompt type rec to draw the rectangle
•  In the command prompt type rec to draw the rectangles

FINAL RESULT:

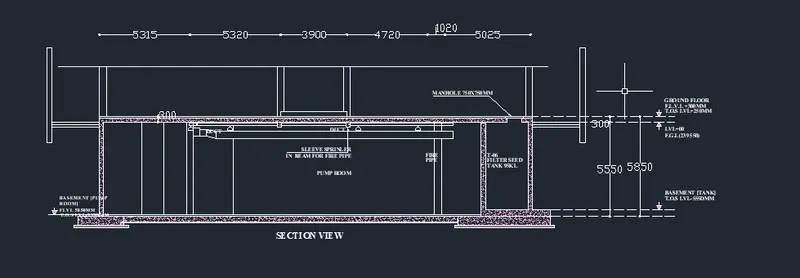

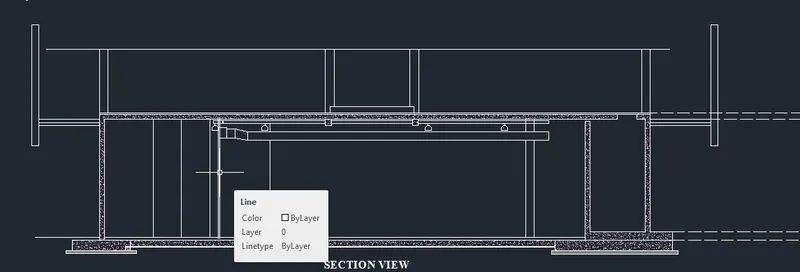

 3. Create the section view of an industrial building as shown in Figure. Provide appropriate hatches and
dimensions wherever required. Also, provide annotations to the drawing.

AIM:

To create the section view of an industrial building .

PROCEDURE:

• In the command prompt type l to draw the lines .
• In the Ribbon bar > Hatch > AR.CONC.
• In the command prompt type rec to draw the rectangle.
•  In the Ribbon bar > hatch > AR-Conc

•  In the command prompt type LT to get the dotted lines
• In the command prompt type c to draw the circle
• In the command prompt type Mt to draft the text
• In the command prompt type dim to draft the dimensions

 RESULT:
