Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

AIM - CREATE THE LAYOUT OF THE KITCHEN AND PROVIDE HATCHES PATTERN AS SHOWN.

ANS -

PROCEDURE -

UNITS - Type un for units and set a decimal unit and in milimeters.

layers - creating seperate layers for seperate columns. use green layers for wall. pink for door and windowyellow for own. for               hatching use cyan color. for text use orange new roman style.

dimension - for dimension using dimlinear tool.

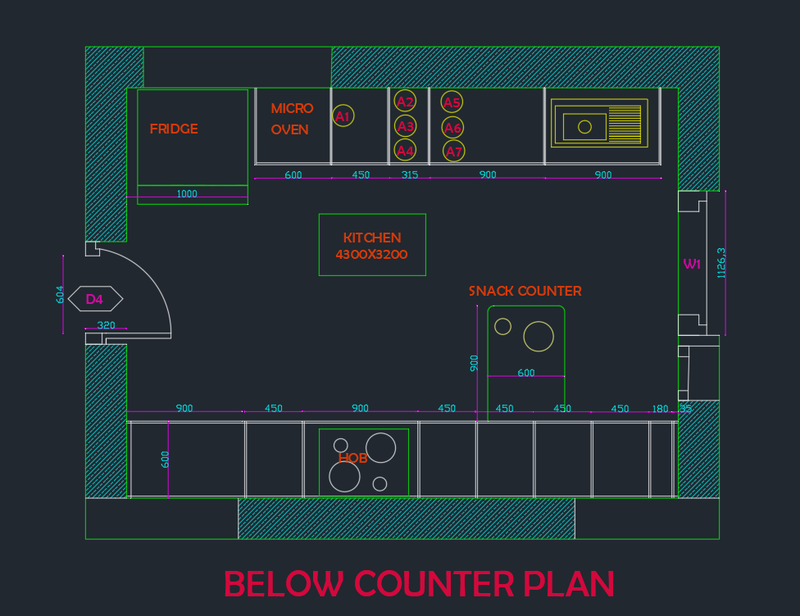

THE FOLLOWING STEPS WERE USE TO CREATE BELOV COUNTER PLAN.

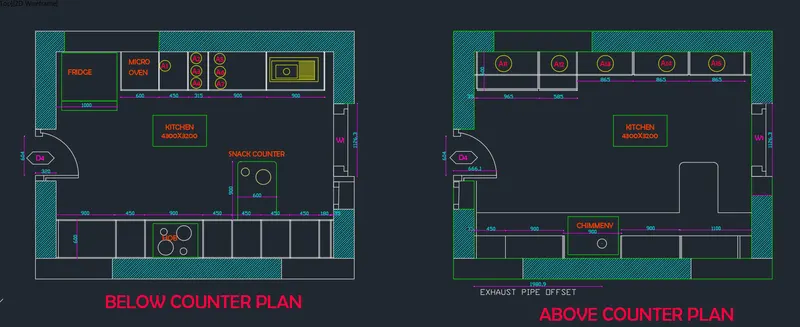

1. create twho x line with respect to x and y direction and take 4300x3200 230mm offset both side.

2.  in bottom side of the kitchen creating a kitche platform and hob and taking continusely offset                                                 900,450,900,450,450,450,180,35 in second 900 offset creating hob inside the box. and create a small circle inside the           hob.

3. taking 15mm offset to create a line and above the hob create a small snacks counyter having 600x900 area respect to x          and y direction. and make small circle inside the snack counter.

4. in above side of the kitchen create a 1000mm in y direction and make a fridge there.

5. side of the kitchen creating a micro oven 600mm by taking a offset. and continusely taking a offset450, and continuesly          taking a offset 315,900,900  to create a platform.

6. and making a small oven boxe with its own dimension.

7. providing a 600mm door and 1126mm windows to the kitchen. and providing a hatch in suitable portion.

PROCEDURE -

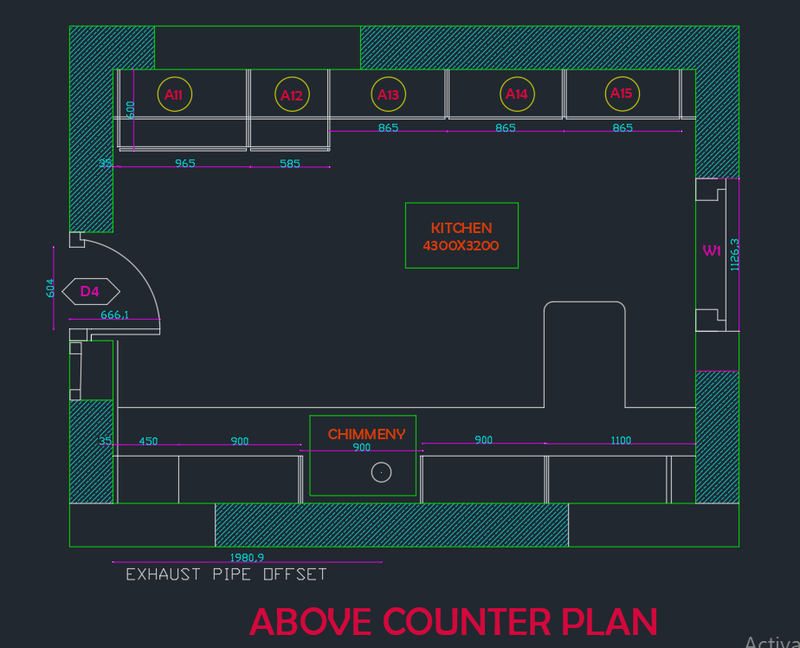

THE FOLLOWING STEPS WERE USE TO CREATE ABOVE COUNTER PLAN OF THE KITCHEN.

1. TAKING TWO X LINE VERTICLE AND HORIZONTAL DIRECTION. AFTER THAT TAKING 230MM OFSET TO CREATE A WALL

   BOTH X AND Y DIRECTION.

2. KITCHEN  HAVING  4300X3200 FOR KITCHEN WEW TAKE OFFSET RESPECT TO X AND Y DIRTECTION.

3. FROM INSIDE OF THE WALL TAKE CONTINUSELY 35,450,900,900,900,1100 IN X DIRECTION TO MAKING PLATFORM.

4. IN SECOND OFFSET HAVING 900MM DISTANCE MAKING CHIMNEY INSIDE THE OFFSET LINE AND CRETE SMALL CIRCLR          INSIDE IT.

5. FROM THAT CIRCLE TAKING OFFSET 1980MM EXHAUST PIPE.

6. IN Y DIRECTION TOP SIDE TAKING OFFSET TO CREATE ANOTHER PLATFORM ACCORDING TO DRAWING.

7. FOR MAKING ANOTHER PLATFORM TAKING CONTINUESLY 35,965,585,868,865,865 AND CREATE A BLOCKS                            A11,A12,A13,A14,A15.

8. PROVIDE DOOR HAVING 604 WIDTH AD ALSO PROVIDE 1126W1, WINDOW INTO THE KITCHEN.

                                          RESULT

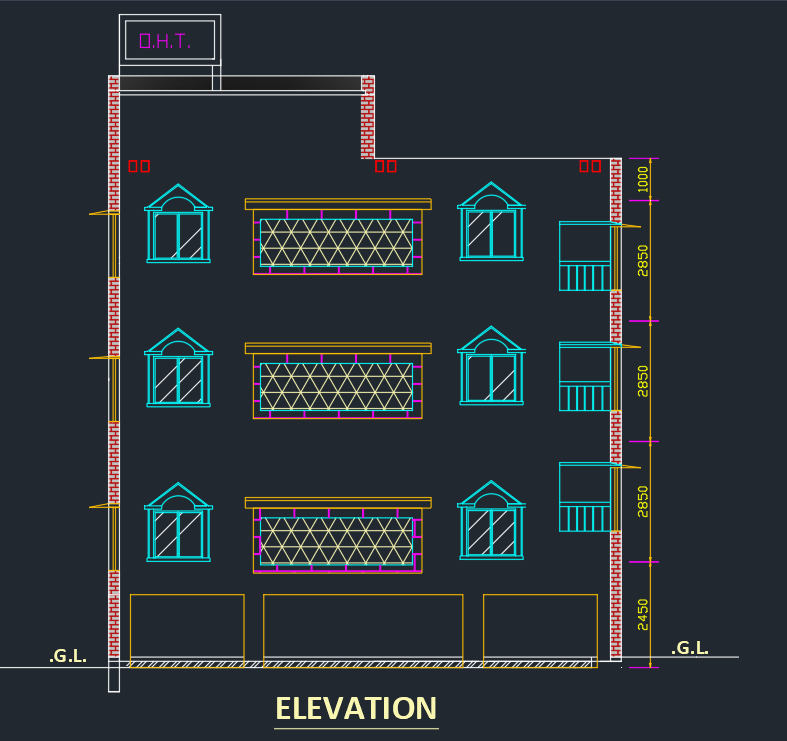

AIM - CREATE THE ELEVATION OF THE PLAN CREATED IN THE CHALLENGE 7 AND APPLY PROPER HATCH IN THE              WALL.

PROCEDURE -

1. LAYERS - For creating elevation of floor plan created in challenge 7. using multi bylers for hatching use dark red orange                         and transparent grey color. for creating window using cyan color and window projection using yellow color.

2. UNITS - units alredy saved in challenege 7 who are in decimal in mm.

3. wall attch window - for crearting window taking a rectangle having 1600x1200 and creating a horizontal line in bottom                                         side. inside that line creating a vertical line and giving 200mm offset againg provide 10mm offset.                                         in top side taking am line tool and make window projection in the wall.

4. WINDOW - for creating a window taking a rectangle tool. and create rectangle having size  1200x1100mm and inside the                         rectangle create a two small rectangle. from it center. in bottom side create a small and having extra                                     leangth to  the rectangle from its edge create a verticsl line and create a trangle of two adjoints line. and                              taking a arc  for creating a haif circle and strech it by its point. and hatching inside by ANSI31 and copiying                            five  object of window

5. WALL - WALL projection is made by its refrence and hatching by ANSI32 brick for hatching using dark orange color and                      fillig grey color by low transperancy.and hatching the all wall as shown in figure.

6. MID SIDE ELEVATION  - between both window create a projectoion mid elevattion taking a rectangle having                                                               4000x1330mm size. and abow that rectangle create an another rectangle. after creting another                                             rectangle inside the big rectangle and hatching inside the rectangle. by net wired frame.

7. DIMENSIONS - for providing a dimension using dimlinear and after that taking dimcontinue tool for continues dimension.

8. OVER HEAD WATER TANK - FOR creating over head water tank taking a rectangle tool and create 2400x1200 over head                                                 water tank in top of the elevation. and its bottom use hatching having greay garediant.

9. TEXT - For creating text using multiline text and change multiline text by new roman and use bolded charecter for adding                   a text.

10. BEAM - For showing a beam create a small rectangle top of the elevation and provide offset 10mm outside of the                                rectangle.

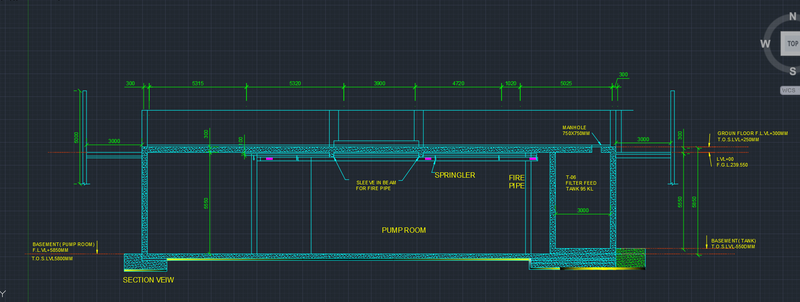

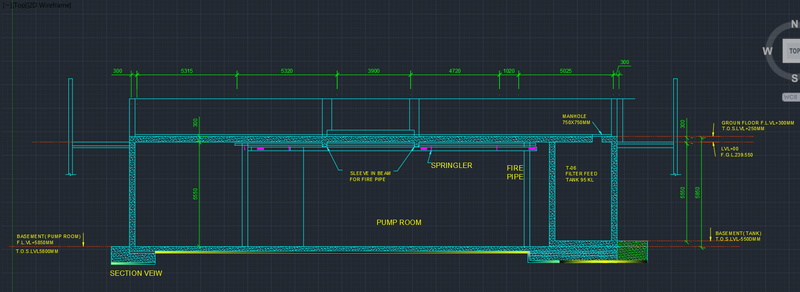

AIM - CREATE A SECTION VEIW OF AN INDUSTRIAL BUILDING AS SHOWN IN FIGURE. PROVIDE APPROPRIATE               HATCHES AND DIMENSION.

ANS -

PROCEDURE -

PART - 1

PROCEDURE -

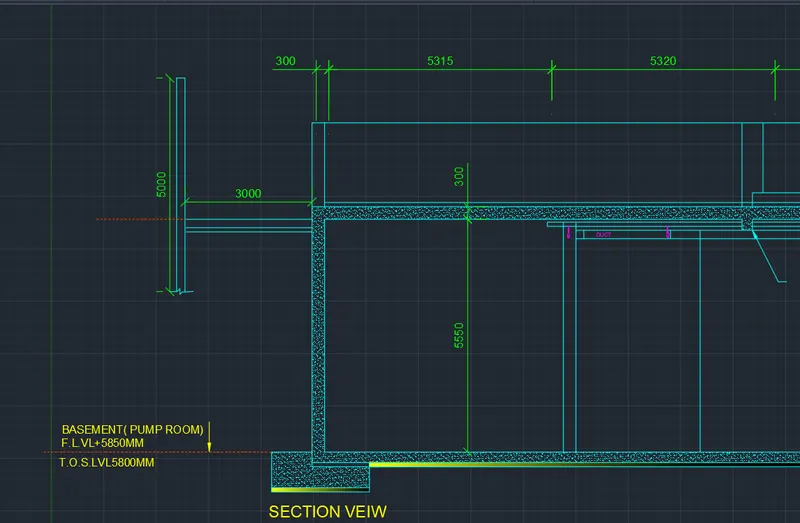

1. LAYERS - Creating layer for dimmension , exterior, wall, duct, springler , and set diffrent color to particular layers.

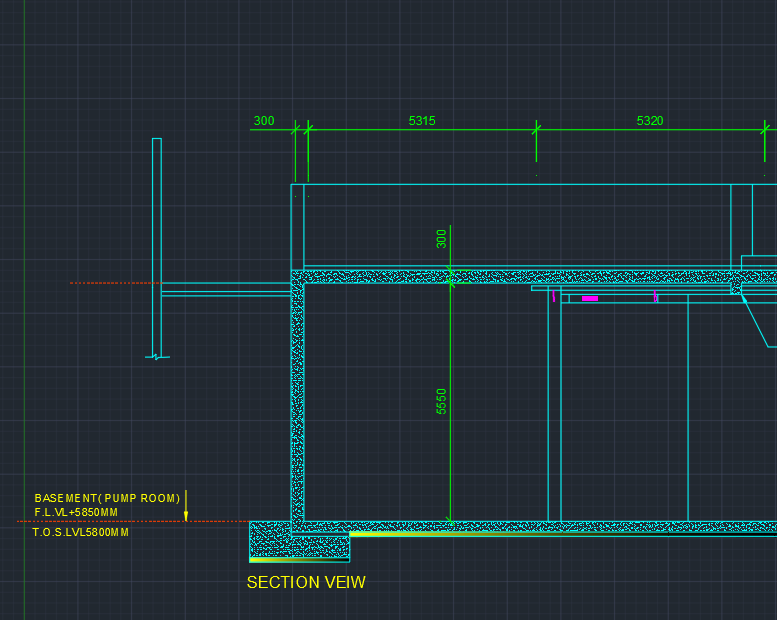

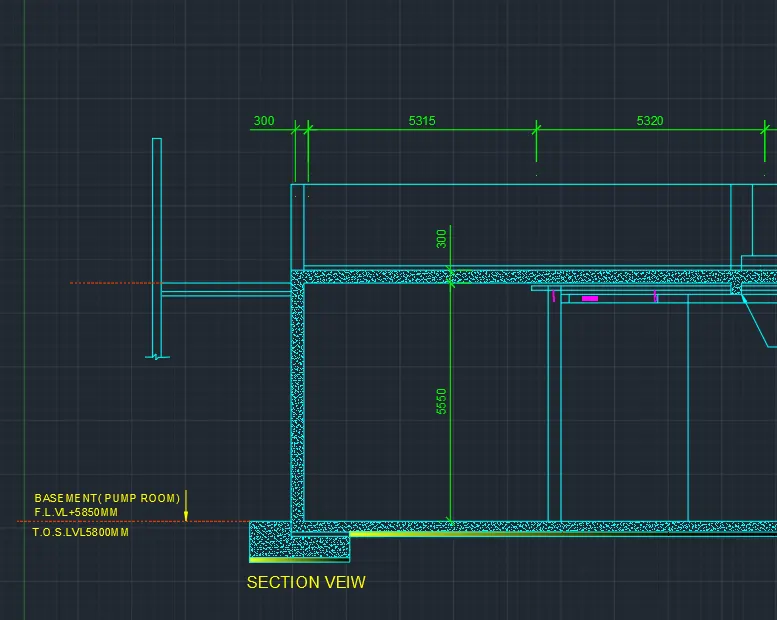

2. EXTERIOR WALL - For creating exterior wall taking line tool and start a line create a vertical line having length 5550mm                                     after that continue provide length 300,5315,5320,3900,4720,1020,5025,300 after providing length in                                      x direction create a line having 5550 in -y direction. and attch to start point of the line and create                                         another line in both corner having 300mm width.

3. HATCHING - for hatching using sand and provide cyan color to the hatching. for bottom p.c.c. use one color gradient.

4. column foundation - in the both end create a column foundation by using line tool and and hatching inside the                                                     foundation  by sand.

5. taking line tool and create a 3000mm horizontal line in -x direction and create 5000x100 rectangle in left side.

6. BASEMENT - FOR showing basement using hidden line having dark orange color.

part - 2

PROCEDURE -

7. IN top in bottom side create a 100 width rectangle create by taking line tool .

8. for creating a duct taking a line tool and create 200mm width create as a same line as create before same distance.

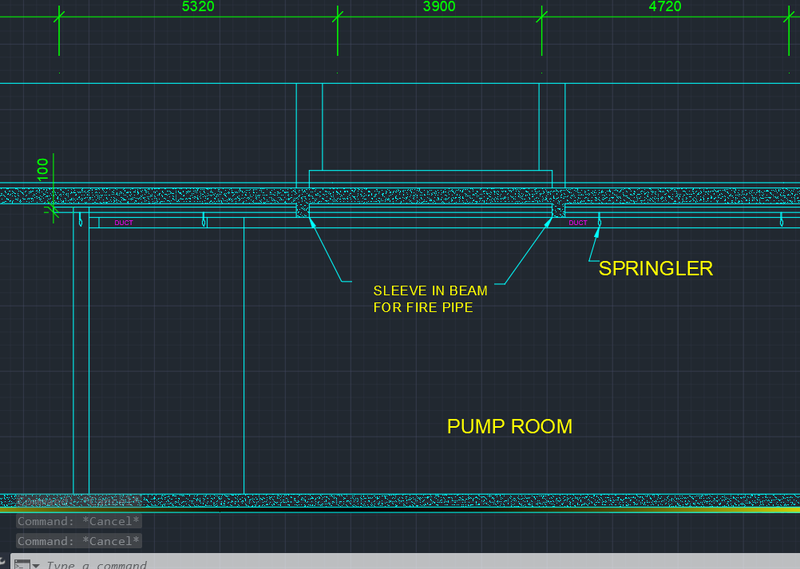

9. springler - creating springler taking a rectangle tool nd create a small rectangle and create a small elipse from bottom                           side  of the rectangle and provide a pink color layer for showing a diffrent part.

10. sleeve - provide eleeve in the beam for fire taking rectangle tool a create a sleve for fire pipe. and triming unneccesary                       lines.

                   PART - 3

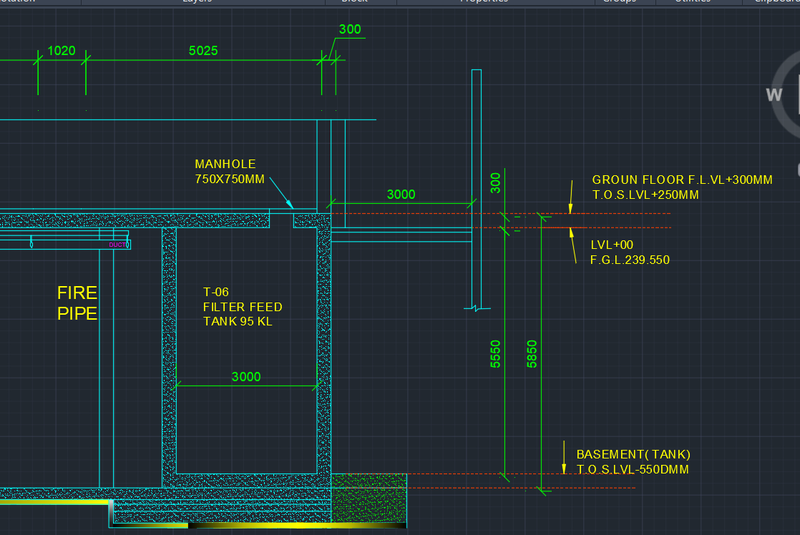

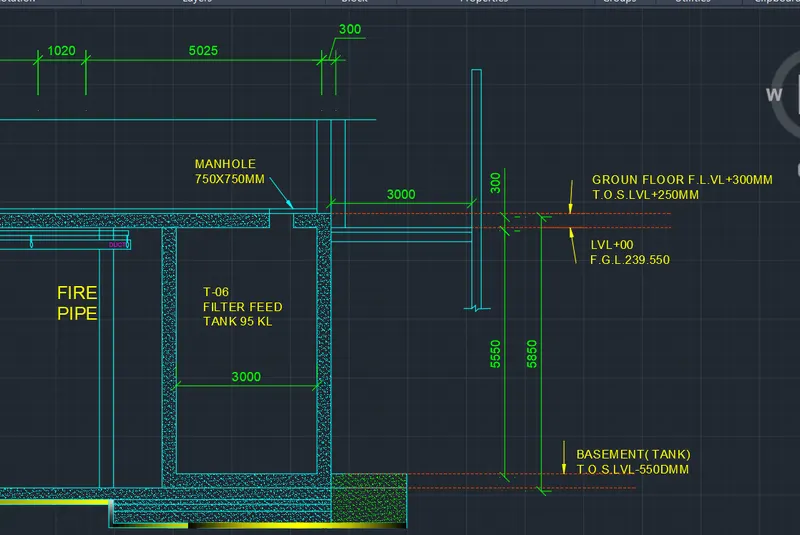

11. FILTER FEED TANK - creating a filter feed tank taking offset tool   in last end  and provide 3000mm offset in -x                                                     direction. againg provide 300mm offset and hatching inside the wall. and its top provide a                                                    manhole  having 750x750 size.

12. taking a line tool and create as a same procedure yet we created in start point and provide line 3000mm in x direction            and create a rectangle having 5000x100 size.

13. HIDDEN LINE - hidden line is only use to show the basement plan ground and floor level its having a red orange color.
