Creating a Floor plan, Footing detail and Isometric view using AutoCad

Aim: To creating a Floor Plan, Footing details and Isometric views using Auto cad. Introduction: The main assignmnet is to get in touch with various tools in Autocadd like the rectangle, polylines, modification tools like copy, move, offset and modes like snap mode and ortho mode. These tools will be understood by creating…

    • Suhas B U

      updated on 03 Jul 2022

    Aim:

    To creating a Floor Plan, Footing details and Isometric views using Auto cad.

    Introduction:

    The main assignmnet is to get in touch with various tools in Autocadd like the rectangle, polylines, modification tools like copy, move, offset and modes like snap mode and ortho mode. These tools will be understood by creating a footing details, two bed room buiding, cross section of two bed room building showing foundation details and isometric view of steps and gable wall.

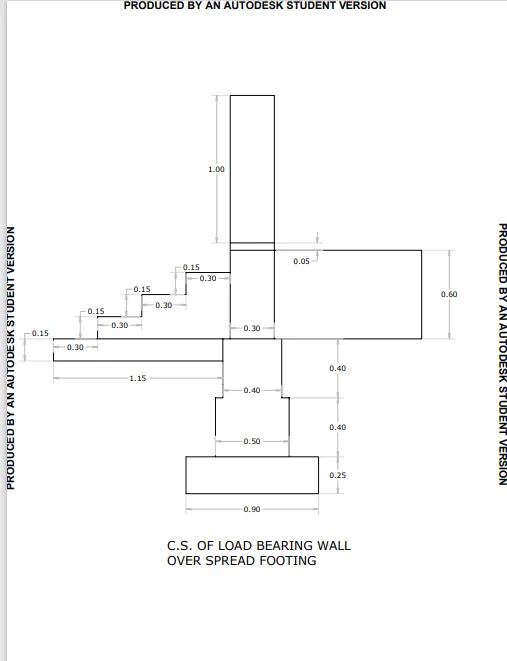

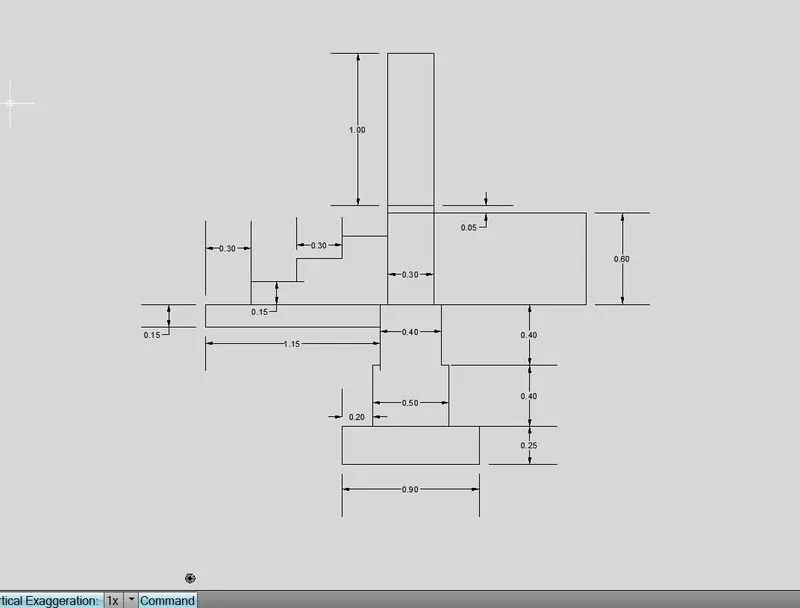

    1. Aim: Cross section of Load bearing wall over spread footing given below,

    Procedure:

    Command: rec
    RECTANG
    Specify first corner point or [Chamfer/Elevation/Fillet/Thickness/Width]: 1,1
    Specify other corner point or [Area/Dimensions/Rotation]: @.9,.25
    Command: l
    LINE Specify first point:
    Specify next point or [Undo]: @.2,0
    Specify next point or [Undo]: @0,.4
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @0,.4
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @0,.6
    Specify next point or [Close/Undo]: @.3,0
    Specify next point or [Close/Undo]: @0,-.6
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @0,-.4
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @0,-.4
    Specify next point or [Close/Undo]: c
    Command: l
    LINE Specify first point:
    Specify next point or [Undo]: @0,.05
    Specify next point or [Undo]: @.3,0
    Specify next point or [Close/Undo]: @0,-.05
    Specify next point or [Close/Undo]: c
    Command: l
    LINE Specify first point:
    Specify next point or [Undo]: @0,1
    Specify next point or [Undo]: @.3,0
    Specify next point or [Close/Undo]: @0,-1
    Specify next point or [Close/Undo]: c
    Command: l
    LINE Specify first point:
    Specify next point or [Undo]: @-.3,0
    Specify next point or [Undo]: @-.05,0
    Specify next point or [Close/Undo]: @-1.15,0
    Specify next point or [Close/Undo]: @0,-.15
    Specify next point or [Close/Undo]: @1.15,0
    Specify next point or [Close/Undo]: c
    Command: l
    LINE Specify first point:
    Specify next point or [Undo]: @.3,0
    Specify next point or [Undo]: @0,.15
    Specify next point or [Close/Undo]: @.3,0
    Specify next point or [Close/Undo]: @0,.15
    Specify next point or [Close/Undo]: @.3,0
    Specify next point or [Close/Undo]: @0,.15
    Specify next point or [Close/Undo]: @.3,0
    Specify next point or [Close/Undo]: *Cancel*
    Command: l
    LINE Specify first point:
    Specify next point or [Undo]: @1,0
    Specify next point or [Undo]: @0,-.6
    Specify next point or [Close/Undo]: @-.95,0
    Specify next point or [Close/Undo]: *Cancel*

    Result:

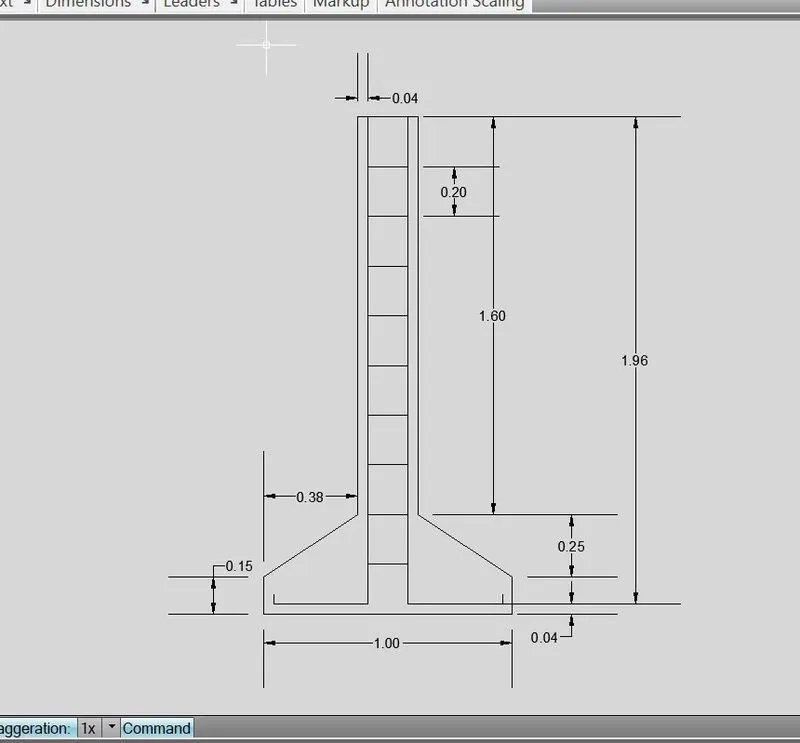

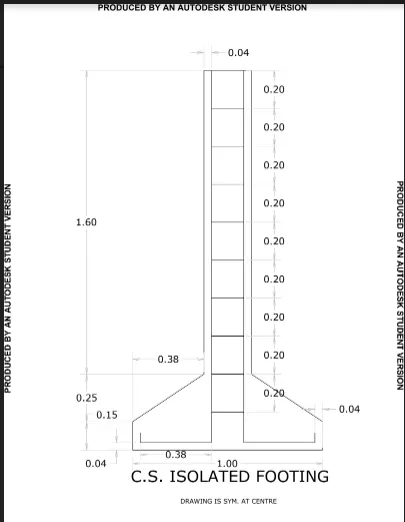

    2. Aim: Cross section of isolated footing given below,

    Procedure:

    Command: rec
    RECTANG
    Specify first corner point or [Chamfer/Elevation/Fillet/Thickness/Width]: 1,1
    Specify other corner point or [Area/Dimensions/Rotation]: @1,.4
    Command: cha
    CHAMFER
    (TRIM mode) Current chamfer Dist1 = 0.2500, Dist2 = 0.3800
    Select first line or [Undo/Polyline/Distance/Angle/Trim/mEthod/Multiple]: d
    Specify first chamfer distance <0.2500>: .25
    Specify second chamfer distance <0.2500>: .38
    Select first line or [Undo/Polyline/Distance/Angle/Trim/mEthod/Multiple]:
    Select second line or shift-select to apply corner:
    Command: l
    LINE Specify first point:
    Specify next point or [Undo]: @0,1.6
    Specify next point or [Undo]: @.24,0
    Specify next point or [Close/Undo]: @0,-1.6
    Specify next point or [Close/Undo]: *Cancel*
    Command: l
    LINE Specify first point:
    Specify next point or [Undo]: @.04,0
    Specify next point or [Undo]: @0,-1.96
    Specify next point or [Close/Undo]: @-.38,0
    Specify next point or [Close/Undo]: @0,.04
    Specify next point or [Close/Undo]: *Cancel*
    Command: l
    LINE Specify first point:
    Specify next point or [Undo]: @-.04,0
    Specify next point or [Undo]: @0,-1.96
    Specify next point or [Close/Undo]: @.38,0
    Specify next point or [Close/Undo]: @0,.04
    Specify next point or [Close/Undo]: *Cancel*
    Command: l
    LINE Specify first point:
    Specify next point or [Undo]: @.16,0
    Specify next point or [Undo]: *Cancel*
    Command: o
    OFFSET
    Current settings: Erase source=No Layer=Source OFFSETGAPTYPE=0
    Specify offset distance or [Through/Erase/Layer] : .2
    Select object to offset or [Exit/Undo] :
    Specify point on side to offset or [Exit/Multiple/Undo] :

    Select object to offset or [Exit/Undo] : *Cancel*

    Result:

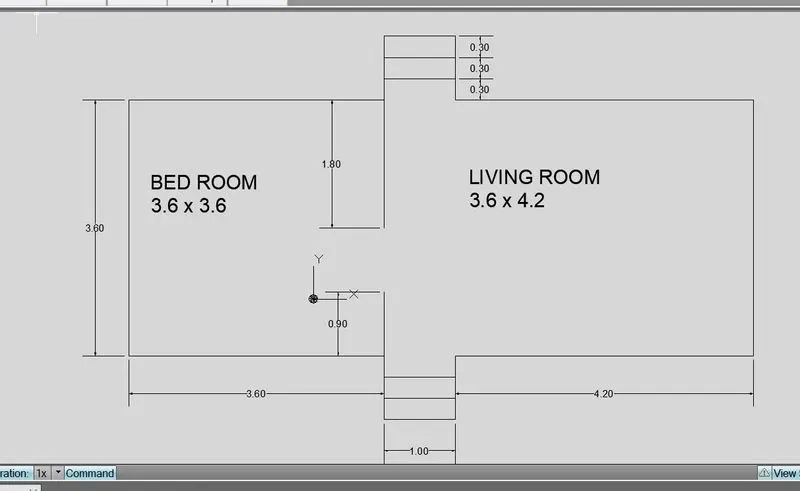

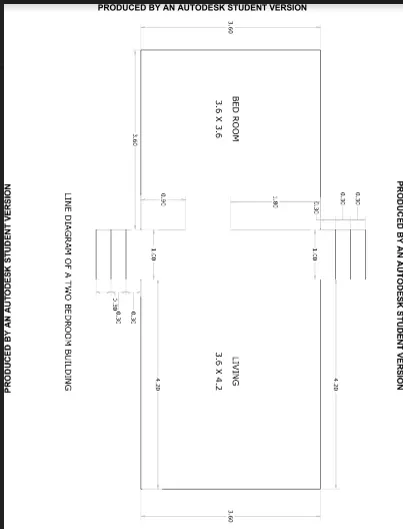

    3. Aim: Line diagram of two bedroom building given below,

    Procedure:

    Command: l
    LINE Specify first point: 1,1
    Specify next point or [Undo]: @0,1.8
    Specify next point or [Undo]: @-3.6,0
    Specify next point or [Close/Undo]: @0,-3.60
    Specify next point or [Close/Undo]: @3.6,0
    Specify next point or [Close/Undo]: @1,0
    Specify next point or [Close/Undo]: _u
    Specify next point or [Close/Undo]: 1
    Specify next point or [Close/Undo]: _u
    Specify next point or [Close/Undo]: @1,0
    Specify next point or [Close/Undo]: @4.2,0
    Specify next point or [Close/Undo]: @0,3.6
    Specify next point or [Close/Undo]: @-4.2,0
    Specify next point or [Close/Undo]: @-1,0
    Specify next point or [Close/Undo]: *Cancel*
    Command: pl
    PLINE
    Specify start point:
    Current line-width is 0.0000
    Specify next point or [Arc/Halfwidth/Length/Undo/Width]: @0,.3
    Specify next point or [Arc/Close/Halfwidth/Length/Undo/Width]: @1,0
    Specify next point or [Arc/Close/Halfwidth/Length/Undo/Width]: @0,-.3
    Specify next point or [Arc/Close/Halfwidth/Length/Undo/Width]: *Cancel*

    Result:

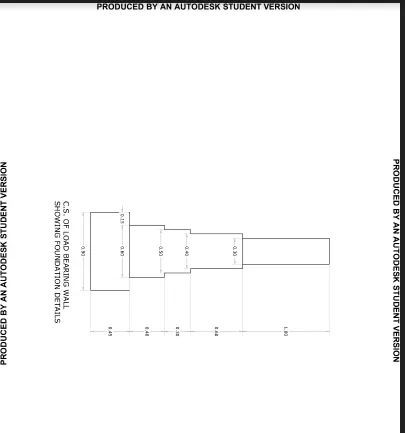

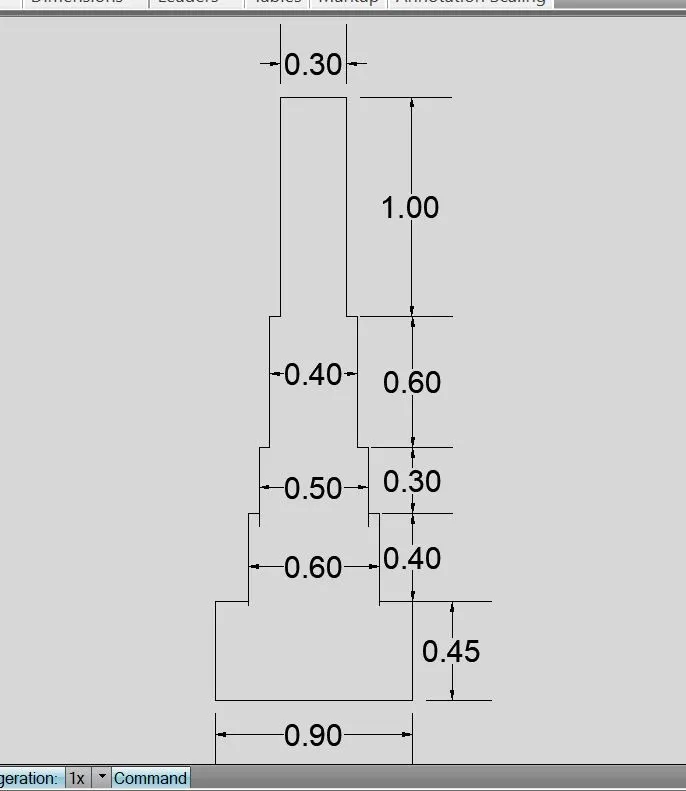

    4. Aim: Cross section of load bearing showing foundation detais given below,

    Procedure:

    Command: L
    LINE Specify first point:
    Specify next point or [Undo]: @0,.45
    Specify next point or [Undo]: @.15,0
    Specify next point or [Close/Undo]: @0,.4
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @0,.3
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @0,.6
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @0,1
    Specify next point or [Close/Undo]: @.3,0
    Specify next point or [Close/Undo]: @0,-1
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @0,-.6
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @0,-.3
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @0,-.3
    Specify next point or [Close/Undo]: @.05,0
    Specify next point or [Close/Undo]: @.15,0
    Specify next point or [Close/Undo]: @0,-.45
    Specify next point or [Close/Undo]: @-.9,0
    Specify next point or [Close/Undo]: C

    Result:

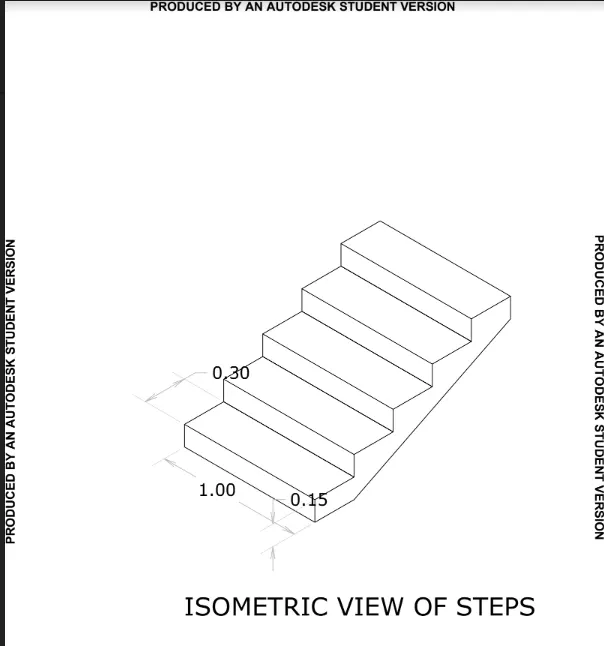

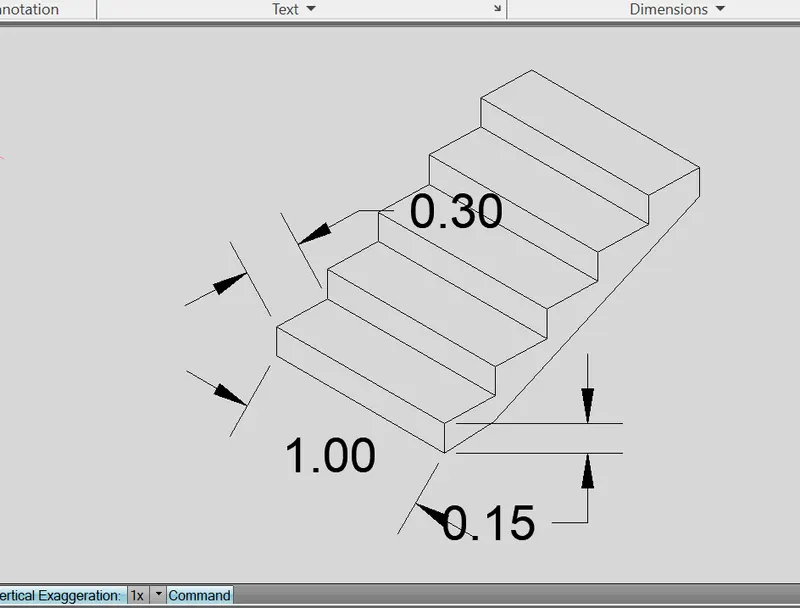

    5. Aim: Isometric view of steps given below,

    Procedure:

    Type DS in the command line and press enter.

    Unpick snap on and grid on options

    Tick on Isometric snap screen.

    Type PL in the command line and press enter.

    Specify the start point A

    Take isoplane left

    Specify the next point: 1, curser towards NW

    take isoplane right

    specify the next point: 0.15, curser towards N

    specify the next point: 1.0, curser towards SE

    specify the next point: 0.15, curser towards E

    Type PL in the command line and press enter.

    specify the start point B

    Take isoplane top

    specify the next point: 0.3, curser towards NE

    specify the next point: 1.0, curser towards NW

    specify the next point: 0.3, curser towards SW

    Type CO in the command line and press enter.

    select the complete step and press enter

    select B as the base point and place it 4 times at the positions.

    Type L in the command line and press enter.

    Specify the start point: G

    take isoplane right

    specify the next point:0.15, curser towards S

    Type L in the command line and press enter.

    Specify the start point: H

    take isoplane right

    specify the next point:0.30, curser towards NE

    Type L in the command line and press enter.

    specify the start point:  I

    specify the start point:  J

    Result:

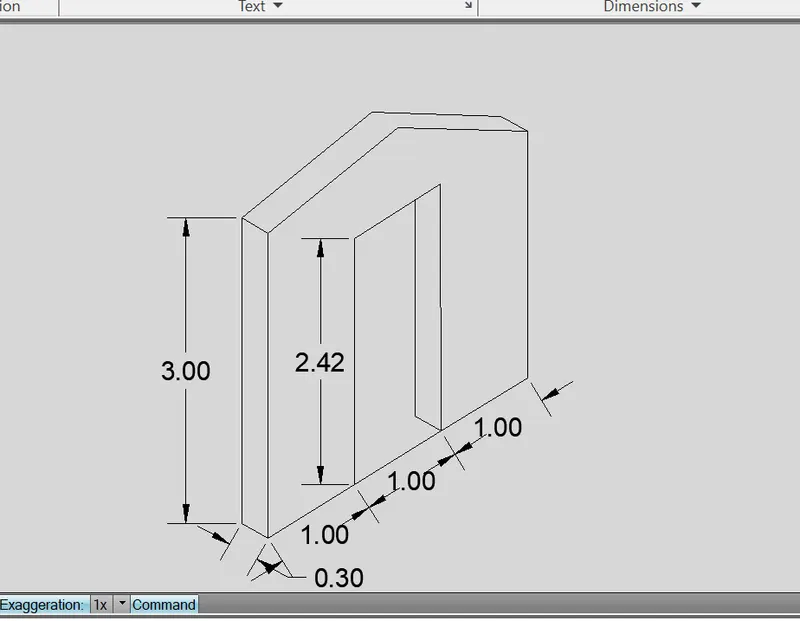

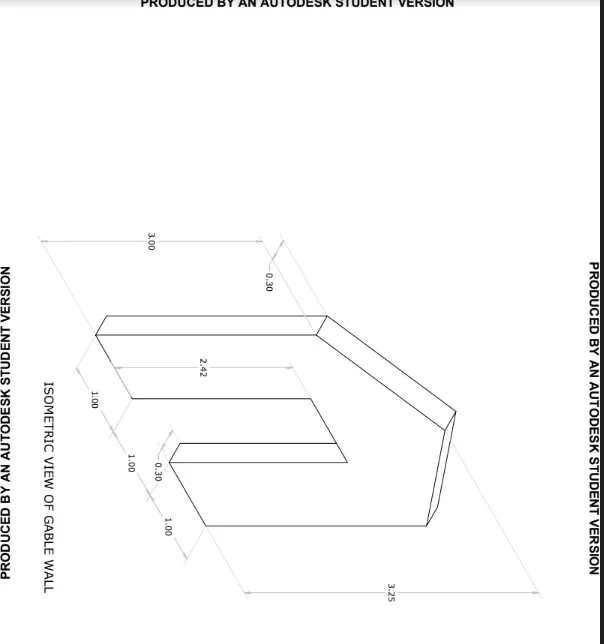

    6. Aim:Isometric view of Gable wall given below,

    Procedure:

    Type DS in the command line and press enter.

    Unpick snap on and grid on options

    Tick on Isometric snap screen.

    Type L in the command line and press enter.

    Specify the start point A

    Take isoplane left

    Specify the next point: 0.3, curser towards NW

    Specify the next point: 3, curser towards N

    Specify the next point: 0.3, curser towards SE

    Specify the next point:3, curser towards E

    Type L in the command line and press enter.

    Specify the start point A

    Take isoplane top

    Specify the next point: 1, curser towards NE

    Specify the next point: 1, curser towards NE

    Specify the next point: 1, curser towards NE

    Delete the line BC

    Type L in the command line and press enter.

    Specify the start point B

    Take isoplane right

    Specify the next point: 2.42, curser towards N

    Take isoplane top

    Specify the next point: 1, curser towards NE

    Specify the next point: 2.42, curser towards E

    Type L in the command line and press enter.

    Specify the start point C

    Take isoplane left

    Specify the next point: 0.3, curser towards NW

    Take isoplane right

    Specify the next point: 2.12, curser towards N

    Type L in the command line and press enter.

    Specify the start point A

    Take isoplane top

    Specify the next point: 1.5, curser towards NE

    Take isoplane right

    Specify the next point: 3.25, curser towards N

    Type L in the command line and press enter.

    Specify the start point D

    Take isoplane left

    Specify the next point: 0.3, curser towards NW

    Type L in the command line and press enter.

    Specify the start point D

    Specify the start point E

    Specify the start point F

    Delete the line: EG and AG

    Type L in the command line and press enter.

    Specify the start point H

    Specify the start point I

    Specify the start point J

    Result:

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Suhas B U (61)

    Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER

    Objective:

    QUESTION :  Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. The building to be designed for dead, live, wind and seismic loading. Report of each member to be generated and extract drawings…

    calendar

    24 Aug 2023 05:00 PM IST

    • DESIGN
    Read more

    To Generate report for Steel Industrial and RC structures using TSD

    Objective:

    1) Aim:     To Generate report for the steel building design from challenges 1 – 6 along with the loading summary using Tekla Software Procedure :- Step 1: 1) Go to report tab 2) Select the levels, load, loadcase and combination 3) Click ok Step 2: 1) Click Show Report Go to report tab 2) Select the…

    calendar

    15 Aug 2023 06:29 AM IST

    • BIM
    • Tekla Structural Designer
    Read more

    To Design slab and foundation for an RC residential building using TSD

    Objective:

    1) Aim: To design the slab and foundation of the model  Procedure :- Step 1  Open the previos Model where we have designed column beam. Again Run the 1st order analysis. But Before that change the following properties of slab. Click on 1st order Analysis - Result View.   Step 2 Select the any slab and Right Click on it.…

    calendar

    06 Aug 2023 01:52 PM IST

      Read more

      To Design RC column and beam for RC residential structure using TSD

      Objective:

      1. Based on the analysis design RC column and beam. Aim:- To analysis the structure and design reinforced concrete beam and column   Procedure:-  Step 1:  Open the previous file of week 9 challenge. Click on Analyze - 1st order analysis  At the right side bottom corner - Click on Result View. Select any of the column member…

      calendar

      06 Aug 2023 01:52 PM IST

        Read more

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        Related Courses

        coursecard

        Design loads considered on bridges

        Recently launched

        10 Hours of Content

        coursecard

        Design of Steel Superstructure in Bridges

        Recently launched

        16 Hours of Content

        coursecard

        Design for Manufacturability (DFM)

        Recently launched

        11 Hours of Content

        coursecard

        CATIA for Medical Product Design

        Recently launched

        5 Hours of Content

        coursecardcoursetype

        Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

        Recently launched

        0 Hours of Content

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        logo

        Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

        https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

        Our Company

        News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
        map
        EpowerX Learning Technologies Pvt Ltd.
        4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
        mail
        info@skill-lync.com
        mail
        ITgrievance@skill-lync.com

        Top Individual Courses

        Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

        Top PG Programs

        Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

        Skill-Lync Plus

        Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

        Trending Blogs

        Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

        © 2025 Skill-Lync Inc. All Rights Reserved.

                    Do You Want To Showcase Your Technical Skills?
                    Sign-Up for our projects.
