Creating 3D Isometric view of various structural elements in AutoCAD

AIM:- To create a 3D isometric view of the given building with plan and elevation.INTRODUCTION:-An isometric drawing is a 3D representation of an object, room, building or design on a 2D surface.One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the finalimage…

    • Vejetha Sajeevan

      updated on 28 Jun 2021

    AIM:- To create a 3D isometric view of the given building with plan and elevation.
    INTRODUCTION:-
    An isometric drawing is a 3D representation of an object, room, building or design on a 2D surface.
    One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final
    image is not distorted.
    This is due to the fact that the foreshortening of the axes is equal.
    In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out
    from this corner point.
    Isometric drawings begin with one vertical line along which two points are defined.
    Any lines set out from these points should be constructed at an angle of 30 degrees.
    COMMANDS USED:-
    Line command
    Rectangle command
    UCS command
    Dimlinear command
    Region command
    Extrude command
    Substract command
    Box commandBox command
    Units command
    Dimstyle command
    3Dface command
    3Dorbit command
    Hide command
    Explode command
    Move command
    Copy command
    Dist command
    Solidedit command
    Union command
    Boundary command
    3Dmirror command
    3Drotate command
    Erase command
    Plan command
    PROCEDURE:-
    Step:-1
    First we have to open the autocad and the set the maximum limit and minimum limit on the screen.
    Here first have to draw the rectangle using the rectangle command,
    Next we have to draw the two windows of sizes of 3' x 9" and 9" x 3'-2".
    Step:-2
    Now we draw the elevation of A and the elevation of B, as shown in the below figures.
    We draw the given elevations using the line command and we put the dimensions using the dimlinear command.

    Step:-3
    First we draw the window of the size 3' x 4' as shown in the below figure.
    We draw the this window using the line command and extruded using the extrude command.
    Step:-4
    Next we draw the window of the size 3'-2" x 4'
    We draw the this window using the line command and extruded using the extrude command.

    Step:-5
    Next we draw the walls using the extrude command
    Next we use the layers for providing the colours to them.
    Next we attach the created windows to the walls .
    Step:-6

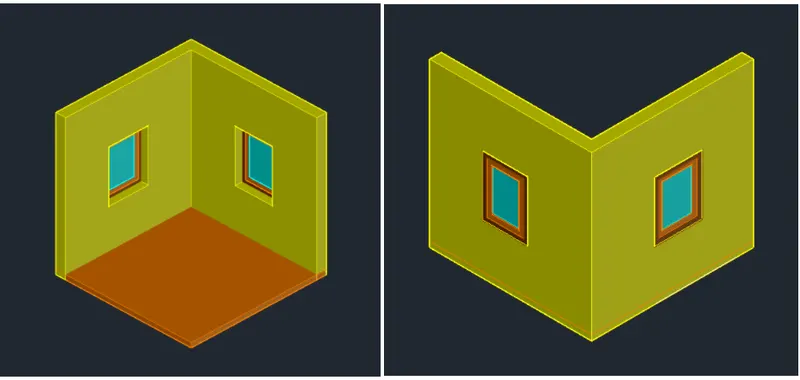

    Next we use the 3dorbit command to see the different views of the given figure.

    RESULT:-
    The given 3d isometric view of the building with plan and elevation is drawn successfully in the autocad in detailed
    manner.



    AIM:- To Create the 3D View of the Building Facade as given in the plan and elevation and need to create the window using
    the given dimensions.
    INTRODUCTION:-
    An isometric drawing is a 3D representation of an object, room, building or design on a 2D surface.
    One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final
    image is not distorted.
    This is due to the fact that the foreshortening of the axes is equal.
    In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out
    from this corner point.
    Isometric drawings begin with one vertical line along which two points are defined.
    COMMANDS USED:-
    Line command
    Rectangle command
    UCS command
    Dimlinear command
    Region commandRegion command
    Extrude command
    Substract command
    Box command
    Units command
    Dimstyle command
    3Dface command
    3Dorbit command
    Hide command
    Explode command
    Move command
    Copy command
    Dist command
    Solidedit command
    Union command
    Boundary command
    3Dmirror command
    3Drotate command
    Erase command
    Plan command
    PROCEDURE:-
    Step:-1
    First we have to open the autocad and the set the maximum limit and minimum limit on the screen.
    Here first have to draw the rectangle using the rectangle command, as shown in the figure.
    Next we have to draw the window of size of 3'-2" x 9".
    Step:-2
    Next we use the region command and select the objects, then press enter.
    Then after total objects will become the one region.
    Next we need to extrude the plan using the extrude command, with the height of 40'-10".Next we need to substract the four window portion vertically in a building facade with the distance 5'-11" with the window
    size of 3' x 4'.
    Step:-3
    Next we use the union command and press enter.
    Then after select the total drawing and press enter.
    Next the window portion will be clearly visible in the building facade as shown in the below figure.

    Step:-4
    Next we select the custom visual style as shaded with edges, as shown in the below figure.

    Step:-5
    Next provide the layers for the building facade of skyblue colour, as shown in the below figure.

    Step:-6
    Next we close the top surface of the building facade using the extrude command as shown in the below figure.

    Step:-7
    Next we draw the window of the size 3'-2" x 4' as shown in the below figure.
    We draw the this window using the line command and extruded using the extrude command.
    Step:-8
    Next we use 3dorbit command to view the front elevation as shown in the below figure.

    Step:-9

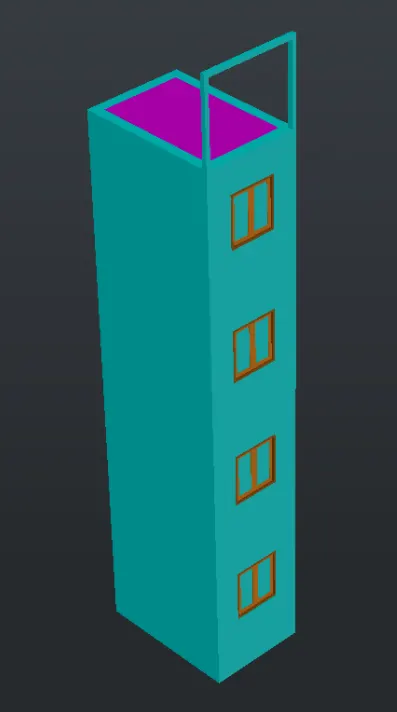

    Now put the building facade in the 3d isometric view using the 3dorbit command as shown in the below figure.

    RESULT:-
    The given 3d isometric view of the building facade is drawn successfully in the autocad in detailed manner


    AIM:- To create the ismoteric 3d view of a stair with railing as shown in the plan and elevation.INTRODUCTION:-
    An isometric drawing is a 3D representation of an object, room, building, stairs or design on a 2D surface.
    One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final
    image is not distorted.
    This is due to the fact that the foreshortening of the axes is equal.
    In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out
    from this corner point.
    Isometric drawings begin with one vertical line along which two points are defined.
    COMMANDS USED:-
    Line command
    Rectangle command
    UCS command
    Dimlinear command
    Region command
    Extrude command
    Substract command
    Box command
    Units command
    Dimstyle command
    3Dface command
    3Dorbit command
    Hide command
    Explode command
    Move command
    Copy command
    Dist command
    Solidedit command
    Union command
    Boundary command
    3Dmirror command
    3Drotate command
    Erase command
    Plan command
    Circle command
    Sweep command
    PROCEDURE:-
    Step:-1
    First we open the autocad and set the maximum limit and minimum limit.
    Next we set the units as architectural and take the precison as 0'-0".
    Next we draw the stairs using the line command.
    We draw the stairs with the riser of 6" and tread of 1' as shown in the below figure.

    Step:-2
    Next we use the 3drotate to rotate the figure from the step:-1.
    Next we use the extrude command to extrude the rotated figure to form the stair in 3d view.
    Step:-3
    Next we draw the railing using the circle command and sweep command.
    Next we show the stairs in the side view using the 3drotate command as shown in the below figure.

    Step:-4

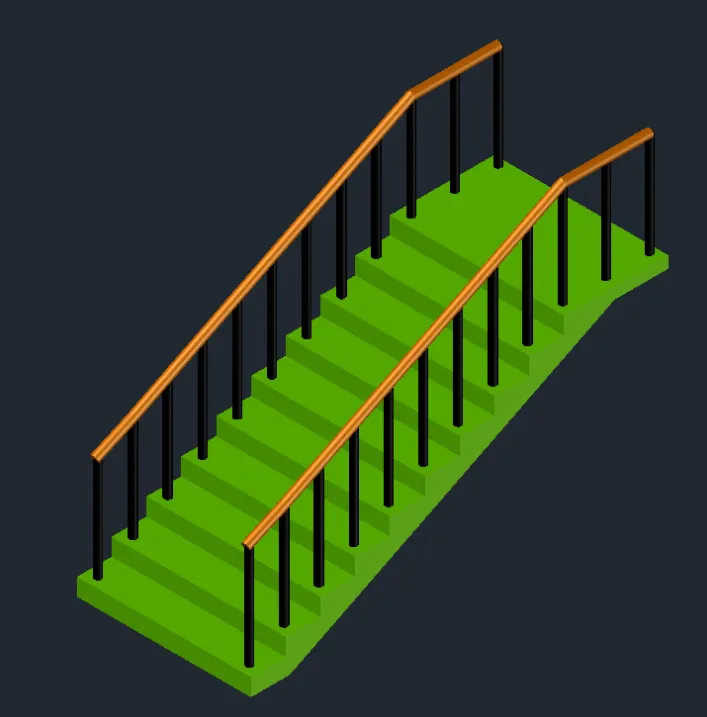

    Now put the stair in the 3d isometric view using the 3dorbit command as shown in the below figure.
    RESULT:-The given 3d isometric view of the stair is drawn successfully in the autocad in detailed manner.



    AIM:- To create the 3D view of a Wall with spread footing And need to create a rendered view of the model with materials.
    INTRODUCTION:-
    An isometric drawing is a 3D representation of an object, room, building, stairs or design on a 2D surface.
    One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final
    image is not distorted.
    This is due to the fact that the foreshortening of the axes is equal.
    In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out
    from this corner point.
    COMMANDS USED:-
    Line command
    Rectangle command
    UCS command
    Dimlinear command
    Region command
    Extrude command
    Substract command
    Box command
    Units command
    Dimstyle command
    3Dface command
    3Dorbit command
    Hide command
    Explode command
    Move command
    Copy command
    Dist command
    Solidedit command
    Union command
    Boundary command
    3Dmirror command
    3Drotate command
    Erase commandPlan command
    PROCEDURE:-
    Step:-1
    First we open the autocad and set the maximum limit and minimum limit.
    Next we set the units as decimal and take the precision as 0.
    Next we have to draw plan of wall with spread footing with given dimensions
    Step:-2
    Next we draw the 3d isometric view of the wall with spread footing using the extrude command
    figure.Step:-3
    Next provide the layers for the wall with spread footing with different colours for different parts,
    figure.
    Step:-4
    Next we provide the different materials for the wall with spread footing,

    Step:-5
    We select the camera and put it in the required postion and then press enter.
    Next click on the camera then the small tab will appears at the top of the left corner,
    Step:-6

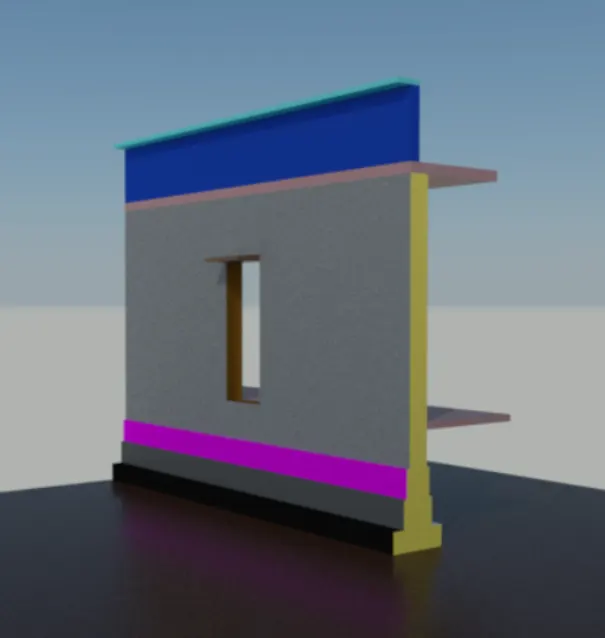

    Finally we select the render option and then slowly it changes to the rendering view

    .RESULT:-
    The 3D view of a Wall with spread footing And created a rendered view of the model with materials successfully in the
    autocad in detail.

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Vejetha Sajeevan (56)

    Project 1

    Objective:

    ### Given Data- Floor thickness: t=120 mm=0.12 mt=120 mm=0.12 m- Density of concrete: ρ=24 kN/m3ρ=24 kN/m3- Floor finish and mechanical loads: 3 kPa3 kPa- Live load: 5 kPa5 kPa- Modulus of elasticity of concrete: E=10 GPaE=10 GPa- Beam dimensions: \( 500 \text{ mm} \times…

    calendar

    03 Jun 2024 01:44 PM IST

      Read more

      Project 2

      Objective:

      Aim - To Model & Design a Proposed PEB Warehouse using STAAD. Pro. Introduction - Here we model and design the PEB warehouse building. As per given description, material data, specification we can design it.  PEB - Pre engineered buildings are factory built buildings shipped to site and assembled by bolting together. The…

      calendar

      14 May 2023 12:08 PM IST

      • DESIGN
      • HVAC
      Read more

      Week 12 Challenge

      Objective:

      Design of Foundation in STAAD Foundation 1. Isolated Footing Design isolated footing for a column 300 mm x 450 mm, carrying axial load of 1500 kN and Mu = 150 kNm using STAAD. Foundation. Assume that the moment is reversible. The safe bearing capacity of the soil is 200 kN/m2 at a depth of 1 metre from ground level. Use…

      calendar

      09 May 2023 07:59 AM IST

      • DESIGN
      • HTML
      Read more

      Week 11 Challenge

      Objective:

      Analysis & Design of Pipe Rack Structure in STAAD.pro Question 1:- Friction load determination A pipe carrying LNG rests on the shoe having vertical force of 125 kN. Calculate the Friction load on the axis. Also find the friction force, if TEFLON pad is used between shoe and pipe support.   Aim:-  To calculate…

      calendar

      09 May 2023 06:47 AM IST

        Read more

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        Related Courses

        coursecard

        Design loads considered on bridges

        Recently launched

        10 Hours of Content

        coursecard

        Design of Steel Superstructure in Bridges

        Recently launched

        16 Hours of Content

        coursecard

        Design for Manufacturability (DFM)

        Recently launched

        11 Hours of Content

        coursecard

        CATIA for Medical Product Design

        Recently launched

        5 Hours of Content

        coursecardcoursetype

        Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

        Recently launched

        0 Hours of Content

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        logo

        Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

        https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

        Our Company

        News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
        map
        EpowerX Learning Technologies Pvt Ltd.
        4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
        mail
        info@skill-lync.com
        mail
        ITgrievance@skill-lync.com

        Top Individual Courses

        Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

        Top PG Programs

        Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

        Skill-Lync Plus

        Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

        Trending Blogs

        Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

        © 2025 Skill-Lync Inc. All Rights Reserved.

                    Do You Want To Showcase Your Technical Skills?
                    Sign-Up for our projects.
